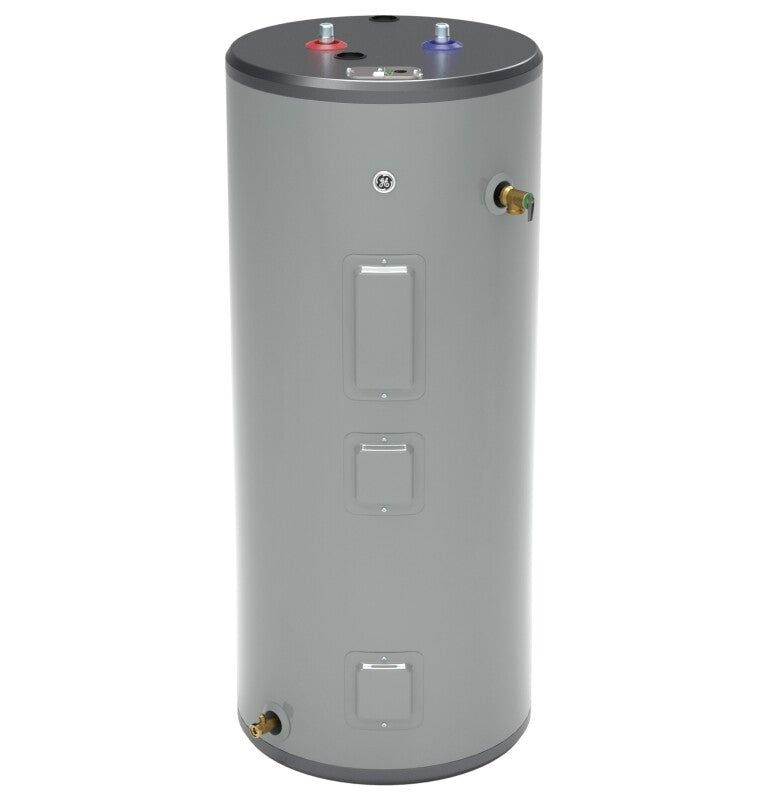

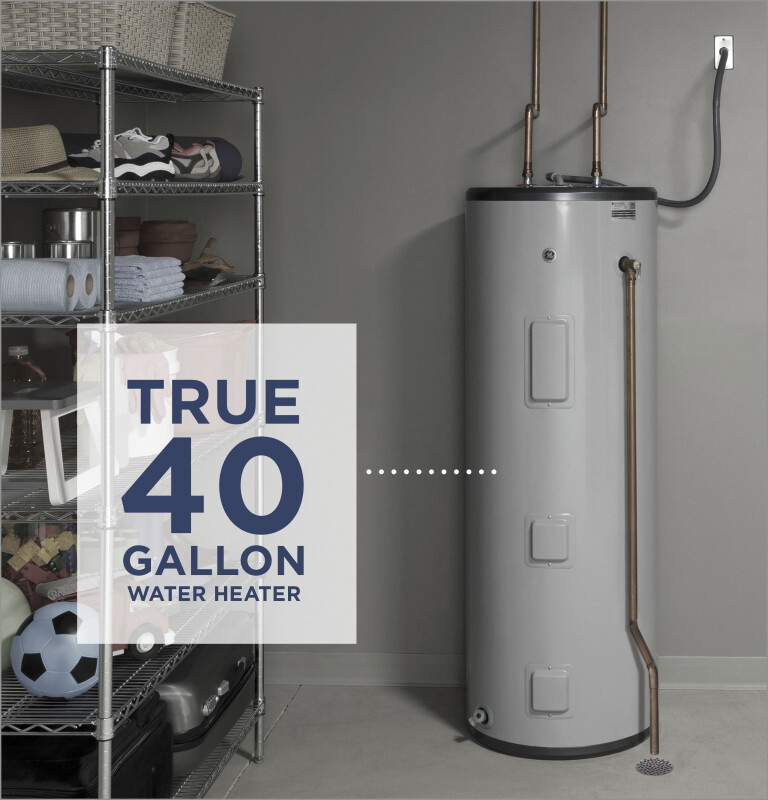

Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

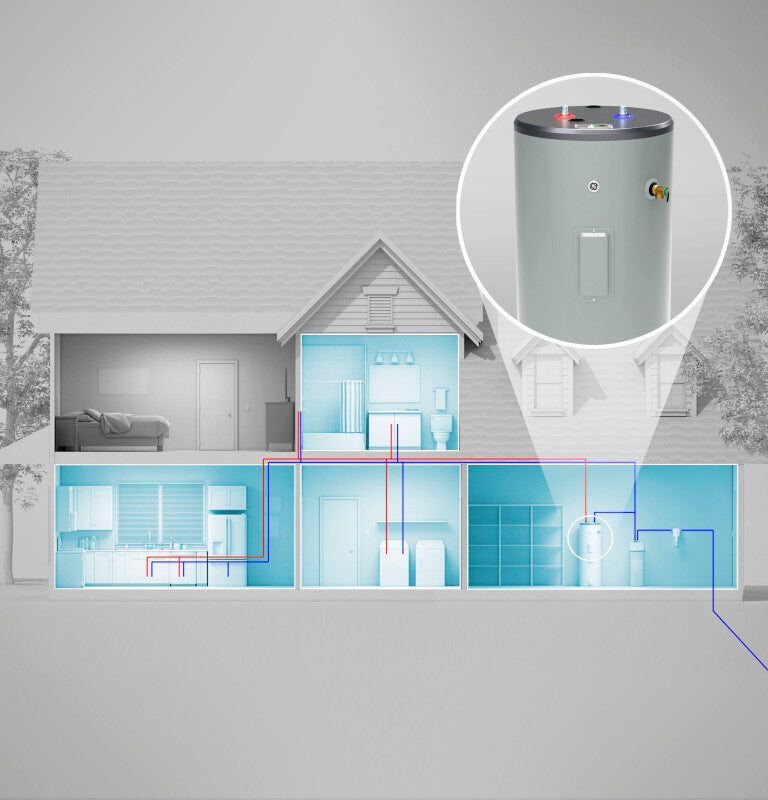

Provide hot water for the whole family of 2 to 4 persons

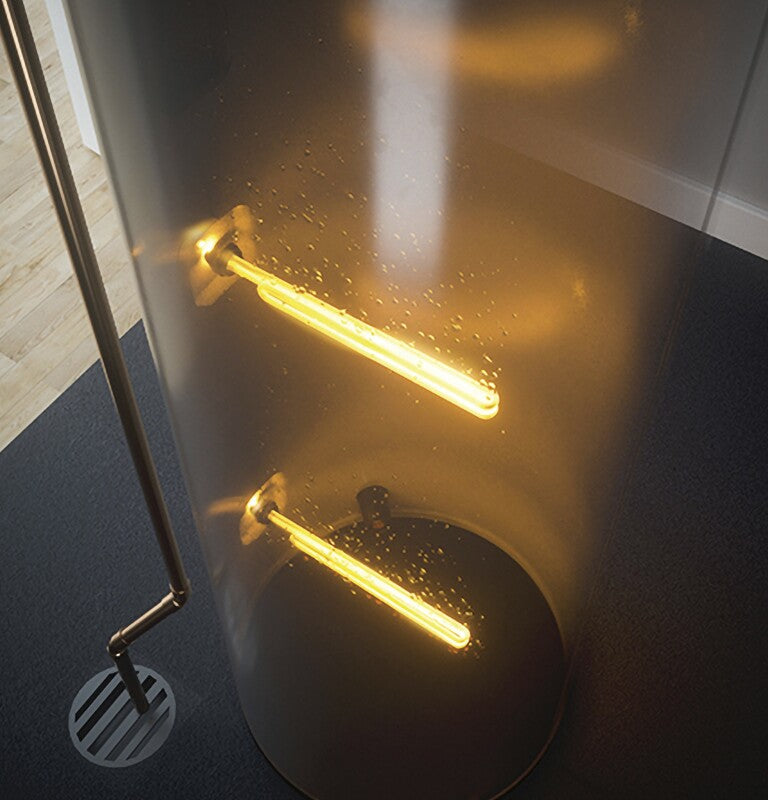

Two 5500W heating elements quickly increase water temperature for hot water when you need it

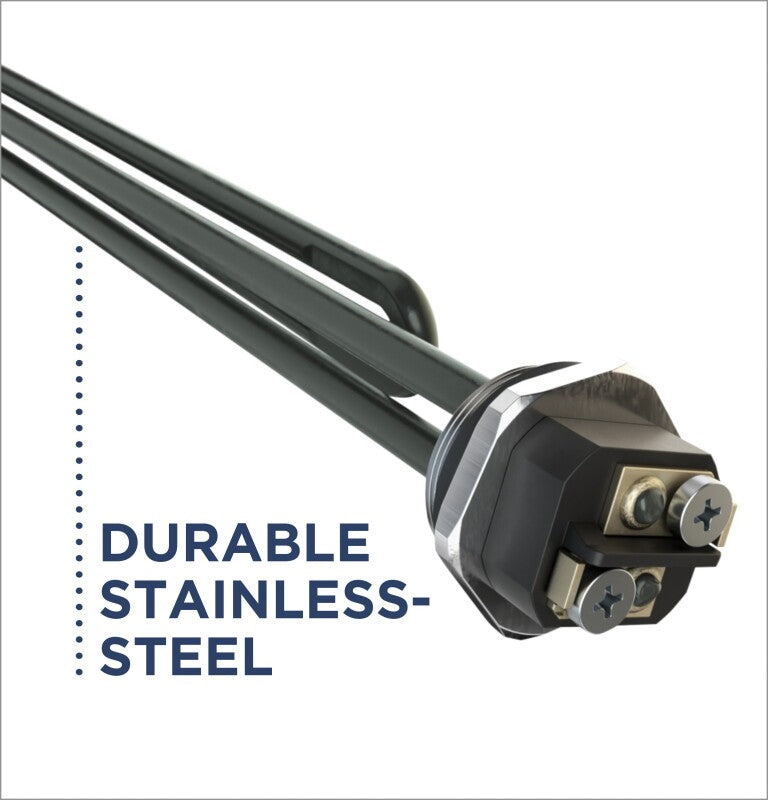

Ultra-durable stainless-steel heating elements resist rust and corrosion
Replenishes water from the bottom...
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Provide hot water for the whole family of 2 to 4 persons
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Ultra-durable stainless-steel heating elements resist rust and corrosion

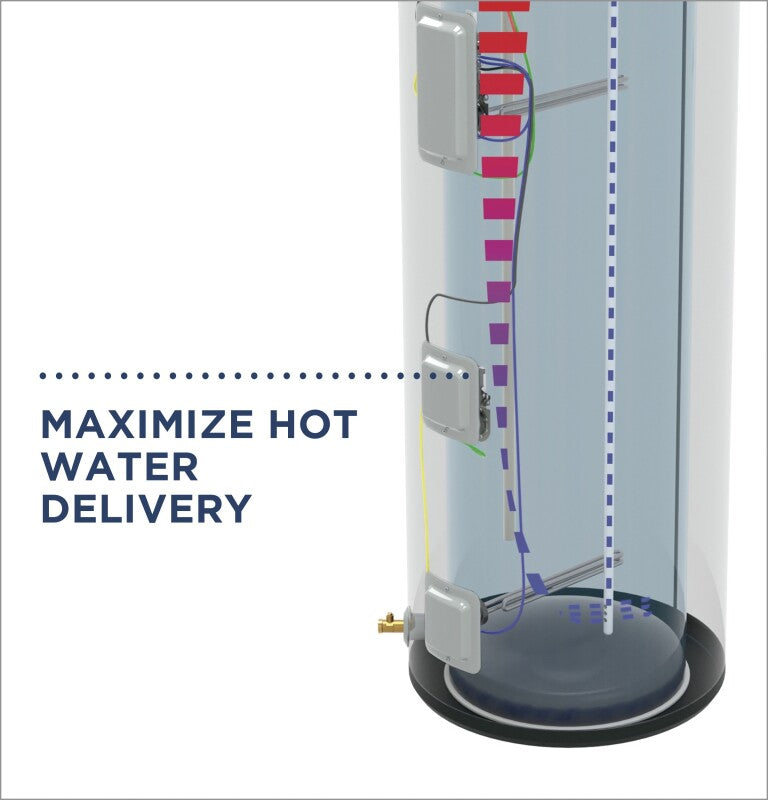

Replenishes water from the bottom of the tank to maximize hot water delivery
Rust-proof construction can be counted on to provide long-lasting service

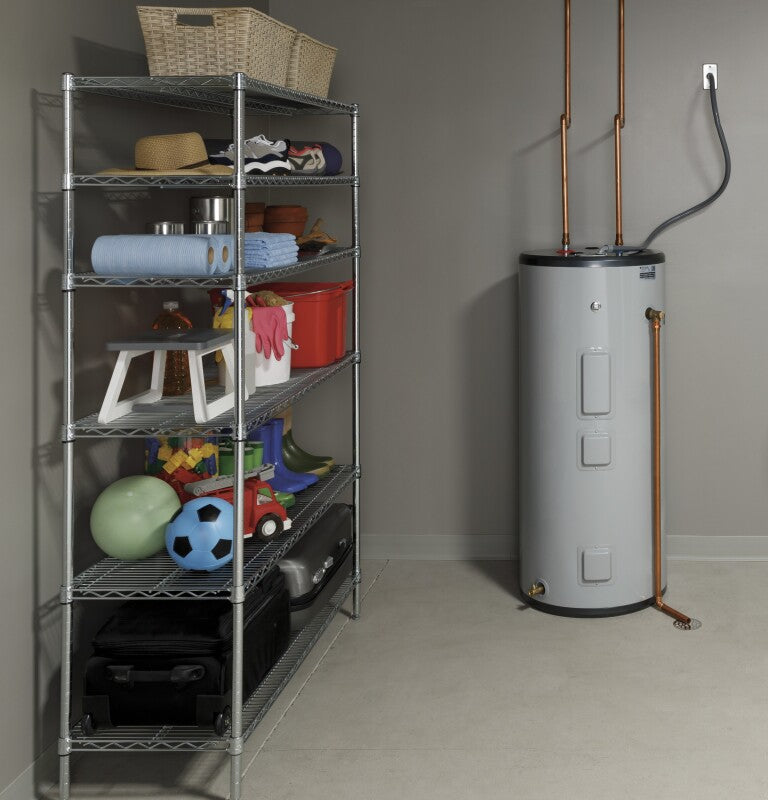

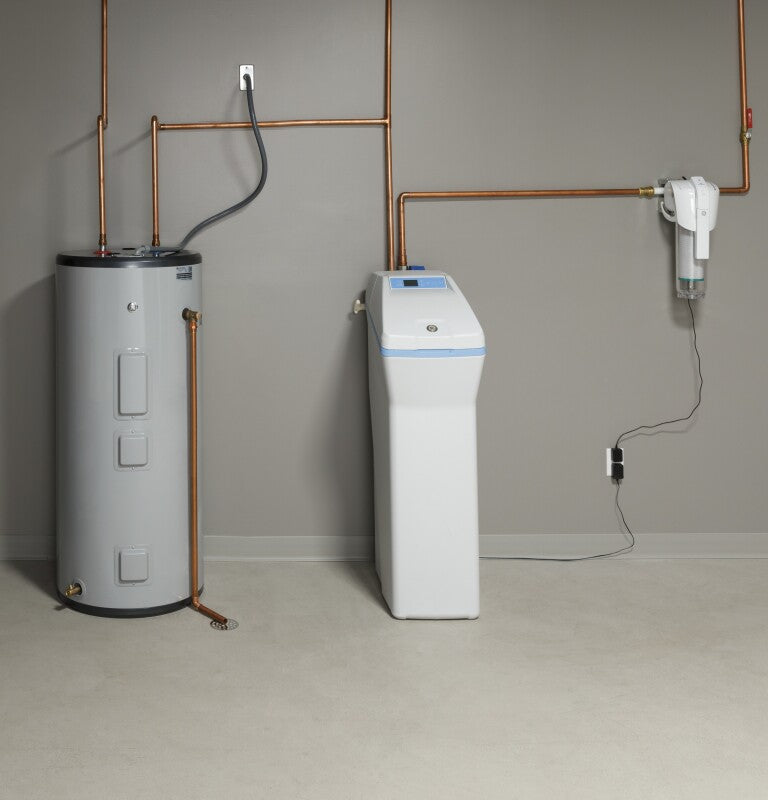

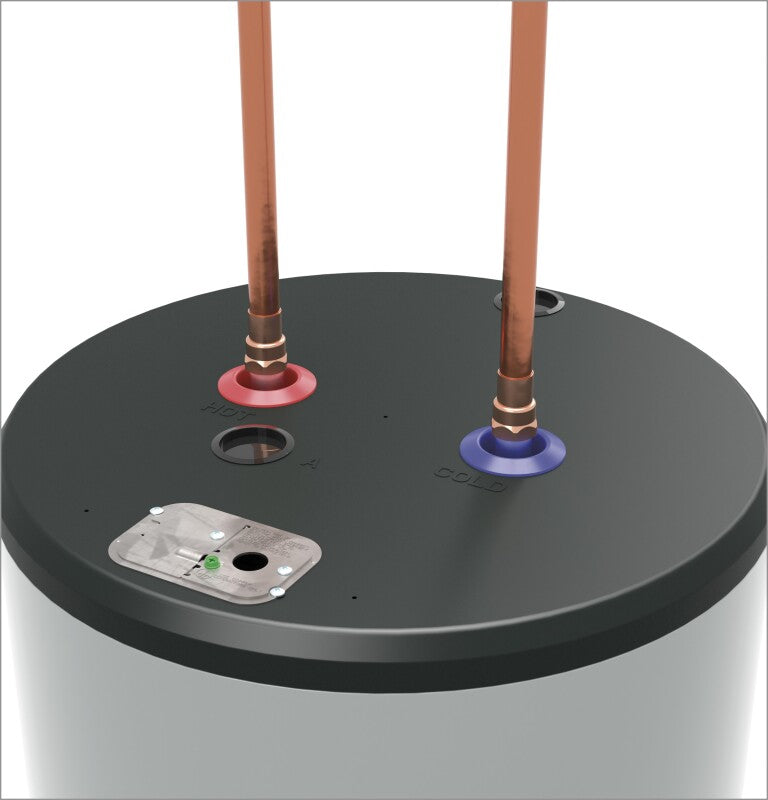

Replace your old water heater quickly and easily using standard water and electrical connections

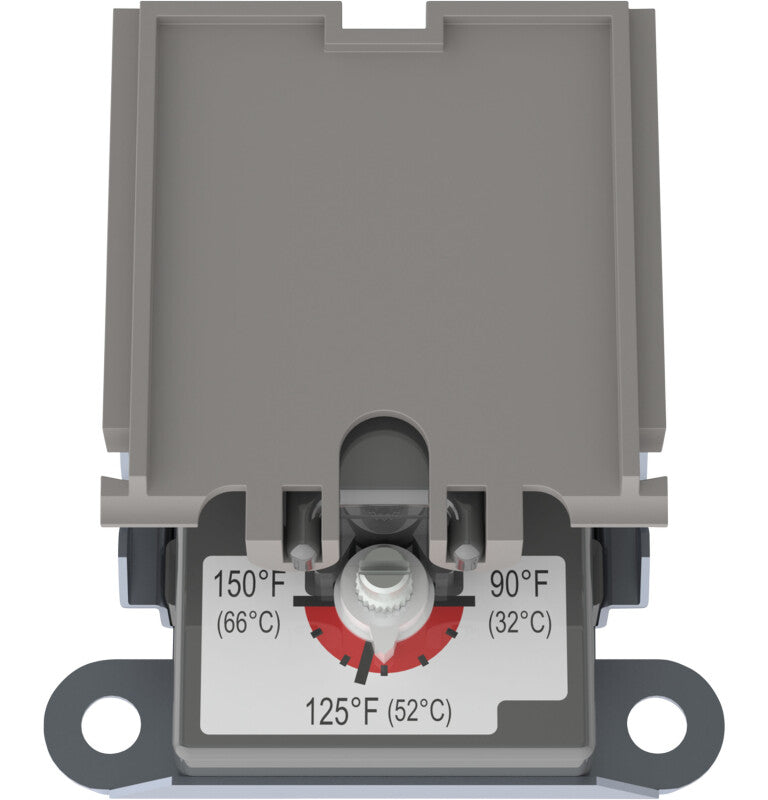

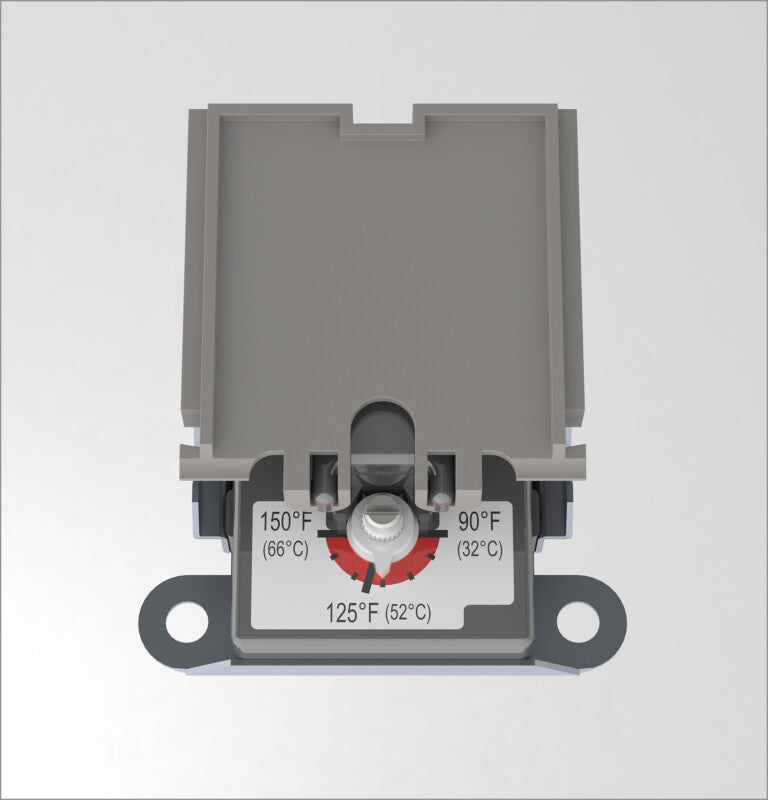

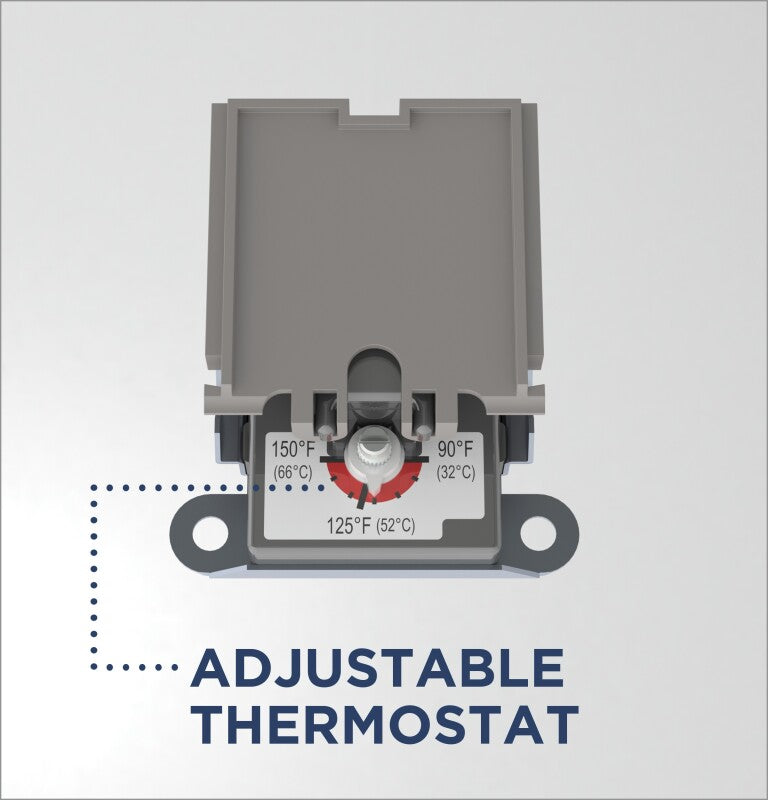

Change temperature to your desired setting
| CAPACITY | |
| Unit Capacity | 40 Gallons |
| FILTER | |
| App Filter - Vacation Mode | No |
| App Filter - Tank Diameter | 22 in. and above |
| App Filter - Capacity | Water Heater 40-49 gallons |
| App Filter - Product Type | Water Heaters Electric Standard |
| App Filter - Tank Warranty | 10 year limited |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Integrated Energy Factor | 0.92 |
| Volts/Hertz | 240V; 60Hz |
| Heating - Electric - Heater Watts | 5500/5500 |
| Voltage (MAX) | 240.0 |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Electrical Connection | Direct-Wire |
| First Hour Rate (FHR) | 66 Gallons |
| Operating Water Pressure | 20-125 PSI |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 10-year limited |
| Labor Warranty | 1-year limited |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 121.0 |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |

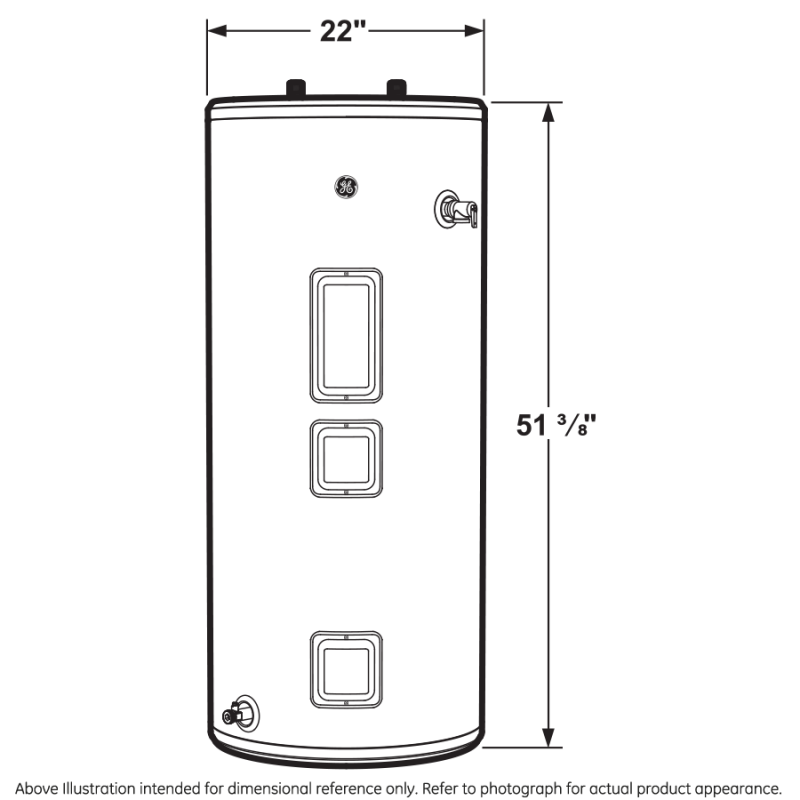

| Product Height (to top of water inlet/outlet connections) | 52.875 |
| Product Diameter | 22.0 |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| Product Height (to top of unit) | 51.375 |
| Approximate Shipping Weight | 133.0 |
| FEATURES | |
| Heating Element | Stainless steel |
| Foam Insulation | Yes |
| Fuel Type | Electric |
| Rated Storage Capacity | 40 |

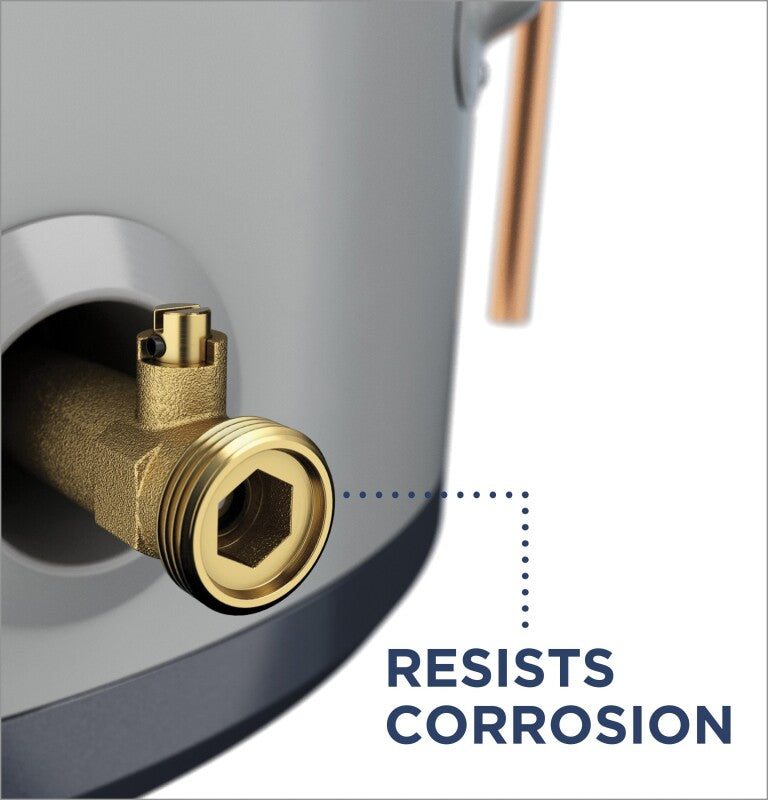

| Drain Valve Type | Brass |
| Configuration | Short |
| Temperature Setting Factory Default | 120° F |
| Operating Modes | Standard Electric |
| Water Connection Location | Top |
| Mobile Home Compatible | No |
| Control Type | Thermostat |
| Installation Location | Indoor |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Product Type | Electric Thermostat |
| Insulation Thickness | 2.75 |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Family Size | 2-4 People |
| Height Description | Short |
| Temp & Pressure Relief Valve | Yes |
