SKU: GE40S08DAT | UPC: 84691922872

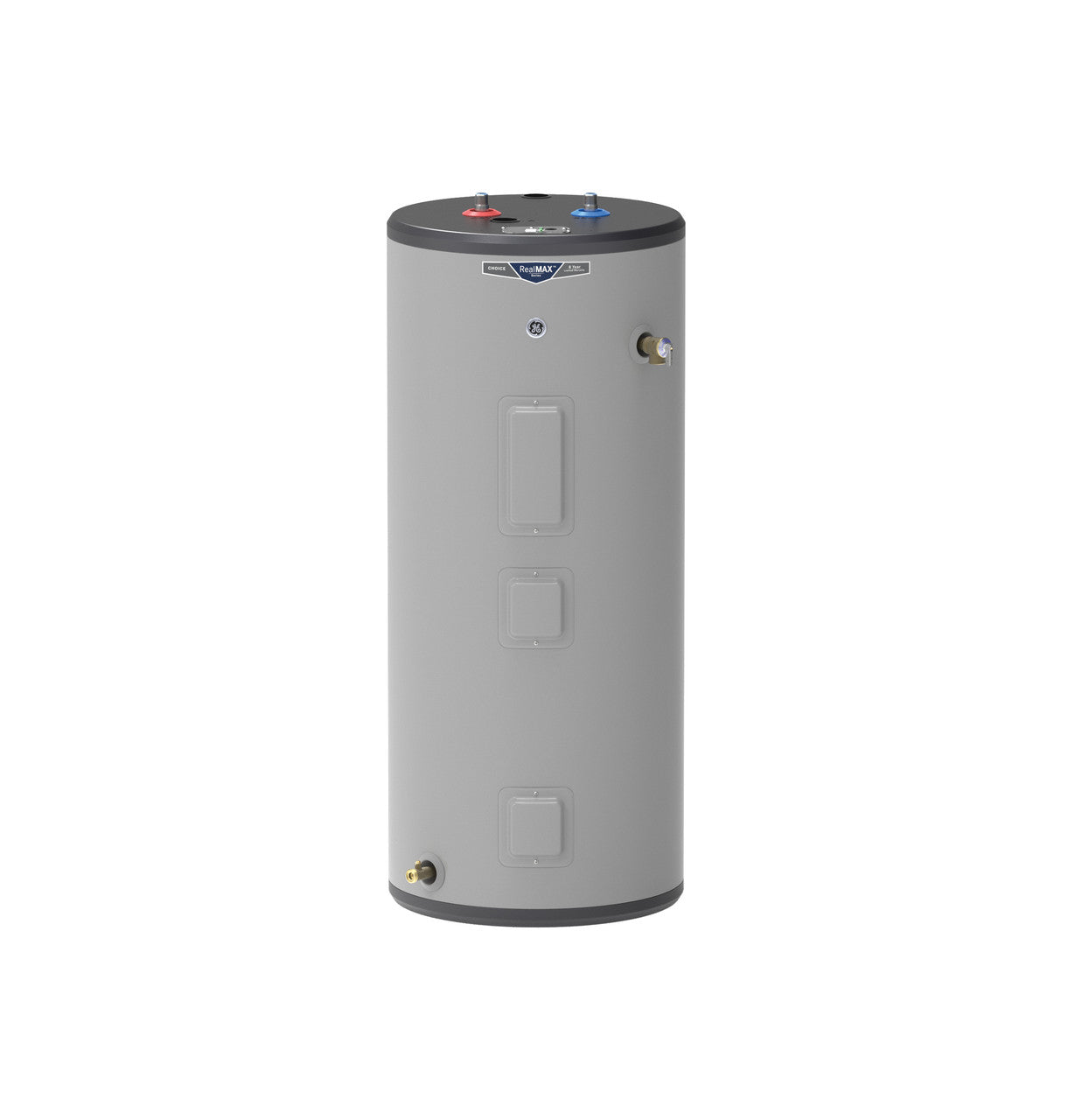

GE40S08DAT 40 Gallon Short 4500W Electric Water Heater Gray

Quick Specification More details

Width:
22"
Depth:
22"
Height:
52.88"
Type:
Tank Water Heaters

About this product

Real Capacity
Maximum Performance
Household Size
4500W Heating Elements

SKU: GE40S08DAT | UPC: 84691922872

GE40S08DAT 40 Gallon Short 4500W Electric Water Heater Gray

$679.88 ~~$934.97~~ Save $255.09 / 27% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
22"
Height:
52.88"
Type:
Tank Water Heaters

About this product

Real Capacity
Maximum Performance
Household Size
4500W Heating Elements

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

$679.88 ~~$934.97~~ Save $255.09 / 27% OFF

Product Details for GE GE40S08DAT

Technical Details

Other

Product Diameter	22 in
Connection Sizes - Water Inlet (MNPT)	3/4"

Dimensions & weight

Width	22 in.
Height	52.88 in.
Length	22 in.
Weight	121 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	27 in.
Shipping Height	57.88 in.
Shipping Length	27 in.
Shipping Weight	161 lbs.
Total of Shipping Weight	161 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	14.81 ft³
Dimensional Weight	184.11 lbs.
Total of Cubes	14.81 ft³
Total of Dimensional Weight	184.11 lbs.

Weights & dimensions

Overall Width	22 in
Overall Height	52.875 in
Product Height (to top of unit)	51.375 in
Overall Depth	22 in
Product Height (to top of water inlet/outlet connections)	52.875 in
Approximate Shipping Weight	133 lb
Net Weight	121 lb
Product Diameter	22 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"

Features

Control Type	Thermostat
Temp & Pressure Relief Valve	Yes
Height Description	Short
Heating Element	Copper
Fuel Type	Electric
Configuration	Short
Installation Location	Indoor
Operating Modes	Standard Electric
Rated Storage Capacity	40
Drain Valve Type	Plastic
GPH Recovery @ 90 Degrees F	25.1
Mobile Home Compatible	No
Temperature Setting Factory Default	120° F
Product Type	Electric 4500W
Family Size	2-4 People
Water Connection Location	Top
Foam Insulation	Yes
Point of Use	No
Temperature Setting	90-150° F Range
Insulation Thickness	2.75 in
Rated Capacity	40

Power / ratings

Integrated Energy Factor	0.92
Heating - Electric - Heater Watts	4500/4500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	63 Gallons
Voltage (MAX)	240 V
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kWh/year)	3531

Warranty

Warranty Notes	See written warranty for full details
Parts Warranty	Limited 8-year tank and parts
Labor Warranty	Limited 1-year entire appliance

Capacity

Unit Capacity

40 Gallons

Appearance

Color Appearance

Gray

Description

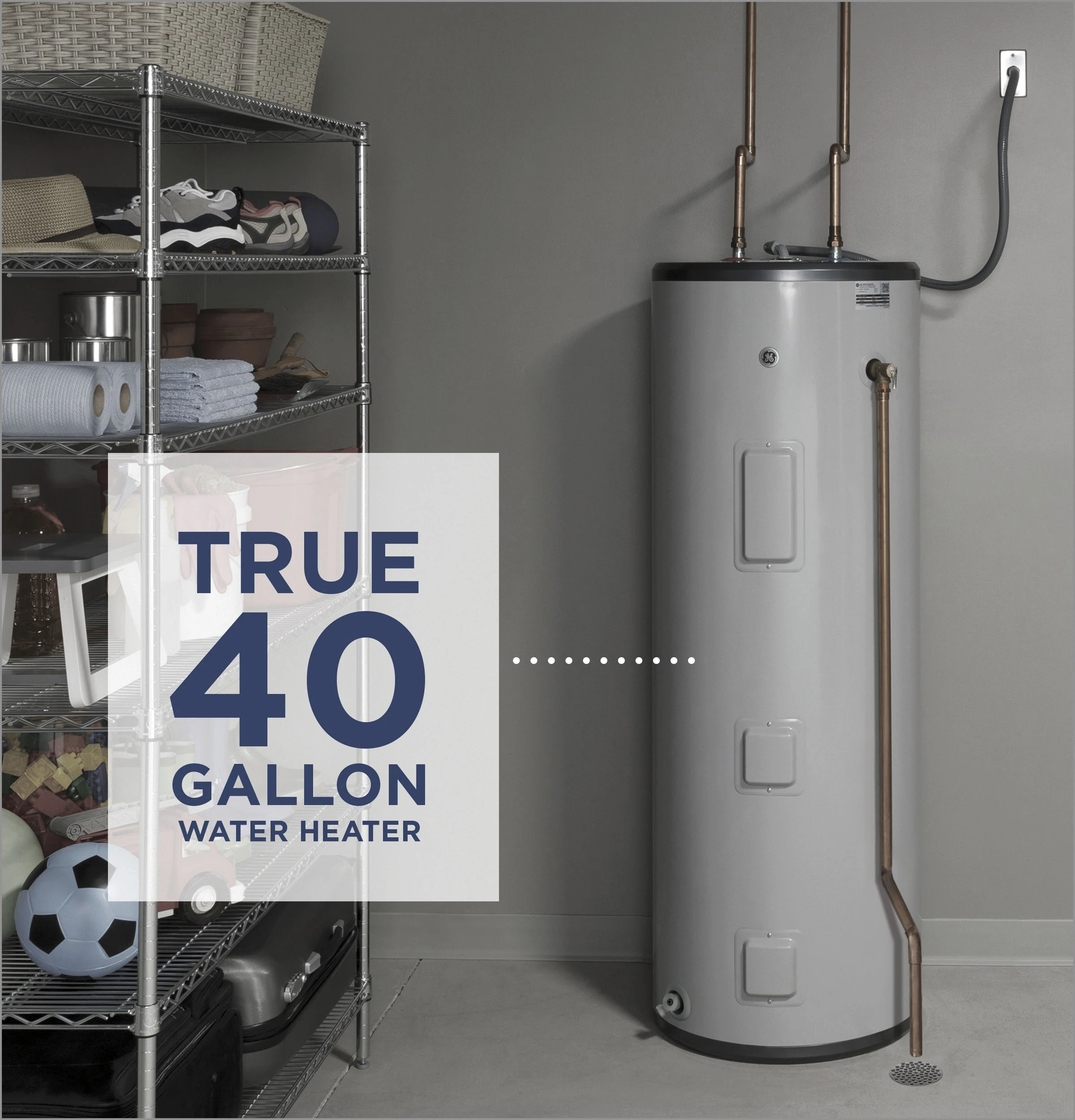

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)

Maximum Performance
Live comfortably with this best in class unit that delivers 63 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Household Size
Provide hot water for the whole family of 2 to 4 persons

4500W Heating Elements
Two 4500W heating elements that require 25 Amp to operate will increase water temperature for hot water when you need it

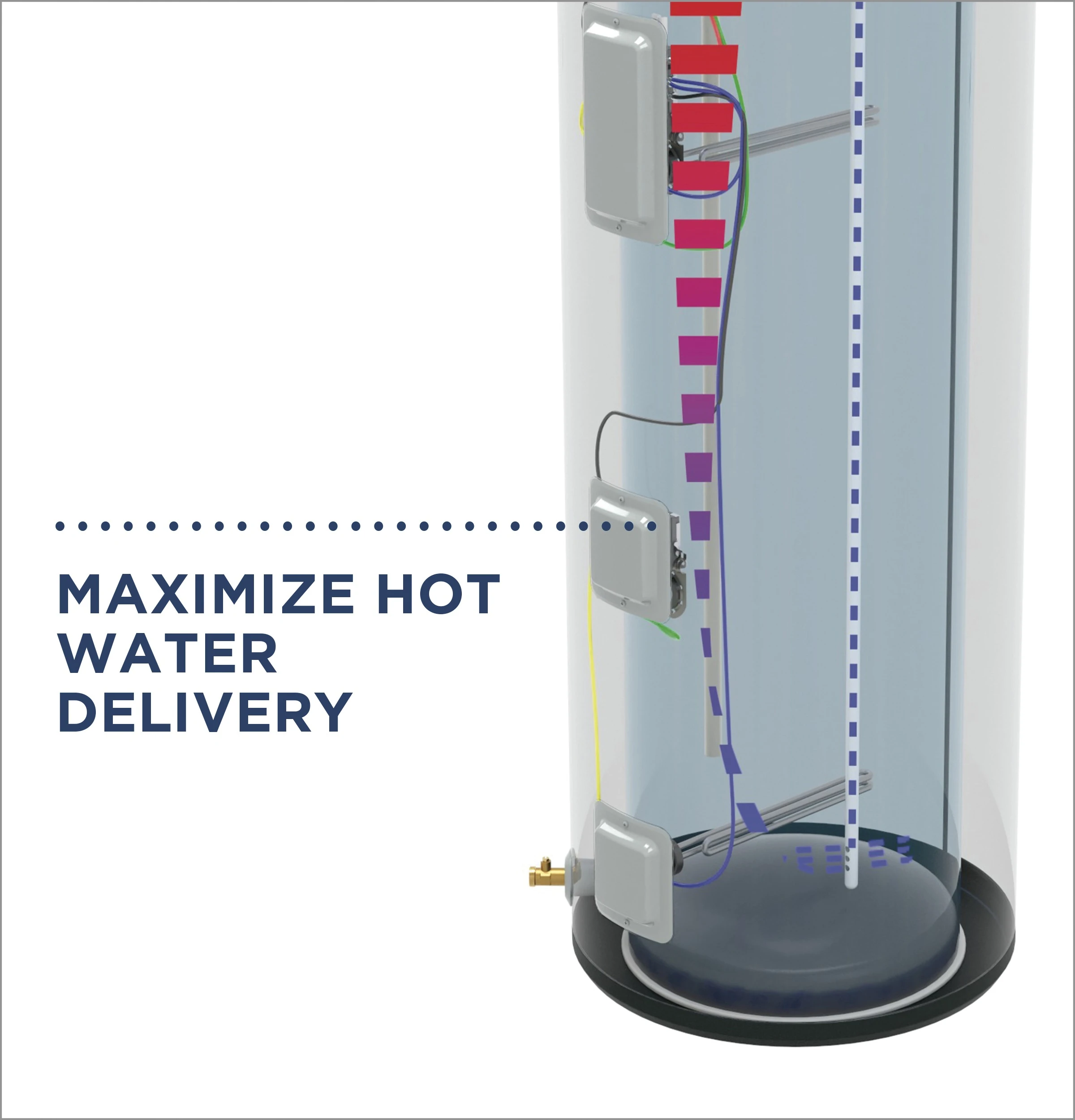

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

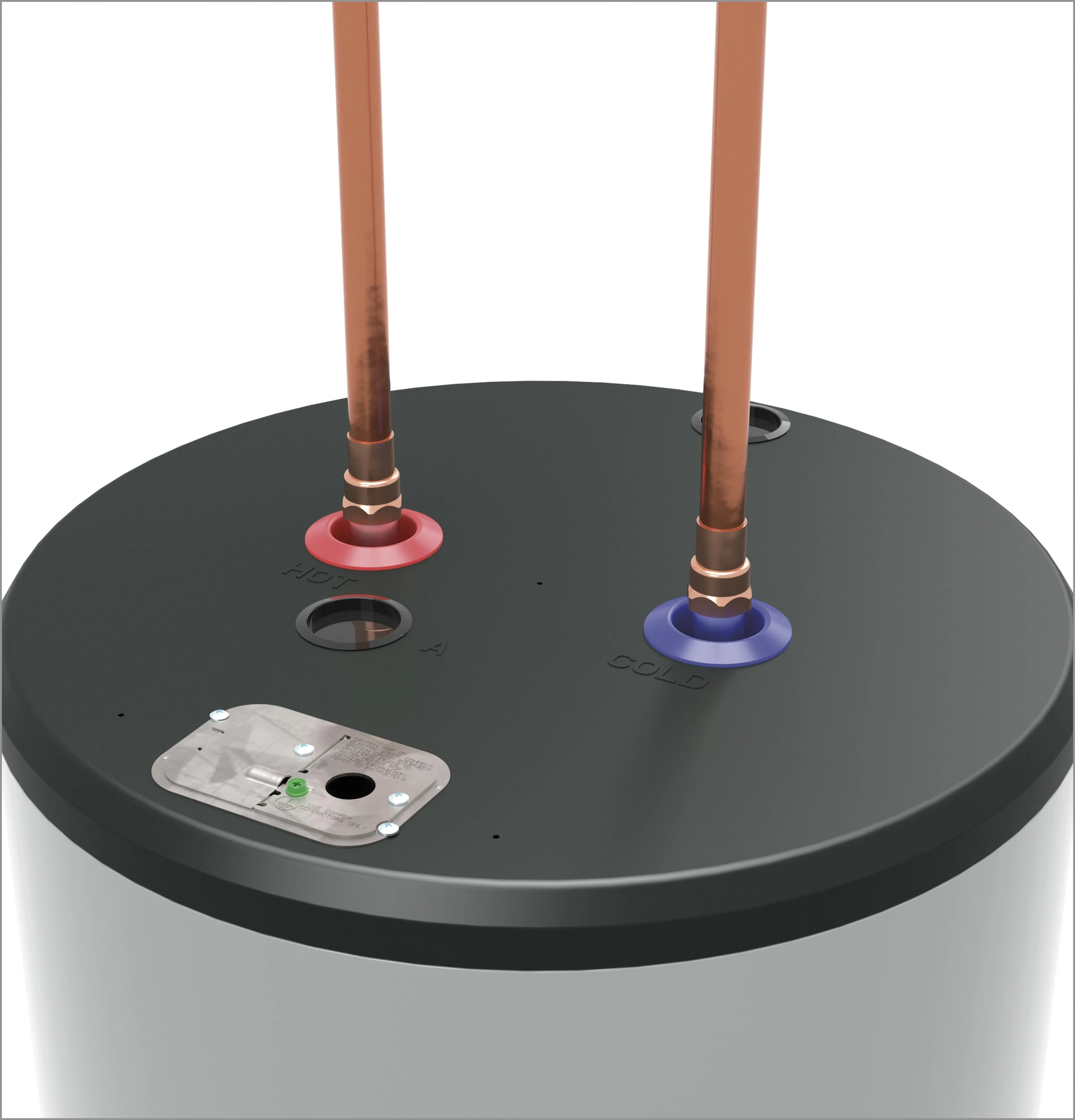

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

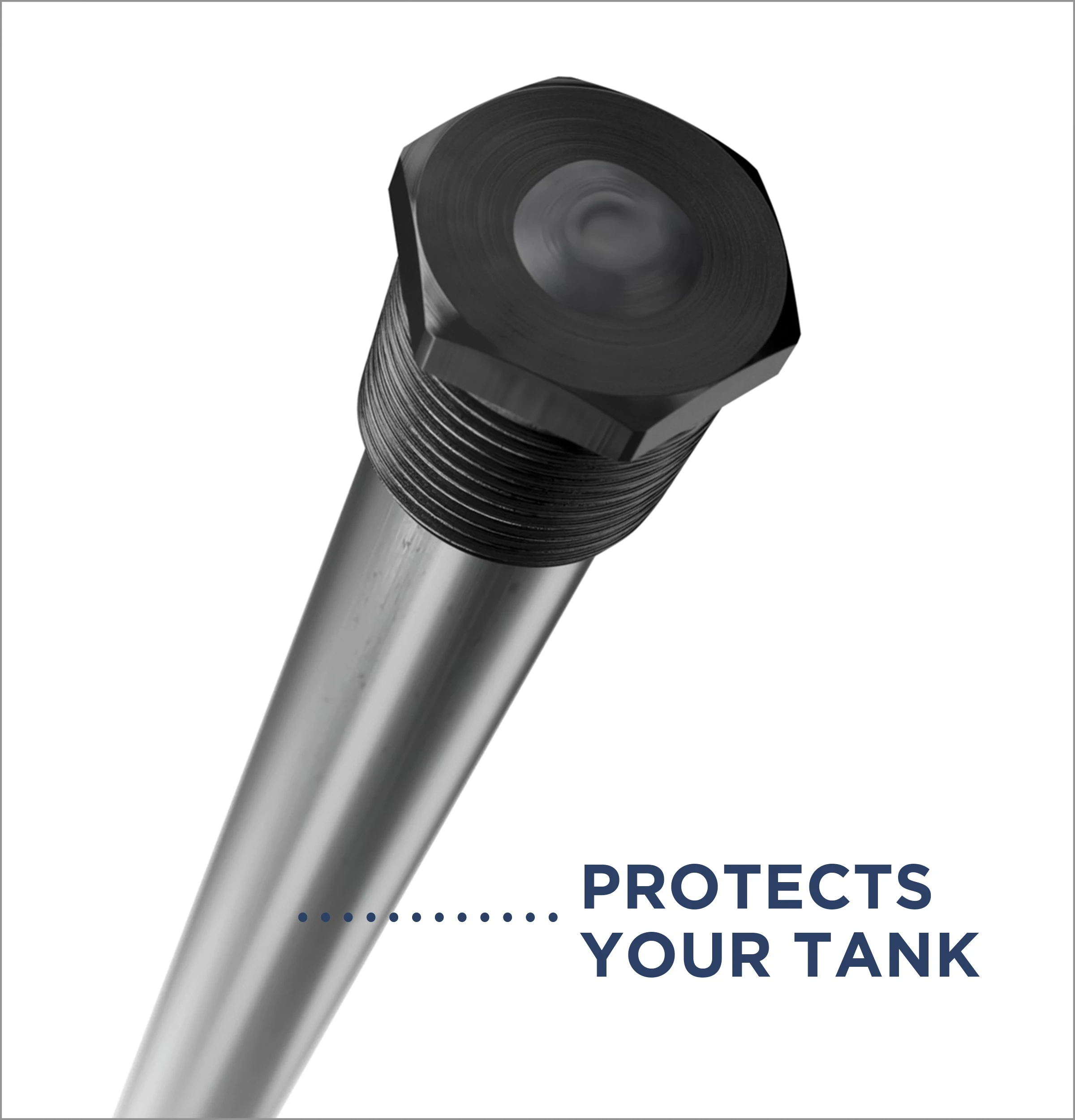

Anode Rod
Durable design offers long-lasting protection against corrosion

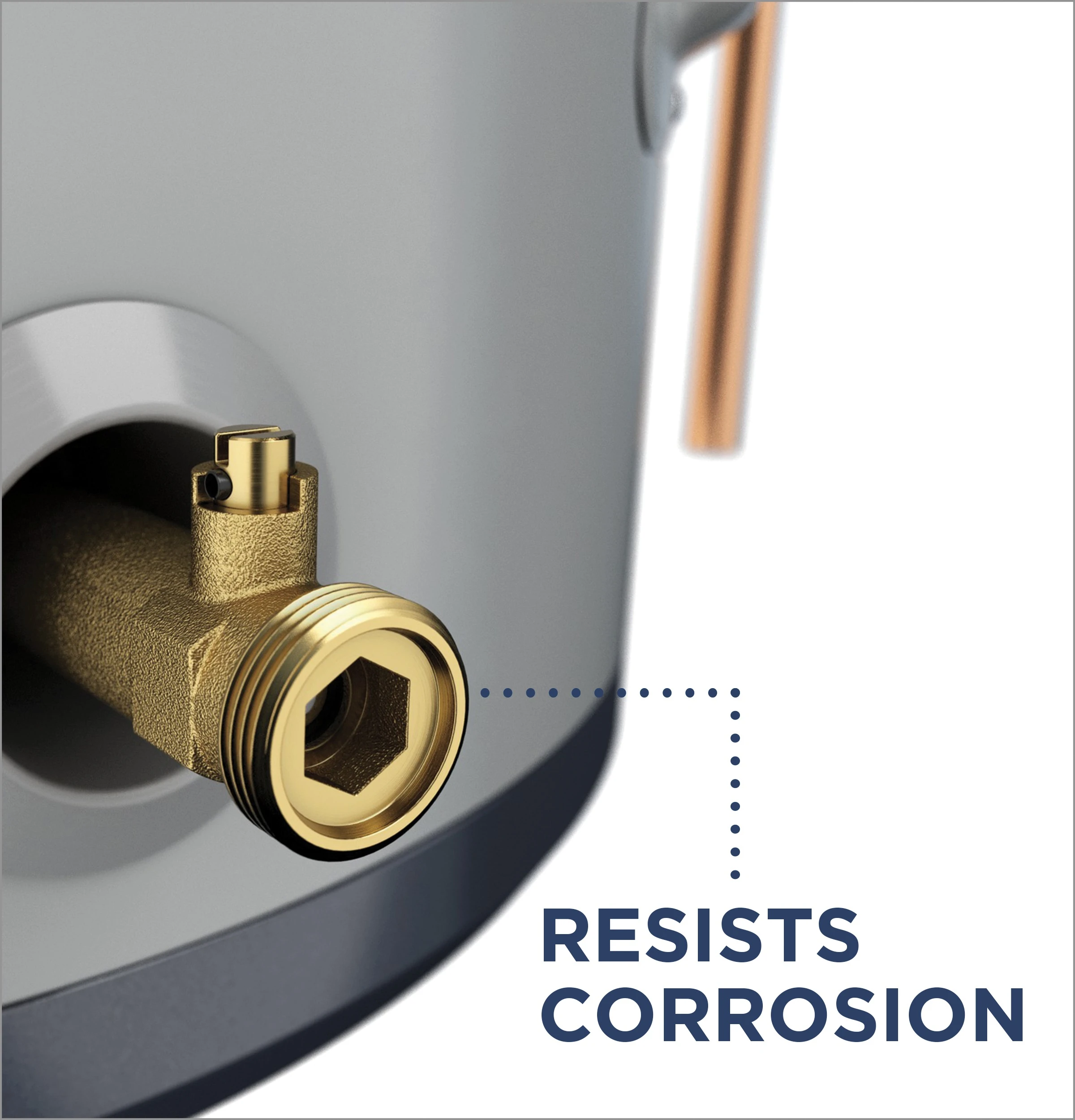

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

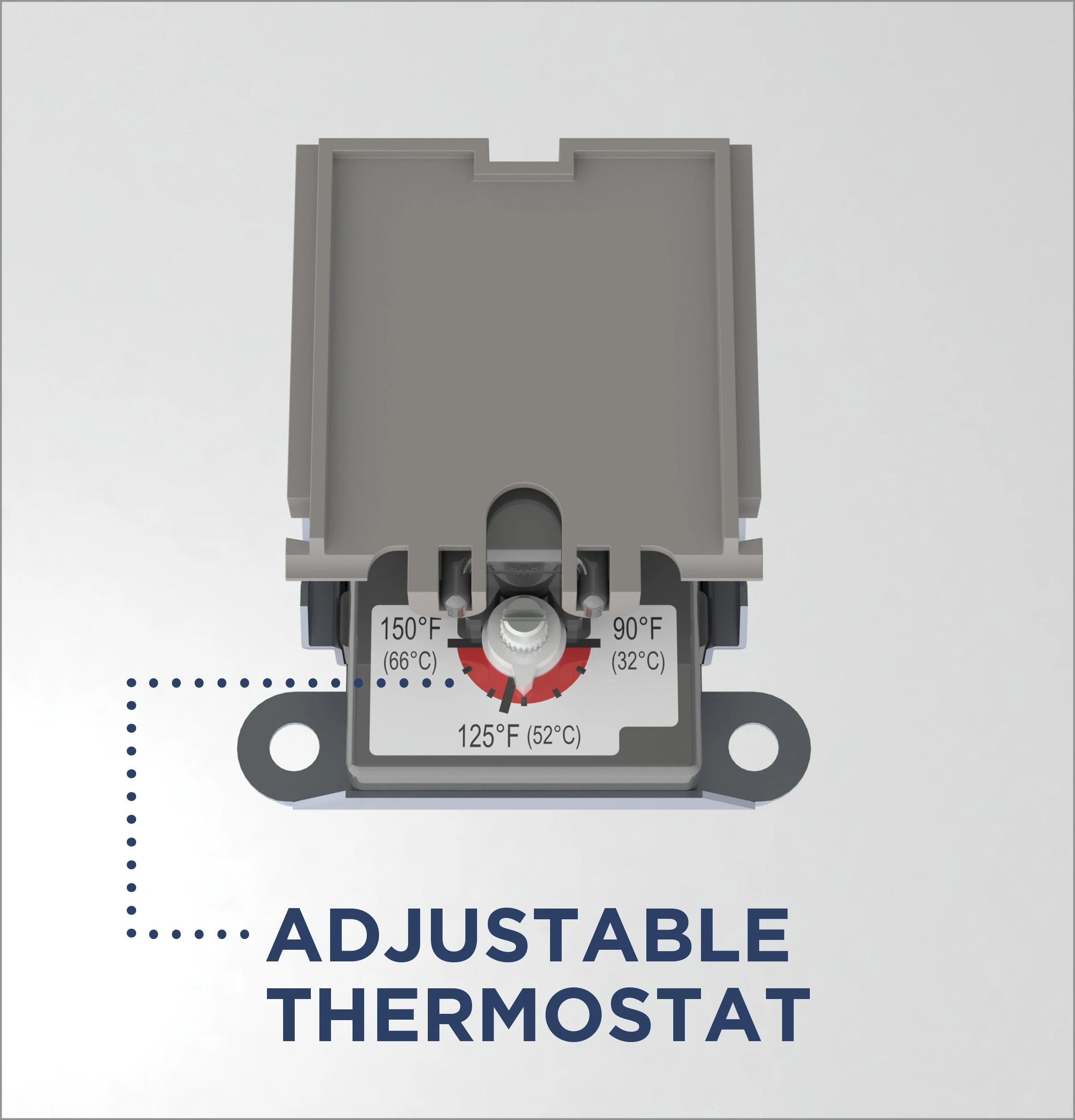

Adjustable Thermostat
Change temperature to your desired setting

Product Features

Maximum Performance
Live comfortably with this best in class unit that delivers 63 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
4500W Heating Elements
Two 4500W heating elements that require 25 Amp to operate will increase water temperature for hot water when you need it

Manuals & Guides

Key Features

Real Capacity

Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
