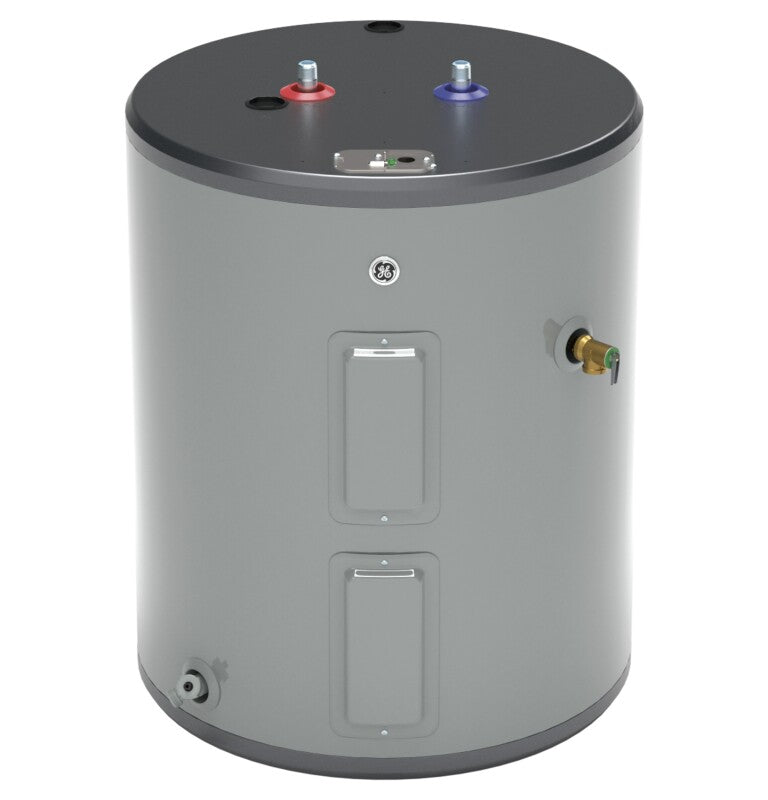

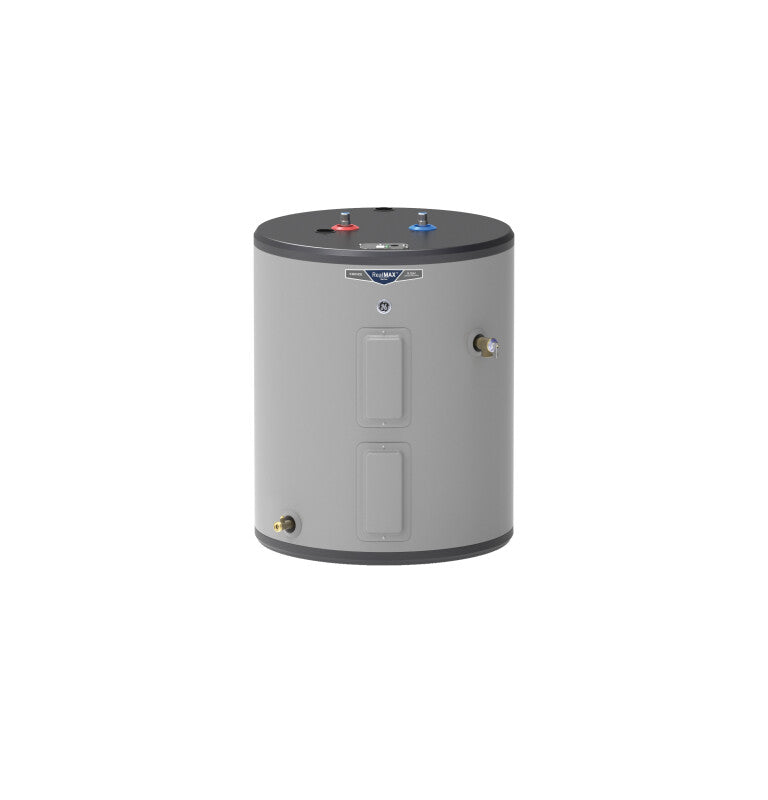

GE40L08BAM 36 Gallon Top Port Lowboy Electric Water Heater Gray
Sale price
$664.45
Regular price
$913.97
Save
$249.52
/ 27% OFF
Quickship
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$664.45
Regular price
$913.97
Save
$249.52
/ 27% OFF
Product Details for GE GE40L08BAM
Technical Details

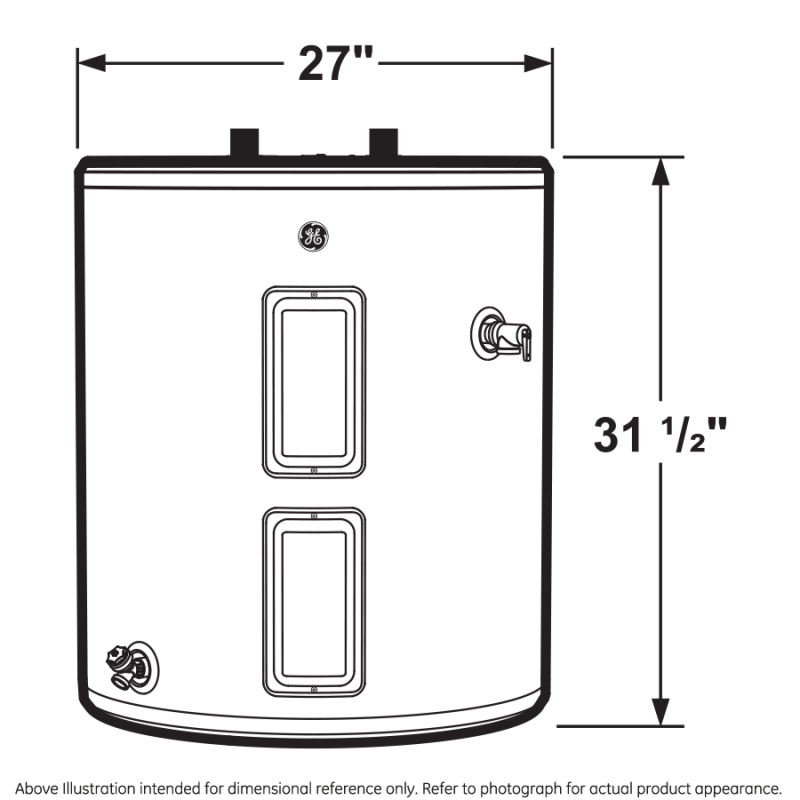

Weights & dimensions
| Overall Width | 27 in |
| Overall Height | 32.75 in |
| Product Height (to top of unit) | 32.75 in |
| Overall Depth | 27 in |
| Product Height (to top of water inlet/outlet connections) | 34.25 in |
| Approximate Shipping Weight | 145 lb |
| Net Weight | 135 lb |
| Product Diameter | 27 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
Dimensions & weight
| Width | 27 in. |
| Height | 32.75 in. |
| Length | 27 in. |
| Weight | 135 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 37.75 in. |
| Shipping Length | 32 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 13.82 ft³ |
| Dimensional Weight | 171.76 lbs. |
| Total of Cubes | 13.82 ft³ |
| Total of Dimensional Weight | 171.76 lbs. |
Features
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Low Boy with Top Port |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 36 |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric Thermostat |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
| Drain Valve Type | Brass |
| Rated Capacity | 36.0 gal |
Power / ratings
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 61 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 3531 |
Warranty
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
Capacity
| Unit Capacity | 40 Gallons |
Appearance
| Color Appearance | Gray |
Description

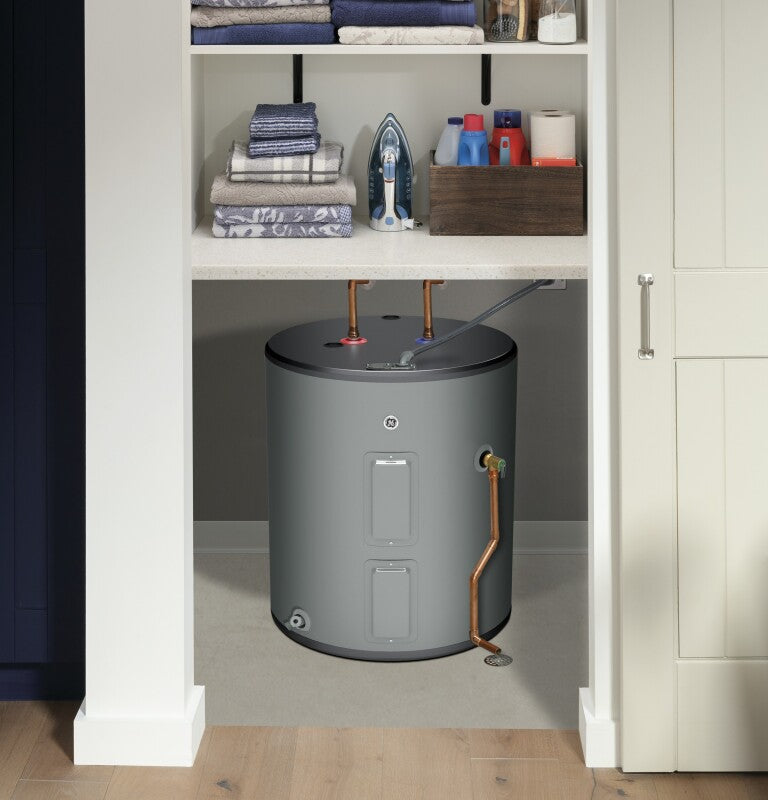

Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Household Size
Provide hot water for the whole family of 2 to 4 persons

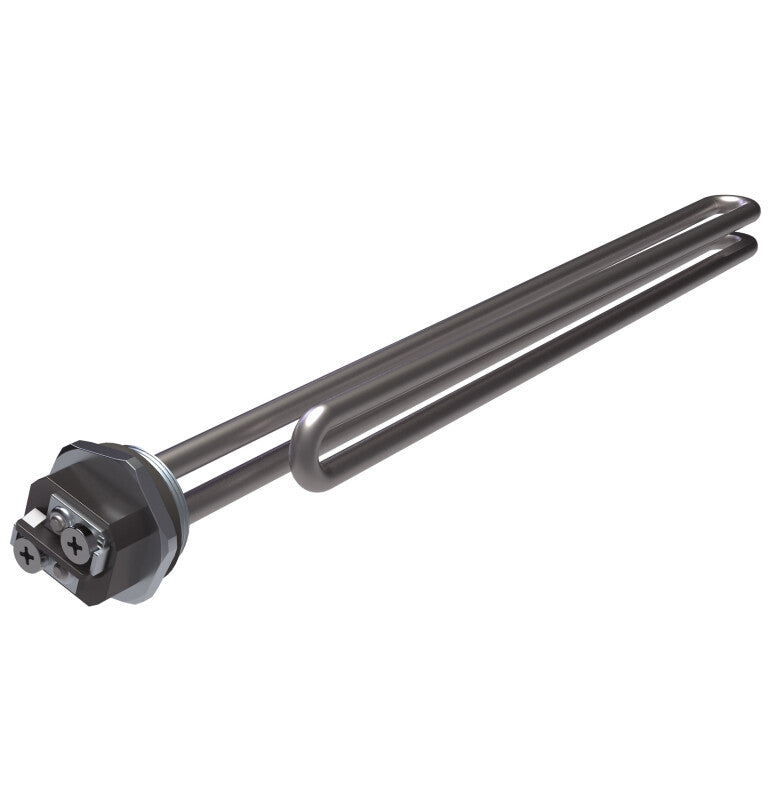

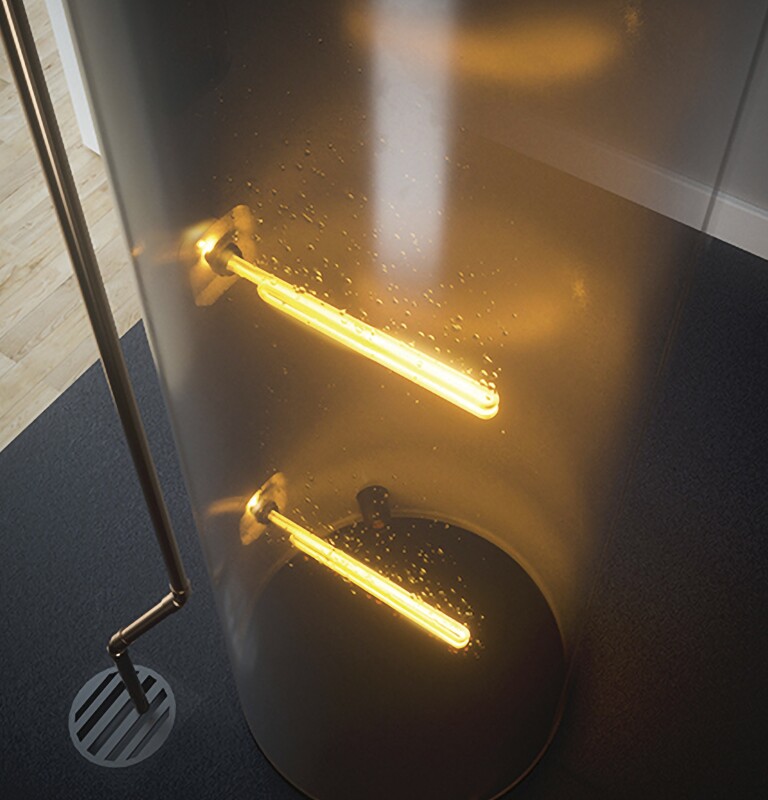

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

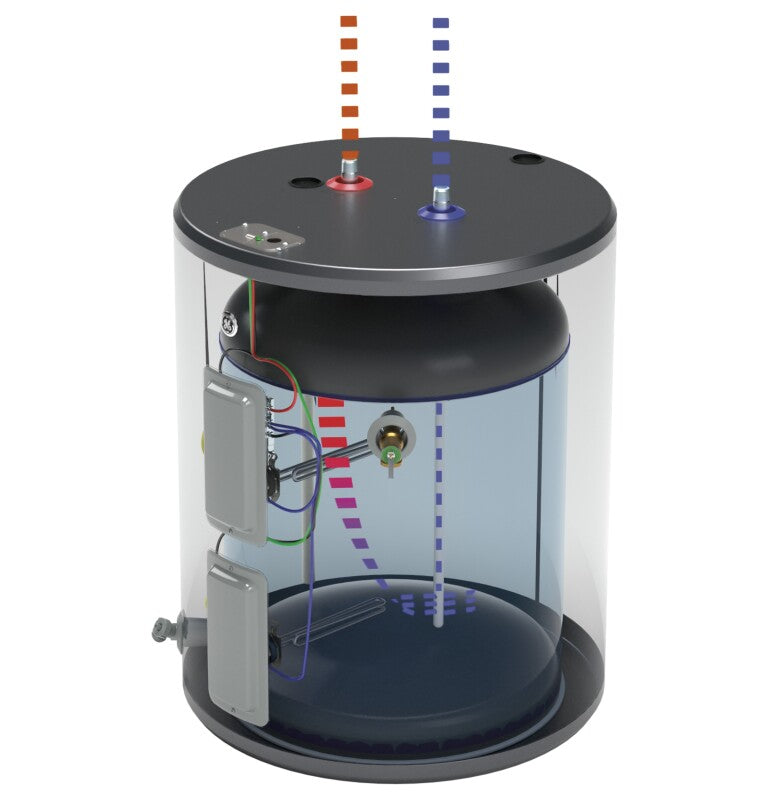

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

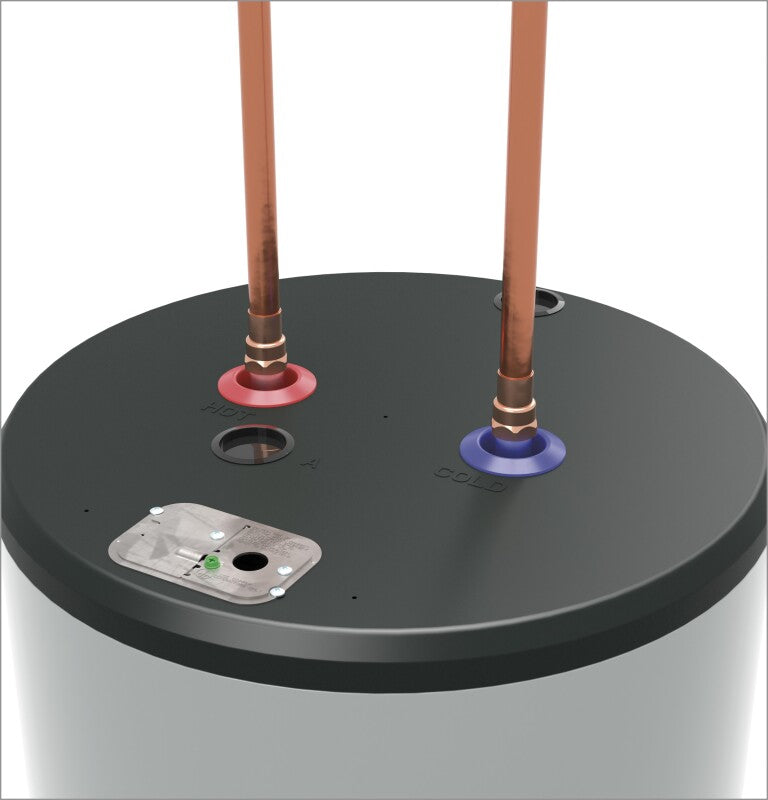

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

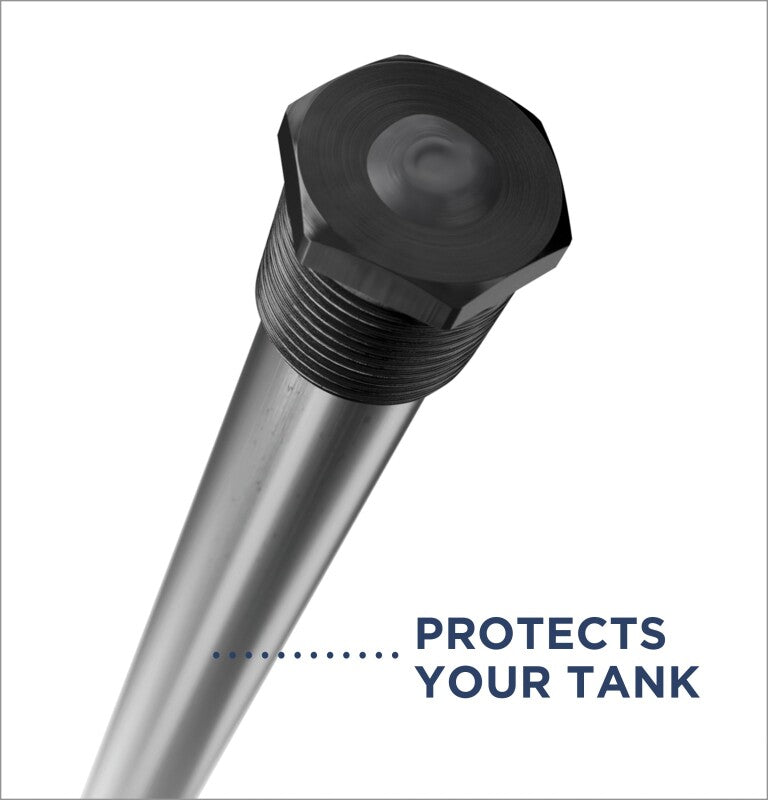

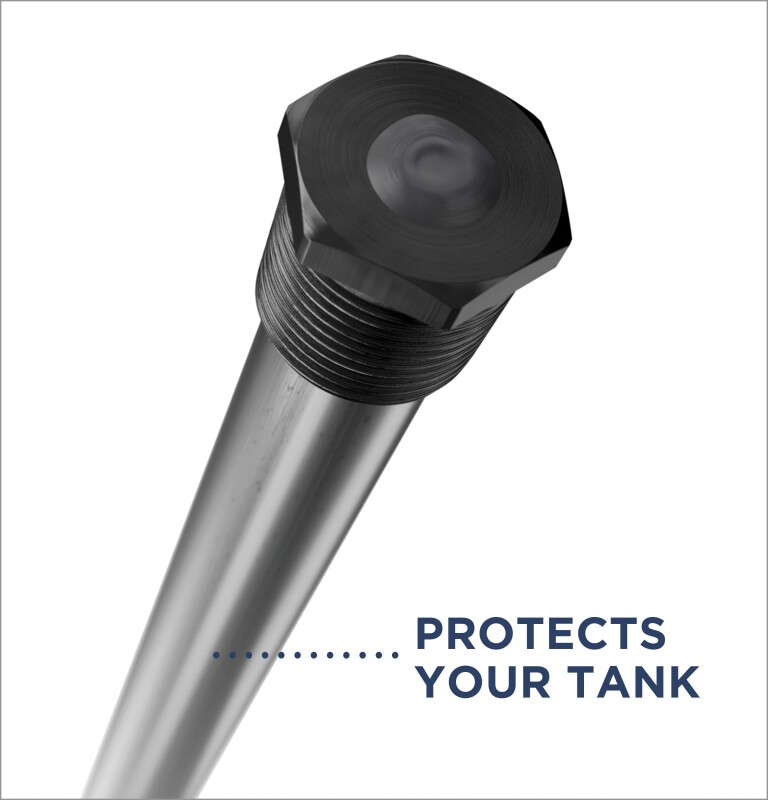

Anode Rod
Durable design offers long-lasting protection against corrosion

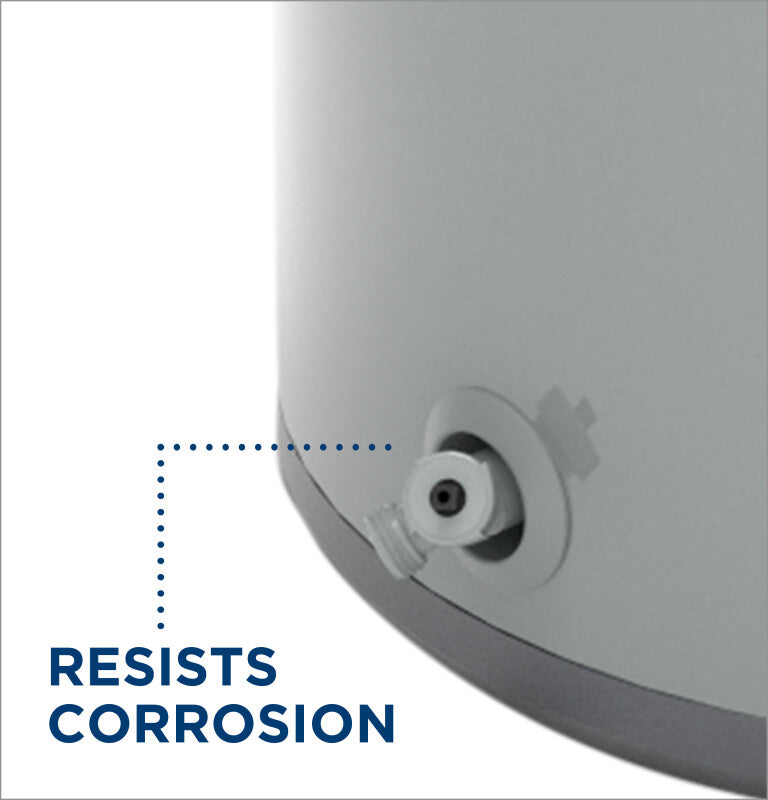

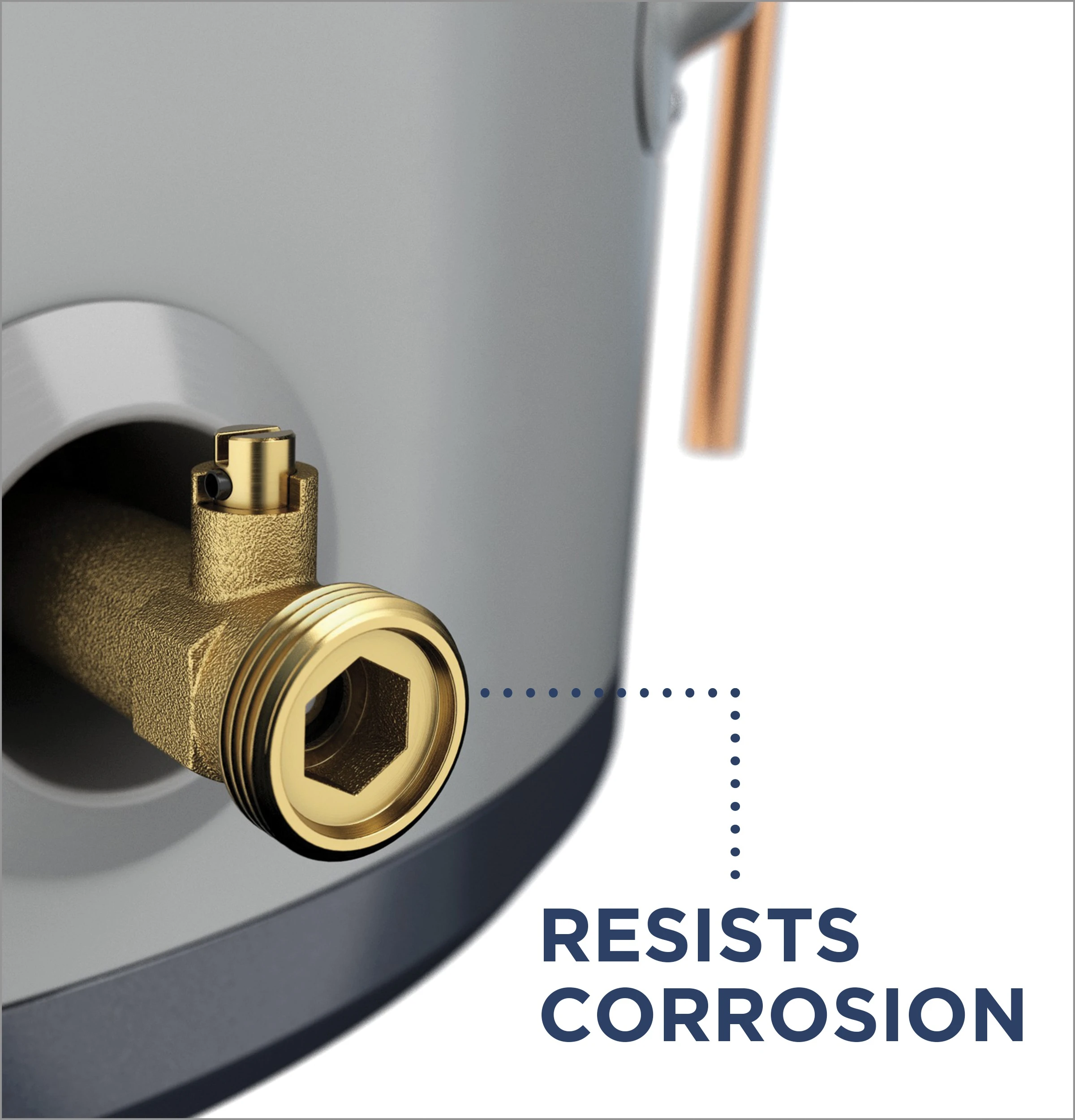

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

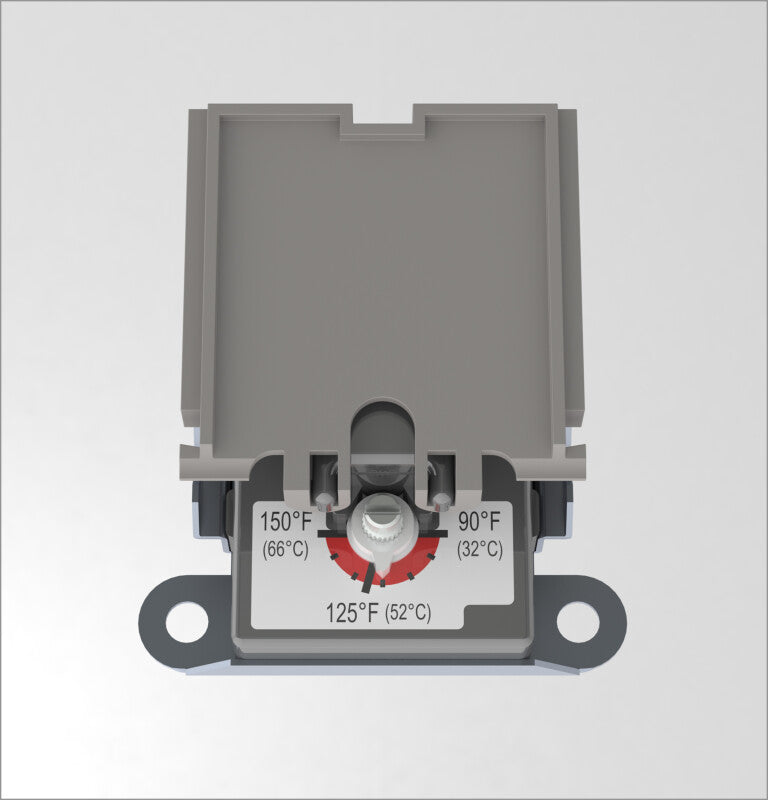

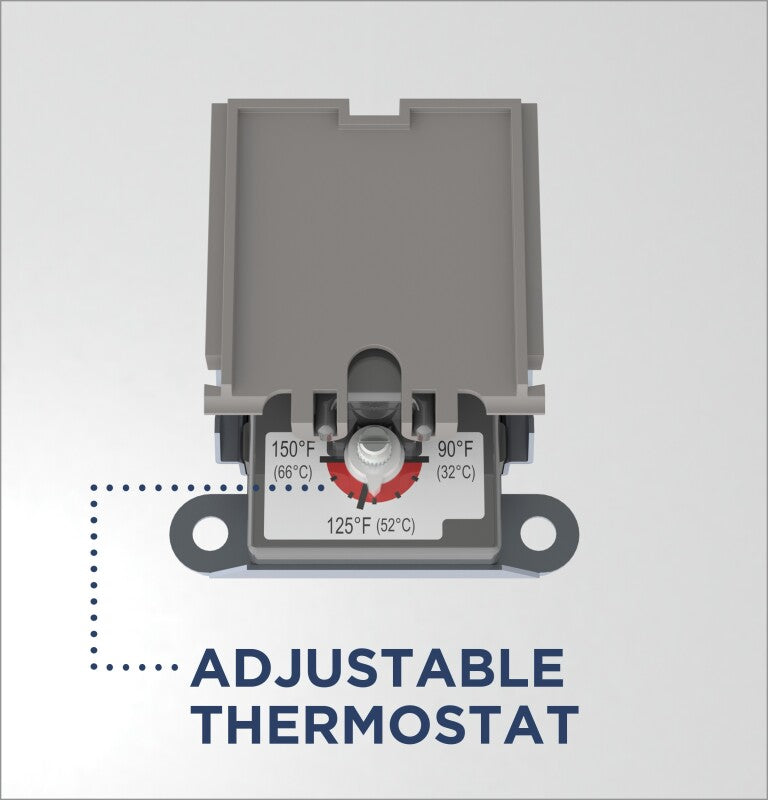

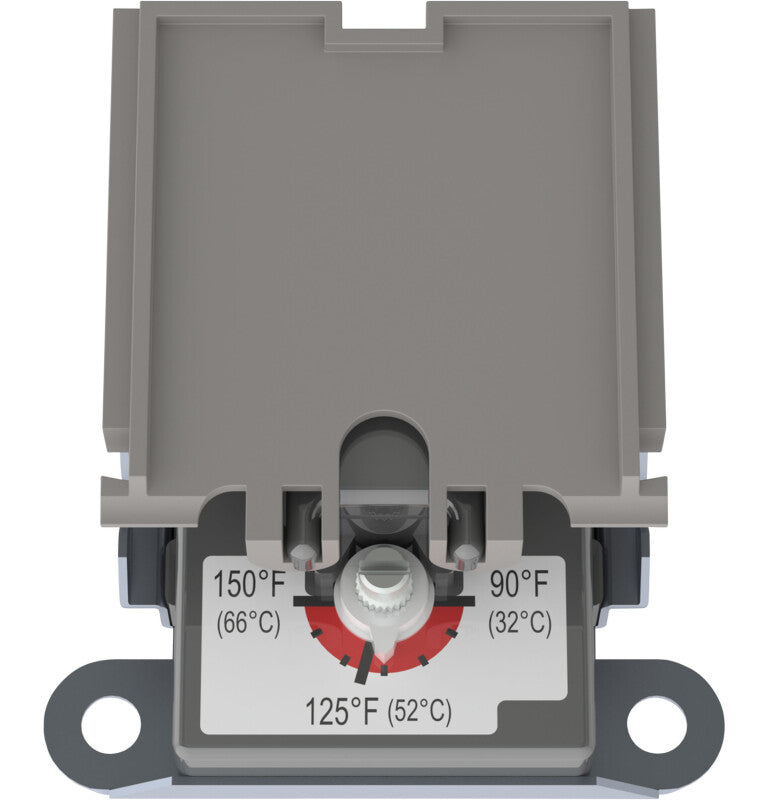

Adjustable Thermostat
Change temperature to your desired setting
Make the most of tight spaces with a water heater that fits where height is a concern
Household Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
Manuals & Guides
Key Features
Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Household Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Adjustable Thermostat
Change temperature to your desired setting
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
