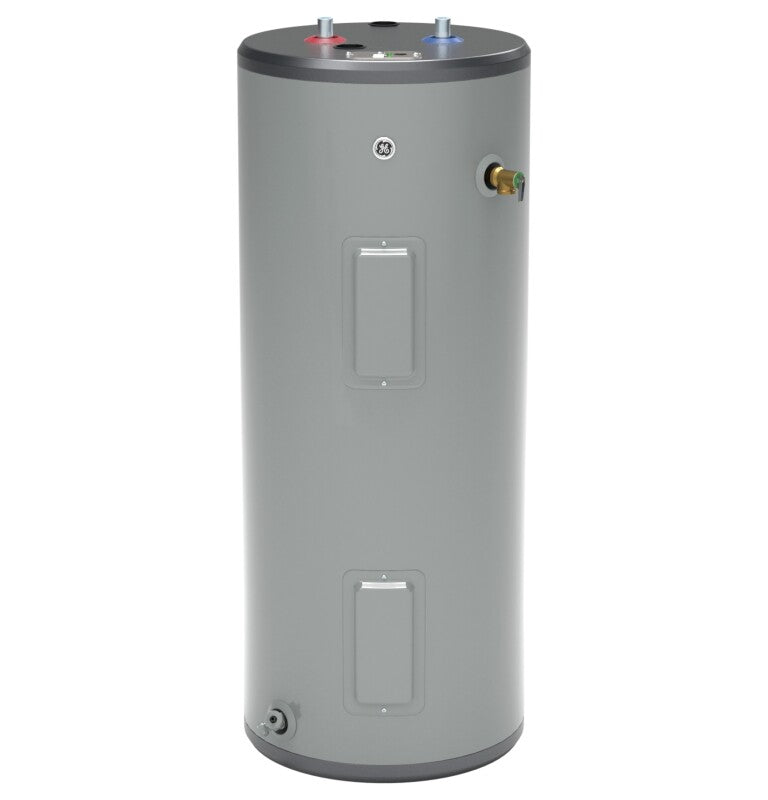

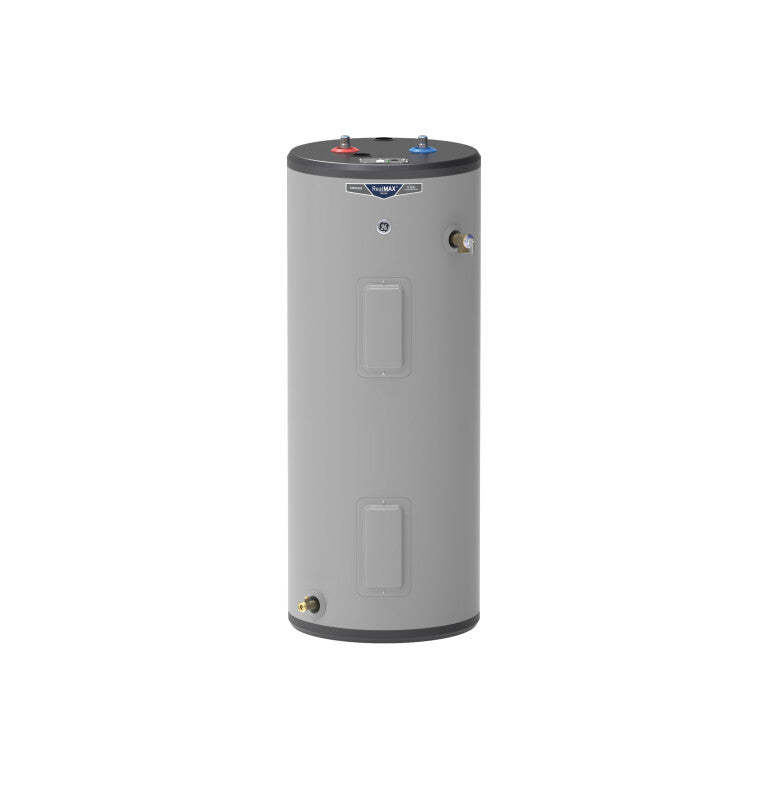

GE APPLIANCES GE30T08BAM GE® 30 Gallon Tall Electric Water Heater

Key Specs

Type: Water heaters
Width: 20 Inch
Depth: 20 Inch
Height: 51.375 Inch

More details

Translation missing: en.products.product.product_variants

$519.99 $674.00 Save $154.01

Check Delivery Options

More on the way

Quantity:

Product Information
Specifications
Manuals & Guides
Features
Reviews

Real Capacity

Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance

Live comfortably with this best in class unit that delivers 54 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Household Size

Provide hot water for the whole family of 1 to 3 persons

Quick Recovery

Two 5500W heating elements quickly increase water temperature for hot water when you need it

Inlet Tube

Replenishes water from the bottom of the tank to maximize hot water delivery

Easy Set Up

Replace...

Real Capacity

Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance

Live comfortably with this best in class unit that delivers 54 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Household Size

Provide hot water for the whole family of 1 to 3 persons

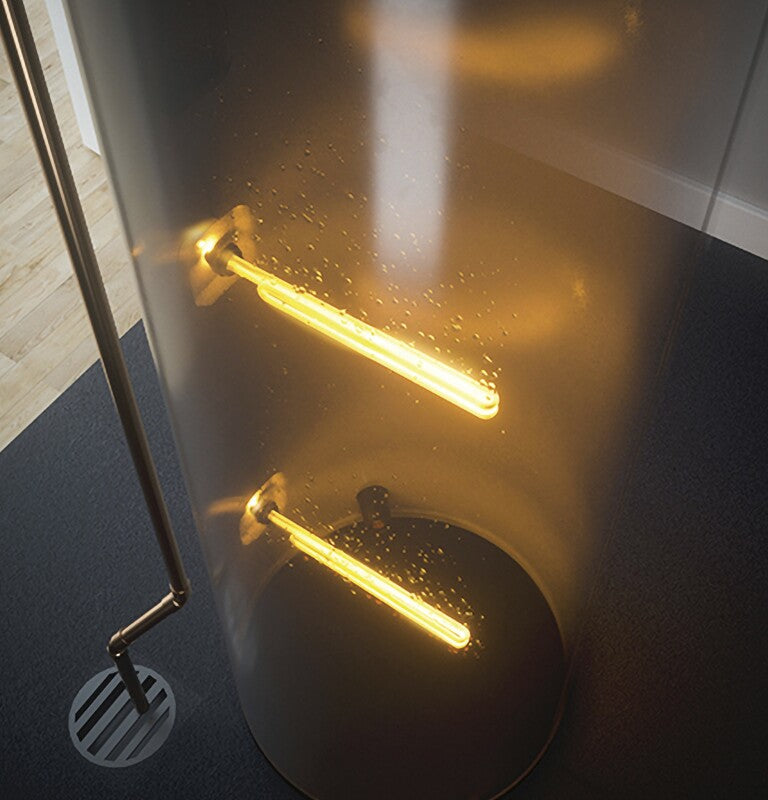

Quick Recovery

Two 5500W heating elements quickly increase water temperature for hot water when you need it

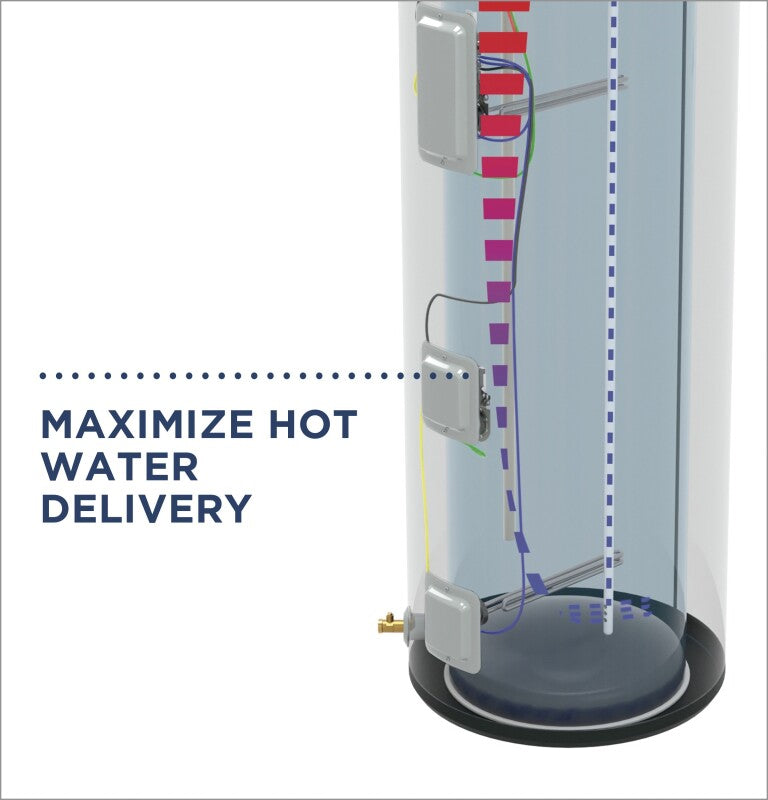

Inlet Tube

Replenishes water from the bottom of the tank to maximize hot water delivery

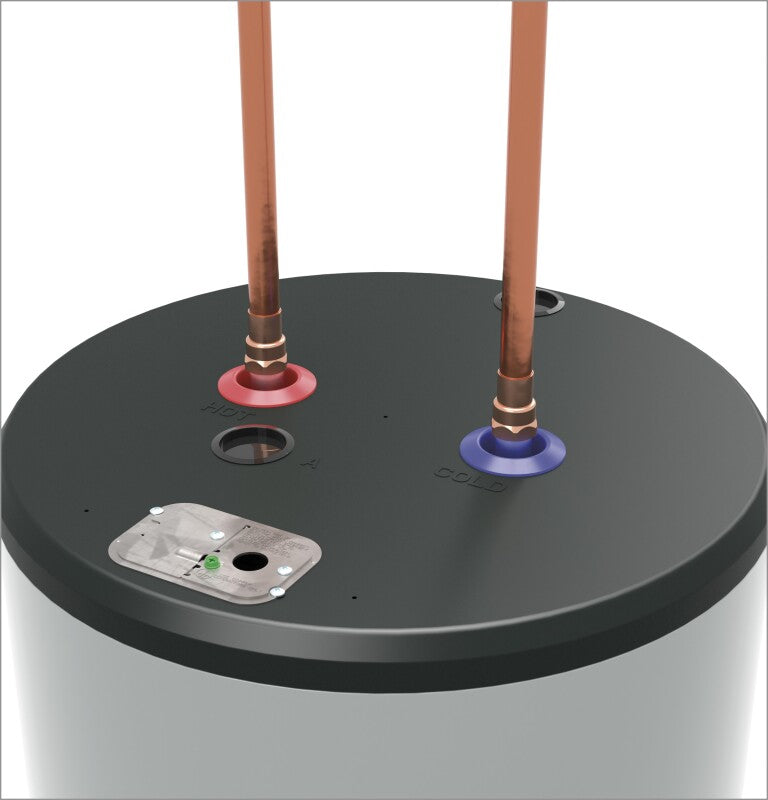

Easy Set Up

Replace your old water heater quickly and easily using standard water and electrical connections

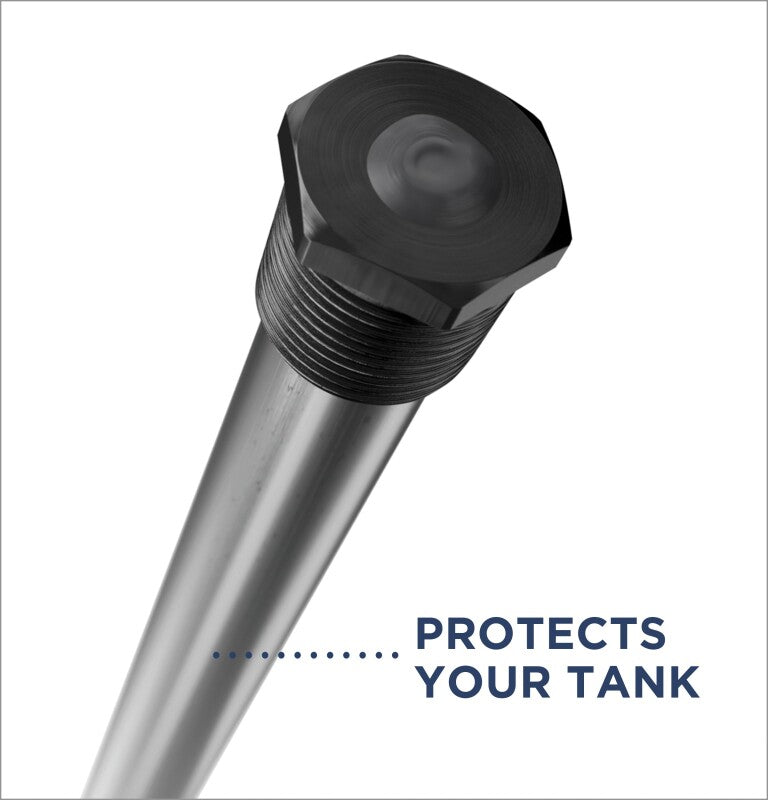

Anode Rod

Durable design offers long-lasting protection against corrosion

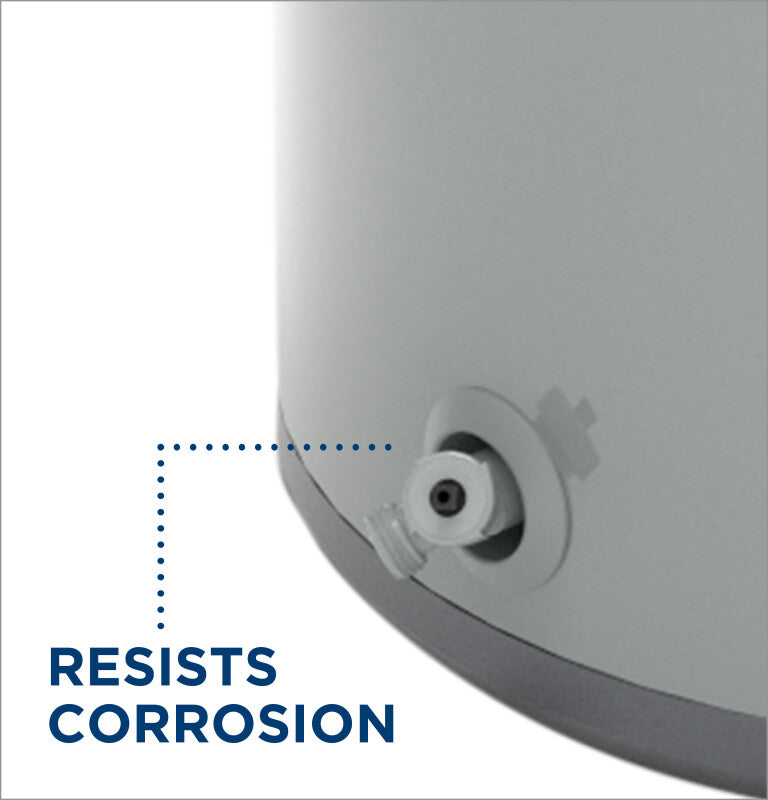

Drain Valve

Rust-proof construction can be counted on to provide long-lasting service

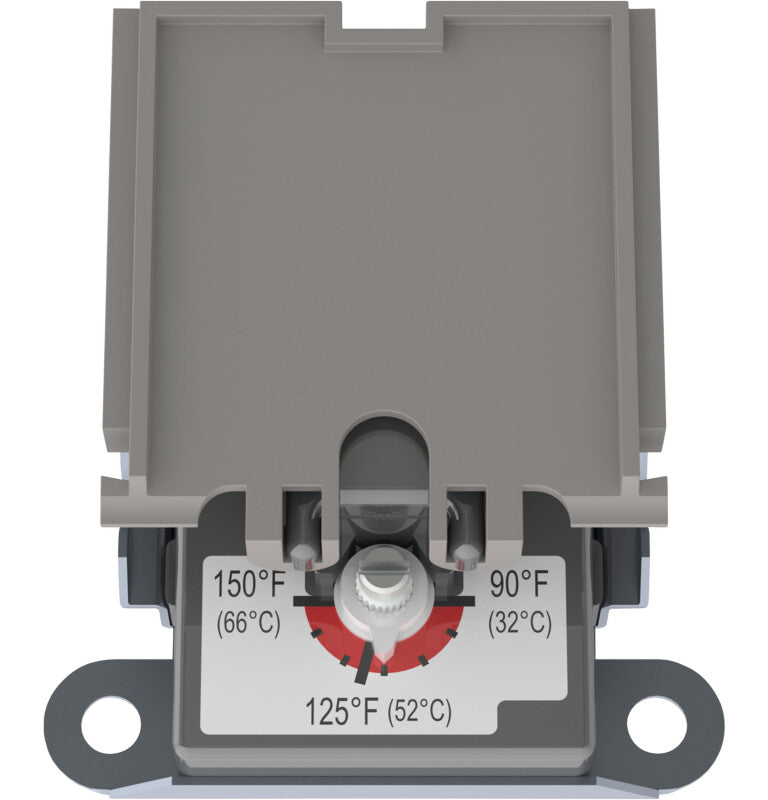

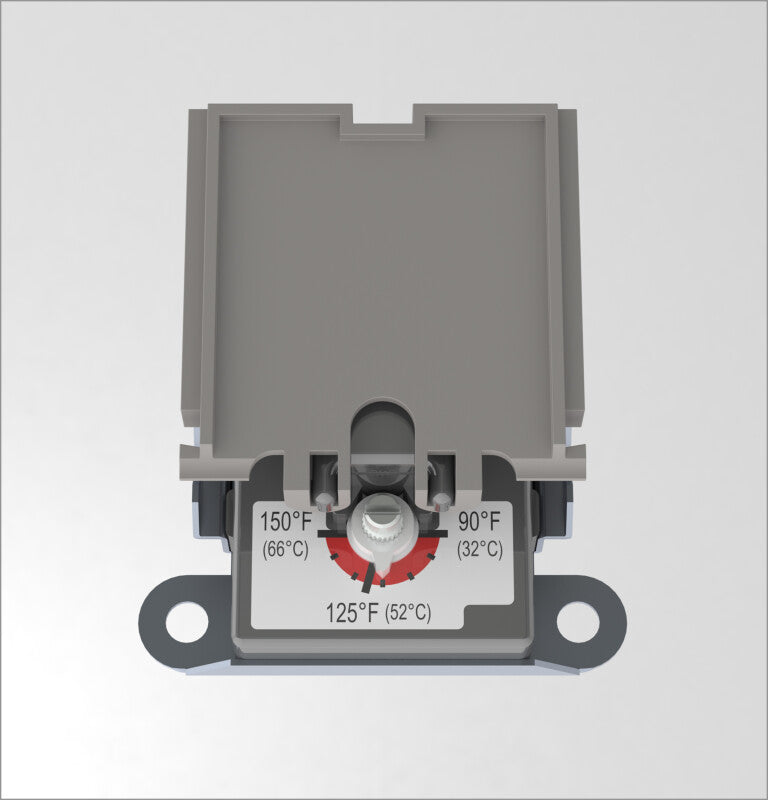

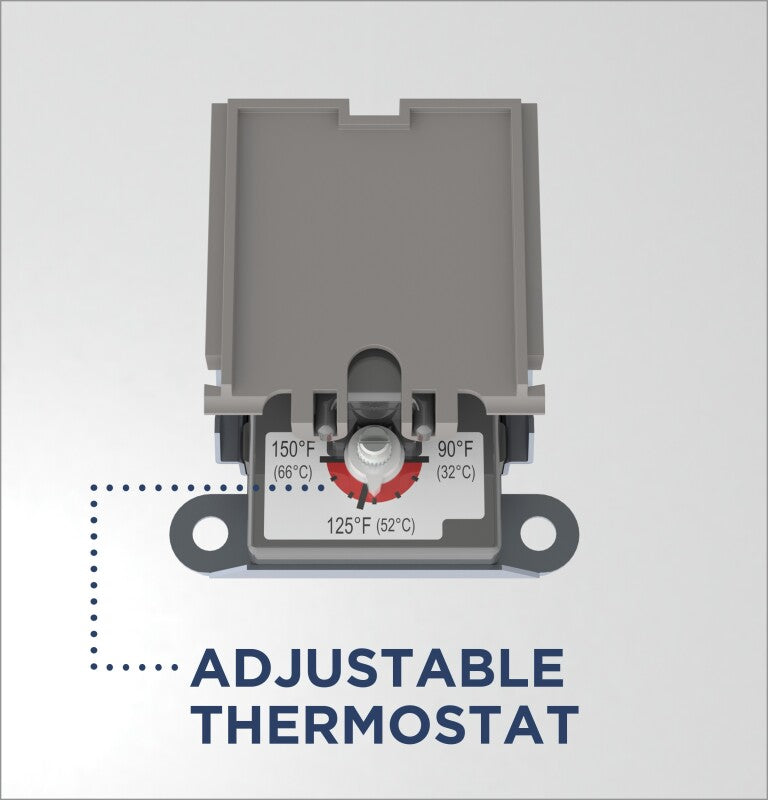

Adjustable Thermostat

Change temperature to your desired setting

CAPACITY
Unit Capacity	30 Gallons
FILTER
App Filter - Vacation Mode	No
App Filter - Tank Diameter	18 1/4 in.-21 3/4 in.
App Filter - Capacity	Water Heater 30-39 gallons
App Filter - Product Type	Water Heaters Electric Standard
App Filter - Tank Warranty	8 year limited
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
Integrated Energy Factor	0.92
Volts/Hertz	240V; 60Hz
Heating - Electric - Heater Watts	5500/5500
Voltage (MAX)	240.0
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.
Electrical Connection	Direct-Wire
First Hour Rate (FHR)	54 Gallons
Operating Water Pressure	20-125 PSI
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	8-year limited
Labor Warranty	1-year limited

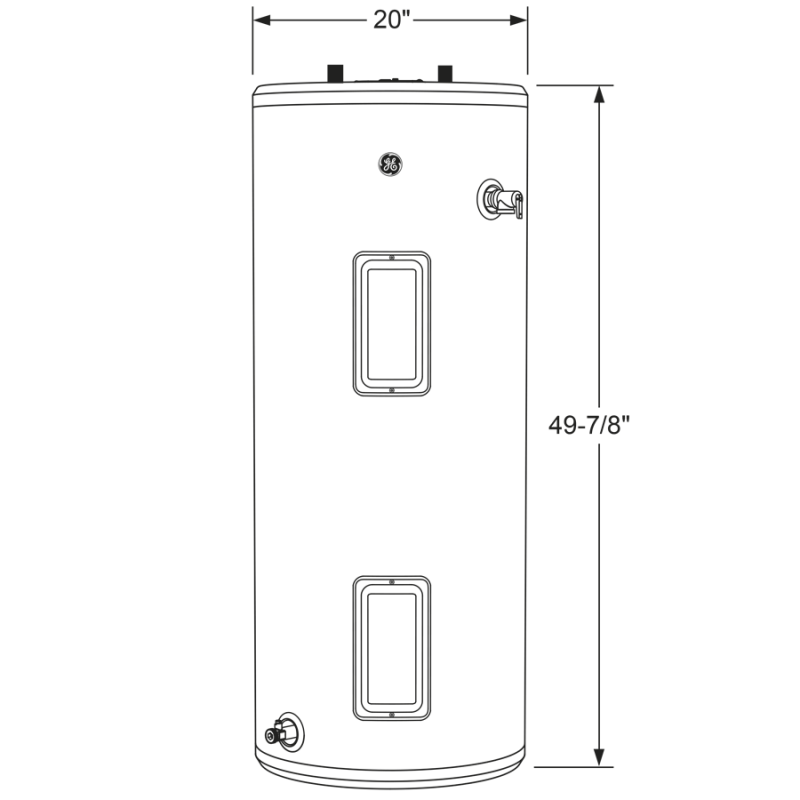

WEIGHTS & DIMENSIONS
Net Weight	104.0
Connection Sizes - Water Inlet (MNPT)	3/4"
Product Height (to top of water inlet/outlet connections)	51.375
Product Diameter	20.0
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
Product Height (to top of unit)	49.875
Approximate Shipping Weight	113.0
FEATURES
Heating Element	Copper
Foam Insulation	Yes
Fuel Type	Electric
Rated Storage Capacity	30
Drain Valve Type	Plastic
Configuration	Tall
Temperature Setting Factory Default	120° F
Operating Modes	Standard Electric
Water Connection Location	Top
Mobile Home Compatible	No
Control Type	Thermostat
Installation Location	Indoor
Point of Use	No
Temperature Setting	90-150° F Range
Product Type	Electric Thermostat
Insulation Thickness	2.75
GPH Recovery @ 90 Degrees F	25.1
Family Size	1-3 People
Height Description	Tall
Temp & Pressure Relief Valve	Yes
