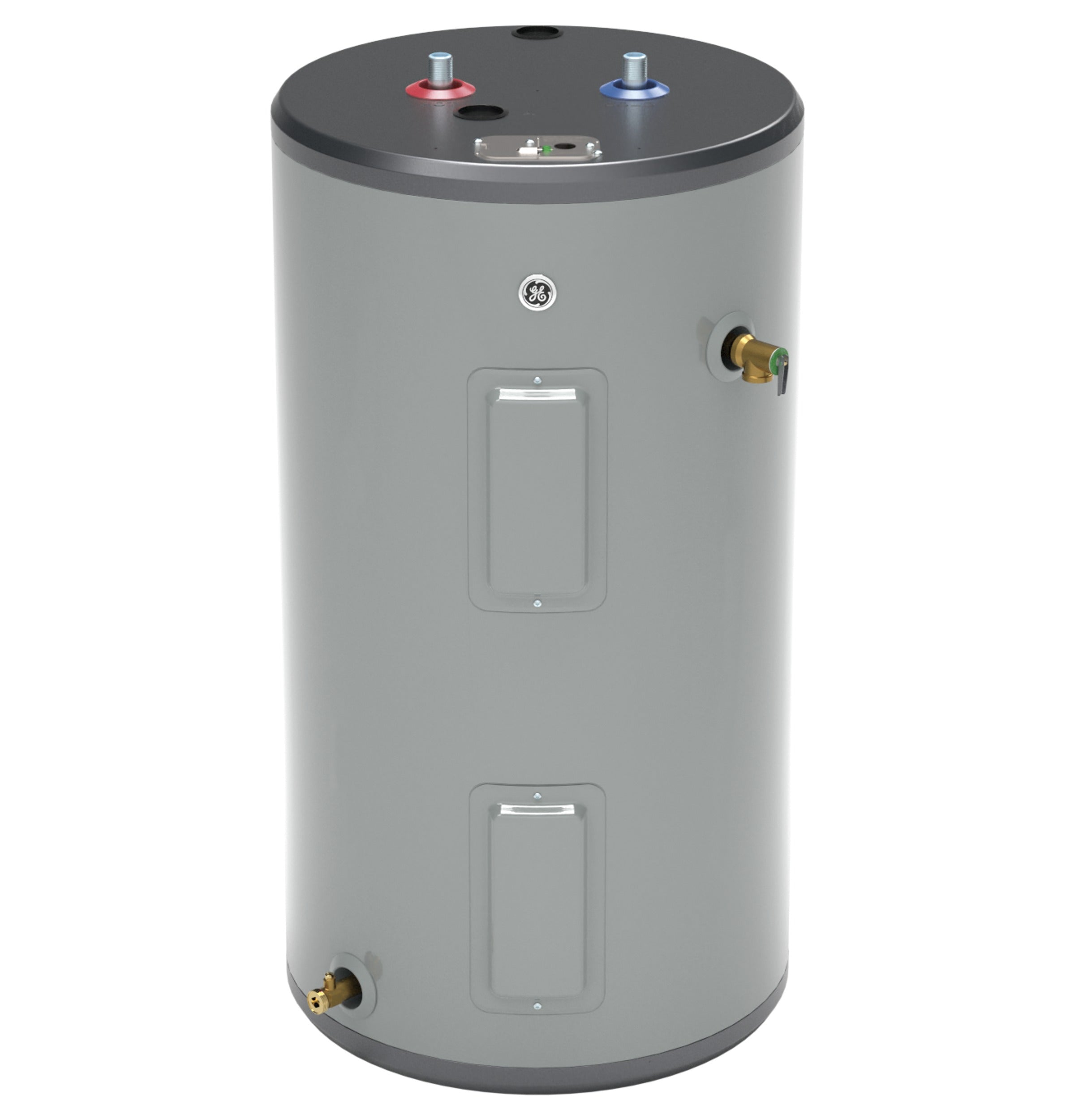

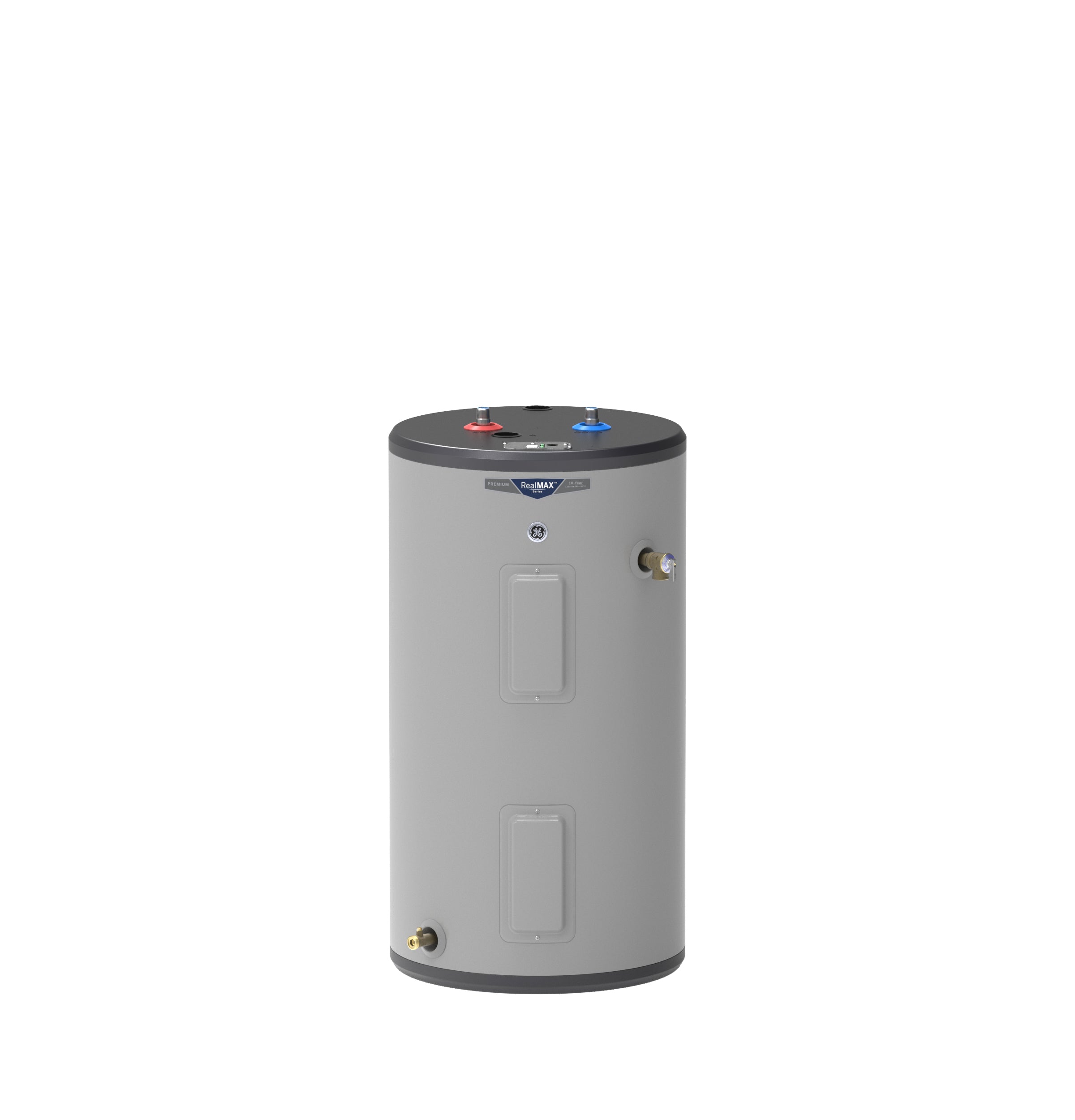

GE30S10BAM 30 Gallon Short Electric Water Heater Gray

Name: GE30S10BAM 30 Gallon Short Electric Water Heater Gray
Brand: GE
SKU: GE30S10BAM
Price: 641.12 USD
Availability: InStock

Ge® 30 Gallon Short Electric Water Heater

Quick Specification More details

Width:
22"
Depth:
22"
Height:
41.875"
Type:
Tank Water Heaters

About this product

Real Capacity
Leading Performance
Household Size
Quick Recovery

GE30S10BAM 30 Gallon Short Electric Water Heater Gray

$641.12 ~~$852.97~~ Save $211.85 / 24% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
22"
Depth:
22"
Height:
41.875"
Type:
Tank Water Heaters

About this product

Real Capacity
Leading Performance
Household Size
Quick Recovery

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$641.12 ~~$852.97~~ Save $211.85 / 24% OFF

Product Details for GE GE30S10BAM

Technical Details

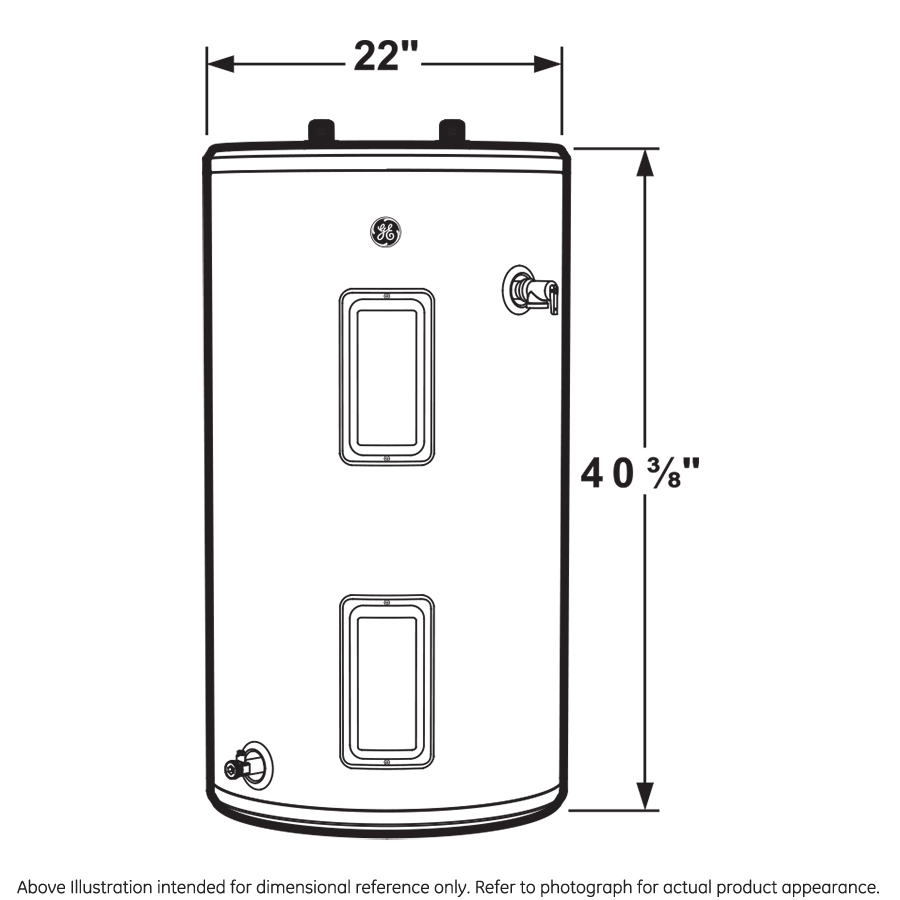

Weights & dimensions

Overall Width	22 in
Overall Height	41.875 in
Product Height (to top of unit)	40.375 in
Overall Depth	22 in
Product Height (to top of water inlet/outlet connections)	41.875 in
Approximate Shipping Weight	111 lb
Net Weight	101 lb
Product Diameter	22 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"

Features

Control Type	Thermostat
Temp & Pressure Relief Valve	Yes
Height Description	Short
Heating Element	Stainless steel
Fuel Type	Electric
Configuration	Short
Installation Location	Indoor
Operating Modes	Standard Electric
Rated Storage Capacity	30
Drain Valve Type	Brass
GPH Recovery @ 90 Degrees F	25.1
Mobile Home Compatible	No
Temperature Setting Factory Default	120° F
Product Type	Electric Thermostat
Family Size	1-3 People
Water Connection Location	Top
Foam Insulation	Yes
Point of Use	No
Temperature Setting	90-150° F Range
Insulation Thickness	2.75 in

Power / ratings

Integrated Energy Factor	0.92
Heating - Electric - Heater Watts	5500/5500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	53 Gallons
Voltage (MAX)	240 V
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kWh/year)	3531

Warranty

Warranty Notes	See written warranty for full details
Parts Warranty	Limited 10-year tank and parts
Labor Warranty	Limited 1-year entire appliance

Capacity

Unit Capacity

30 Gallons

Appearance

Color Appearance

Gray

Other

Product Diameter	22 in
Connection Sizes - Water Inlet (MNPT)	3/4"

Dimensions & weight

Width	22 in.
Height	41.88 in.
Length	22 in.
Weight	101 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	27 in.
Shipping Height	46.88 in.
Shipping Length	27 in.
Shipping Weight	141 lbs.
Total of Shipping Weight	141 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.73 ft³
Dimensional Weight	145.81 lbs.
Total of Cubes	11.73 ft³
Total of Dimensional Weight	145.81 lbs.

Description

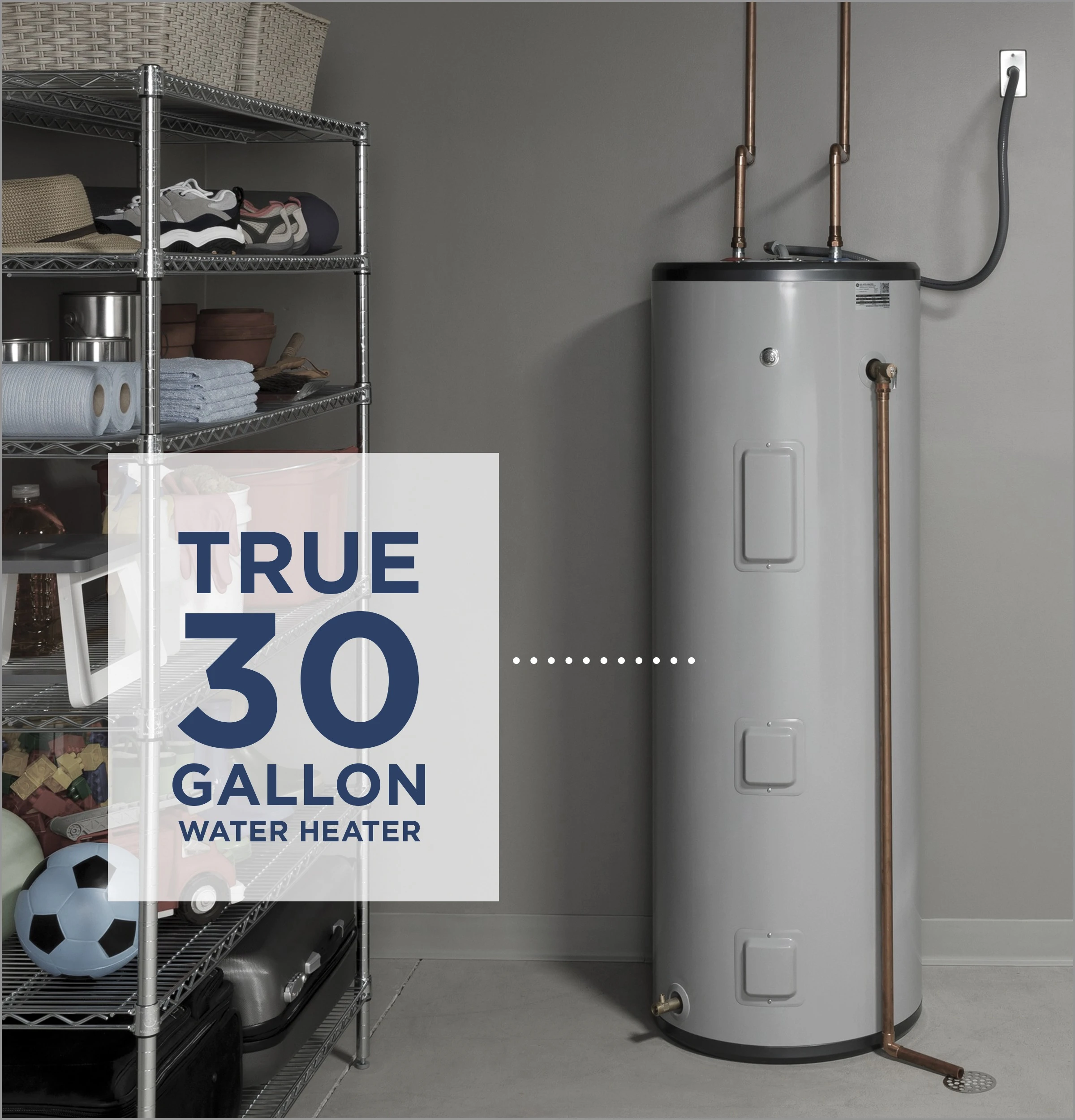

Real Capacity
Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance
Live comfortably with this best in class unit that delivers 53 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

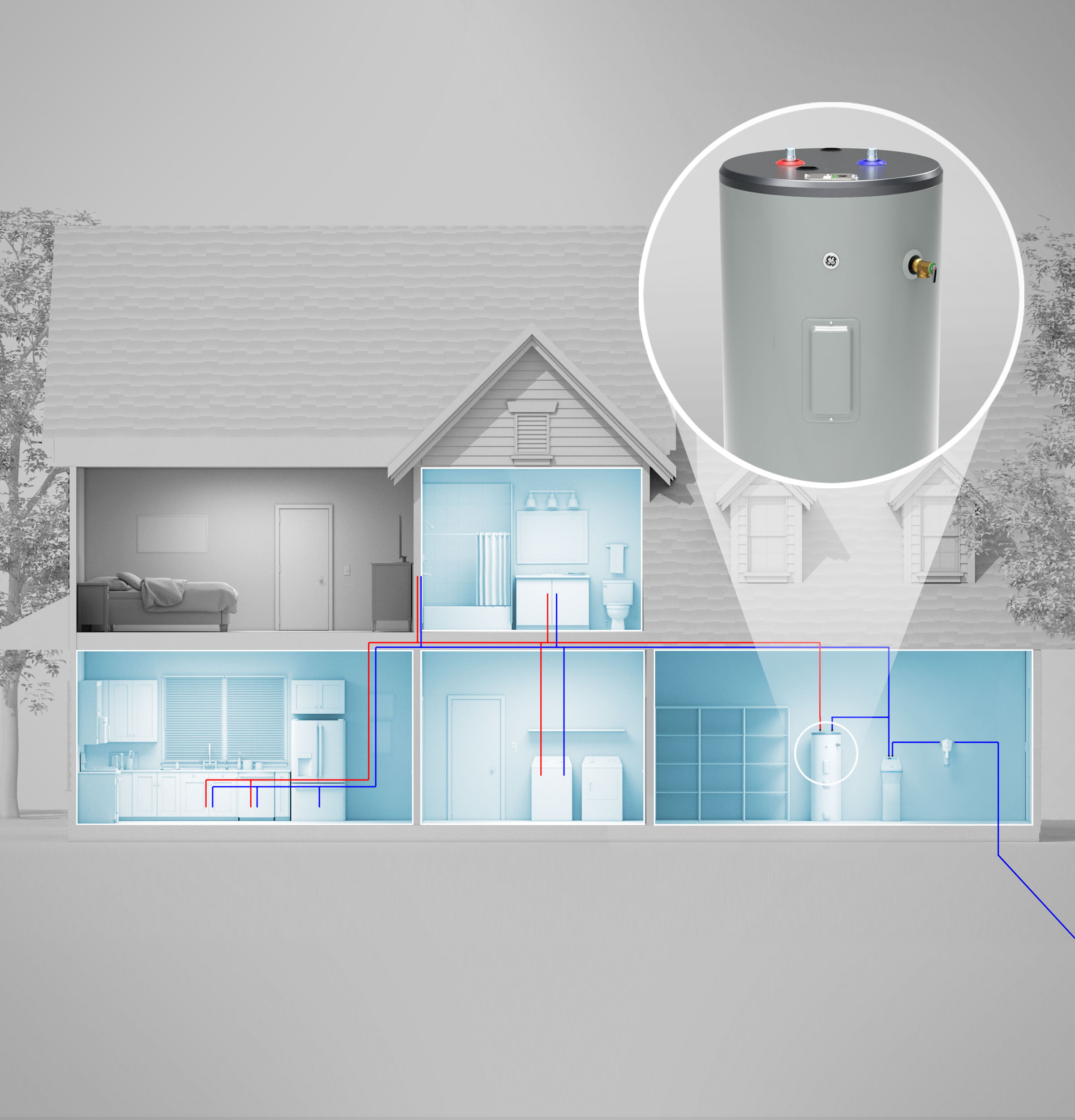

Household Size
Provide hot water for the whole family of 1 to 3 persons

Quick Recovery

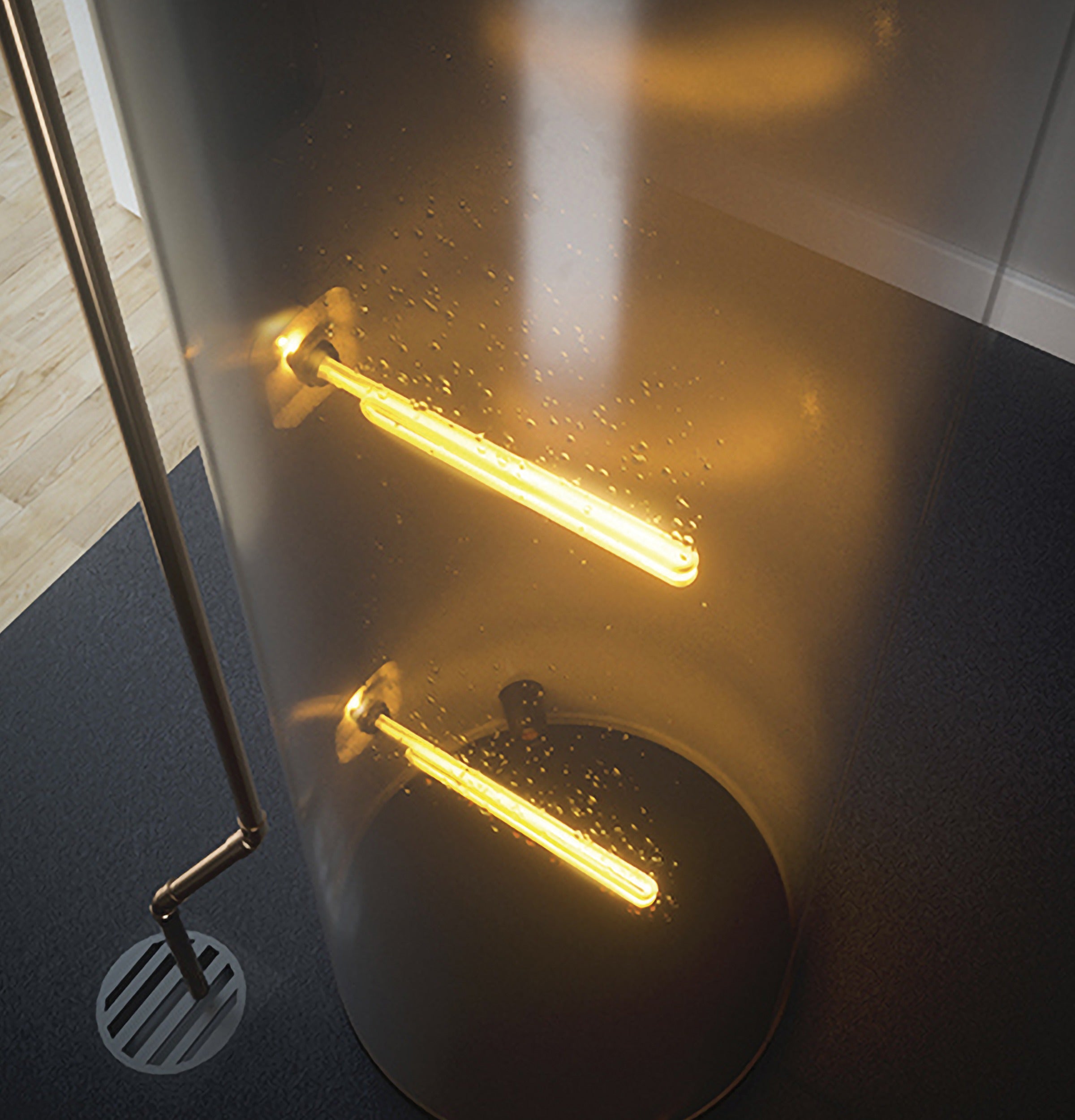

Two 5500W heating elements quickly increase water temperature for hot water when you need it

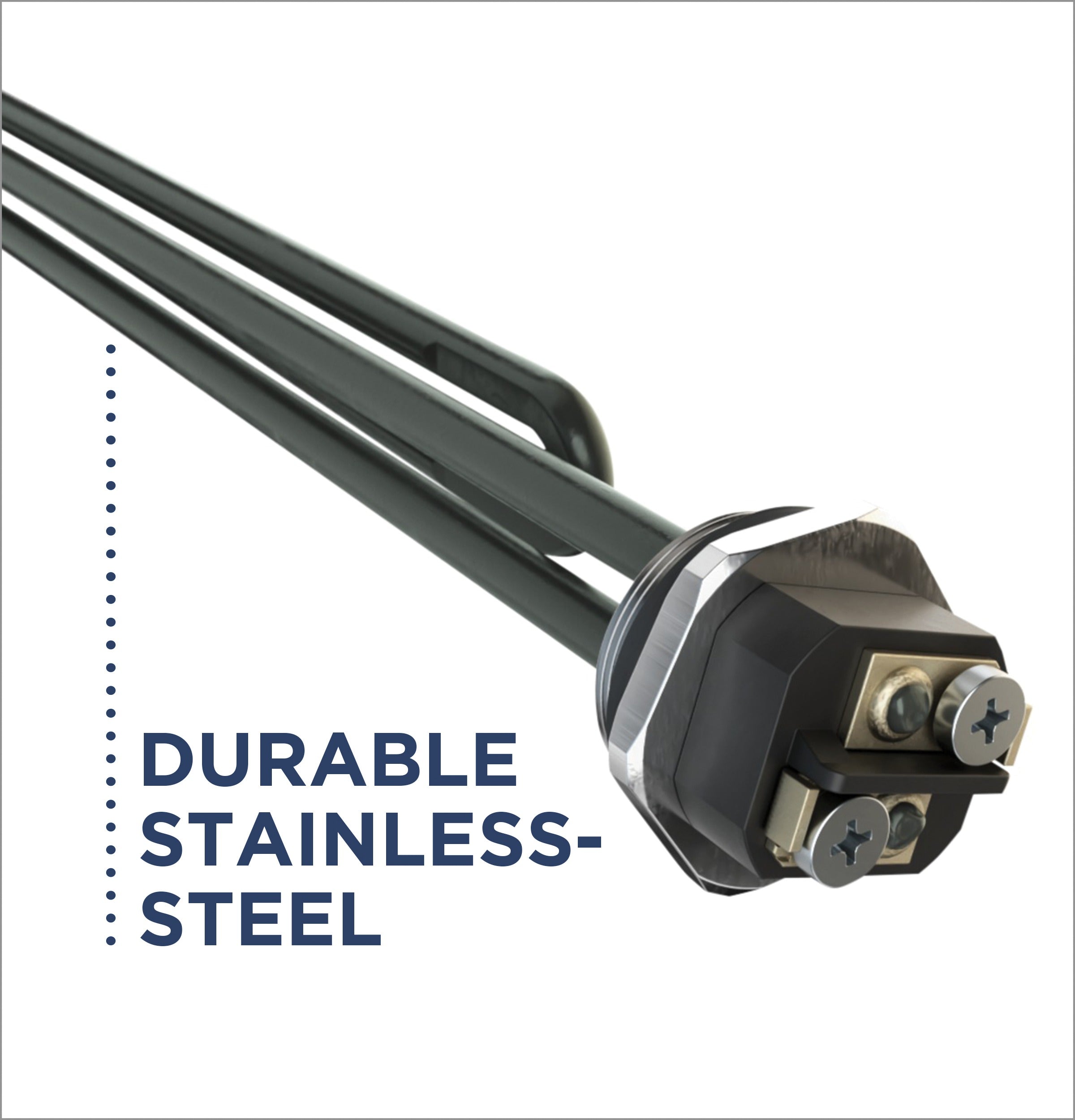

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

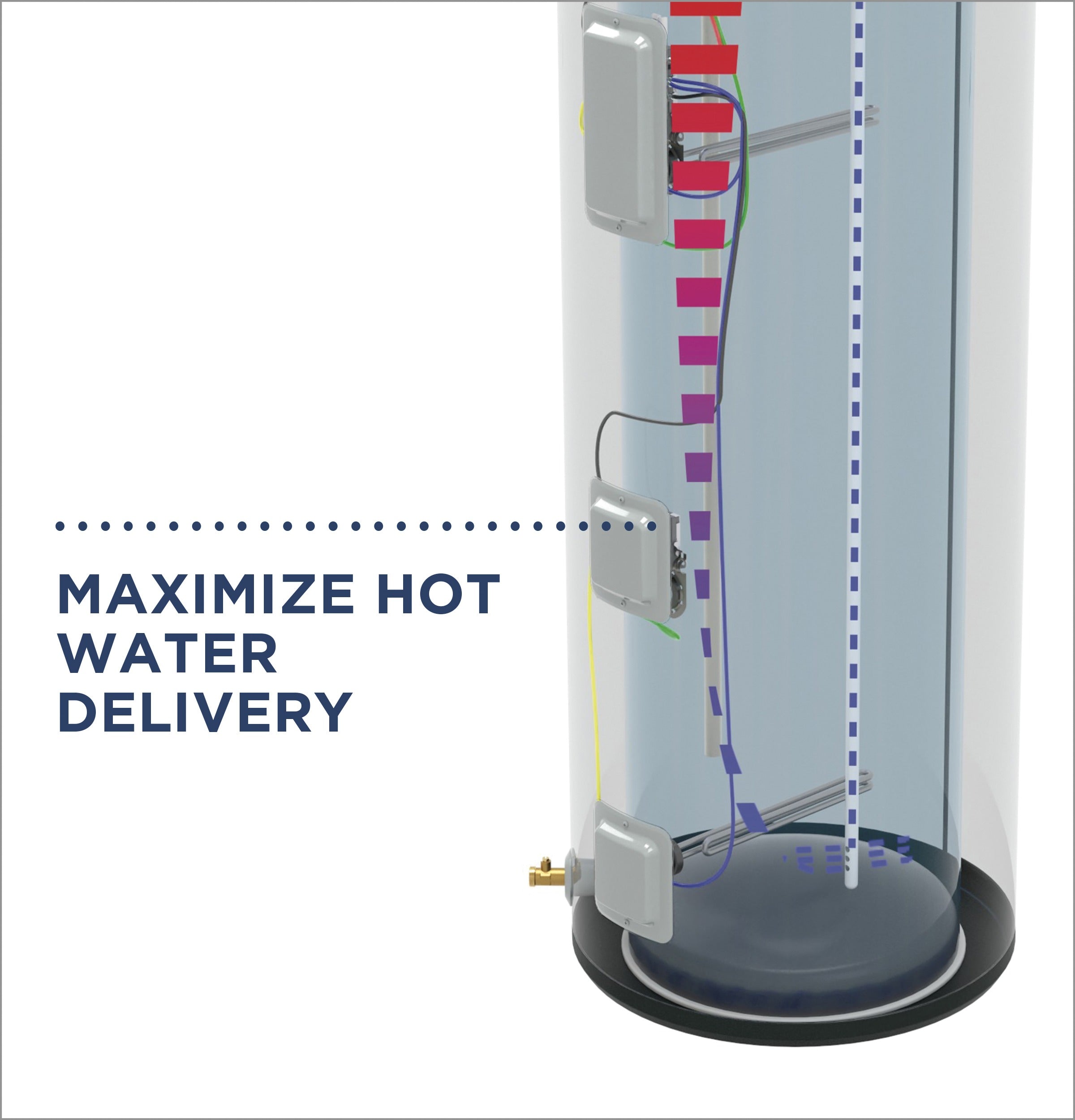

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

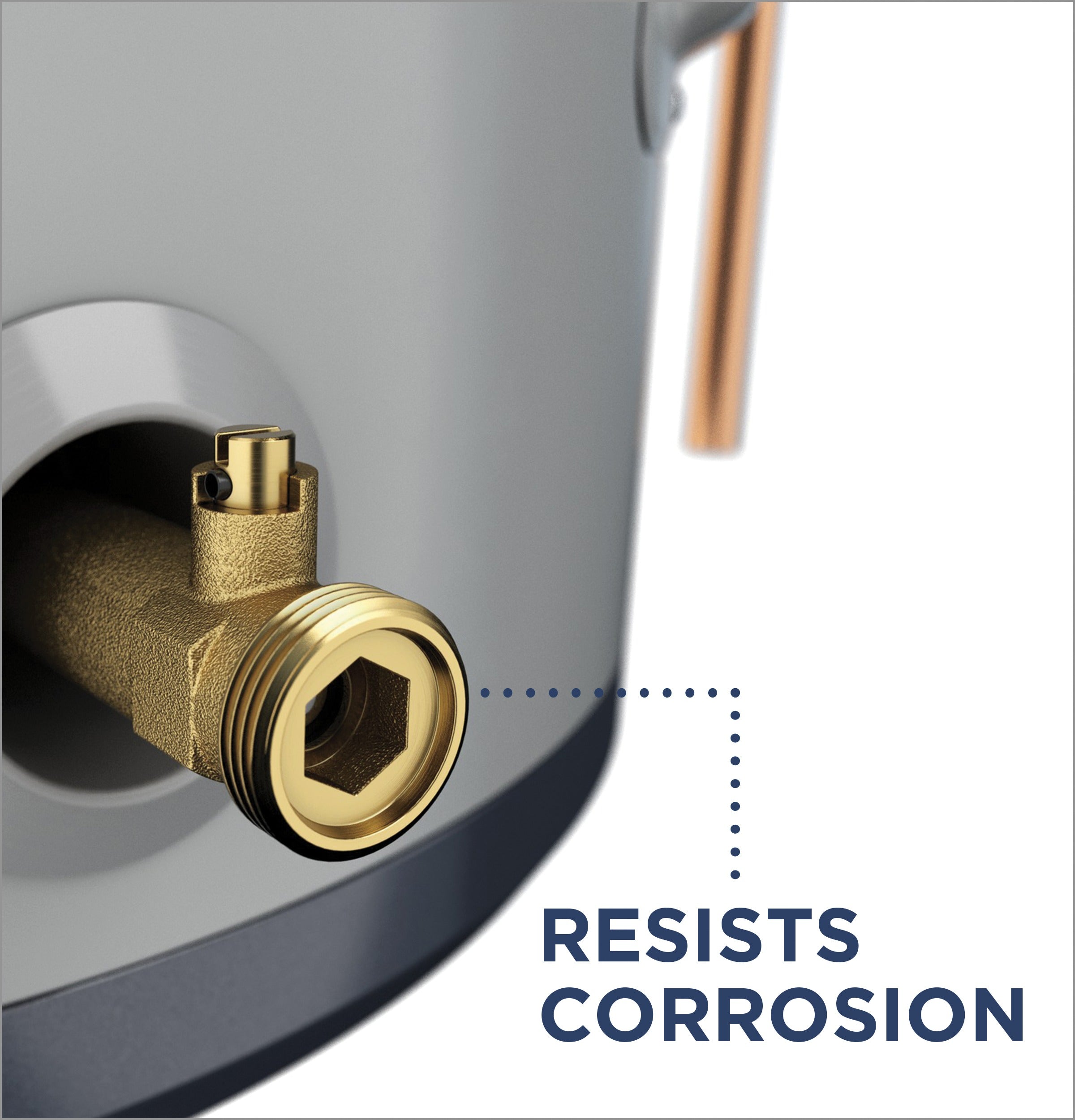

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

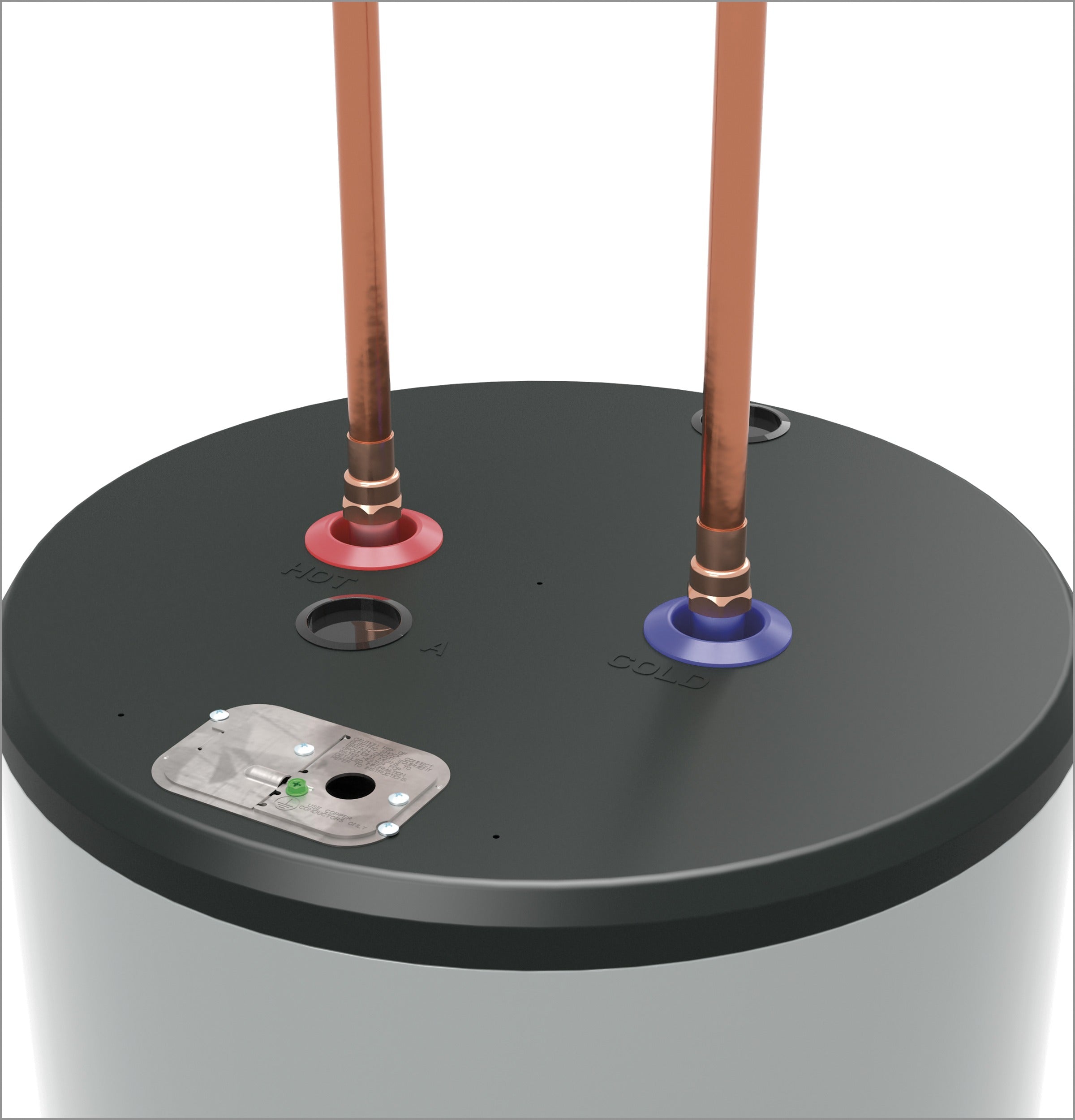

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

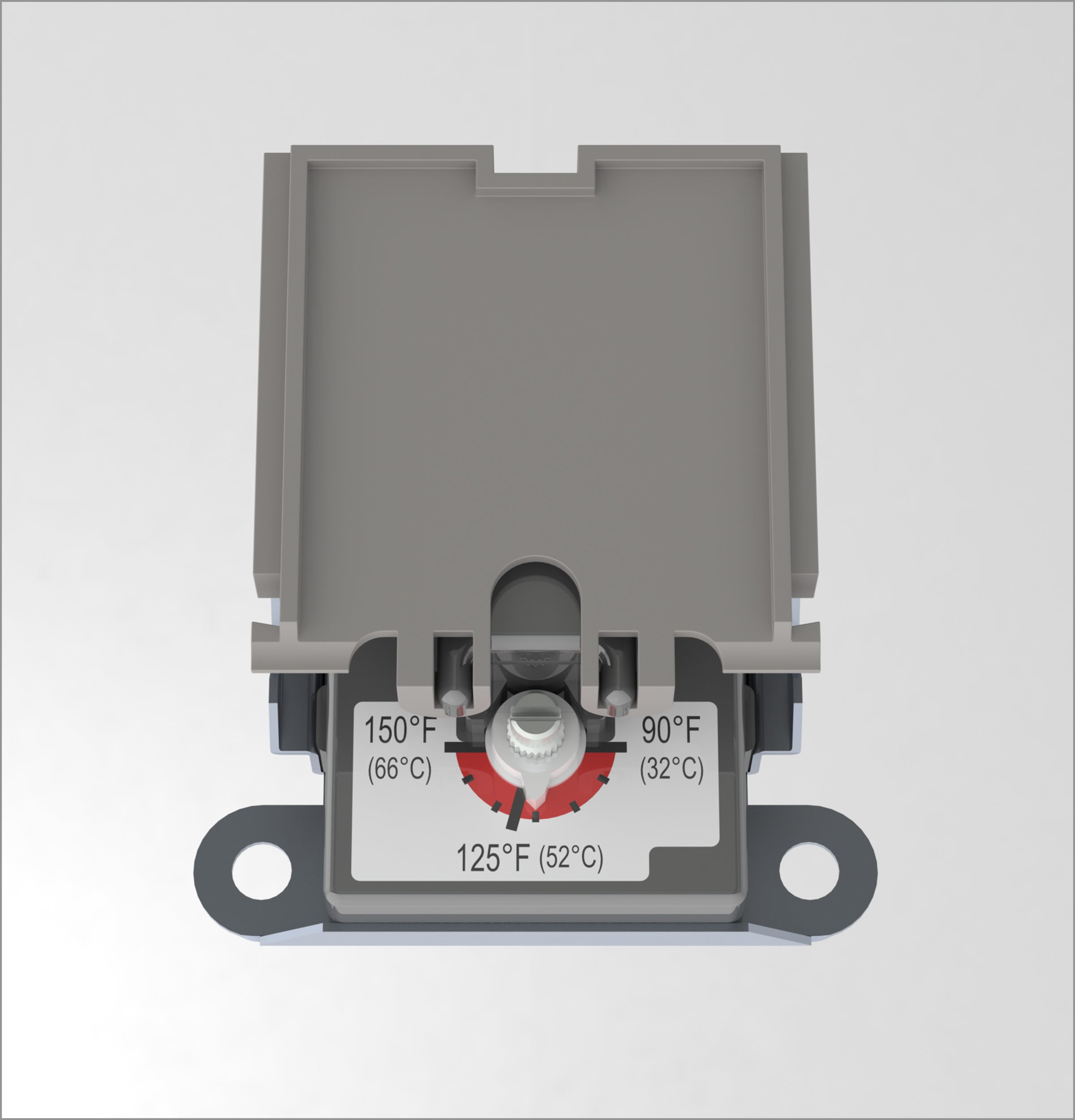

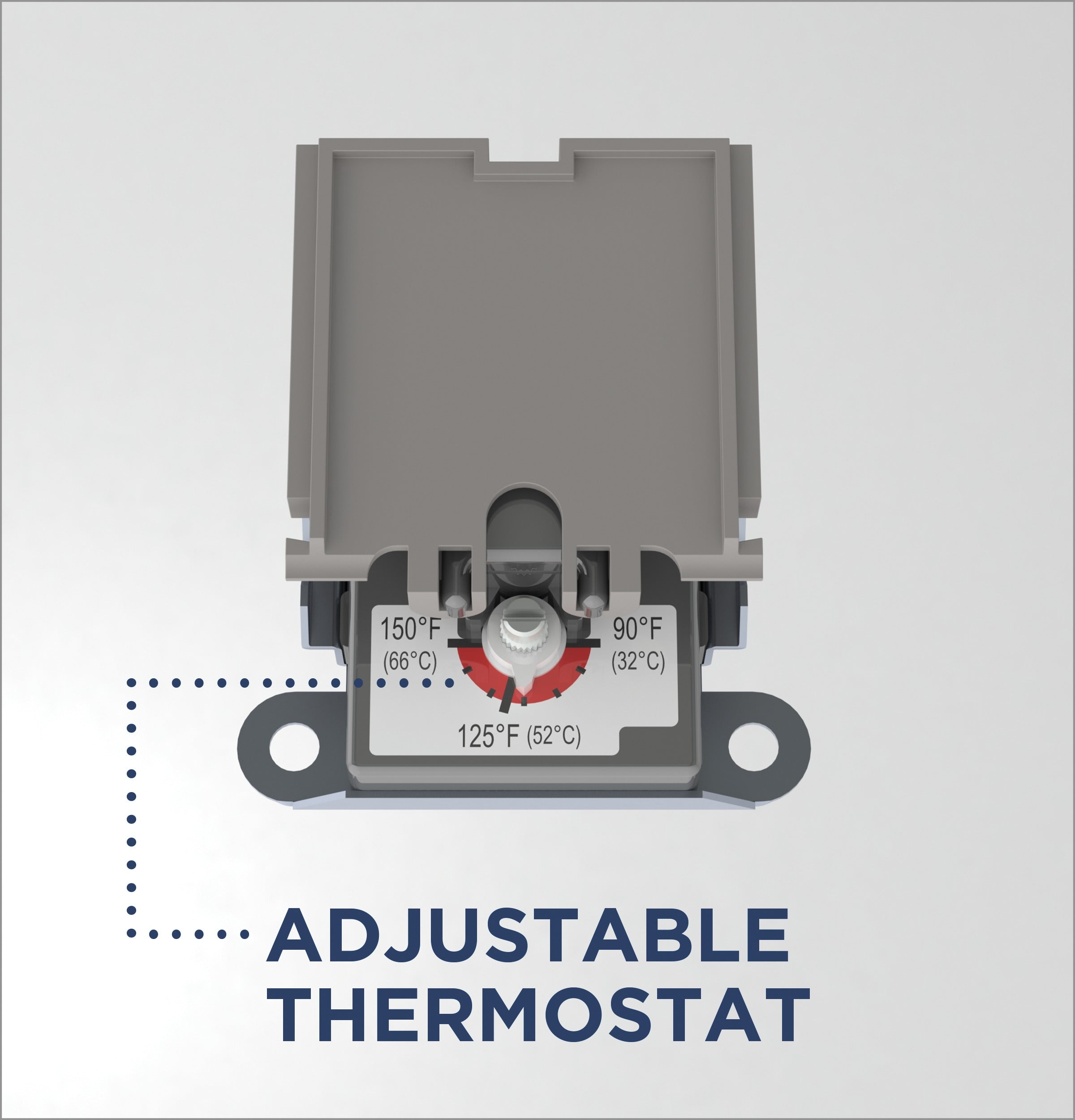

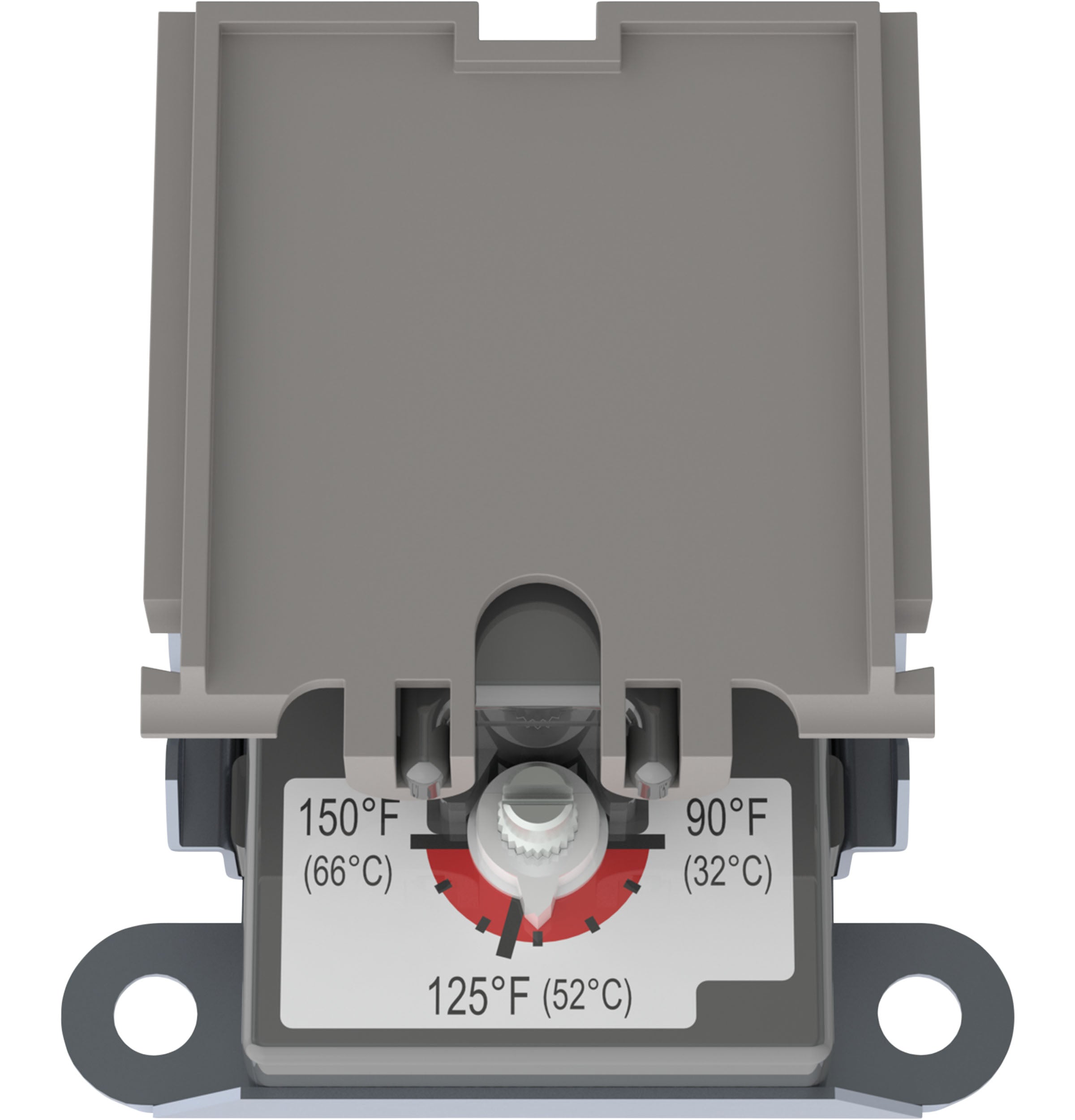

Adjustable Thermostat
Change temperature to your desired setting

Manuals & Guides

Key Features

Real Capacity

Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)
