SKU: GE20L08BAR | UPC: 84691895244

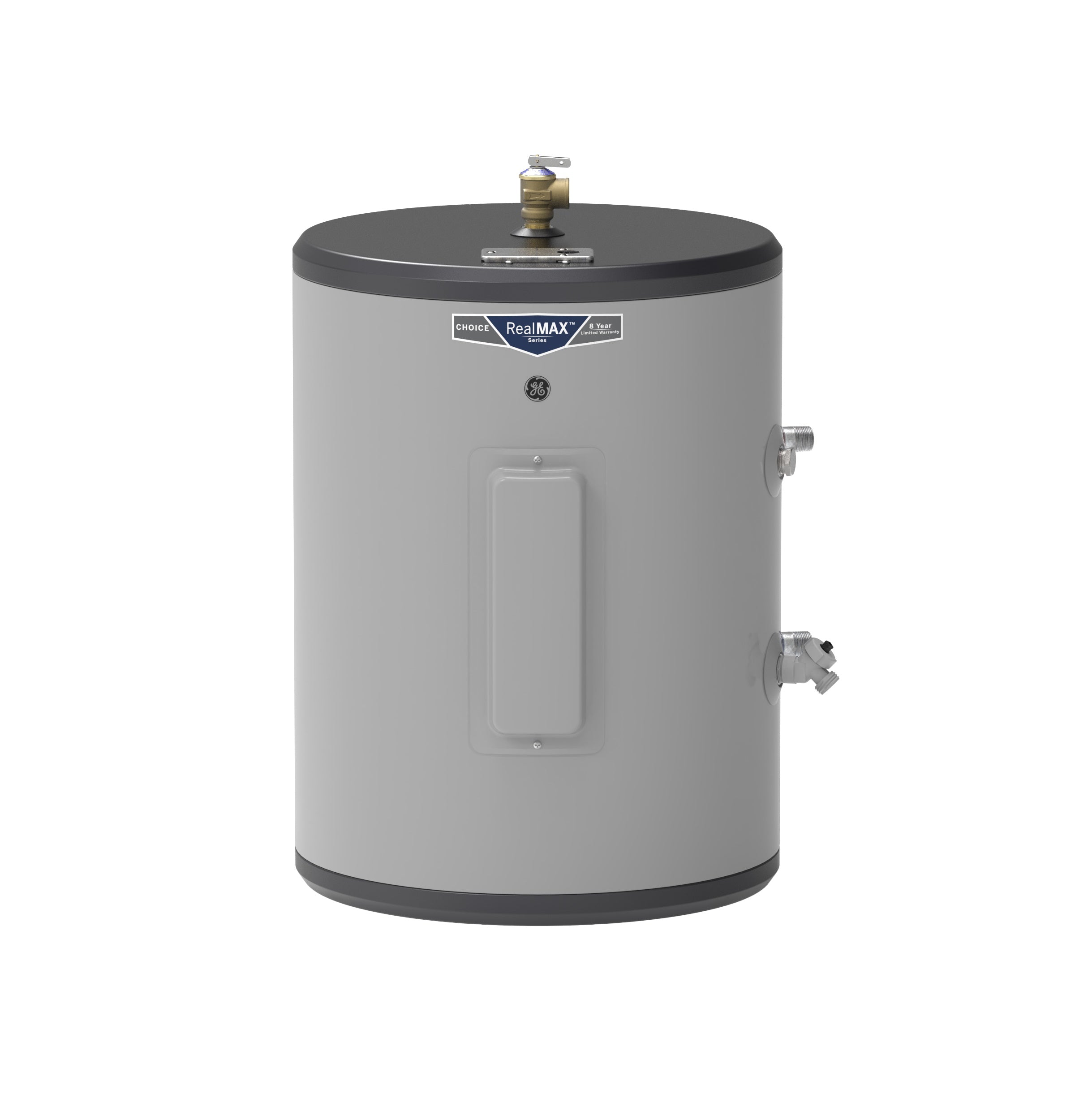

GE20L08BAR 18 Gallon Side Port Lowboy Electric Water Heater Gray

Ge® 18 Gallon Side Port Lowboy Electric Water Heater
Ge® 18 Gallon Side Port Lowboy Electric Water Heater
Ge® 18 Gallon Side Port Lowboy Electric Water Heater
Ge® 18 Gallon Side Port Lowboy Electric Water Heater

Quick Specification More details

  • Width:
    19.25"
  • Depth:
    19.25"
  • Height:
    25.75"
  • Type:
    Tank Water Heaters

About this product

  • Lowboy
  • Quick Recovery
  • Household Size
  • Inlet Tube
More on the way
On Sale

SKU: GE20L08BAR | UPC: 84691895244

GE20L08BAR 18 Gallon Side Port Lowboy Electric Water Heater Gray

$463.73 $671.97 Save $208.24 / 30% OFF

More on the way

Active Rebates

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $30.99
  • $51.99
  • $75.99
  • $139.99
KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Available services

Quick Specification More details

  • Width:
    19.25"
  • Depth:
    19.25"
  • Height:
    25.75"
  • Type:
    Tank Water Heaters

About this product

  • Lowboy
  • Quick Recovery
  • Household Size
  • Inlet Tube
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Reviews
$463.73 $671.97 Save $208.24 / 30% OFF

Product Details for GE GE20L08BAR

Technical Details

Weights & dimensions
Overall Width 19.25 in
Overall Height 25.75 in
Product Height (to top of unit) 25.75 in
Overall Depth 19.25 in
Approximate Shipping Weight 62 lb
Net Weight 54.2 lb
Connection Sizes - Water Inlet (MNPT) 3/4"
Connection Sizes - Hot Water Outlet (MNPT) 3/4"
Product Diameter 19 1/4 in
Product Height (to top of water inlet/outlet connections) 8.875/17.125 in

Features
Control Type Thermostat
Controls Mechanical Temperature Control
Max. operating pressure (psi) 150
Temp & Pressure Relief Valve Yes
Height Description Low Boy with Side Port
Heating Element Stainless steel
Max: operating pressure (psi) 150
Fuel Type Electric
Configuration Lowboy
Installation Location Indoor
Operating Modes Standard Electric
Rated Storage Capacity 18
Drain Valve Type Plastic
GPH Recovery @ 90 Degrees F 25.1
Mobile Home Compatible No
Temperature Setting Factory Default 120° F
Product Type Electric Thermostat
Family Size 1-2 People
Water Connection Location Side
Foam Insulation Yes
Point of Use No
Anode Rod Aluminum
Temperature Setting 90-150° F Range
Rated Capacity 18.0 gal

Power / ratings
Heating - Electric - Heater Watts 3800
Electrical Connection Direct-Wire
Operating Water Pressure 20-125 PSI
Volts/Hertz 240V; 60Hz
Voltage (MAX) 240 V
Electrical Circuit Required 208V/240V 60 Hz Dedicated 30 Amp Min.

Warranty
Warranty Notes See written warranty for full details
Parts Warranty Limited 8-year tank and parts
Labor Warranty Limited 1-year entire appliance

Capacity
Unit Capacity 18 Gallons

Appearance
Color Appearance Gray

Warranty
Parts 8 Year
Labor 1 Year

Other
Product Diameter 19.25 in
Connection Sizes - Water Inlet (MNPT) 3/4"

Dimensions & weight
Width 19.25 in.
Height 25.75 in.
Length 19.25 in.
Weight 54.2 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 24.25 in.
Shipping Height 30.75 in.
Shipping Length 24.25 in.
Shipping Weight 94.2 lbs.
Total of Shipping Weight 94.2 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 5.52 ft³
Dimensional Weight 68.65 lbs.
Total of Cubes 5.52 ft³
Total of Dimensional Weight 68.65 lbs.

Description

Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern

Quick Recovery
3800W heating elements quickly increase water temperature for hot water when you need it

Household Size
Provide hot water for the whole family of 1 to 2 persons

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

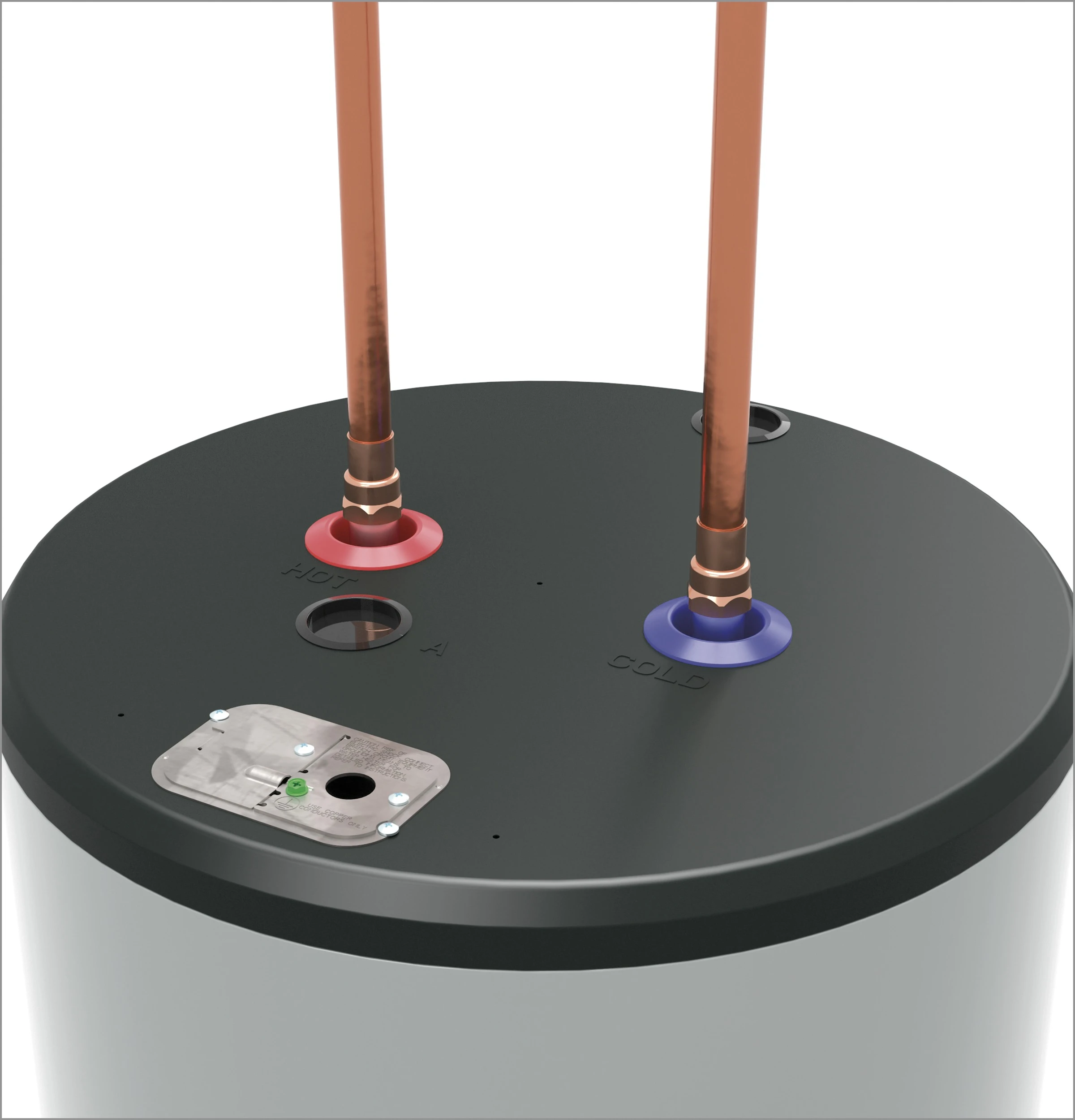

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

Anode Rod
Durable design offers long-lasting protection against corrosion

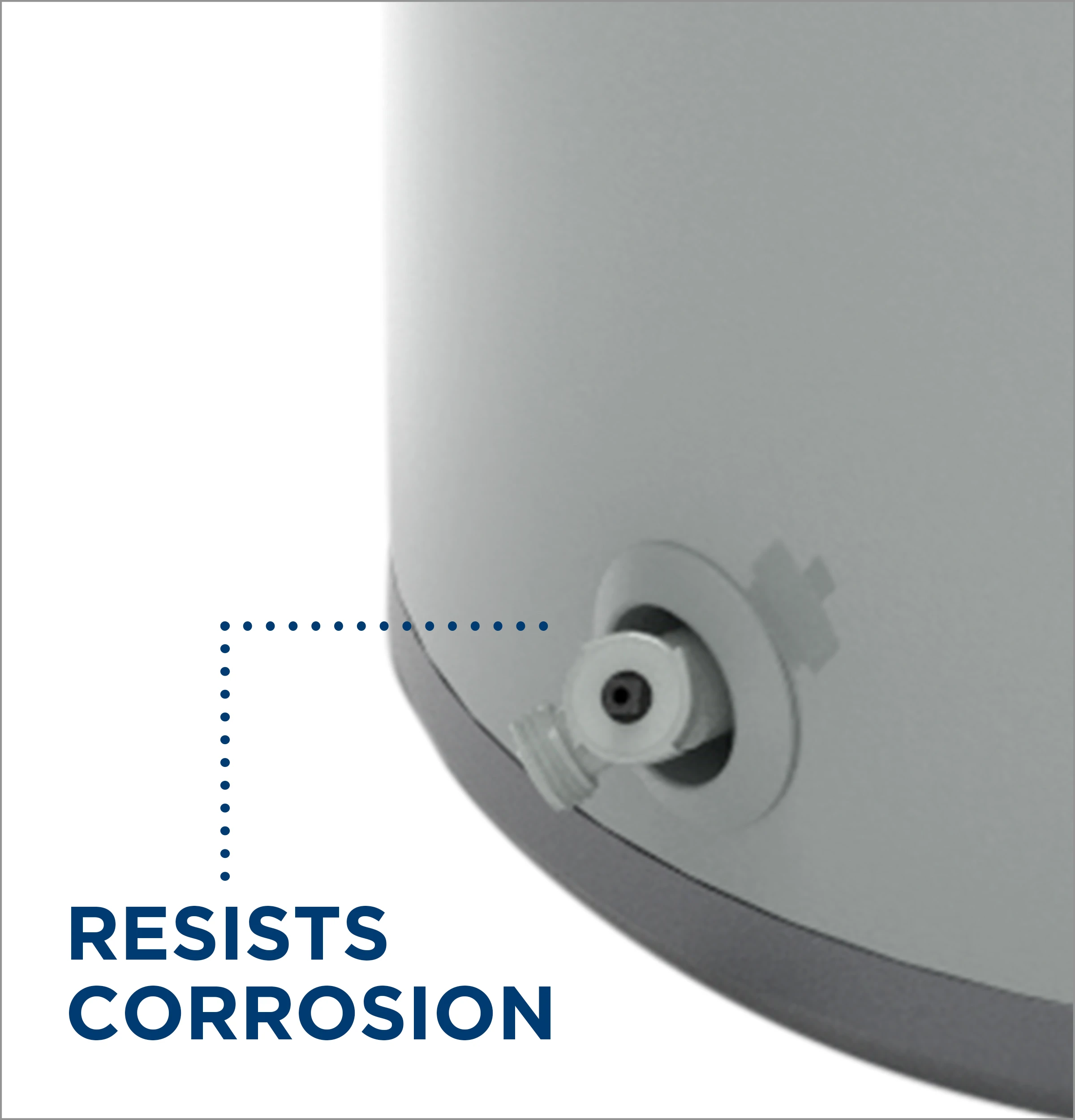

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

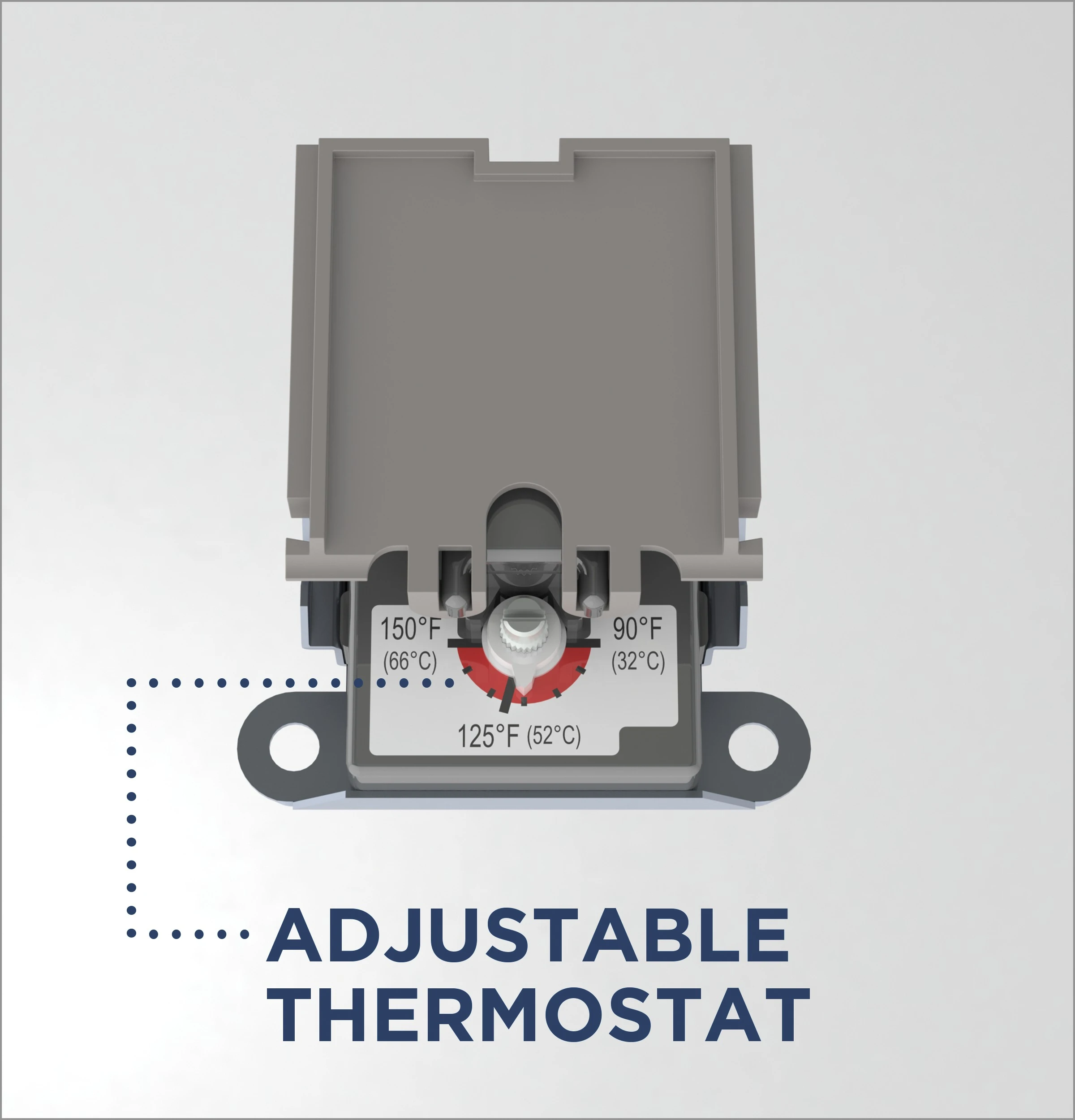

Adjustable Thermostat
Change temperature to your desired setting



Product Features

  • Quick Recovery
    3800W heating element quickly increase water temperature for hot water when you need it
  • Household Size
    Provide hot water for the whole family of 1 to 2 persons
  • Inlet Tube
    Replenishes water from the bottom of the tank to maximize hot water delivery
  • Drain Valve
    Rust-proof construction can be counted on to provide long-lasting service

Manuals & Guides

Key Features

Lowboy

Make the most of tight spaces with a water heater that fits where height is a concern

Easy Set Up

Replace your old water heater quickly and easily using standard water and electrical connections

Anode Rod

Durable design offers long-lasting protection against corrosion

Adjustable Thermostat

Change temperature to your desired setting
