SKU: AZES15DCXXA | UPC: 84691942580

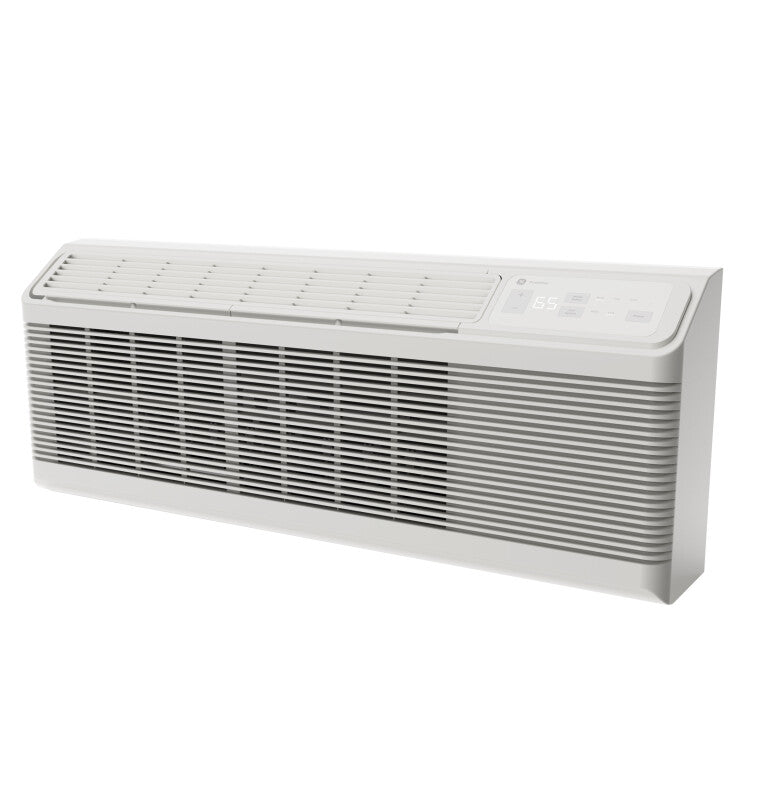

GE AZES15DCXXA Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt Grey White

Quick Specification More details

Width:
42"
Depth:
20.8125"
Height:
16"
Type:
Wall Mount Air Conditioners

About this product

R454B - Most environmentally friendly refrigerant on the market
Heat pump down to 25°F
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier

SKU: AZES15DCXXA | UPC: 84691942580

GE AZES15DCXXA Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt Grey White

Discontinued

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
42"
Depth:
20.8125"
Height:
16"
Type:
Wall Mount Air Conditioners

About this product

R454B - Most environmentally friendly refrigerant on the market
Heat pump down to 25°F
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier

Product Details for GE AZES15DCXXA

Technical Details

Weights & dimensions

Overall Width	42 in
Overall Height	16 in
Overall Depth	20.8125 in
Approximate Shipping Weight	117 lb
Net Weight	107 lb

Features

Zoneline Features	Weather Protected Electrical Components
Louver Style	Reversible
Control Type	Tactile touch pad with LED Display
Refrigerant Charge (oz.)	34
Discharge Grille	2-position
Fan Speed Selections	Hi/Low Heating
Sensible Heat Ratio	63%
Power Factor	97
Product Type	Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type	R454B
Filter Type	Slide-Out
Manual Vent Control	Hidden
Chassis Type	Slide-In
Fan Motor	2
Temperature Limiting	Electronic 7-Step
Fan Speed Control	Yes
Temperature Range	60 - 85 F
Corrosion Treated	Yes
Heat - Cool	Yes
Electronic Micro Computer Control	Yes
Fan Cycle Switch	Yes
Central Desk Control Compatibility	Yes
Rotary Compressor	Yes
Vent Control	3-position
Venting Features	Vent Air Filter
Heating System	Electric Resistance
Zoneline Features	Universal Heaters
Sensible Heat Ratio	0.75
Power Factor	95
Temperature Limiting	Electronic 24-Step
Heat Sentinel	Yes
Freeze Sentinel	Yes
Heating System	Resistance only
Zoneline Features	Auto Power Recovery
Fan Speed Selections	Hi/Low Fan Only
Venting Features	Outdoor Vent Control - 3 Positions
Fan Speed Selections	Hi/Low Cooling
Filter Type	Rigid Frame
Venting Features	Concealed Manual Vent Control
Zoneline Features	"Smart Fan" Fan Cycle Control
Zoneline Features	Heat Sentinel
Zoneline Features	Freeze Sentinel
Zoneline Features	Automatic Indoor Frost Control
Zoneline Features	Remote Thermostat Compatibility
Zoneline Features	Central Desk Control Compatibility
Zoneline Features	Random Twist/Length Segment Tangential Blower
Control Type	Standard Microcomputer

Power / ratings

Cooling - Amperes; L.R.	31.5
Cooling - Amperes; F.L. - Cooling	6.3/6.7
Cooling - Amperes	6.3/6.7
Cooling - Watts	1390/1380
Voltage (MIN)	208 V
Heating BTUH	NA
Voltage (MAX)	230 V
Hertz	60
Cooling - Amperes	6.3/6.8
Cooling - Watts	1400/1365

Capacity

CFM Indoor Fan Low	330
CFM Indoor Fan High	440
Cooling EER (BTUH / Watt)	10.5 / 10.6
Dehumidification (pts./hr.)	4.5 (High Speed)
Vent CFM (high fan at zero ESP)	33
Vent CFM (high fan at zero ESP)	44.4
Cooling BTUH (MAX)	14800
Cooling BTUH (MIN)	14,500 Btu

Warranty

Warranty Notes	See written warranty for full details
Labor Warranty	Limited 5-year sealed system
Parts Warranty	Limited 2-year entire appliance
Labor Warranty	Limited 1-year entire appliance

Accessories

Accessories Required for Installation	RAB42 - Wall Case
Accessories Required for Installation	Outdoor Grille

Appearance

Color Appearance

Grey White

Dimensions & weight

Width	42 in.
Height	16 in.
Length	20.81 in.
Weight	107 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	47 in.
Shipping Height	21 in.
Shipping Length	25.81 in.
Shipping Weight	147 lbs.
Total of Shipping Weight	147 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.09 ft³
Dimensional Weight	100.62 lbs.
Total of Cubes	8.09 ft³
Total of Dimensional Weight	100.62 lbs.

Description

R454B - Most environmentally friendly refrigerant on the market

Electronic touch controls with LED display

Quiet Operation - baked on mastic sound barrier

Corrosion protection package

SMC basepan and bulkhead

Electronic temperature limiting

Fresh air vent

Designed & Assembled in America
Date of Manufacture - 2025 or later
