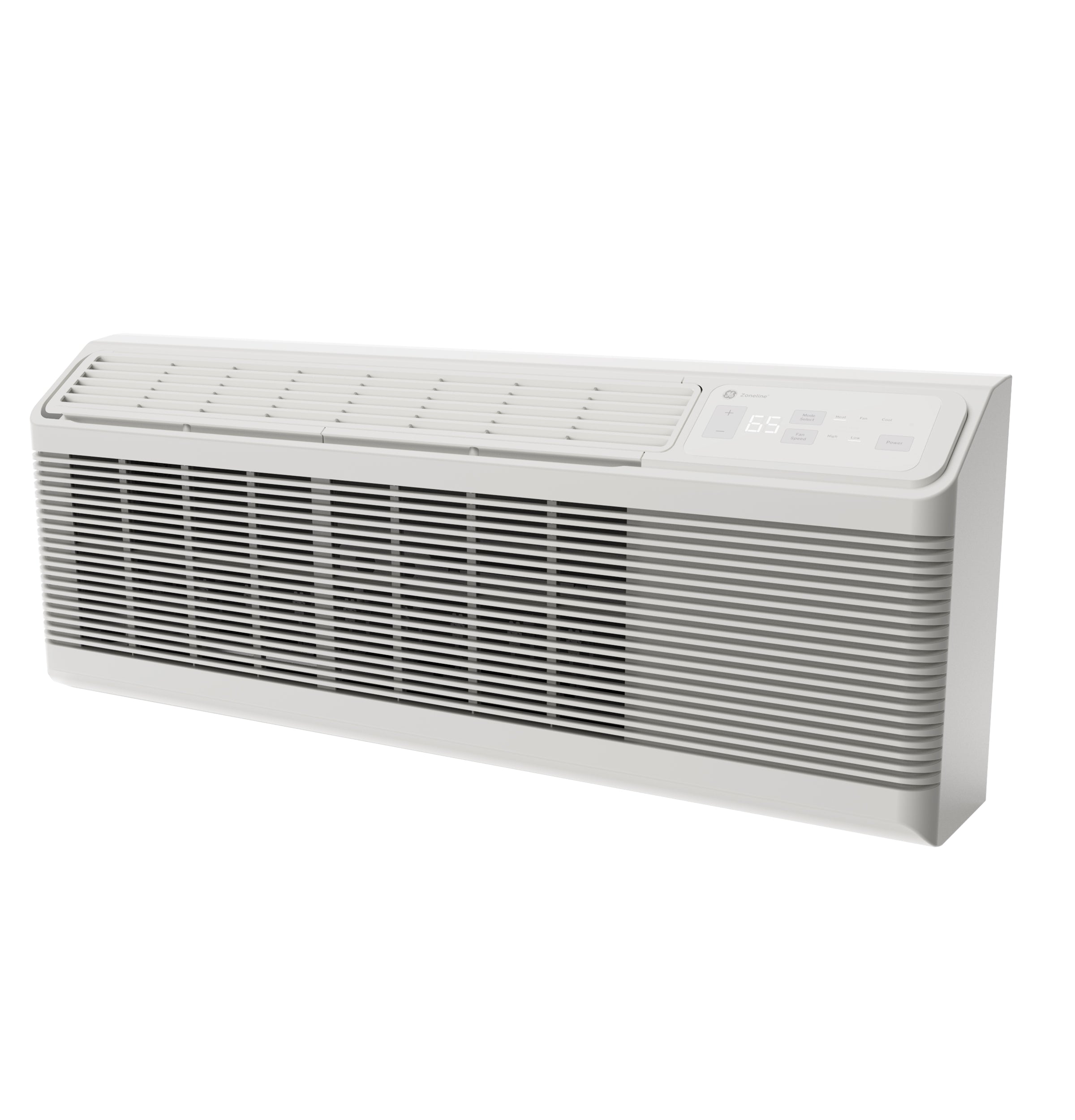

GE AZES07DCXXA Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt Grey White

Quick Specification More details

Width:
42"
Depth:
20.8125"
Height:
16"
Type:
Wall Mount Air Conditioners

About this product

R454B - Most environmentally friendly refrigerant on the market
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier
Corrosion protection package

GE AZES07DCXXA Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt Grey White

$1,226.00 ~~$1,385.97~~ Save $159.97 / 11% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
42"
Depth:
20.8125"
Height:
16"
Type:
Wall Mount Air Conditioners

About this product

R454B - Most environmentally friendly refrigerant on the market
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier
Corrosion protection package

Product Details for GE AZES07DCXXA

Technical Details

Features

Zoneline Features	Universal Heaters
Louver Style	Reversible
Control Type	Tactile touch pad with LED Display
Refrigerant Charge (oz.)	26
Discharge Grille	2-position
Fan Speed Selections	Hi/Low Heating
Sensible Heat Ratio	0.75
Power Factor	95
Refrigerant Type	R454B
Product Type	Packaged Terminal Air Conditioners (PTAC)
Filter Type	Slide-Out
Manual Vent Control	Hidden
Temperature Limiting	Electronic 24-Step
Chassis Type	Slide-In
Fan Motor	2
Heat Sentinel	Yes
Fan Speed Control	Yes
Freeze Sentinel	Yes
Temperature Range	60 - 85 F
Corrosion Treated	Yes
Heat - Cool	Yes
Electronic Micro Computer Control	Yes
Fan Cycle Switch	Yes
Central Desk Control Compatibility	Yes
Rotary Compressor	Yes
Vent Control	3-position
Venting Features	Vent Air Filter
Heating System	Resistance only
Zoneline Features	Auto Power Recovery
Fan Speed Selections	Hi/Low Fan Only
Venting Features	Outdoor Vent Control - 3 Positions
Fan Speed Selections	Hi/Low Cooling
Filter Type	Rigid Frame
Venting Features	Concealed Manual Vent Control
Zoneline Features	"Smart Fan" Fan Cycle Control
Zoneline Features	Heat Sentinel
Zoneline Features	Freeze Sentinel
Zoneline Features	Automatic Indoor Frost Control
Zoneline Features	Remote Thermostat Compatibility
Zoneline Features	Central Desk Control Compatibility
Zoneline Features	Random Twist/Length Segment Tangential Blower
Control Type	Standard Microcomputer

Power / ratings

Cooling - Amperes; L.R.	13.5
Hertz	60
Cooling - Amperes; F.L. - Cooling	2.5/2.6
Cooling - Amperes	2.6/2.8
Cooling - Watts	545/535
Voltage (MIN)	208 V
Voltage (MAX)	230 V

Weights & dimensions

Overall Width	42 in
Approximate Shipping Weight	100 lb
Overall Height	16 in
Overall Depth	20.8125 in
Net Weight	90 lb

Capacity

CFM Indoor Fan Low	240
CFM Indoor Fan High	335
Cooling EER (BTUH / Watt)	13.2 / 13.4
Dehumidification (pts./hr.)	1.2 (High Speed)
Vent CFM (high fan at zero ESP)	36.8
Cooling BTUH (MAX)	7200
Cooling BTUH (MIN)	7,200 Btu

Warranty

Warranty Notes	See written warranty for full details
Labor Warranty	Limited 5-year sealed system
Parts Warranty	Limited 2-year entire appliance
Labor Warranty	Limited 1-year entire appliance

Accessories

Accessories Required for Installation	RAB42 - Wall Case
Accessories Required for Installation	Outdoor Grille

Appearance

Color Appearance

Grey White

Description

R454B - Most environmentally friendly refrigerant on the market Electronic touch controls with LED display Quiet Operation - baked on mastic sound barrier Corrosion protection package SMC basepan and bulkhead Electronic temperature limiting Fresh air vent Designed & Assembled in America Date of Manufacture - 2025 or later
