| Overall Width | 24.0625 in |
| Overall Height | 14.5625 in |
| Overall Depth | 19 in |
| Approximate Shipping Weight | 81 lb |
| Depth to Louvers | 20.625 in |
| Net Weight | 81 lb |
| Louver Style | 6-Way |
| Fan Speed Selections | 3 Fan Only |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Product Type | Built-In |
| Refrigerant Type | R410A |
| Chassis Type | Fixed |
| Vent/Air Exchange Exhaust | Top |
| Plug Type | Perpendicular/NEMA 6-20 |
| Thermostat Type | Thermistor |
| LCDI / AFCI power cord | Yes |
| Cord Length | 48" |
| Air Flow Volume CFM High/Medium/Low | 292/275/252 |
| Rotary Compressor | Yes |

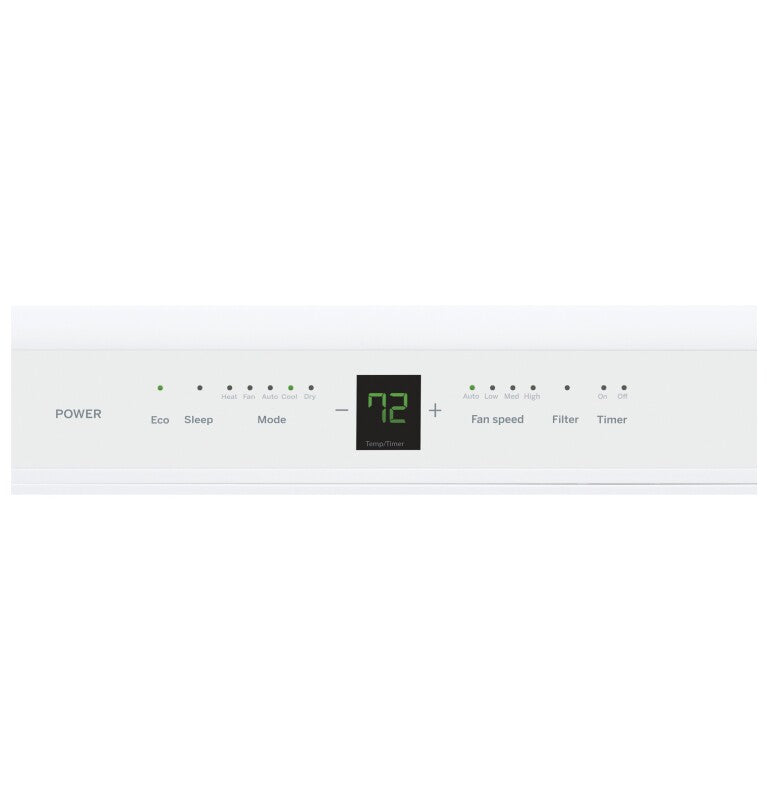

| Digital Time Temp Display | Yes |

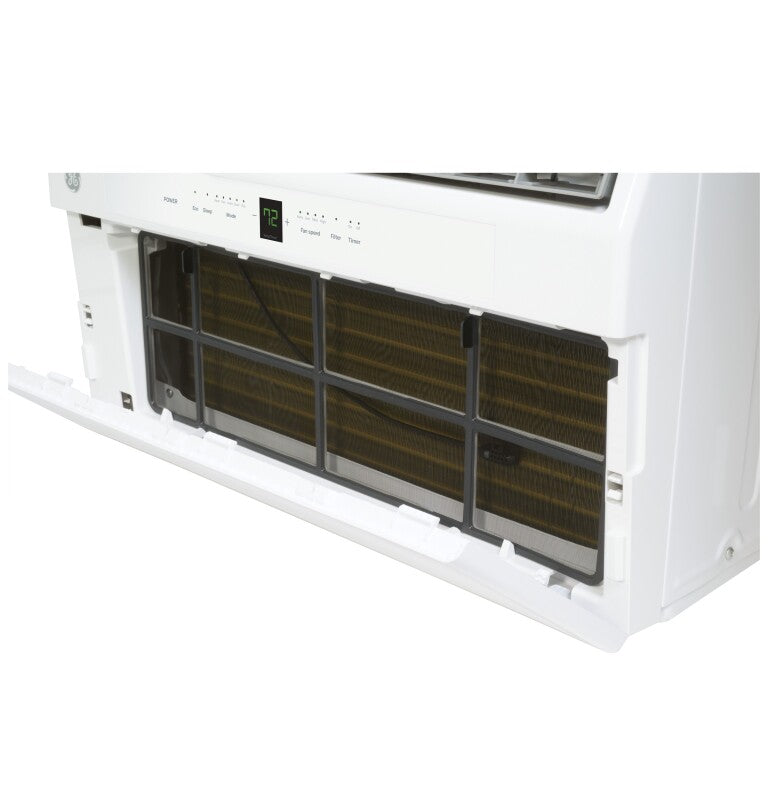

| Filter Type | Rigid |
| Room Air Conditioner Features | Batteries Included |
| Filter Type | Washable |
| Room Air Conditioner Features | Sleep Mode |
| Fan Speed Selections | 3 Cooling |
| Filter Type | Easy Access |

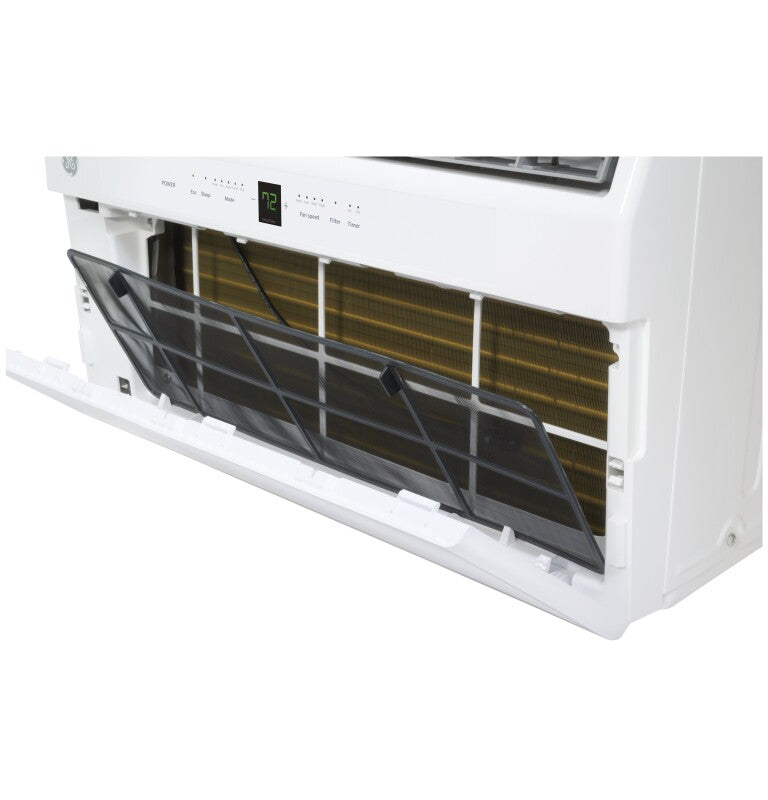

| Filter Type | Tilt-Out |
| Room Air Conditioner Features | On/Off Timer |
| Room Air Conditioner Features | Energy Saver |
| Room Air Conditioner Features | Auto Fan |
| Room Air Conditioner Features | Dehumidify Function |
| Room Air Conditioner Features | Infrared Remote Control |
| Room Air Conditioner Features | Filter Indicator |
| Volts/Hertz | 230V-208V/60Hz |
| Cooling - Rated Cooling Amps AHAM | 4.6/5.0 |
| Cooling - Watts | 1042/1022 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3450/2821 |
| CEER | 9.6 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.0/13.5 |
| Wall Case | RAB46/47/48/24 Required At Additional Cost |
| Cooling EER (BTUH / Watt) | 9.6 |
| Heating - Electric - BTUH - AHAM - 1R | 10600/8600 |
| Dehumidification (pts./hr.) | 3.0 |
| Cooling BTUH (MAX) | 10,000 Btu |
| Cooling BTUH (MIN) | 9,800 Btu |
| Color Appearance | White |
| Width | 24.06 in. |
| Height | 14.56 in. |
| Length | 19 in. |
| Weight | 81 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 29.06 in. |
| Shipping Height | 19.56 in. |
| Shipping Length | 24 in. |
| Shipping Weight | 121 lbs. |
| Total of Shipping Weight | 121 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 3.85 ft³ |
| Dimensional Weight | 47.9 lbs. |
| Total of Cubes | 3.85 ft³ |
| Total of Dimensional Weight | 47.9 lbs. |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
