Product Details for GE AKCQ08ACH

Technical Details

Weights & dimensions

Overall Width 24.0625 in
Overall Height 14.5625 in
Overall Depth 19 in
Approximate Shipping Weight 80 lb
Depth to Louvers 20.625 in
Net Weight 80 lb

Dimensions & weight

Width 24.06 in.
Height 14.56 in.
Length 19 in.
Weight 80 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 29.06 in.
Shipping Height 19.56 in.
Shipping Length 24 in.
Shipping Weight 120 lbs.
Total of Shipping Weight 120 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 3.85 ft³
Dimensional Weight 47.9 lbs.
Total of Cubes 3.85 ft³
Total of Dimensional Weight 47.9 lbs.

Features

Louver Style 6-Way
Fan Speed Selections 3 Fan Only
Optional Grill RAG13/RAG13A/RAG14E
Product Type Built-In
Refrigerant Type R410A
Chassis Type Fixed
Vent/Air Exchange Exhaust Top
Plug Type A / 5-15P
Thermostat Type Thermistor
LCDI / AFCI power cord Yes
Cord Length 72"
Air Flow Volume CFM High/Medium/Low 252/217/189
Rotary Compressor Yes
Digital Time Temp Display Yes
Filter Type Permanent Mesh
Room Air Conditioner Features Batteries Included
Filter Type Washable
Room Air Conditioner Features Sleep Mode
Fan Speed Selections 3 Cooling
Filter Type Easy Access
Filter Type Rigid
Filter Type Tilt-Out
Room Air Conditioner Features On/Off Timer
Room Air Conditioner Features Energy Saver
Room Air Conditioner Features Auto Fan
Room Air Conditioner Features Dehumidify Function
Room Air Conditioner Features Infrared Remote Control
Room Air Conditioner Features Filter Indicator

Power / ratings

Volts/Hertz 115V; 60Hz
Cooling - Rated Cooling Amps AHAM 7.0
Cooling - Watts 783
Voltage/Hertz/Phase 115/60/1
CEER 10.6
Voltage (MAX) 115 V

Accessories

Wall Case RAB46/47/48/24 Required At Additional Cost

Capacity

Cooling EER (BTUH / Watt) 10.6
Dehumidification (pts./hr.) 2.5
Cooling BTUH (MAX) 8,300 Btu

Appearance

Color Appearance White

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 5-year sealed system
Parts Warranty Limited 2-year entire appliance
Labor Warranty Limited 1-year entire appliance

Description

True Universal Fit

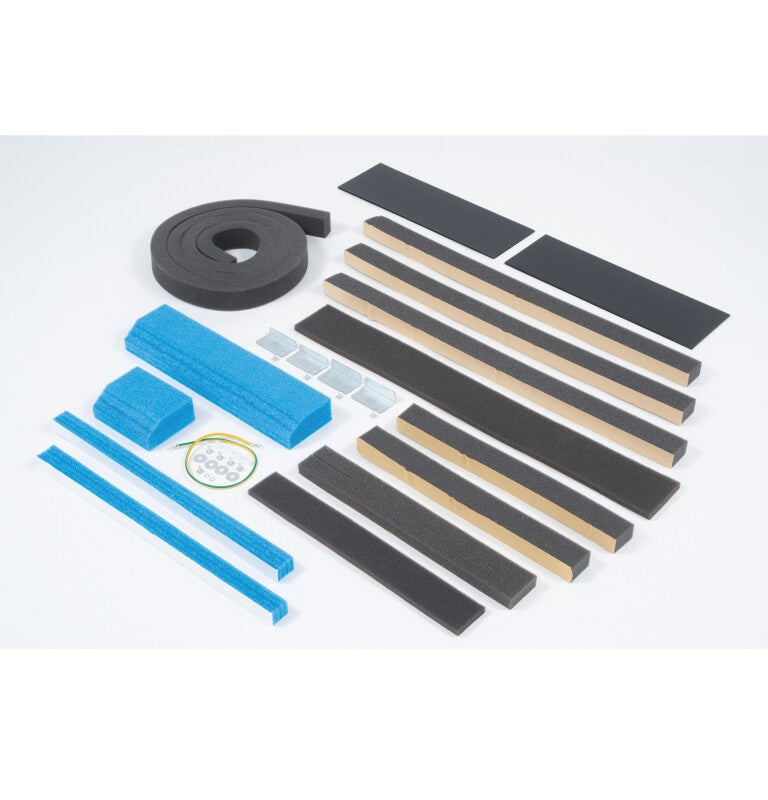

Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included

Sleek Appearance
Streamlined design and bright white color will complement every room-cooling or heating your home in style

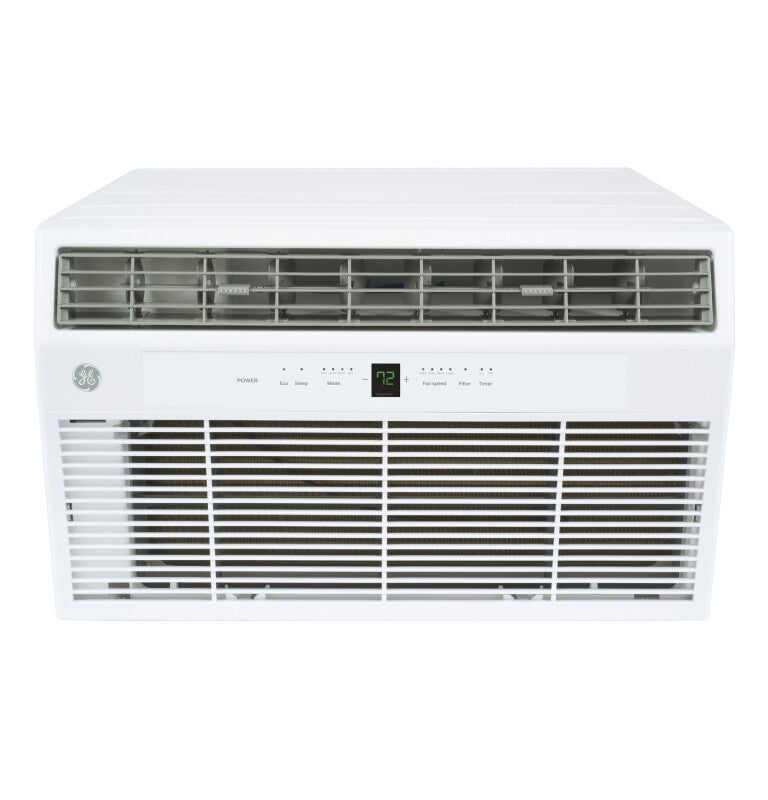

Large LCD Display
Intuitive & easy-to-read LCD display controls room air comfort at a single touch

ECO Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable

Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification

6-Way Directional Airflow
Direct where the air flows with up to 6 directional vents-cooling and/or heating the areas of the room that need it the most

Washable Filter
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air-providing a cleaner environment

Auto Mode
Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort

Remote Control Included
Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

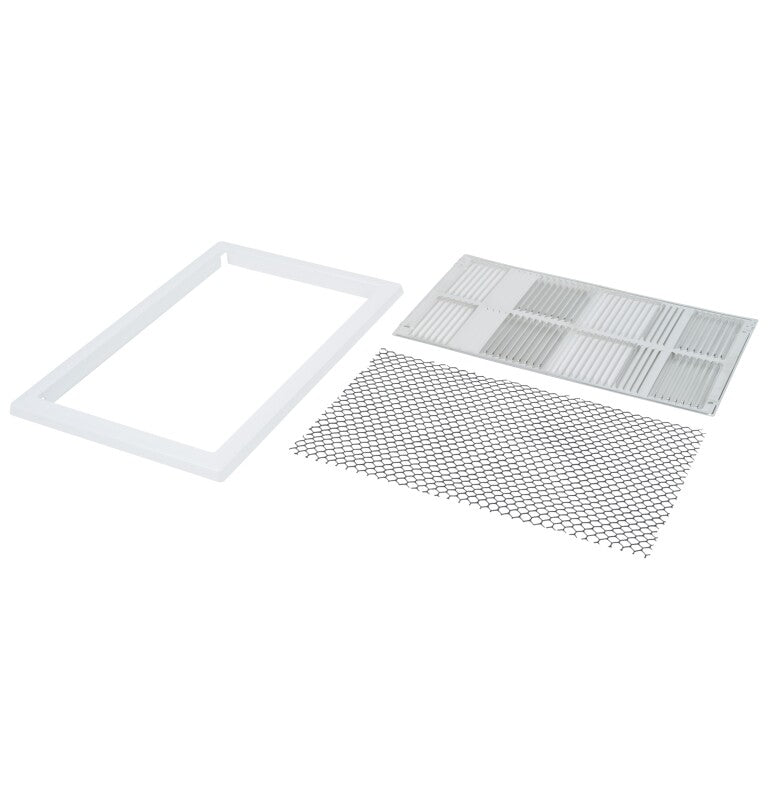

Universal Trim Kit
Designed for a custom appearance and easy installation, the trim kit provides a seamless appearance to the built-in wall sleeve

Sleep Mode
Efficient setting to adjust temperature during sleep times for up to 7 hours, creating more energy savings

2 Year Warranty
GE Appliances cares about its products, offering replacement of any part of the air conditioner which fails due to defect in materials or workmanship up to 2 years from the date of purchase



Product Features

  • True Universal Fit
    Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included
  • Sleek Appearance
    Streamlined design and bright white color will complement every room—cooling or heating your home in style
  • Large LCD Display
    Intuitive & easy-to-read LCD display controls room air comfort at a single touch
  • ECO Mode
    Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
  • Dry Mode
    Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
  • 6-Way Directional Airflow
    Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
  • Washable Filter
    Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
  • Auto Mode
    Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
  • Remote Control Included
    Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
  • Universal Trim Kit
    Designed for a custom appearance and easy installation, the trim kit provides a seamless appearance to the built-in wall sleeve
  • Sleep Mode
    Efficient setting to adjust temperature during sleep times for up to 7 hours, creating more energy savings
  • 2 Year Warranty
    GE Appliances cares about its products, offering replacement of any part of the air conditioner which fails due to defect in materials or workmanship up to 2 years from the date of purchase
