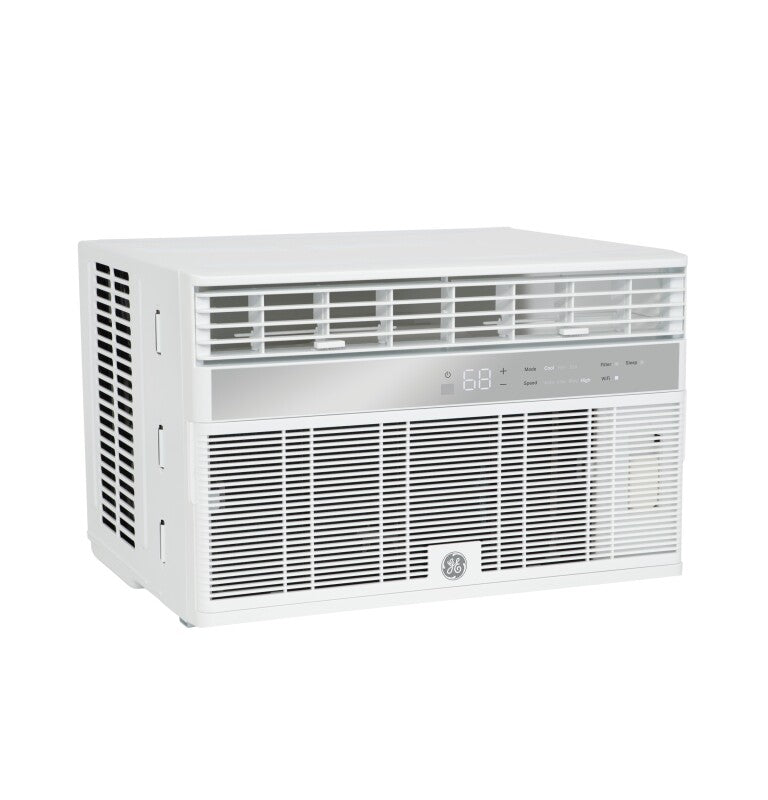

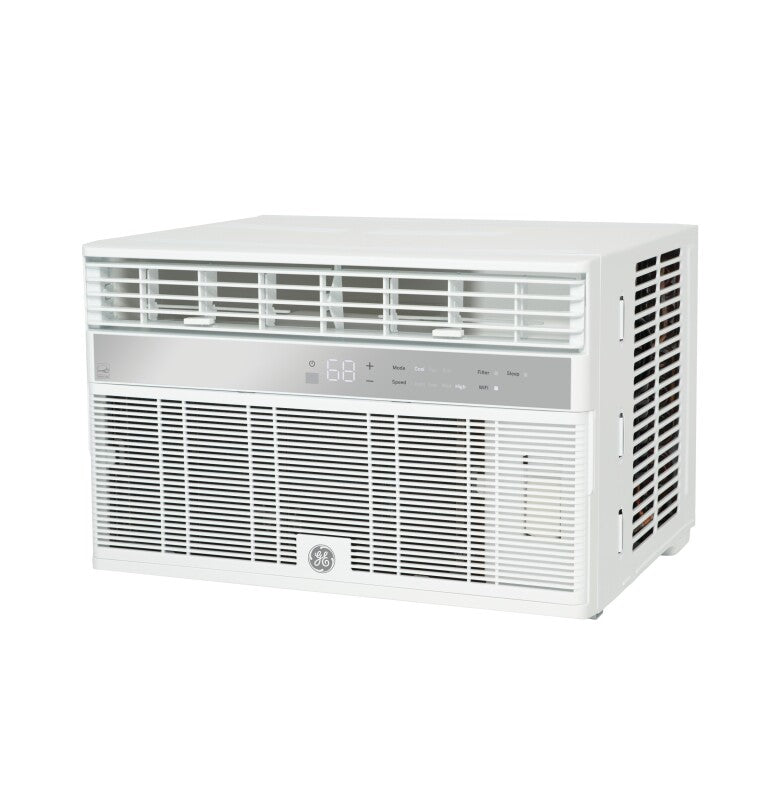

AHY12LZ 12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft. White

12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.
12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft.

Quick Specification More details

  • Width:
    19"
  • Depth:
    19.8125"
  • Height:
    14.5"
  • Type:
    Window Mount Air Conditioners

About this product

  • Cools Large Rooms
  • Built-In WiFi
  • Maximum Comfort Cool
  • Voice Control
Summer Sale
Clearance

SKU: AHY12LZ | UPC: 084691853169

AHY12LZ 12,000 BTU Smart Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft. White

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    19"
  • Depth:
    19.8125"
  • Height:
    14.5"
  • Type:
    Window Mount Air Conditioners

About this product

  • Cools Large Rooms
  • Built-In WiFi
  • Maximum Comfort Cool
  • Voice Control
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for GE AHY12LZ

Technical Details

Weights & dimensions
Overall Width 19 in
Overall Height 14.5 in
Overall Depth 19.8125 in
Approximate Shipping Weight 75.16 lb
Min./Max. Window Opening Width (in.) 25/36-5/8
Depth to Louvers 18 in
Grille Depth 2 in
Net Weight 66.33 lb
Minimum Window Opening Height (in.) 14.5625 in

Dimensions & weight
Width 19 in.
Height 14.5 in.
Length 19.81 in.
Weight 66.33 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 24 in.
Shipping Height 19.5 in.
Shipping Length 24.81 in.
Shipping Weight 106.33 lbs.
Total of Shipping Weight 106.33 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 3.16 ft³
Dimensional Weight 39.27 lbs.
Total of Cubes 3.16 ft³
Total of Dimensional Weight 39.27 lbs.

Features
Louver Style 4-Way Adjustable
Fan Speed Selections 3 Fan Only
Power Cord Length 72" Minimum
Product Type Window
Refrigerant Type R32

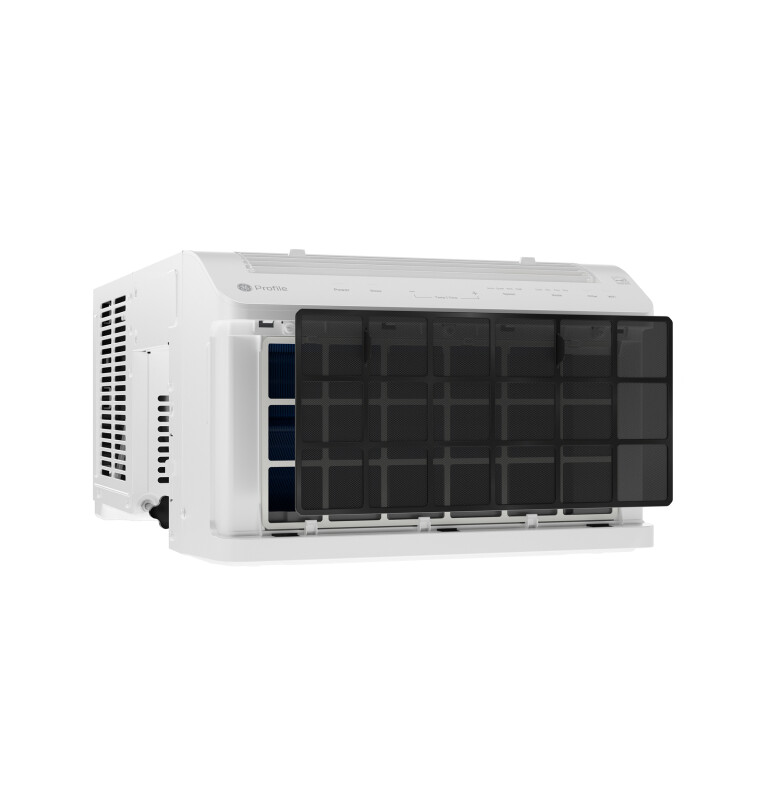

Filter Type One Touch Lift-Out
Chassis Type Fixed
Vent/Air Exchange Exhaust Top Air Discharge
Airflow Direction Top
Plug Type Parallel/NEMA 5-15
Mounting Type EZ Mount
Delay Timer 24-Hour On/Off Timer
Connected Capabilities Google Home
WiFi Connect Built-In
Remote Control Yes
Thermostat Type Electronic
LCDI / AFCI power cord Yes
Area to Cool 450-550
Rotary Compressor Yes
Digital Time Temp Display Yes
Unit Type Cool Only
Airflow (cfm) Roomside 250/220
Room Air Conditioner Features Energy Saver
Room Air Conditioner Features Remote Control
Airflow Direction 4-Way Adjustable
Fan Speed Selections 3 Cooling
Room Air Conditioner Features Electronic Control
Room Air Conditioner Features On/Off Timer
Room Air Conditioner Features Power Interruption Restart
Room Air Conditioner Features Filter Reminder Function
Connected Capabilities Amazon Alexa

Power / ratings
Sound Level (Low/High) 62/67 dbA
Hertz 60
Cooling - Rated Cooling Amps AHAM 9.4
Cooling - Watts 1035
CEER 11.4
Voltage (MAX) 115 V

Warranty
Warranty Notes See written warranty for full details
Labor Warranty No Warranty
Parts Warranty Return to vendor
Parts Warranty 1-Year Replacement

Appearance
Installation EZ Mount
Color Appearance White

Capacity
Dehumidification (pts./hr.) 3.2
Cooling BTUH (MAX) 12,000 Btu

Economical / quiet
Sound Level (dBA) 67 dBA (High)
Sound Level (dBA) 62 dBA (Low)

Description

Cools Large Rooms
12,000 BTU cooling capacity offers maximum comfort in rooms up to 550 square feet

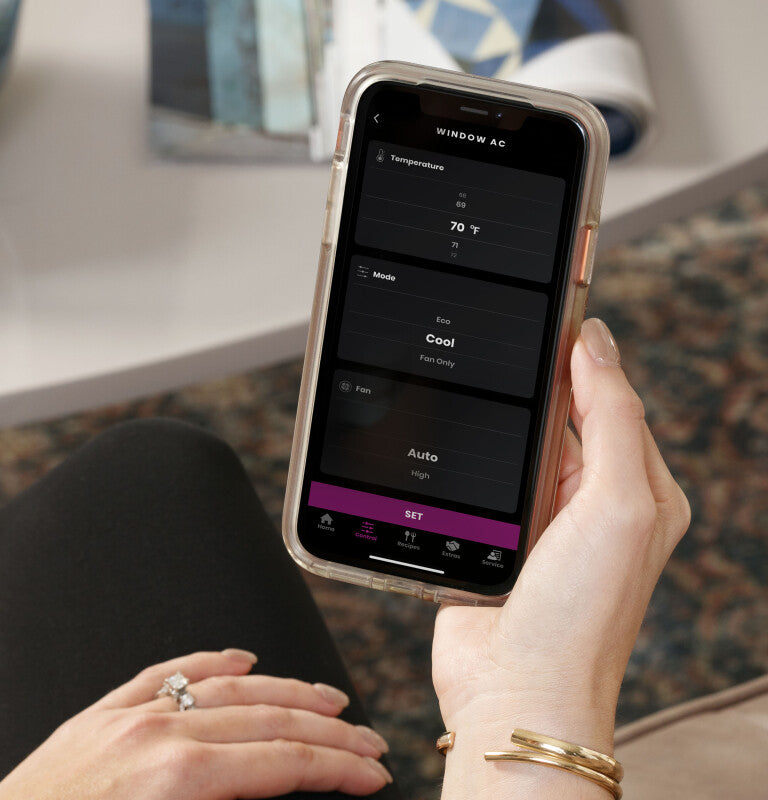

Built-In WiFi
Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind

Maximum Comfort Cool
Three cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency

Voice Control
Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant

Energy Reporting
Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance

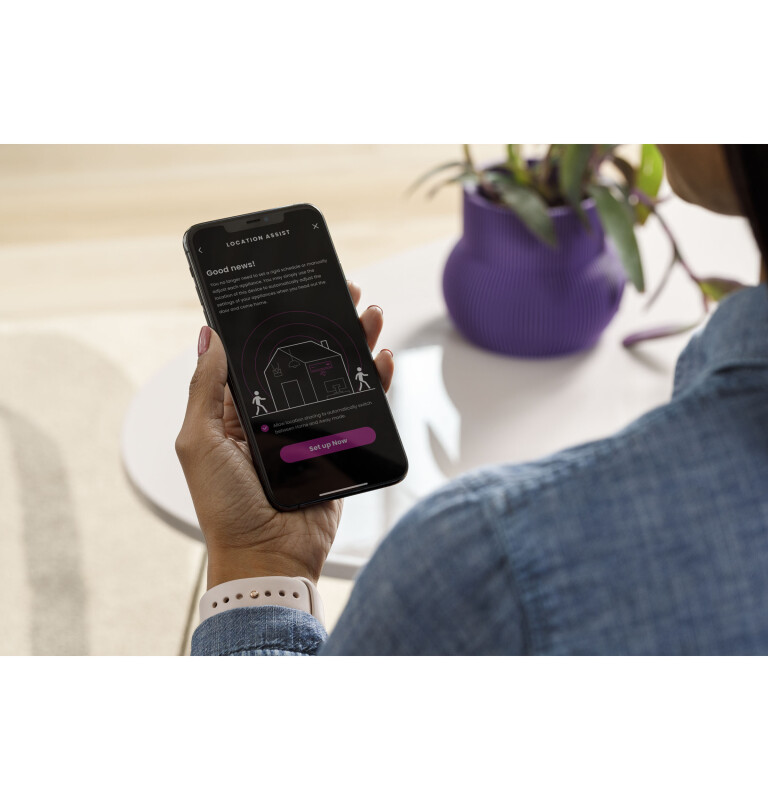

Geolocation
Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home

Eco Mode
The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs

Filter Reminder
Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

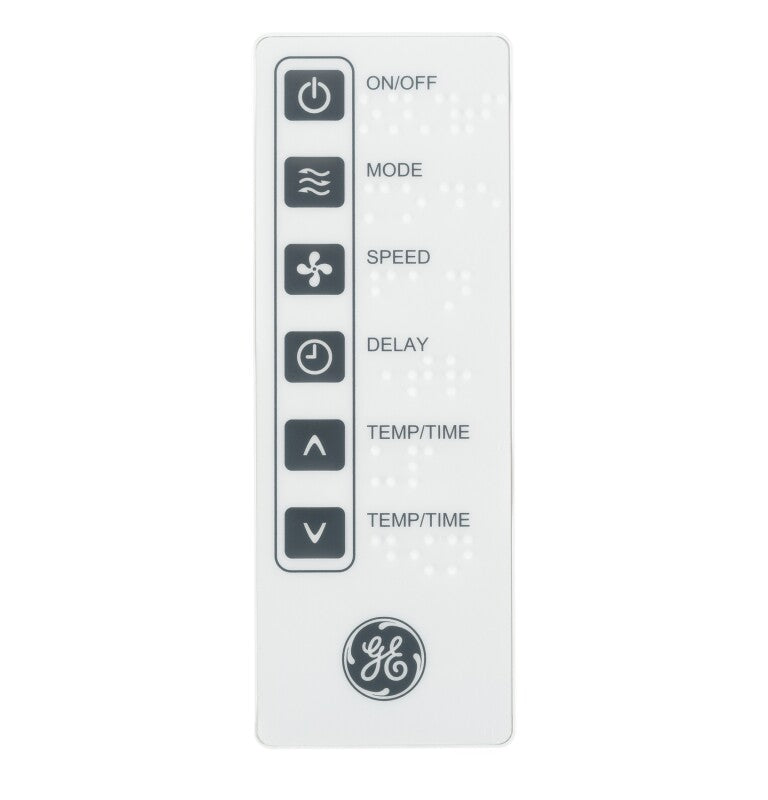

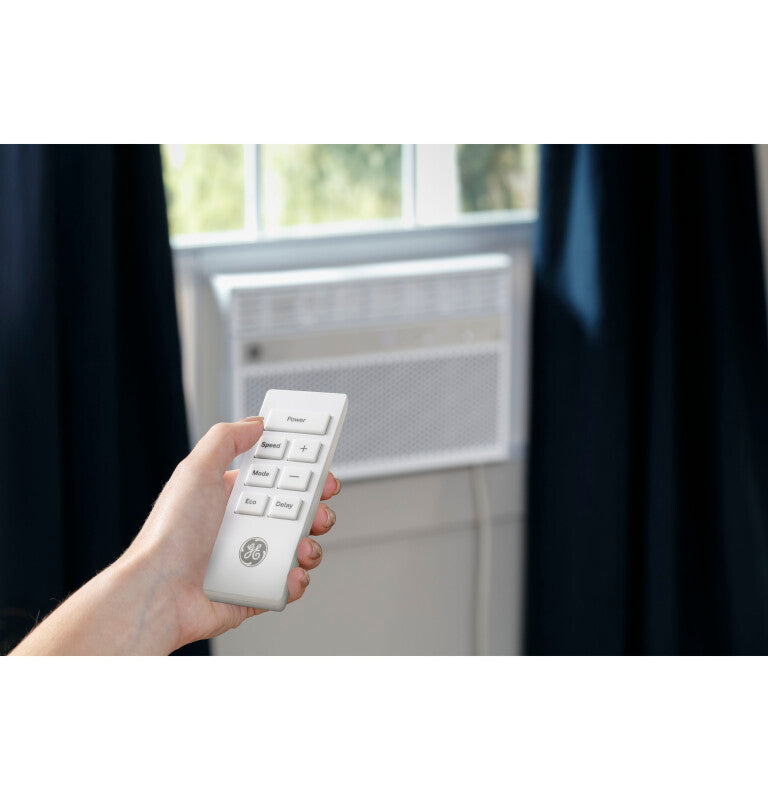

Electronic Thermostat with Remote
Digital controls with included remote make it easy to adjust and manage your settings from anywhere in your room

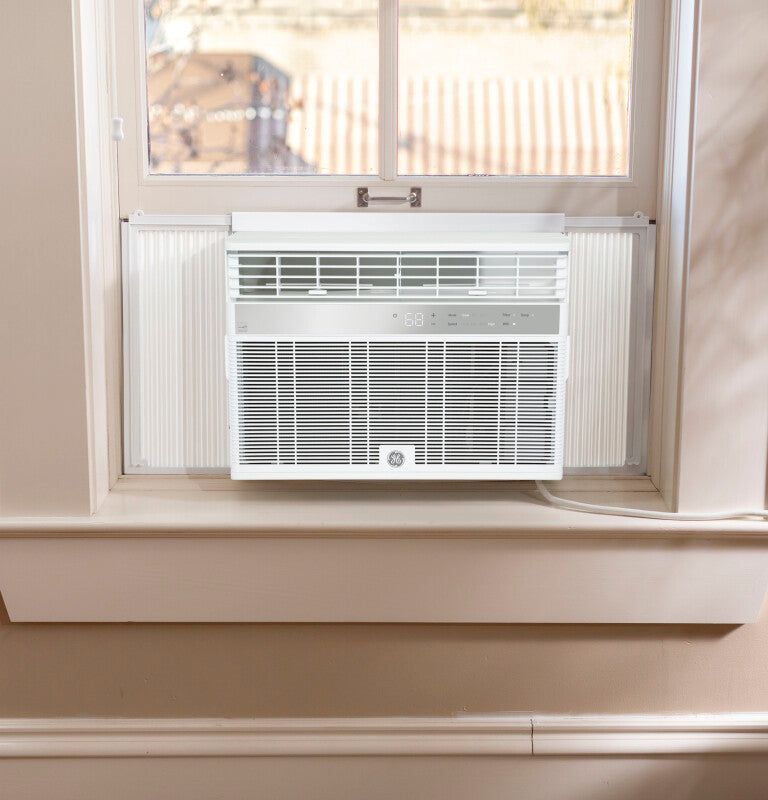

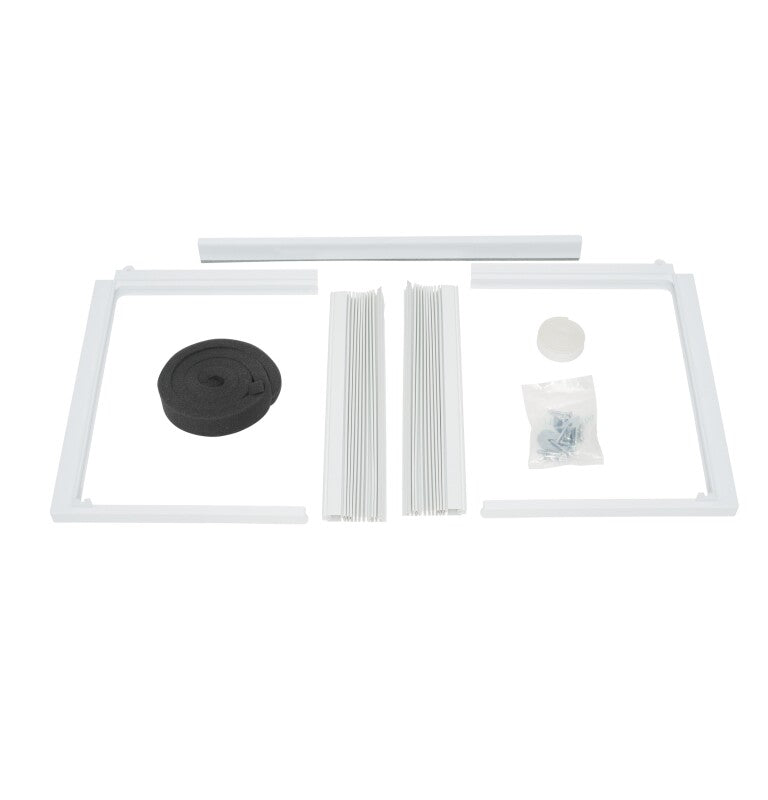

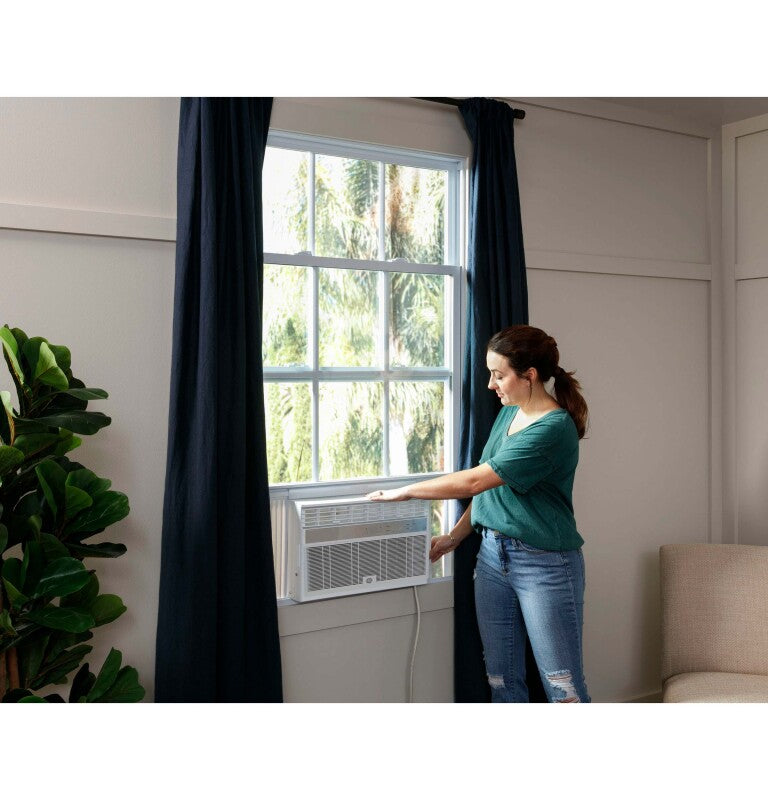

Easy Installation
This AC has a fixed chassis and installs easily in a double hung window with included EZ Mount installation kit

Louver Style
The 4-way adjustable louvers distribute air evenly throughout the room

Additional Features
Power interruption restart and 24-hour on/off timer offer ease of use



Product Features

  • Cools Large Rooms
    12,000 BTU cooling capacity offers maximum comfort in rooms up to 550 square feet
  • Maximum Comfort Cool
    Three cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency
  • Eco Mode
    The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs
  • Electronic Thermostat with Remote
    Digital controls with included remote make it easy to adjust and manage your settings from anywhere in your room
  • Easy Installation
    This AC has a fixed chassis and installs easily in a double hung window with included EZ Mount installation kit
  • Louver Style
    The 4-way adjustable louvers distribute air evenly throughout the room
  • Additional Features
    Power interruption restart and 24-hour on/off timer offer ease of use

Manuals & Guides

Key Features

Built-In WiFi

Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind

Voice Control

Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant

Energy Reporting

Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance

Geolocation

Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home

Filter Reminder

Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best
