Sale price $797.40 Regular price $898.97 Save $101.57 / 11% OFF

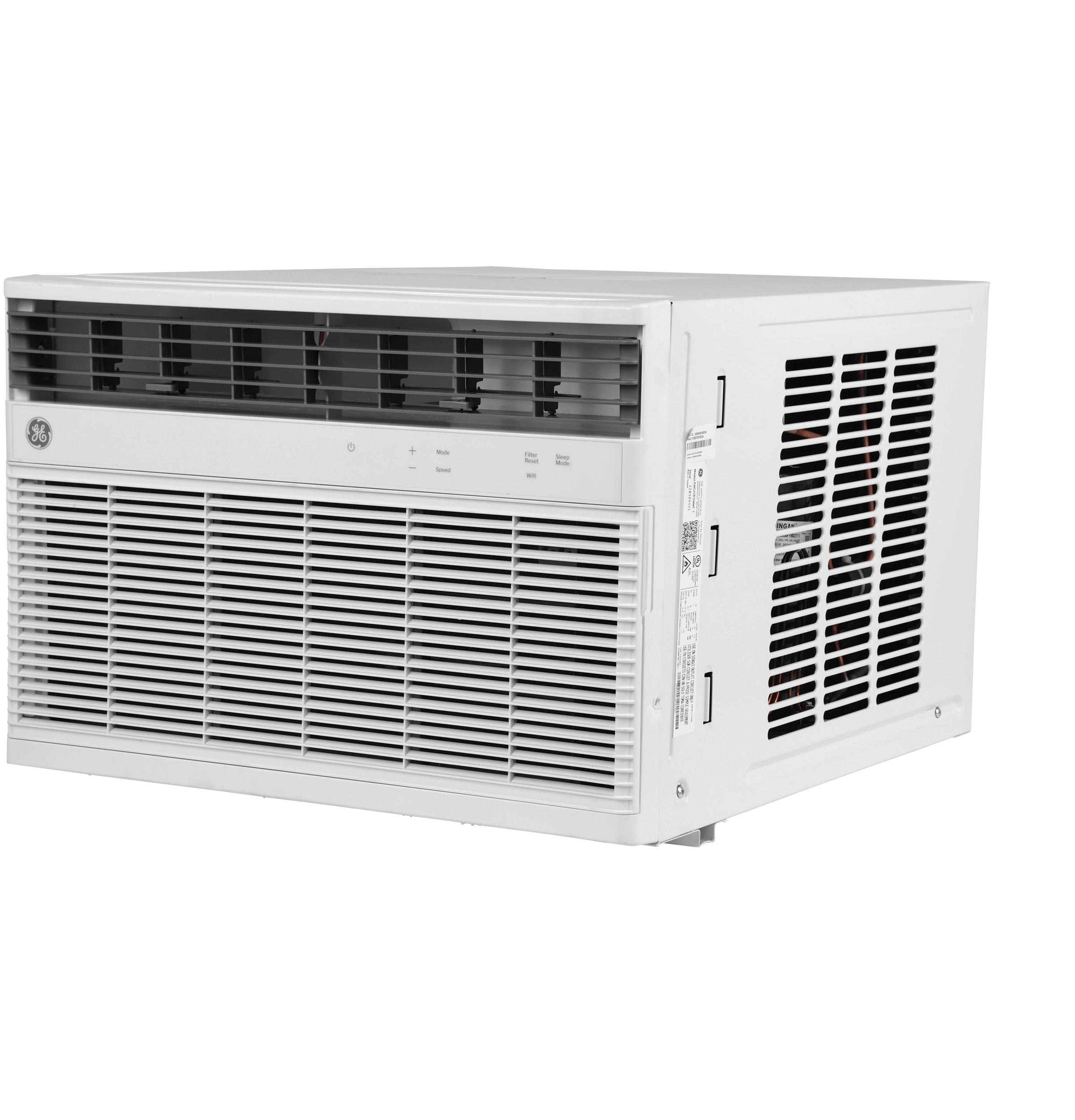

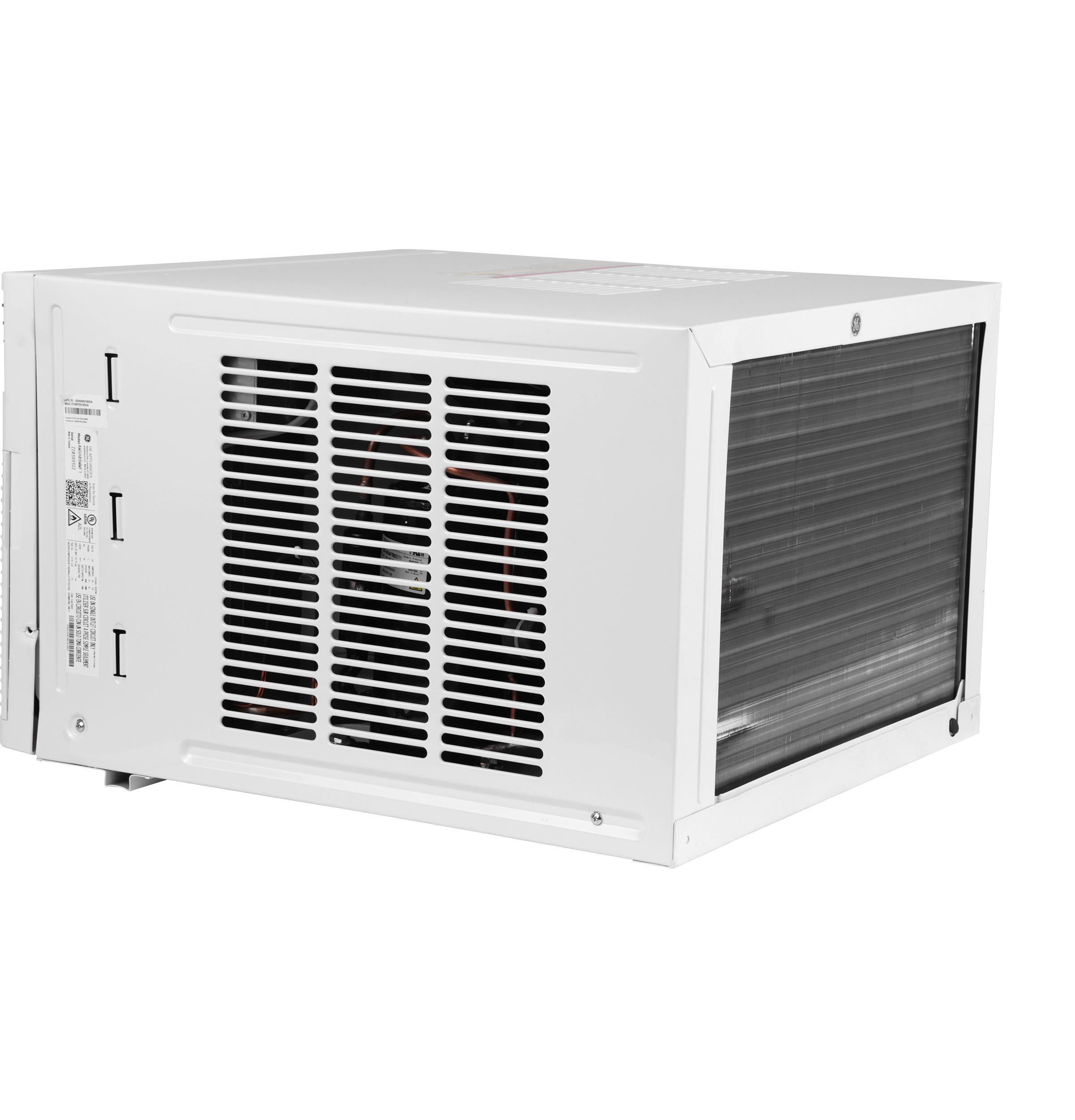

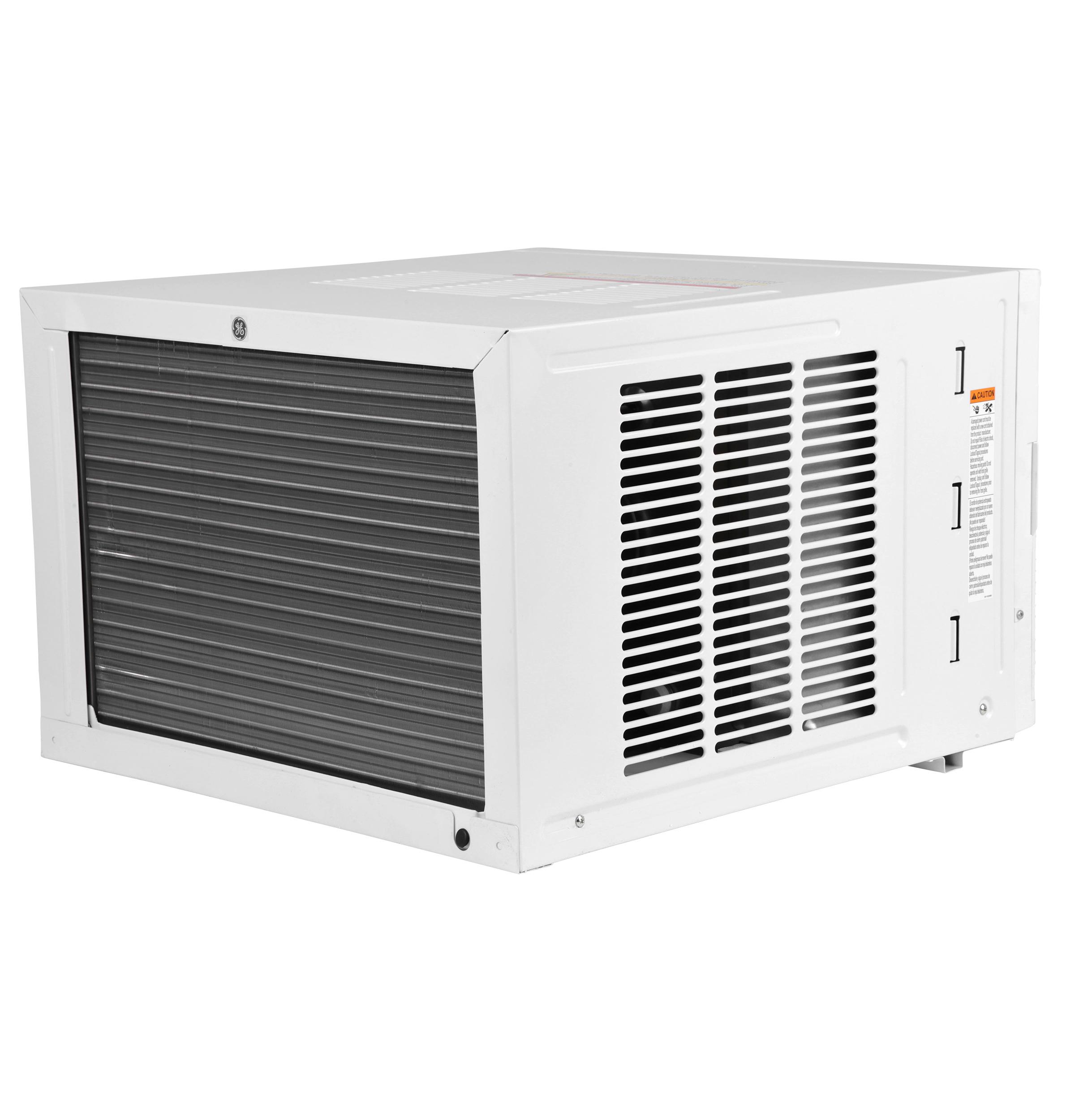

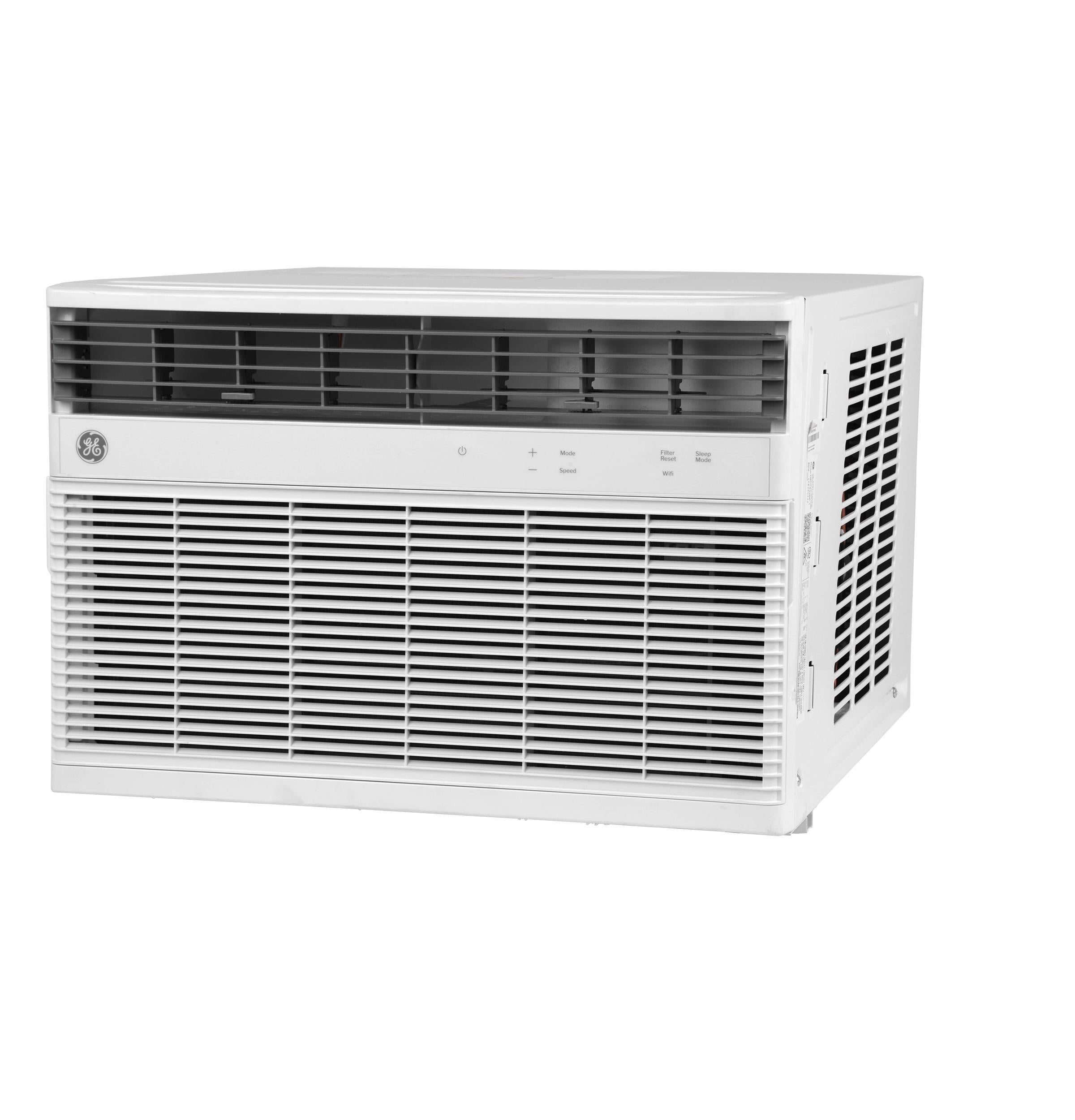

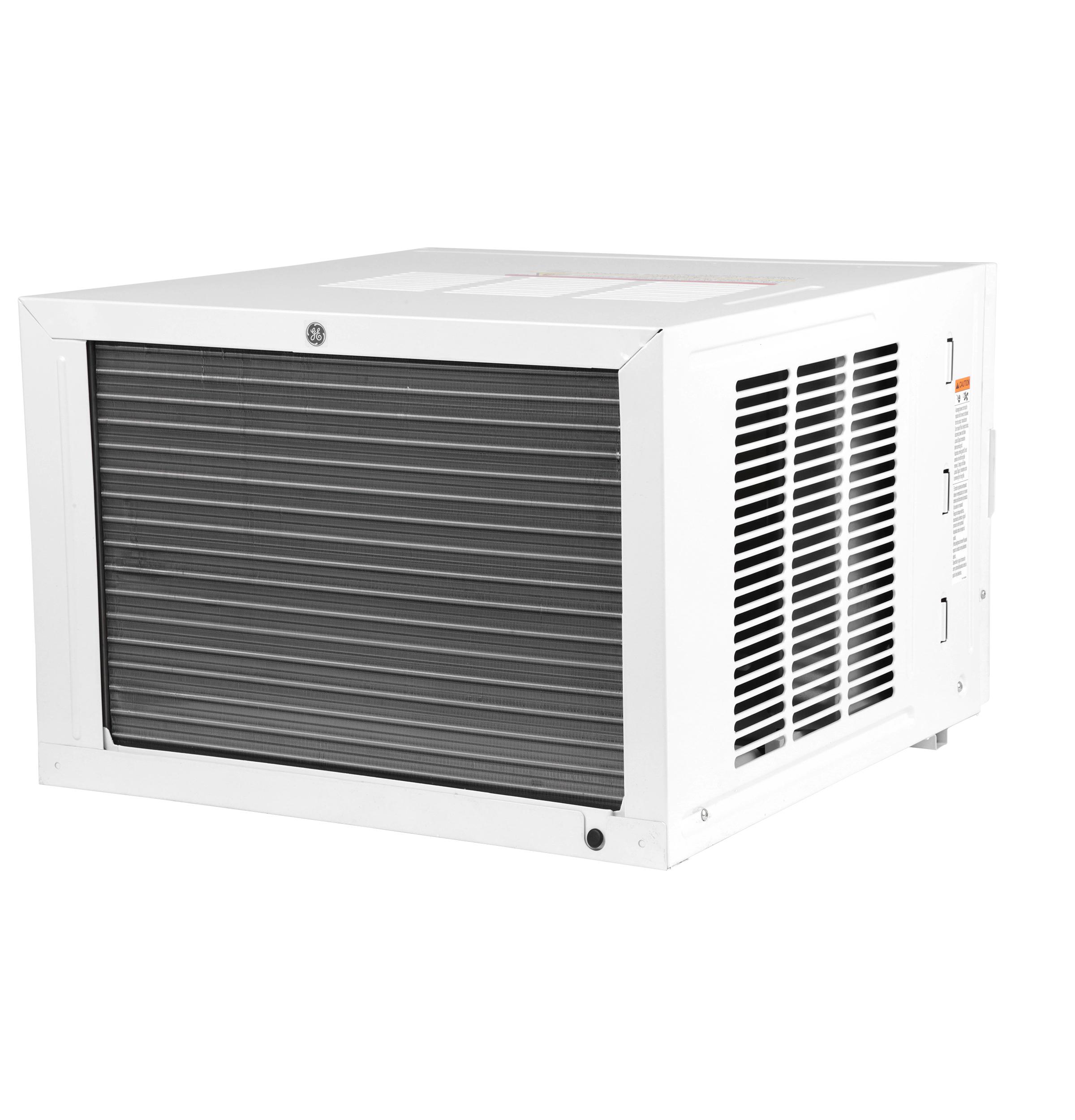

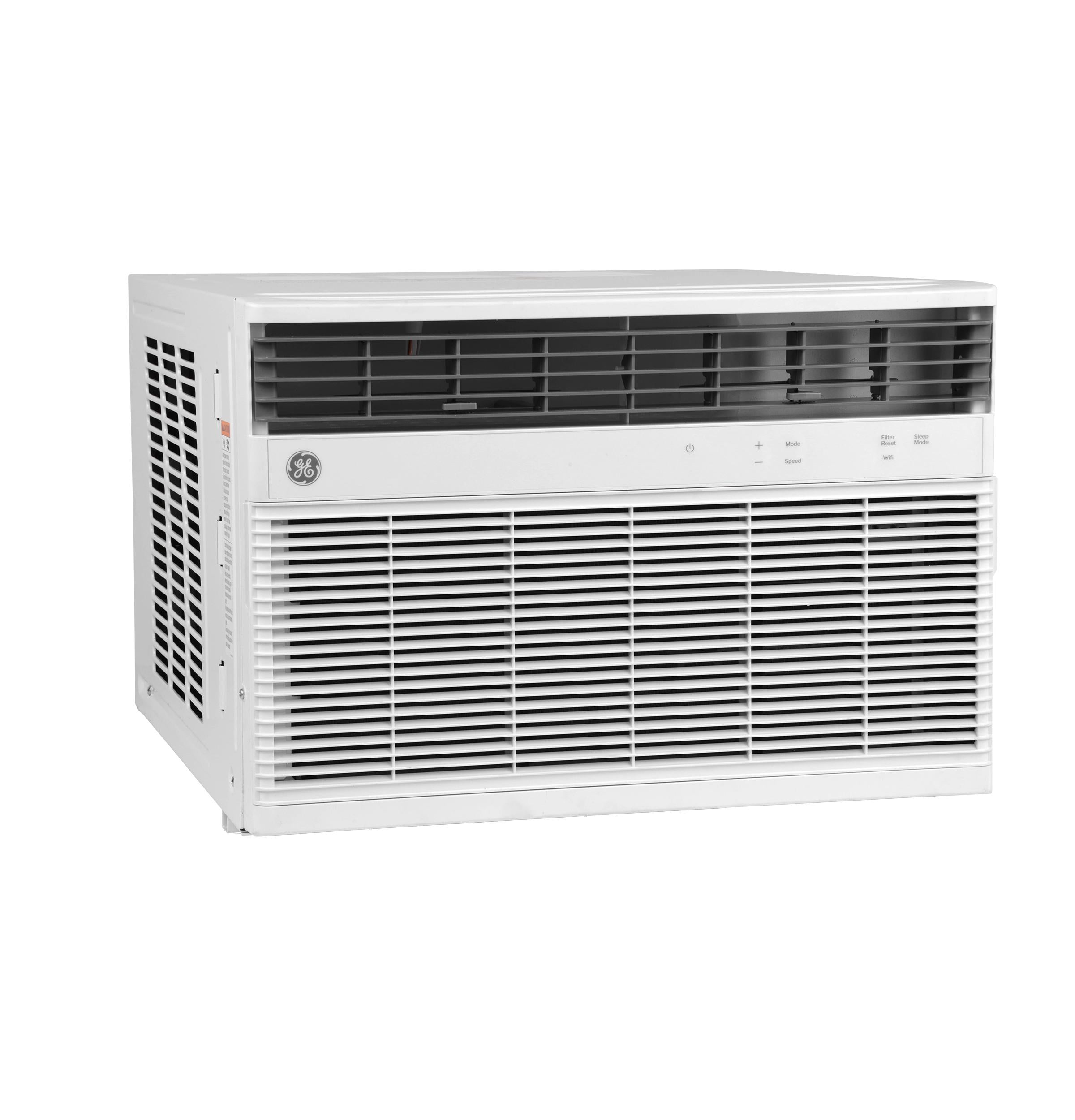

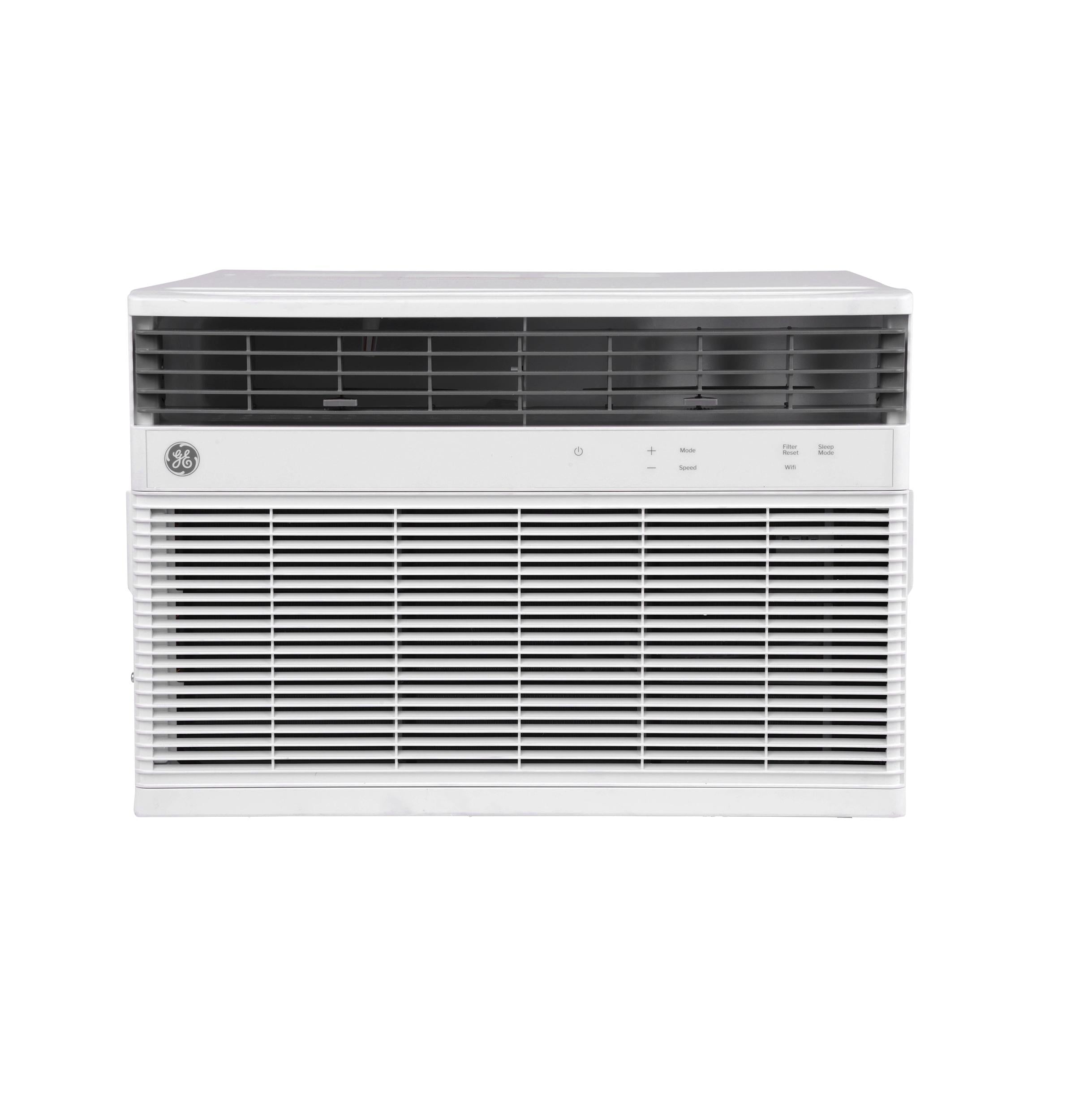

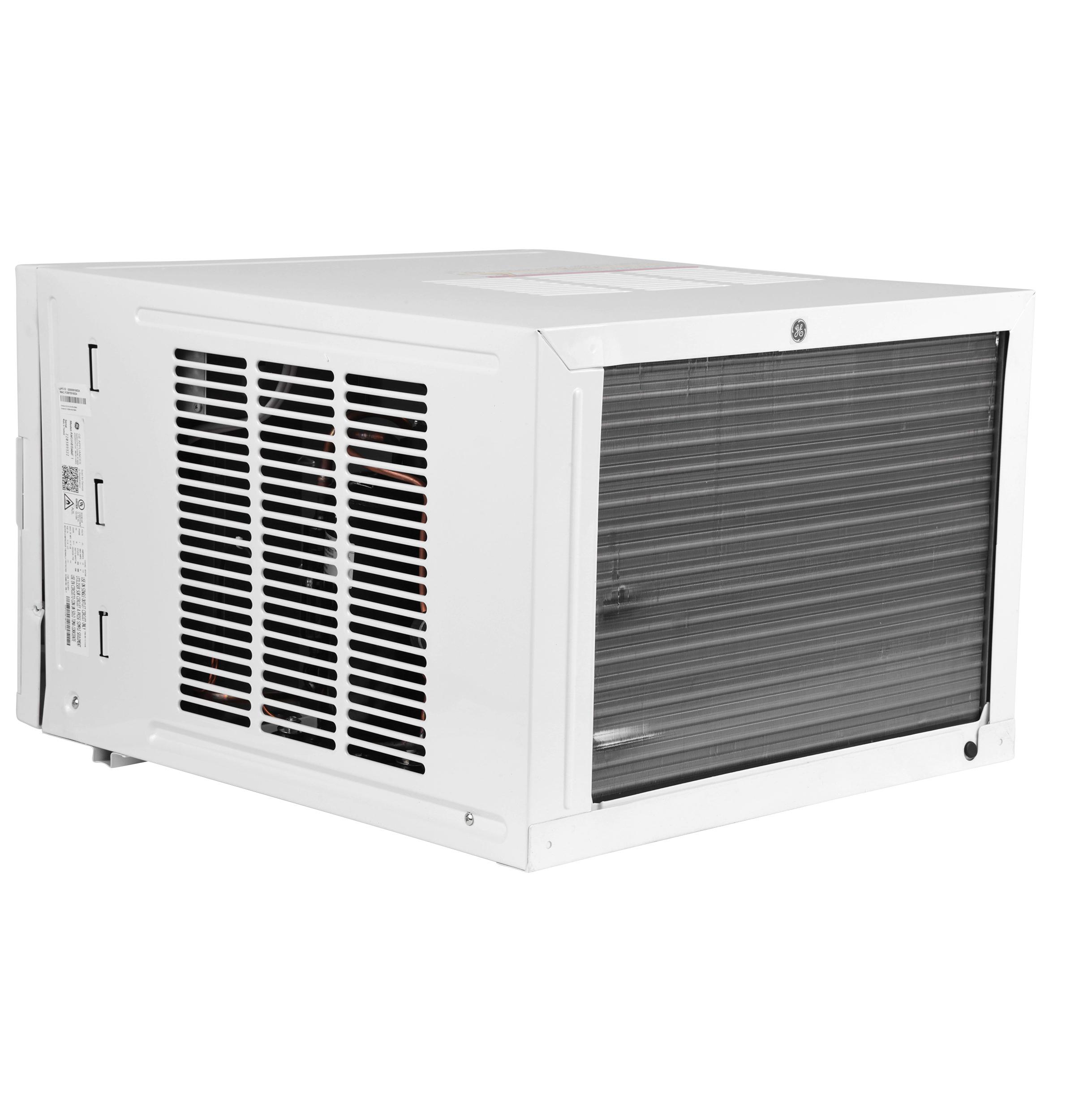

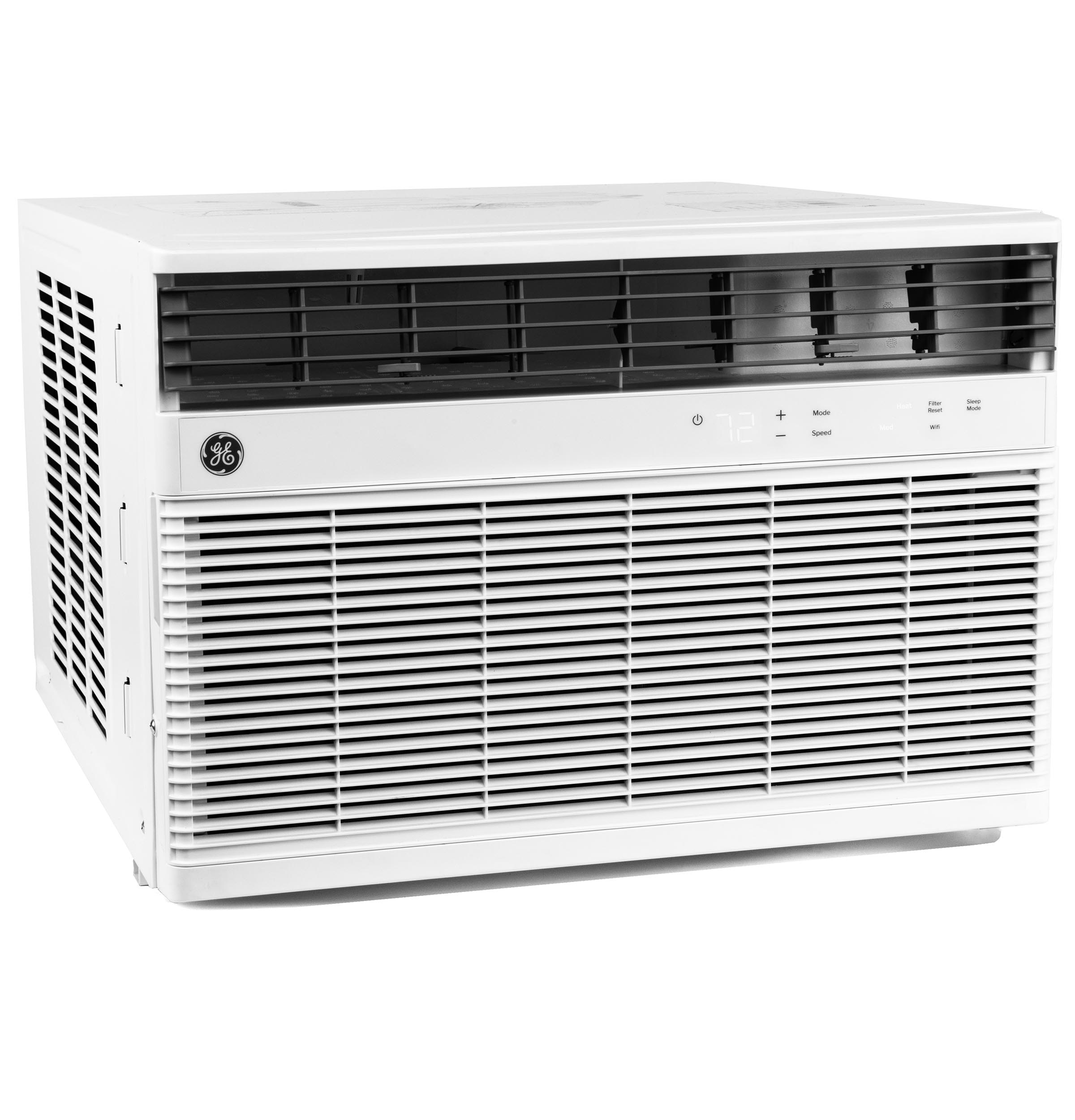

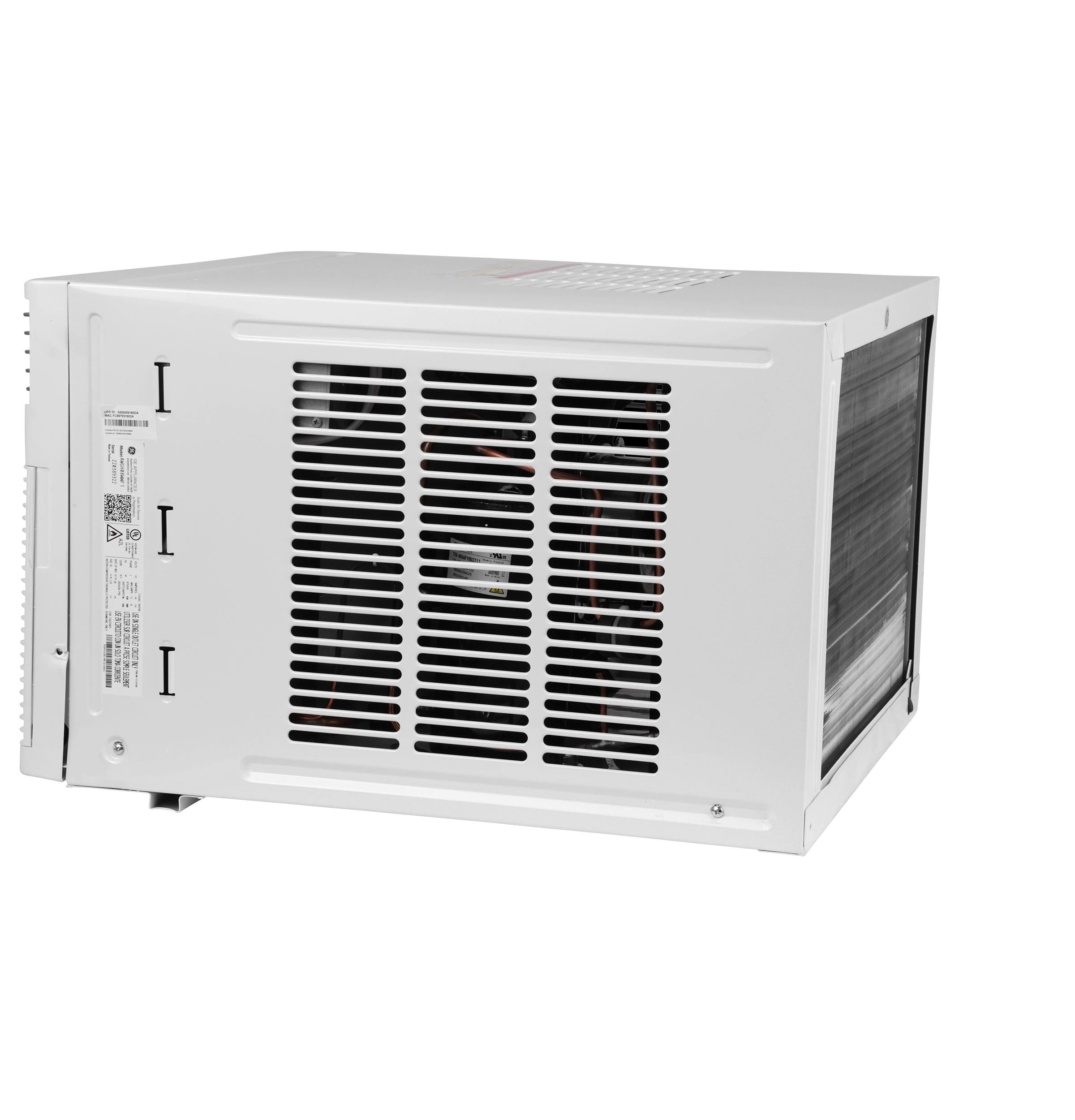

Product Details for GE AWGH24WWF

Technical Details

Weights & dimensions

Overall Width 26.3 in
Overall Height 18.23 in
Approximate Shipping Weight 133.4 lb
Min./Max. Window Opening Width (in.) 30 to 42
Net Weight 124.4 lb
Minimum Window Opening Height (in.) 19.13 in
Overall Depth 25.8

Features

Plug Capacity 230V/20A
Louver Style 4-Way Adjustable
Fan Speed Selections 3 Heating
Power Cord Length 48" Minimum
Product Type Window
Refrigerant Type R32
Filter Type One Touch Lift-Out
Chassis Type Slide-Out
Vent/Air Exchange Exhaust Top Air Discharge
Airflow Direction Top
Plug Type Perpendicular / Right Angle / NEMA 6-20P / LCDI
Mounting Type EZ Mount
Delay Timer 24-Hour On/Off Timer
Heating - Electric - Input Watts 3700/3070
Connected Capabilities The Google Assistant
WiFi Connect Built-In
Remote Control Yes
Thermostat Type Electronic
LCDI / AFCI power cord Yes
Airflow (cfm) Roomside 435/355
Area to Cool 1000-1500
Rotary Compressor Yes
Digital Time Temp Display Yes
Unit Type Heat / Cool Unit
Room Air Conditioner Features Remote Control
Fan Speed Selections 3 Fan Only
Connected Capabilities Google Home
EER 9.4
Room Air Conditioner Features Electronic Control
Airflow Direction 4-Way Adjustable
Connected Capabilities Amazon Alexa
Fan Speed Selections 3 Cooling
Room Air Conditioner Features Heat Mode
Room Air Conditioner Features Eco Mode
Room Air Conditioner Features On/Off Timer

Power / ratings

Sound Level (Low/High) 60/67 dbA
Cooling - Rated Cooling Amps AHAM 11.3/12.3
Cooling - Watts 2550/2510
Voltage (MIN) 208 V
Heating - Electric - Heater Watts 3500
CEER 9.4
Voltage (MAX) 230 V
Heating - Electric - Heater Amps 16.0/15.6
Hertz 60

Warranty

Warranty Notes See written warranty for full details
Parts Warranty 1-Year Replacement
Labor Warranty No Warranty
Parts Warranty Return to vendor

Economical / quiet

Energy Saver Yes
Sound Level (dBA) 67 dBA (High)
Sound Level (dBA) 60 dBA (Low)

Appearance

Installation EZ Mount
Color Appearance White

Capacity

Heating - Electric - BTUH - AHAM - 1R 11000/8500
Dehumidification (pts./hr.) 8
Cooling BTUH (MAX) 24,000 Btu

Dimensions & weight

Width 26.3 in.
Height 18.23 in.
Length 25.8 in.
Weight 124.4 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 31.3 in.
Shipping Height 23.23 in.
Shipping Length 30.8 in.
Shipping Weight 164.4 lbs.
Total of Shipping Weight 164.4 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.16 ft³
Dimensional Weight 88.99 lbs.
Total of Cubes 7.16 ft³
Total of Dimensional Weight 88.99 lbs.

Description

<b>Cools &amp; Heats Extra-Large Rooms</b><br>With a 23,700 BTU cooling and 11,000 BTU heating capacity, this unit has the power to provide maximum comfort in rooms up to 1,500 sq. ft.<br><br><b>Built-In WiFi</b><br>Use the SmartHQ app to control and monitor this Wi-Fi enabled smart AC window unit from anywhere, giving you connected peace of mind and the option to have the room at the desired temperature when you get home.<br><br><b>Maximum Comfort Cool</b><br>Three air conditioning and heating settings plus adjustable fan speeds provide total flexibility with optimal home comfort and air conditioning efficiency.<br><br><b>Eco Mode</b><br>Eco Mode, the eco-friendly air conditioner mode, automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs while keeping the room comfortable.<br><br><b>Filter Reminder</b><br>The filter light comes on when the filter needs changing to help you keep this window unit performing at its best.<br><br><b>Electronic Controls</b><br>The easy-to-use digital AC controls make it simple to program and adjust the unit.<br><br><b>Remote Control</b><br>Adjust the temperature from anywhere in the room with the remote-control that comes with the unit.<br><br><b>Easy Installation</b><br>This AC has a slide-out chassis and installs easily in a double-hung window with the included window installation kit.<br><br><b>Adjustable Louvers</b><br>The four-way adjustable louvers distribute air evenly throughout the room. Or, you can direct air to a specific location you want to heat or cool.<br><br><b>Auto-Dimming LED Light</b><br>The LED display automatically dims after one minute of inactivity so you aren't disturbed by the light as you sleep.<br><br><b>Voltage Type</b><br>This window unit requires a 230-volt outlet.<br><br>


Product Features

  • Cools & Heats Extra-Large Rooms
    With a 23,700 BTU cooling and 11,000 BTU heating capacity, this unit has the power to provide maximum comfort in rooms up to 1,500 sq. ft.

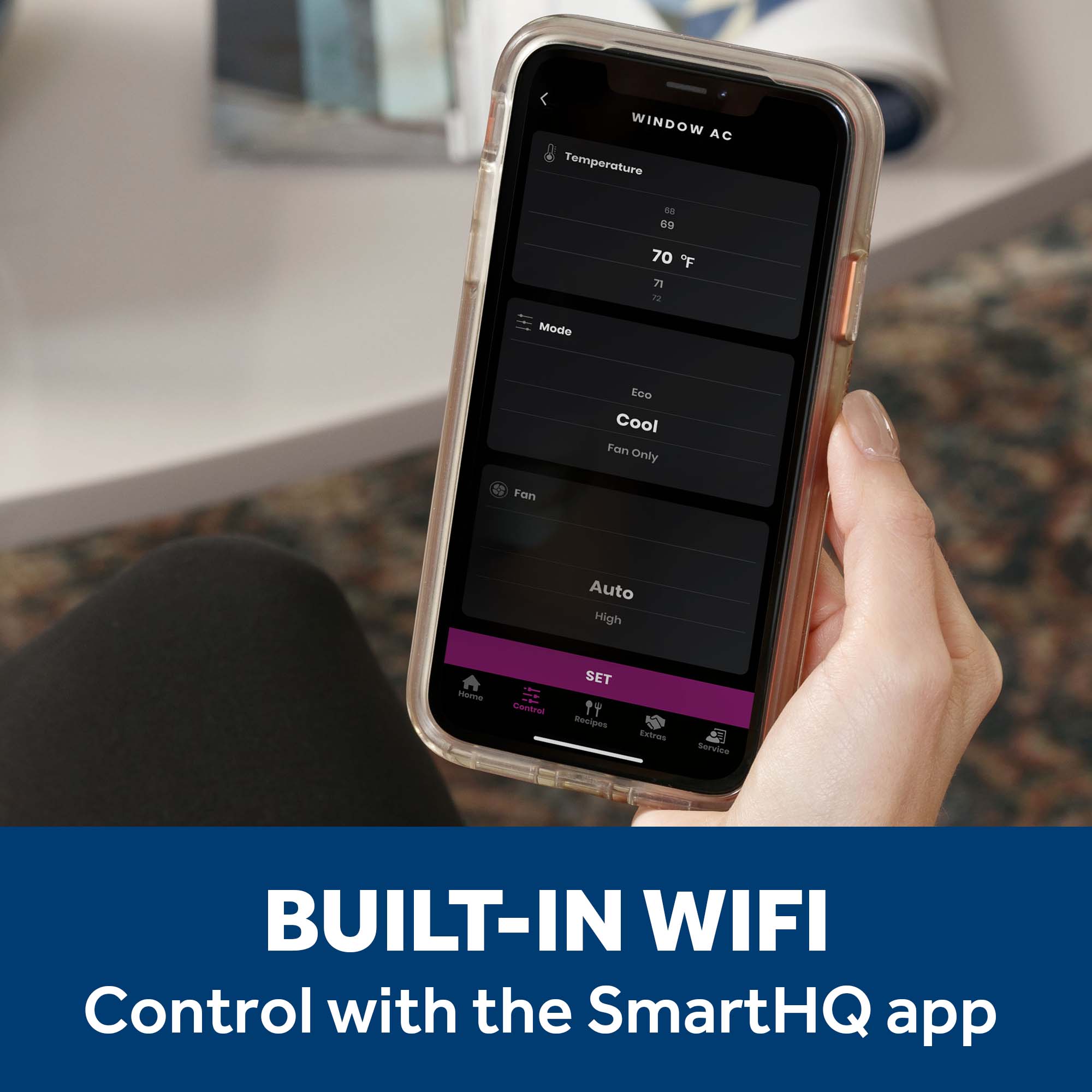

  • Built-In WiFi
    Use the SmartHQ app to control and monitor this Wi-Fi enabled smart AC window unit from anywhere, giving you connected peace of mind and the option to have the room at the desired temperature when you get home.
  • Maximum Comfort Cool
    Three air conditioning and heating settings plus adjustable fan speeds provide total flexibility with optimal home comfort and air conditioning efficiency.
  • Eco Mode
    Eco Mode, the eco-friendly air conditioner mode, automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs while keeping the room comfortable.

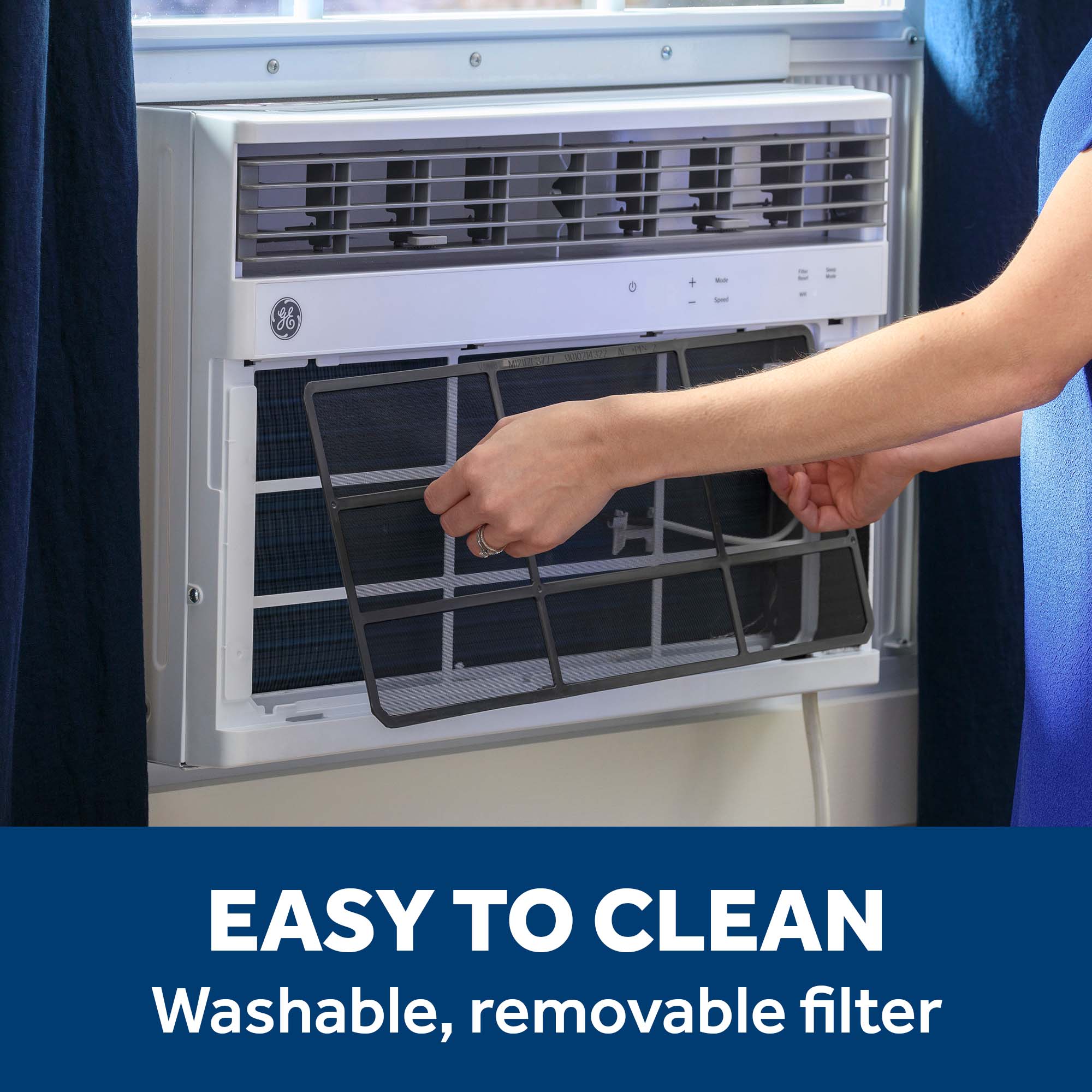

  • Filter Reminder
    The filter light comes on when the filter needs changing to help you keep this window unit performing at its best.

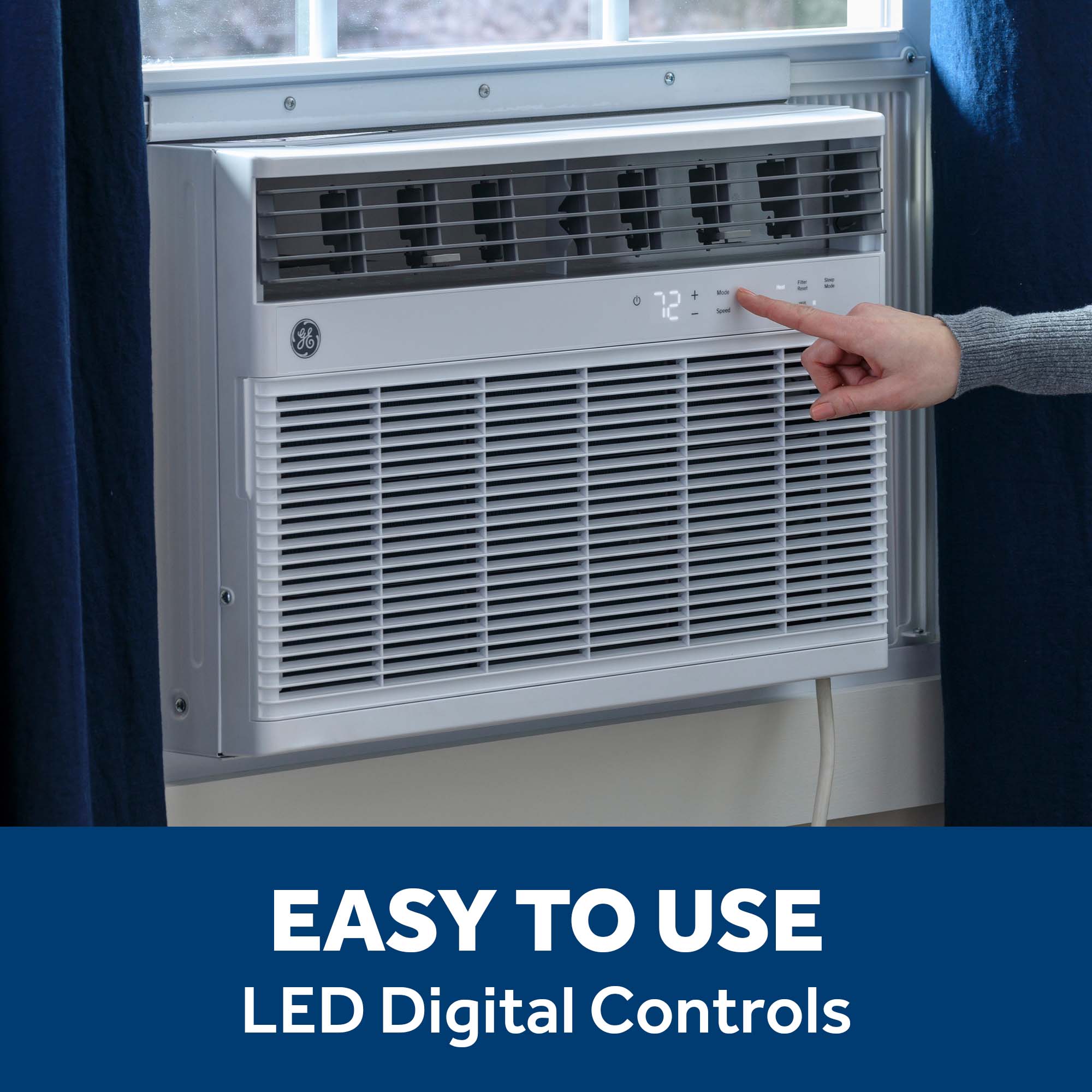

  • Electronic Controls
    The easy-to-use digital AC controls make it simple to program and adjust the unit.
  • Remote Control
    Adjust the temperature from anywhere in the room with the remote-control that comes with the unit.

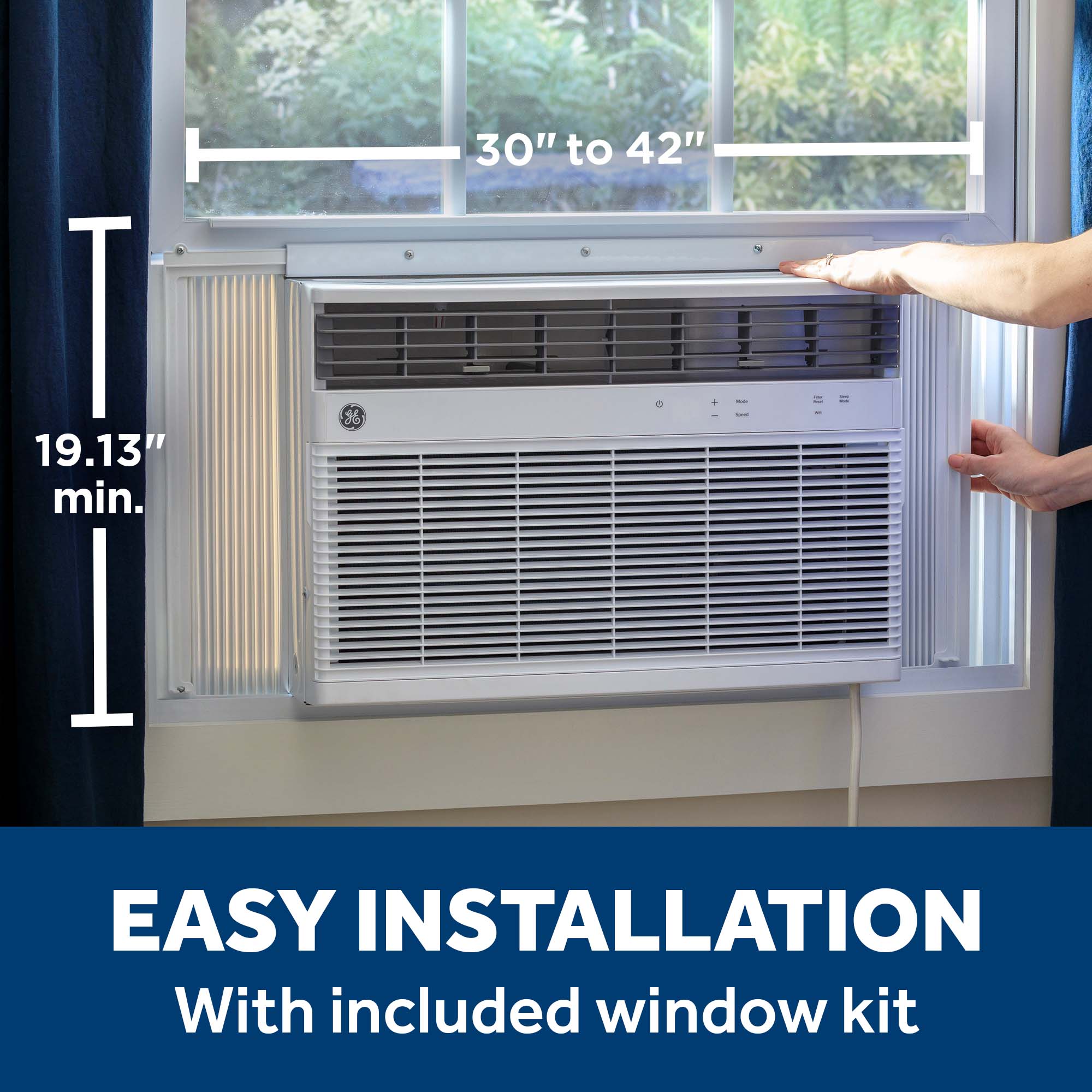

  • Easy Installation
    This AC has a slide-out chassis and installs easily in a double-hung window with the included window installation kit.
  • Adjustable Louvers
    The four-way adjustable louvers distribute air evenly throughout the room. Or, you can direct air to a specific location you want to heat or cool.
  • Auto-Dimming LED Light
    The LED display automatically dims after one minute of inactivity so you aren’t disturbed by the light as you sleep.
  • Voltage Type
    This window unit requires a 230-volt outlet.
