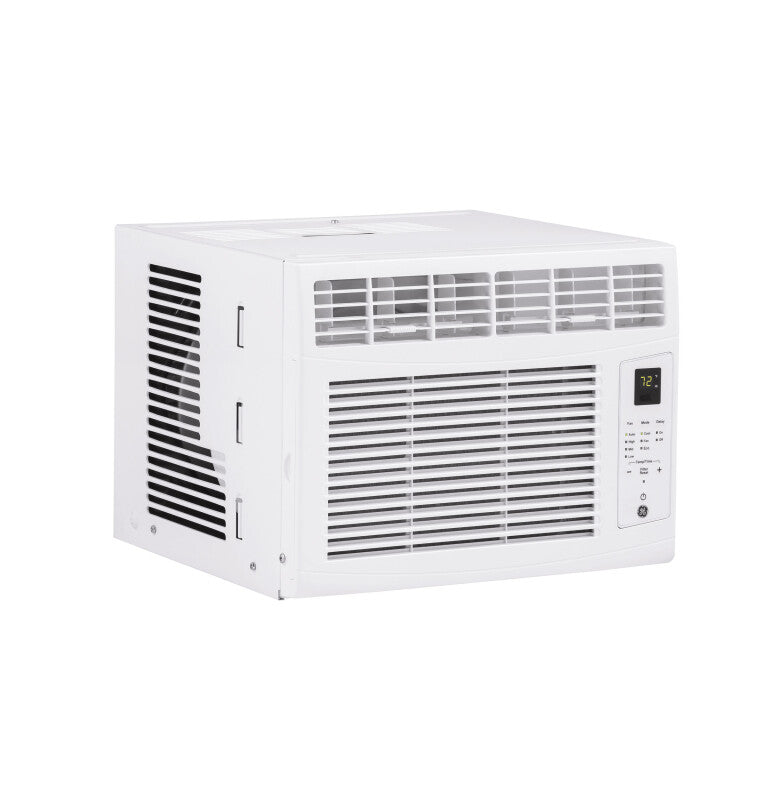

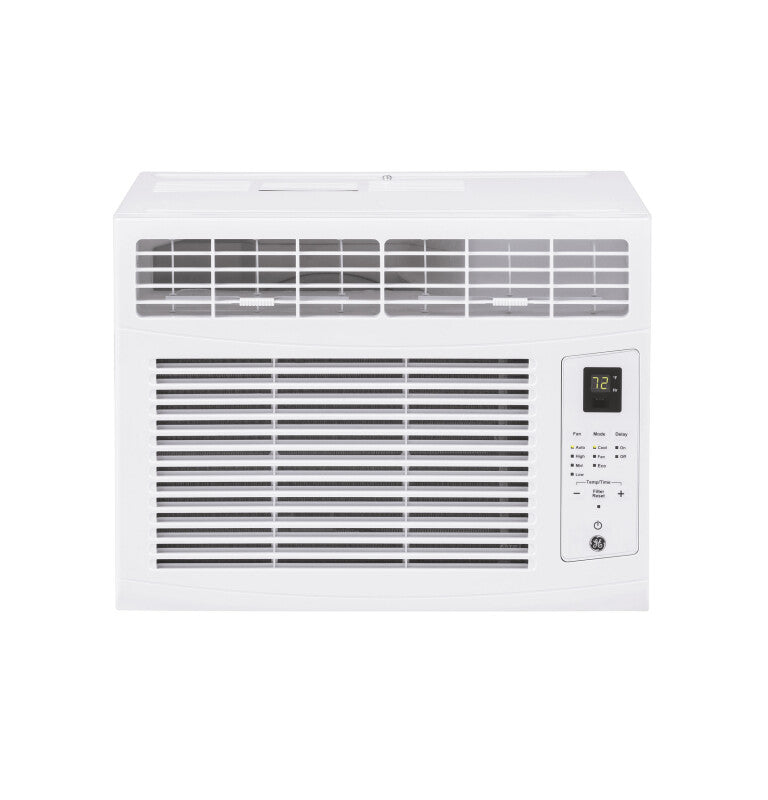

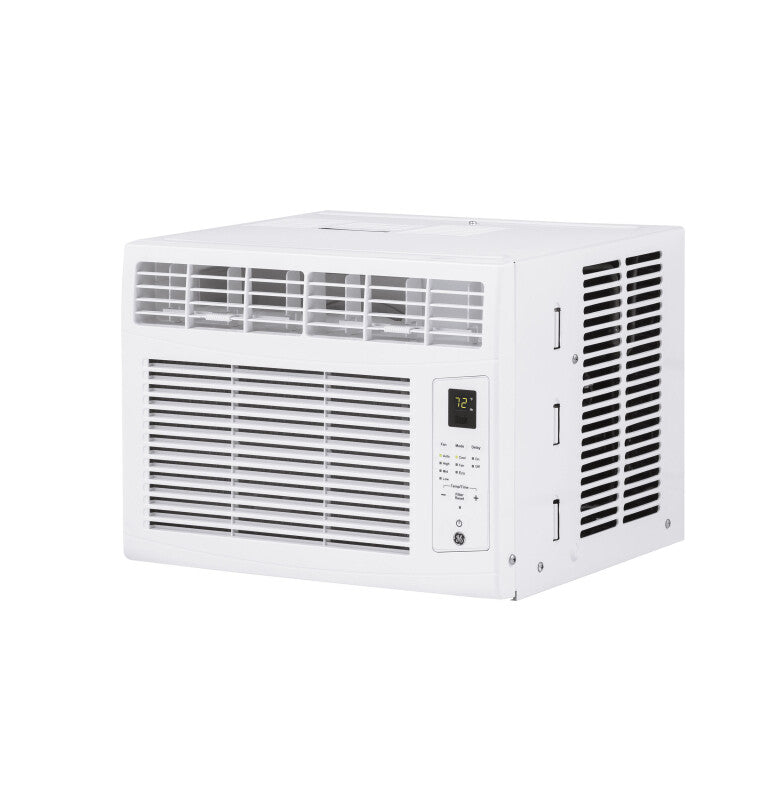

Product Details for GE AHQ06LZ

Technical Details

Dimensions & weight

Width 18.59 in.
Height 12.75 in.
Length 15.72 in.
Weight 35.93 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 23.59 in.
Shipping Height 17.75 in.
Shipping Length 20.72 in.
Shipping Weight 75.93 lbs.
Total of Shipping Weight 75.93 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.16 ft³
Dimensional Weight 26.81 lbs.
Total of Cubes 2.16 ft³
Total of Dimensional Weight 26.81 lbs.

Features

Louver Style 4-Way
Fan Speed Selections 3 Fan Only
Product Type Window
Refrigerant Type R32
Filter Type One Touch Lift-Out
Chassis Type Fixed
Vent/Air Exchange Exhaust Top Air Discharge
Airflow Direction Top
Plug Type Parallel/NEMA 5-15
Mounting Type EZ Mount
Delay Timer 24-Hour On/Off Timer
Remote Control Yes
Thermostat Type Electronic
Rotary Compressor Yes
Unit Type Cool Only
Airflow (cfm) Roomside 139/109
Airflow Direction 2-Way
Fan Speed Selections 3 Cooling

Power / ratings

Sound Level (Low/High) 57/61 dbA
Hertz 60
Cooling - Rated Cooling Amps AHAM 4.6
Cooling - Watts 490
CEER 11.0
Voltage (MAX) 115 V

Warranty

Warranty Notes See written warranty for full details
Labor Warranty No Warranty
Parts Warranty Return to vendor
Parts Warranty 1-Year Replacement

Weights & dimensions

Approximate Shipping Weight 40.7 lb
Net Weight 35.93 lb
Overall Width 16.4375 in
Min./Max. Window Opening Width (in.) 21.875 / 36 in
Depth to Louvers 6.25 in
Grille Depth 1.1875 in
Overall Height 12.5625 in
Overall Depth 15 in
Minimum Window Opening Height (in.) 13.375 in

Economical / quiet

Energy Saver Yes
Sound Level (dBA) 61 dBA (High)
Sound Level (dBA) 57 dBA (Low)

Appearance

Installation EZ Mount
Color Appearance Light Cool Gray

Capacity

Cooling EER (BTUH / Watt) 12.3
Dehumidification (pts./hr.) 1.5
Cooling BTUH (MAX) 6,000 Btu

Description

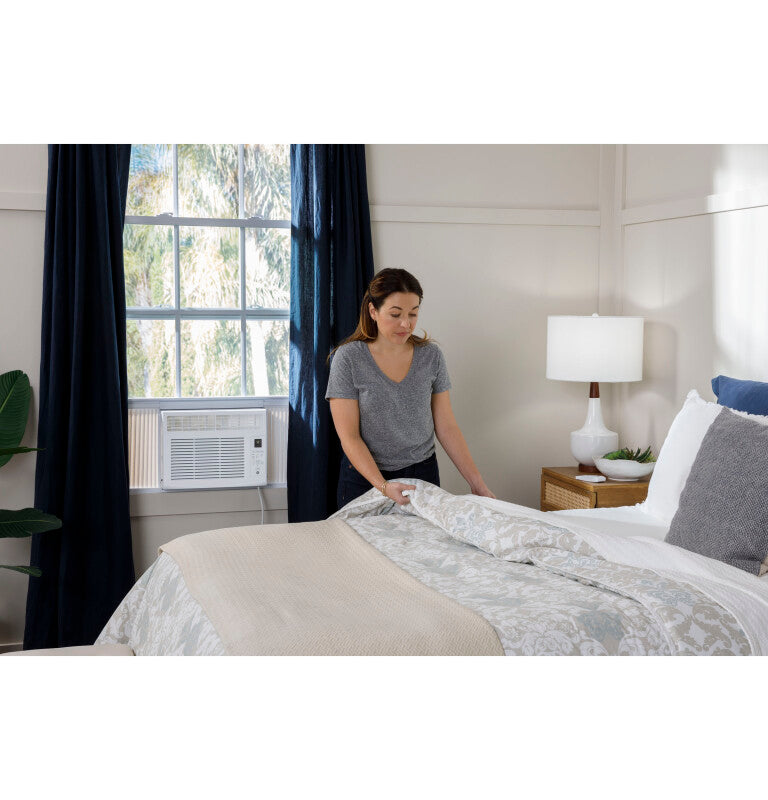

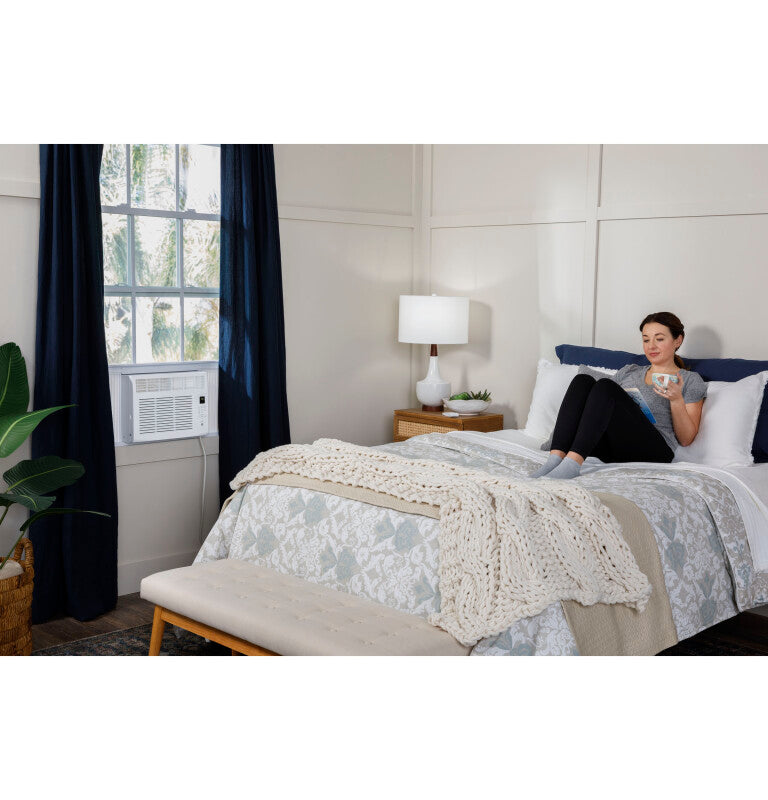

Cools Small Rooms
6,000 BTU cooling capacity offers maximum comfort in rooms up to 250 square feet

Maximum Comfort Cool
Keep home comfortable and maximize AC efficiency with three cooling settings and fan speeds to choose from

Eco Mode
The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs

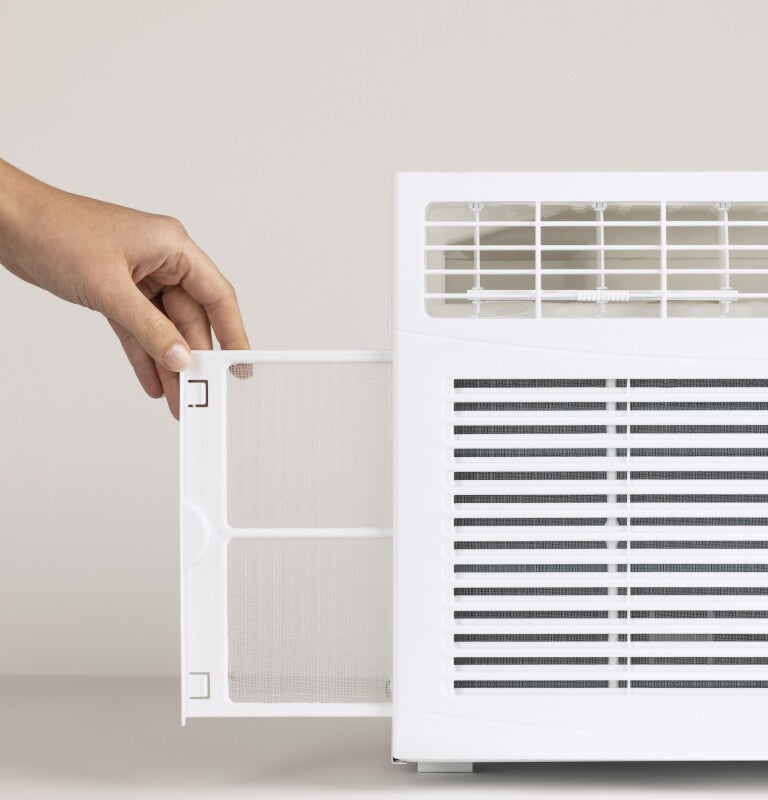

Filter Reminder
Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

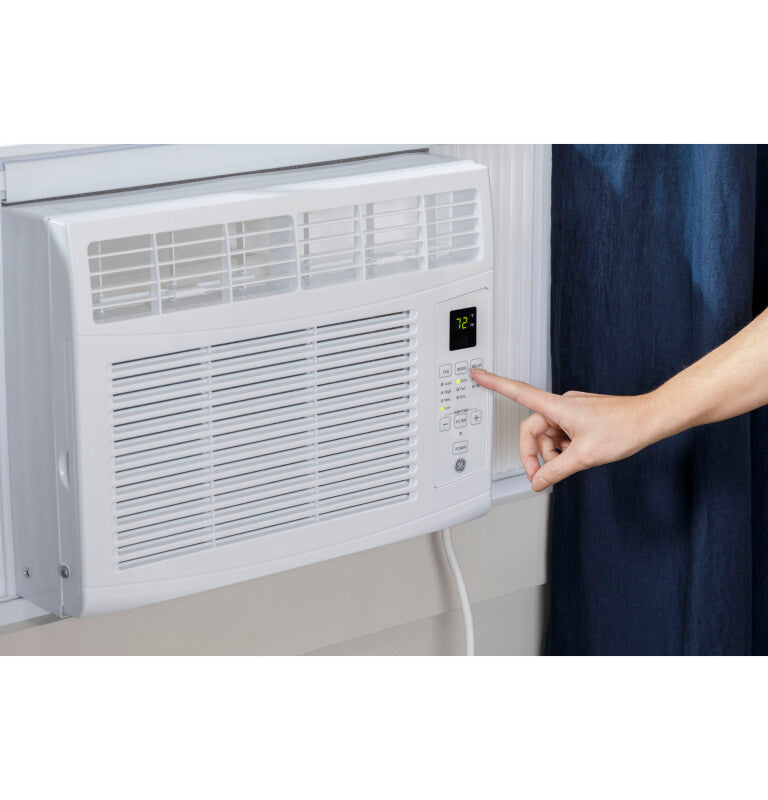

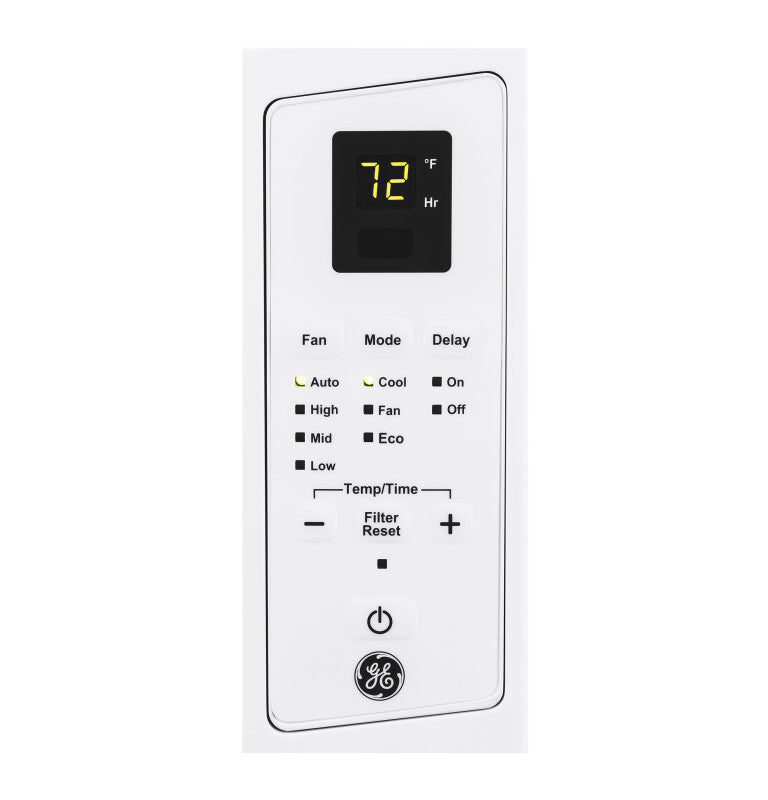

Electronic Controls
Program and adjust air conditioner settings with ease using simple digital controls

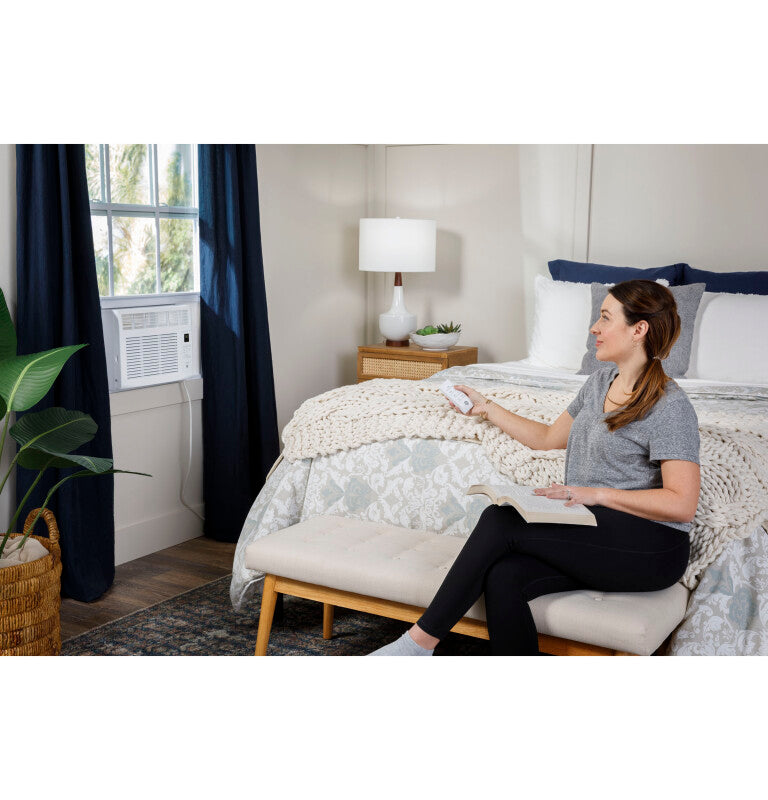

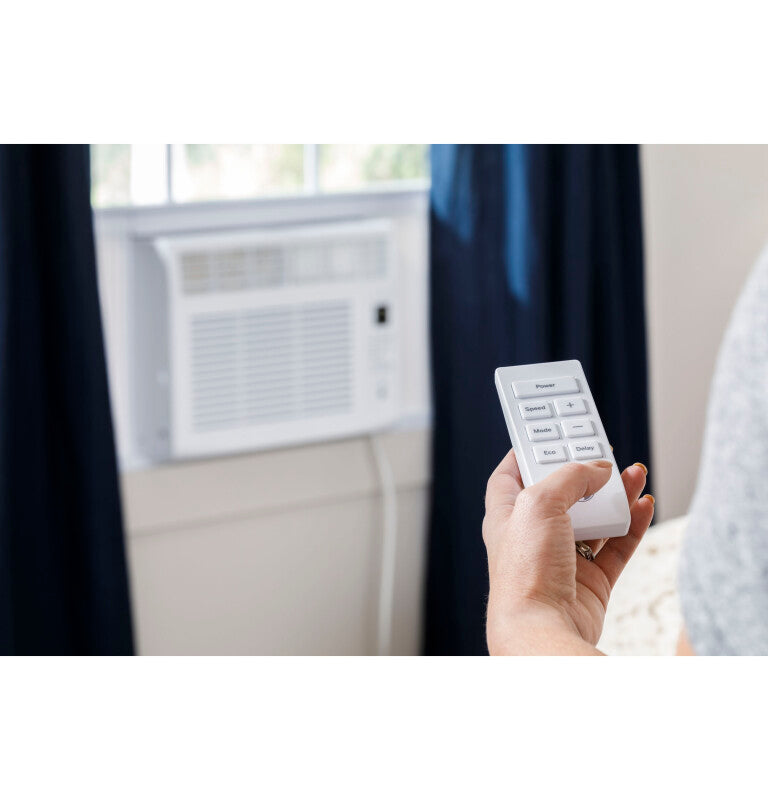

Remote Control
The unit comes with an included air conditioner remote, so you can adjust the unit from anywhere in the room

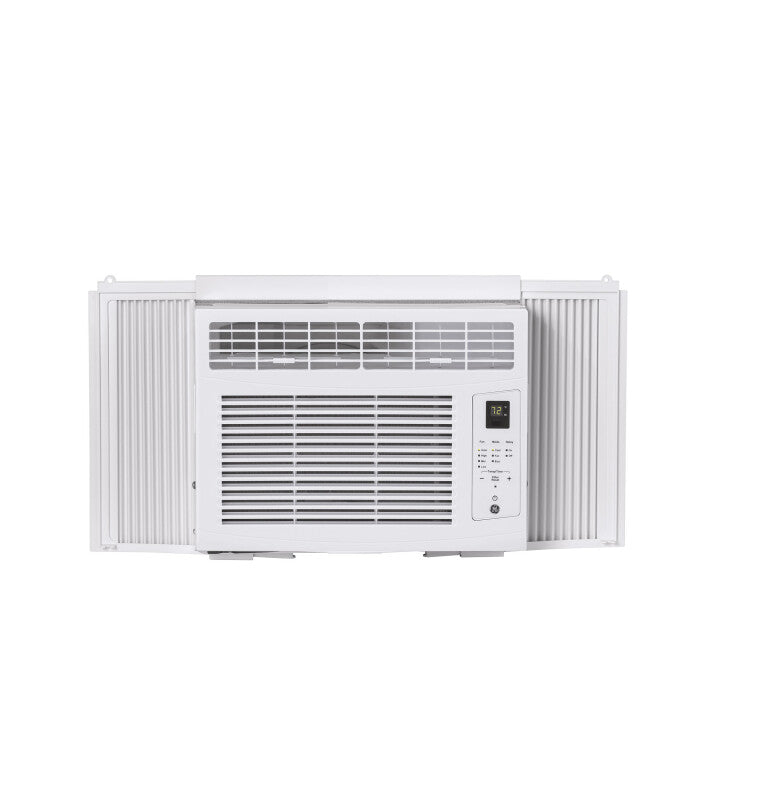

EZ Mount Kit
Make installation in a double hung window quick and easy with an included EZ Mount air conditioner installation kit

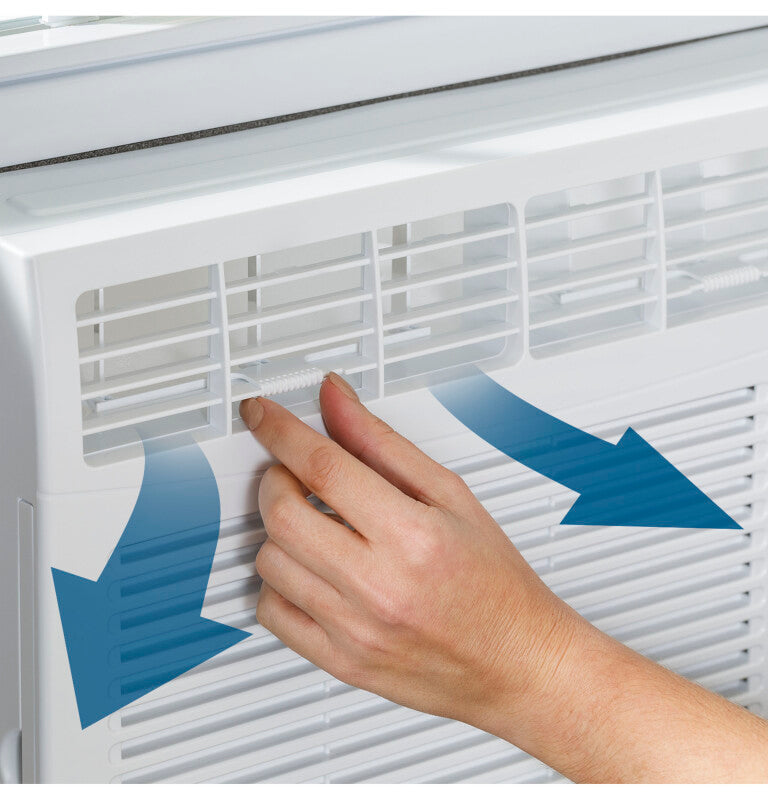

Adjustable Louvers
Two-way adjustable louvers make it easy to control where the air flows

Auto Restart
In the event of a power outage, the air conditioner restarts automatically with the last temperature settings

Voltage Type
This unit requires a 115 Volt outlet type



Product Features

  • Cools Small Rooms
    6,000 BTU cooling capacity offers maximum comfort in rooms up to 250 square feet
  • Maximum Comfort Cool
    Keep home comfortable and maximize AC efficiency with three cooling settings and fan speeds to choose from
  • Eco Mode
    The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs
  • Electronic Controls
    Program and adjust air conditioner settings with ease using simple digital controls
  • Remote Control
    The unit comes with an included air conditioner remote, so you can adjust the unit from anywhere in the room
  • EZ Mount Kit
    Make installation in a double hung window quick and easy with an included EZ Mount air conditioner installation kit
  • Adjustable Louvers
    Two-way adjustable louvers make it easy to control where the air flows
  • Auto Restart
    In the event of a power outage, the air conditioner restarts automatically with the last temperature settings
  • Voltage Type
    This unit requires a 115 Volt outlet type

Key Features

Filter Reminder

Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best
