SKU: AHEC05AC | UPC: 084691862529

GE AHEC05AC 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. White

Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.
Ge® 5,000 Btu Mechanical Window Air Conditioner For Small Rooms Up To 150 Sq Ft.

Quick Specification More details

  • Width:
    16.4375"
  • Depth:
    15"
  • Height:
    12.5625"
  • Type:
    Window Mount Air Conditioners

About this product

  • Cools Small Rooms
  • Maximum Comfort Cool
  • Adjustable Thermostat
  • Removable Filter
Summer Sale
Clearance

SKU: AHEC05AC | UPC: 084691862529

GE AHEC05AC 5,000 BTU Mechanical Window Air Conditioner for Small Rooms up to 150 sq ft. White

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    16.4375"
  • Depth:
    15"
  • Height:
    12.5625"
  • Type:
    Window Mount Air Conditioners

About this product

  • Cools Small Rooms
  • Maximum Comfort Cool
  • Adjustable Thermostat
  • Removable Filter
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for GE AHEC05AC

Technical Details

Warranty
Parts 1 Year

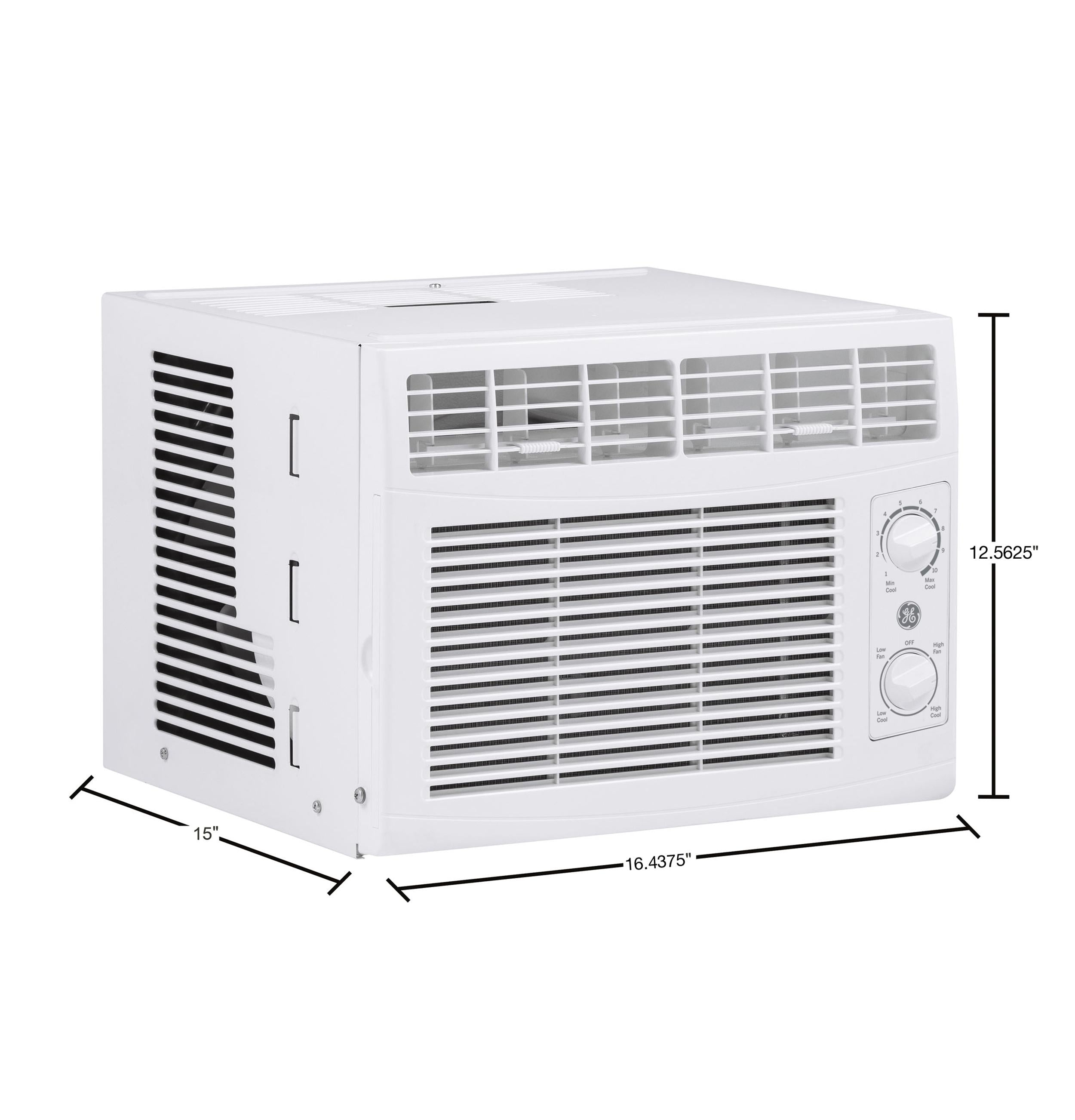

Weights & dimensions
Overall Width 16.4375 in
Overall Height 12.5625 in
Overall Depth 15 in
Approximate Shipping Weight 42.1 lb
Depth to Louvers 6.25 in
Grille Depth 1.1875 in
Net Weight 35.93 lb

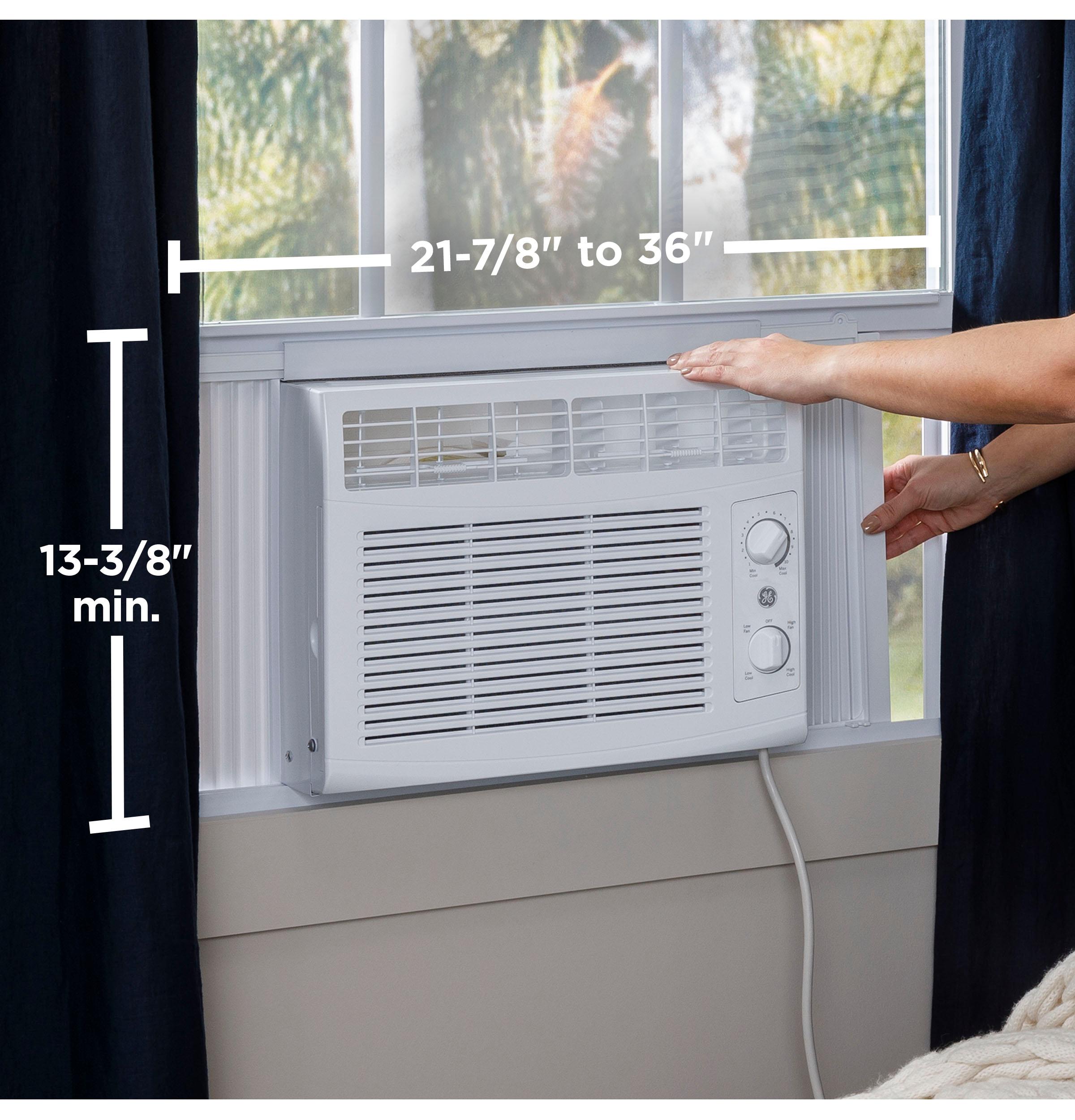

Minimum Window Opening Height (in.) 13.375 in
Min./Max. Window Opening Width (in.) 21.875/36

Features
Louver Style 2-Way
Fan Speed Selections 2 Fan Only
Power Cord Length 72" Minimum
Product Type Window
Refrigerant Type R32
Filter Type Slide-Out
Chassis Type Fixed
Vent/Air Exchange Exhaust Top Air Discharge
Airflow Direction Top
Plug Type Parallel/NEMA 5-15
Mounting Type EZ Mount
Thermostat Type Mechanical
LCDI / AFCI power cord Yes
Area to Cool 100-150
Rotary Compressor Yes
Unit Type Cool Only
Room Air Conditioner Features Mechanical Control
Control Type Mechanical
Airflow (cfm) Roomside 143/122
Airflow Direction 2-Way
Fan Speed Selections 2 Cooling
Room Air Conditioner Features Adjustable Thermostat

Power / ratings
Sound Level (Low/High) 56/59 dbA
Sound Level (Low Fan, Cool) 50/56 dBA
Cooling - Rated Cooling Amps AHAM 4.1
Cooling - Watts 455
CEER 11.0
Voltage (MAX) 115 V
Hertz 60

Warranty
Warranty Notes See written warranty for full details
Parts Warranty Return to vendor
Labor Warranty No Warranty
Parts Warranty 1-Year Replacement

Appearance
Installation EZ Mount
Color Appearance White

Capacity
Dehumidification (pts./hr.) 1.0
Cooling BTUH (MAX) 5,050 Btu

Dimensions & weight
Width 16.44 in.
Height 12.56 in.
Length 15 in.
Weight 35.93 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 21.44 in.
Shipping Height 17.56 in.
Shipping Length 20 in.
Shipping Weight 75.93 lbs.
Total of Shipping Weight 75.93 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 1.79 ft³
Dimensional Weight 22.28 lbs.
Total of Cubes 1.79 ft³
Total of Dimensional Weight 22.28 lbs.

Economical / quiet
Sound Level (dBA) 54/59 dBA (High Fan, Cool)
Sound Level (dBA) 59 dBA (High)
Sound Level (dBA) 50/56 dBA (Low Fan, Cool)
Sound Level (dBA) 56 dBA (Low)

Description

Cools Small Rooms
5,000 BTU cooling capacity offers maximum comfort in rooms up to 150 square feet

Maximum Comfort Cool
Two cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency

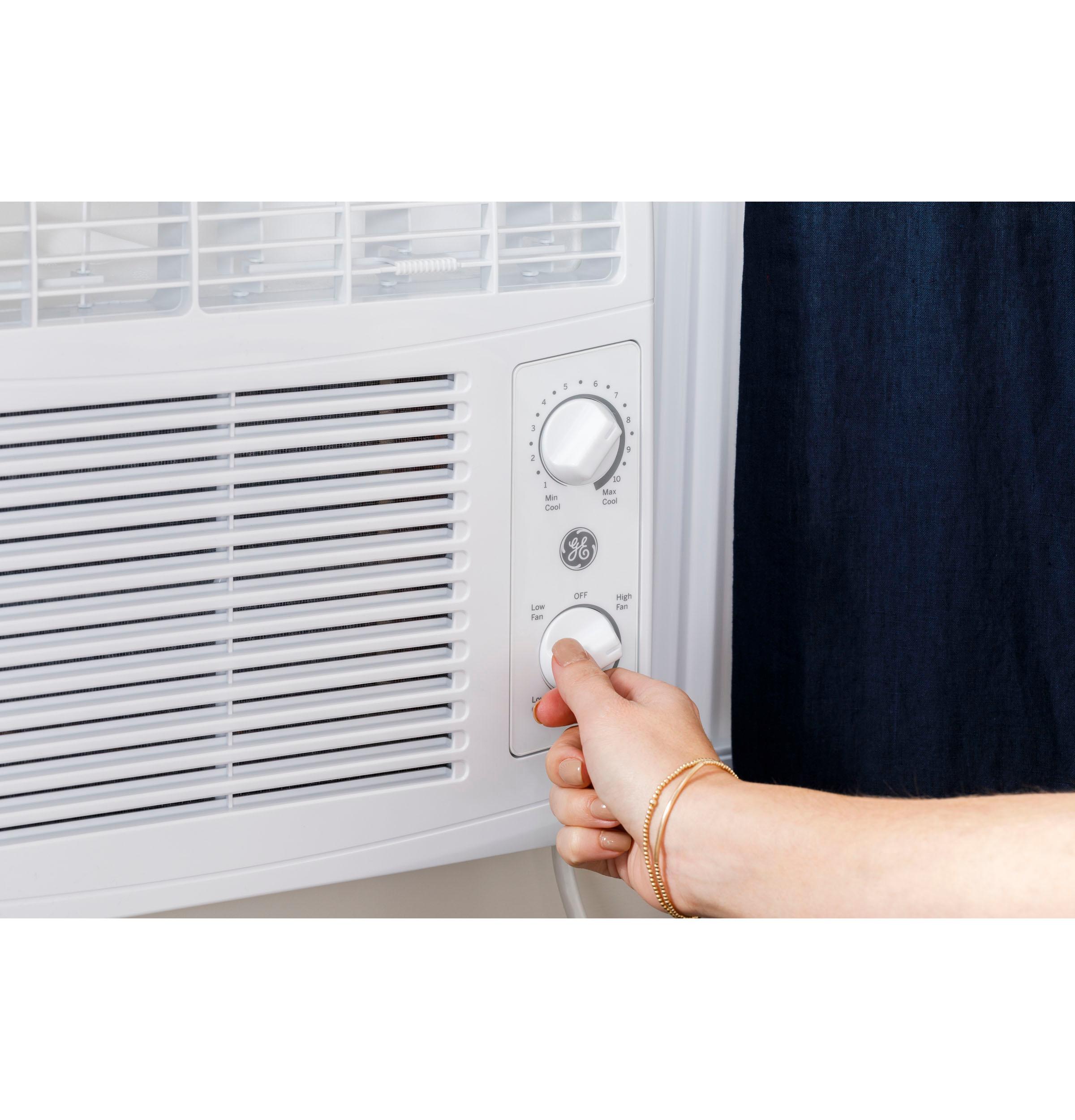

Adjustable Thermostat
Mechanical controls make it easy to adjust and manage your air conditioner settings

Removable Filter
Filter can be easily removed for cleaning, so you can keep the unit performing at its best

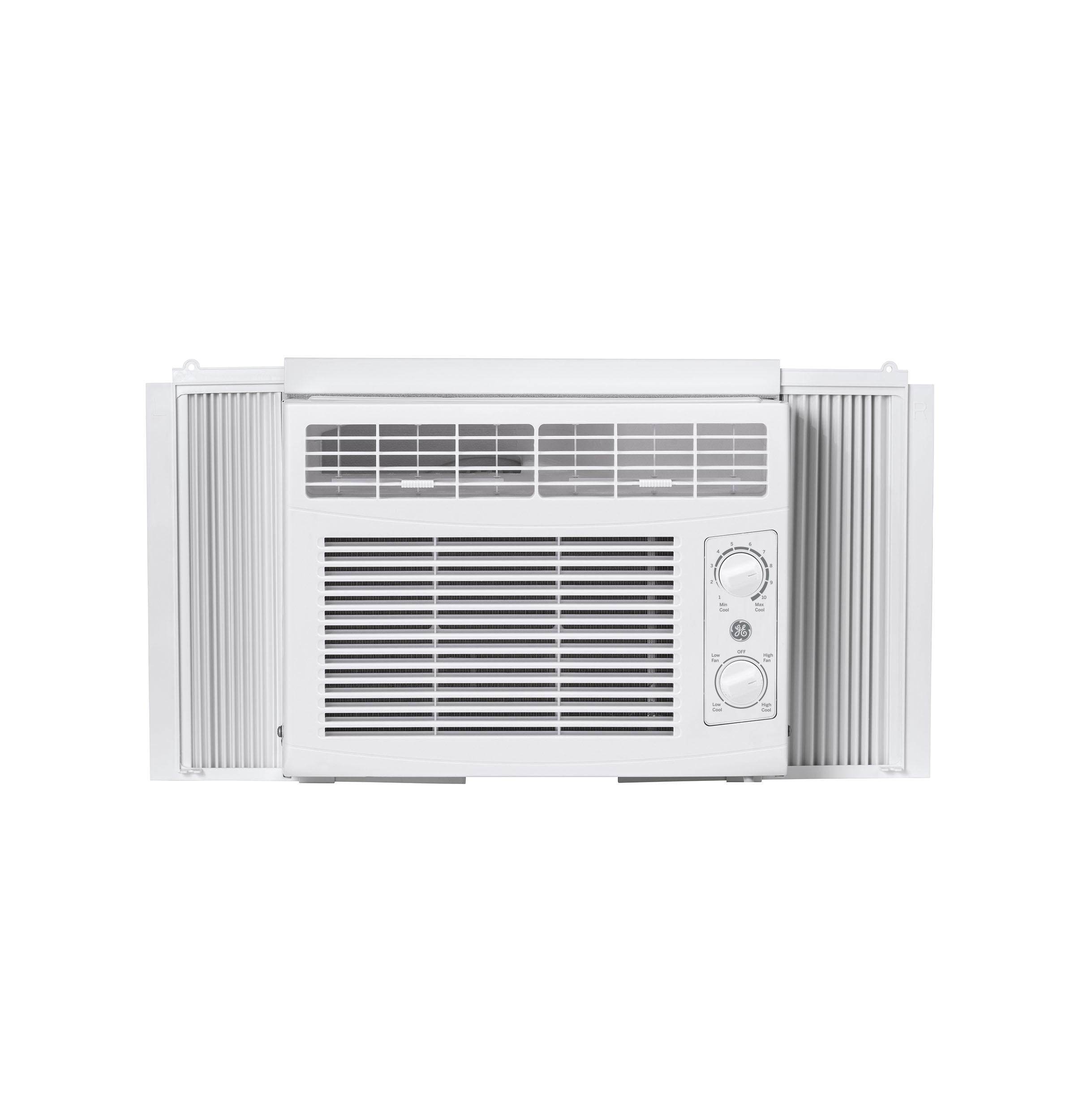

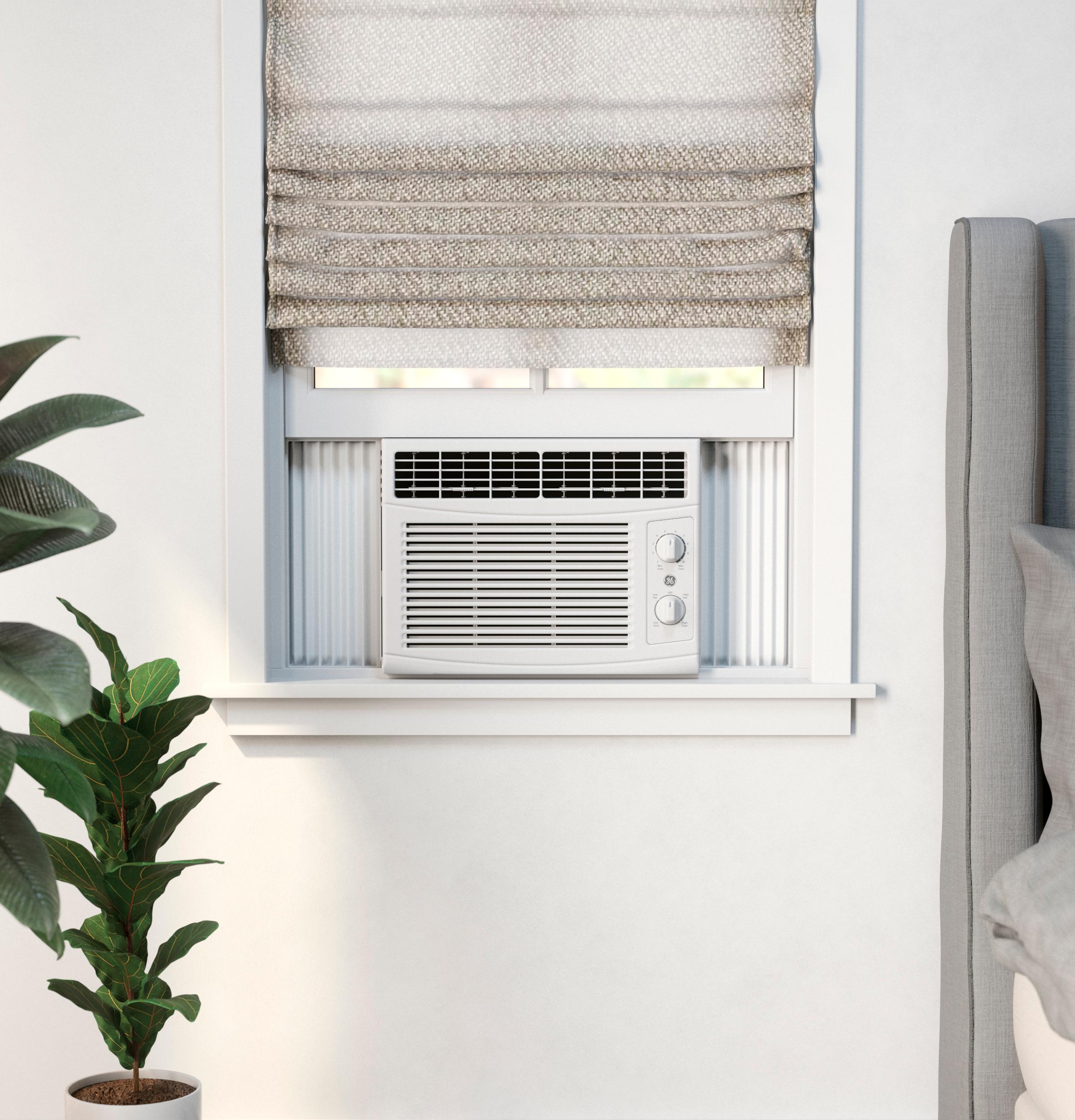

Easy Installation
This AC has a fixed chassis and installs easily in a double hung window with included EZ Mount installation kit

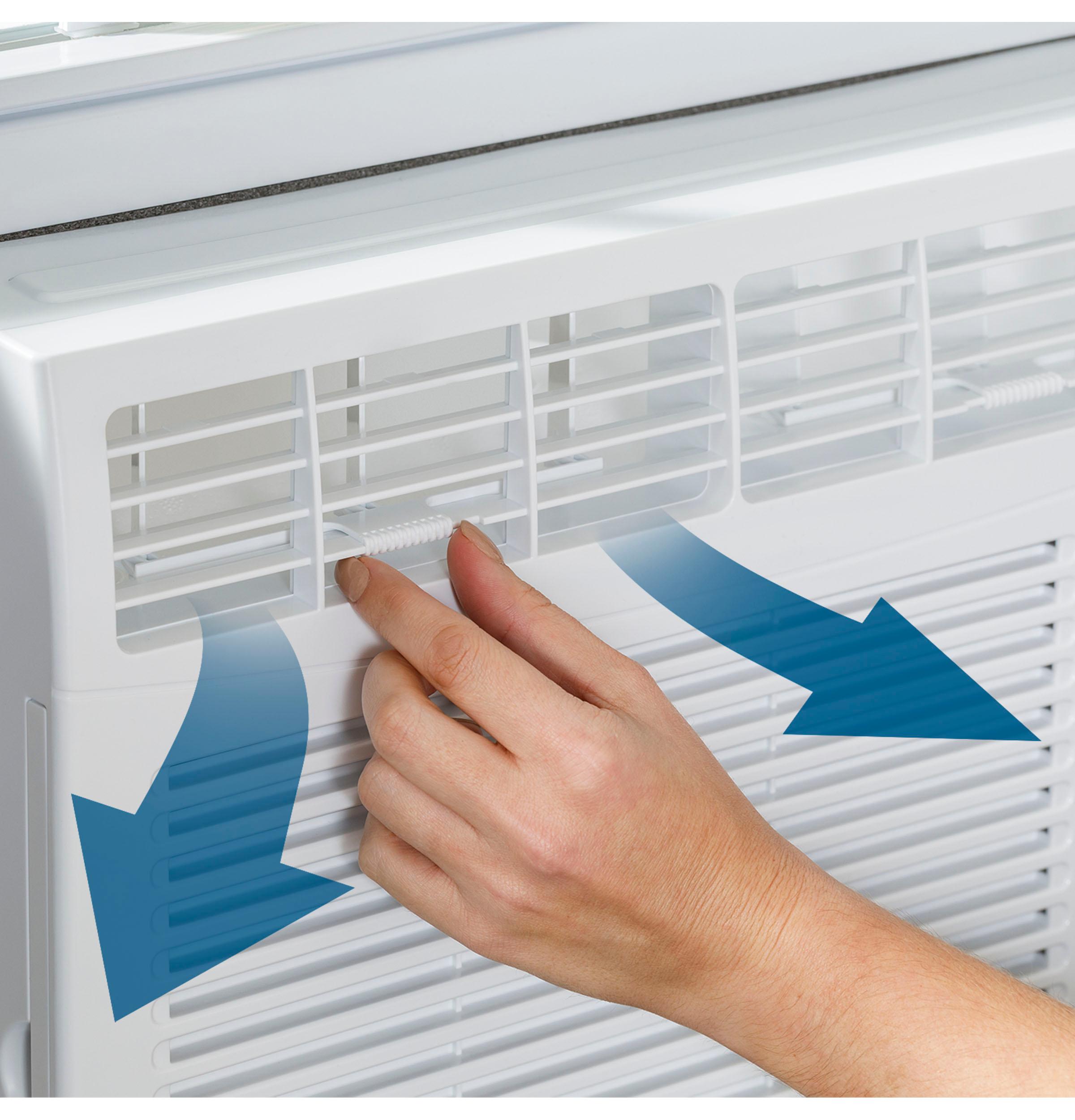

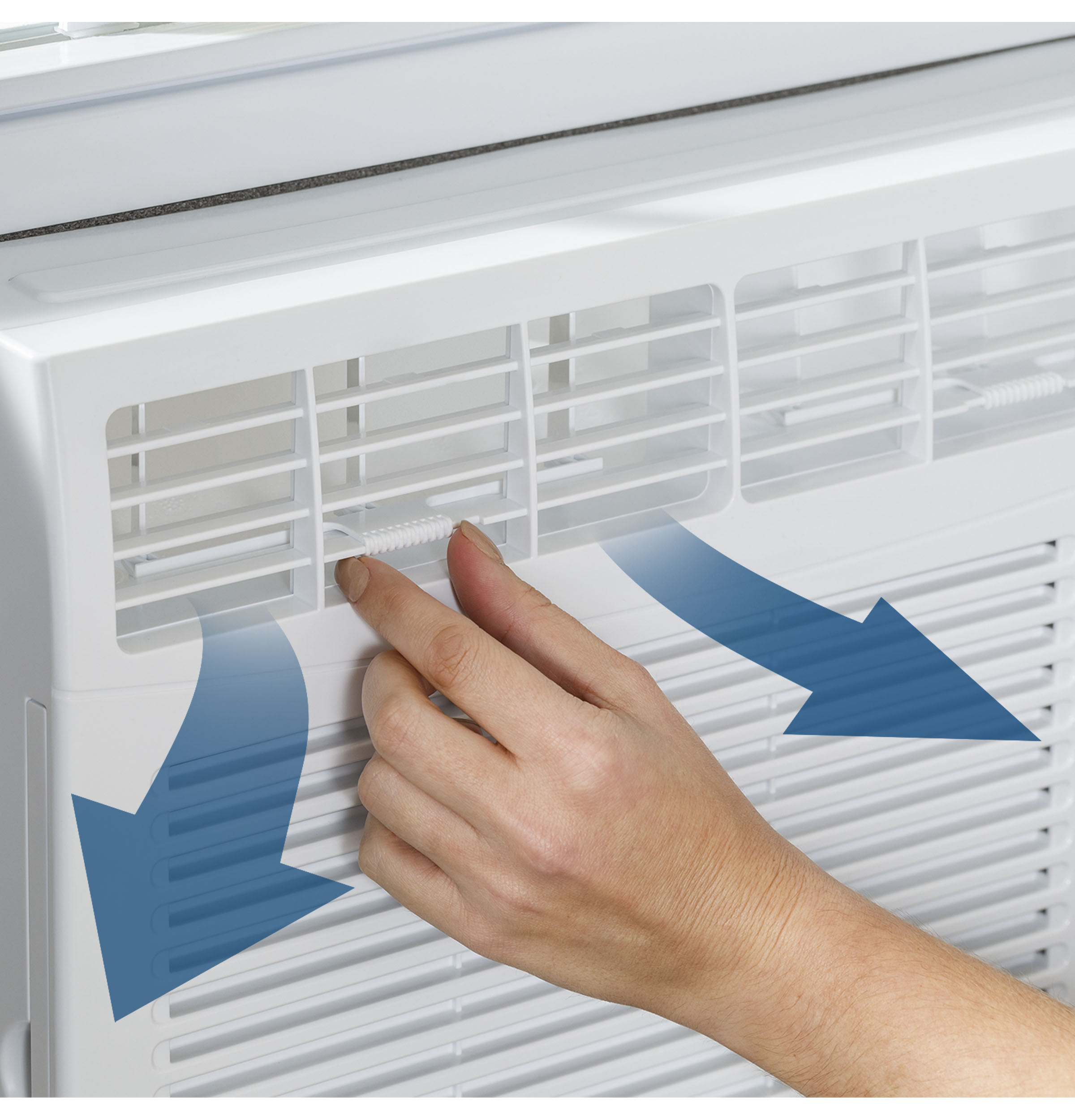

Louver Style
The 2-way adjustable louvers distribute air evenly throughout the room

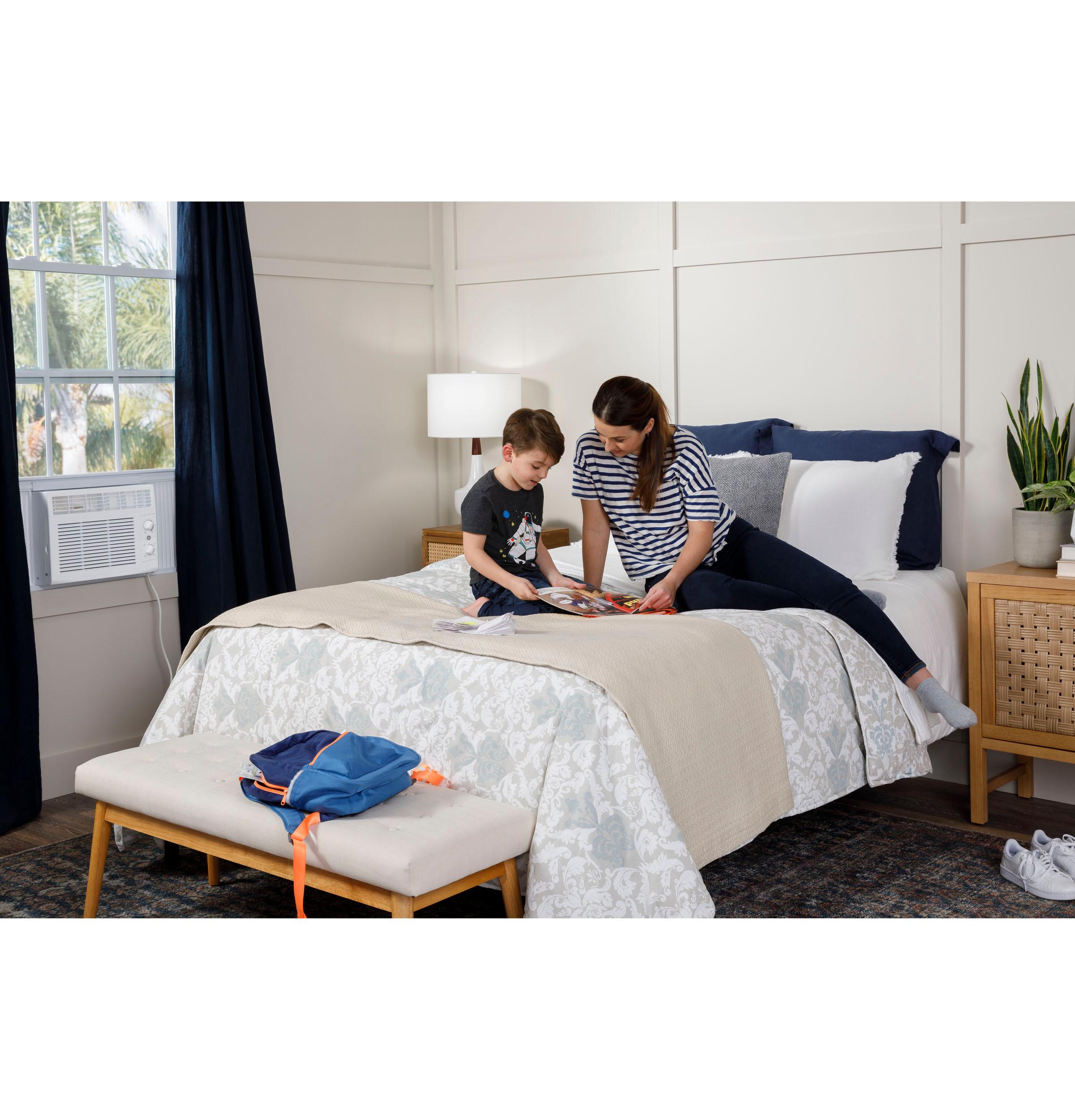

Compact Air Conditioner
This compact AC is perfect for a bedroom, office, apartment or any small area in the home

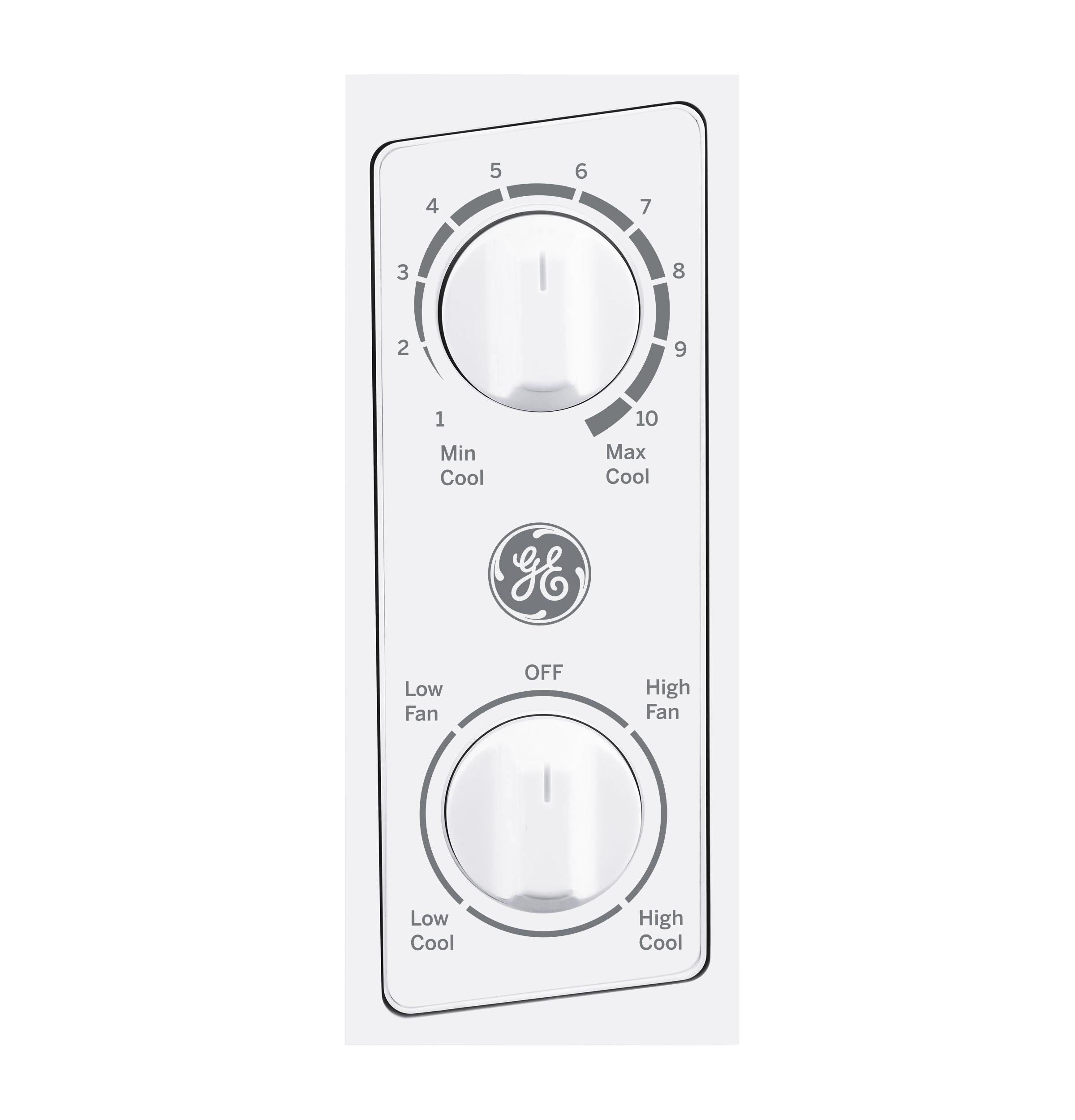

Temperature Control
Choose from 10 temperature settings to find the perfect cool

Voltage
This unit requires a 115 Volt outlet type



Product Features

  • Cools Small Rooms
    5,000 BTU cooling capacity offers maximum comfort in rooms up to 150 square feet
  • Maximum Comfort Cool
    Two cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency
  • Adjustable Thermostat
    Mechanical controls make it easy to adjust and manage your air conditioner settings
  • Removable Filter
    Filter can be easily removed for cleaning, so you can keep the unit performing at its best
  • Easy Installation
    This AC has a fixed chassis and installs easily in a double hung window with included EZ Mount installation kit
  • Louver Style
    The 2-way adjustable louvers distribute air evenly throughout the room
  • Compact Air Conditioner
    This compact AC is perfect for a bedroom, office, apartment or any small area in the home
  • Temperature Control
    Choose from 10 temperature settings to find the perfect cool
  • Voltage
    This unit requires a 115 Volt outlet type
