| Width | 30 in. |
| Height | 2 in. |
| Length | 21 in. |
| Weight | 34 lbs. |
| Cutout Height | 5" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 7 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 74 lbs. |
| Total of Shipping Weight | 74 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 0.73 ft³ |
| Dimensional Weight | 7.59 lbs. |
| Total of Cubes | 0.73 ft³ |
| Total of Dimensional Weight | 7.59 lbs. |

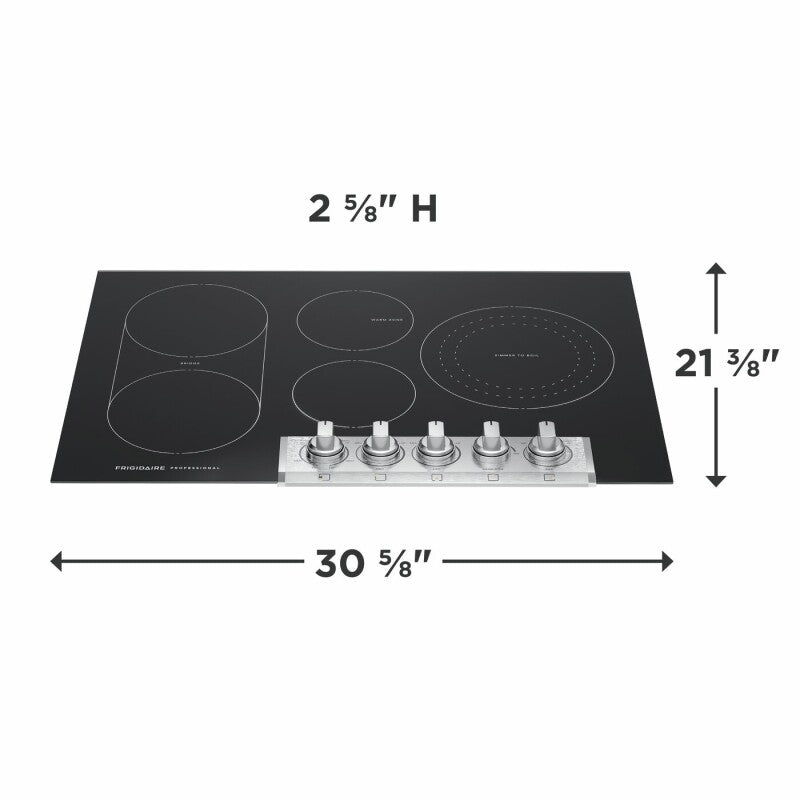

| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
| Bridge Element | Yes |
| Bridge Element Location | Left |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Right Front Element Burner Size | 9" |
| Left Front Element Burner Size | 7" |
| Left Rear Element Burner Size | 7" |
| Center Front Element Burner Size | 6" |
| Right Front Element Burner | 3200 Watts |
| Left Front Element Burner | 1800 Watts |
| Left Rear Element Burner | 1800 Watts |
| Center Front Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Standard Width | 30" |
| Cutout Height | 5" |
| Connected Load @ 240V | 8.1 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Frigidaire Fit Promise | Yes |
| Product Weight | 34 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Installed Over a Wall Oven | Yes |

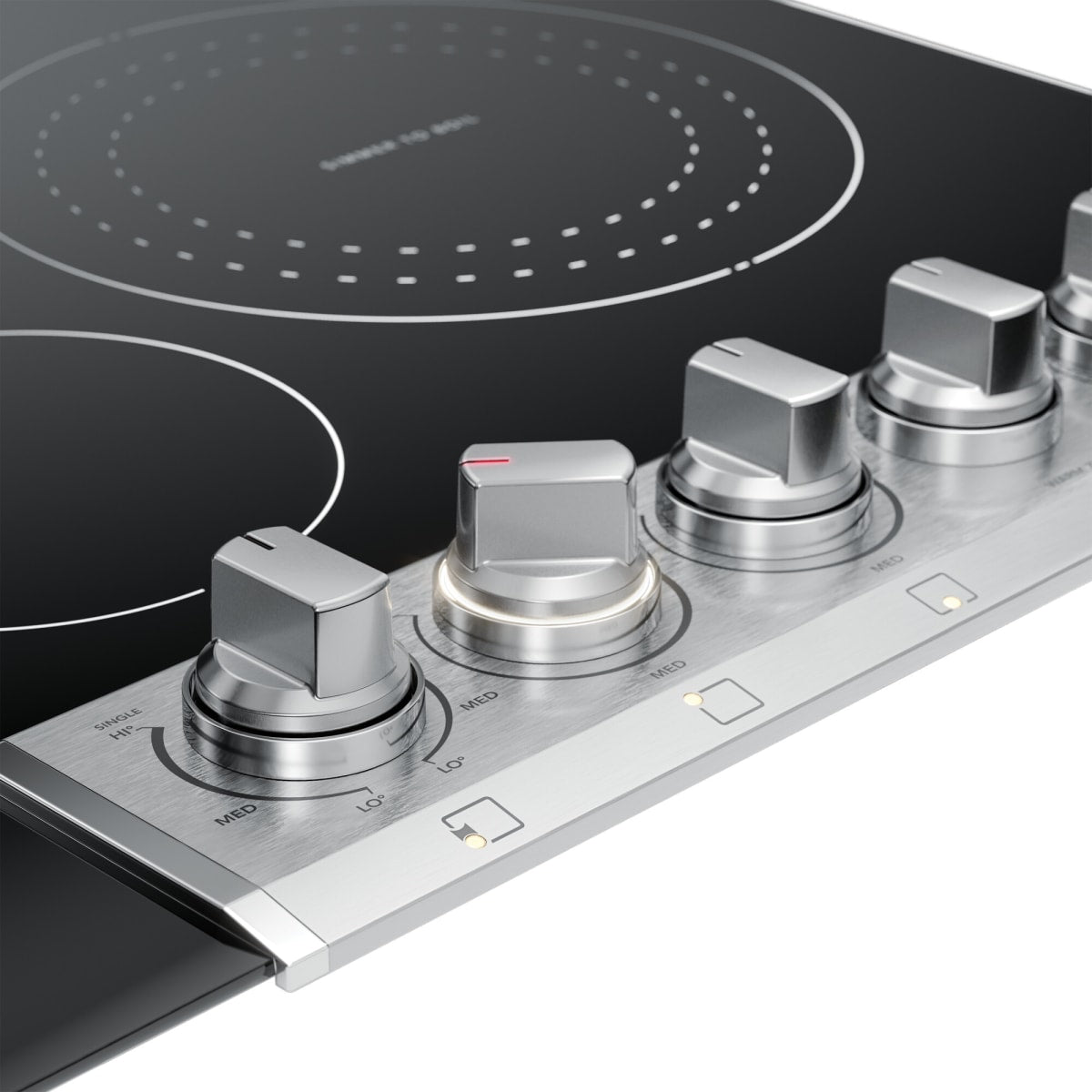

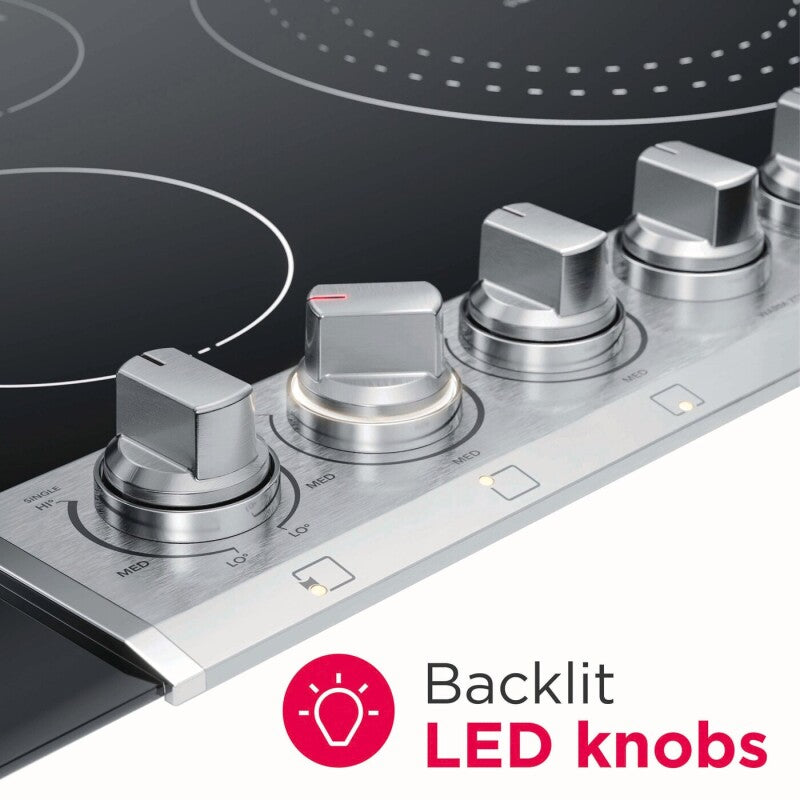

| Display Type | Mechanical |

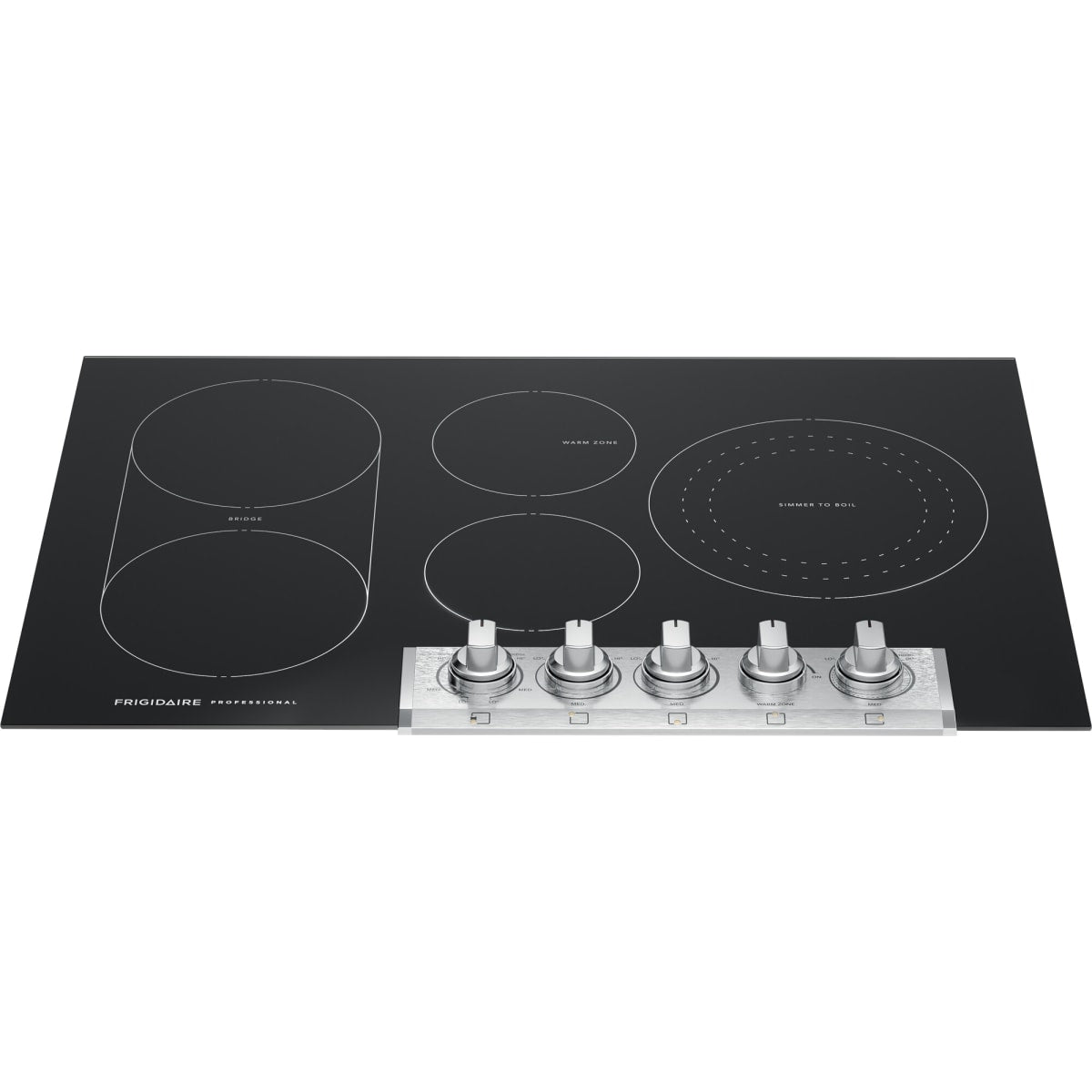

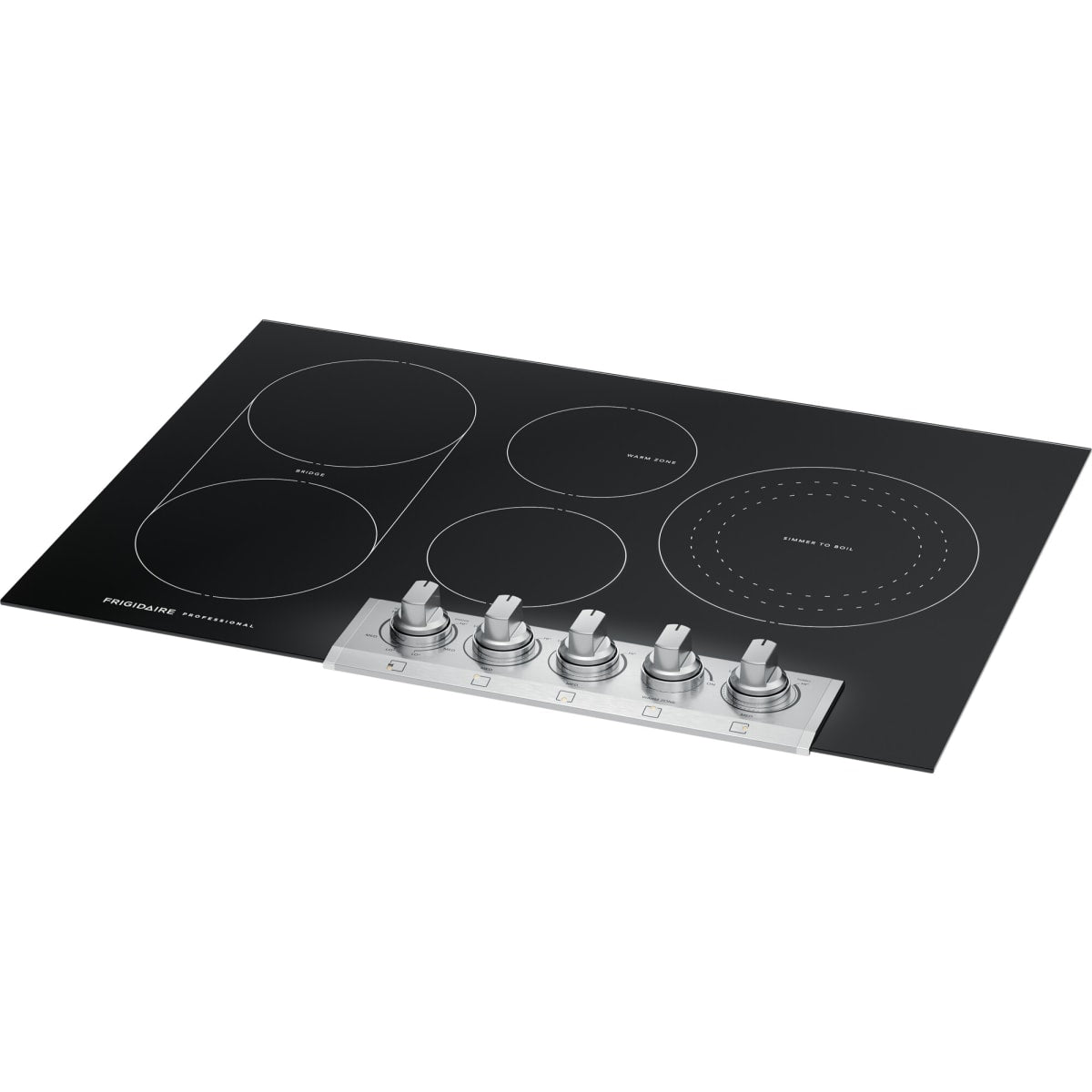

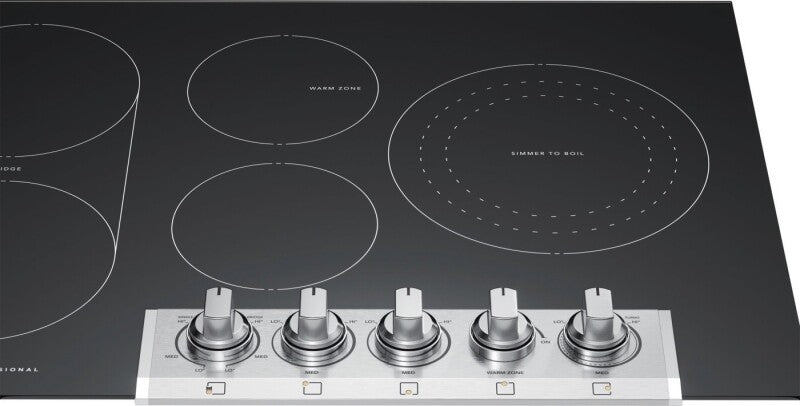

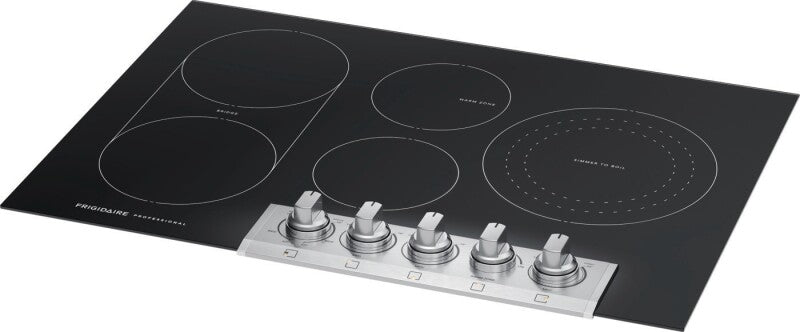

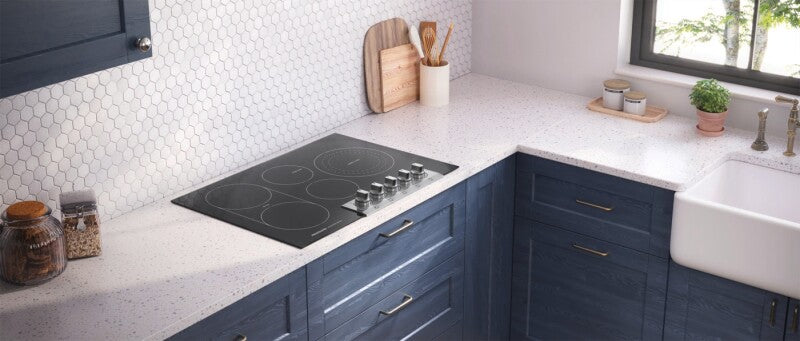

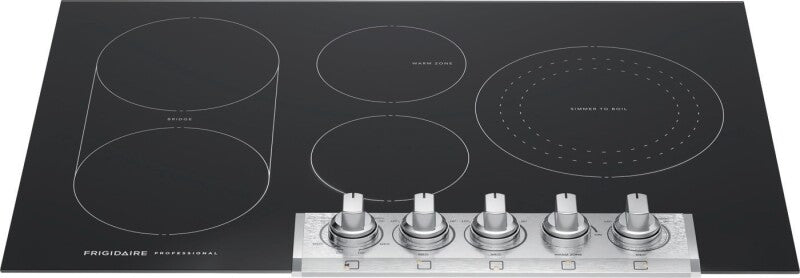

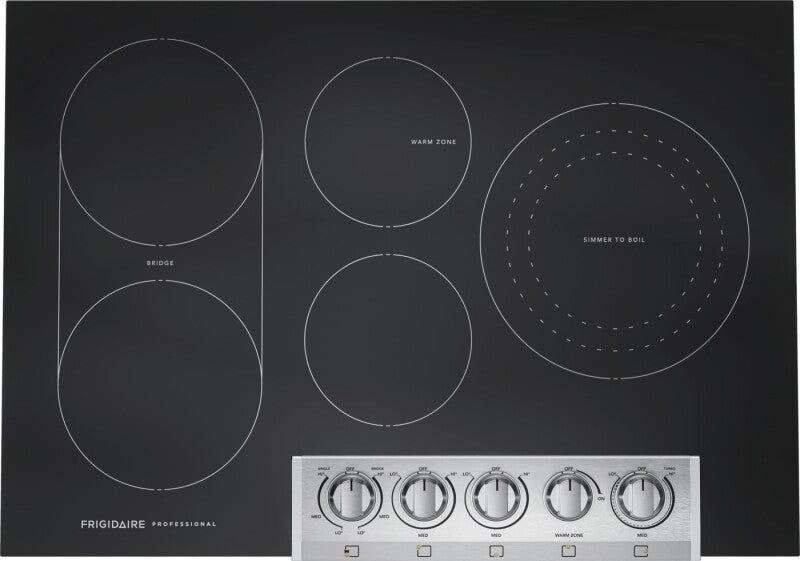

Electric Cooktop with 5 Radiant Elements
The Frigidaire Professional 30" Electric Cooktop delivers precise, even heating with its advanced EvenTemp™ element, ensuring consistent results every time. A convenient bridge element connects two zones to create a larger surface—ideal for griddles or oversized cookware. Plus, with the Frigidaire Fit Promise, you can be confident it will seamlessly fit your existing countertop cutout.
