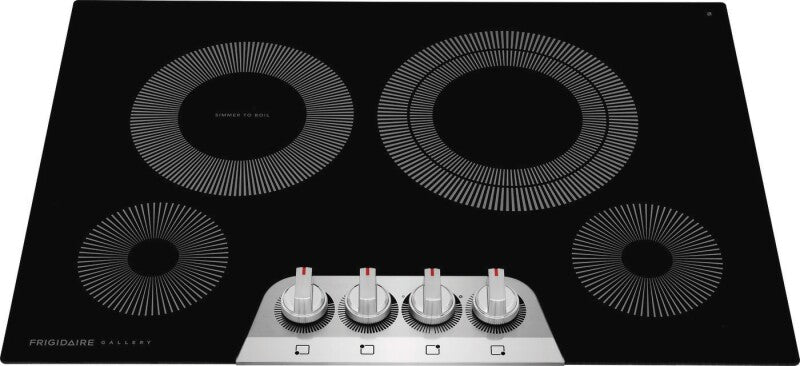

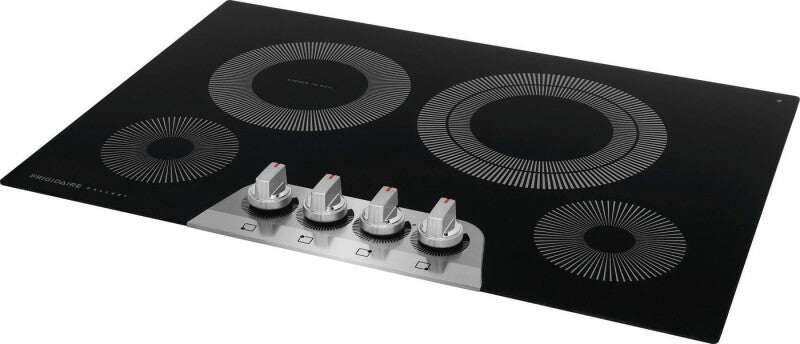

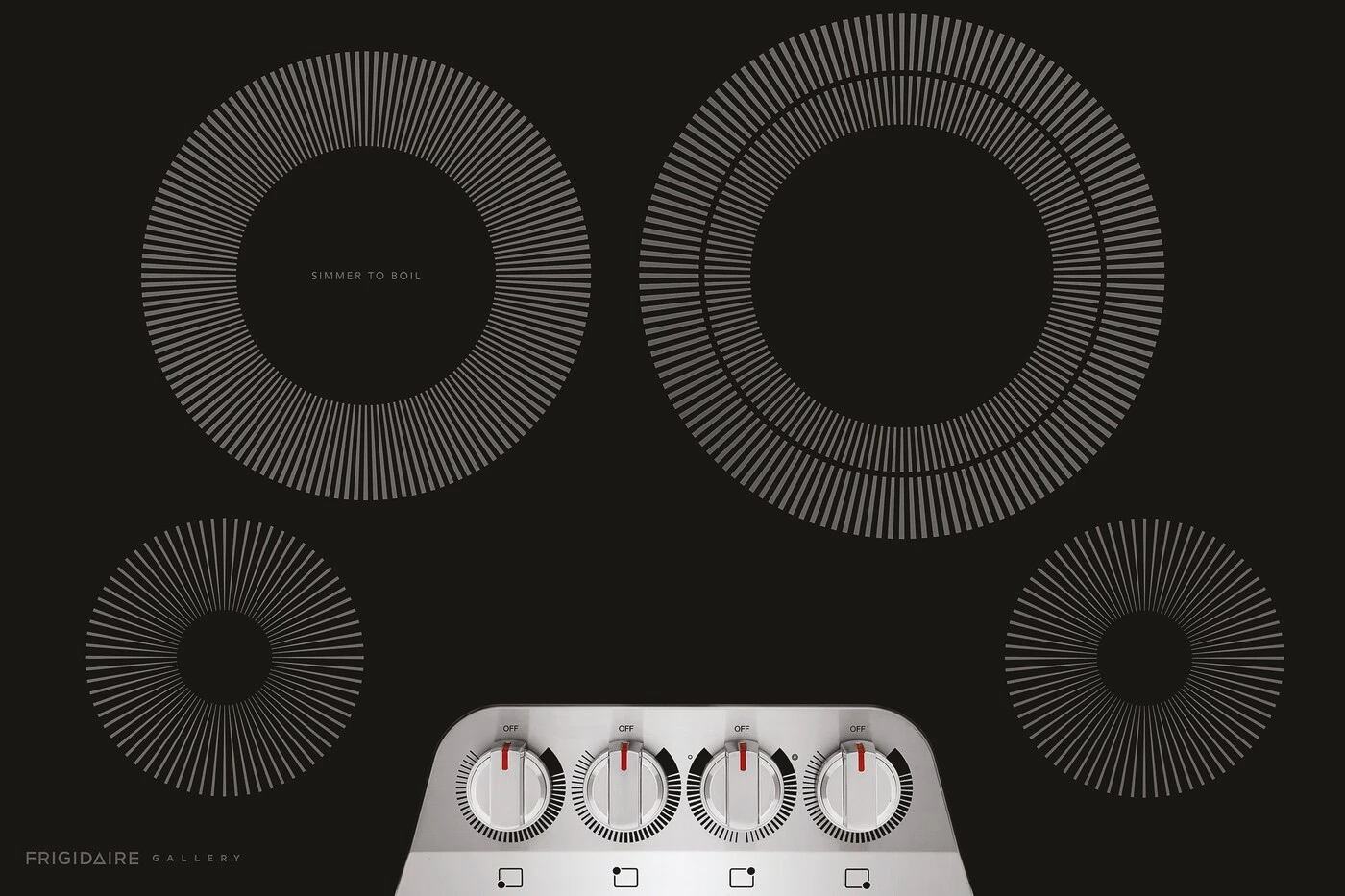

FRIGIDAIRE GCCE3049AS Frigidaire Gallery 30" Electric Cooktop

Product Line	Electric Cooktop
Power Type	Electric 240v
Size	30"
Factory	Rayong
Color	Stainless Steel
Installation
Installed Over a Wall Oven	Yes
Power Supply Connection Location	Right Center
Electrical Specifications
Amps @ 240 Volts	35.8 Amps
Connected Load @ 240V	8.6 kW
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Certifications and Approvals
ADA Compliant	Yes
Cooktop
Cooking Surface Type	Smooth
Hot-Surface Indicator Light	Yes

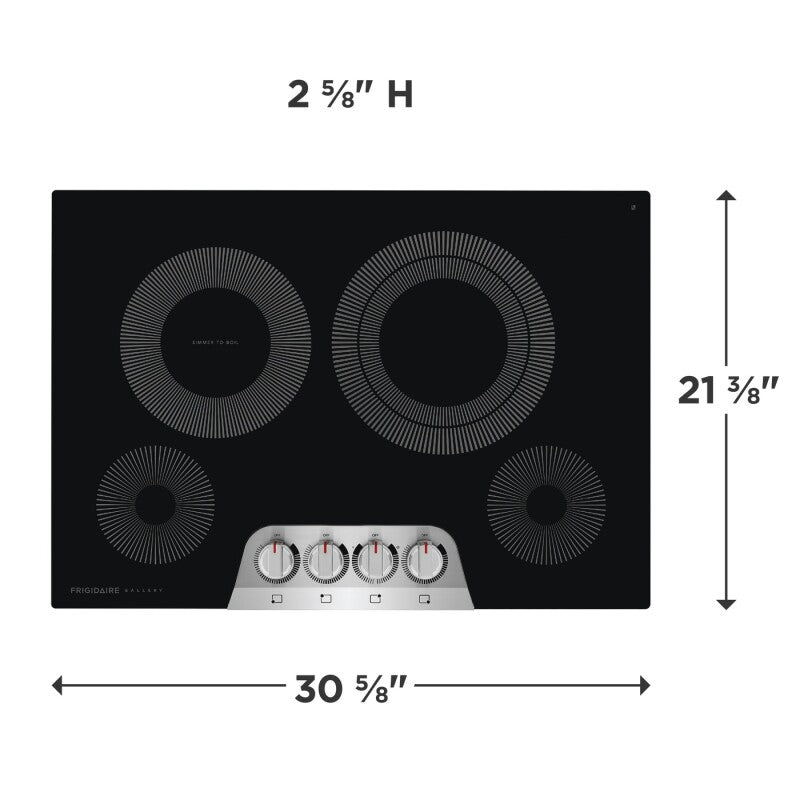

Dimensions and Volume
Height	2 5/8"
Width	30 5/8"
Depth	21 3/8"
Cutout Height	5"
Minimum Cutout Width	28 1/2"
Minimum Cutout Depth	19 5/8"
Maximum Cutout Width	29 7/8"
Maximum Cutout Depth	20 1/2"
Safety Certifications and Approvals
CSA Listed	Yes
UL Listed	Yes
Controls
Sabbath Mode	No
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	31 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Cooktop Performance
Right Front Element Burner Size	6"
Right Rear Element Burner Size (Small)	9"
Right Rear Element Burner Size (Large)	12"
Left Front Element Burner Size	6"
Left Rear Element Burner Size	9"
Right Front Element Burner	1,200 Watts
Right Rear Element Burner (Small)	1,800 Watts
Right Rear Element Burner (Large)	3,000 Watts
Left Front Element Burner	1,200 Watts
Left Rear Element Burner	3,200 Watts
Display

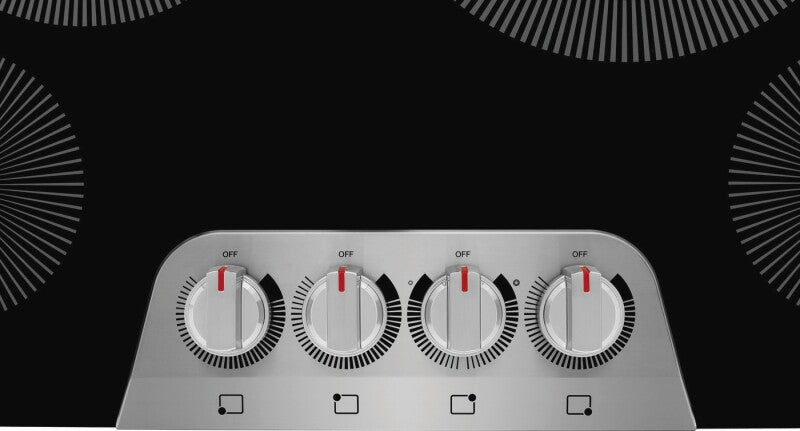

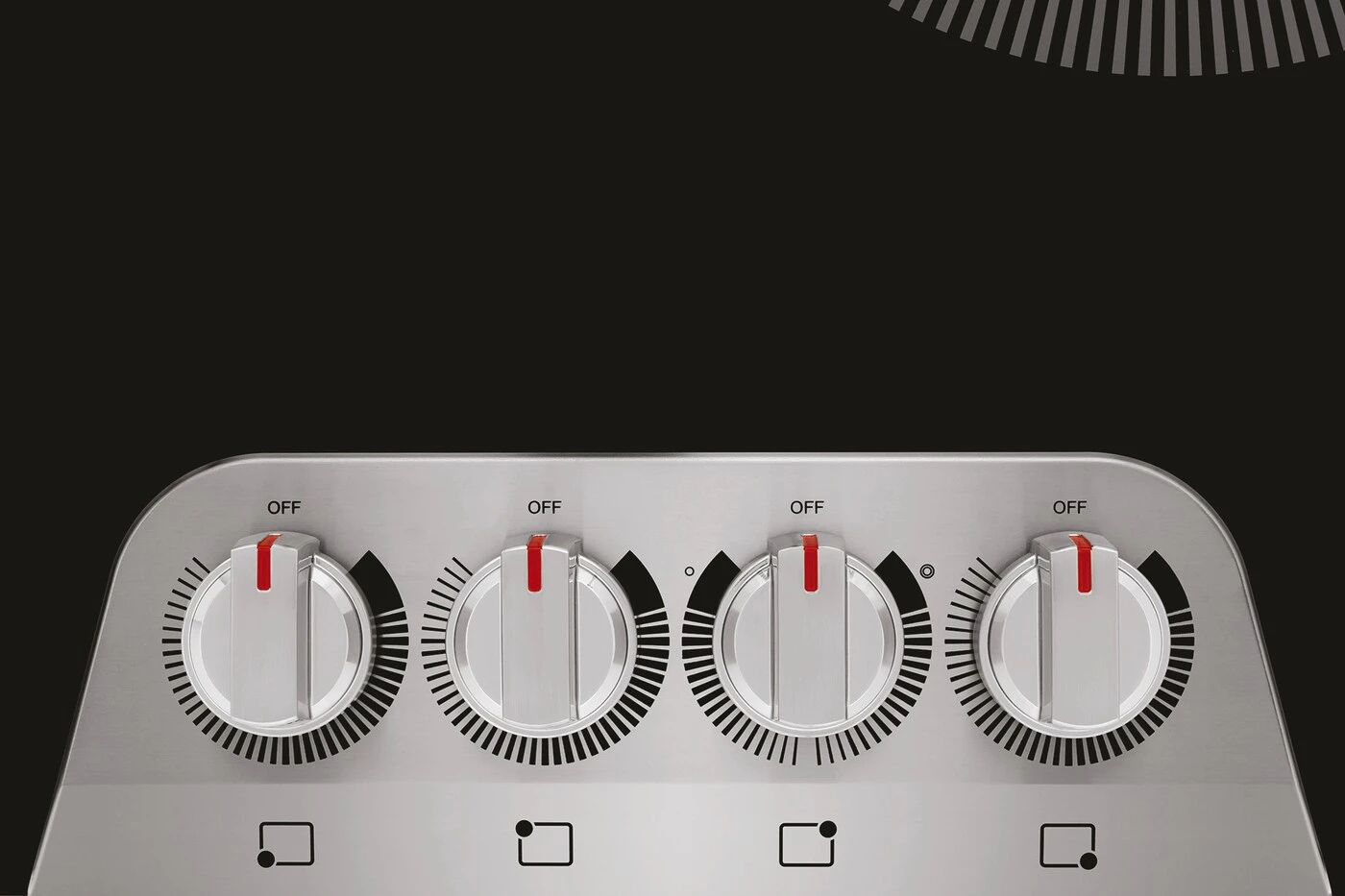

Control Location	Front
Display Type	Mechanical

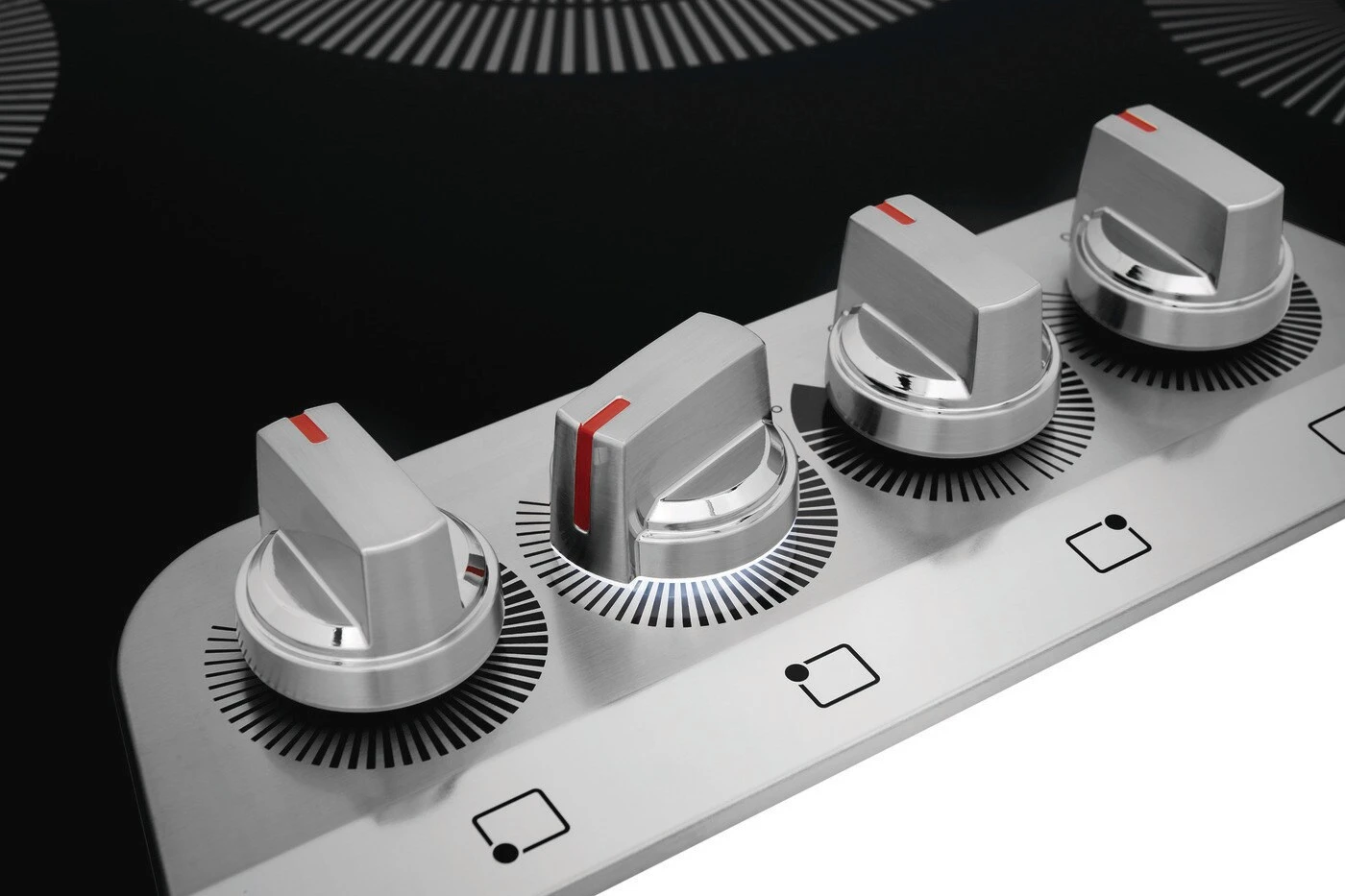

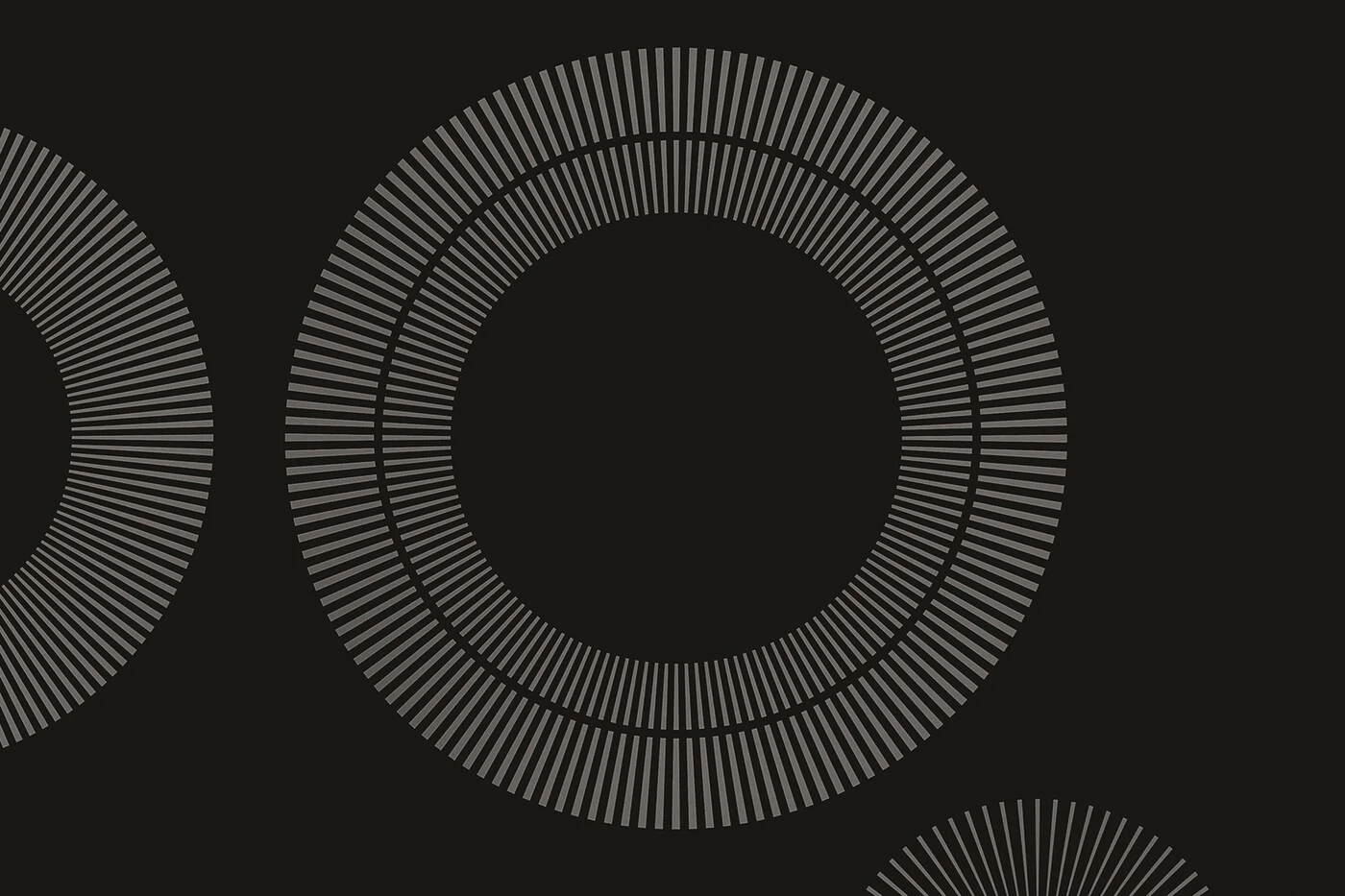

The Frigidaire Gallery 30" Electric Cooktop provides delicious results every time with the EvenTemp(TM) Element that delivers consistent heat across the elements surface, reducing hot and cold spots in your pan. Enjoy ultimate cooking flexibility with powerful elements designed to meet all of your cooking needs, including a Dual Expandable Element and Keep Warm Zone. Plus, these cooktops feature bright, backlit LED knobs that light up when the cooktop is in use, conveniently placed on the front of the cooktop.
