| Frigidaire Fit Promise | Yes |
| Warranty - Labor | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Width | 30.63 in. |
| Height | 2.63 in. |
| Length | 21.38 in. |
| Weight | 29.45 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 35.63 in. |
| Shipping Height | 7.63 in. |
| Shipping Length | 26.38 in. |
| Shipping Weight | 69.45 lbs. |
| Total of Shipping Weight | 69.45 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 0.99 ft³ |
| Dimensional Weight | 10.35 lbs. |
| Total of Cubes | 0.99 ft³ |
| Total of Dimensional Weight | 10.35 lbs. |
| Sabbath Mode | No |

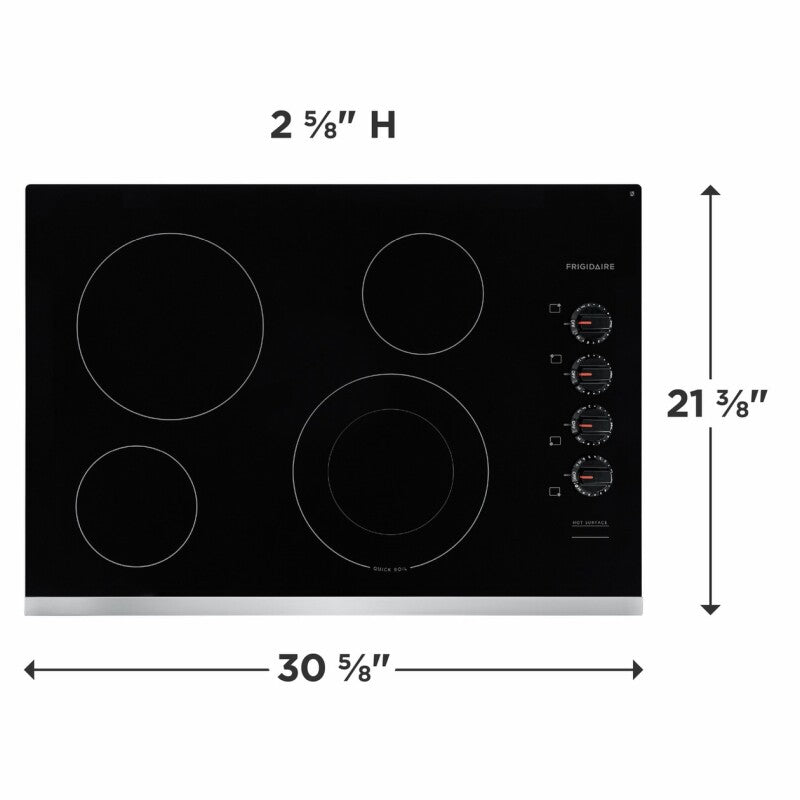

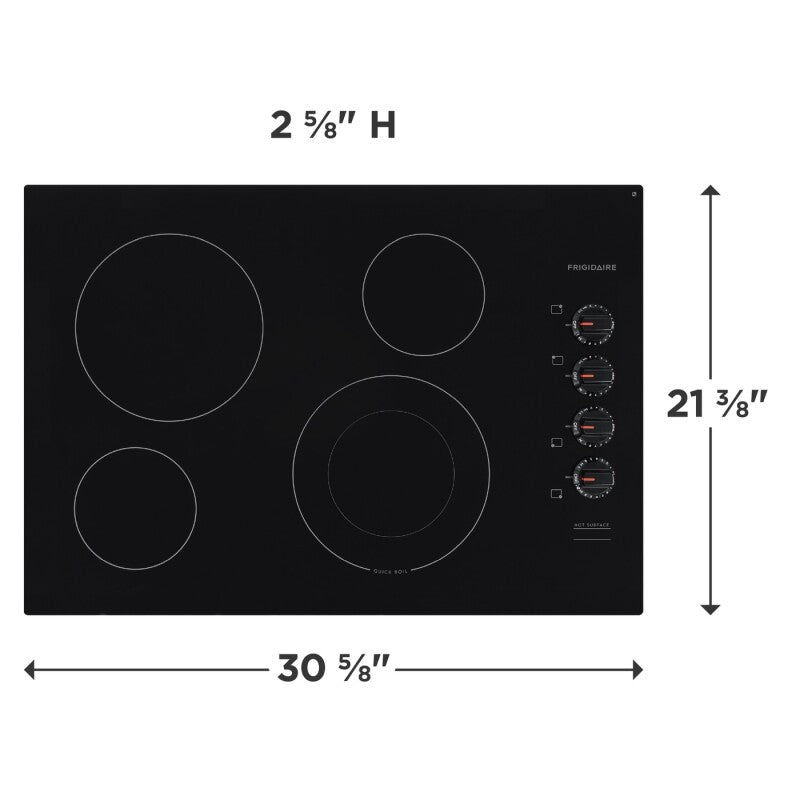

| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| ADA Compliant | No |
| CSA Listed | Yes |
| ETL Listed | No |
| UL Listed | Yes |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Right Front Element Burner Size (Small) | 6" |
| Right Front Element Burner Size (Large) | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size | 6" |
| Left Rear Element Burner Size | 9" |
| Right Front Element Burner (Small) | 1600 Watts |
| Right Front Element Burner (Large) | 3000 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner | 1200 Watts |
| Left Rear Element Burner | 2500 Watts |
| Amps @ 240 Volts | 32.9 Amps |
| Connected Load @ 240V | 7.9 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Frigidaire Fit Promise | Yes |
| Product Weight | 29.45 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| Display Type | Mechanical |
| ENERGY STAR Certified | Yes |
Get meals on the table faster with our powerful 3,000W Quick Boil element.
Flexible element expands to accommodate various sizes of cookware.
We promise that your new 30" or 36"Frigidaire® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for modification costs up to $100.
For a more beautiful cooktop that's easy to clean.

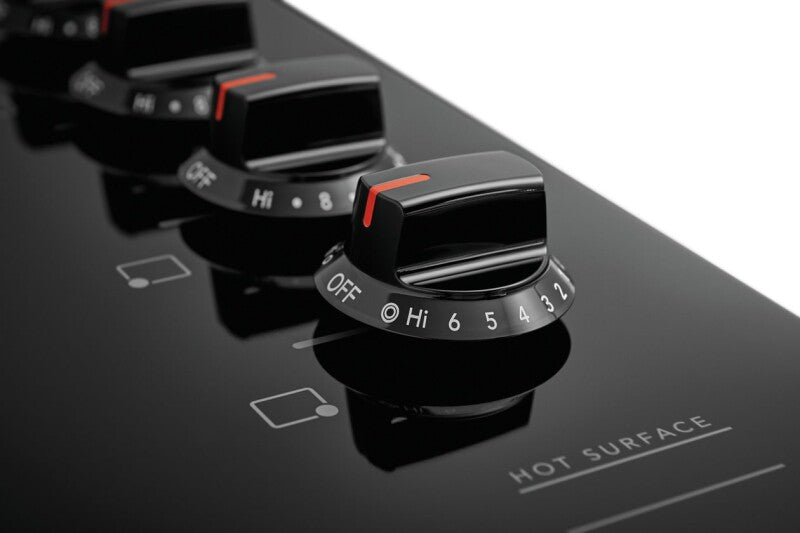

Easily control your cooking temperature with our easy-to-use controls.
Alerts you when your cooktop may be too warm to touch.
Cooktops are approved for installation above any of our single electric wall ovens.
