Product Details for Frigidaire FCWD3027AS
Technical Details
Cooking controls
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
Cooking controls function
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
Oven
| Bake Element | 2500 |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 4 |
Controls
| Control Lock | Yes |
| Sabbath Mode | Yes |
Display
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |

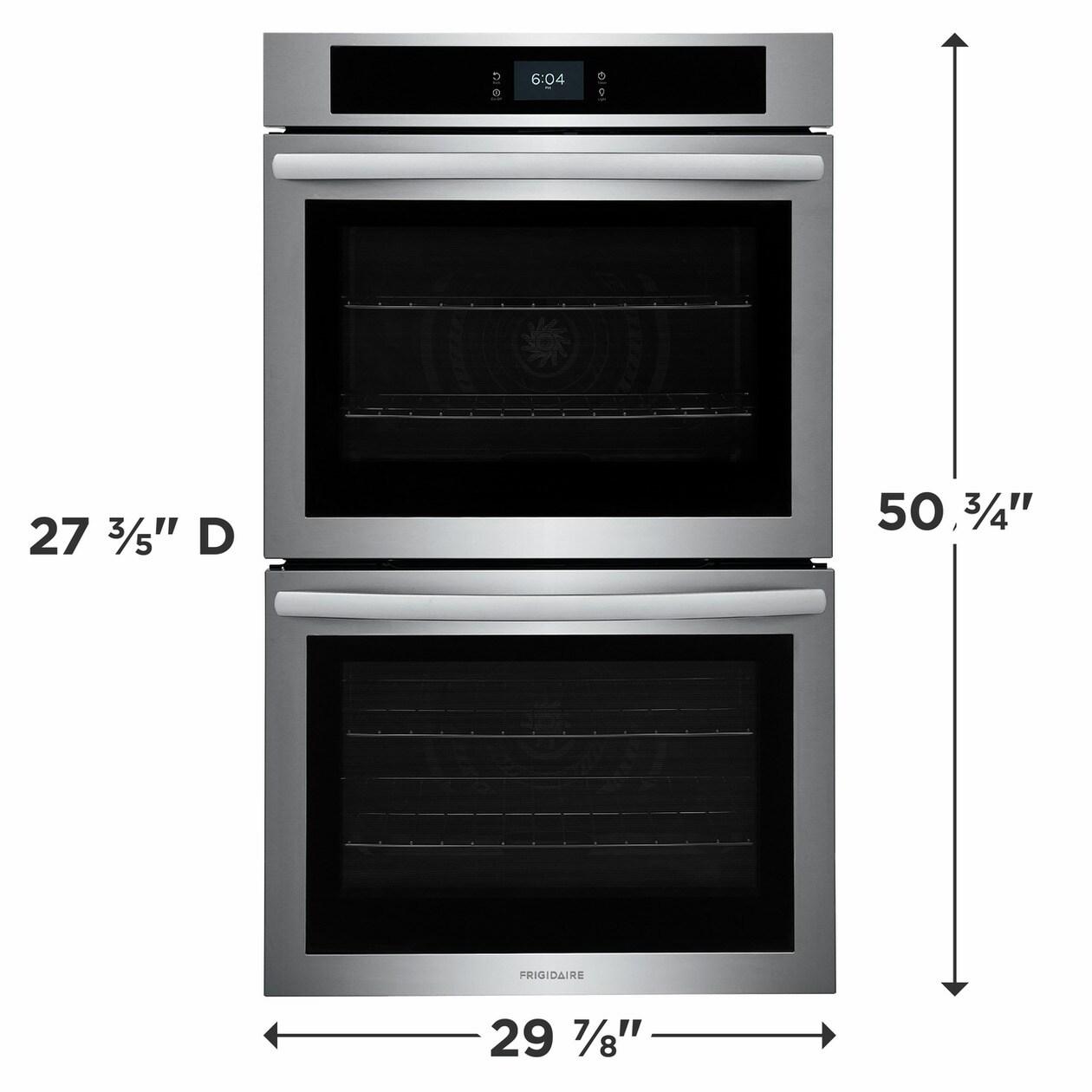

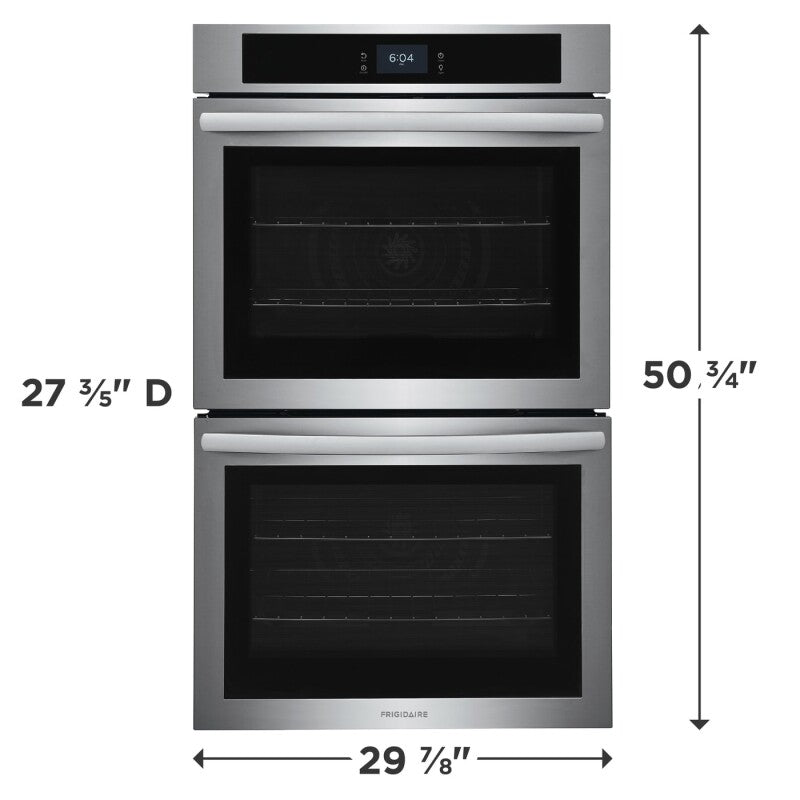

Dimensions and volume
| Height | 50.75 |
| Width | 29.88 |
| Depth | 25.19 |
| Depth With Door 90(degree) Open | 48.19 |
| Depth With Handle | 27.6 |
| Lower Oven Interior Height | 18.13 |
| Lower Oven Interior Width | 25.2 |
| Lower Oven Interior Depth | 19.88 |
| Upper Oven Interior Height | 18.13 |
| Upper Oven Interior Width | 25.2 |
| Upper Oven Interior Depth | 19.88 |
| Minimum Cutout Height | 48.88 |
| Minimum Cutout Width | 28.5 |
| Maximum Cutout Height | 50.25 |
| Maximum Cutout Width | 29.0 |
| Oven Lower Capacity | 5.3 |
| Oven Upper Capacity | 5.3 |
| Total Capacity | 10.6 |
Electrical specifications
| Amps @ 240 Volts | 40 |
| Connected Load @ 240V | 7.4 |
| Minimum Circuit Required | 40 |
| Voltage Rating | 240 |
General specifications
| Frigidaire Fit Promise | Yes |
| Product Weight | 215 |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 |
| Warranty - Parts | 1 |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
Safety certifications and approvals
| CSA Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
Features
- Fan Convection
Get faster, more even multi-rack baking results with Fan Convection - in both ovens! - Self Clean Oven
Self clean options available in convenient 2, 3 and 4-hour cycles. - Frigidaire(R) Fit Promise
We promise that your new 30" Frigidaire(R) double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information. - Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel. - Extra Large Oven Capacity
Cook more at once with a combined 10.6 cu.ft. of oven capacity. - Custom Broil Temp Setting
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees. - Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off. - Keep Warm Setting
Description

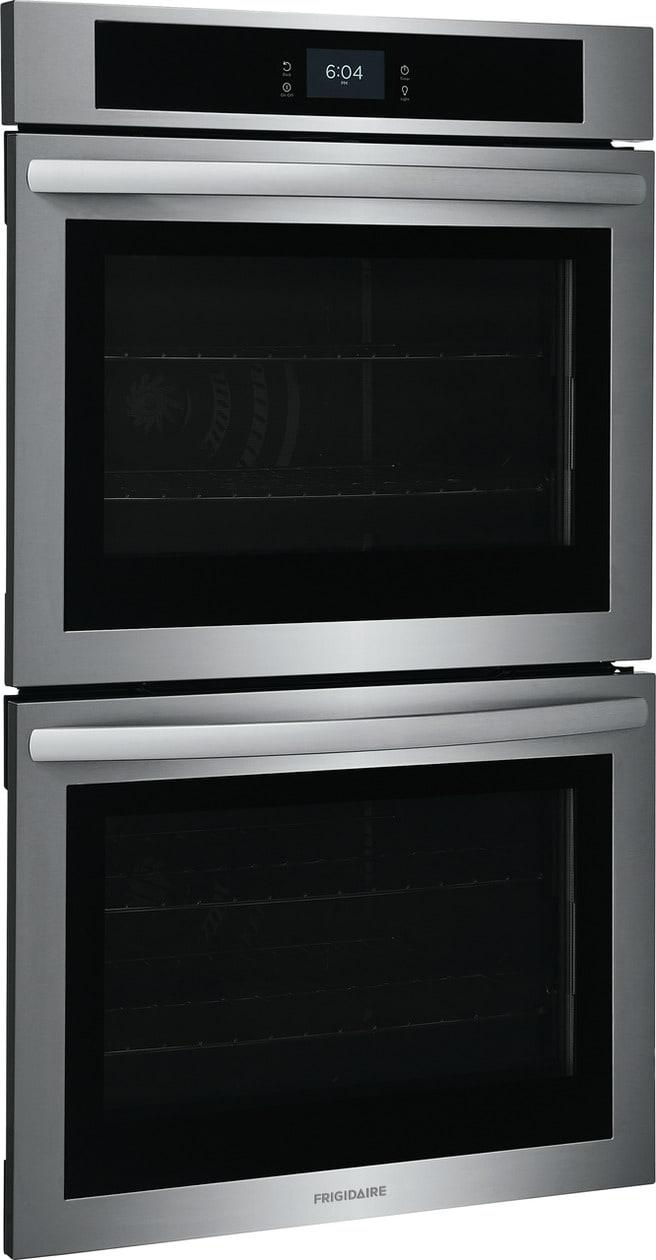

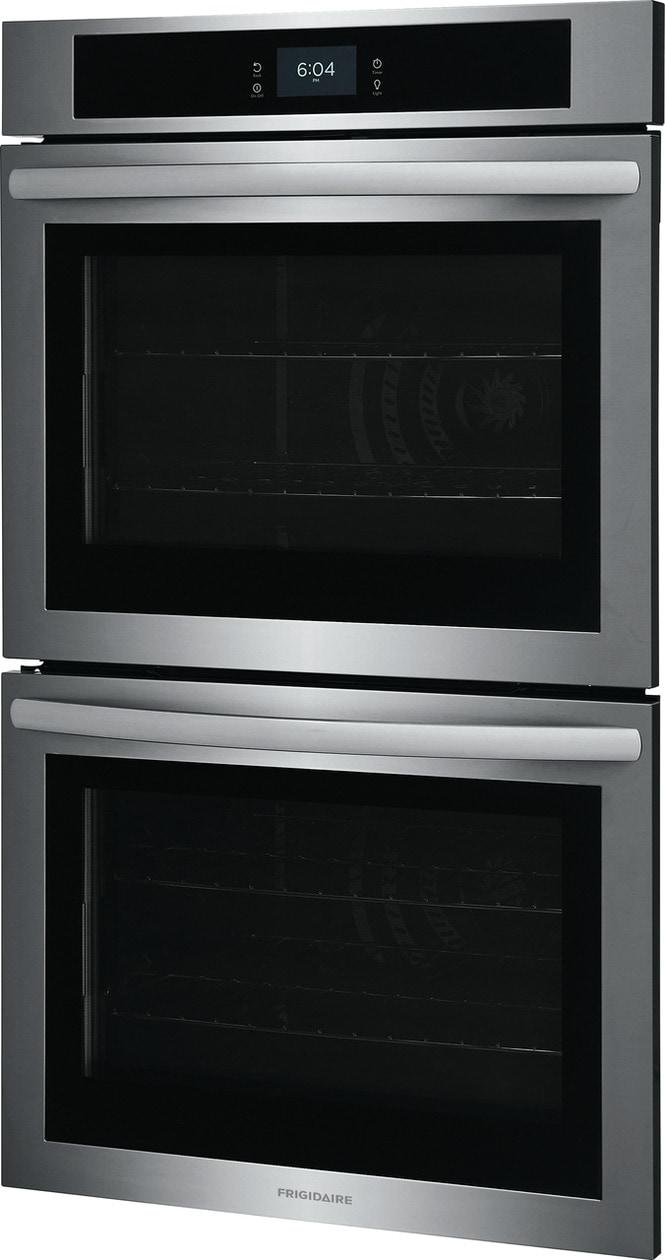

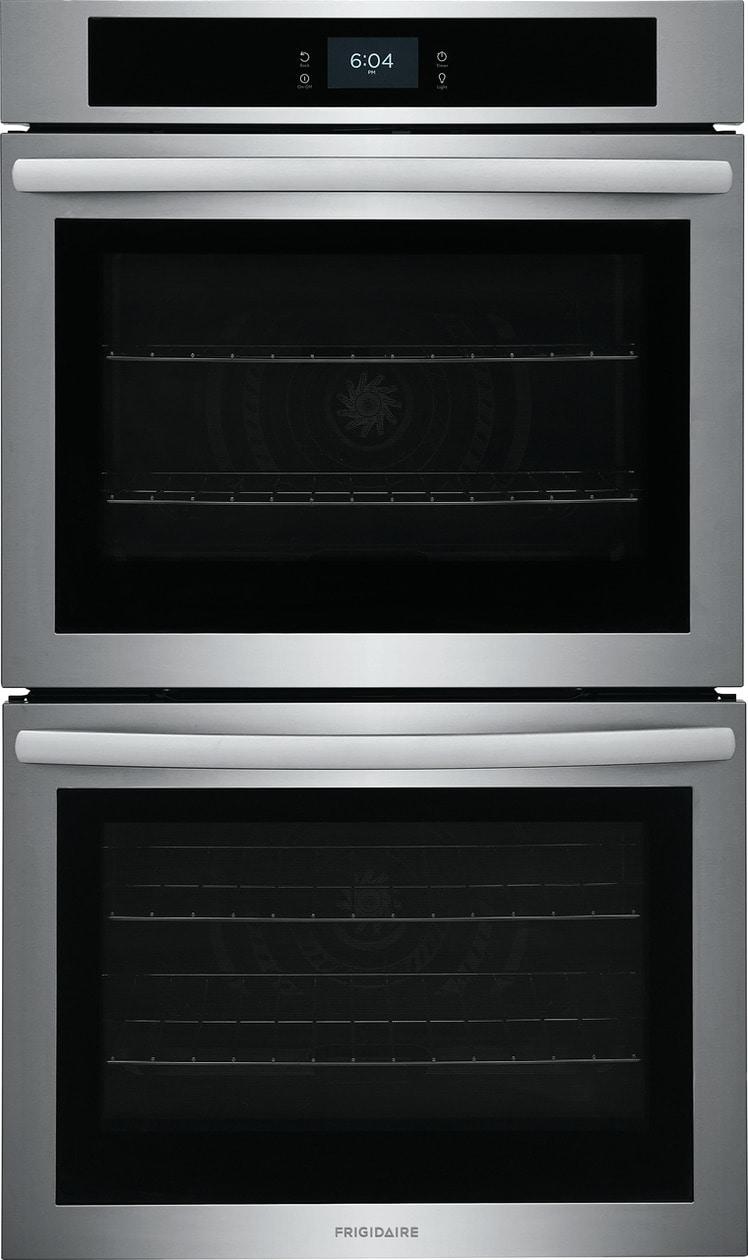

The Frigidaire 30" Double Wall Oven with Fan Convection allows you to achieve faster, more even multi-rack baking results, and has a total oven capacity of 10.6 cu. ft. It also features a premium touch screen digital control panel and provides peace of mind that it will fit existing cutouts with our Frigidaire Fit Promise.
Manuals & Guides
- FCWD3027AS - Feuille de sp(eback)cifications du produit (fr)
- FCWD3027AS - Product Specifications Sheet (en)
- FCWD3027AS - Energy Guide (en, fr)
- FCWD3027AS - Installation Instructions (en, fr, es)
- FCWD3027AS - Approved Built-In Appliance Combinations (en, fr, es)
- FCWD3027AS - Complete Owner's Guide (en)
- FCWD3027AS - Guide d'utilisation complet (fr)
- FCWD3027AS - Quick Start Guide (en)
- FCWD3027AS - Guide de d(eback)marrage rapide (fr)
Key Features

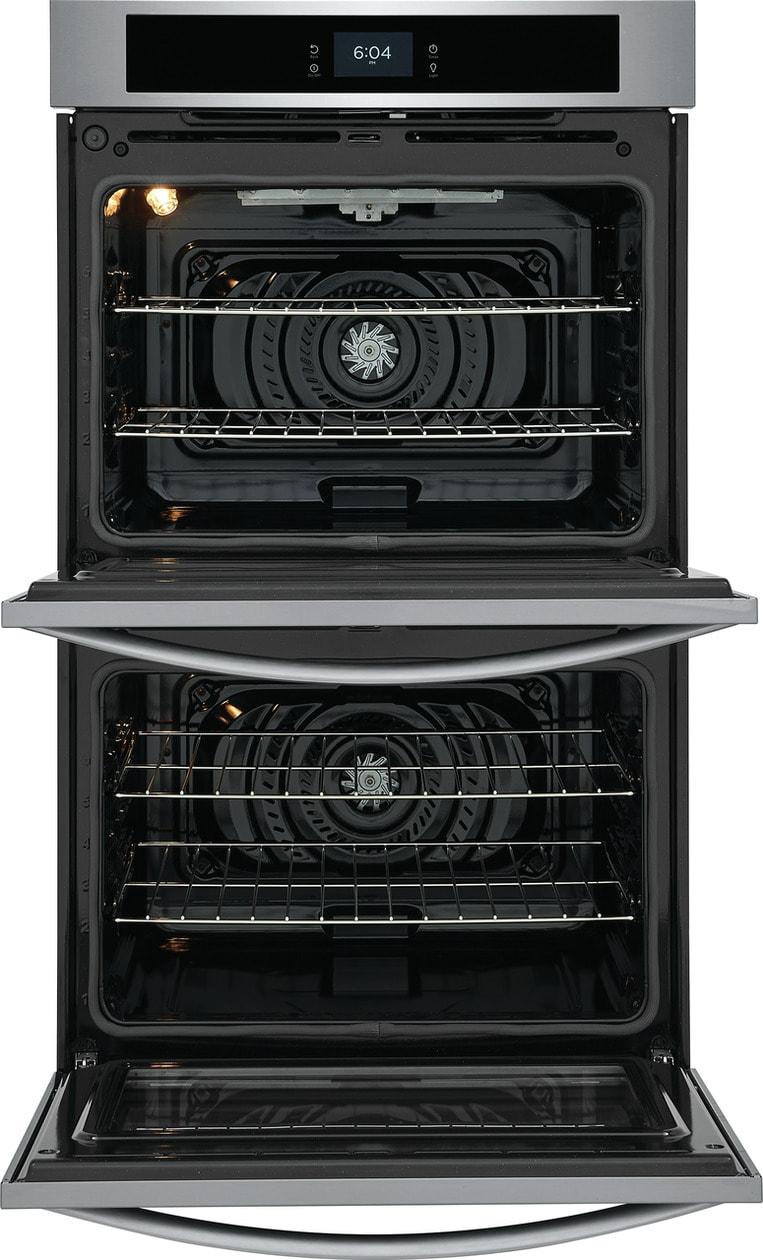

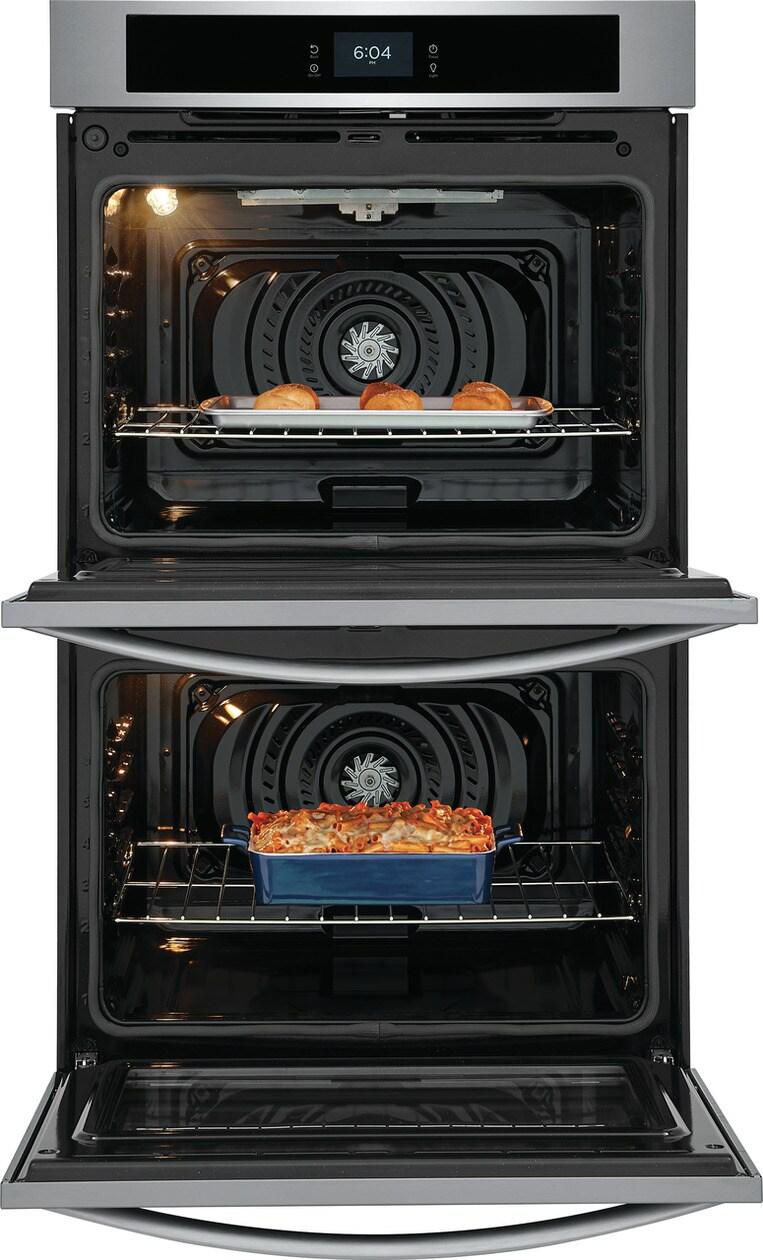

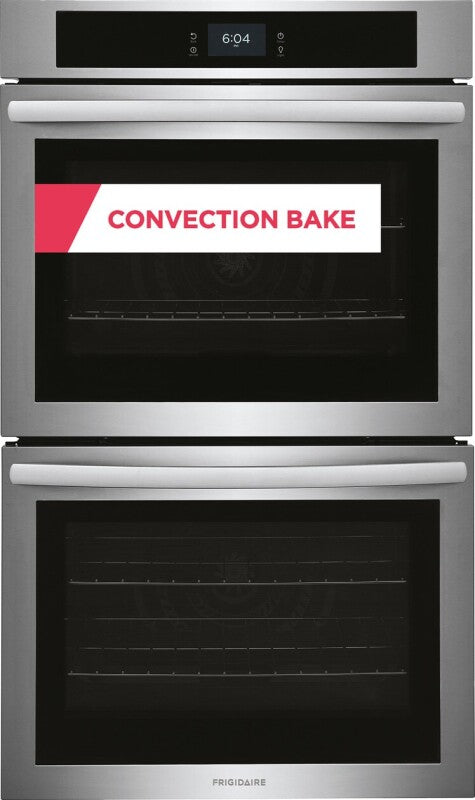

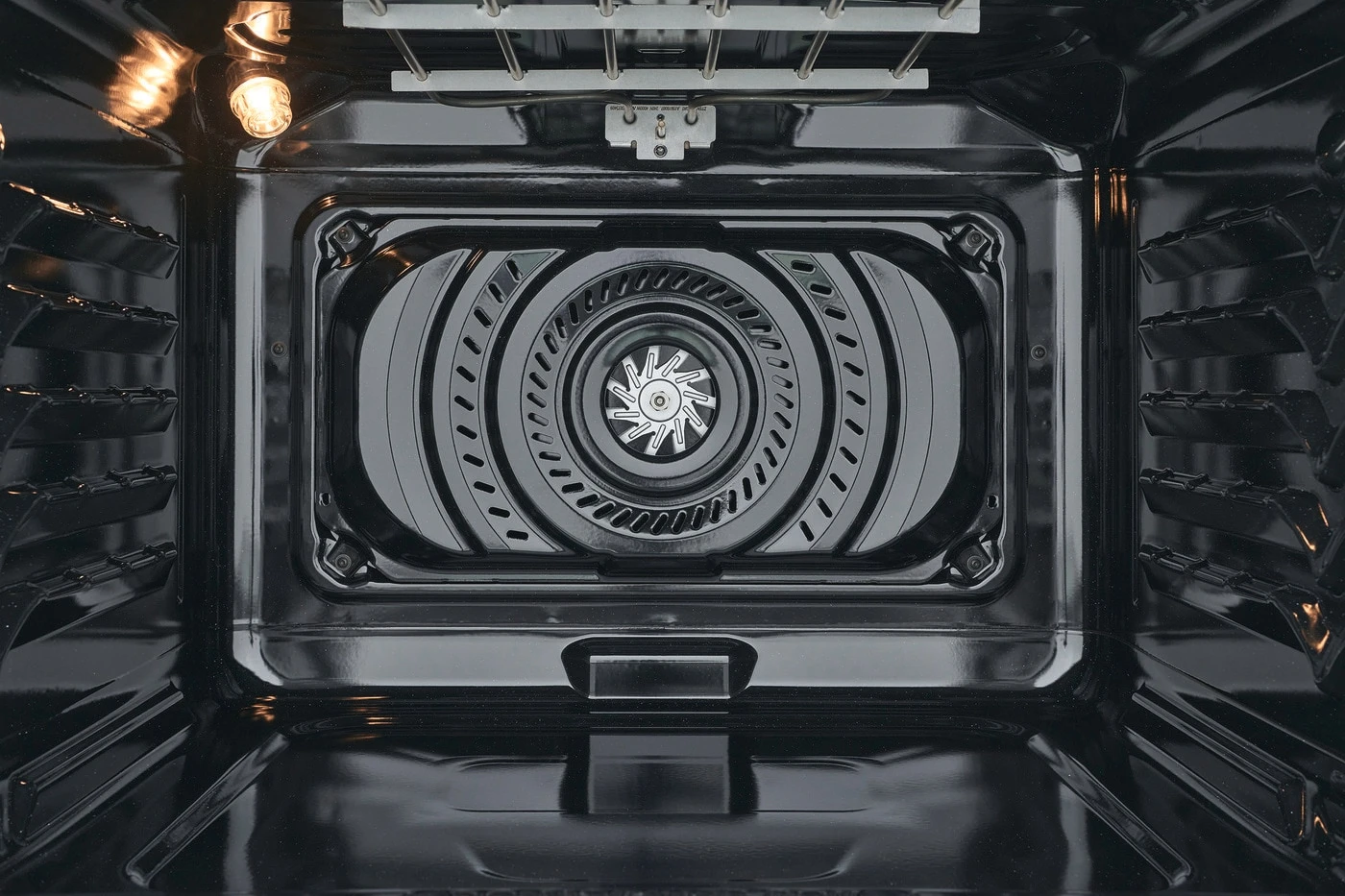

Fan Convection
Get faster, more even multi-rack baking results with Fan Convection - in both ovens!
Self Clean Oven
Self clean options available in convenient 2, 3 and 4-hour cycles.

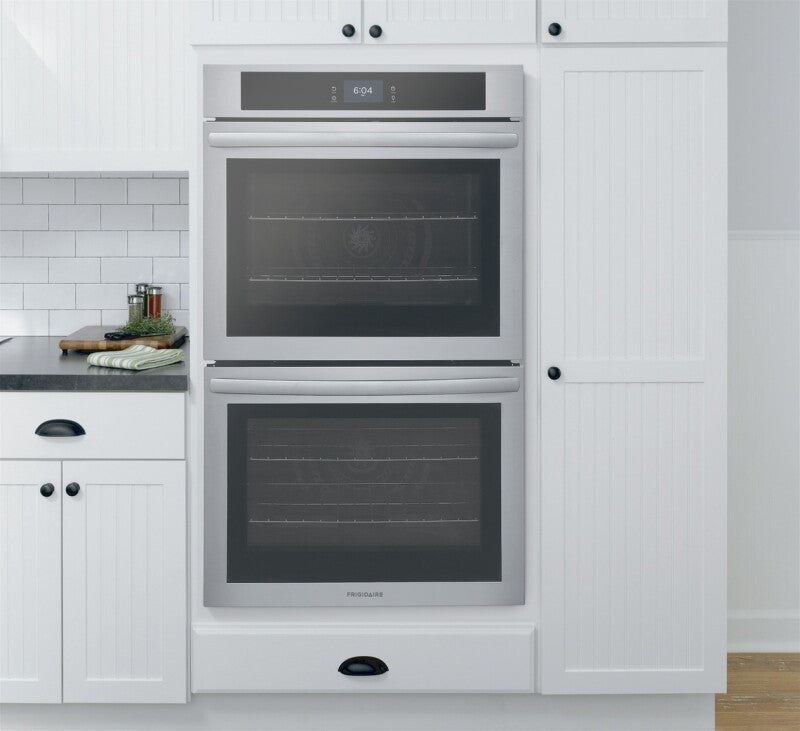

Frigidaire(R) Fit Promise
We promise that your new 30" Frigidaire(R) double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.

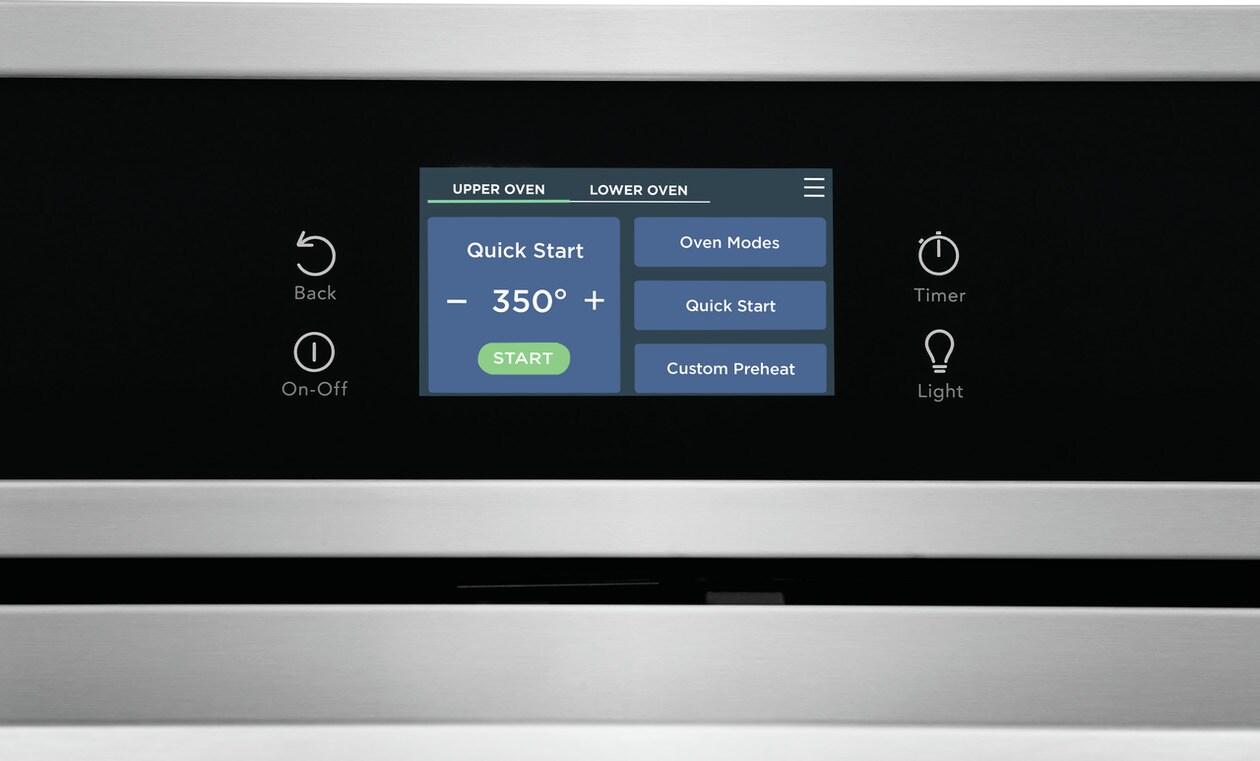

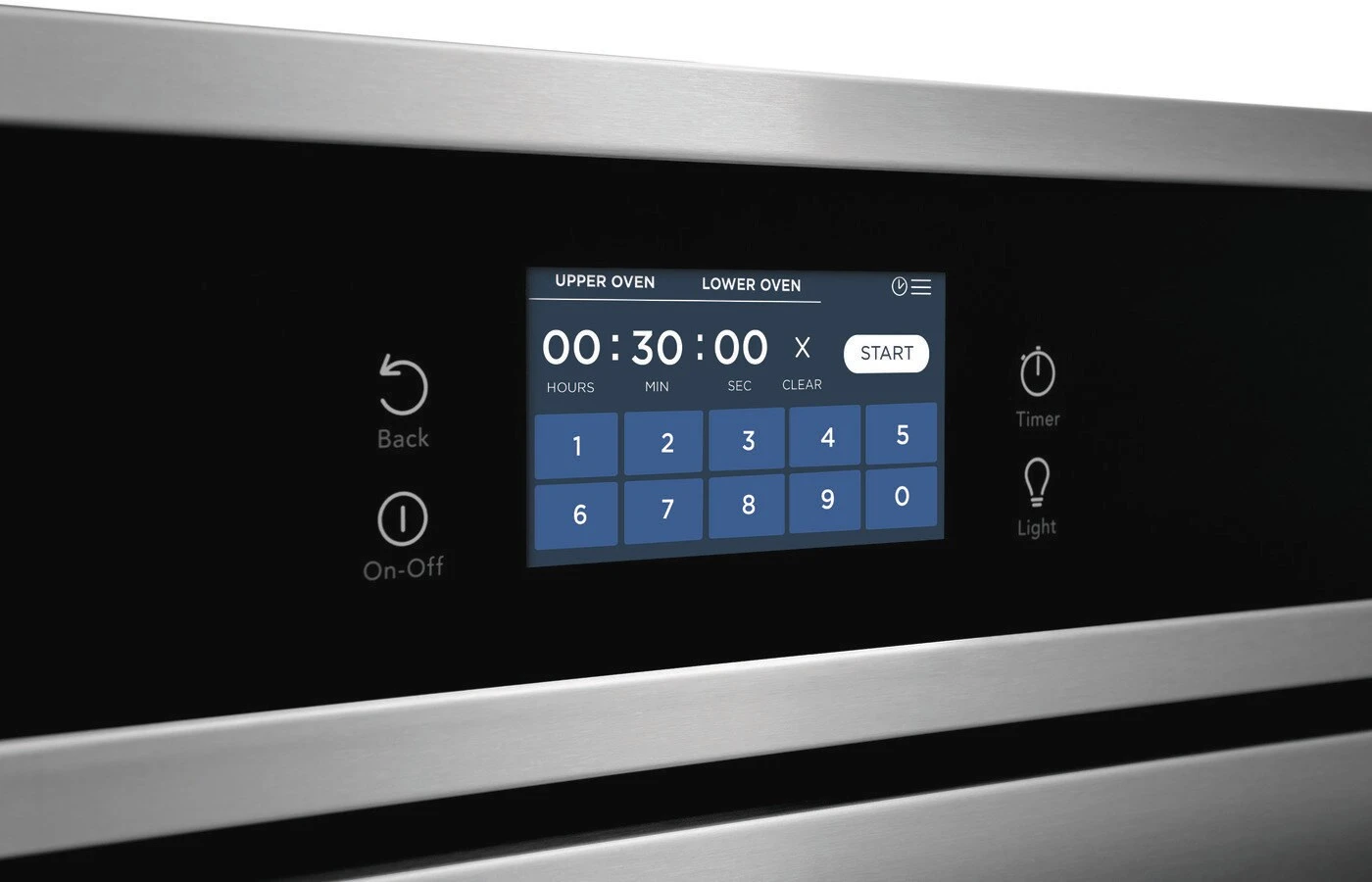

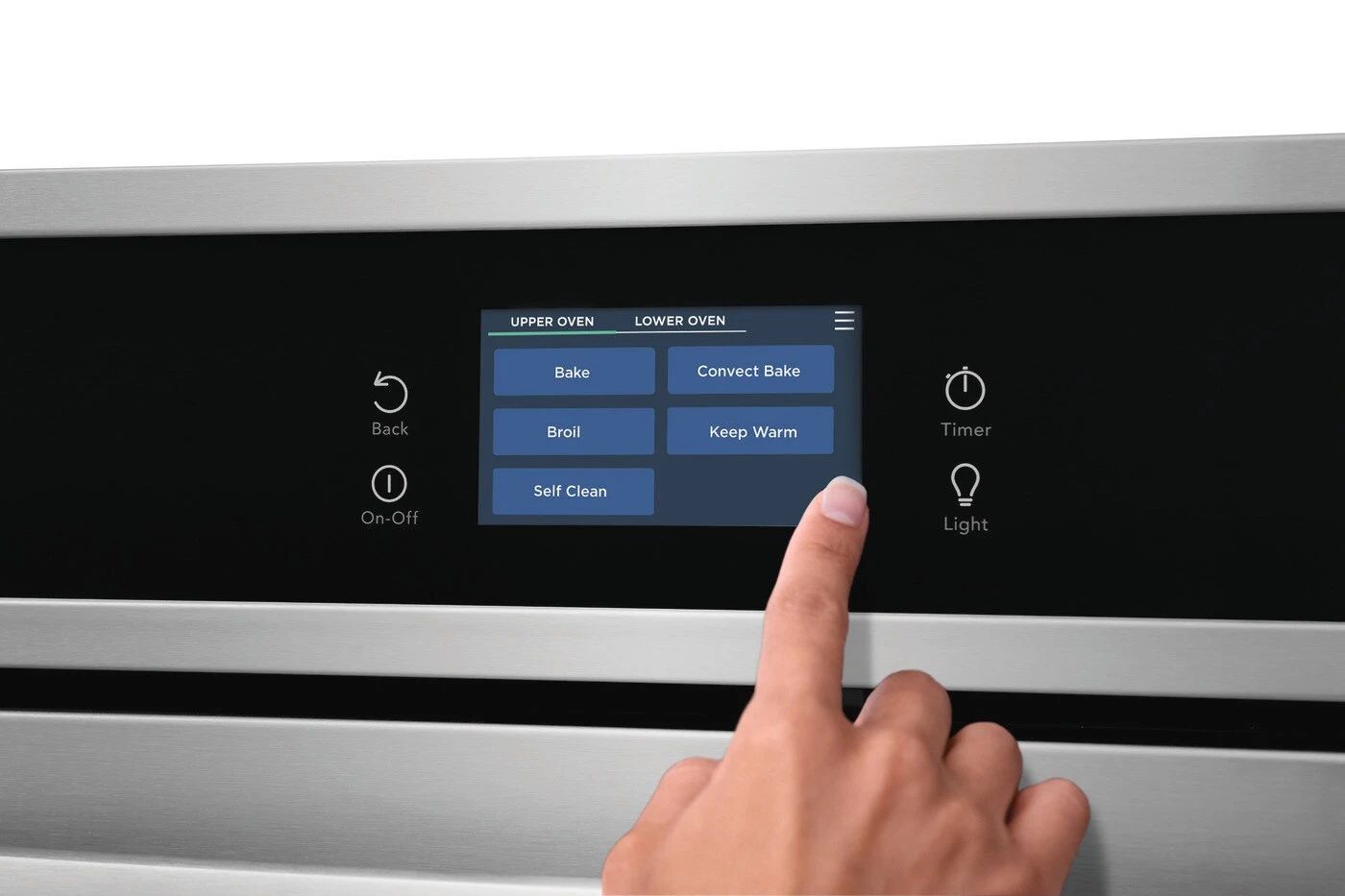

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

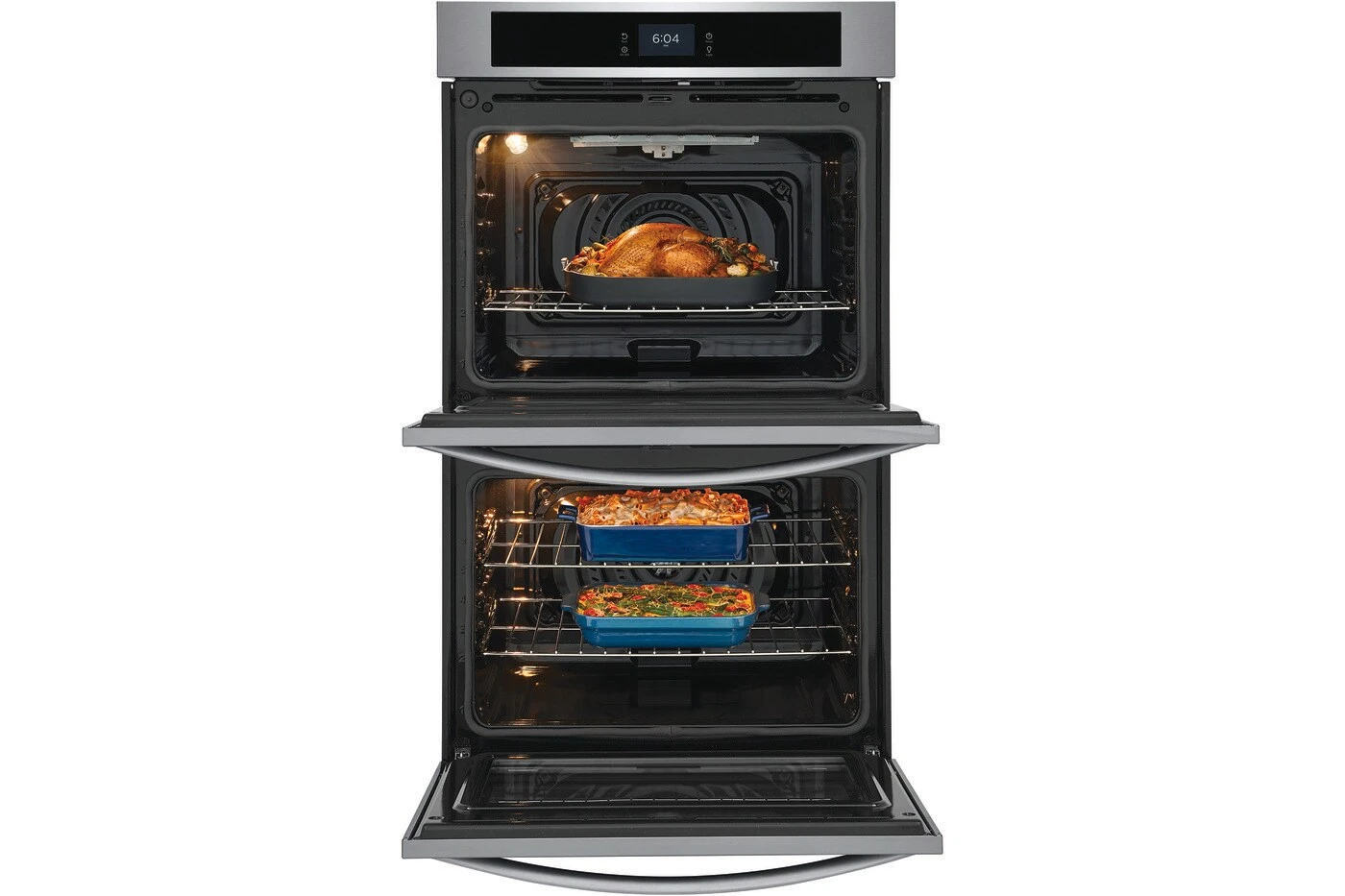

Extra Large Oven Capacity
Cook more at once with a combined 10.6 cu.ft. of oven capacity.
Custom Broil Temp Setting
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
