Product Details for Frigidaire FCRG3062AB
Technical Details
Cooktop
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Total Number of Burners | 5 |
Cooktop performance
| Right Front Element Burner | 18000 |
| Right Rear Element Burner | 5000 |
| Left Front Element Burner | 14000 |
| Left Rear Element Burner | 10000 |
| Center Rear Element Burner | 10000 |

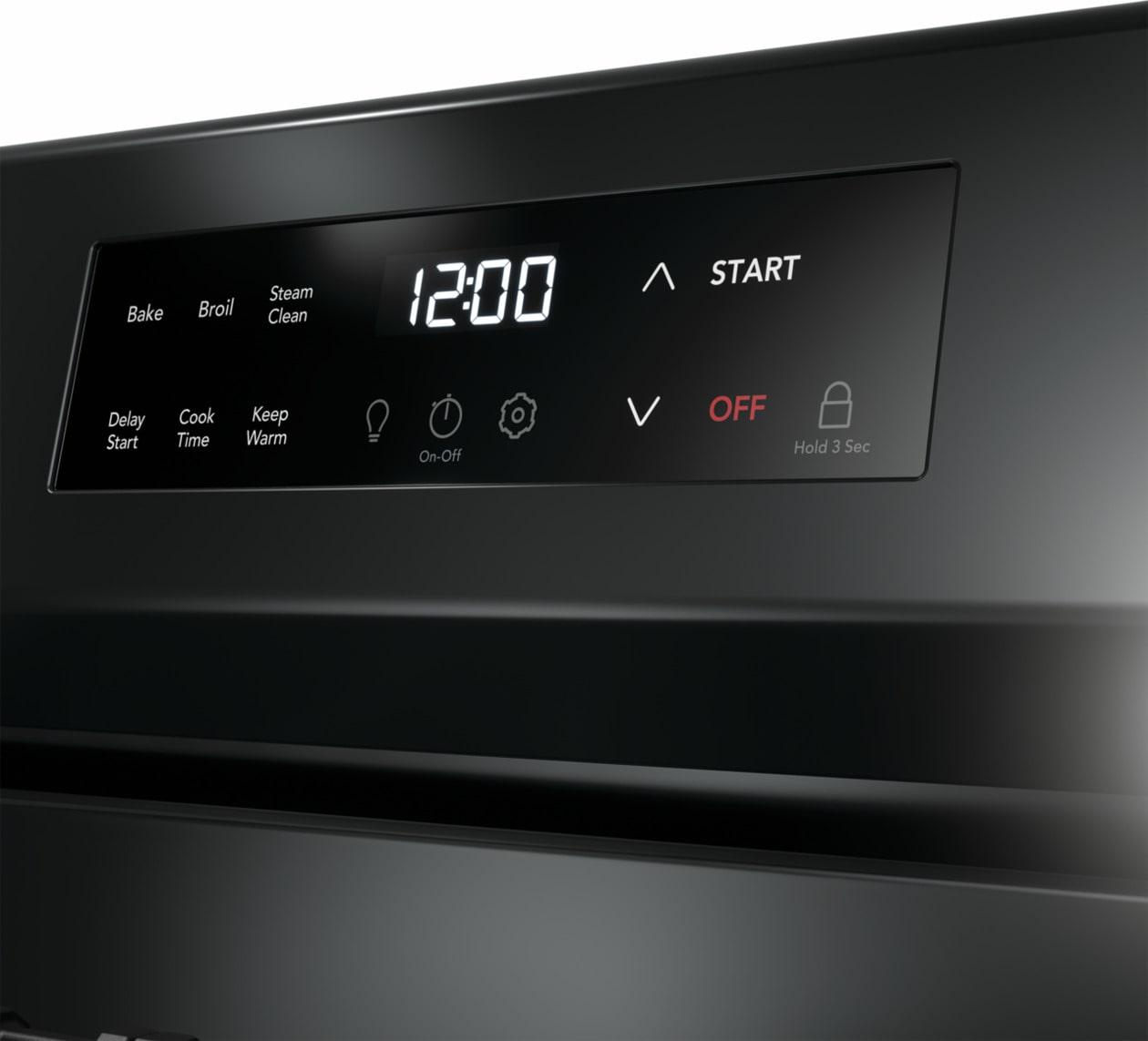

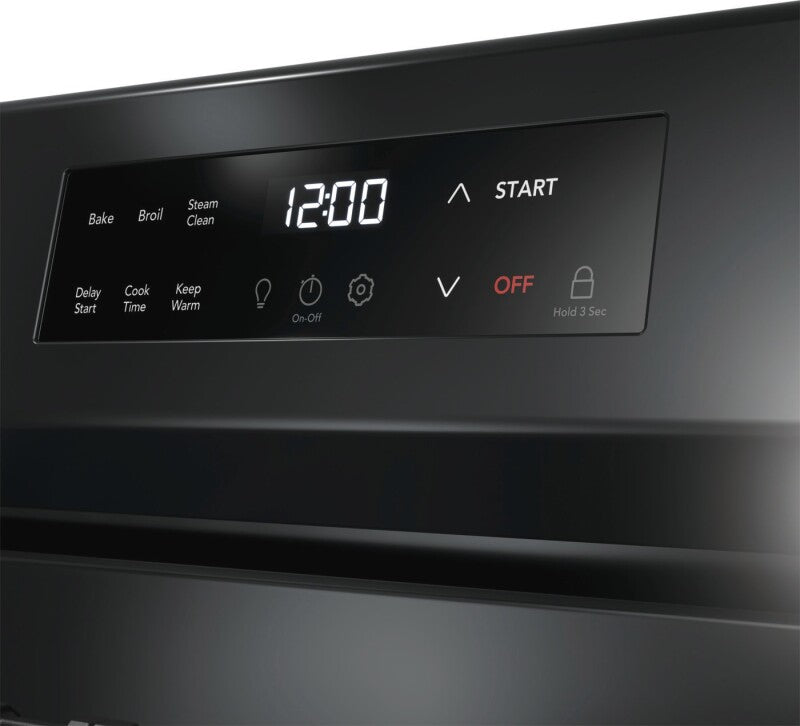

Cooking controls
| Bake | Yes |
| Broil | Yes |
| Clock | Yes |
| Cook Time | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Lockout | Yes |
| Off | Yes |
| Oven Light | Yes |
| Set Clock | Yes |
| Start | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Up / Down Arrow | Yes |
| User Preferences | Yes |
Cooking controls function
| Adjustable Volume Feedback | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |

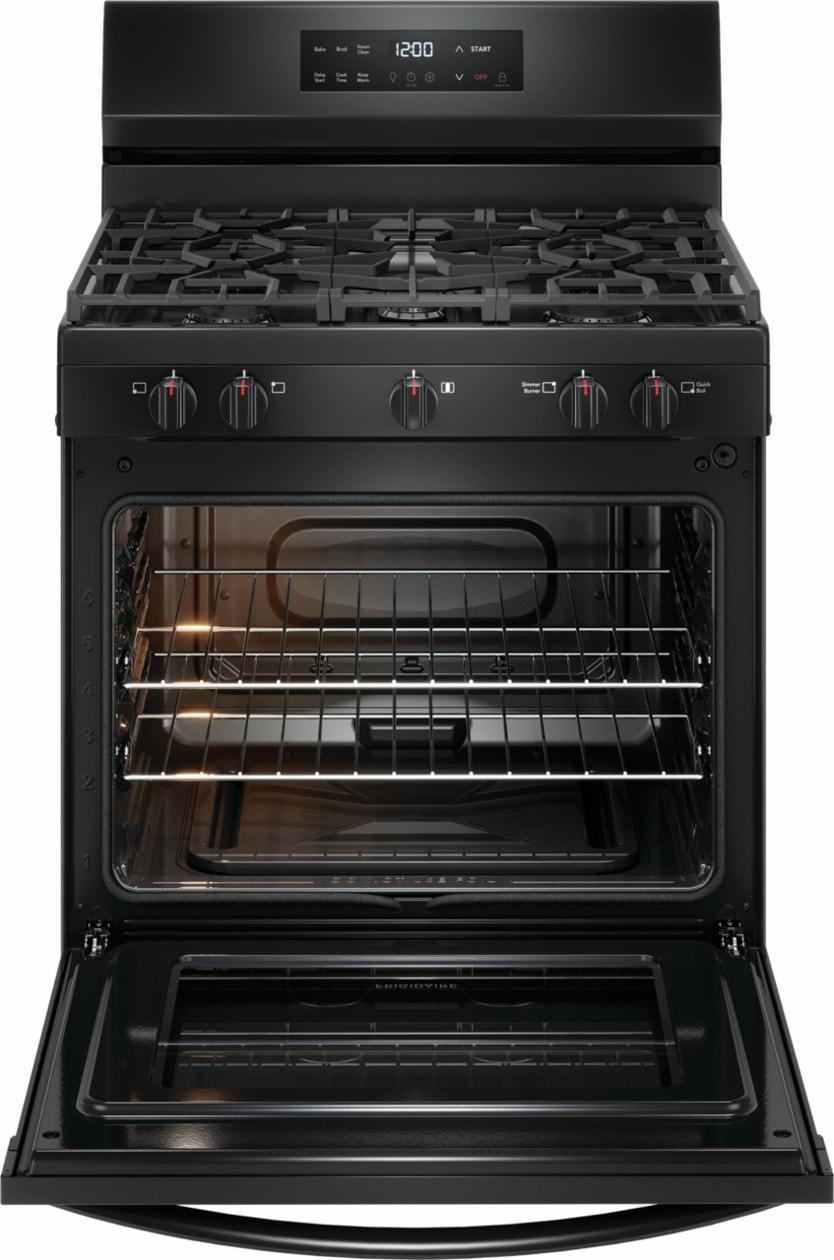

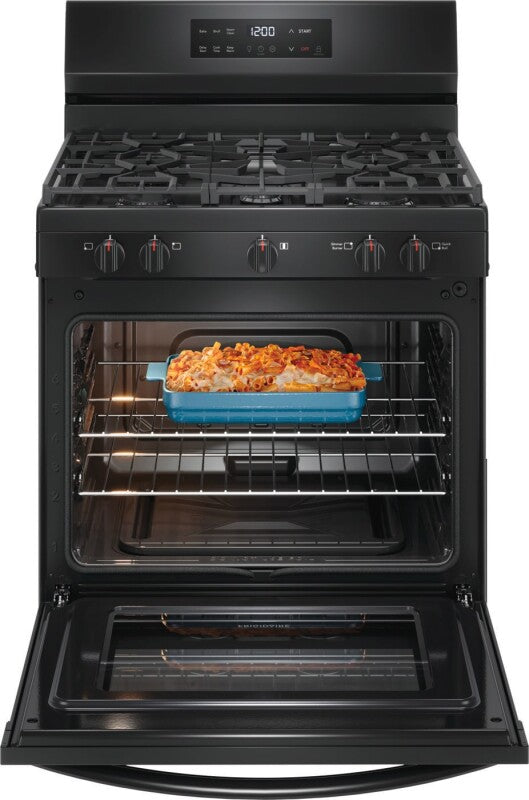

Oven
| Bake Element | 17000 |
| Broil Element | 1400 |
| Broil Element Pass | 6 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
Drawer
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |
Display
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | Membrane |

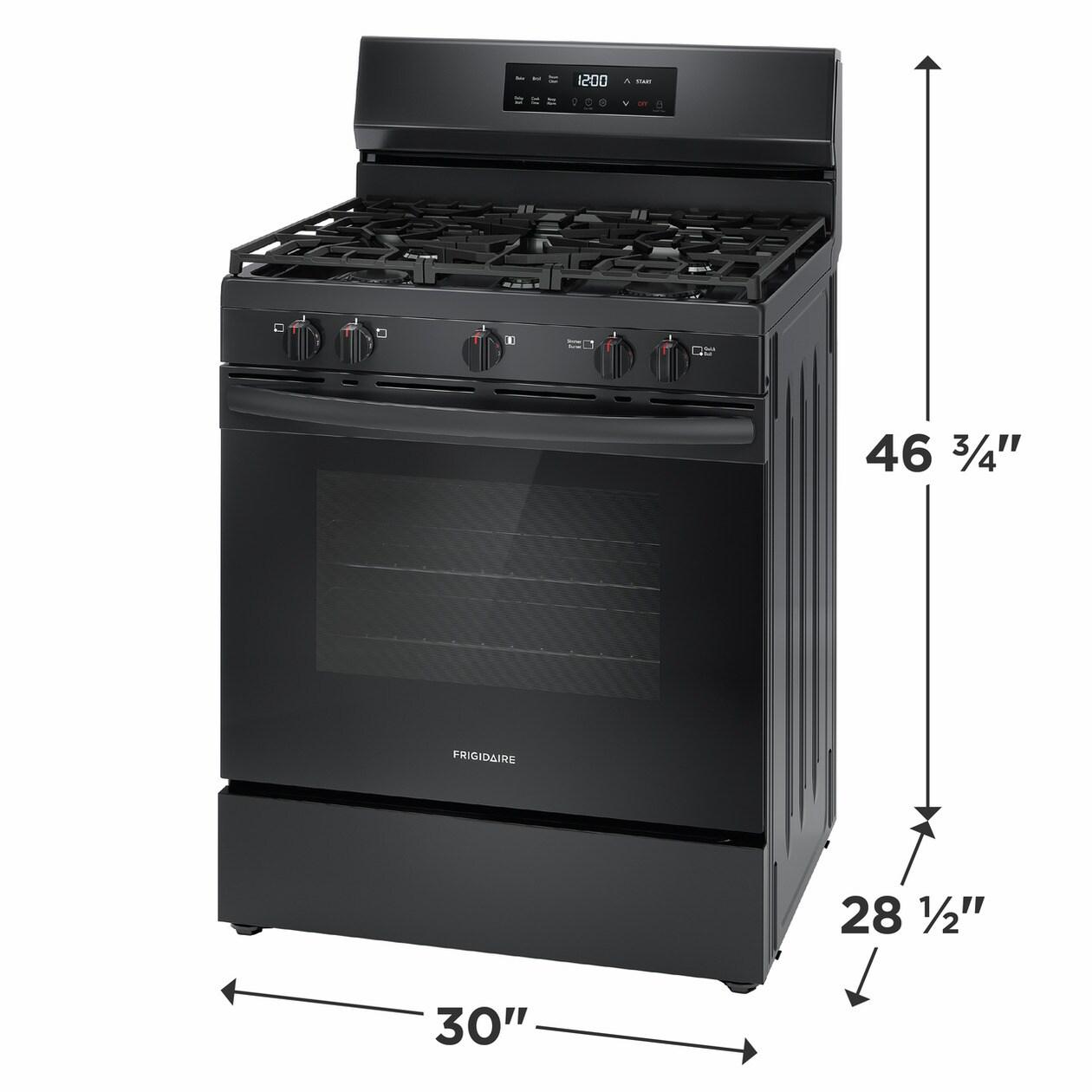

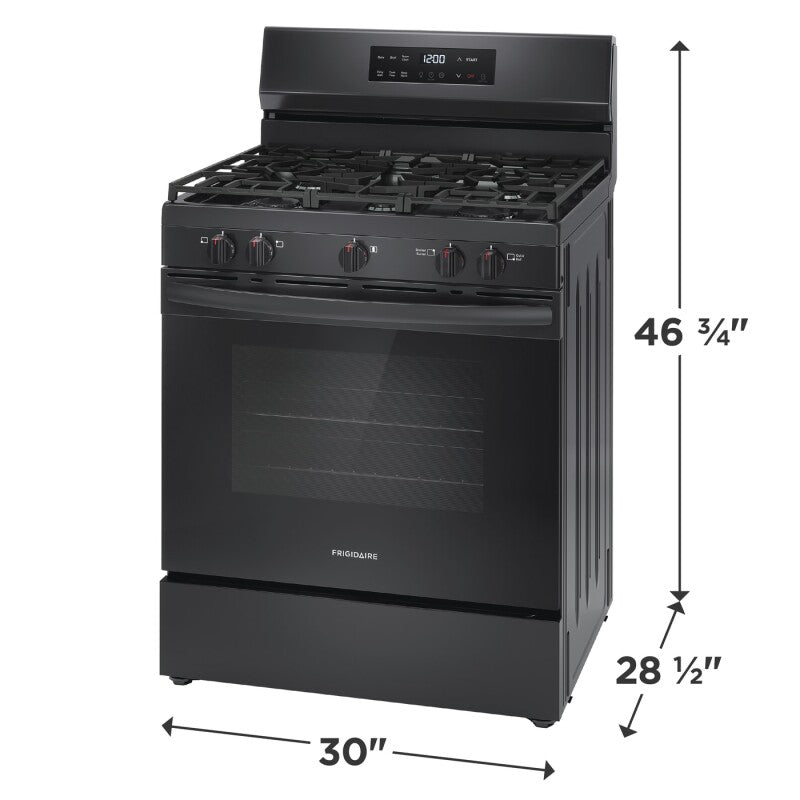

Dimensions and volume
| Minimum Height | 46.75 |
| Maximum Height | 47.75 |
| Width | 30.0 |
| Depth | 26.0 |
| Depth With Door 90(degree) Open | 47.31 |
| Depth With Handle | 28.5 |
| Oven Interior Height | 17.63 |
| Oven Interior Width | 25.19 |
| Oven Interior Depth | 19.88 |
| Oven Capacity | 5.1 |
Electrical specifications
| Minimum Circuit Required | 12 |
| Voltage Rating | 120 |
Installation
| Adjustable Leveling Legs | Yes |
| Power Cord Included | Yes |
General specifications
| Product Weight | 155 |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 |
| Warranty - Parts | 1 |
Features
- Quick Boil
Experience faster boil times and more powerful cooking with the 18,000 BTU burner. - Five Burner Cooktop
Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner. - Even Baking Technology
Designed to deliver even baking results, every time. - 30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast. - Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates. - Extra Wide Store-More(TM) Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more! - 5.1 Cu. Ft. Oven Capacity
- Dishwasher Safe Burner Caps
- Hidden Bake Element
- Proudly Assembled in the USA
Description

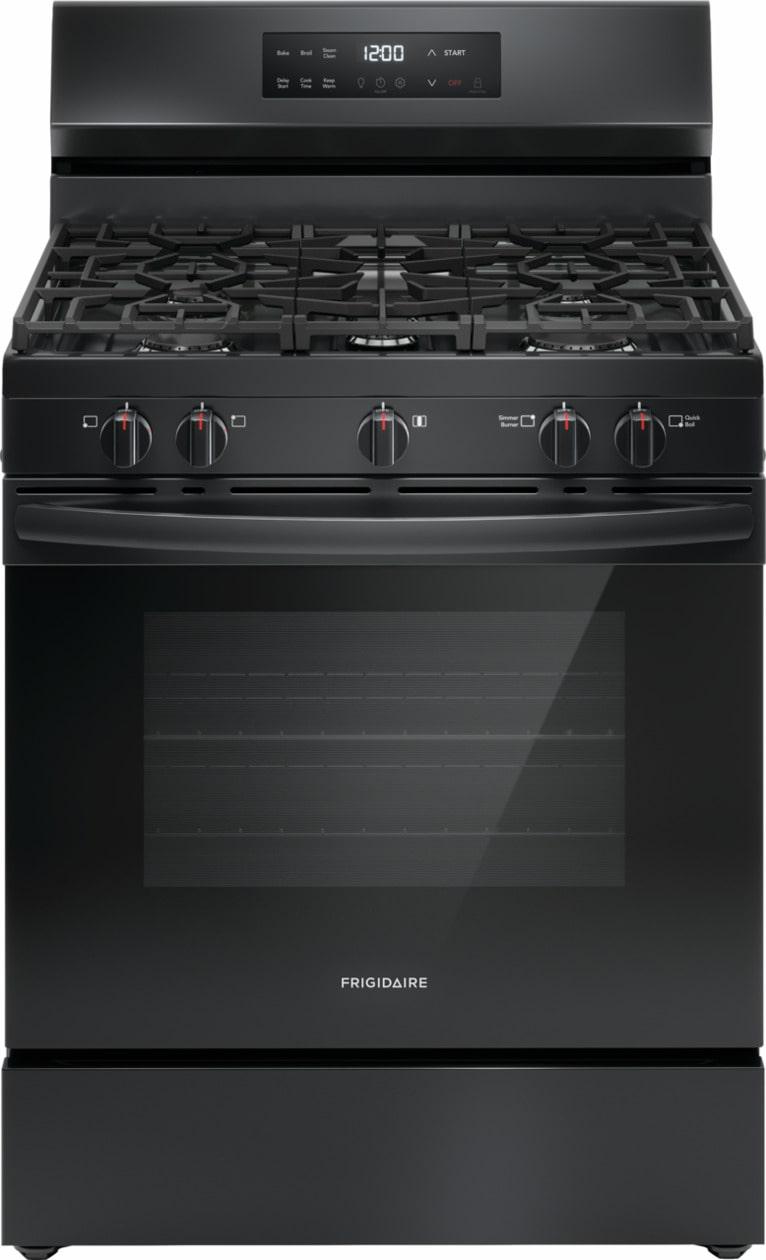

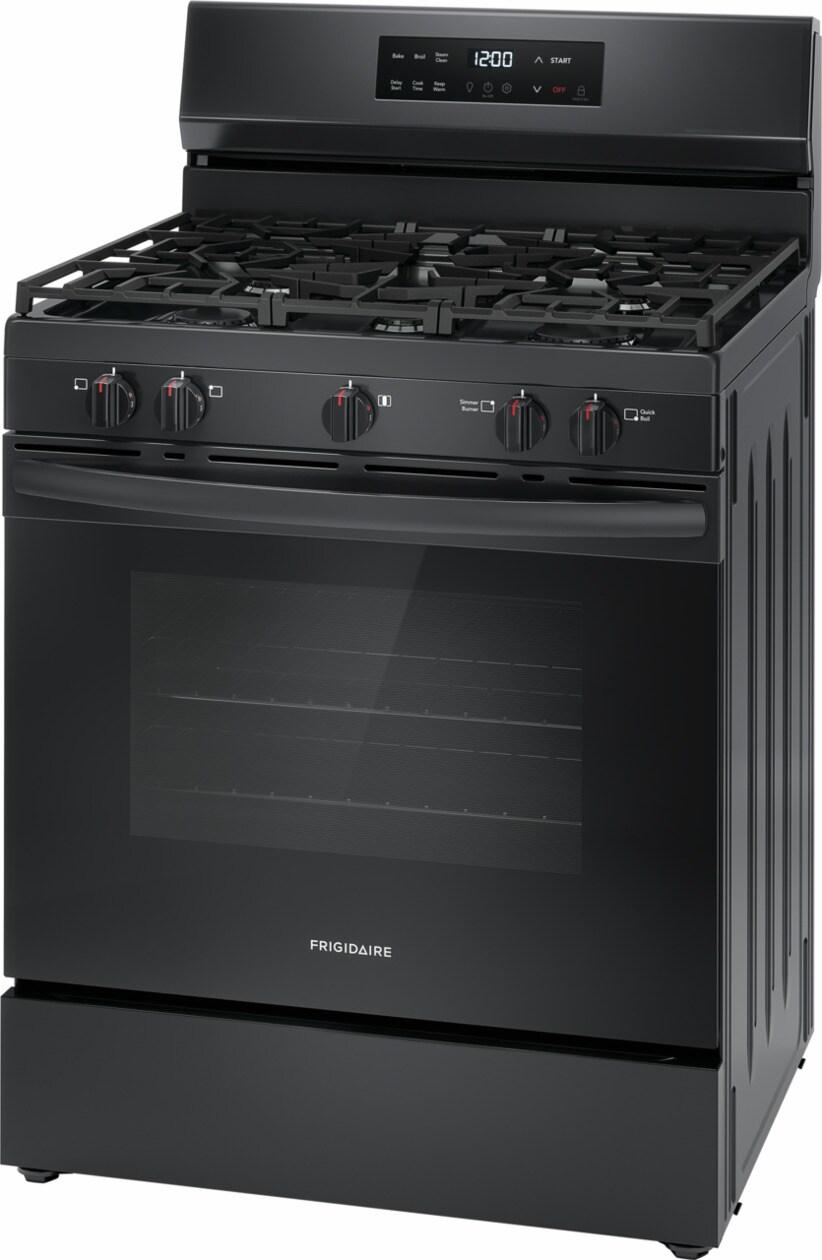

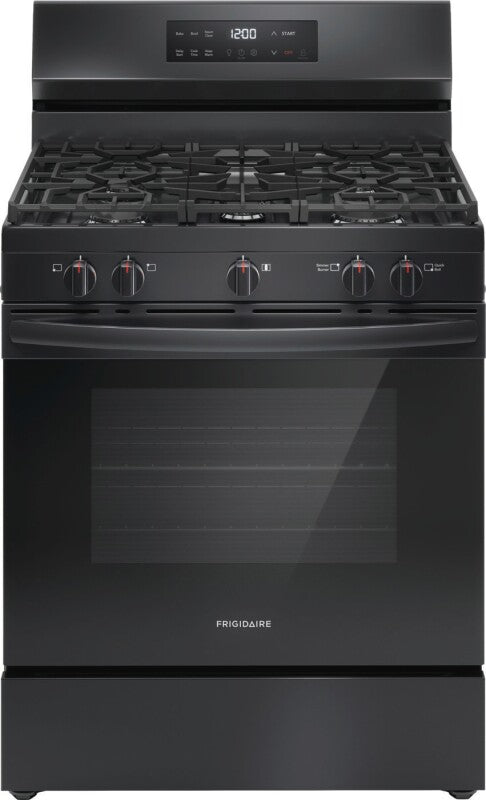

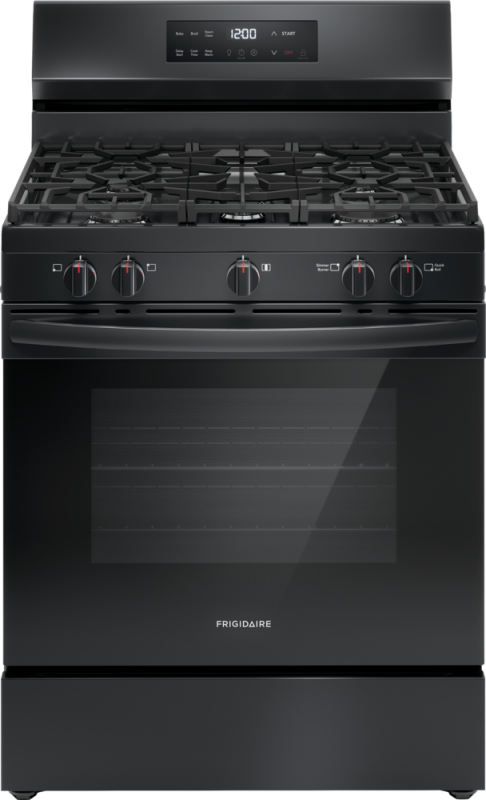

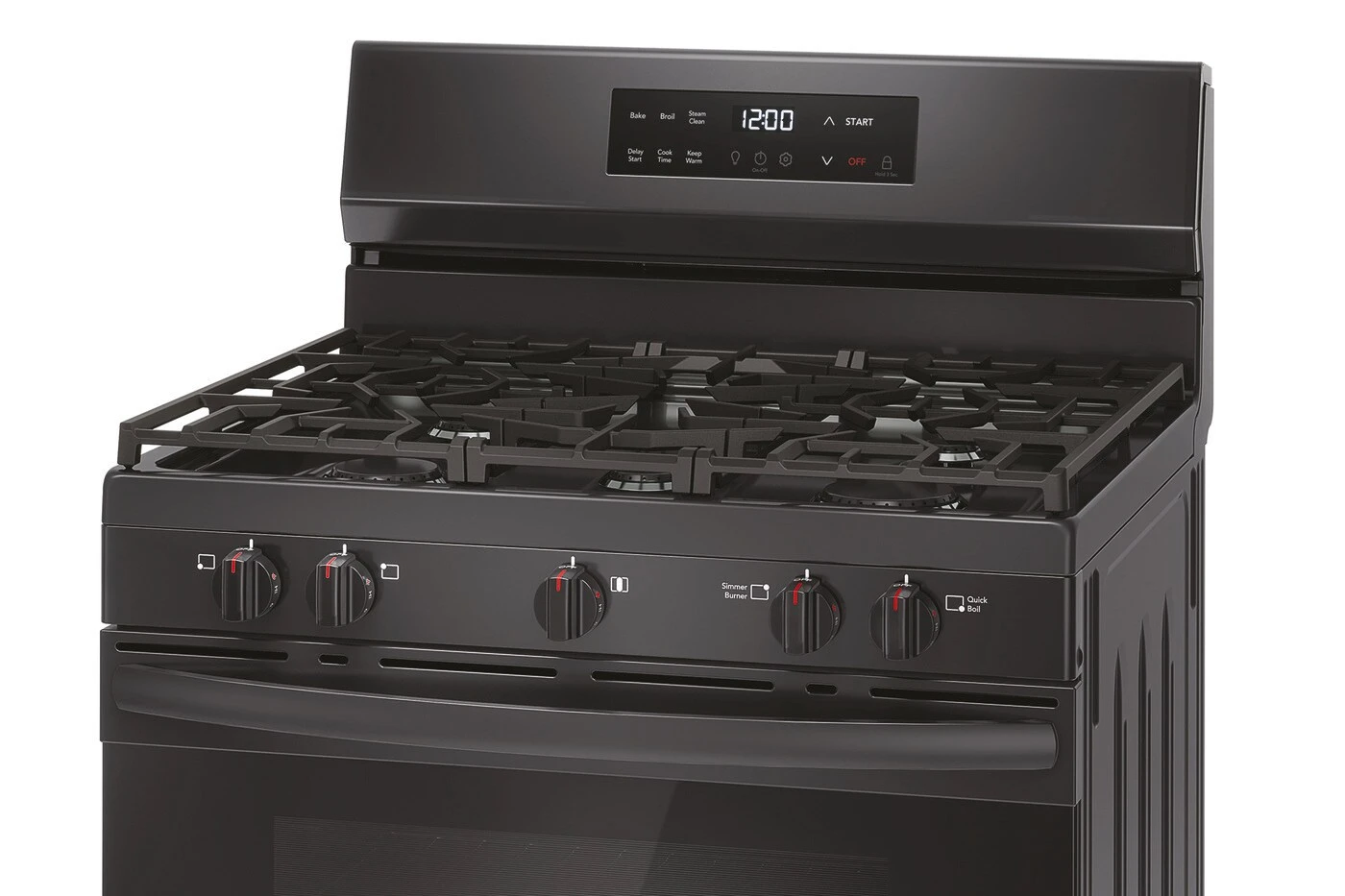

The Frigidaire 30" Gas Range with Quick Boil allows you to experience faster boil times with the 18,000 BTU Quick Boil burner and our flexible five burner cooktop was designed to fit all your cooking needs. For easier cleanup, our Steam Clean cycle provides a quick 30-minute oven cleaning that's chemical-free, odor-free and fast.
Manuals & Guides
- FCRG3062AB - Product Specifications Sheet (en)
- FCRG3062AB - Feuille de sp(eback)cifications du produit (fr)
- FCRG3062AB - Complete Owner's Guide (en)
- FCRG3062AB - Guide d'utilisation complet (fr)
- FCRG3062AB - Installation Instructions (en, fr, es)
- FCRG3062AB - Quick Start Guide (en)
- FCRG3062AB - Guide de d(eback)marrage rapide (fr)
Key Features

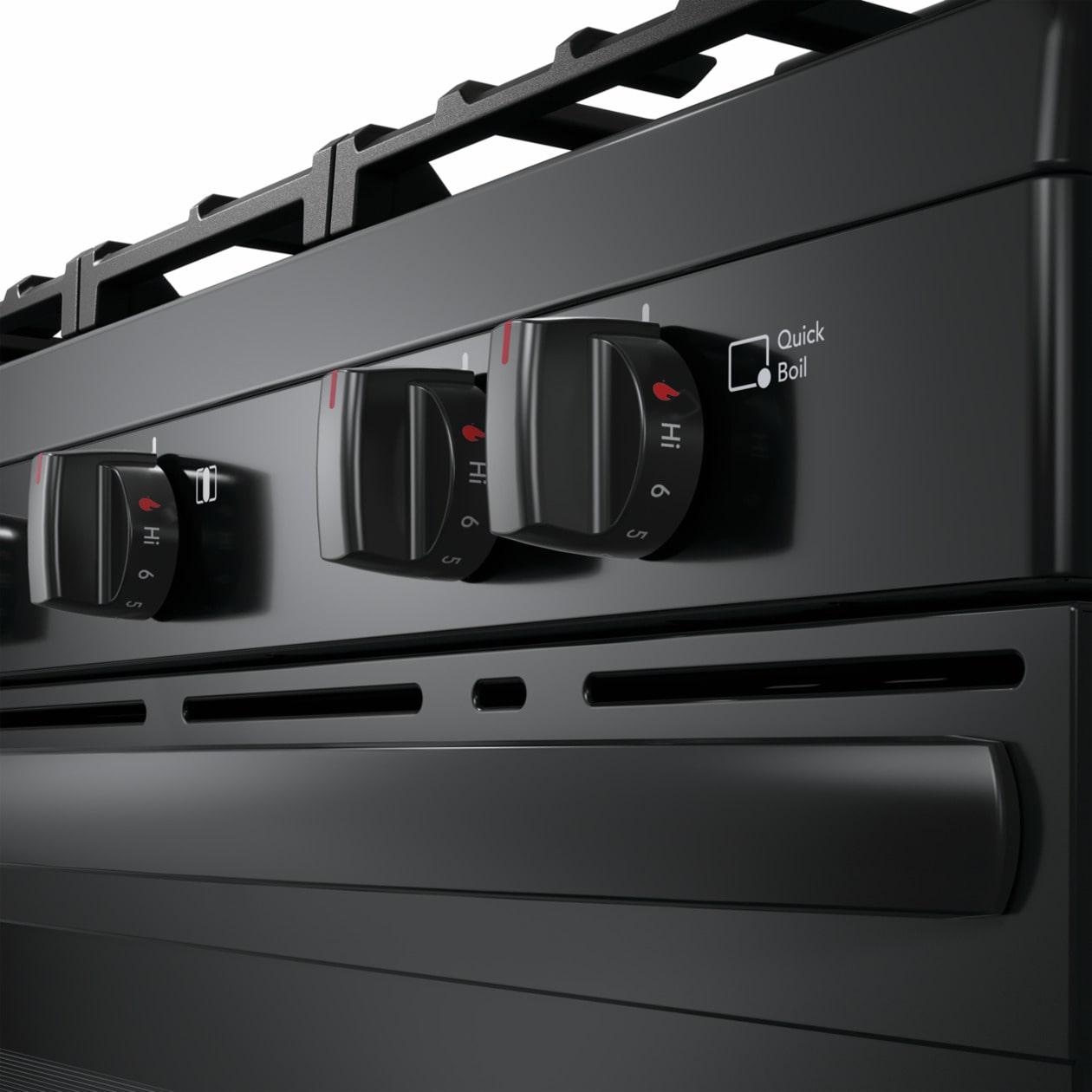

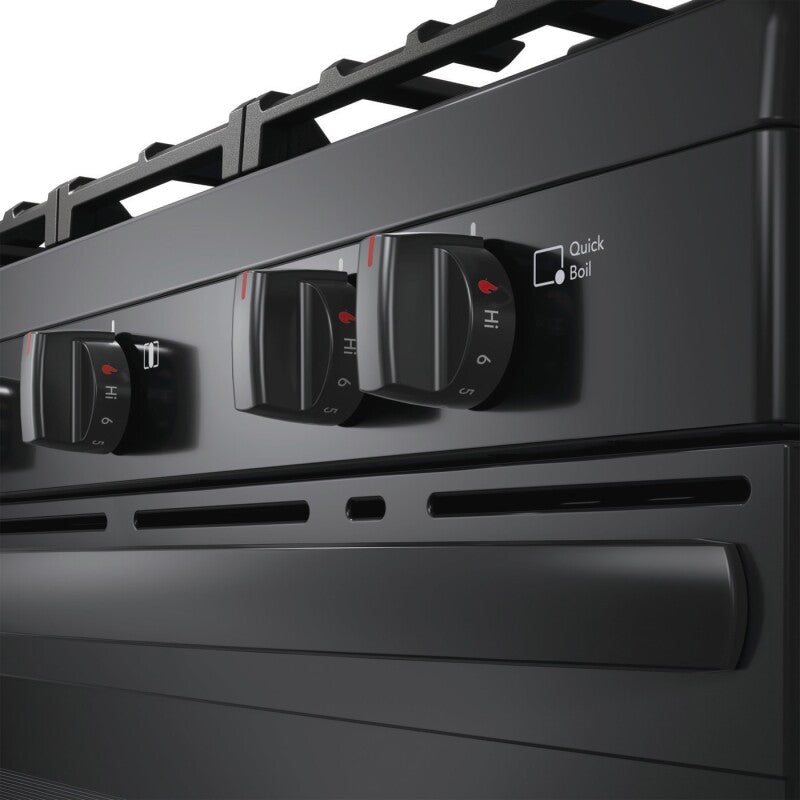

Quick Boil
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

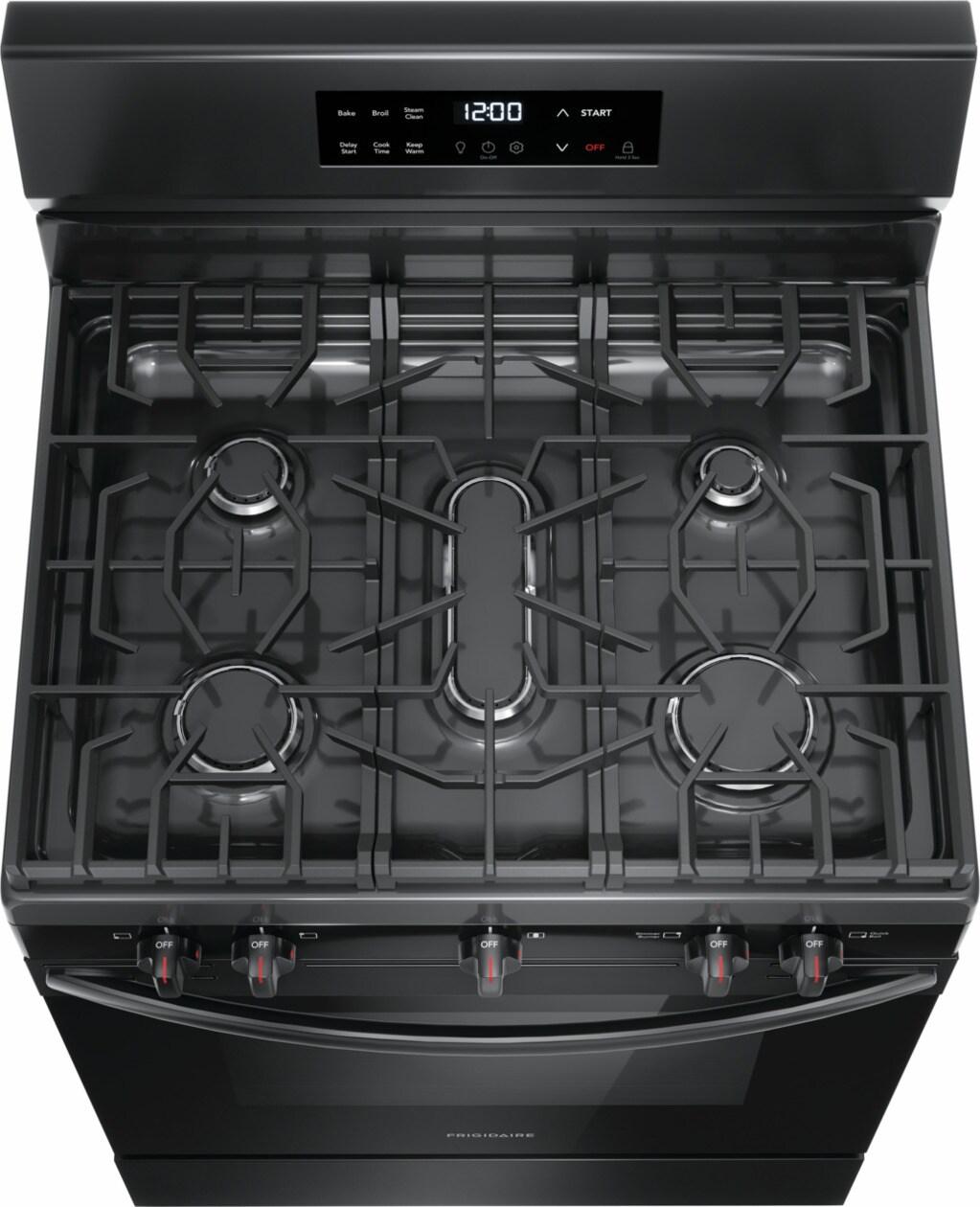

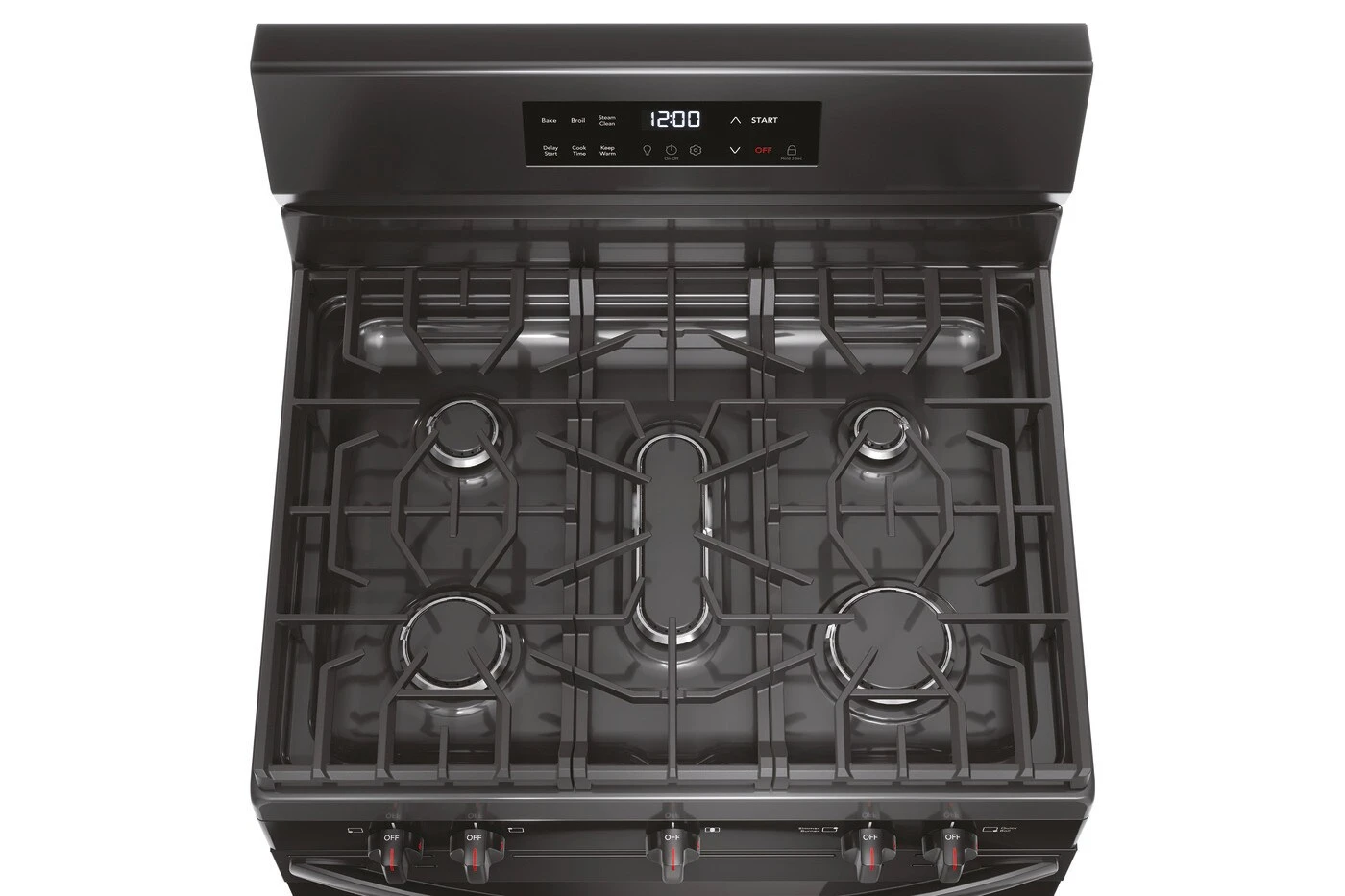

Five Burner Cooktop
Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.

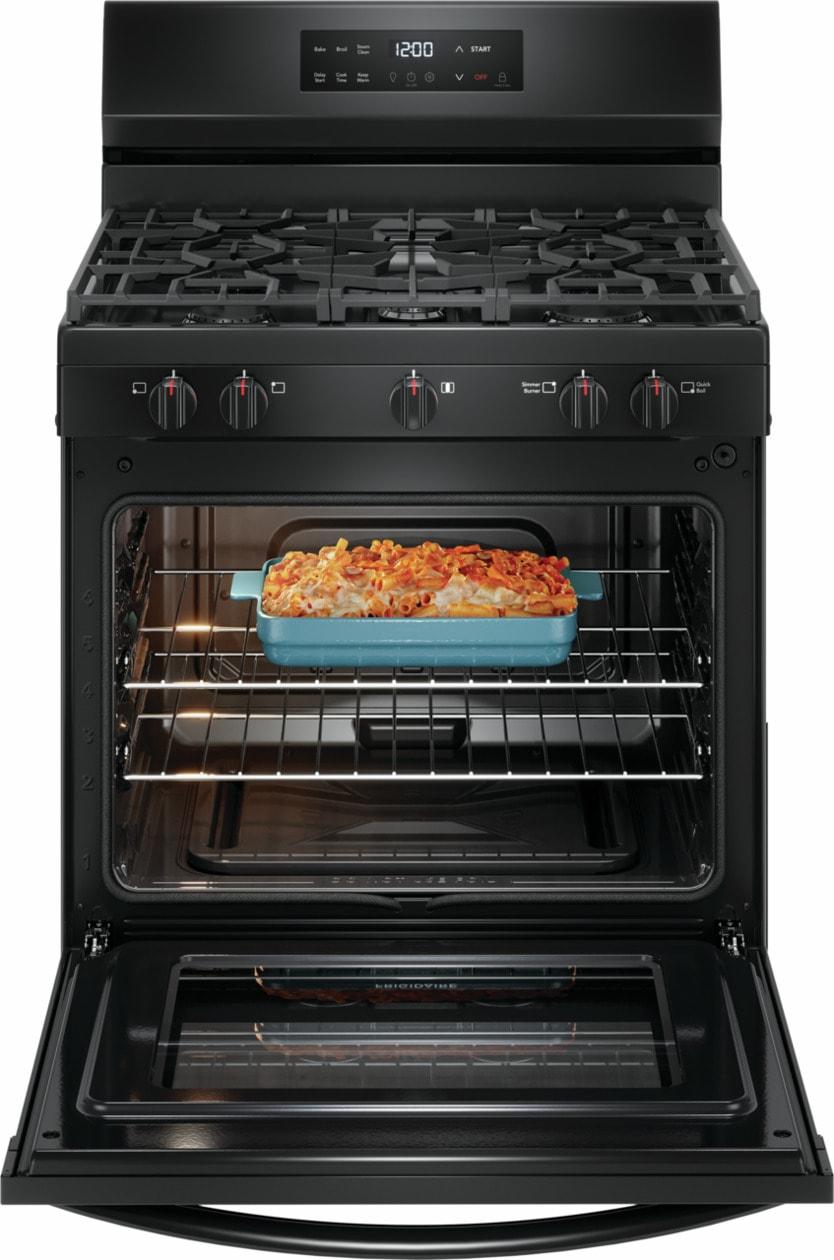

Even Baking Technology
Designed to deliver even baking results, every time.

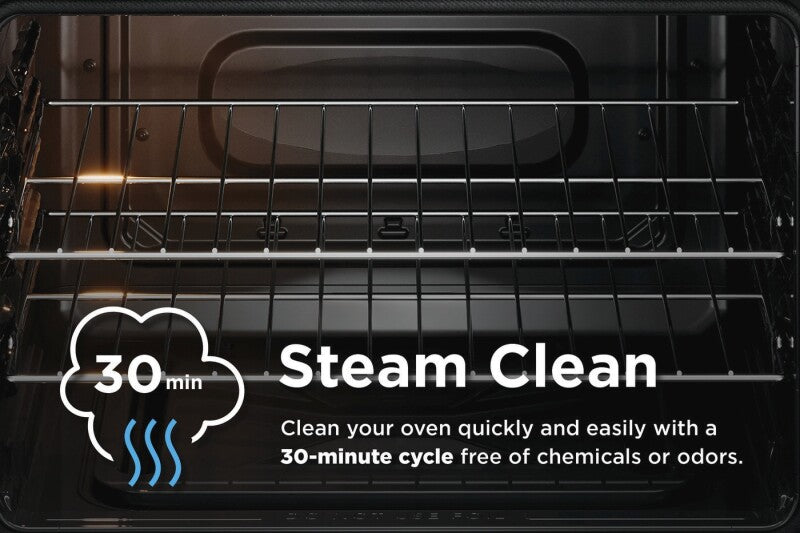

30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

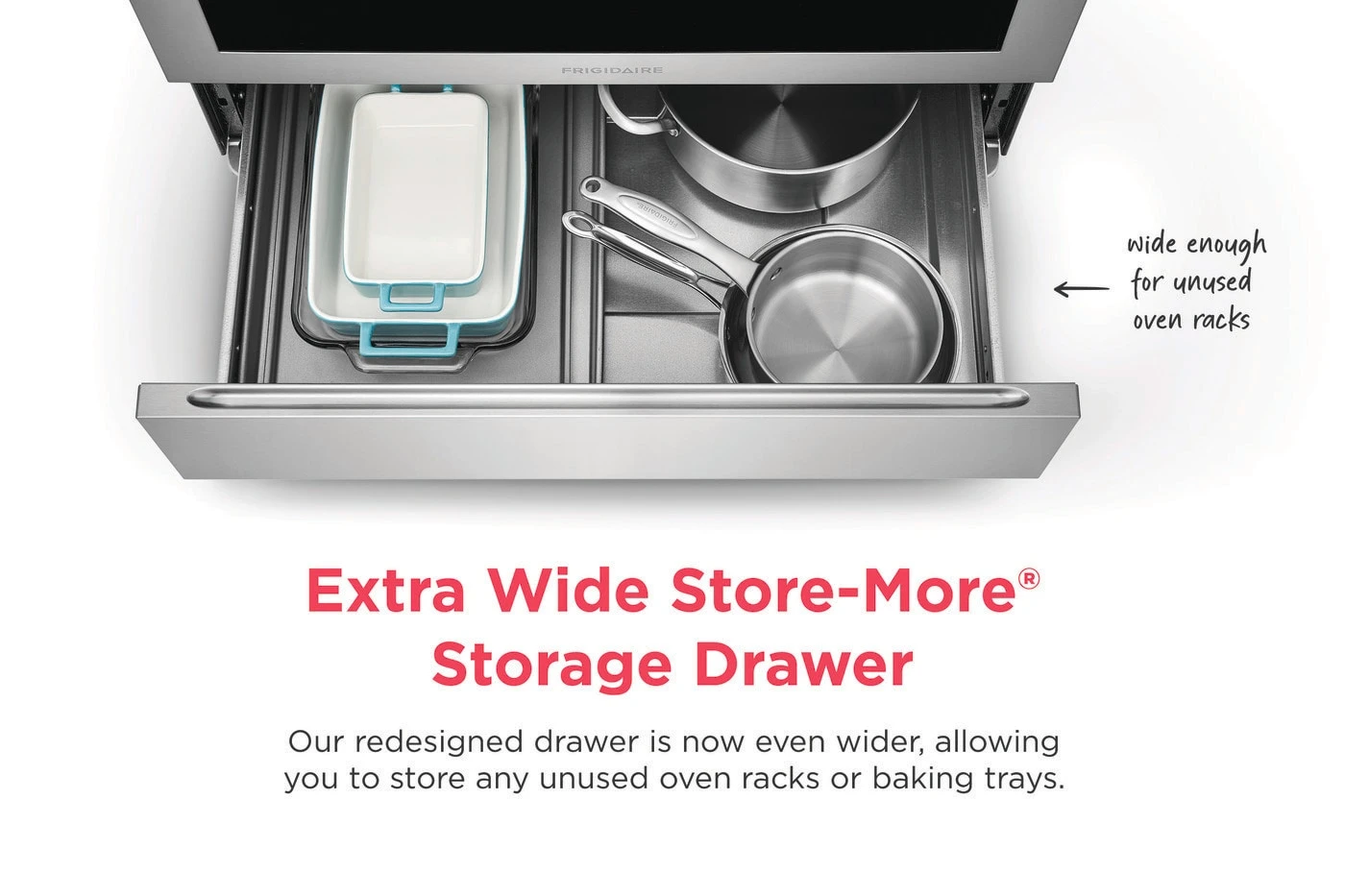

Extra Wide Store-More(TM) Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
