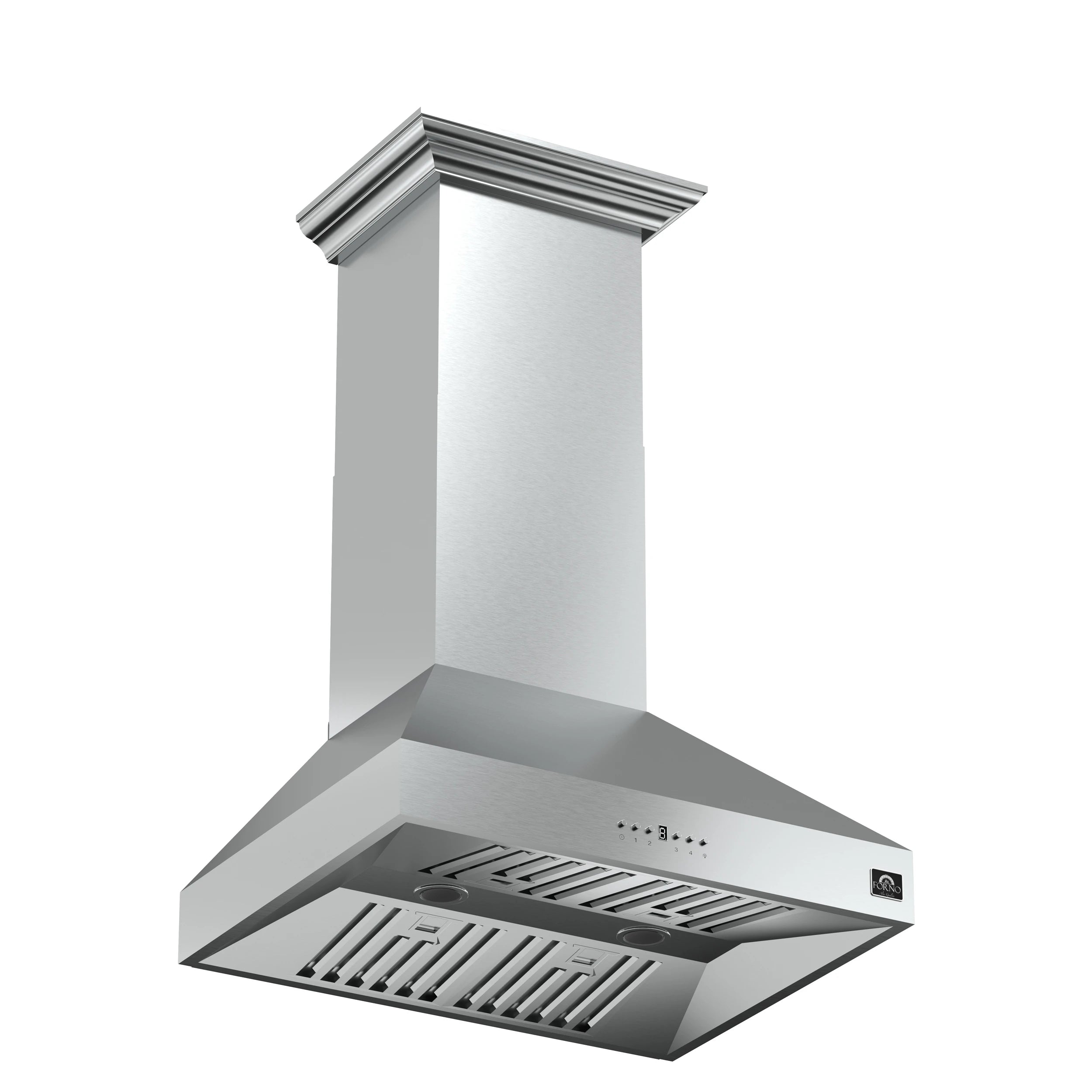

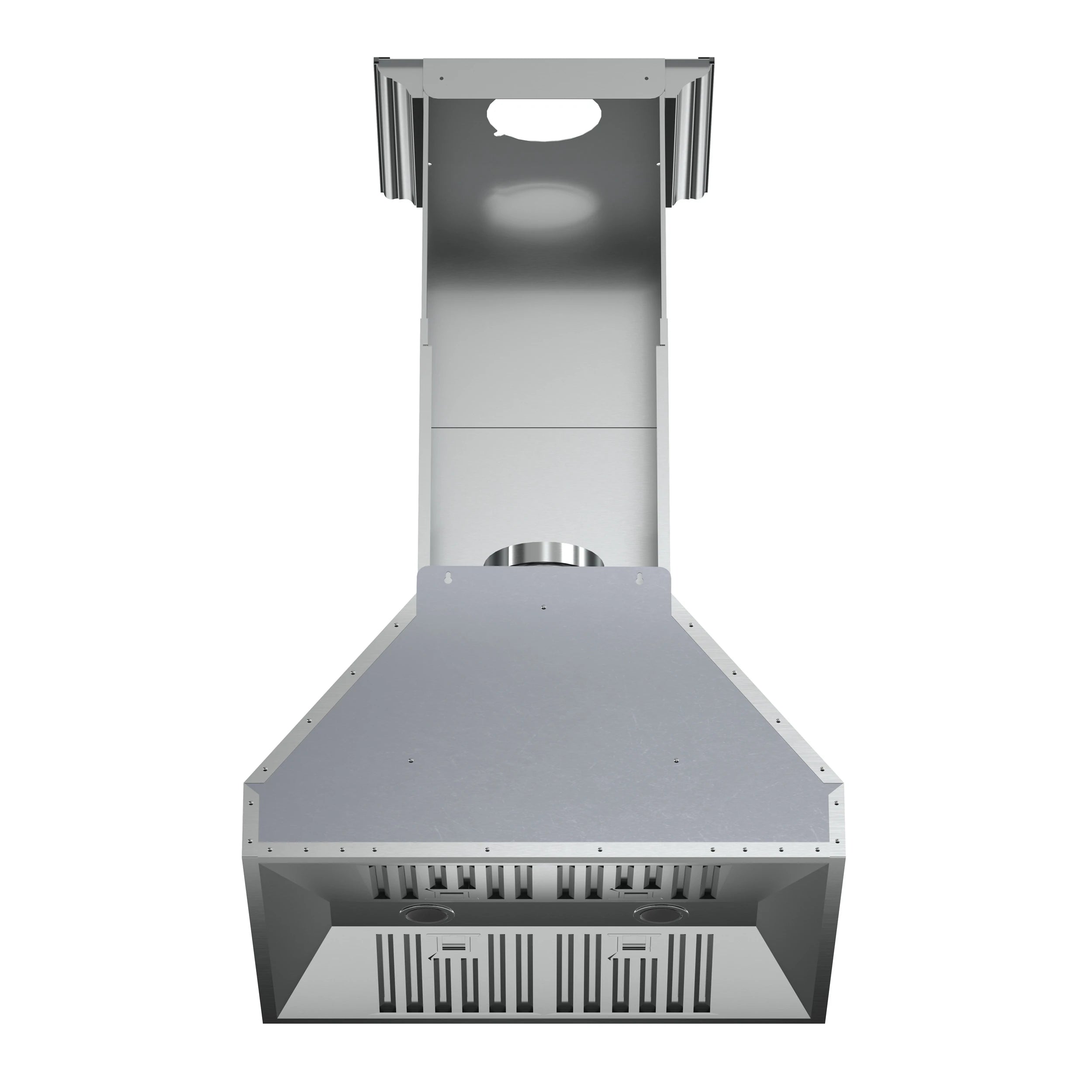

Forno FRHWM509430 Orvieto 30-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel
Sale price
$899.00
Regular price
$998.97
Save
$99.97
/ 10% OFF
More on the way
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Accessories
Sale price
$899.00
Regular price
$1,098.97
Save
$199.97
/ 18% OFF
Sale price
$999.00
Regular price
$1,198.97
Save
$199.97
/ 16% OFF
Sale price
$1,149.00
Regular price
$1,398.97
Save
$249.97
/ 17% OFF
Sale price
$1,449.00
Regular price
$1,672.97
Save
$223.97
/ 13% OFF
Sale price
$940.38
Regular price
$1,098.97
Save
$158.59
/ 14% OFF
Related Products
Sale price
$1,449.00
Regular price
$1,672.97
Save
$223.97
/ 13% OFF
Sale price
$1,149.00
Regular price
$1,398.97
Save
$249.97
/ 17% OFF
Sale price
$1,899.00
Regular price
$2,698.97
Save
$799.97
/ 29% OFF
Sale price
$799.00
Regular price
$998.97
Save
$199.97
/ 20% OFF
Sale price
$899.00
Regular price
$1,098.97
Save
$199.97
/ 18% OFF
Sale price
$499.00
Regular price
$898.97
Save
$399.97
/ 44% OFF
Sale price
$999.00
Regular price
$1,198.97
Save
$199.97
/ 16% OFF
Sale price
$1,449.00
Regular price
$1,998.97
Save
$549.97
/ 27% OFF
Sale price
$999.00
Regular price
$1,198.97
Save
$199.97
/ 16% OFF
Sale price
$1,249.00
Regular price
$1,498.97
Save
$249.97
/ 16% OFF
Sale price
$1,599.00
Regular price
$1,798.97
Save
$199.97
/ 11% OFF
Sale price
$1,199.00
Regular price
$1,398.97
Save
$199.97
/ 14% OFF
Sale price
$1,299.00
Regular price
$1,798.97
Save
$499.97
/ 27% OFF
Sale price
$940.38
Regular price
$1,098.97
Save
$158.59
/ 14% OFF
Sale price
$1,699.00
Regular price
$2,398.97
Save
$699.97
/ 29% OFF
Sale price
$699.00
Regular price
$817.97
Save
$118.97
/ 14% OFF
Sale price
$899.00
Regular price
$998.97
Save
$99.97
/ 10% OFF
Product Details for FORNO FRHWM509430
Technical Details
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Source | Calculation |
Dimensions & weight
| Overall Height - Top to Bottom (in) | 45.16 |
| Overall Width - Side to Side (in) | 29.5 |
| Overall Depth - Front to Back (in) | 23.6 |
| Overall Product Weight (lbs) | 44 |
Header
| Model Number | FRHWM5094-30 |
| Product UPC | 686136950794 |
| Collection Name | Alta Qualita |
| Product Name (Short & Sweet) < 36 Characters | Orvieto 30'' Wall Mount Range Hood |
| Product Description (more detailed) <= 100 characters | Forno Orvieto 30" Wall Mount Range Hood In Stainless-Steel, 600 CFM with Baffle Filters & Chimney |
| Brand Name | FORNO |
| Market | CANADA,USA |
| Serie's Name | Orvieto |
| Product Description (more detailed) > 100 characters | Forno Orvieto 30" Wall Mount Range Hood In Stainless-Steel, 600 CFM, Baffle Filters, Chimney with Crown Molding |
Technical information
| Color/Finish | Stainless Steel |
| Control Location | Front |
| Primary Material | Stainless Steel |
| Display Type | LED |
| Decibel Speed 3 (dB) | 58.00 |
| Decibel Speed 1 (dB) | 44.00 |
| Bulb Type | LED GU10 |
| Heating Lamp Maximum Wattage | 0 |
| Motor(s) Power (Watts) | 60 |
| Backsplash Dimensions W x H (inch) | Does not Apply |
| Minimum Height from Cooktop | 30.00 |
| Minimum Decibel (dB) | 44.00 |
| Sones Speed 4 | 13.00 |
| Sones Speed 2 | 5.00 |
| CFM speed 4 | 600 |
| CFM speed 2 | 375 |
| Minimum CFM | 275 |
| Range Hood Shape | Pyramid |
| Number of Lights | 2 |
| Minimum Sones | 3.00 |
| RPM Speed 4 | 1510 |
| RPM Speed 2 | 1050 |
| Air Flow Speed 4 | 1019 |
| Air Flow Speed 2 | 637 |
| Remote Control | No |
| Power off Function | Yes |
| Reversible Blower | No |
| Chimney Short Kit | Yes |
| Rangehood Chimney | Yes |
| Backsplash Included | No |
| Number of Heating Lamp | 0 |
| Speed Control Type | Push Button Control |

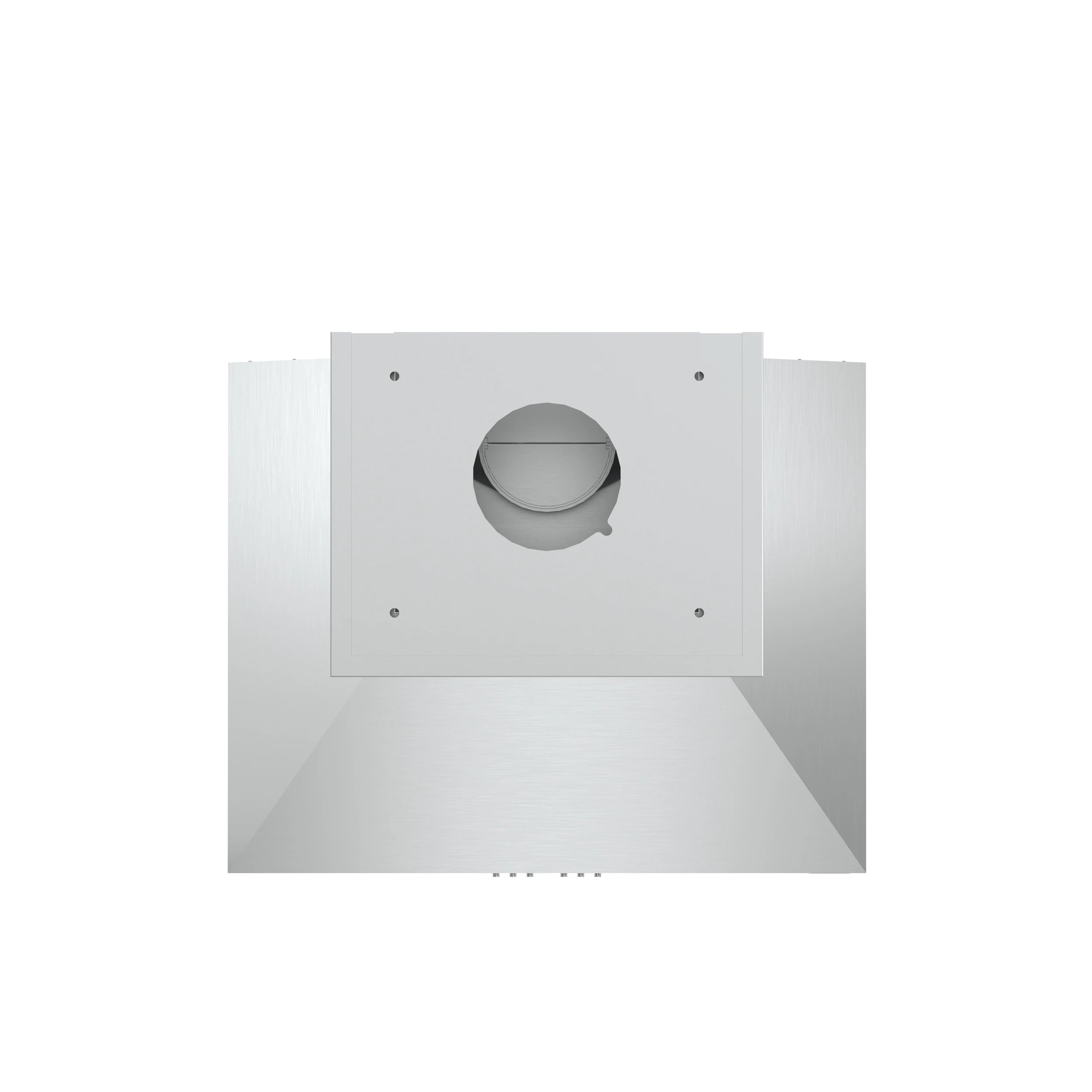

| Duct Type | 6-in Round |
| Damper | Yes |
| Filter Material | Stainless Steel |
| Air Discharge Direction | Vertically Upward |
| Charcoal Filters | No |
| Exhaust Vent Location | Roof / Wall |
| Blower Material | Metal |
| Fingerprint-Resistant | No |
| Dishwasher Safe Filters | Yes |
| Clock | No |
| CEE Tier Qualified | Not Rated |
| Power Cord Location | Top |
| Decibel Speed 4 (dB) | 65.00 |
| Decibel Speed 2 (dB) | 51.00 |
| Bulb Wattage | 1.50 |
| Heating Lamp Wattage | 0.00 |
| Duct length (inch) | 59.00 |
| Warming Shelves Dimensions W x D x H (inch) | Does not Apply |
| Minimum Product Height (IN) | 29.14 |
| Maximum Decibel (dB) | 65.00 |
| Sones Speed 3 | 8.00 |
| Sones Speed 1 | 3.00 |
| Maximum Sones | 13.00 |
| RPM Speed 3 | 1350 |
| RPM Speed 1 | 880 |
| Air Flow Speed 3 | 807 |
| Air Flow Speed 1 | 467 |
| CFM speed 3 | 475 |
| CFM speed 1 | 275 |
| Maximum CFM | 600 |
| Clean Filter Alert | No |
| Number of light settings | 1 |
| Power off Information | 3 Minutes |
| Heat Sensors | No |
| Crown Molding | Yes |
| Chimney Extension Kit | Yes |
| Hardware Finish | Stainless Steel |
| Warming selve included | No |
| Heating Lamp Included | No |
| Speed Control | 4 |
| Damper Type | 6-in Round |
| Removable Grease Filter | Yes |
| Filter Type | Baffle |
| Vent Style | External |
| Vent Type | Ducted |
| Number of exhaust Vent | 1 |
| Number of Blower(s) | 1 |
General product weight & dimensions
| Product Overall Weight (lbs) | 44.00 |
| Product Dimensions W x D x H (W x H x D) | 29.5 in x 45.16 in x 23.6 in |
| Minimum Product Height (IN) | 29.14 |
| Cutout Depth (INCH) | 26.62 |
| Cutout dimensions W x D x H (W x H x D) | 30 in x 26.62 in x 45.16 in |
| Cutout Height (INCH) | 45.16 |
| Cutout Width (INCH) | 30 |
Certification
| Energy Policy Act 1992 Compliant | Does Not Apply |
| ISTA 6A | Yes |
| ADA Compliant | No |
| UPLR Compliant | Yes |
| File/Certification Number | 5014042 |
| Title 20 - California Regulation | Yes |
| Energy Star Certified | No |
| Star-K Certified | No |
| TAA Compliant | No |
| CEE Tier Qualified | Not Rated |
Warranty
| Commercial Warranty | No |
| Warranty on Parts | 2 Years |
| Warranty Script (English) | Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
Shipping
| Shipping Width Box 1 (with pallet) | 40 |
| Shipping Depth Box 1 (with pallet) | 48 |
| Needs to be shipped on a pallet | Yes |
| Shipping Height Box 1 (Height carton + 6-inch of the pallet) | 38.7 |
| Shipping Weight Box 1 (Carton Weight + 35 lbs) | 110 |
Features
- Filters are made of washable Stainless-Steel
- Crown Molding
- All Stainless-Steel
- This wall mount rangehood is equipped with a powerful energy-efficient 600 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.

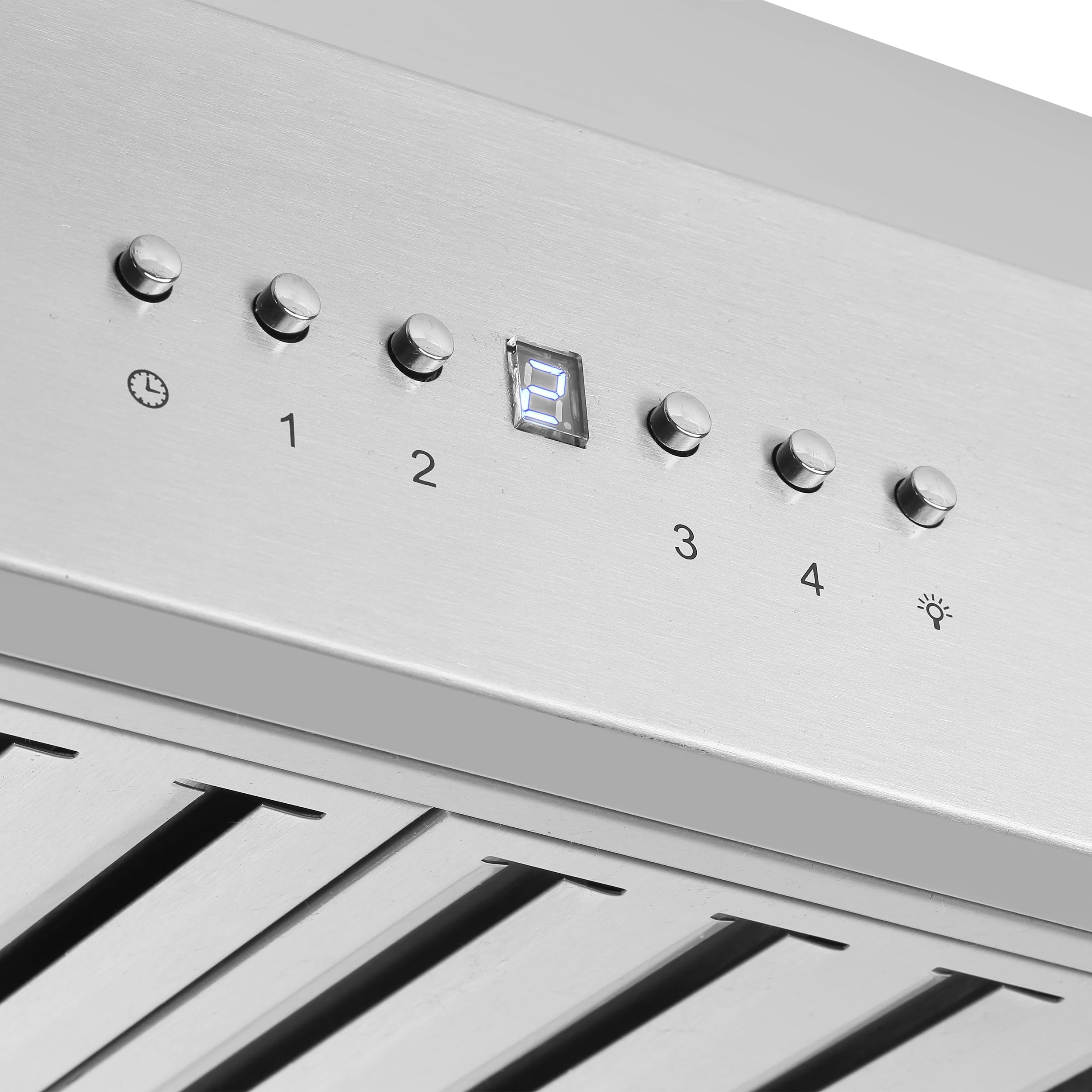

- 4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
- The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
- Equipped with a powerful energy-efficient 600 CFM
- 4 speed touch control for easy operation makes it simple
- Automatic Shut-Off Timer

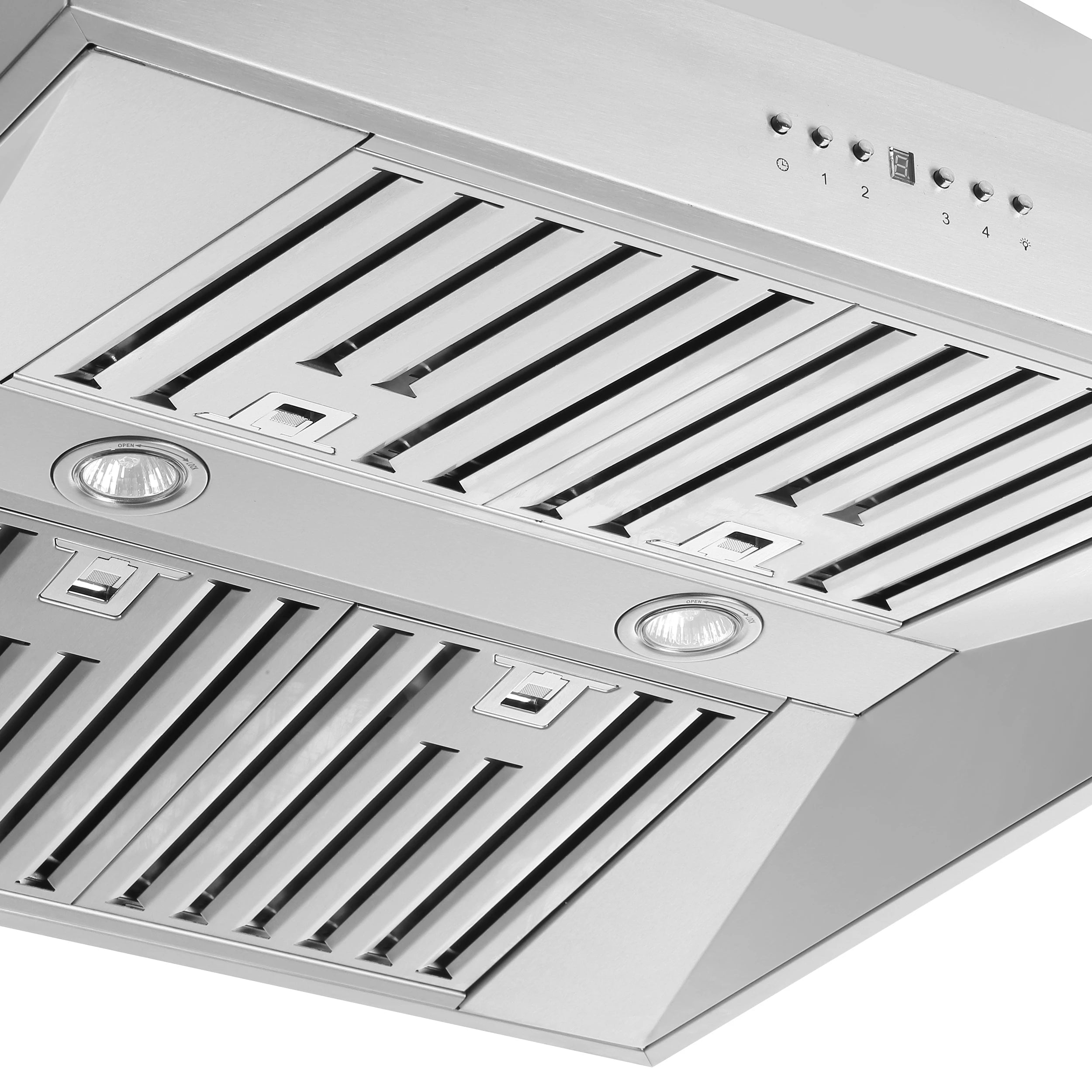

- Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.
- Two surface lights offer bright illumination for cooktop surface.
- Maximum power ventilation at a low noise level of 65dB allows you to enjoy an effective ventilation system without obtrusive noise disruption.
Description
The Orvieto 30" Stainless Steel Wall Mount Range Hood delivers powerful ventilation with a 600 CFM motor and four-speed push-button control for optimal air purification. High-grade stainless steel construction ensures long-lasting durability, while integrated noise reduction technology keeps operation quiet. Decorative crown molding adds a refined touch to any kitchen aesthetic. Bright, energy-efficient surface lights enhance visibility over your cooktop, and dishwasher-safe stainless steel baffle filters efficiently capture grease, smoke, and odors for easy cleanup and improved indoor air quality.
Key Features
Filters are made of washable Stainless-Steel
All Stainless-Steel
This wall mount rangehood is equipped with a powerful energy-efficient 600 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.
The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
Equipped with a powerful energy-efficient 600 CFM
4 speed touch control for easy operation makes it simple
Crown Molding
4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
