SKU: FRHRE534636 | UPC: 761101062563

Forno FRHRE534636 Frassanito 36-Inch Recessed Range Hood, 450 CFM, Stainless Steel Baffle Filters, LED Lighting

Quick Specification More details

Width:
33.3"
Depth:
11.1"
Height:
11.9"
Type:
Hood Inserts

About this product

Features a stainless steel finish and baffle filter design.
A powerful 450 CFM airflow blower quickly and efficiently removes smoke, grease, and odours from your kitchen, ensuring maximum ventilation of fumes while minimizing noise levels.
Three LED surface lights offer long-lasting performance and energy efficiency with bright illumination of the cooking surface.
This insert range hood is designed to fit seamlessly into any custom cabinetry installation or hood enclosure.

SKU: FRHRE534636 | UPC: 761101062563

Forno FRHRE534636 Frassanito 36-Inch Recessed Range Hood, 450 CFM, Stainless Steel Baffle Filters, LED Lighting

Discontinued

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

Coppito 36-Inch Island Range Hood, , LED Lighting, Adjustable Fan Speeds

Forno FRHIS512936 Coppito 36-Inch Island Range Hood, , LED Lighting, Adjustable Fan Speeds Stainless Steel

Forno FRHRE533736 Altilia 36-Inch Insert Range Hood, Stainless Steel, LED Lighting, Baffle Filters

Forno FRHRE534630 Frassanito 30-Inch Insert Range Hood, 450 CFM, Stainless Steel Baffle Filters, LED Lighting

In Stock

On Sale

Frassanito 48-Inch Recessed Range Hood, Baffle Filters, LED Lighting

Forno FRHRE534648 Frassanito 48-Inch Recessed Range Hood, Stainless Steel Baffle Filters, LED Lighting

Quick Specification More details

Width:
33.3"
Depth:
11.1"
Height:
11.9"
Type:
Hood Inserts

About this product

Features a stainless steel finish and baffle filter design.
A powerful 450 CFM airflow blower quickly and efficiently removes smoke, grease, and odours from your kitchen, ensuring maximum ventilation of fumes while minimizing noise levels.
Three LED surface lights offer long-lasting performance and energy efficiency with bright illumination of the cooking surface.
This insert range hood is designed to fit seamlessly into any custom cabinetry installation or hood enclosure.

Product Details for Forno FRHRE534636

Technical Details

Dimensions & weight

Width	33.3 in.
Height	11.9 in.
Length	11.1 in.
Weight	31.1 lbs.
Overall Height - Top to Bottom (in)	11.10
Overall Width - Side to Side (in)	33.35
Overall Depth - Front to Back (in)	10.9
Cutout Width - Side to Side (in)	32.68
Cutout Depth - Front to Back (in)	10.51
Overall Product Weight (lbs)	38.89
Adjustable Height	N/A
Minimum Height	30″
Maximum Height	"
Maximum Ceiling Height	N/A
Minimun Ceiling Height	N/A
Cutout Dimensions	32.68"W x 10.51"D

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	38.3 in.
Shipping Height	16.9 in.
Shipping Length	16.1 in.
Shipping Weight	71.1 lbs.
Total of Shipping Weight	71.1 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	2.55 ft³
Dimensional Weight	31.64 lbs.
Total of Cubes	2.55 ft³
Total of Dimensional Weight	31.64 lbs.

Header

Model Number	FRHRE5346-36
Brand Name	FORNO
Product UPC	686136953214
Market	CANADA,USA
Collection Name	Alta Qualita
Serie's Name	Frassanito
Product Name (Short & Sweet) < 36 Characters	Frassanito 33.5" Recessed Range Hood
Product Description (more detailed) <= 100 characters	Forno Frassanito 36-Inch Recessed Range Hood, 450 CFM, Stainless Steel Baffle Filters, LED Lighting

Technical information

Color/Finish	Stainless Steel
Automatic Shut-Off	No
Timer	No
Primary Material	Stainless Steel
Decibel Speed 2 (dB)	45.00
Bulb Wattage	1.50
Motor(s) Power (Watts)	230
Minimum Height from Cooktop	25.50
Minimum Decibel (dB)	38.00
Sones Speed 2	3.00
Minimum Sones	2.00
Range Hood Shape	Rectangle
Number of Lights	3
Remote Control	No
Power off Function	No
Reversible Blower	No
Speed Control Type	Push Button Control

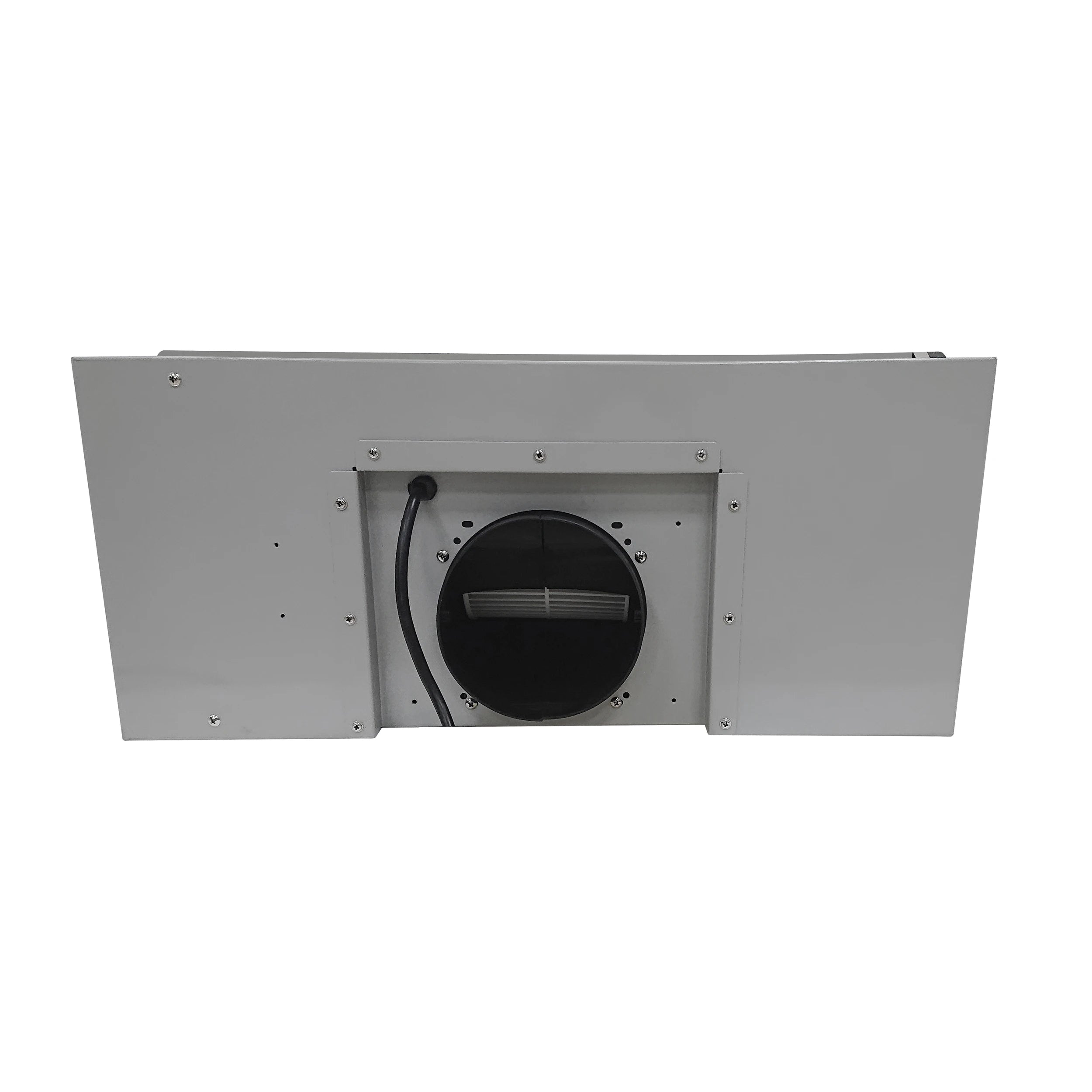

Duct Type	6-in Round
Damper	Yes
Removable Grease Filter	Yes
Filter Type	Baffle
Vent Style	External
Vent Type	Ducted
Number of exhaust Vent	1
Number of Blower(s)	1
Fingerprint-Resistant	No
Dishwasher Safe Filters	Yes
Clock	No
Decibel Speed 3 (dB)	55.00
Decibel Speed 1 (dB)	38.00
Bulb Type	GU10
LTL or Parcel	Parcel
Maximum Height from Cooktop	30.00
Maximum Decibel (dB)	52.58
Sones Speed 3	5.50
Sones Speed 1	2.00
Maximum Sones	5.50
Maximum CFM	450
Clean Filter Alert	No
Number of light settings	1
Heat Sensors	No
Hardware Finish	Stainless Steel
Speed Control	3
Damper Type	6-in Round
Washable Filter	Yes
Filter Material	Stainless Steel
Air Discharge Direction	Vertically Upward
Charcoal Filters	No
Exhaust Vent Location	Top
Blower Material	PVC
Mount Type	Built-in / Insert

General product weight & dimensions

Product Overall Weight (lbs)	38.89
Product Dimensions W x D x H (inches)	33.35x11.1x11.85
Product Width (in)	33.35
Product Depth (in)	11.1
Product Height (in)	11.85
Cutout dimensions W x D x H (inch)	32.68 X 10.51 X 0.79

Certification

Safety Listing	cETLus
Energy Policy Act 1992 Compliant	Does Not Apply

Warranty

Commercial Warranty	No
Warranty on Parts	2 Years
Warranty Script (English)	Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances
Warranty Type	Limited
Warranty on Labor	2 Years

Shipping

Shipping Weight Box 1 (Carton Weight + 35 lbs)	Does Not Apply
Shipping Height Box 1 (Height carton + 6-inch of the pallet)	Does Not Apply
Shipping Width Box 1 (with pallet)	Does Not Apply

Description

The Forno Frassanito 33.5” Recessed Range Hood is made of stainless steel for a clean sleek look. Boasting an impressive 450CFM airflow capture, this range hood will quickly trap cooking smoke, odors, and grease particles in the air. With 3 surface lights seeing the cooktop while in use . An intuitive 3-speed push button control panel allows you to quickly adjust the hood’s settings according to your specific needs. With its modern design and efficient performance, this range hood is sure to be a stylish yet practical addition to your kitchen.

Product Features

Features a stainless steel finish and baffle filter design.
A powerful 450 CFM airflow blower quickly and efficiently removes smoke, grease, and odours from your kitchen, ensuring maximum ventilation of fumes while minimizing noise levels.
Three LED surface lights offer long-lasting performance and energy efficiency with bright illumination of the cooking surface.
This insert range hood is designed to fit seamlessly into any custom cabinetry installation or hood enclosure.

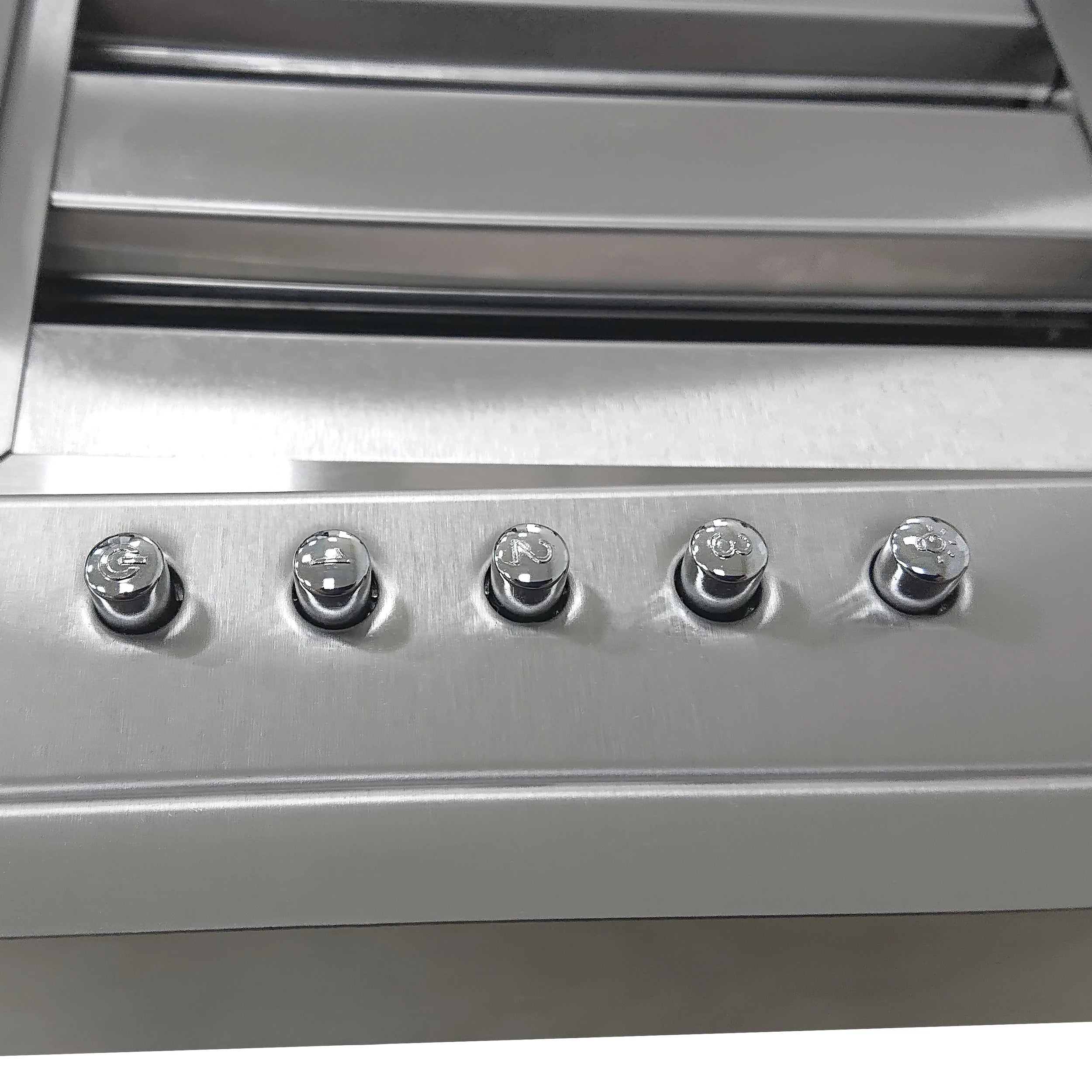

3 speed push button control makes it simple to adjust the fan speed according to your needs.

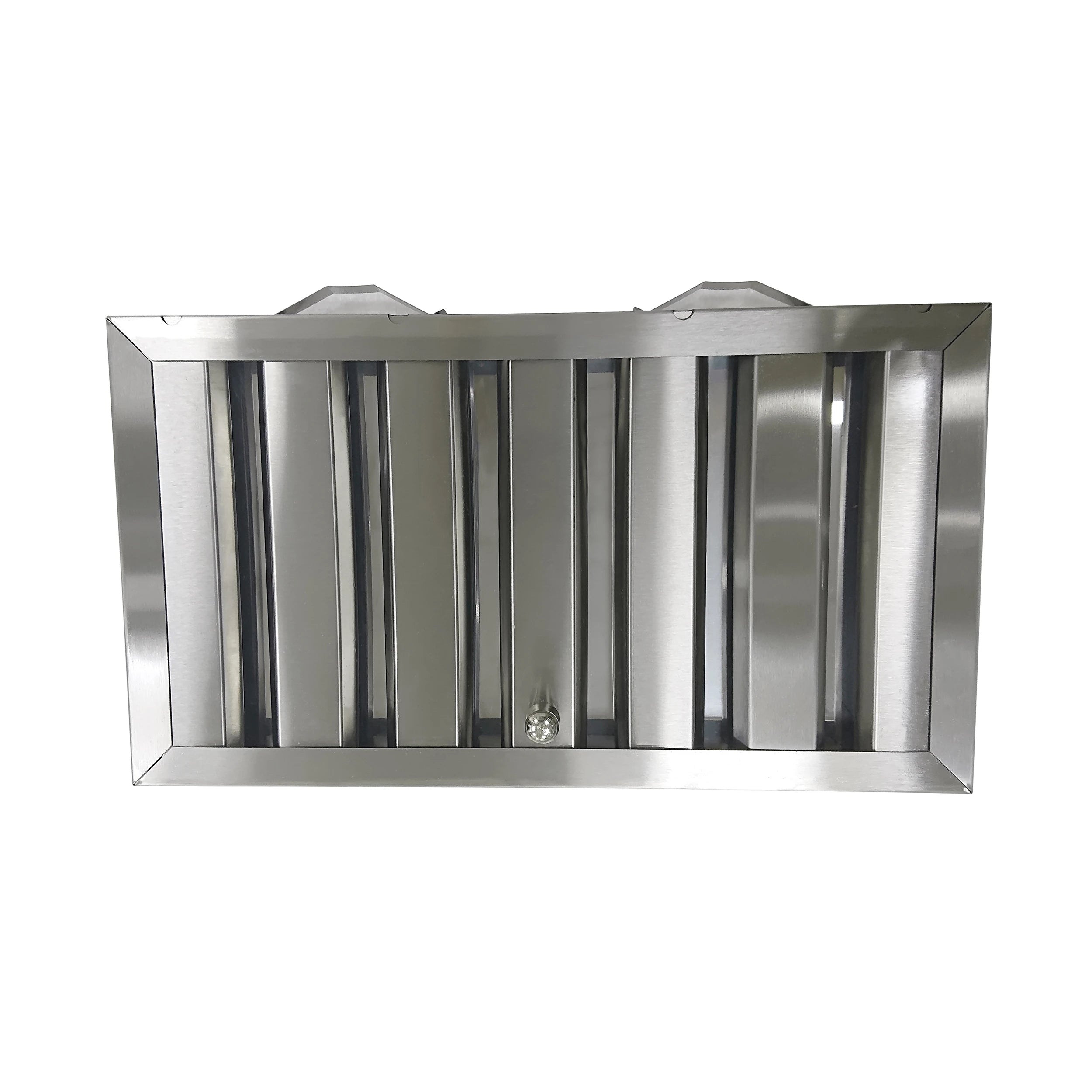

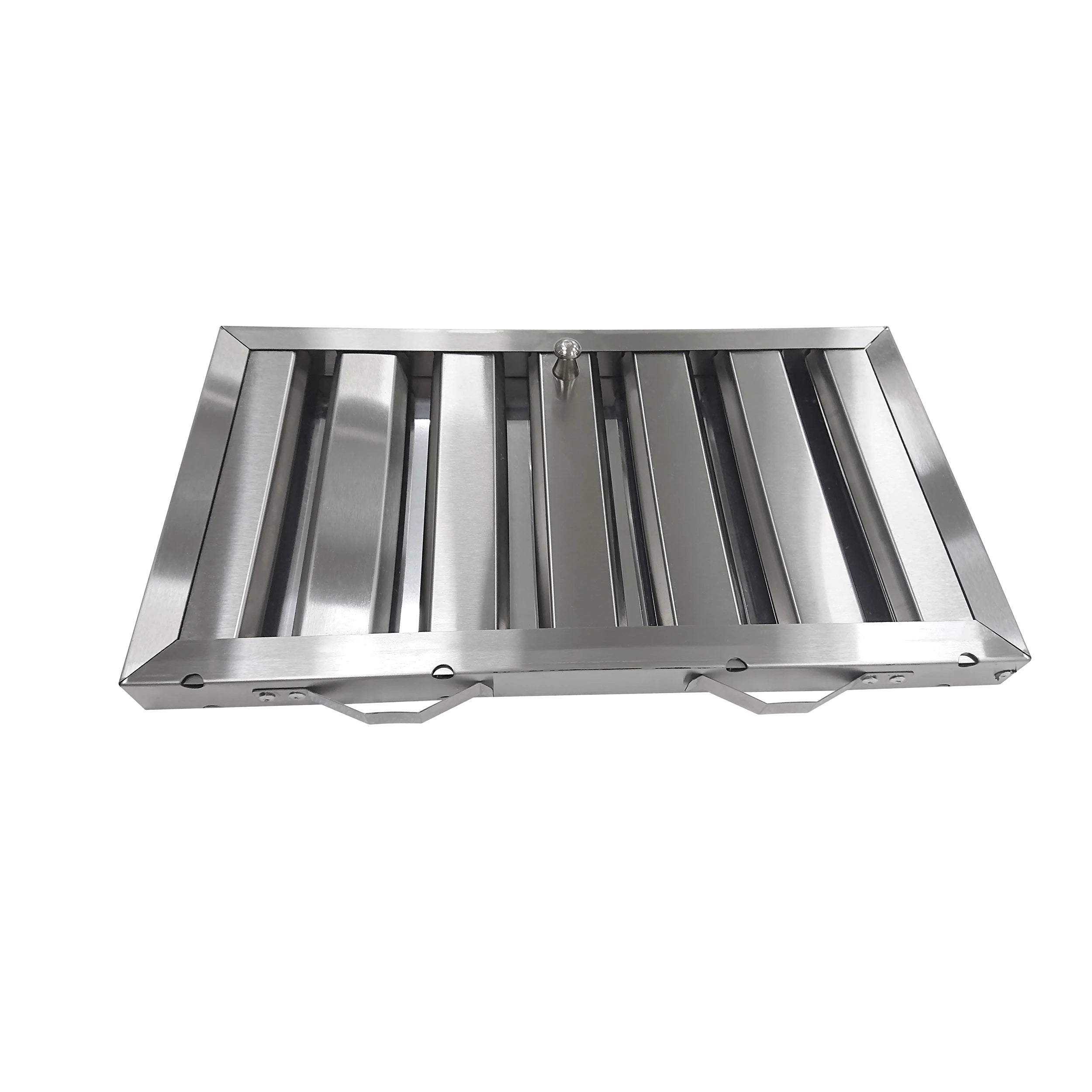

The baffle filter's combination of panels and curved plates a larger surface area that causes oils in the hot air to condensate on the steel. Dishwasher safe design allows for easy cleaning.
3 speed push button control to adjust the fan speed
A powerful 450 CFM airflow blower
Maximum power ventilation at a low noise level of 55dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
