Product Details for Forno FFRBI182040SG

Technical Details

Dimensions & weight

Width 40 in.
Height 27.8 in.
Length 86.2 in.
Weight 185 lbs.
Overall Height - Top to Bottom (in) 86.08
Overall Width - Side to Side (in) 40
Overall Depth - Front to Back (in) 27.8
Interior Height - Top to Bottom (in) 27.5
Interior Width - Side to Side (in) 30
Interior Depth - Front to Back (in) 15.5
Overall Product Weight (lbs) 194
Depth with door open 90° (in) 44.37

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 45 in.
Shipping Height 32.8 in.
Shipping Length 91.2 in.
Shipping Weight 225 lbs.
Total of Shipping Weight 225 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 55.47 ft³
Dimensional Weight 689.6 lbs.
Total of Cubes 55.47 ft³
Total of Dimensional Weight 689.6 lbs.

Header

Model Number FFRBI1820-40SG
Brand Name FORNO
Product UPC 686136918251
Market CANADA,USA
Collection Name Alta Qualita
Serie's Name Moena
Product Name (Short & Sweet) < 36 Characters Moena 36" French Door 19.2 cu. ft St
Product Description (more detailed) > 100 characters Moena 36-inch Built-In French Door Refrigerator in Stainless Steel, 19.2 Cu.ft Total Capacity, Ice Maker with Decorative Grill - 40-Inch Wide

Technical information

Color/Finish Stainless Steel VCM
Control Location On Door
Primary Material Steel
Number of pallet 1
NSF/ANSI/CAN 372 Certified Yes
Energy Star Most Efficient No
Minimum Top Clearance (IN) 1.00
Sides Clearance - On Each Sides (IN) 0.50
Height Top of Door Hinge (inches) 77.94
Number of Power Cord 1
Estimated Annual Operating Cost (USD) 76
Power Consumption Defrost Wattage (W) 240
Temperature Range Freezer (°C) -23°C to 15°C
Freezer tray Dimensions WxDxH 27x13x3
Ice Bin Size WxDxH 12x7.5x4
Upper Freezer Drawer(s)/Basket Size WxDxH 26x14x8
Number of Freezer Drawers 0
Interior Freezer Dimensions Depth 15.50
Interior Freezer Dimensions W x D x H (in) 30x15.5x27.5
Freezer Door Style Pull-Out Drawer
Temperature Range Refrigerator (°C) 0°C to 6°C
Door Bins Material Plastic
Standard Door Bins Size WxDxH 13.5X6.25x3
Gallon (4 Liters) Door Bin(s) Size WxDxH 13.5x6.25x3.75
Adjustable Door Storage No
Fresh Food Door Type French Door
Number of Adjustable Shelves 2
Fresh Food Shelves Material Glass
Fresh Food drawer(s) Size WxDxH 13 x 6.5 x 12
Temperature Controlled Drawer(s) No
Interior Fresh Food Dimensions Height 32.00
Interior Fresh Food Dimensions Width 31.50
Fresh Food Capacity Cu. Ft. 12.10
Cooling Type Multi Air Cooling
Water Pipe Length (Feet) 8.69
Noise Level (dBA) 38.00
Fast Cool Function Yes
Energy Saver Mode No
Cabinet Color Gray
Door Liner Color White
Door Texture Smooth
Pantry Drawer No
Electronic Temperature Control Yes
External Dispenser No
Dispenser Type No Water/Ice Dispenser
Daily Ice Production (lbs) 4.00
Automatic Ice Level Control Yes
Ice Type Cubed
Flat back design Yes
Interior Light Yes
CEE Tier Qualified Not Rated
NSF/ANSI 61 Certified Yes
ENERGY STAR Unique ID 2361180
Minimum Back Clearance (IN) 3.00
Height Top of the Cabinet/Case (inches) 75.79
Height Top of the Door (inches) 77.94
Cabinet Depth (no Door) 24.00
Power Cord Location Top
Energy Consumption (kWh/yr) 539
Power Consumption Cooling Wattage (W) 90
Temperature Range Freezer (°F) -10°F to 5°F
Freezer Section Layout Freezer Drawers,Removable Ice Bin,Full Width
Extra Freezer Tray Yes
Lower Freezer Drawer(s)/Basket Size WxDxH 26x13x10
Number of Freezer Basket 2
Interior Freezer Dimensions Height 27.50
Interior Freezer Dimensions Width 30.00
Freezer Light Yes
Freezer Capacity 7.10
Temperature Range Refrigerator (°F) 32°F to 43°F
Door Bins Color Transparent
Number of Standard Door Bins 4
Number of Gallon (4 Liters) Door Bins 2
Door Storage Yes
Fresh Food Shelve(s) Size WxDxH 31.5x14x0.375
Adjustable Fresh Food Shelves Yes
Number of Fresh Food Shelves 3
Humidity Controleld Drawer(s) No
Number of Fresh Food drawers 2
Interior Fresh Food Dimensions Depth 21.00
Interior Fresh Food Dimensions W x D x H (inches) 31.5x21x32
Dual Evaporator Cooling System No
Toe Grille Color Stainless Steel
Water Pipe Included Yes
Extra Water Filter No
See-Thru Door No
Fast Freeze Function Yes
Air Filtration No
Cabinet Material Embossed Galvanized Steel
Door Liner Material High Impact Polystyrene
Door Style Contoured
Spill-Proof Shelves No
Temperature Memory Function Yes
Water Dispenser No
Filtered Ice No
Removable Ice Bucket Yes
Ice Maker Type Single
Ice Maker Yes
Overall Capacity Cu. Ft. 19.20
Fingerprint-Resistant No

General product weight & dimensions

Product Overall Weight (lbs) 266.80
Product Width (in) 40
Product Height (in) 86.08
Cutout Width (INCH) 36.2
Cutout Height (INCH) 78
Interior Freezer Dimensions Height 27.50
Interior Freezer Dimensions W x D x H (in) 30x15.5x27.5
Interior Fresh Food Dimensions Height 32.00
Interior Fresh Food Dimensions W x D x H (inches) 31.5x21x32
Product Dimensions W x D x H (inches) 40 x 30.41 x 86.08
Product Depth (in) 30.41
Cutout dimensions W x D x H (inch) 36.20x25.40x78
Cutout Depth (INCH) 25.4
Interior Freezer Dimensions Depth 15.50
Interior Freezer Dimensions Width 30.00
Interior Fresh Food Dimensions Depth 21.00
Interior Fresh Food Dimensions Width 31.50

Certification

Safety Listing cCSAus
Energy Star Certified Yes
ENERGY STAR Unique ID 2361180
Energy Policy Act 1992 Compliant Yes
Title 20 - California Regulation Yes
ISTA 6A Yes
ADA Compliant No
TAA Compliant No
UPLR Compliant No
CEE Tier Qualified Not Rated
Certificate of Conformity (GCC) No

Warranty

Commercial Warranty No
Warranty on Parts 2 Years
Warranty Script (English) Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances
Warranty Type Limited
Warranty on Labor 2 Years

Shipping

Shipping Weight Box 1 (Carton Weight + 35 lbs) 329.76
Shipping Lenght Box 1 (with pallet) 48.00
Carton Weight Box 2 32.41
Carton Width Box 2 14.17
Needs to be shipped on a pallet Yes
Shipping Width Box 1 (with pallet) 40
Shipping Height Box 1 (Height carton + 6-inch of the pallet) 86.12
Carton Height Box 2 80.12
Carton Depth Box 2 6.30

Description

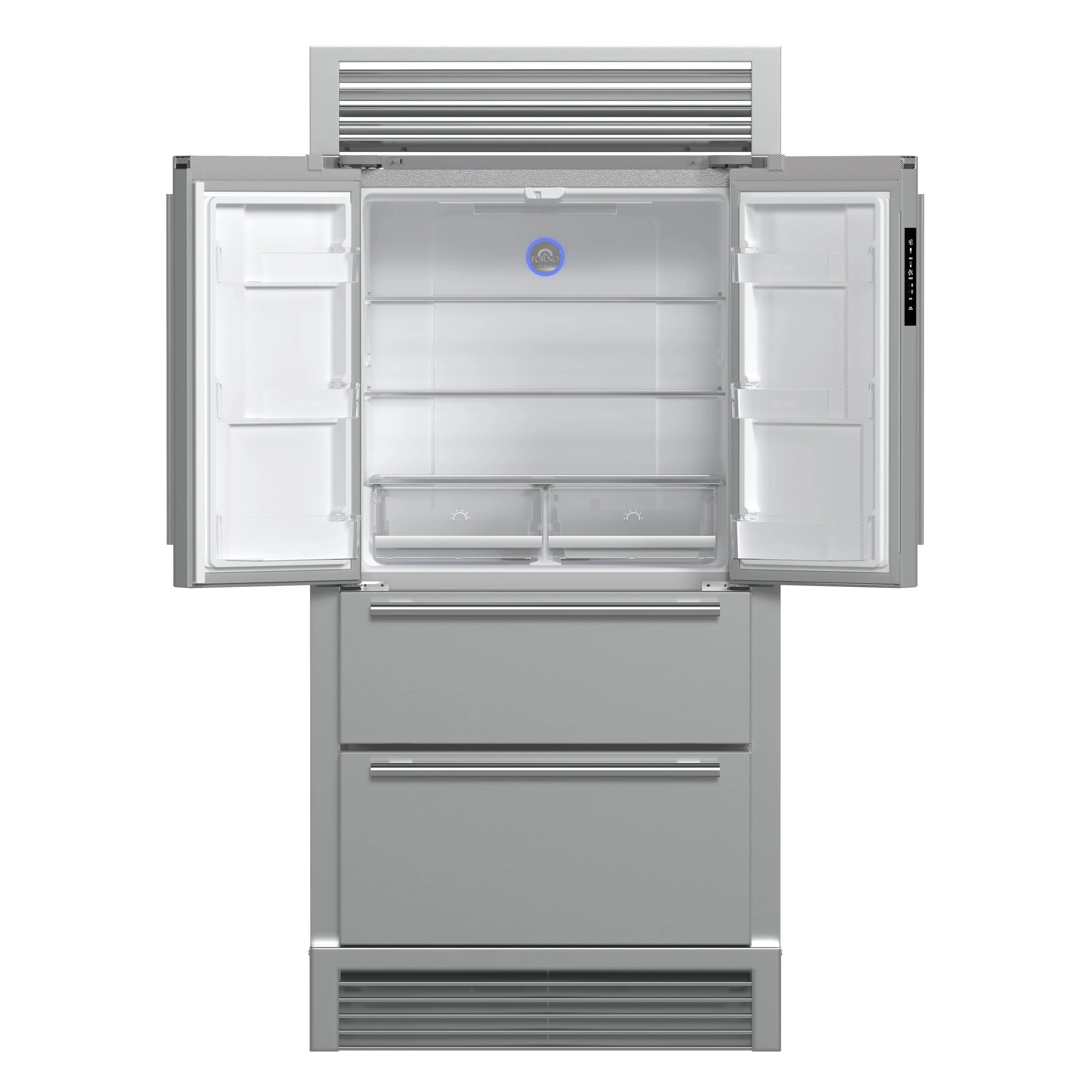

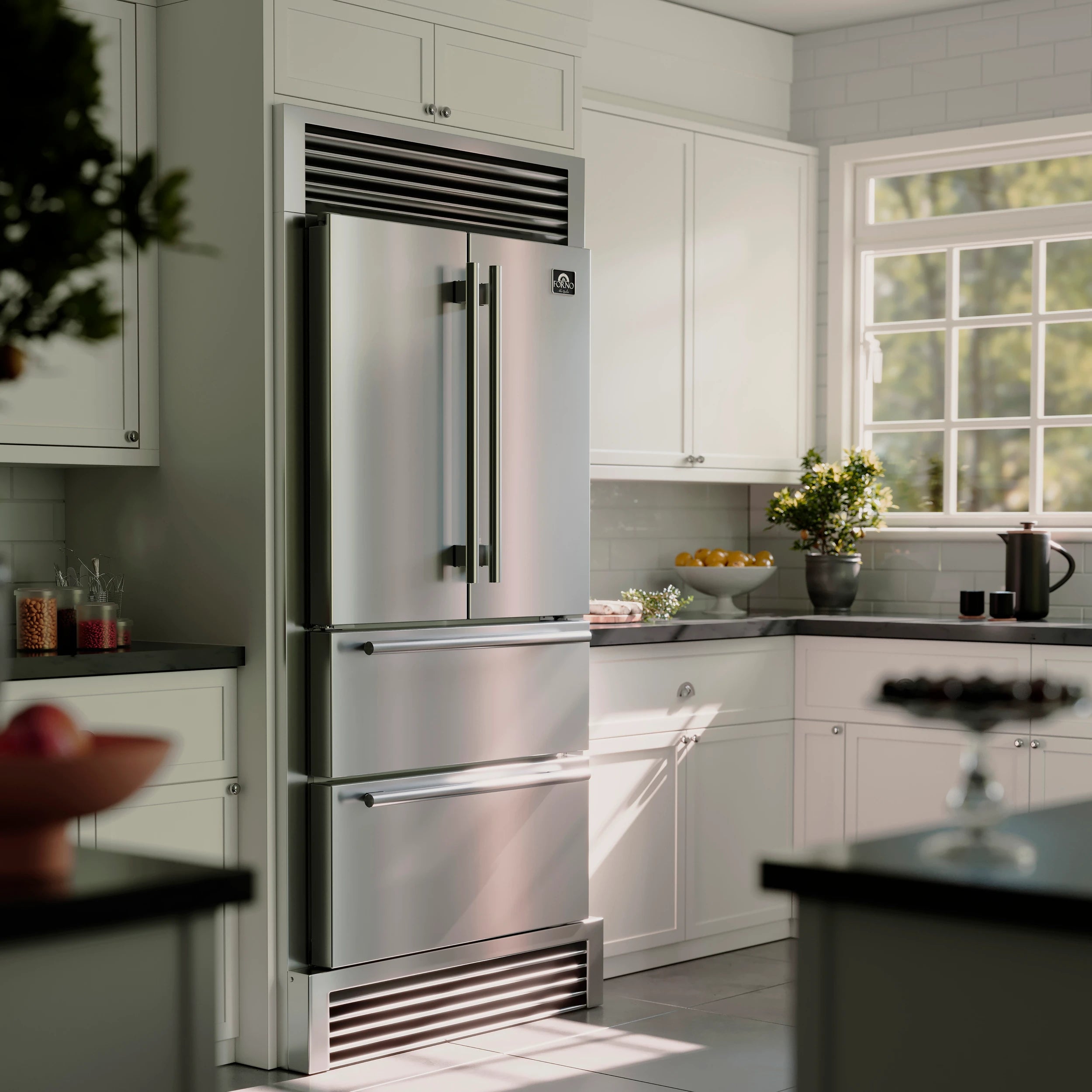

Upgrade your kitchen with the Forno Moena 36" Built-In French Door Refrigerator, designed for seamless integration and premium performance. Featuring a decorative grill trim that adds 4 inches, this refrigerator fits effortlessly into modern kitchens while maximizing storage space. Powered by a high-efficiency inverter compressor, it ensures energy savings, quiet operation, and precise temperature control to keep your food fresher for longer. The frost-free multi-airflow cooling system maintains consistent temperatures throughout its 19.2 cu. ft. capacity, providing optimal food preservation with adjustable shelving for versatile storage. The 12.1 cu. ft. fresh food section includes three glass shelves (two adjustable), two drawers, and generous door storage to keep groceries organized. The 7.2 cu. ft. freezer offers two pull-out drawers, a slide-out tray, and an automatic ice maker producing up to 4 pounds of ice daily, ensuring convenience for every occasion. With an intuitive LED touch panel, you can effortlessly control temperature settings and functions. Energy Star Certified, this built-in French door refrigerator operates efficiently while minimizing food spoilage with bright, high-efficiency LED lighting for superior visibility.



Product Features

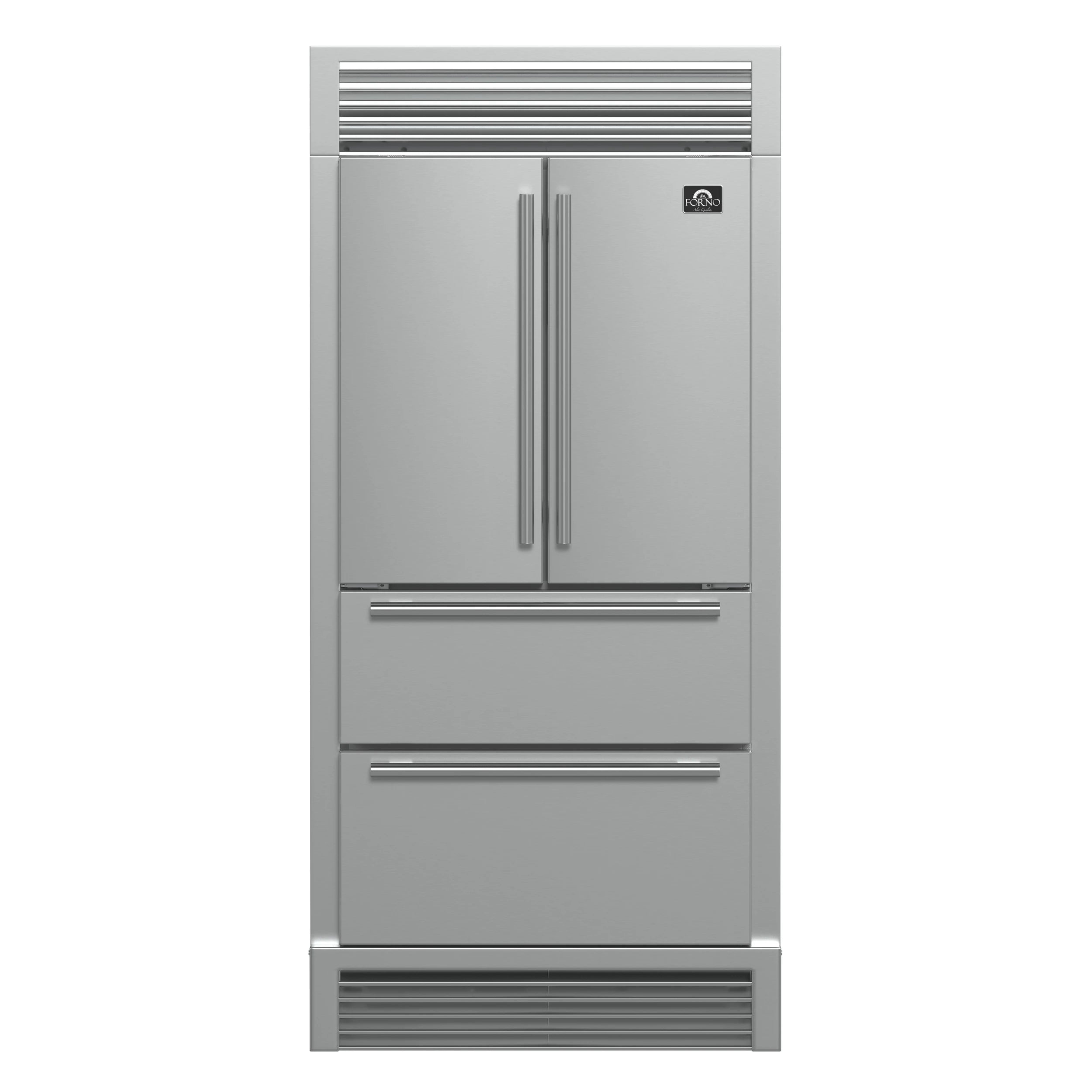

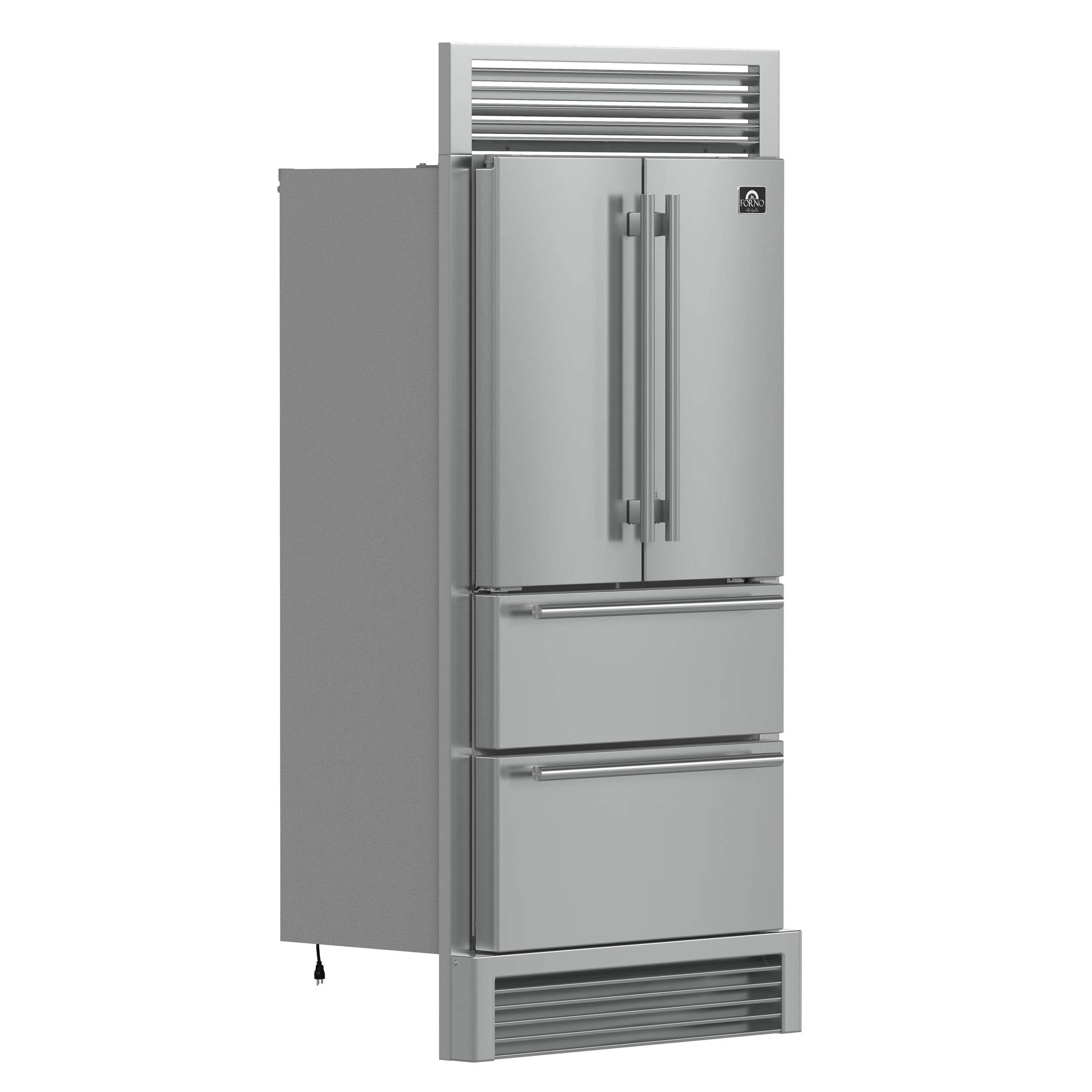

  • The 36-inch Moena, enhanced with decorative trim grill, extends to a width of 40 inches and giving it a built-in appearance.
  • Fresh Food storage capacity of 12.1 cu.ft. & Freezer storage capacity of 7.1 cu.ft.

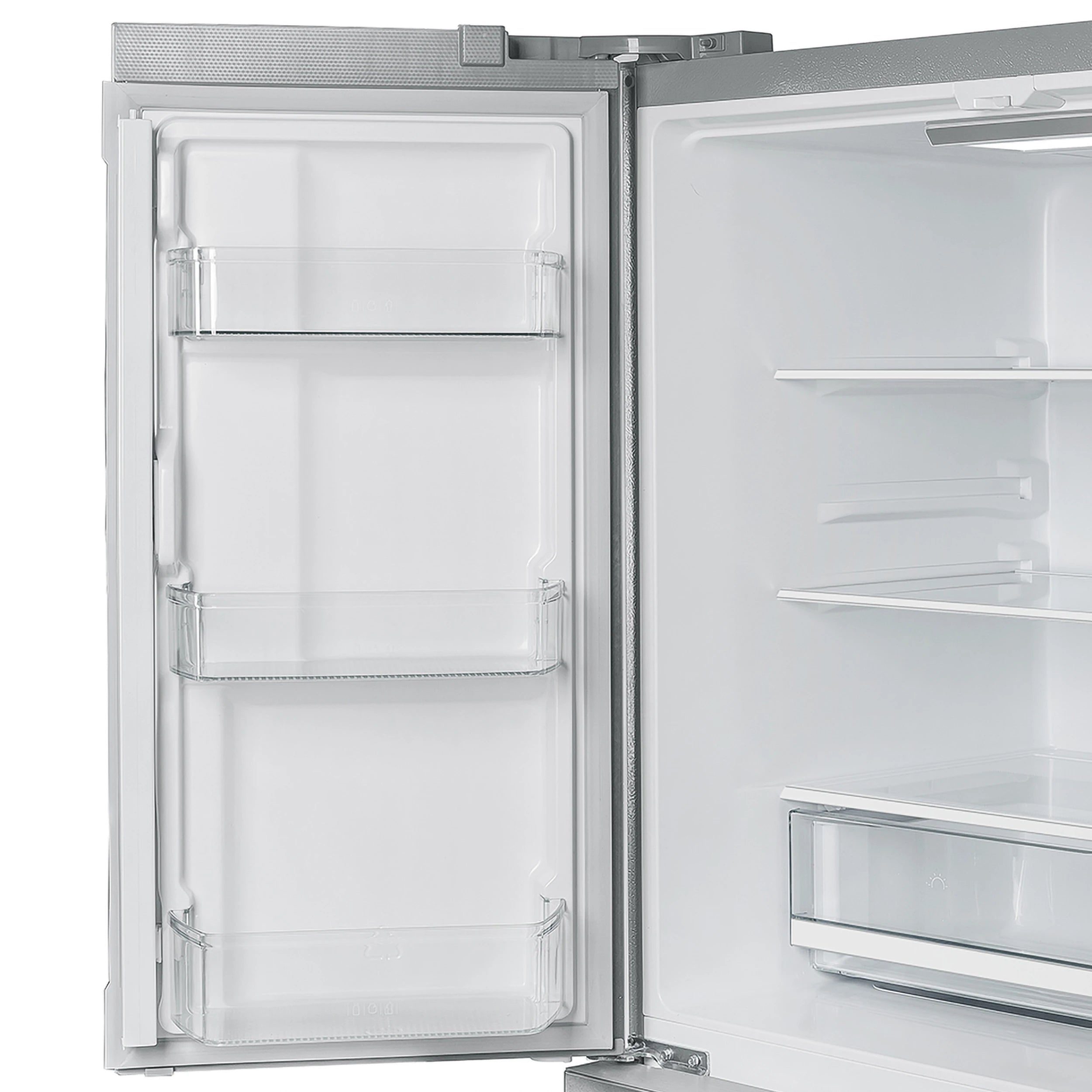

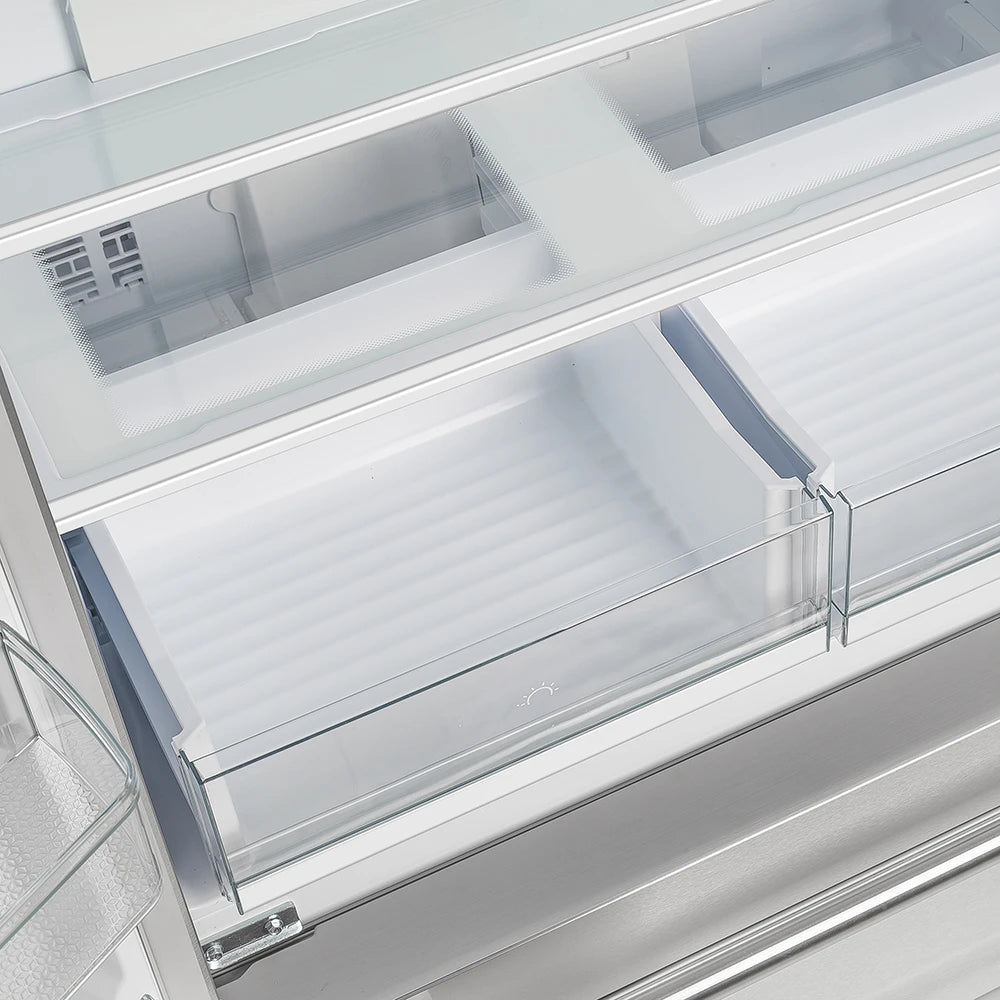

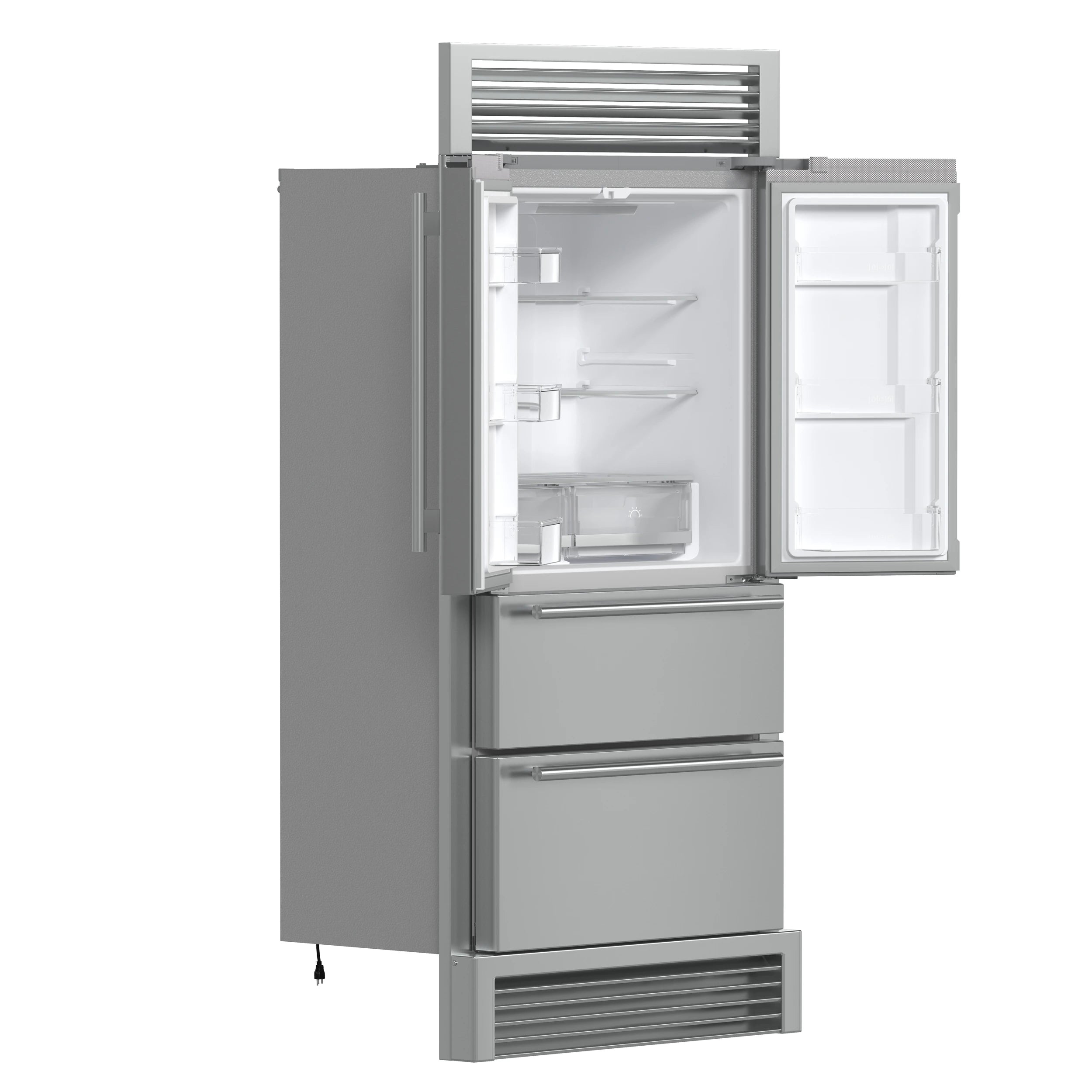

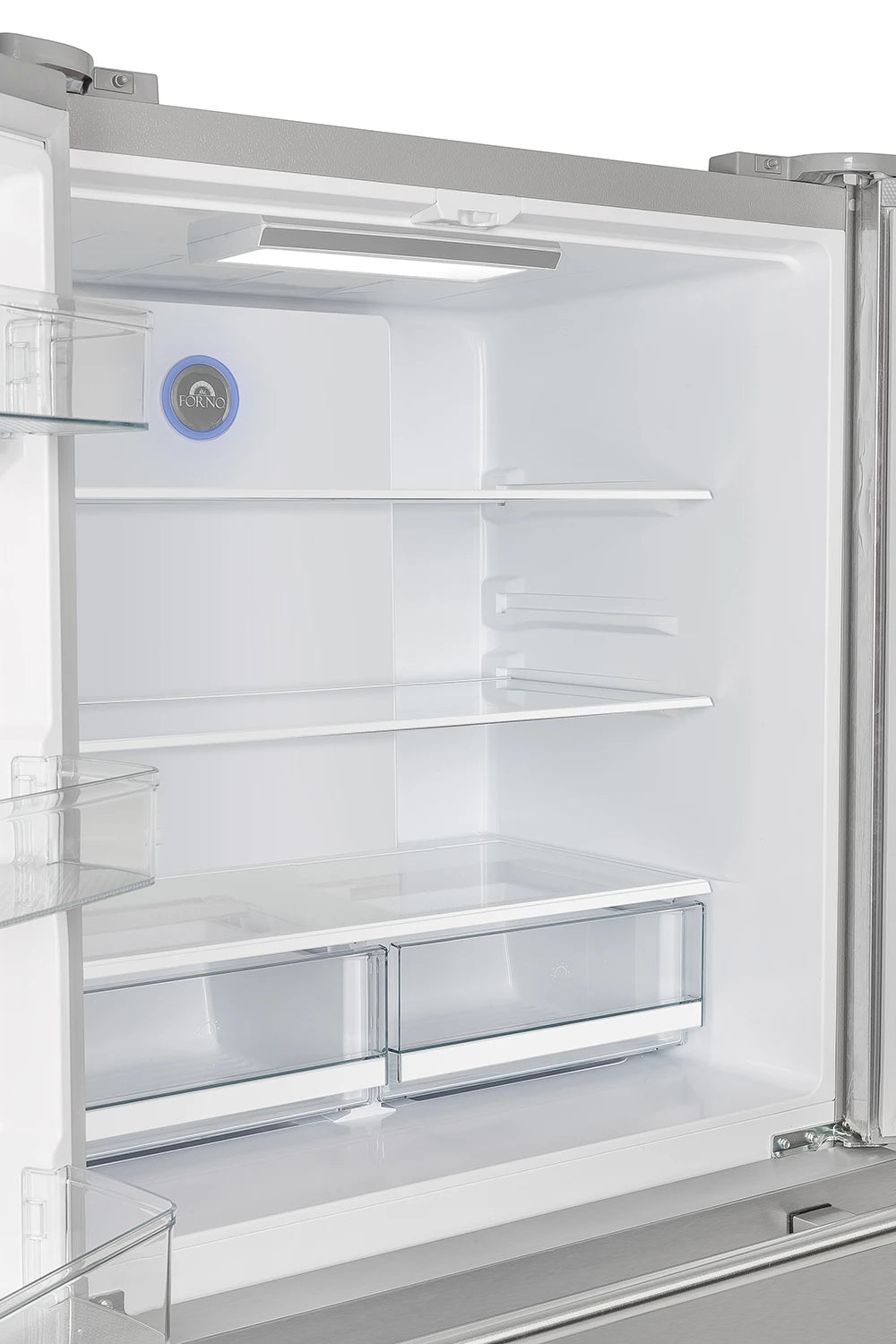

  • Fresh food compartment includes 3 glass shelves, 6 door bins and 2 drawers.

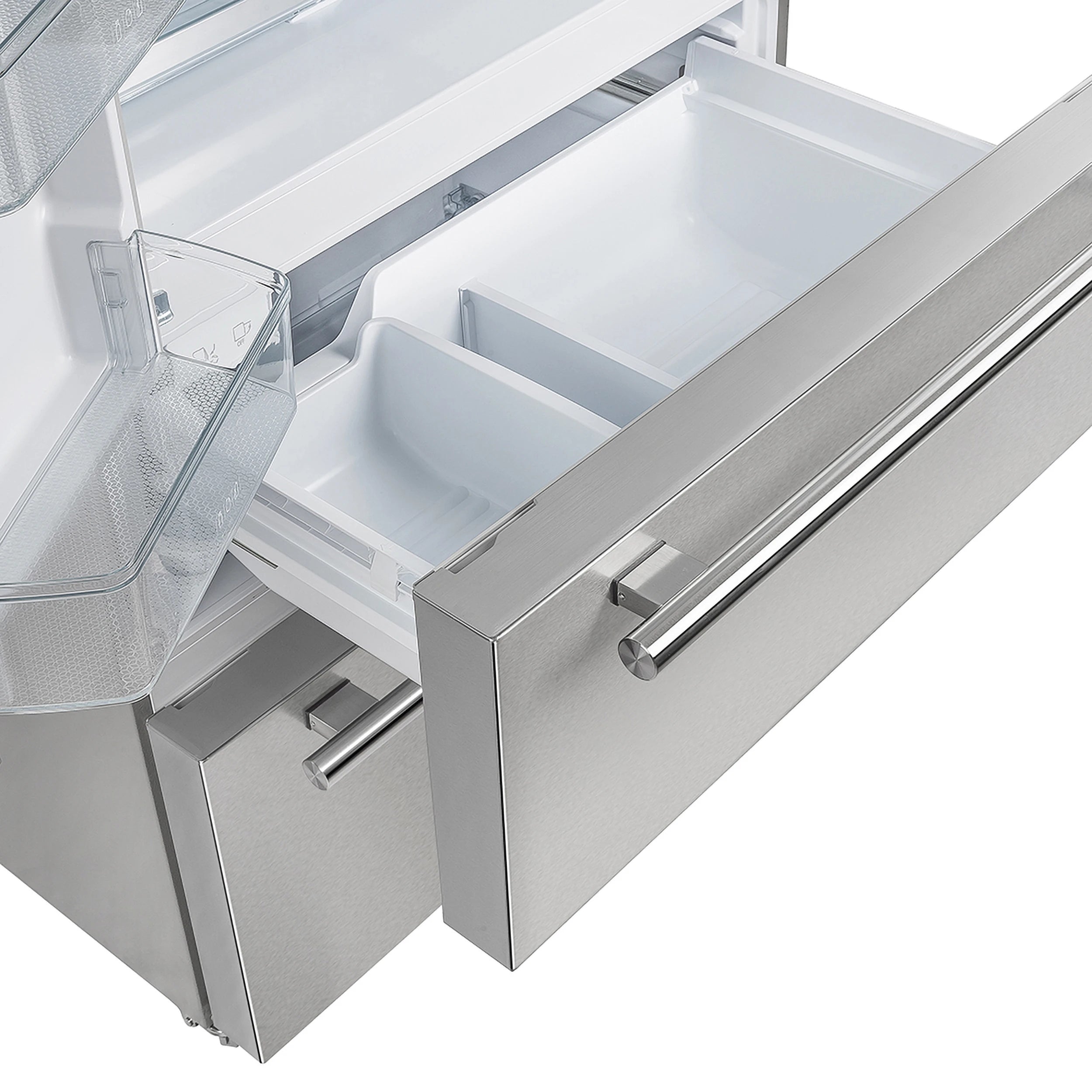

  • Freezer compartment includes 2 full width pull-out storage drawers

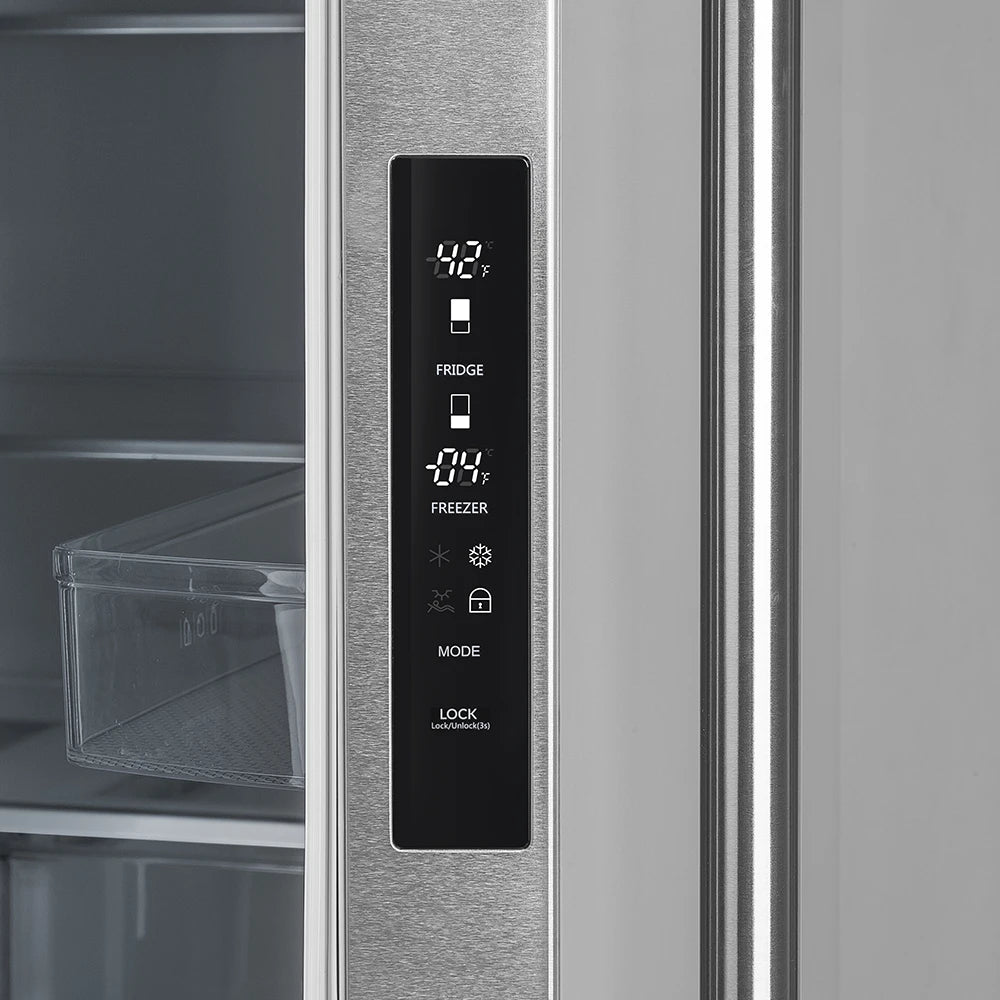

  • LED Touch for precise temperature, effortlessly balancing accuracy and user-friendly control.
  • The Super Cool and Super Freeze features help quickly set perfect temperatures, keeping groceries fresh.

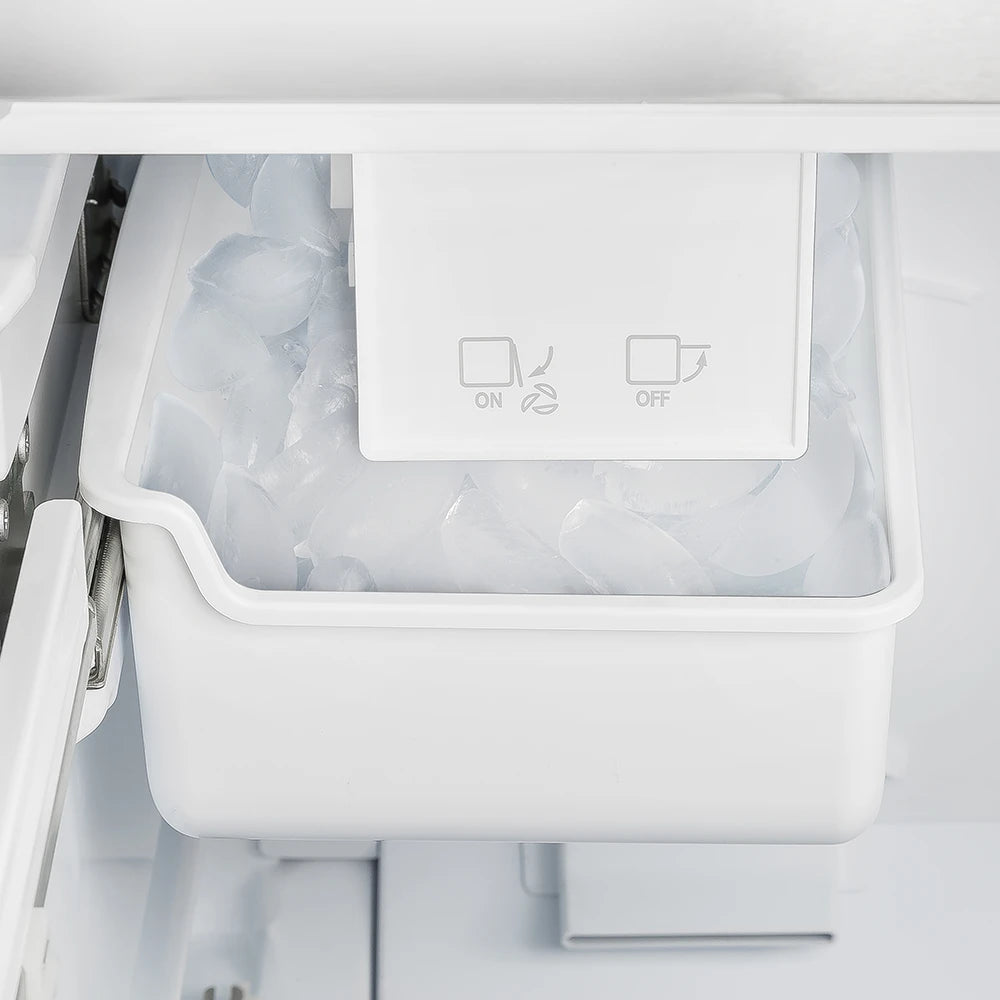

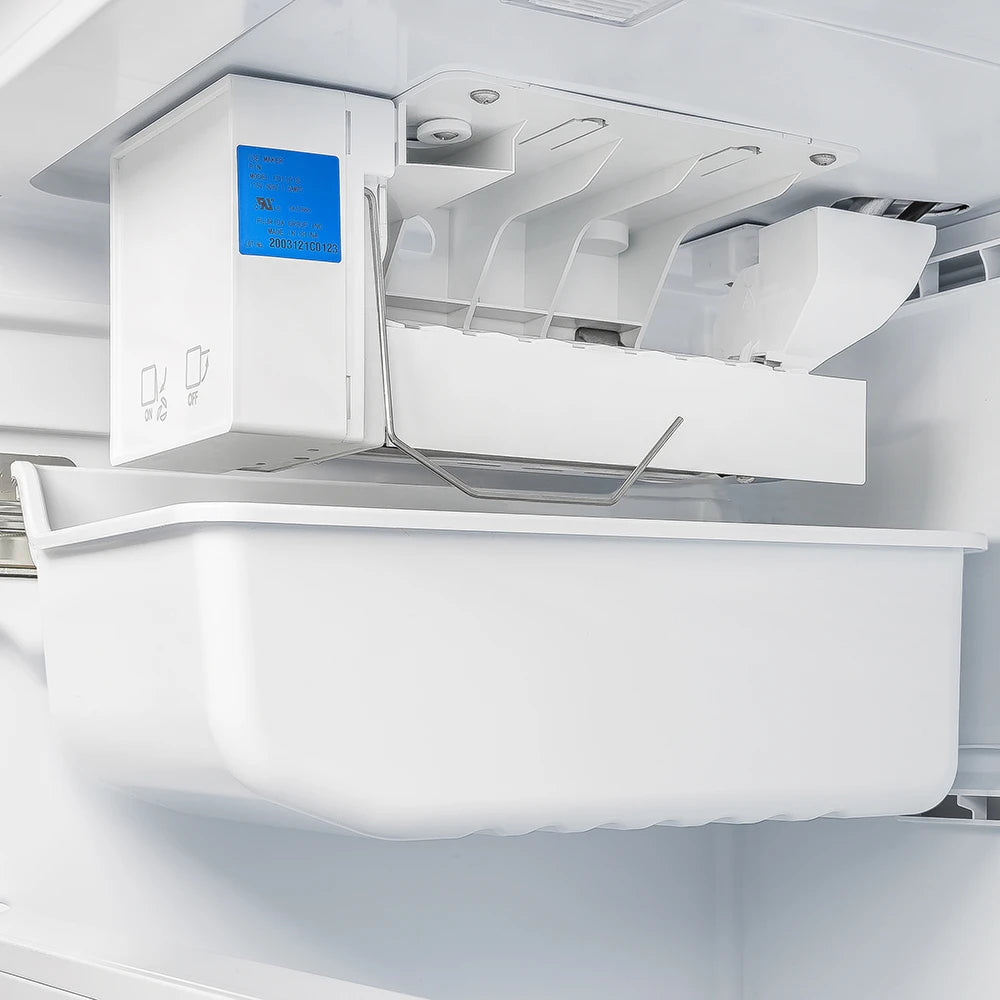

  • Produces up to 4 pounds of ice daily.
  • The compressor inverter ensures energy efficiency, quiet operation, and precise temperature control for optimal performance.
  • With decorative trim grill, extends to a width of 40 inches
  • 3 glass shelves, 6 door bins and 2 drawers
  • Inverter compressor
  • ENERGY STAR Certified: Saves money and promotes a greener planet through energy-efficient design

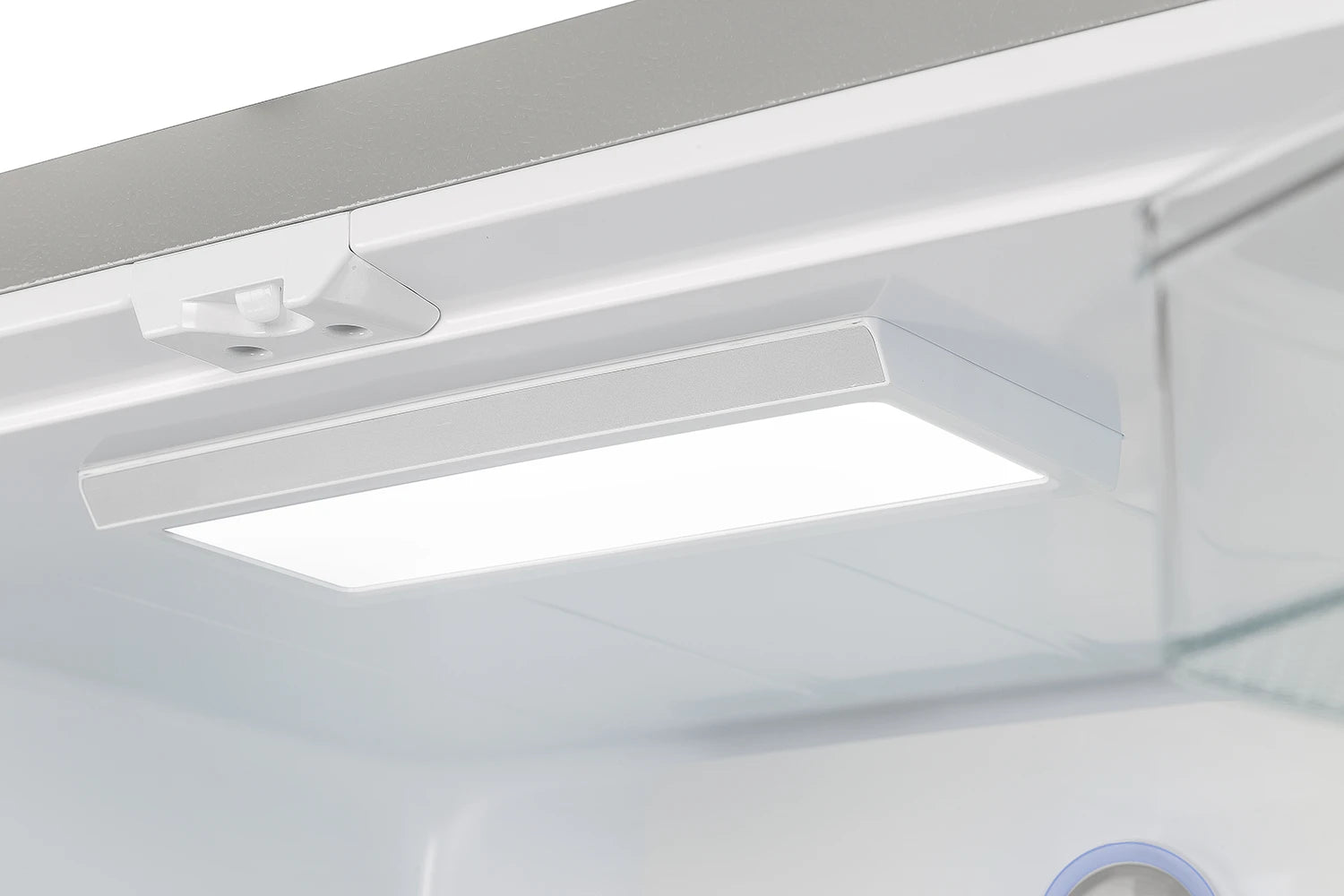

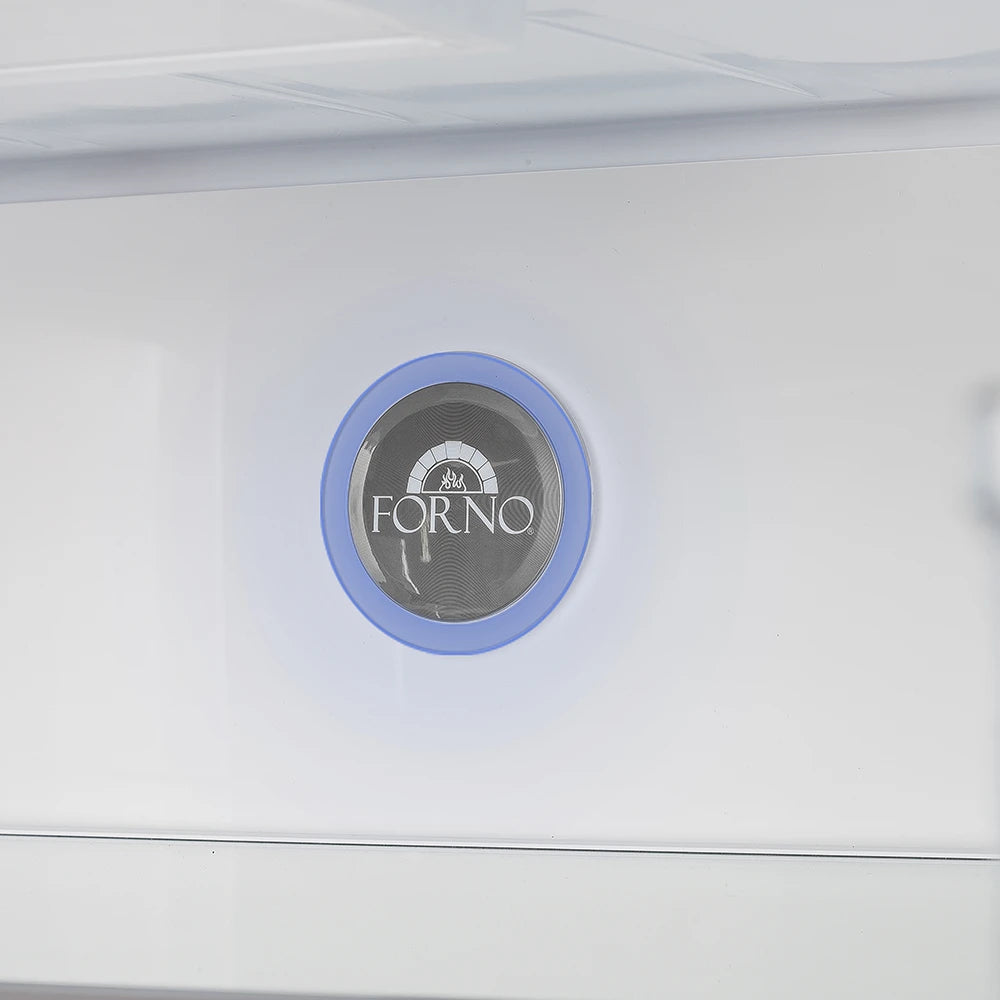

  • High-efficiency LED lighting ensures uniform illumination, making every corner visible and preventing food spoilage

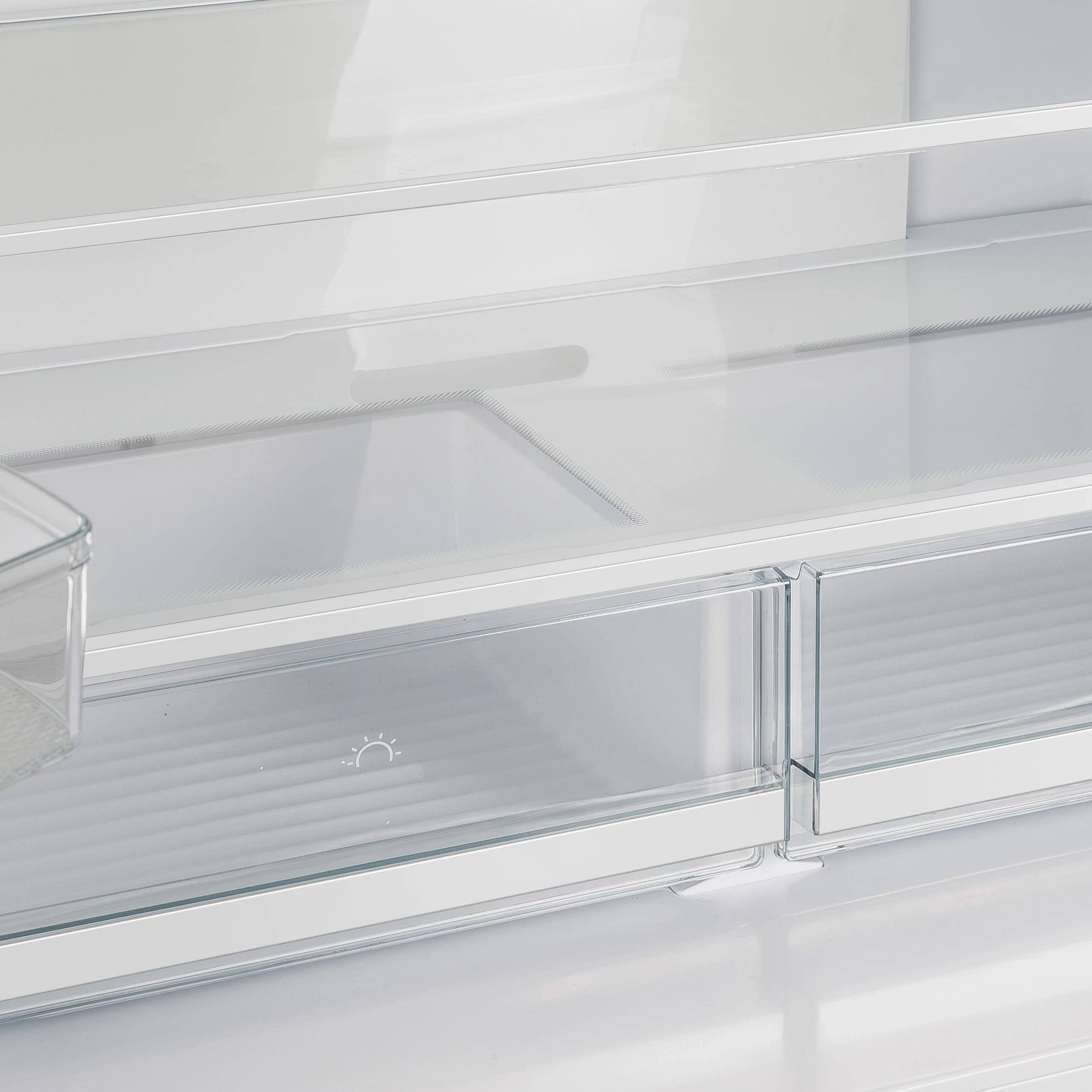

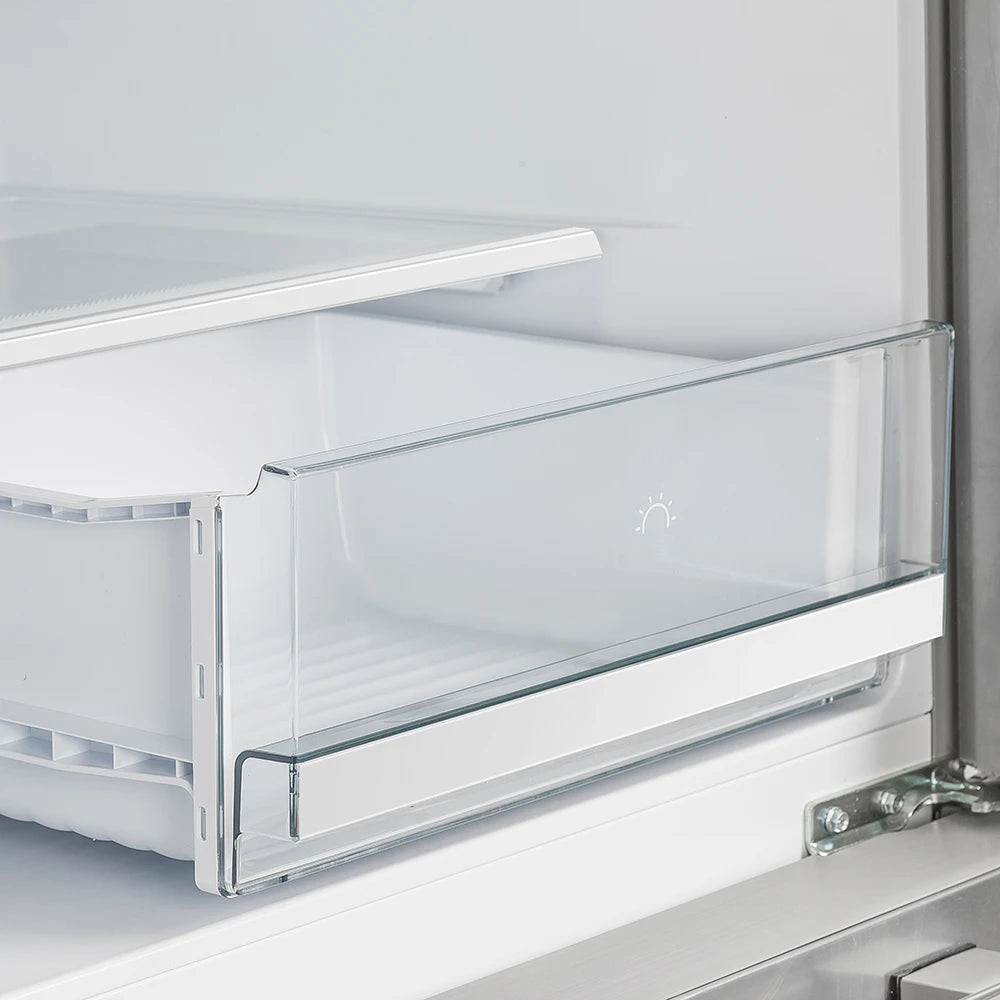

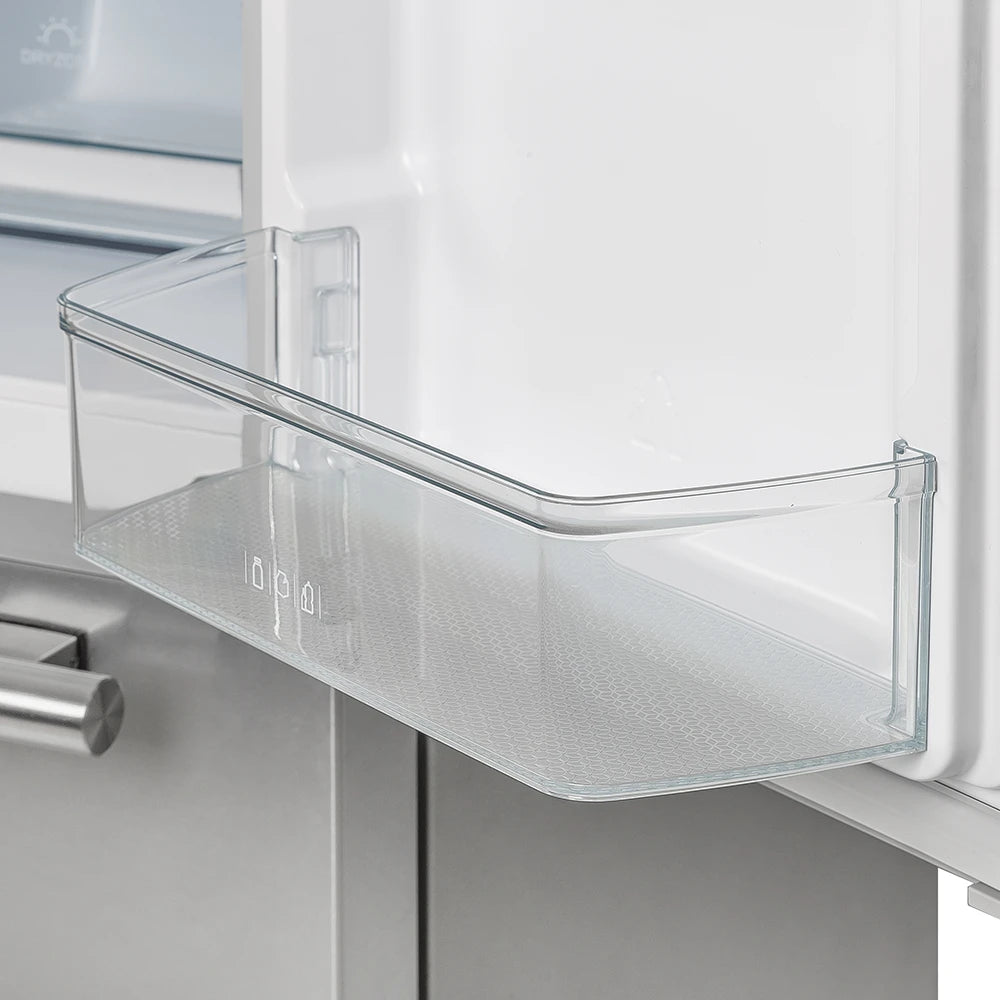

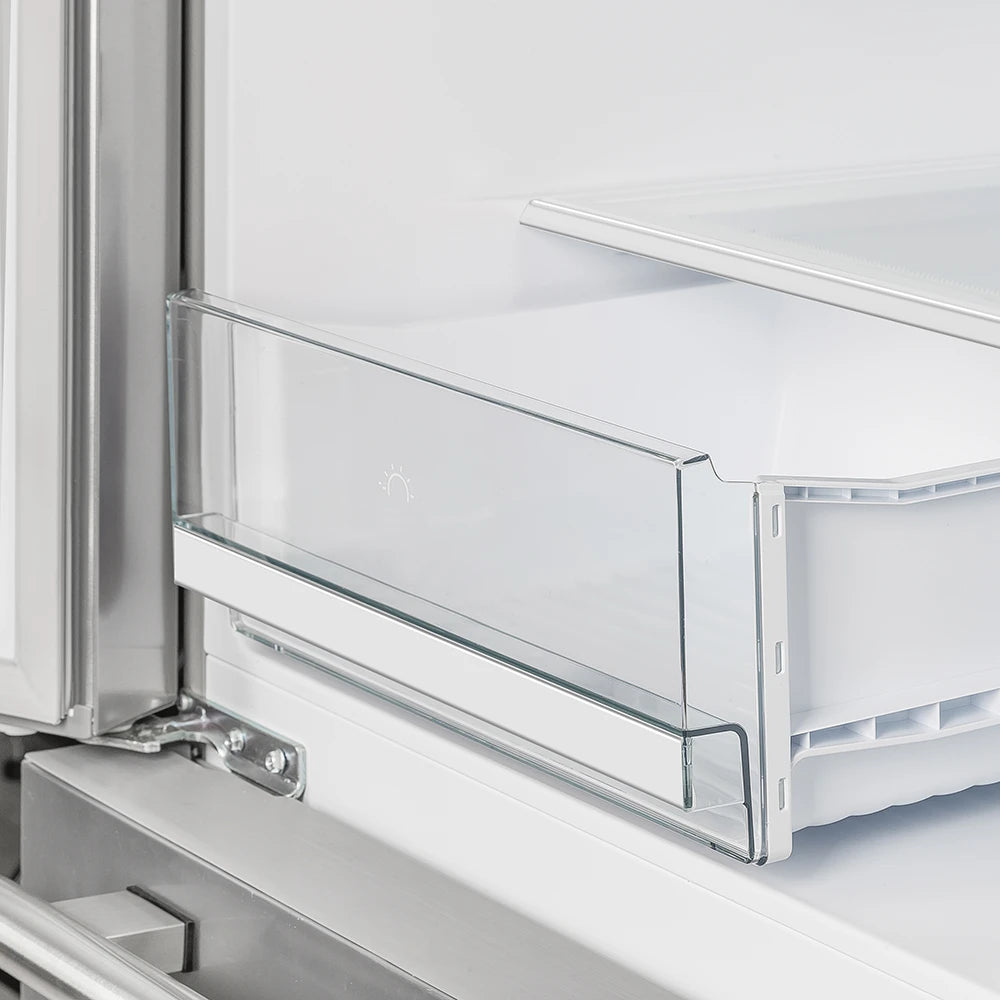

  • Equipped with see-through drawers and door bins for effortless organization and instant visibility.
  • 12.1 cu.ft. fresh and 7.1 cu.ft. freezer storage capacity offered
  • 7.1 cu. ft. freezer storage capacity.
  • ENERGY STAR Certified.
