Sale price $1,566.00 Regular price $2,034.97 Save $468.97 / 23% OFF

Product Details for Forno FFRBI170421

Technical Details

Header

Model Number FFRBI1704-21
Brand Name FORNO
Product UPC 686136917704
Market USA,CANADA
Collection Name Alta Qualita
Serie's Name Rivestito
Product Name (Short & Sweet) < 36 Characters Rivestito 22" Panel Ready Fridge
Product Description (more detailed) <= 100 characters Forno Rivestito 22" Panel Ready Bottom Freezer Refrigerator, 8.3 cu. ft., Ice Maker, Total No Frost
Product Description (more detailed) > 100 characters Forno Rivestito 22 Inch Panel Ready Bottom Freezer Refrigerator, 8.3 cu. ft., Ice Maker, Total No Frost, Fast Cool & Fast Freeze

Technical information

Color/Finish White
Control Location Top
Primary Material Metal/Plastic
Number of pallet 0
NSF/ANSI/CAN 372 Certified No
Energy Star Most Efficient No
Minimum Top Clearance (IN) 0.16
Sides Clearance - On Each Sides (IN) 0.43
Height Top of Door Hinge (inches) 69.93
Depth Drawer(s) Open (inches) 32.25
Number of Power Cord 1
Estimated Annual Operating Cost (USD) 65
Power Consumption Defrost Wattage (W) 160
Temperature Range Freezer (°C) -22 to -15
Freezer door storage No
Freezer tray Dimensions WxDxH N/A
Ice Bin Size WxDxH 8.1 x 10.5 x 6.3
Upper Freezer Drawer(s)/Basket Size WxDxH 16.5 x 10.5 x 5.5
Number of Freezer Drawers 3
Interior Freezer Dimensions Depth 12.12
Interior Freezer Dimensions W x D x H (in) 17 x 12.12 x 22.18
Freezer Door Style Swing Door
Temperature Range Refrigerator (°C) 1 to 6
Door Bins Material Plastic
Standard Door Bins Size WxDxH Upper: 17.18 x 4.81 x 1.93Lower: 17.18 x 4.81 x 3.93
Gallon (4 Liters) Door Bin(s) Size WxDxH N/A
Adjustable Door Storage Yes
Fresh Food Door Type Swing Door
Number of Adjustable Shelves 3
Fresh Food Shelves Material Glass With Silver Trim
Fresh Food drawer(s) Size WxDxH 17.93 x 11.25 x 4.81
Temperature Controlled Drawer(s) Yes
Interior Fresh Food Dimensions Height 36.81
Interior Fresh Food Dimensions Width 18.56
Fresh Food Capacity Cu. Ft. 6.00
Cooling Type Total No Frost
Water Pipe Length (Feet) 5.00
Matching Replacement Water Filter Model No
Noise Level (dBA) 39.00
Fast Cool Function Yes
Energy Saver Mode Yes
Cabinet Color White
Door Liner Color White
Door Texture Custom Panel
Pantry Drawer Yes
Electronic Temperature Control Yes
External Dispenser No
Dispenser Type N/A
Daily Ice Production (lbs) 1.76
Automatic Ice Level Control Yes
Ice Type Cubed
Flat back design Yes
LTL or Parcel LTL
Handle Color/Finish No Handle
Interior Light Yes
Clock No
Interior Light(s) Type LED
CEE Tier Qualified No
NSF/ANSI 61 Certified No
Minimum Back Clearance (IN) 0.18
Height Top of the Cabinet/Case (inches) 70.12
Height Top of the Door (inches) 67.50
Power Cord Location Lower Back
Energy Consumption (kWh/yr) 464
Power Consumption Cooling Wattage (W) 100
Temperature Range Freezer (°F) -9 to 5
Freezer Section Layout Freezer Drawers
Extra Freezer Tray No
Lower Freezer Drawer(s)/Basket Size WxDxH 16.5 x 8.6 x 8.2
Number of Freezer Basket 0
Interior Freezer Dimensions Height 22.18
Interior Freezer Dimensions Width 17.00
Freezer Light No
Freezer Capacity 2.30
Temperature Range Refrigerator (°F) 34 to 43
Door Bins Color Transparent Gray with Silver Trim
Number of Standard Door Bins 3
Number of Gallon (4 Liters) Door Bins 0
Door Storage Yes
Fresh Food Shelve(s) Size WxDxH 18.12 x 11.62
Adjustable Fresh Food Shelves Yes
Number of Fresh Food Shelves 4

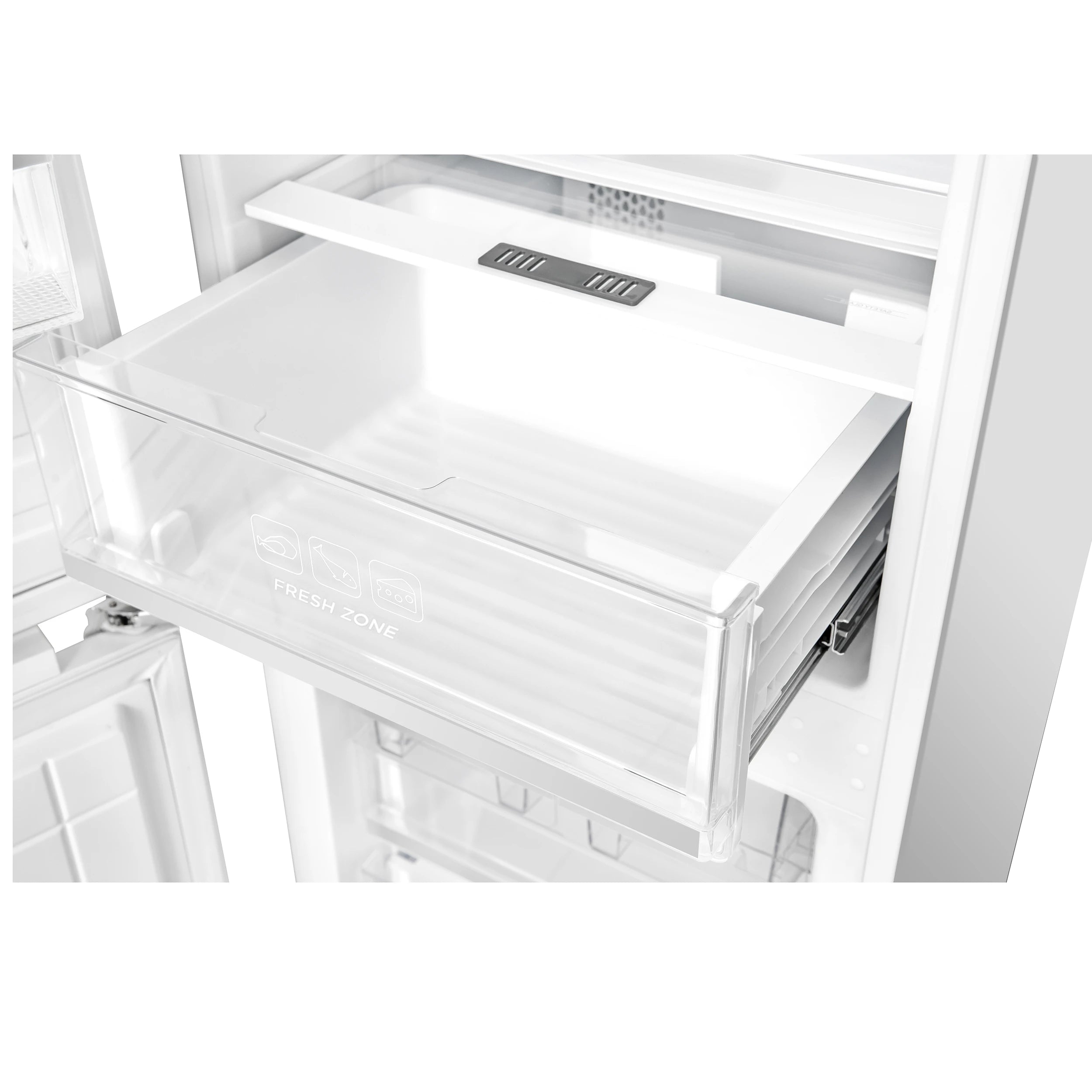

Humidity Controleld Drawer(s) Yes
Number of Fresh Food drawers 2
Interior Fresh Food Dimensions Depth 17.31
Interior Fresh Food Dimensions W x D x H (inches) 18.56 x 17.31 x 36. 81
Dual Evaporator Cooling System No
Toe Grille Color N/A
Water Pipe Included Yes
Extra Water Filter No
See-Thru Door No
Fast Freeze Function Yes
Air Filtration No
Cabinet Material VCM
Door Liner Material HIPS
Door Style Flat
Spill-Proof Shelves Yes
Temperature Memory Function No
Water Dispenser No
Filtered Ice No
Removable Ice Bucket Yes
Ice Maker Type Automatic
Ice Maker Yes
Overall Capacity Cu. Ft. 8.30
Number of Lights 1
Fingerprint-Resistant Yes

General product weight & dimensions

Product Overall Weight (lbs) 132.00
Product Width (in) 21.25
Product Height (in) 69.93
Cutout Width (INCH) 22.06
Cutout Height (INCH) 70.12
Depth Without Handle(s) (INCH) 21.62
Depth with Door Open 90º (IN) 44.37
Height Top of the Door (inches) 67.50
Height Top of the Cabinet/Case (inches) 70.12
Interior Fresh Food Dimensions W x D x H (inches) 18.56 x 17.31 x 36. 81
Product Dimensions W x D x H (inches) 21.25 x 21.62 x 69.93
Product Depth (in) 21.62
Cutout dimensions W x D x H (inch) 22.06 x 22.12 x 70.12
Cutout Depth (INCH) 22.12
Product Depth With Handle (IN) N/A
Depth Drawer(s) Open (inches) 32.25
Height Top of Door Hinge (inches) 69.93
Interior Freezer Dimensions W x D x H (in) 17 x 12.12 x 22.18

Certification

Certificate of Conformity (GCC) N/A
Energy Star Certified No
NSF/ANSI 61 Certified No
NSF/ANSI/CAN 372 Certified No
Star-K Certified No
CEE Tier Qualified No
Safety Listing cETLus
Energy Policy Act 1992 Compliant N/A
Title 20 - California Regulation N/A
ISTA 6A Yes
ADA Compliant No
TAA Compliant N/A
UPLR Compliant N/A

Warranty

Commercial Warranty No
Warranty on Parts 2 years
Warranty Script (English) Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances
Warranty Type Limited
Warranty on Labor 2 years
Warranty Length (Years) 2 Years

Shipping

Shipping Method LTL
Shipping Depth Box 1 (with pallet) 48
Shipping Width Box 1 (with pallet) 40
Needs to be shipped on a pallet Yes
Shipping Weight Box 1 (Carton Weight + 35 lbs) 183.8
Shipping Height Box 1 (Height carton + 6-inch of the pallet) 78.43

Description

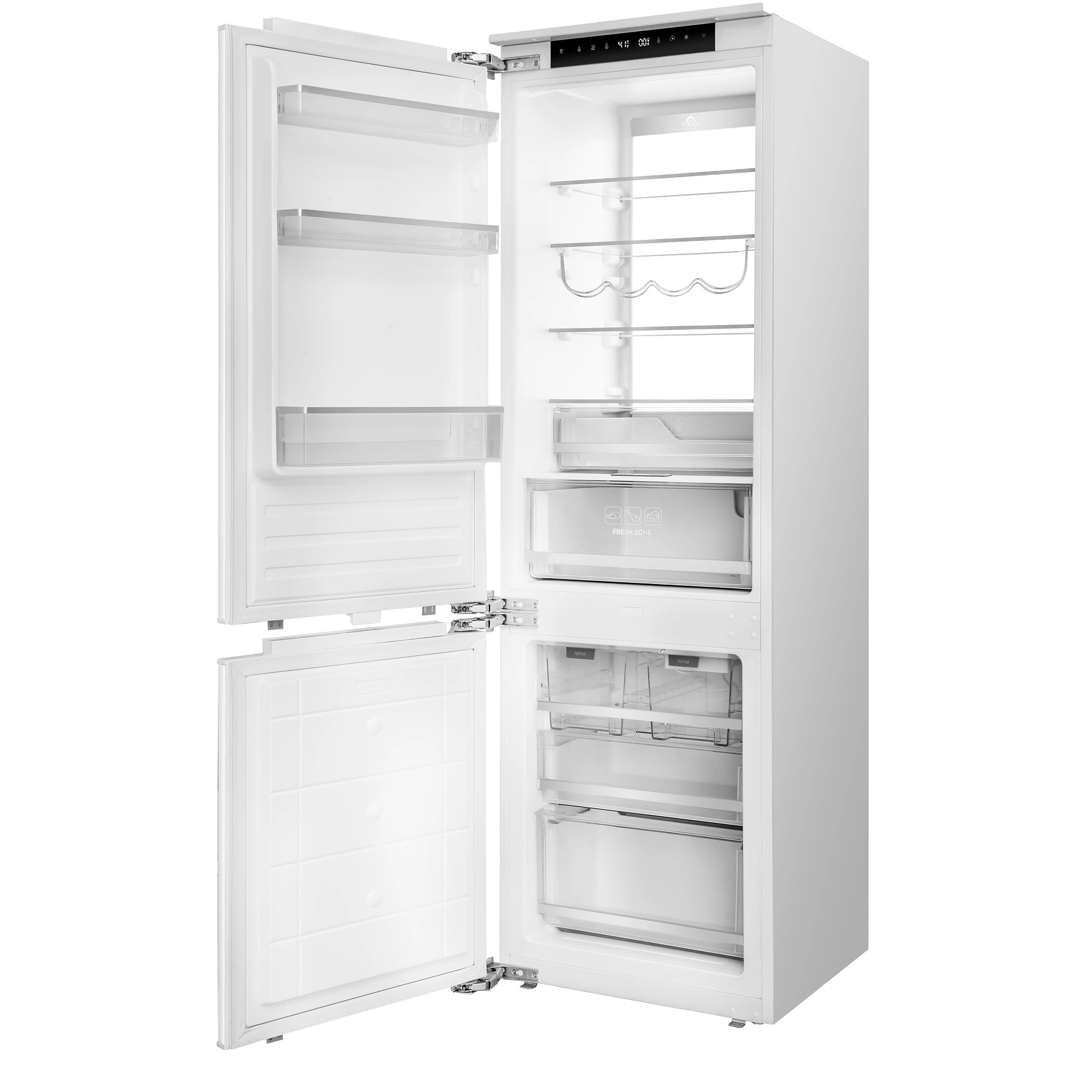

Discover the perfect blend of customization and performance with the 22-inch Built-in Bottom Freezer Refrigerator. With its a Panel-Ready design and Counter-Depth dimensions, this refrigerator integrates seamlessly with your custom cabinetry for a clean, high-end kitchen look. Enjoy 8.3 cu. ft. of space in a compact, space-saving profile. The Total No-Frost system keeps both fridge and freezer ice-free, while the humidity-controlled drawer preserves fresh produce longer. A dedicated wire wine rack, three spacious freezer drawers, and an automatic ice maker keep your storage organized and convenient. Fast Cool & Freeze modes quickly restore temperatures after grocery runs. Easily adjust settings with the modern Touch Control panel, and ensure flawless cabinet integration with 3D door adjustment. Energy-efficient and feature-rich, this built-in refrigerator combines premium design with effortless performance.


Product Features

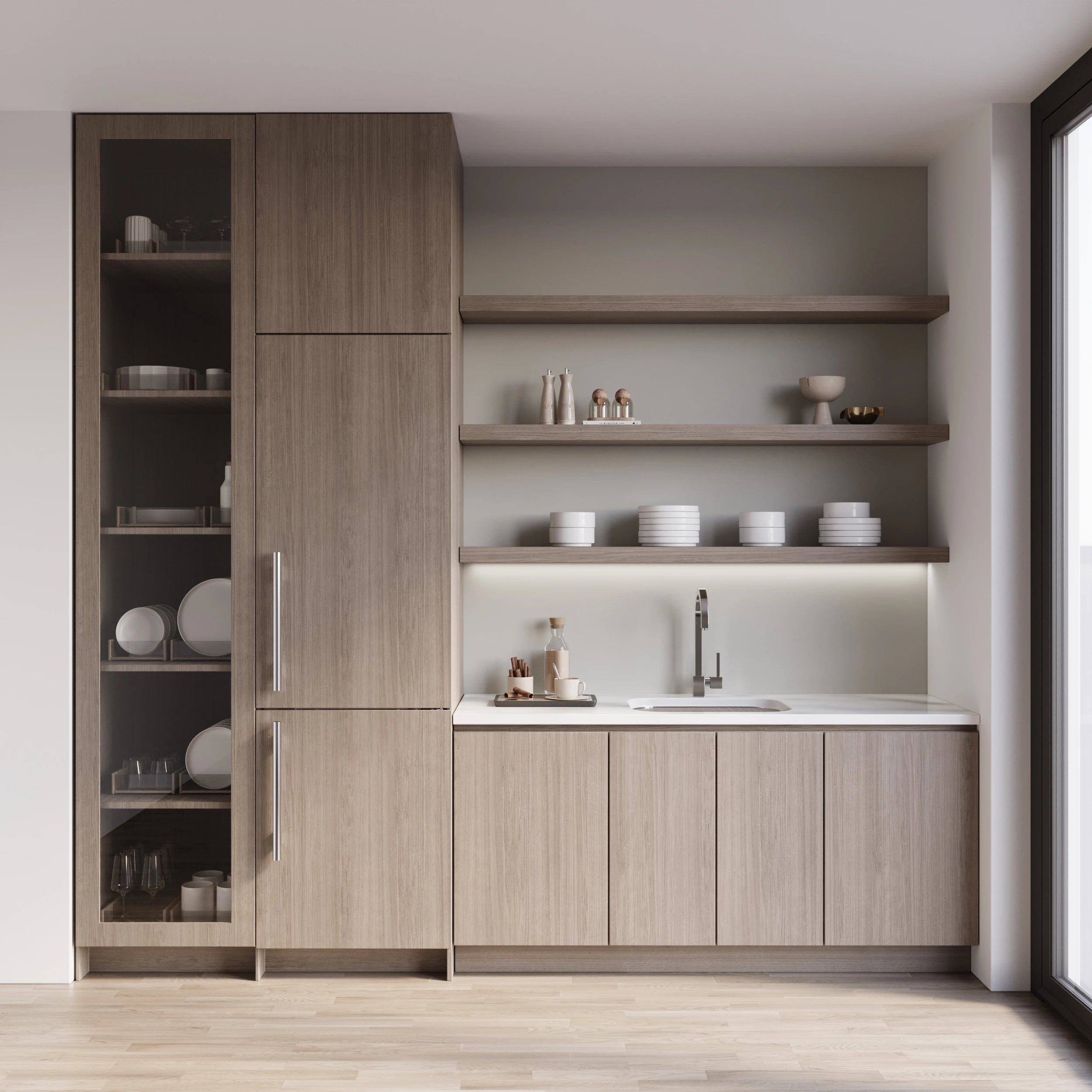

  • Seamless Style: This panel-ready bottom freezer blends perfectly with your custom cabinetry.
  • True Built-In Fit: The 22 Inch counter-depth design sits flush for a clean, premium kitchen look.
  • Compact Capacity: Get a full 8.3 cu. ft. of storage without sacrificing valuable kitchen space.
  • Total No-Frost: Delivers ice-free cooling and freezing, eliminating the need for manual defrosting.

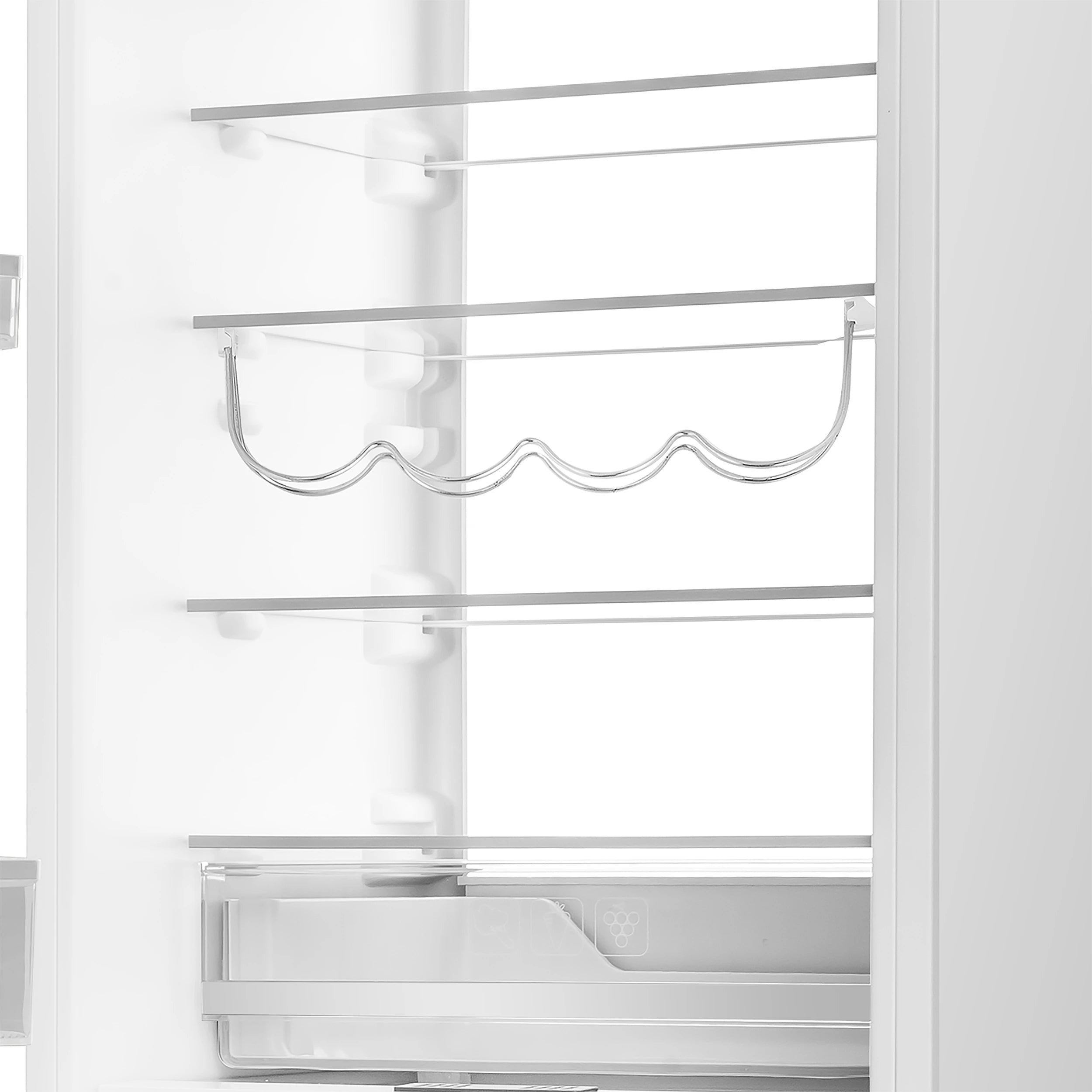

  • Perfect Wine Storage: A dedicated wire rack keeps your favorite bottles ideally chilled.
  • Fast Cool & Freeze: Boost cooling instantly—ideal after large grocery runs.
  • Streamlined Freezer Design: Three spacious freezer drawers keep all your frozen foods neatly sorted and easy to reach.

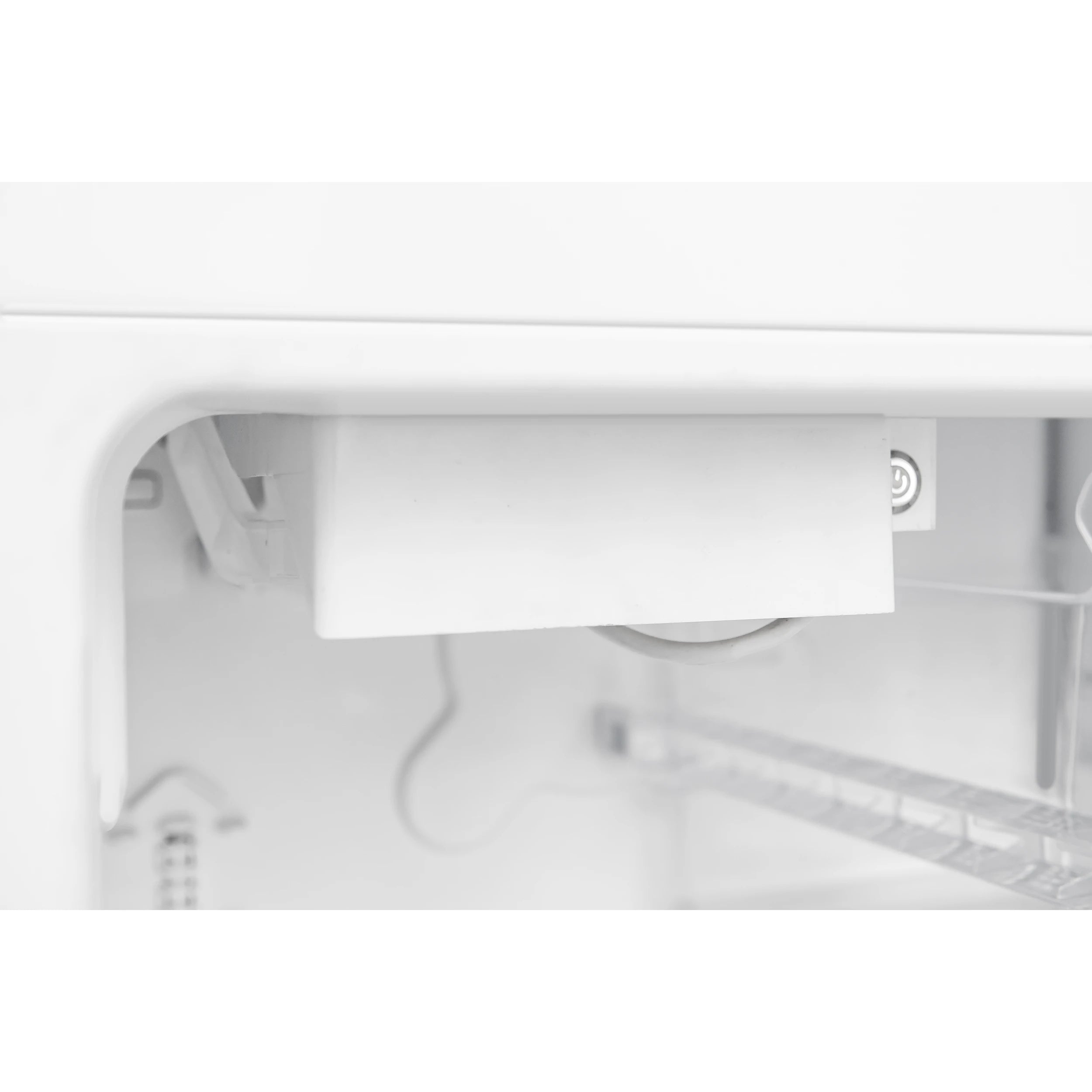

  • Ice On Demand: The built-in automatic ice maker delivers fresh, ready-to-use ice whenever you need it.

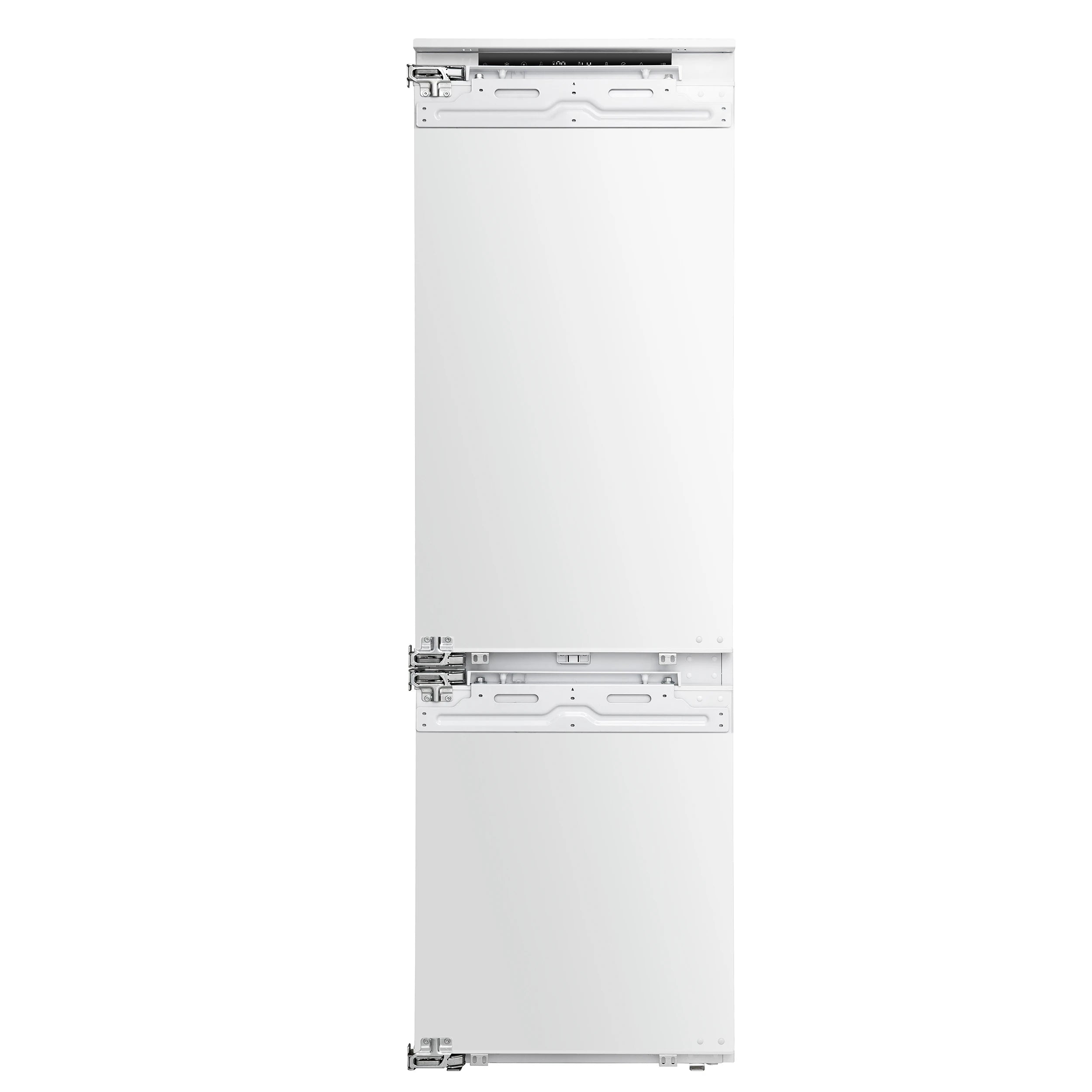

  • Panel Ready Bottom Freezer Design for custom cabinetry
  • Optimal 8.3 Cu. Ft. Capacity in a space-saving, slimline design
  • Wired Wine Rack and spill-proof shelves
  • Perfect Alignment: Advanced 3D door adjustment ensures flawless custom panel fit.
  • Easy Cleanup: Spill-proof glass shelves contain messes for quick, stress-free cleaning.

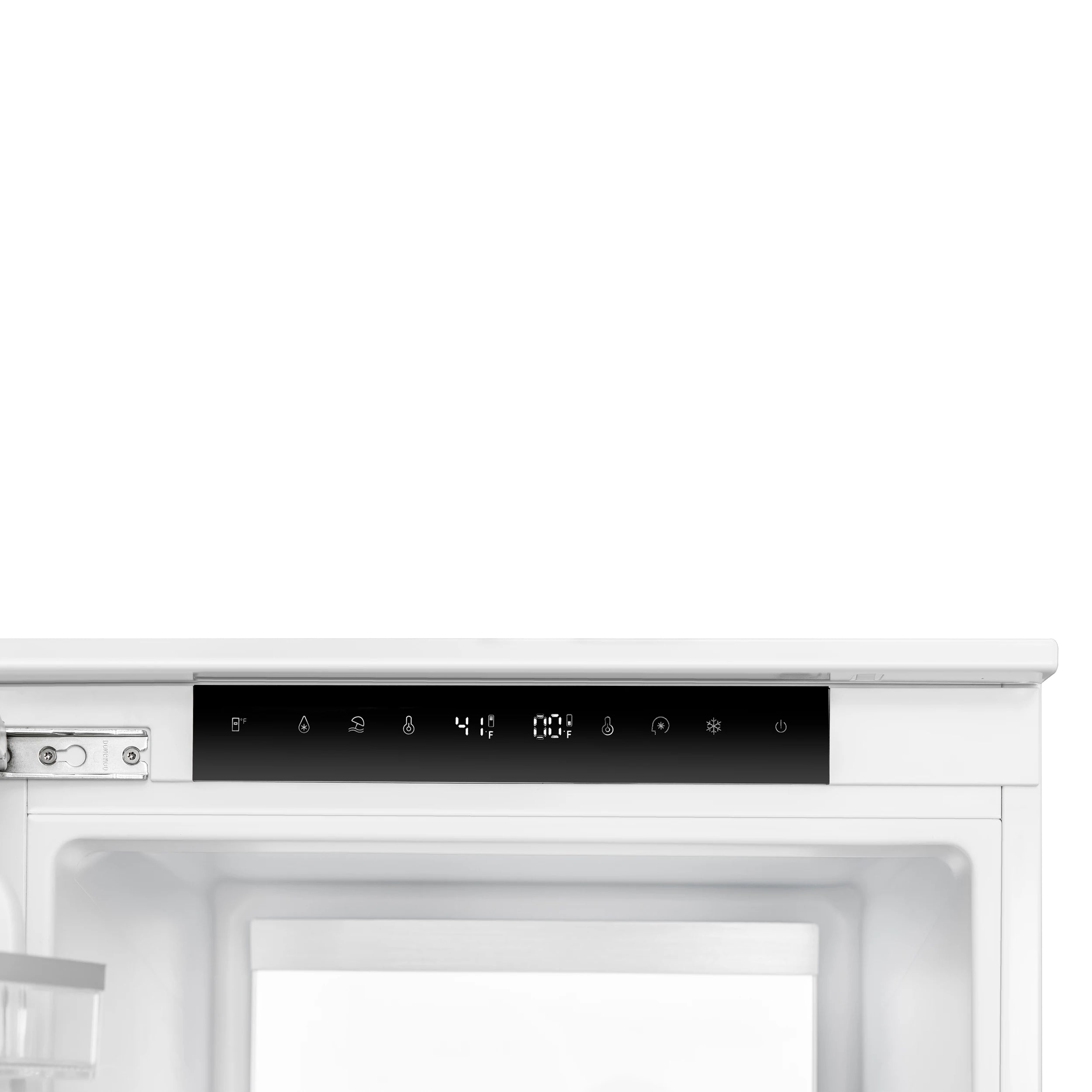

  • Intuitive Touch Control: Effortlessly adjust temperatures and settings with a sleek, modern touch interface.
  • 22 Inch counter-Depth for seamless, flush integration
  • Automatic Ice maker
  • Fast Cool & Fast Freeze modes
