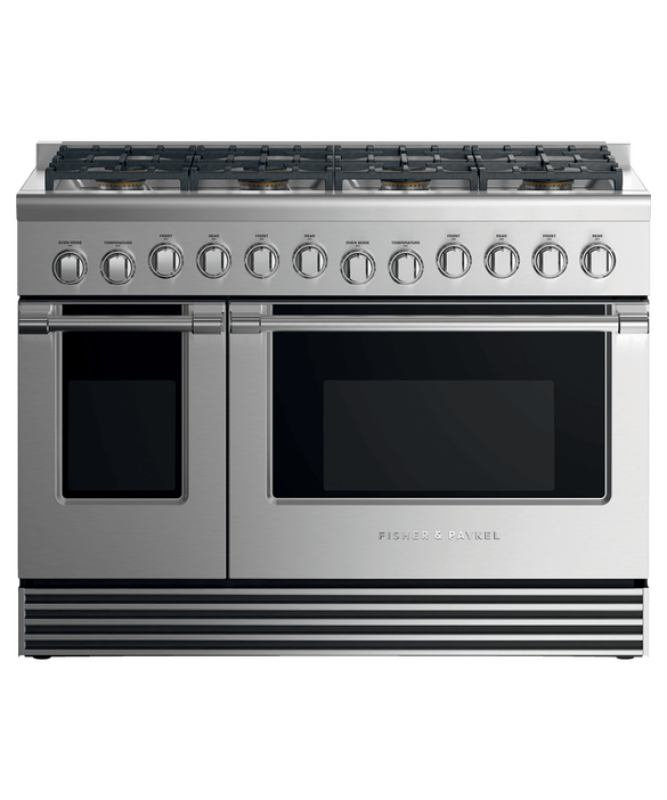

Fisher Paykel RGV2488NN 48" Series 7 Professional 8 Burner Gas Range, Natural Gas Stainless Steel
Sale price
Contact us for Pricing
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Product Details for Fisher Paykel RGV2488NN
Technical Details
Gas requirements
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
Main oven features
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
Oven performance
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Bake | Yes |
| Bake | 28000 BTU |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Amperage | 15A |
| Rated current | 15A |
Main oven functions
| Number of main oven functions | 3 |
Rangetop features
| Sealed Dual Flow Burners™ | 8 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Vent trim included | Yes |
| Sealed range top | Yes |
Rangetop performance
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU (2) |
| Power front right | 23,500 BTU |
| Total cooktop power | 158,000 BTU |
| Power back right | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power front centre | 18,500 BTU (2) |
| Power front left | 23,500 BTU |
| Power back centre (2) | 18500 BTU |
| Power front centre (2) | 18500 BTU |
Recommended back guards and ventilation
| Combustible situation | BGRV2-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Minimum CFM | 1,200 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
Secondary oven features
| Capacity total (AHAM) | 2.4 cu ft |
| 3/4 Extension racks | 2 |
| Capacity usable (AHAM) | 1.7 cu ft |
| Shelf positions | 5 |
| Electronic oven control | Yes |
| Internal light | Yes |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Bake | Yes |
| Proof | Yes |
Capacity
| Capacity usable (AHAM) | 3.9cu ft |
| Shelf positions | 5 |
| Capacity total (AHAM) | 5.3cu ft |
Cleaning
| Dishwasher proof trivets | Yes |
Controls
| Electric circuit | 3 wire |
| Metal illuminated dials | Yes |
Oven features
| Full extension telescopic sliding shelves | Yes |
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
Recommended back guards ventilation
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
Installation dimensions
| Height (excluding vent trim) | 35 3/4 - 36 3/4" |
Safety
| Full extension telescopic sliding shelves | Yes |
Other
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Sealed Dual Flow Burners™ | 8 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU (2) |
| Power back left | 18,500 BTU |
| Total cooktop power | 158,000 BTU |
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1,200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
| 3/4 Extension racks | 2 |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Parts and labor | Limited 2 years |
Dimensions & weight
| Width | 47.88 in. |
| Height | 44 in. |
| Length | 29.13 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 49 in. |
| Shipping Length | 34.13 in. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 35.5 ft³ |
| Dimensional Weight | 441.38 lbs. |
| Total of Cubes | 35.5 ft³ |
| Total of Dimensional Weight | 441.38 lbs. |
Description
Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.
Product Features
- Cooktop power
- Total control
- Easy to clean
- Instant visibility
- Cooking flexibility
- Consistent broiling
