SKU: RGV2488LN

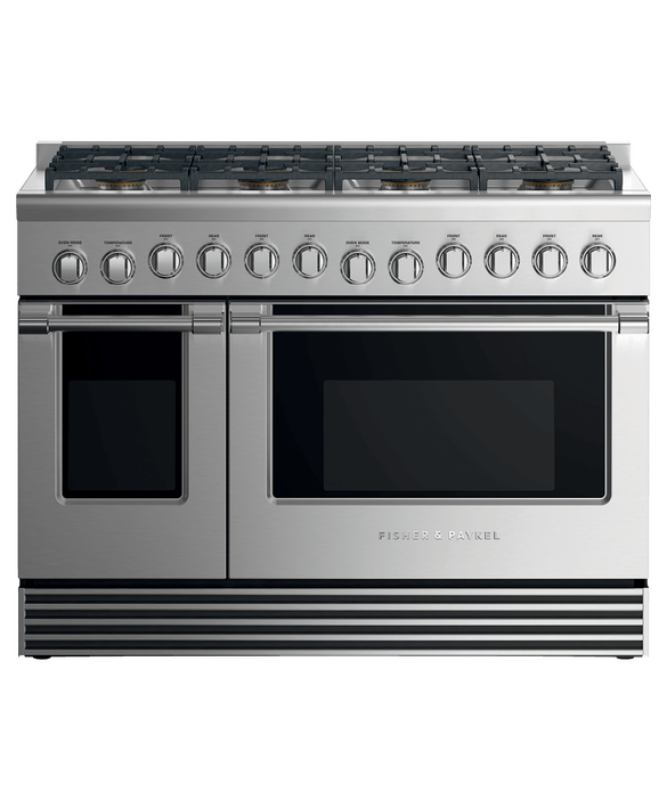

Fisher Paykel RGV2488LN Gas Range, 48", 8 Burners, LPG Other

Gas Range, 48", 8 Burners, LPG
Gas Range, 48", 8 Burners, LPG
Gas Range, 48", 8 Burners, LPG
Gas Range, 48", 8 Burners, LPG

Quick Specification More details

  • Width:
    47.88"
  • Depth:
    29.13"
  • Height:
    35 3/4 - 36 3/4"
  • Type:
    Freestanding Ranges

About this product

  • Cooktop power
  • Total control
  • Easy to clean
  • Instant visibility
Summer Sale
Clearance

SKU: RGV2488LN

Fisher Paykel RGV2488LN Gas Range, 48", 8 Burners, LPG Other

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    47.88"
  • Depth:
    29.13"
  • Height:
    35 3/4 - 36 3/4"
  • Type:
    Freestanding Ranges

About this product

  • Cooktop power
  • Total control
  • Easy to clean
  • Instant visibility

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Fisher Paykel RGV2488LN

Technical Details

Gas requirements
Fitting and pipe ½ NPT, min. ⅝" Ø flex line
Supply Pressure (natural gas) 6" to 9" W.C

Main oven features
Capacity total (AHAM) 5.3 cu ft
Capacity usable (AHAM) 3.9 cu ft
Full extension telescopic racks 3
Shelf positions 5

Oven performance
Main oven - Bake power 28,000 BTU
Secondary oven - Bake power 18,000 BTU
Main oven - Broil power 19000 BTU
Bake Yes
Bake 28000 BTU

Power requirements
Supply frequency 60Hz
Amperage 15A
Supply voltage 120V
Rated current 15A

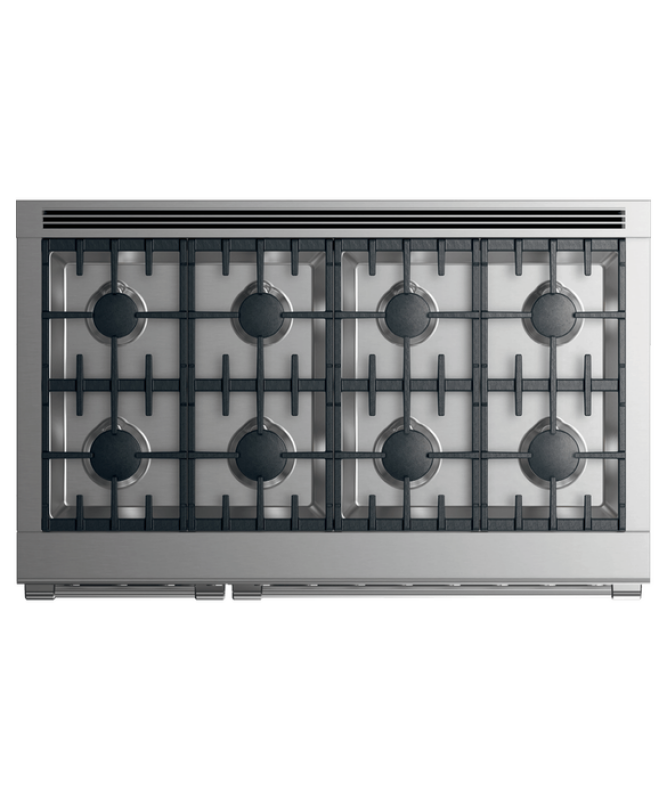

Rangetop features
Simmer on all burners 140°F
Vent trim included Flat vent trim
Sealed Dual Flow Burners™ 8
Sealed range top Yes
Vent trim included Yes

Main oven functions
Number of main oven functions 3

Rangetop performance
Power back left 18,500 BTU
Power front centre 18,500 BTU (2)
Power front right 23,500 BTU
Power back right 18,500 BTU
Power back centre 18,500 BTU (2)
Total cooktop power 158,000 BTU
Max burner power 23,500 BTU
Power front left 23,500 BTU
Power back centre (2) 18500 BTU
Power front centre (2) 18500 BTU

Recommended back guards and ventilation
Recommended hood HCB48-12_N (48" Professional Range Hood, Dual Blower)
Combustible situation BGRV2-3048H
Non combustible situation BGRV2-3048 / BGRV2-1248
Minimum CFM 1,200

Secondary oven features
3/4 Extension racks 2
Capacity total (AHAM) 2.4 cu ft
Capacity usable (AHAM) 1.7 cu ft
Shelf positions 5
Electronic oven control Yes
Internal light Yes

Secondary oven functions
Number of secondary oven functions 2
Proof Yes
Bake Yes

Warranty
Parts and labor Limited 2 years
Parts 2 Year
Labor 2 Year

Capacity
Capacity total (AHAM) 5.3cu ft
Capacity usable (AHAM) 3.9cu ft
Shelf positions 5

Controls
Metal illuminated dials Yes
Electric circuit 3 wire

Cleaning
Dishwasher proof trivets Yes

Gas requirements
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line

Installation dimensions
Height (excluding vent trim) 35 3/4 - 36 3/4"

Oven features
Full extension telescopic sliding shelves Yes

Recommended back guards ventilation
Combustible situation BGRV2-3048H
Minimum CFM 1200
Non combustible situation BGRV2-3048 / BGRV2-1248
Recommended hood HCB48-12_N (48"" Professional Range Hood, Dual Blower)

Safety
Full extension telescopic sliding shelves Yes

Other
Fitting and pipe ½ NPT, min. ⅝" Ø flex line
Supply Pressure (natural gas) 6" to 9" W.C
Capacity total (AHAM) 5.3 cu ft
Full extension telescopic racks 3
Shelf positions 5
Main oven - Bake power 28,000 BTU
Capacity usable (AHAM) 3.9 cu ft
Main oven - Broil power 19000 BTU
Secondary oven - Bake power 18,000 BTU
Amperage 15A
Supply frequency 60Hz
Supply voltage 120V
Sealed Dual Flow Burners™ 8
Simmer on all burners 140°F
Vent trim included Flat vent trim
Max burner power 23,500 BTU
Power back centre 18,500 BTU (2)
Power back left 18,500 BTU
Total cooktop power 158,000 BTU
Combustible situation BGRV2-3048H
Minimum CFM 1,200
Non combustible situation BGRV2-3048 / BGRV2-1248
Recommended hood HCB48-12_N (48" Professional Range Hood, Dual Blower)
3/4 Extension racks 2
Capacity total (AHAM) 2.4 cu ft
Capacity usable (AHAM) 1.7 cu ft
Parts and labor Limited 2 years

Dimensions & weight
Width 47.88 in.
Height 44 in.
Length 29.13 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 52.88 in.
Shipping Height 49 in.
Shipping Length 34.13 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 35.5 ft³
Dimensional Weight 441.38 lbs.
Total of Cubes 35.5 ft³
Total of Dimensional Weight 441.38 lbs.

Description

A striking addition to your kitchen, with eight powerful gas burners and two gas ovens giving you a combined capacity of 7.7 cu ft.
Finish Stainless Steel Fuel Type LPG


Product Features

  • Cooktop power
  • Total control
  • Easy to clean
  • Instant visibility
  • Cooking flexibility
  • Consistent broiling
