SKU: RGV2304LN

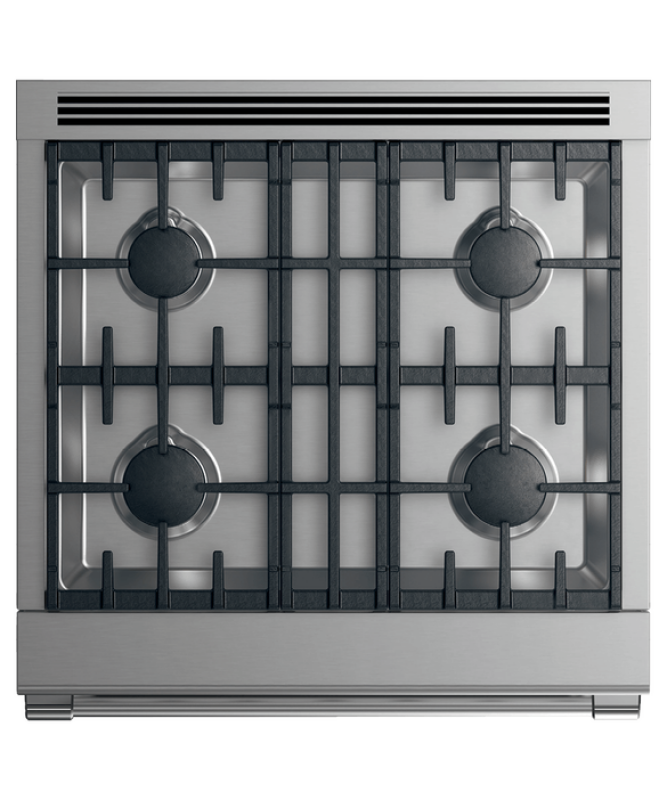

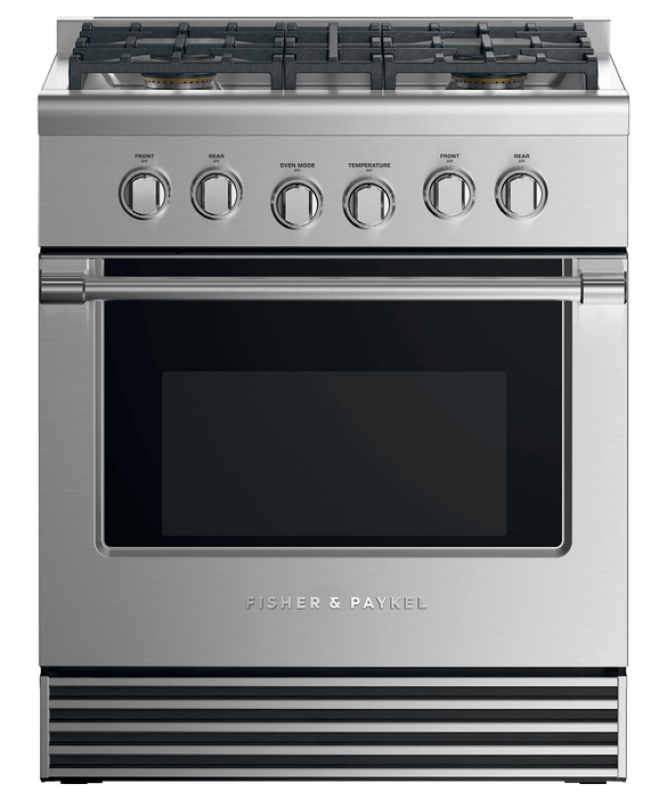

Fisher Paykel RGV2304LN 30" Series 7 Professional 4 Burner Gas Range, LPG Stainless Steel

30" Series 7 Professional 4 Burner Gas Range, LPG
30" Series 7 Professional 4 Burner Gas Range, LPG
30" Series 7 Professional 4 Burner Gas Range, LPG
30" Series 7 Professional 4 Burner Gas Range, LPG

Quick Specification More details

  • Width:
    29.88"
  • Depth:
    29.13"
  • Height:
    35 3/4 - 36 3/4"
  • Type:
    Freestanding Ranges

About this product

  • Cooktop power
  • Total control
  • Easy to clean
  • Instant visibility

SKU: RGV2304LN

Fisher Paykel RGV2304LN 30" Series 7 Professional 4 Burner Gas Range, LPG Stainless Steel

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    29.88"
  • Depth:
    29.13"
  • Height:
    35 3/4 - 36 3/4"
  • Type:
    Freestanding Ranges

About this product

  • Cooktop power
  • Total control
  • Easy to clean
  • Instant visibility

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Fisher Paykel RGV2304LN

Technical Details

Capacity
Total capacity 4.6 cu ft
Shelf positions 5
Usable capacity 3.4 cu ft
Usable capacity 3.4cu ft
Total capacity 4.6cu ft
Capacity usable (AHAM) 3.4cu ft
Capacity total (AHAM) 4.6cu ft

Gas requirements
Fitting and pipe ½ NPT, min. ⅝" Ø flex line
Supply Pressure (natural gas) 6" to 9" W.C

Oven features
Full extension telescopic sliding shelves 3
Electronic oven control Yes
Broil pan Yes
Infrared Broiler Yes
Full extension telescopic sliding shelves Yes
Internal light Yes

Oven performance
Broil power 19,000 BTU
Bake power 28,000 BTU
Bake 28000 BTU
Bake power 22,000 BTU
Broil 19000 BTU

Oven functions
Number of functions 3
Bake Yes
Broil Yes
Convection bake Yes

Power requirements
Supply frequency 60Hz
Amperage 15A
Supply voltage 120V
Rated current 15A

Rangetop features
Simmer on all burners 140°F
Sealed Dual Flow Burners™ 4
Vent trim included Flat vent trim
Sealed range top Yes
Vent trim included Yes

Rangetop performance
Max burner power 22,500 BTU
Power back centre 18,500 BTU
Power back right 18,500 BTU
Power front left 22,500 BTU
Power front right 18,500 BTU
Total cooktop power 78,000 BTU
Max burner power 19,000 BTU
Power back centre 18500 BTU
Power back left 15,000 BTU
Power back right 15,000 BTU
Power front left 19,000 BTU
Total cooktop power 60,000 BTU
Power front right 15,000 BTU

Recommended back guards and ventilation
Non combustible situation BGRV2-3030 / BGRV2-1230
Recommended hood HCB30-6_N (Professional Range Hood)
Combustible situation BGRV2-3030H
Minimum CFM 600

Warranty
Parts and labor Limited 2 years
Parts 2 Year
Labor 2 Year

Cleaning
Dishwasher proof trivets Yes

Controls
Metal illuminated dials Yes
Electric circuit 3 wire

Gas requirements
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (LPG) 11" to 14" W.C

Installation dimensions
Height (excluding vent trim) 35 3/4 - 36 3/4"

Recommended back guards ventilation
Combustible situation BGRV2-3030H
Recommended hood HCB30-6_N (Professional Range Hood)
Minimum CFM 600
Non combustible situation BGRV2-3030 / BGRV2-1230

Safety
Full extension telescopic sliding shelves Yes

Other
Shelf positions 5
Total capacity 4.6 cu ft
Usable capacity 3.4 cu ft
Fitting and pipe ½ NPT, min. ⅝" Ø flex line
Supply Pressure (natural gas) 6" to 9" W.C
Full extension telescopic sliding shelves 3
Bake power 28,000 BTU
Broil power 19,000 BTU
Amperage 15A
Supply frequency 60Hz
Supply voltage 120V
Sealed Dual Flow Burners™ 4
Simmer on all burners 140°F
Vent trim included Flat vent trim
Max burner power 22,500 BTU
Power back centre 18,500 BTU
Total cooktop power 78,000 BTU
Combustible situation BGRV2-3030H
Minimum CFM 600
Non combustible situation BGRV2-3030 / BGRV2-1230
Recommended hood HCB30-6_N (Professional Range Hood)
Parts and labor Limited 2 years

Dimensions & weight
Width 29.88 in.
Height 44 in.
Length 29.13 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 49 in.
Shipping Length 34.13 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 22.16 ft³
Dimensional Weight 275.43 lbs.
Total of Cubes 22.16 ft³
Total of Dimensional Weight 275.43 lbs.

Description

Professional style and performance, with powerful burners delivering high heat or the most gentle simmer.


Product Features

  • Cooktop power
  • Total control
  • Easy to clean
  • Instant visibility
  • Cooking flexibility
  • Design quality
