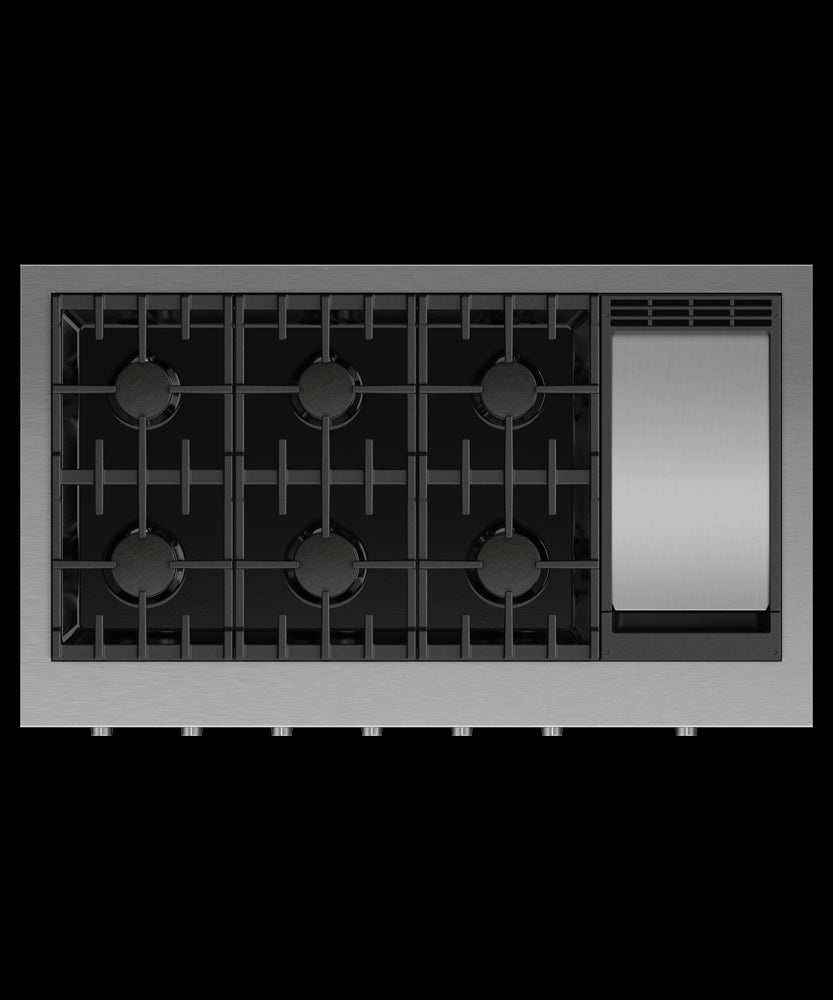

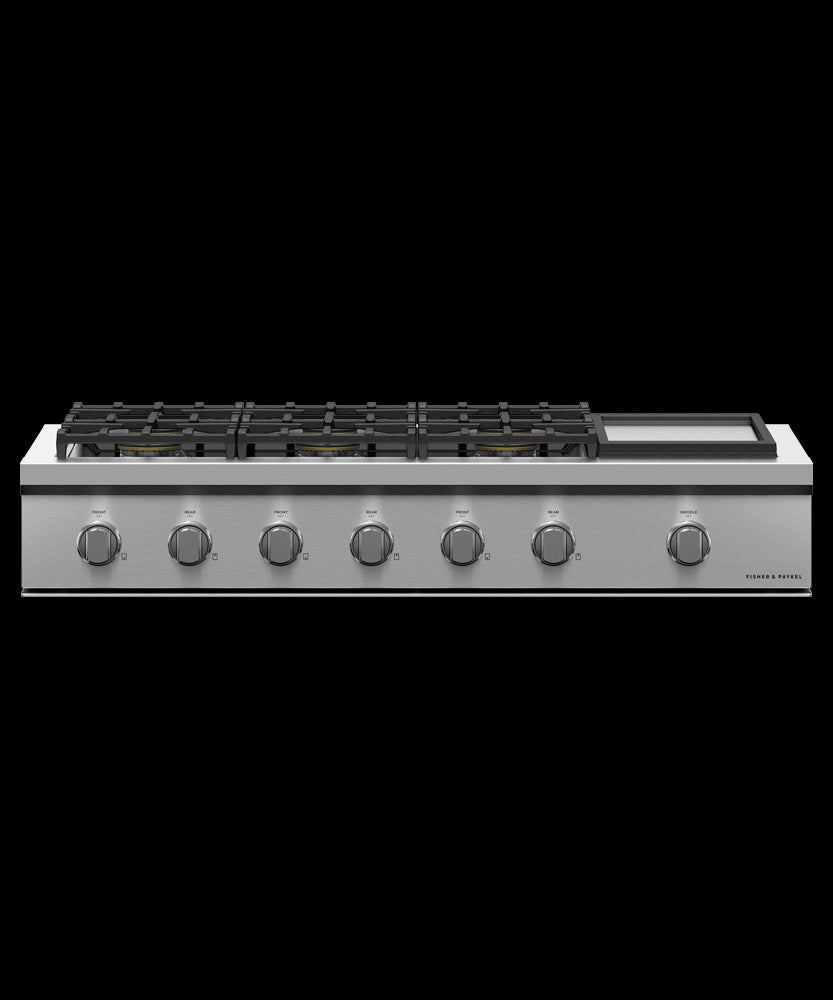

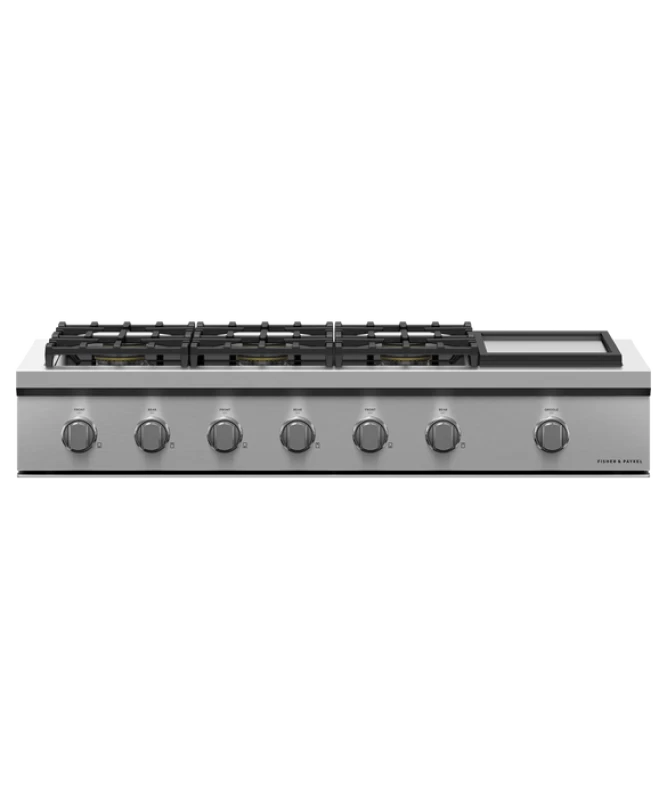

FISHER & PAYKEL CPV3486GDN Gas Rangetop, 48", Griddle
- SKU: CPV3486GDN
- Height:8.31 Inch
- Length:28 Inch
- Width: 47.87 Inch
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
Burner ratings | |
Max burner power | Yes |
Power back centre | 18500BTU |
Power back left | 18500BTU |
Power back right | 18500BTU |
Power front centre | 18500BTU |
Power front left | 23500BTU |
Power front right | 18500BTU |
Power griddle | 18000BTU |
Total cooktop power | 134000BTU |
Burners | |
Number of burners | 6 |
Cleaning | |
Controls | |
Gas Requirements | |
Fitting and pipe | 1/2 NPT, min. 5/8 " flex line |
Supply Pressure (natural gas) | 6 " to 9" W.C |
Performance | |
Sealed Dual Flow Burners™ | 6 |
Simmer on all burners | 140°F |
Power requirements | |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 28 " |
Height | 8 5 / 16 " |
Width | 47 7 / 8 " |
Recommended Back Guards Ventilation | |
Combustible situation | BGCV2-3048H |
Non combustible situation | BGCV2-3048 / BGCV2-1248 |
Pro hood | HCB48-12_N |
Safety | |
Warranty | |
Parts and labor | Limited 2 years |
FISHER & PAYKEL CPV3486GDN Gas Rangetop, 48", Griddle
