Product Details for Fisher Paykel CPV3486GDL

Technical Details

Warranty

Parts 2 Year
Labor 2 Year
Parts and labor Limited 2 years

Burner ratings

Max burner power Yes
Power back centre 18500BTU
Power back left 18500BTU
Power back right 18500BTU
Power front centre 18500BTU
Power front left 23500BTU
Power front right 18500BTU
Power griddle 18000BTU
Total cooktop power 134000BTU

Burners

Number of burners 6

Cleaning

Easy clean porcelain basepan Yes

Controls

Metal illuminated dials Yes
Star K Certification Yes

Gas requirements

Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (natural gas) 6" to 9" W.C

Performance

Auto re-ignition system Yes
Sealed Dual Flow Burners™ 6
Sealed range top Yes
Simmer on all burners 140°F

Power requirements

Supply frequency 60Hz
Supply voltage 120V

Recommended back guards ventilation

Combustible situation BGCV2-3048H
Non combustible situation BGCV2-3048 / BGCV2-1248
Pro hood HCB48-12_N

Safety

ADA compliant Yes

Zones

Number of elements 6

Dimensions & weight

Width 47 in.
Height 8 in.
Length 28 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 52 in.
Shipping Height 13 in.
Shipping Length 33 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.09 ft³
Dimensional Weight 75.74 lbs.
Total of Cubes 6.09 ft³
Total of Dimensional Weight 75.74 lbs.

Description

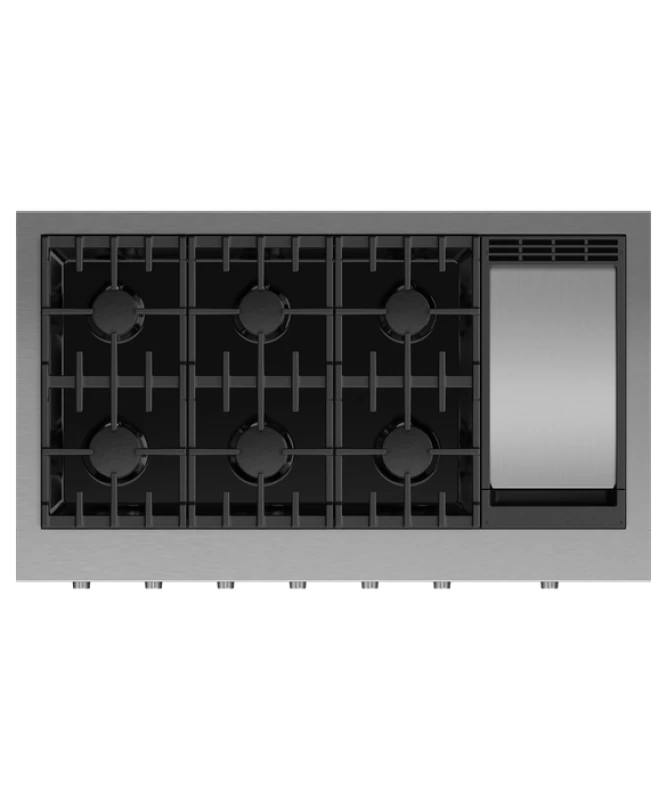

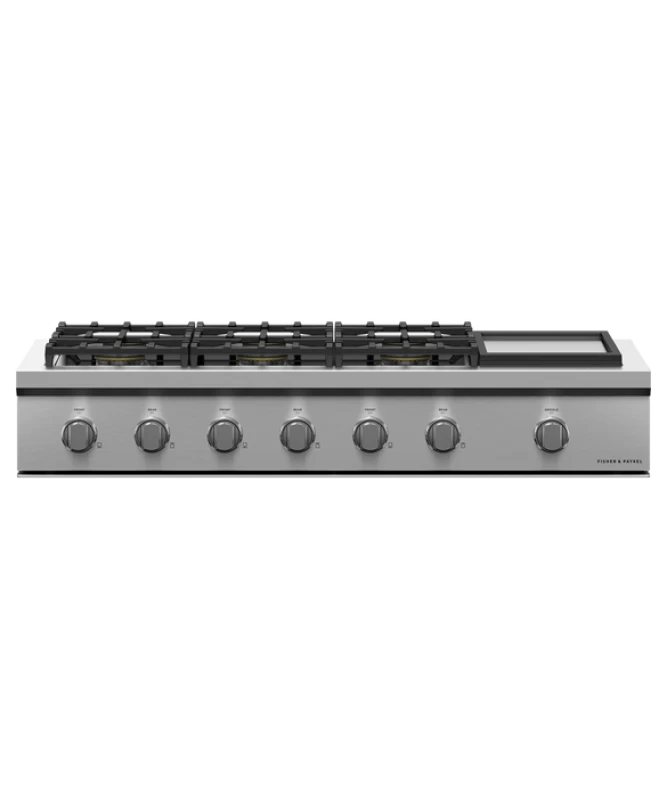

The Fisher & Paykel CPV3486GDL is a premium 48-inch gas rangetop that combines professional-grade performance with elegant design. It features six sealed Dual Flow Burners™, each capable of delivering up to 19,000 BTU, allowing for seriously fast boiling and precise simmering down to 140°F. The integrated stainless steel griddle provides additional cooking flexibility, ideal for preparing a variety of foods from pancakes to grilled sandwiches. The continuous surface grates are designed for pots and pans to move safely across the rangetop, with deep-platform style grates providing full coverage so heat goes directly onto the pot for a faster boil. The LED halo-illuminated control dials offer precise temperature control and provide a visual cue when burners are active. Cleaning is made easy with the sealed burners and a continuous, porcelain basepan. Built to last with craftsmanship in every detail, this rangetop features real stainless steel, cast-iron trivets, and titanium-coated dials, making it a durable and stylish addition to any kitchen.



Product Features

  • Cooktop Power
  • Precise Control
  • Cooking Flexibility
  • Easy To Clean
  • Information At A Glance
  • Design Quality
