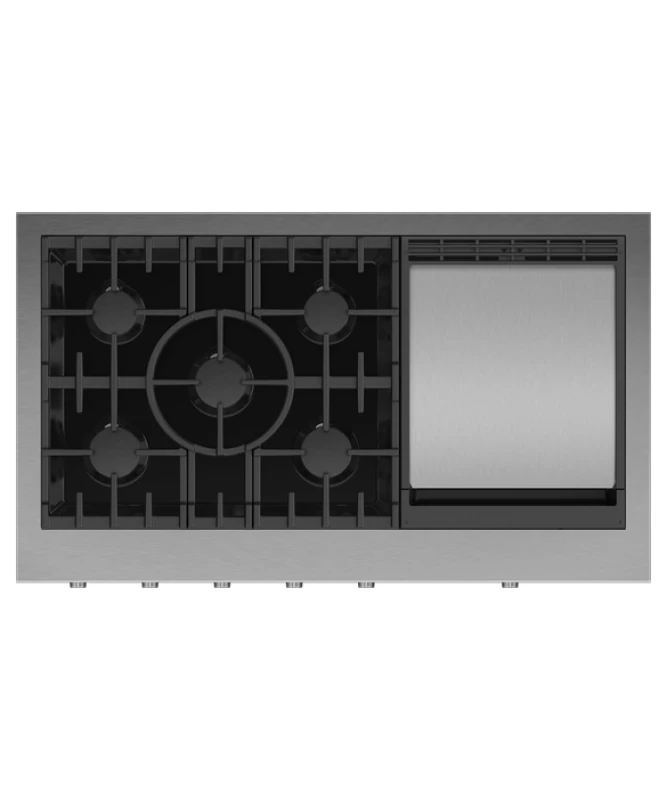

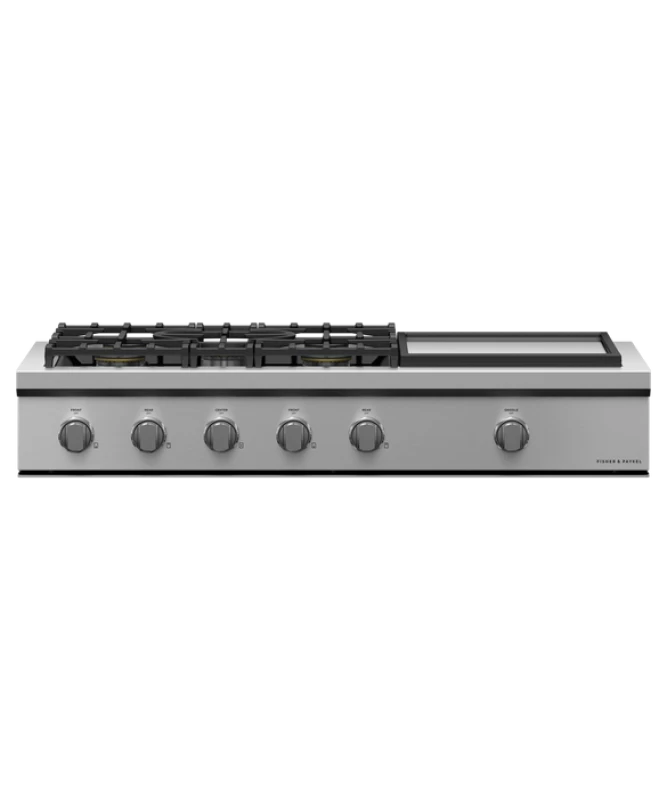

FISHER & PAYKEL CPV3485GDN Gas Rangetop, 48", Griddle
- SKU: CPV3485GDN
- Height:8.31 Inch
- Length:28 Inch
- Width: 47.87 Inch
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
Burner ratings | |
Max burner power | Yes |
Power back left | 18,500 BTU |
Power back right | 18,500 BTU |
Power front centre | 23,500 BTU |
Power front left | 18,500 BTU |
Power front right | 18,500 BTU |
Power griddle | 24,000 BTU |
Total cooktop power | 121,500 BTU |
Cleaning | |
Controls | |
Gas Requirements | |
Fitting and pipe | 1/2 NPT, min. 5/8 " flex line |
Supply Pressure (natural gas) | 6 " to 9" W.C |
Performance | |
Sealed Dual Flow Burners™ | 5 |
Simmer on all burners | 140°F |
Power requirements | |
Amperage | 15A |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 28 " |
Height | 8 5 / 16 " |
Width | 47 7 / 8 " |
Recommended Back Guards Ventilation | |
Combustible situation | BGCV2-3048H |
Non combustible situation | BGCV2-3048 / BGCV2-1248 |
Pro hood | HCB48-12_N |
Safety | |
Warranty | |
Parts and labor | 2 years |
Zone ratings | |
Front right | 18500 BTU |
