SKU: CPV2364GDLN | UPC: 822843713875

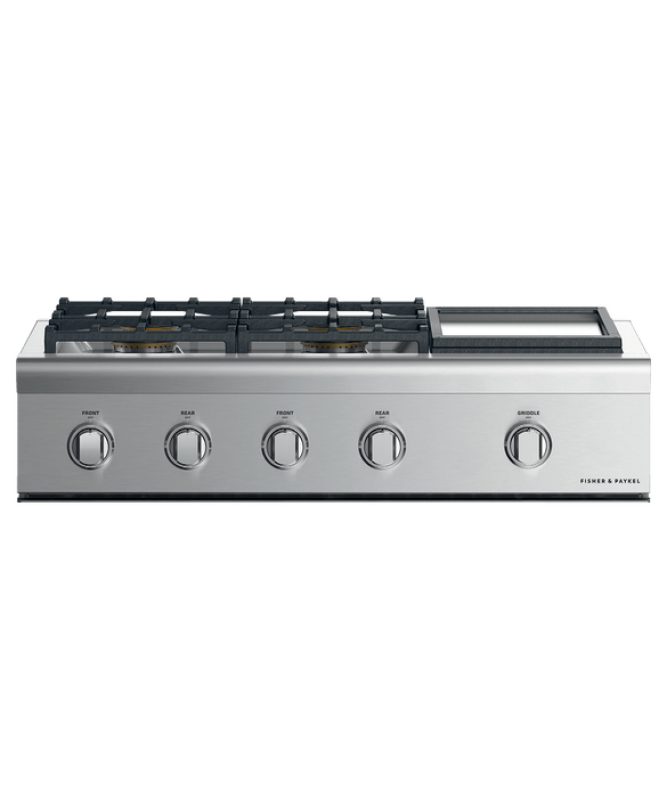

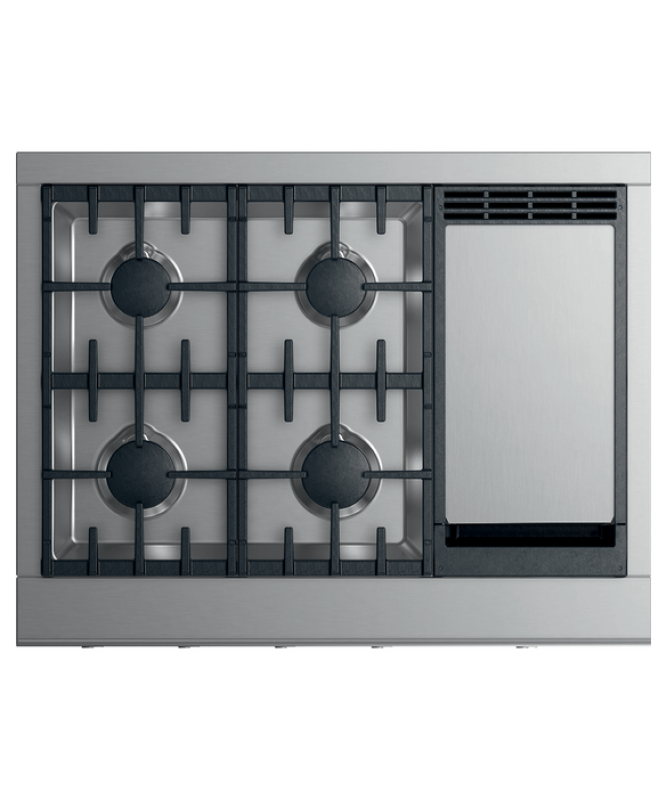

Fisher Paykel CPV2364GDLN Gas Rangetop, 36", Griddle, LPG Other

Quick Specification More details

Width:
35"
Depth:
28"
Height:
8"
Type:
Rangetops

About this product

Perfect heat
Precise control
Cooking flexibility
Easy cleaning

Summer Sale

Clearance

SKU: CPV2364GDLN | UPC: 822843713875

Fisher Paykel CPV2364GDLN Gas Rangetop, 36", Griddle, LPG Other

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35"
Depth:
28"
Height:
8"
Type:
Rangetops

About this product

Perfect heat
Precise control
Cooking flexibility
Easy cleaning

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Fisher Paykel CPV2364GDLN

Technical Details

Burner ratings

Power back left	18,500 BTU
Max burner power	23,500 BTU
Power back right	18,500 BTU
Power griddle	18,000 BTU
Total Power	97,000 BTU
Power front left	23,500 BTU
Power front right	18,500 BTU

Gas requirements

Fitting and pipe	½ NPT, min. â…" âˆ… flex line
Supply Pressure (natural gas)	6" to 9" W.C

Performance

Sealed Dual Flow Burners™	4
Simmer on all burners	140°F

Power requirements

Amperage	15A
Supply frequency	60Hz
Supply voltage	120V

Recommended back guards and ventilation

Combustible situation	BGCV2-3036H
Minimum CFM	600-1,200
Non combustible situation	BGCV2-3036 / BGCV2-1236
Pro hood	VS36 / VS1236
Traditional hood	ES36

Warranty

Parts and labor	Limited 2 years
Parts	2 Year
Labor	2 Year

Other

Max burner power	23,500 BTU
Power back left	18,500 BTU
Power griddle	18,000 BTU
Total Power	97,000 BTU
Fitting and pipe	½ NPT, min. â…" âˆ… flex line
Supply Pressure (natural gas)	6" to 9" W.C
Sealed Dual Flow Burners™	4
Simmer on all burners	140°F
Amperage	15A
Supply frequency	60Hz
Supply voltage	120V
Combustible situation	BGCV2-3036H
Minimum CFM	600-1,200
Non combustible situation	BGCV2-3036 / BGCV2-1236
Pro hood	VS36 / VS1236
Traditional hood	ES36
Parts and labor	Limited 2 years

Dimensions & weight

Width	35 in.
Height	8 in.
Length	28 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40 in.
Shipping Height	13 in.
Shipping Length	33 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	4.54 ft³
Dimensional Weight	56.4 lbs.
Total of Cubes	4.54 ft³
Total of Dimensional Weight	56.4 lbs.

Description

A powerful six burner rangetop with professional styling and the additional cooking flexibility of a stainless steel griddle.
Finish Stainless Steel Fuel Type LPG
