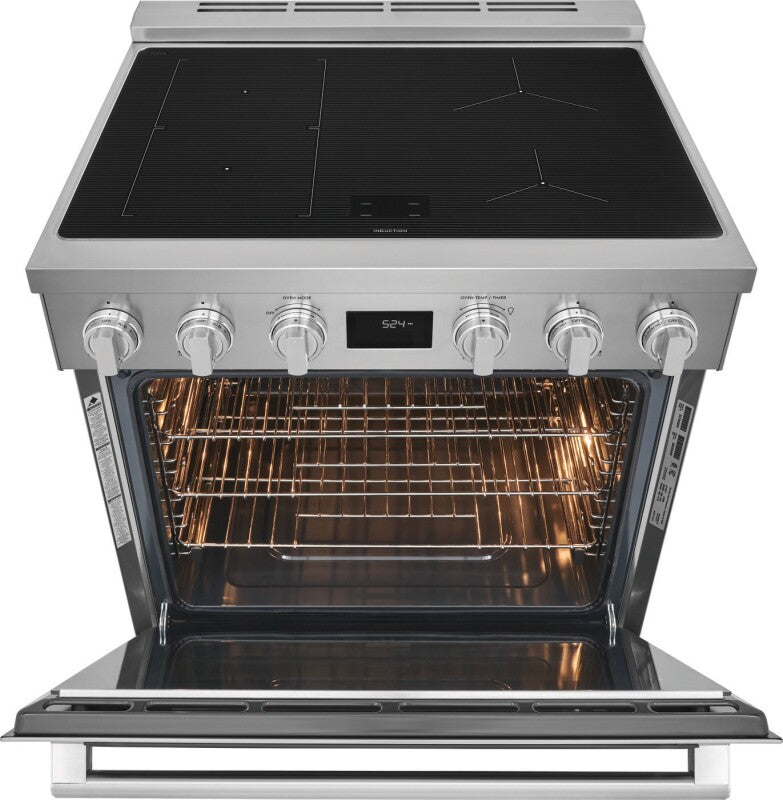

Product Details for ELECTROLUX ECFI3068AS
Technical Details
Cooktop
| Bridge Element Location | Left |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
Cooktop performance
| Right Front Element Burner Size | 5.7 |
| Right Rear Element Burner Size | 8.3 |
| Left Front Element Burner Size | 7.1 |
| Left Rear Element Burner Size | 7.1 |
| Right Front Element Burner | 1 |
| Right Rear Element Burner | 2 |
| Left Front Element Burner | 1 |
| Left Rear Element Burner | 1 |
Cooking controls
| Bake | Yes |
| Bread Proof | Yes |
| Broil | Yes |
| Child Lock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Probe | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
Oven
| Bake Element | 3300 |
| Bake Element Type | Hidden |
| Broil Element | 3300 |
| Convection Element | 2950 |
| Convection Type | True |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Gray |
| Oven Light Quantity | 2 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 |
| Rack Position Type | Ladder |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 1 |
| Window Type | Extra Large Window |
Display
| Control Location | Front |
| Display Type | LED |

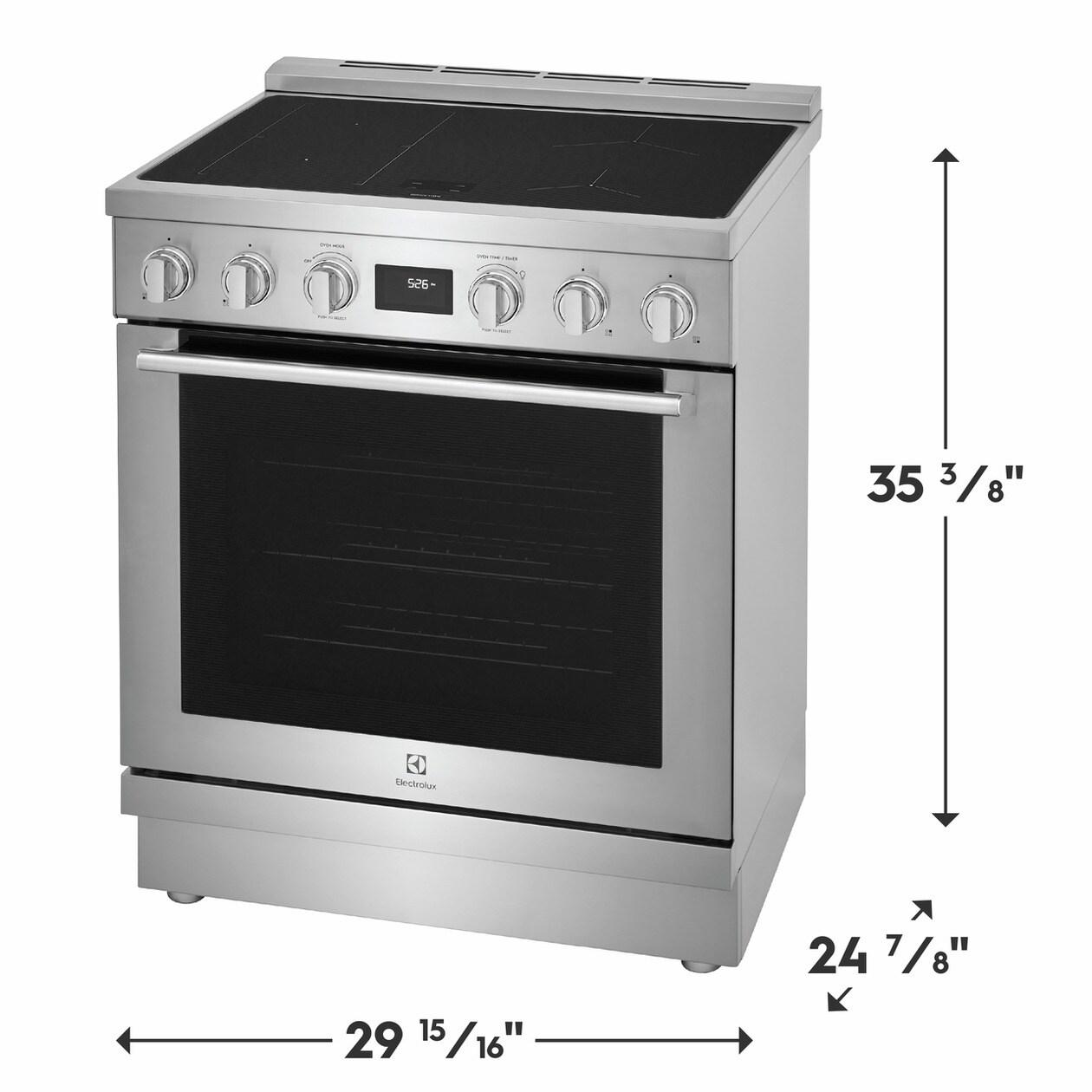

Dimensions and volume
| Minimum Height | 35.38 |
| Maximum Height | 36.63 |
| Width | 29.94 |
| Depth | 24.88 |
| Depth With Door 90(degree) Open | 46.69 |
| Oven Interior Height | 17.25 |
| Oven Interior Width | 24.25 |
| Oven Interior Depth | 16.0 |
| Oven Capacity | 4.6 |
Electrical specifications
| Amps @ 240 Volts | 40 |
| Connected Load @ 240V | 11 |
| Voltage Rating | 240 |
Installation
| Adjustable Leveling Legs | Yes |
| Included Power Cord Type | 4 |
| Power Cord Included | Yes |
General specifications
| Product Weight | 195 |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 |
| Warranty - Parts | 1 |
Safety certifications and approvals
| cUL Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
Certifications and approvals
| ADA Compliant | Yes |
| cUL Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
Features
- Expand your culinary horizons to specialty foods like crepes and paninis with a bridge feature that allows you to connect two cooking elements to allow for simultaneous control, perfect for a griddle pan.

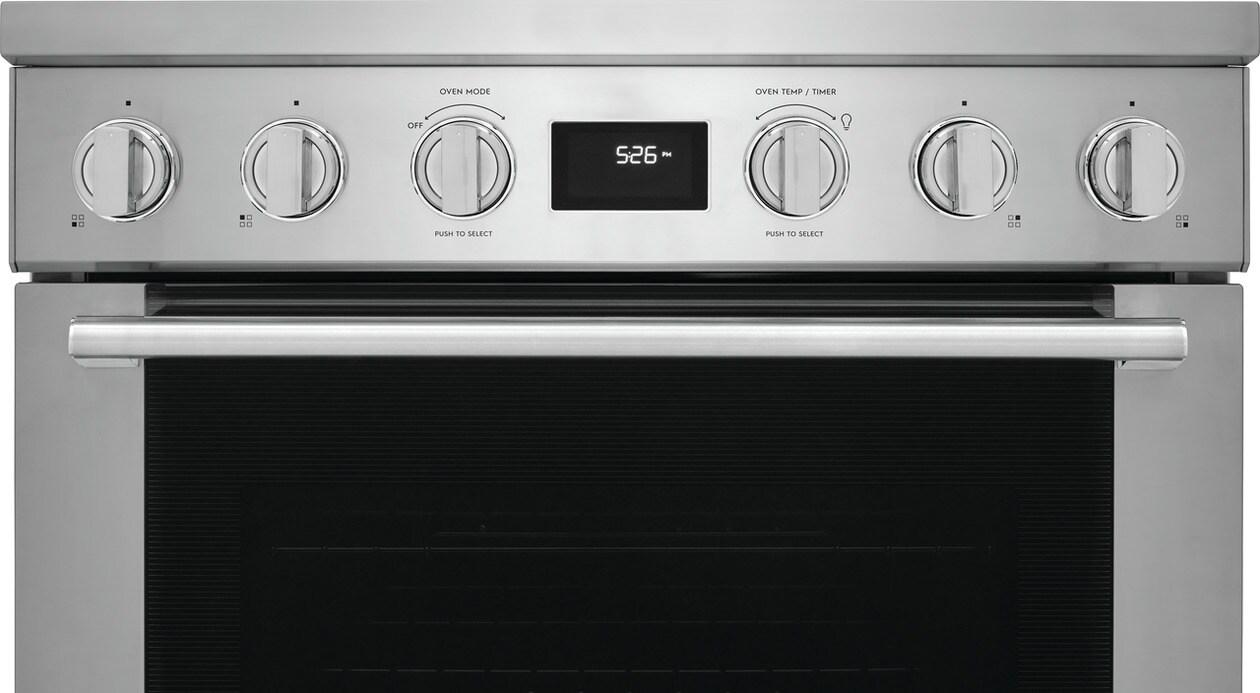

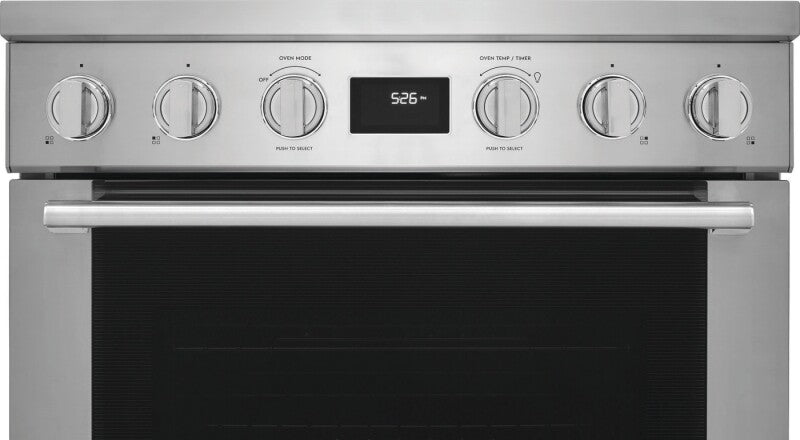

- Edge-to-edge front controls with sturdy knobs and the Electrolux signature pinstriped glass lend to the sleek design that make this range a focal point of your kitchen
- Master even the most challenging recipes with true convection which uses three heating elements and a fan for even cooking results
- Keep your oven looking its best with the one hour Steam Clean cycle that's chemical- and odor-free

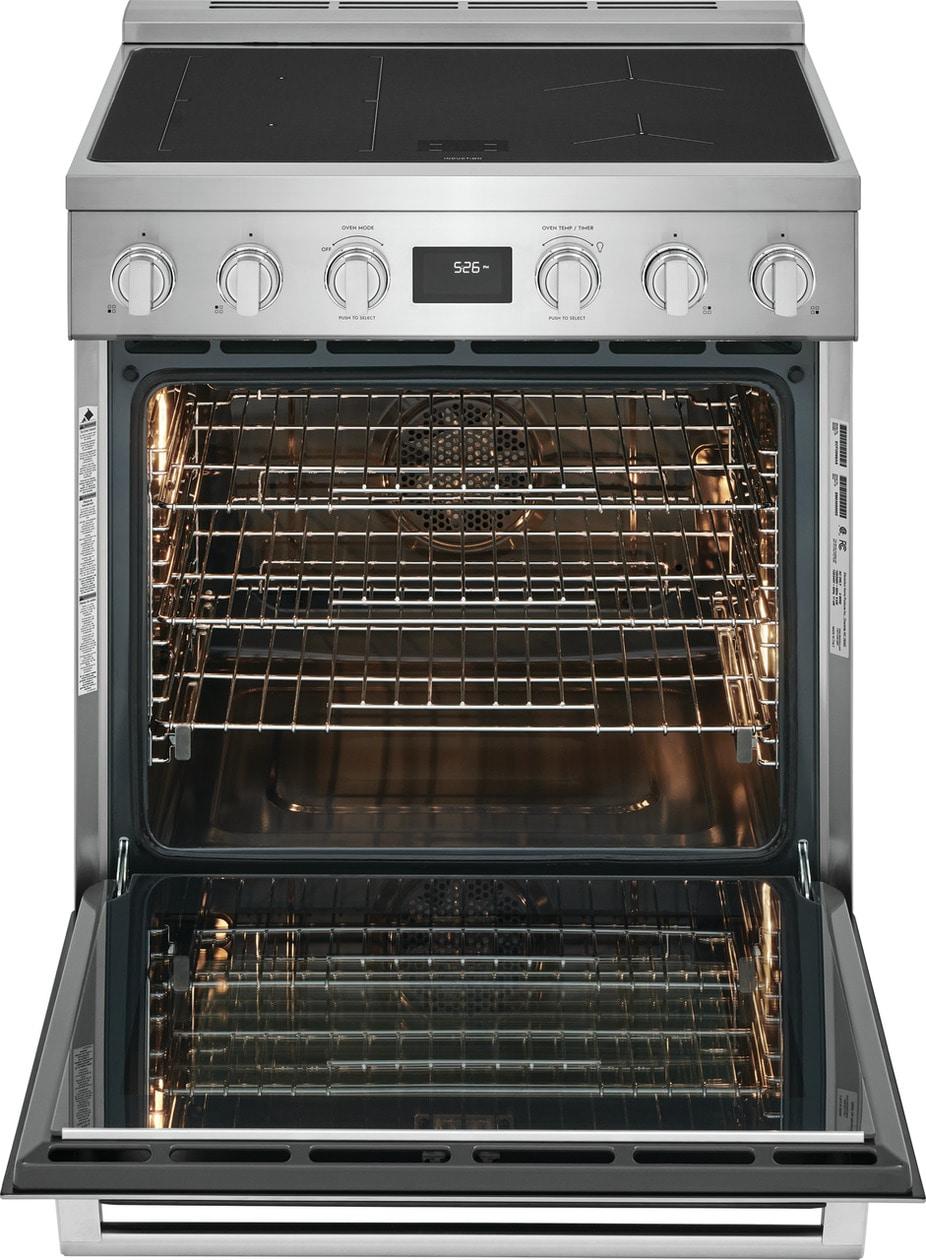

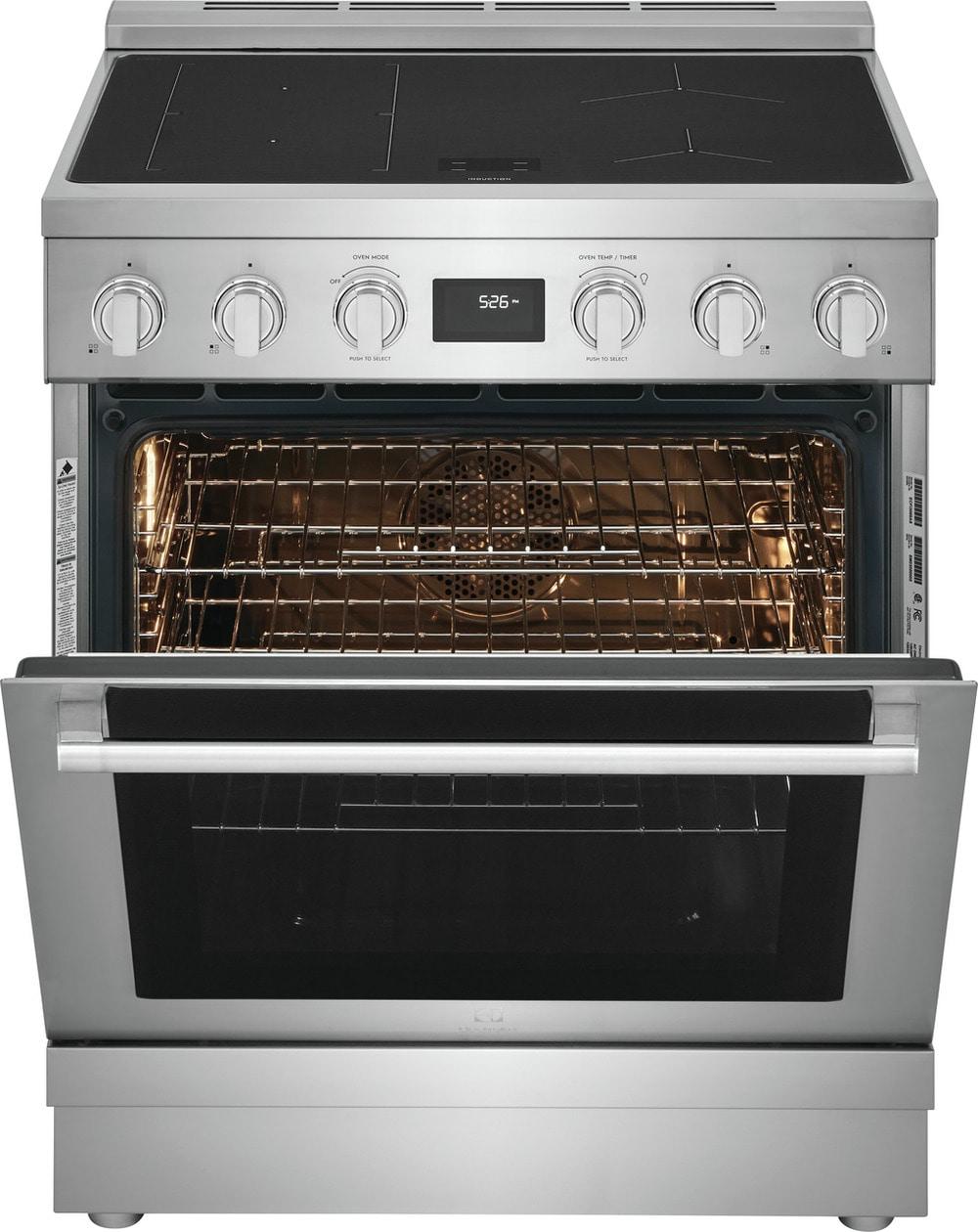

- Gently close the oven door even when your hands are full with the soft close door
- Cook proteins to juicy perfection, never over or under cooked, with an integrated temperature probe which alerts you when your food has reached the desired temperature
- Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts.
Description
Key Features
True Convection
Master even the most challenging recipes with true convection which uses three heating elements and a fan for even cooking results

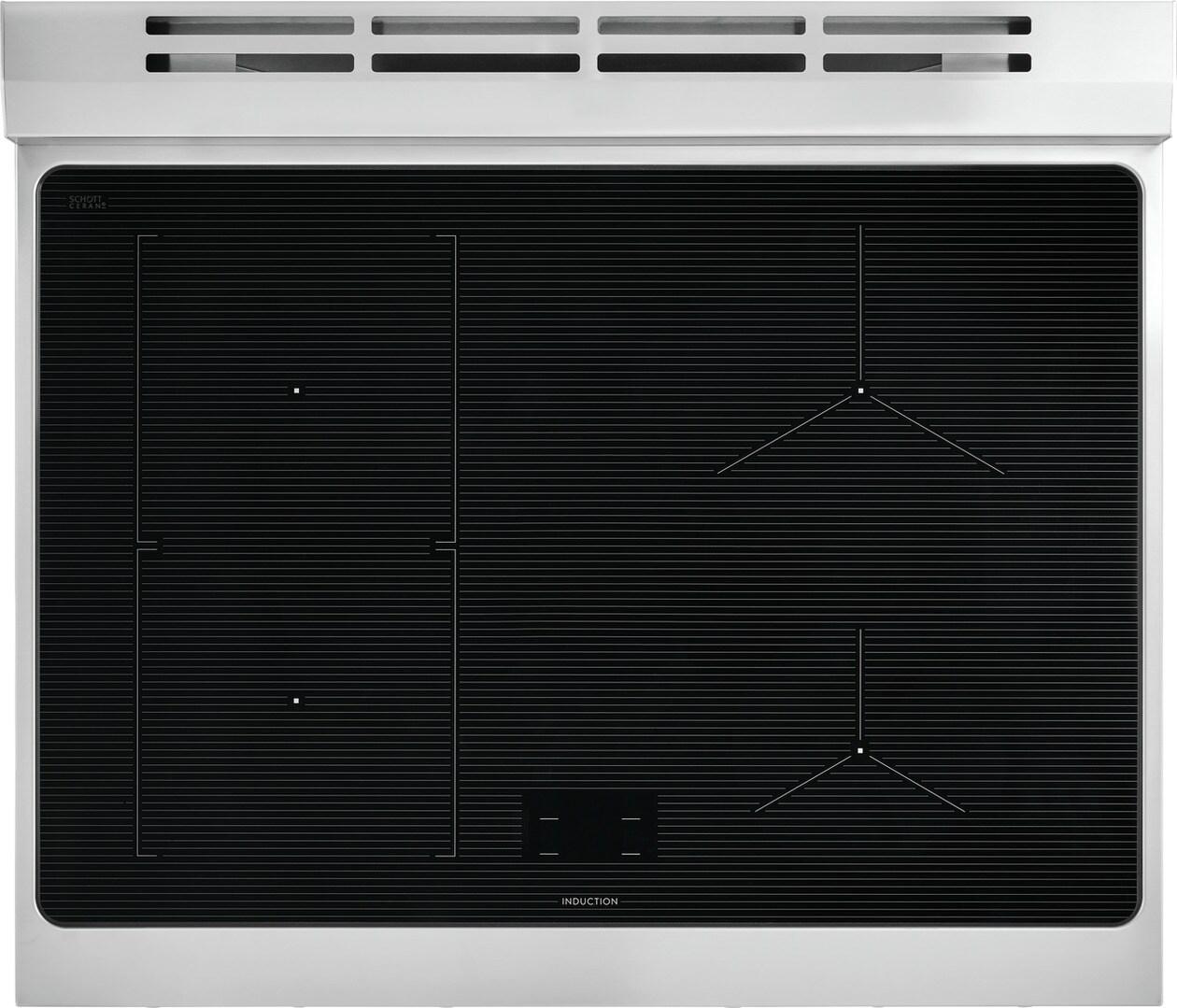

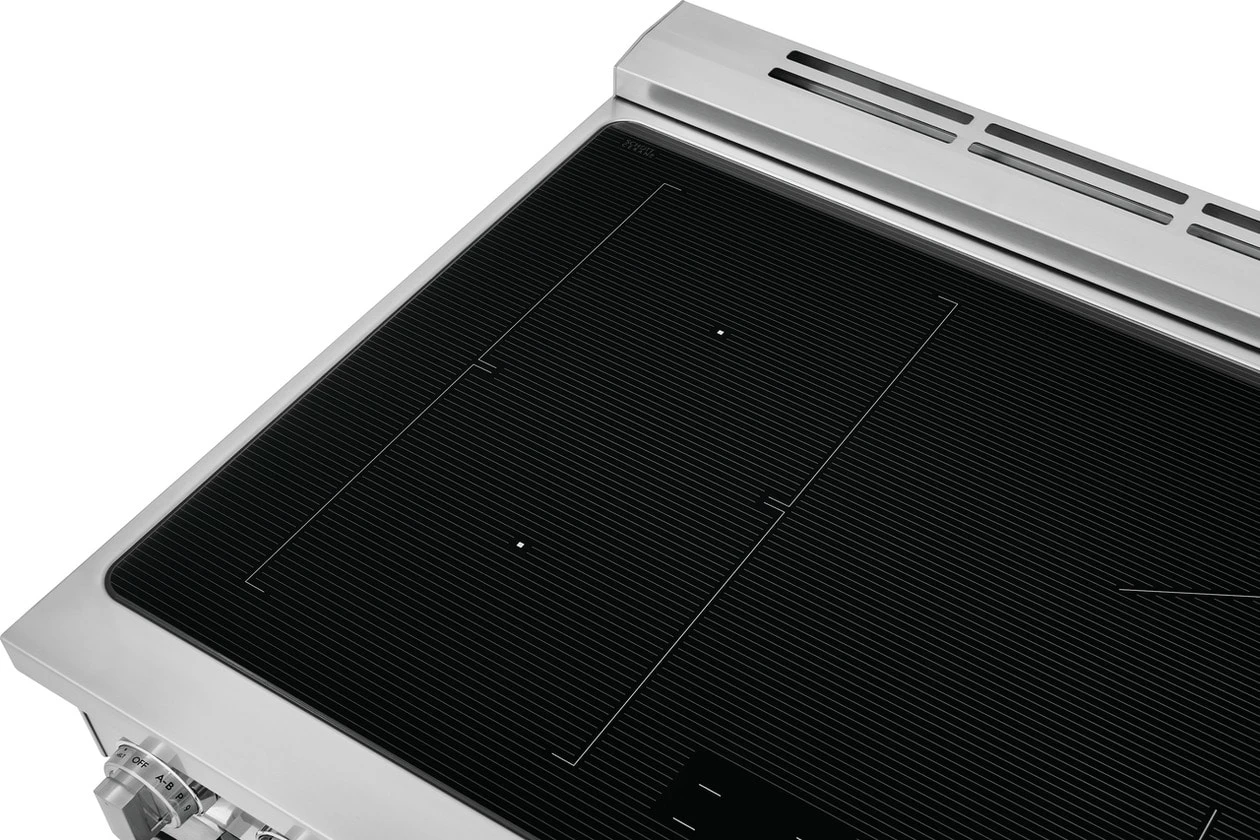

Bridge Feature
Expand your culinary horizons to specialty foods like crepes and paninis with a bridge feature that allows you to connect two cooking elements to allow for simultaneous control, perfect for a griddle pan.
Temperature Probe
Cook proteins to juicy perfection, never over or under cooked, with an integrated temperature probe which alerts you when your food has reached the desired temperature

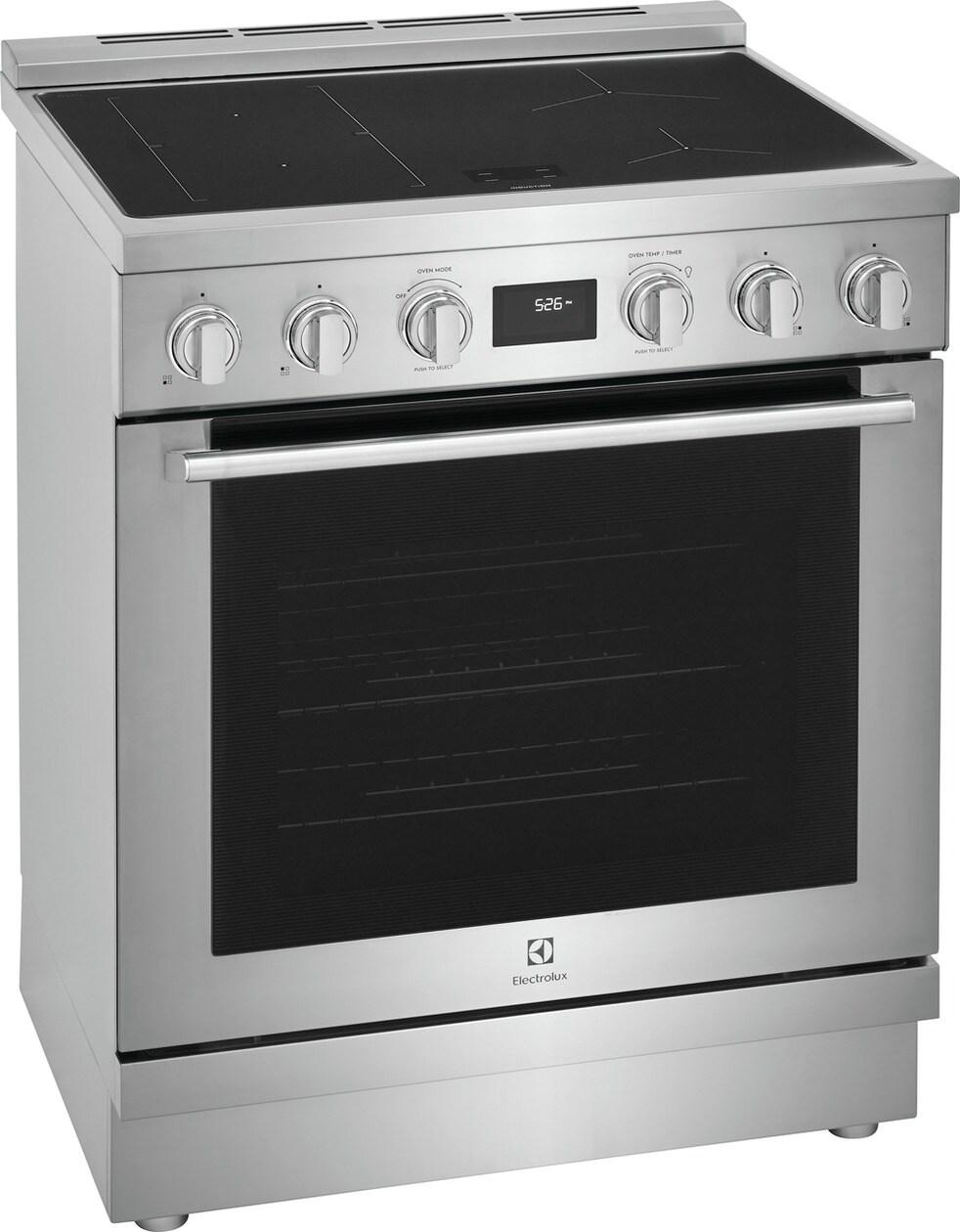

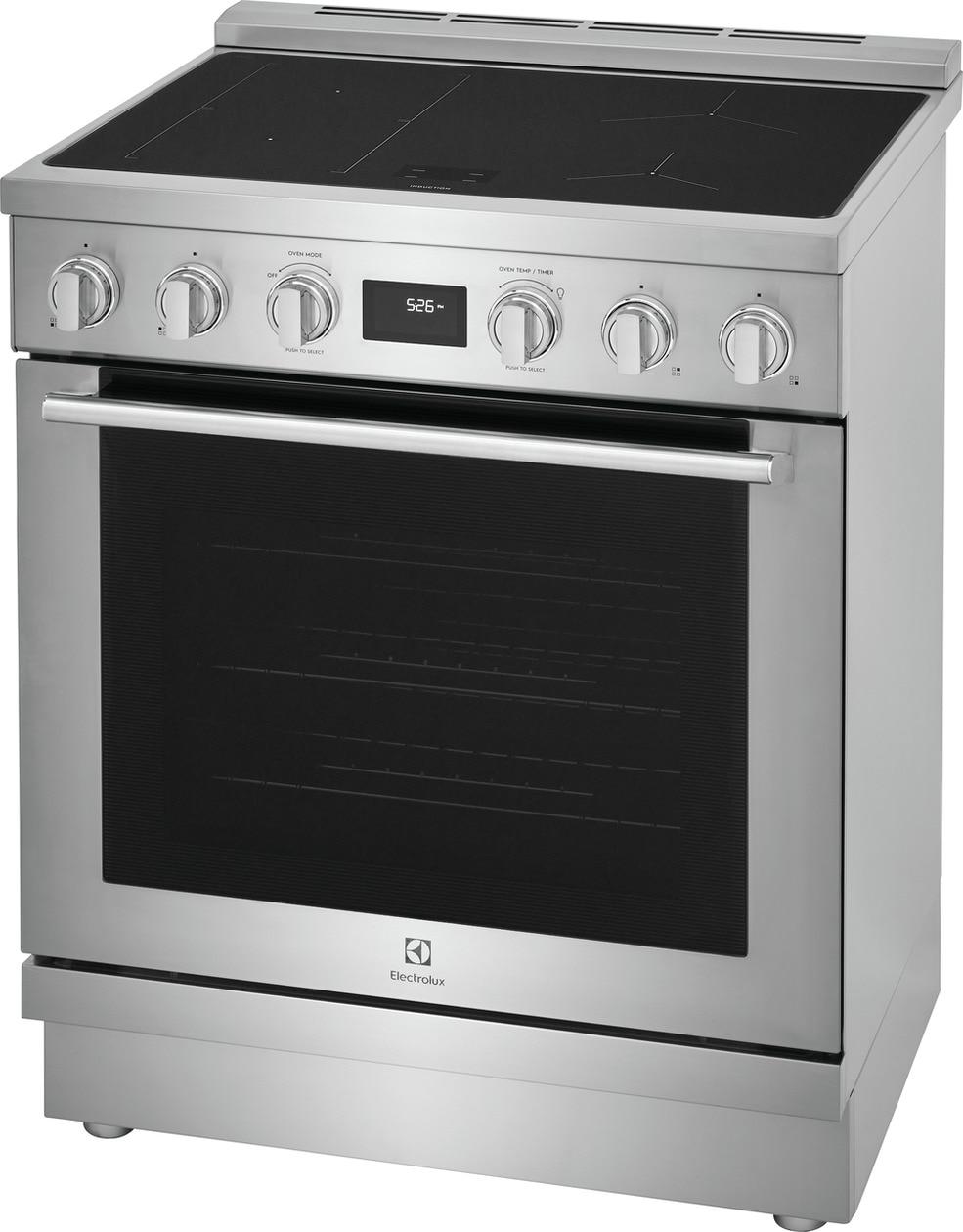

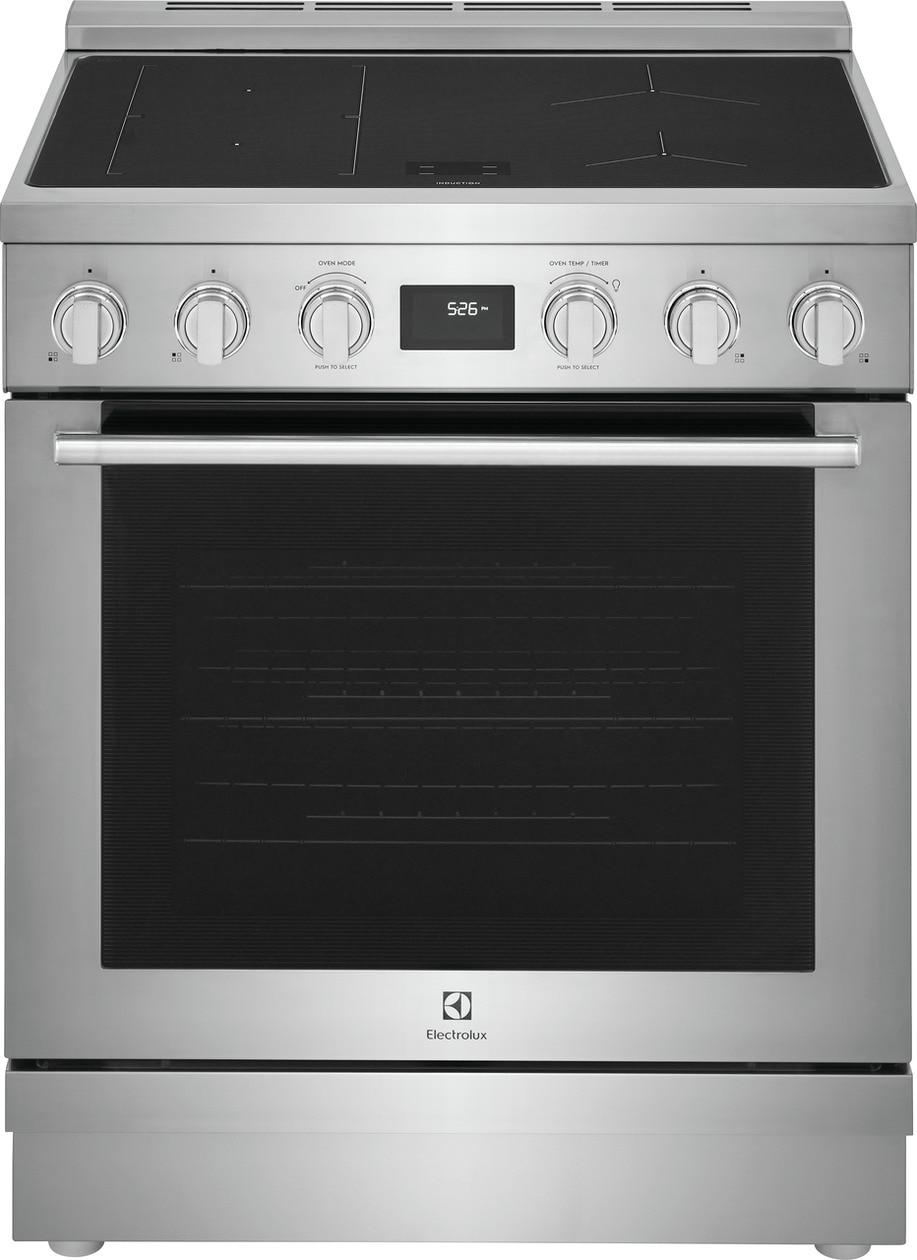

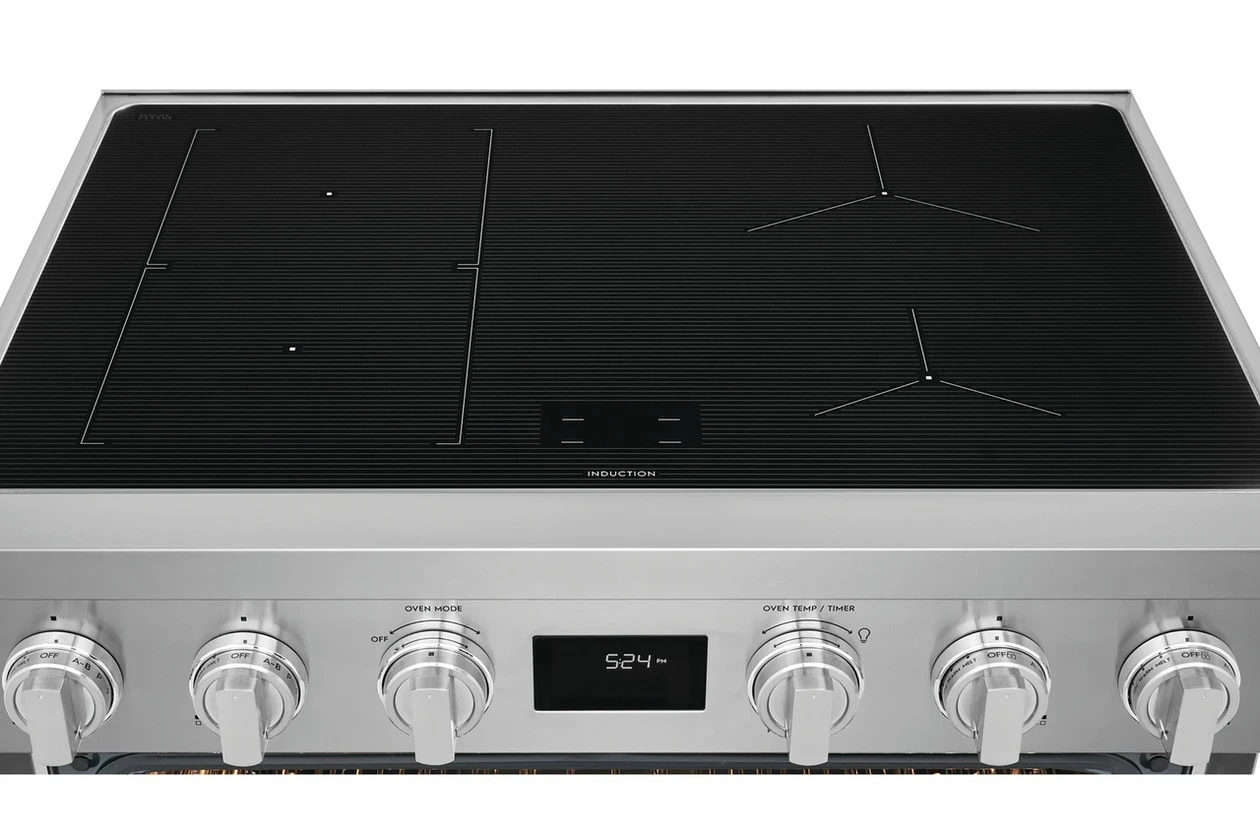

Sleek Design
Edge-to-edge front controls with sturdy knobs and the Electrolux signature pinstriped glass lend to the sleek design that make this range a focal point of your kitchen
