| Parts | 1 Year |
| Labor | 1 Year |
| Overall Depth | 17.9375 in |
| Overall Height | 16.3125 in |
| Approximate Shipping Weight | 74 lb |
| Cabinet Width | 30 in |
| Net Weight | 64 lb |
| Overall Width | 29.875 in |
| Cavity (W x H x D) | 21-15/16 x 11-5/8 x 14-9/16 |
| Depth with Door Open | 23.5625 in |
| Cutout Width (in) | 30 |
| Cutout Depth (in) | 12 |
| Cutout Height (in) | 16.3125 |
| Display Type | LED |
| Microwave Sensor Cooking Controls | Steam Cook |
| Electronic Digital Display with Clock | Yes (LED) |
| Display Screen Size (Diagonal Length) | 3.13 |
| Cooking Modes | Microwave |
| Control Location | Side Controls |
| Style | Over-The-Range |
| Turntable On / Off | Yes |
| Power Levels | 10 |
| Control Type | Electronic Touch |
| Cooktop Lighting | LED |
| Multi-Language Capability | English/Spanish |
| Control Features | Vent Fan |

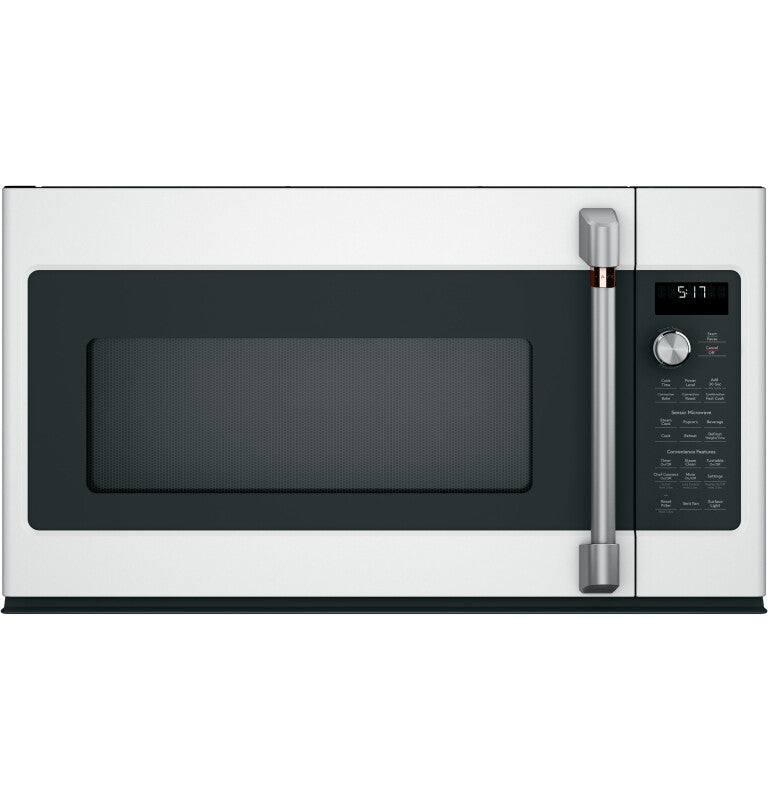

| Product Type | Over-the-range Microwave |
| Sound Volume Control | Yes |
| Turntable | Glass |
| Cooking Technology | Microwave |
| Microwave Oven Interior | Easy Clean Interior |
| Exhaust Fan | 400-CFM |
| Vent | Top |
| Interior Oven Light | Halogen |
| Microwave Sensor Cooking Controls | Cook (5 Foods) |

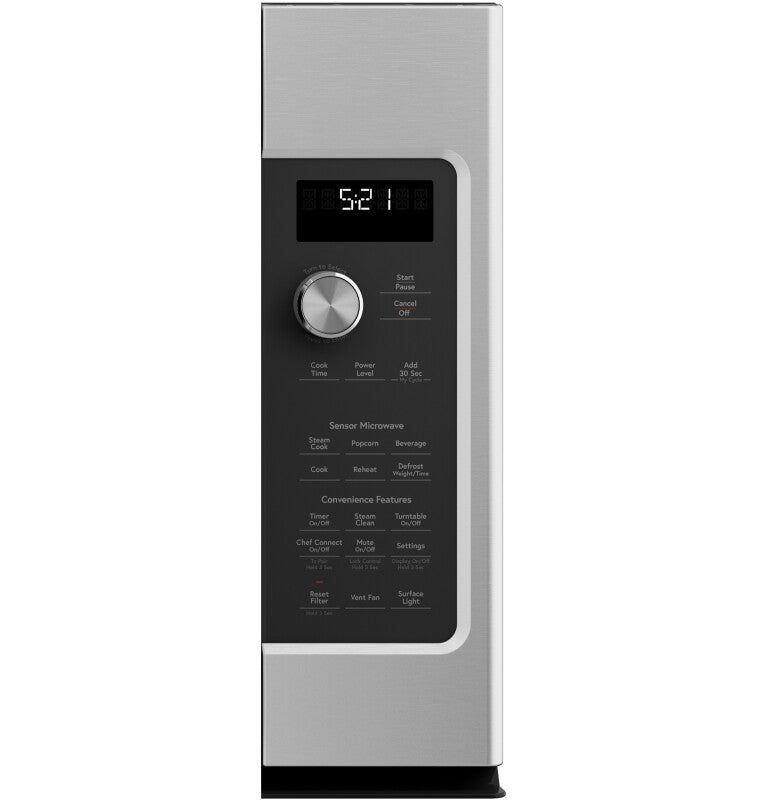

| Control Features | Chef Connect |
| Vent | Front |
| Control Features | Start/Pause |
| Control Features | Clear/Off |
| Control Features | Power |
| Control Features | Add 30 Seconds |
| Control Features | Cook Time |
| Control Features | Steam Clean |
| Control Features | Timer On/Off |
| Control Features | Turntable On/Off |
| Control Features | Mute On/Off |
| Control Features | Settings |
| Control Features | Surface Light |
| Control Features | My Cycle |
| Control Type | Dial |
| Cooktop Lighting | High/Low/Off |
| Exhaust Fan | 4-Speed |

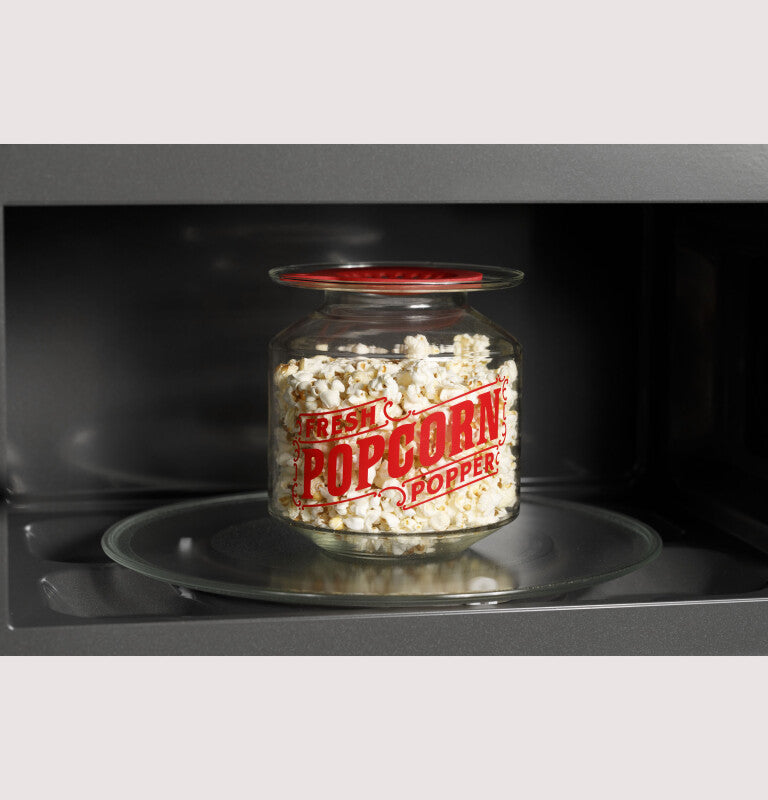

| Microwave Sensor Cooking Controls | Popcorn |
| Microwave Sensor Cooking Controls | Reheat |

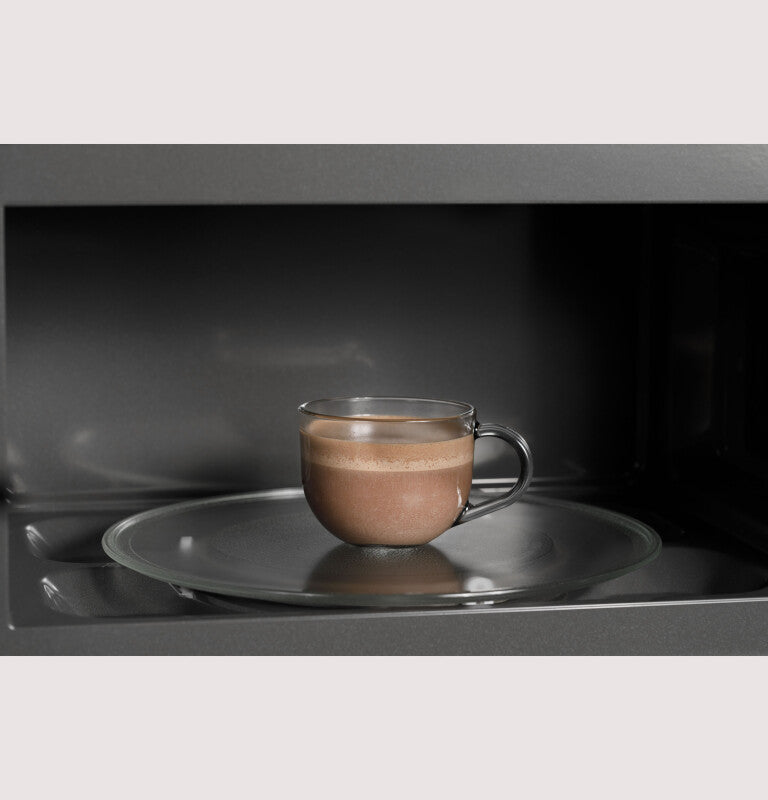

| Microwave Sensor Cooking Controls | Beverage |
| Microwave Sensor Cooking Controls | Defrost: Weight/Time |
| Microwave Watts (IEC-705) | 1,000 W |
| Turntable Size | 14.2 |
| Vent | Back |
| Door Swing | Hinges on Left |
| Handle Color | Brushed Stainless |
| Oven Door Features | Oven Window |
| Smooth Steel Door | Yes, with Hidden Hinge |
| Door Color | Stainless Steel |
| Case Color | Gray |
| Color Appearance | Stainless Steel |
| Non-Vented | Optional |
| Venting Type | Externally Vented |
| Optional Side Filler Panel Kit | JX36BSS |
| Optional Kits | CXOTRHKPMSS Brushed Stainless |
| Recirculating Charcoal Filter Kit | WB06X10807 |
| Optional Kits | CXOTRHKPMBT Brushed Black |
| Optional Kits | CXOTRHKPMBZ Brushed Bronze |
| Optional Kits | CXOTRHKPMCU Brushed Copper |
| Optional Kits | CXOTRHKPMCG Brushed Brass |
| Optional Kits | CXOTRHKPMFB Flat Black |
| Optional Kits | 15" Bump Out Kit - JX15BUMPBB |
| Recirculating Charcoal Filter Kit | Included |
| Input Volts/Hertz | 120/60 |
| Electrical Input - 120V Amperage | 15 |
| Electrical Input - 120V Watts | 1700 |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 5-year magnetron tube |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Vent CFM | 400 |
| Total Capacity (cubic feet) | 2.10 cu ft |
| Cavity (W x H x D) | 21-15/16 x 11-5/8 x 14-9/16 |
| Width | 29.88 in. |
| Height | 16.31 in. |
| Length | 17.94 in. |
| Weight | 64 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 21.31 in. |
| Shipping Length | 22.94 in. |
| Shipping Weight | 74 lbs. |
| Total of Shipping Weight | 74 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 5.06 ft³ |
| Dimensional Weight | 62.89 lbs. |
| Total of Cubes | 5.06 ft³ |
| Total of Dimensional Weight | 62.89 lbs. |

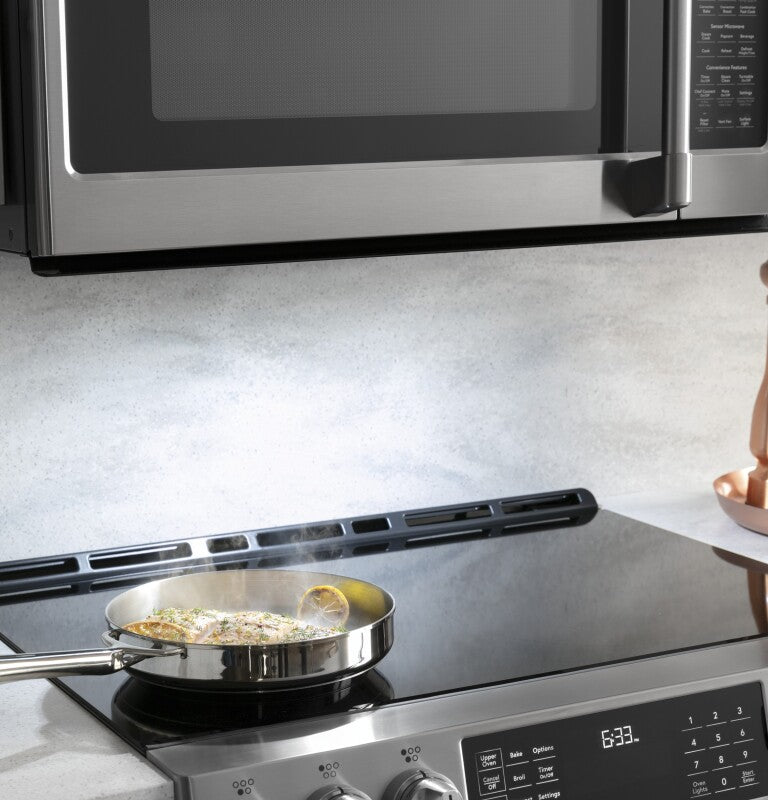

Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

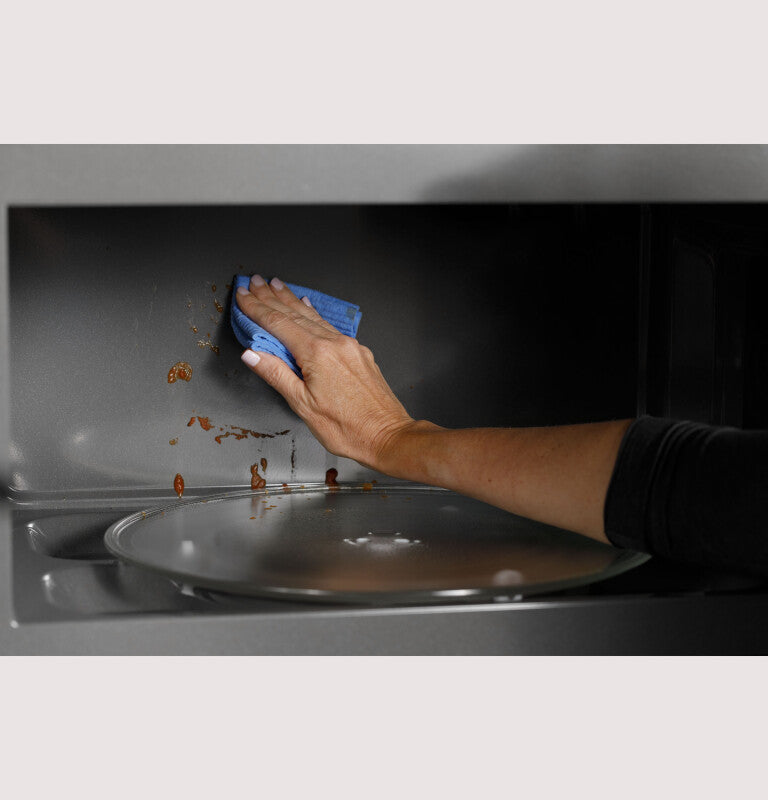

Focus on the food and forget the mess knowing that the easy-clean interior with steam clean lets you swiftly wipe away spills and splatters

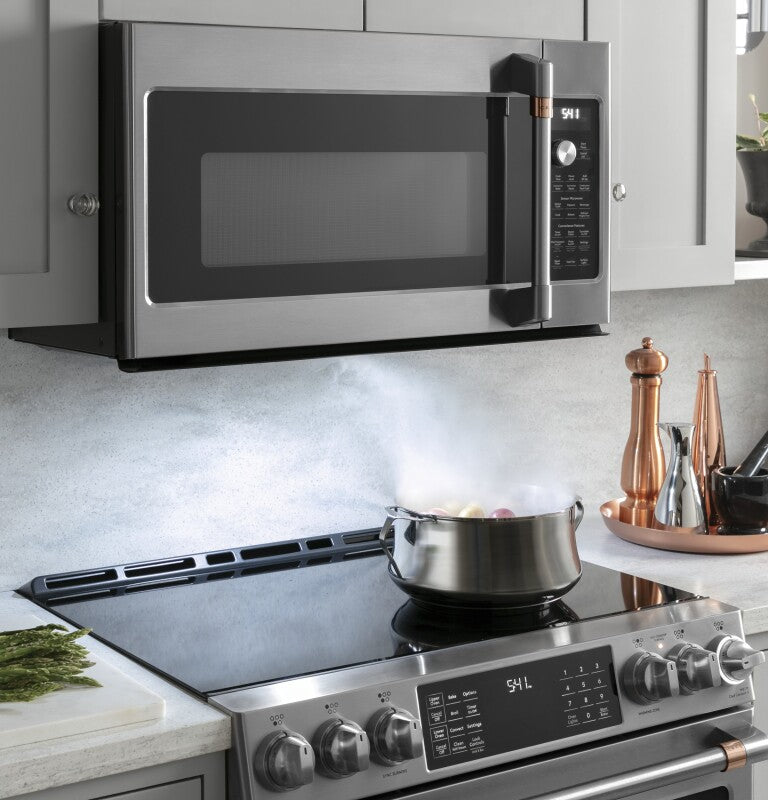

Keep your kitchen ready for guests with a four-speed, 400-CFM venting system that removes smoke, grease, odors and moisture
Keep your kitchen smelling fresh and clean with an upfront charcoal filter with indicator light that lets you know when the filter needs to be replaced
Entertaining unexpected guests is easy with the 2.1 cu. ft. capacity that helps prepare a large amount of food quickly
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

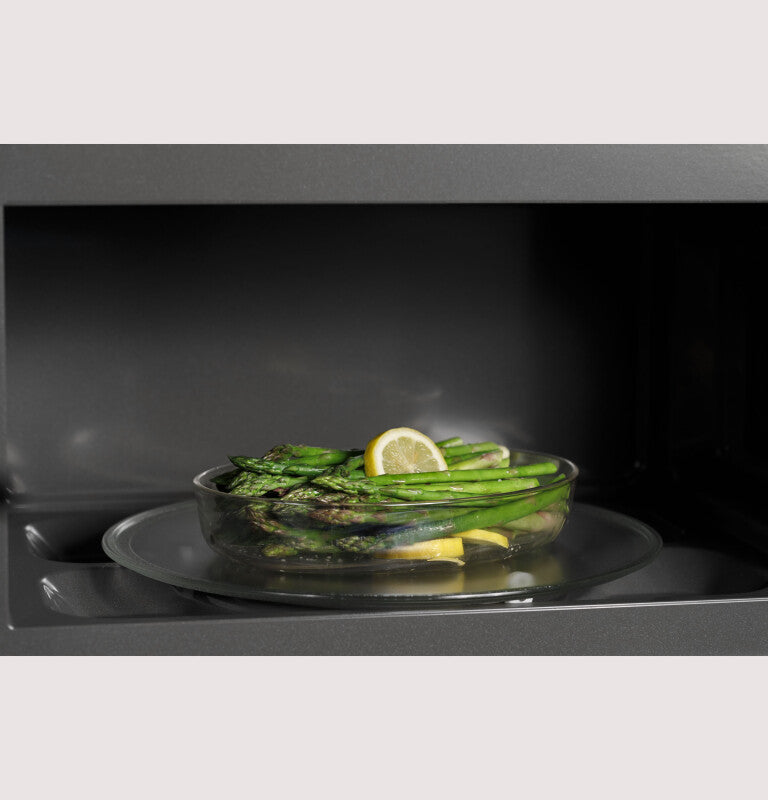

Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

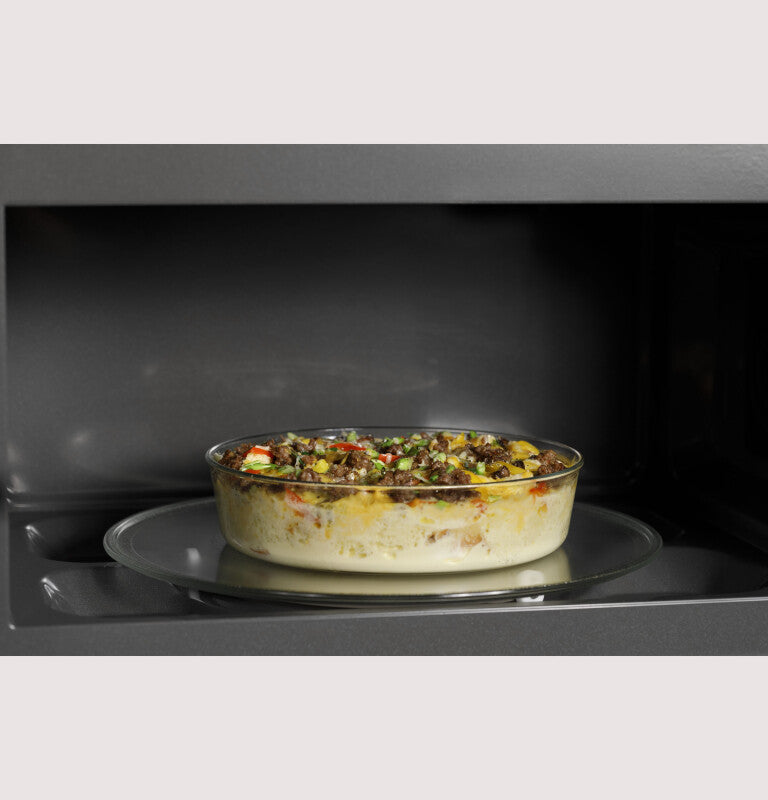

Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power
Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods
