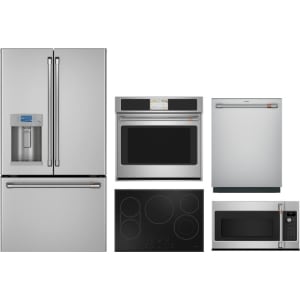

What's included: 5 items

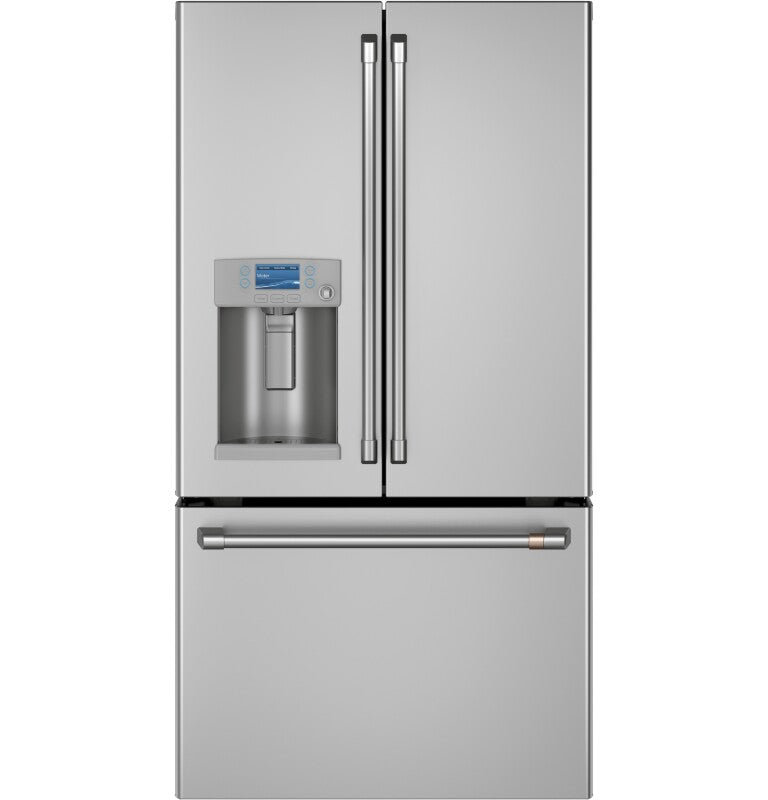

  • CAFE CFE28TP2MS1 French Door Refrigerators Stainless Steel Front View

    CAFE CFE28TP2MS1 CAFé™ ENERGY STAR® 27.7 Cu. Ft. Smart French-Door Refrigerator with Hot Water Dispenser in Stainless Steel

    • SKU SKU: CFE28TP2MS1 UPC: 84691836285
    • Type French Door Refrigerators
  • CAFE CEP90301TBB Electric Cooktops Black Front View

    CAFE CEP90301TBB CAFé™ 30" Touch-Control Electric Cooktop Black

    • SKU SKU: CEP90301TBB UPC: 84691897675
    • Type Electric Cooktops
  • CAFE CTS70DP2NS1 Single Wall Ovens Stainless Steel Front View

    CAFE CTS70DP2NS1 CAFé™ 30" Smart Single Wall Oven with Convection in Stainless Steel

    • SKU SKU: CTS70DP2NS1 UPC: 84691842231
    • Type Single Wall Ovens
  • CAFE CVM521P2MS1 Over The Range Microwaves Stainless Steel Front View

    CAFE CVM521P2MS1 CAFé™ 2.1 Cu. Ft. Over-the-Range Microwave Oven in Stainless Steel

    • SKU SKU: CVM521P2MS1 UPC: 84691840749
    • Type Over The Range Microwaves
  • CAFE CDT828P2VS1 Built-In Dishwashers Stainless Steel – Catalog Photo

    CAFE CDT828P2VS1 Custom Fit ENERGY STAR Stainless Interior Dishwasher with Ultra Wash & Dry, 42 dBA in Stainless Steel

    • SKU SKU: CDT828P2VS1 UPC: 84691914587
    • Type Built-In Dishwashers
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $9,510.46 Regular price $14,961.01 Save $5,450.55 / 36% OFF

Product Details for CAFE CFE28TP2MS1

Technical Details

Capacity

Fresh Food Capacity 18.5
Total Capacity (cubic feet) 27.7
Freezer Capacity 9.17

Filter

App Filter - Autofill No
App Filter - Icemaker Yes
App Filter - Product Type Refer French Door
App Filter - WiFi Connect Built-In
App Filter - Capacity Refer Extra Large (25 cu. ft. and above)
App Filter - Dispenser Yes
App Filter - Hot Water Yes

Appearance

Case Color Gray
Exterior Design Flat Doors
Door Stops Yes
Handle Color Brushed Stainless
Door Swing French Door
Color Appearance Stainless Steel
Handle CAFé(TM)
Hidden Door Hinge(s) Yes

Power / ratings

Energy Consumption (kWh/year) 725
Electrical Requirements 120
Hertz 60
Volts/Hertz/Amps 120

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Weights & dimensions

Overall Depth 36.25
Height to Top of Hinge 69.88
Net Weight 388
Overall Width 35.75
Back Air Clearances 2.0
Overall Depth with Handle 36.25
Approximate Shipping Weight 423
Depth with Door Open 90(degree) 48.38
Width w/Door Open 90 Degrees Incl. Handle 44.75
Case Depth Without Door 29.38
Top Air Clearances 1.0
Side Air Clearances 0.13
Depth Without Handle 35.25
Height to Top of Case 69.0
Overall Height 69.88

Features

Temperature Management Features Turbo Cool setting
Dispenser Features Door Alarm
Hot Water
LCD Screen Controls
LED Dispenser Light
Precise Fill
Water Filter Indicator Light
Control Type External Touch Color LCD
Icemaker Space Saving Ice
Number of Doors 3
WiFi Connect Built-In
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Left wall
Door Alarm Yes
Freezer Storage Baskets 2
Temperature Management System TwinChill(TM) Evaporators
Connected Capabilities Amazon Alexa
Google Home
IFTTT
Defrost Type Frost Guard
Fresh Food Door Features Dairy Compartment
Drop Down Tray
Leveling System 2
Fresh Food Cabinet Shelves 1
Fresh Food Door Bins 2
Freezer Features Interior Lighting - Showcase LED (2)
Turbo Freeze
Exterior Style Free-Standing
Standard Depth
Temperature Display External Digital
Fresh Food Features Deli Pan
Showcase LED Lighting 7
Soft Touch Bin Liners
Configuration French Door
Refrigerant Type R600a
Dispenser Cubes, Crushed Ice and Water
Large Stainless Steel
Fresh Food Cabinet Drawers 1
Water Filtration Find your filter here
Advanced Filtration System
Removes Pharmaceuticals
Water Filter Indicator Light
Product Type Bottom Freezer Refrigerator
French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately

Features

  • Cozy up with a hot cup of tea anytime
    Steep a relaxing herbal tea or prepare light & fluffy couscous with an adjustable hot water dispenser that provides precise temperatures and measurements
  • You're always in control, wherever you are
    Use your voice or smart device to preheat water from your refrigerator while you relax in another part of the house
  • Guarantee a just-right fill
    Whether you're filling a water bottle or adding water to a recipe, dispense an exact amount with just a touch by using the Precise Fill setting
  • Fresh expectations
    Expect fresh food each time you pull out the full-width, electronic temperature-controlled drawer, complete with LED lighting so every item is easy to find
  • Any food, always fresh
    From produce to packaged goods, keep any food fresh with TwinChill(TM) evaporators that create separate climates in the fresh food and freezer sections
  • Put your food in the spotlight
    Illuminate foods in the refrigerator and freezer with brilliant Showcase LED lighting, positioned throughout the interior and under the fresh-food doors
  • Create a look that matches your personal style
    Select any combination of premium finishes and hardware options to create a stunning look customized to any owner's taste
  • The easiest way to fill your largest containers
    Easily fill tall glasses and pitchers using a stainless steel dispenser with pullout tray that is designed to hold larger containers
  • Cleverly store a little more
    Perfect for storing a few smaller items, an in-the-door, drop-down tray easily releases and locks, so you have extra room when you need it
  • Magnet-free photos for the refrigerator
    Display your favorite photos on your refrigerator door in an entirely new way, with a built-in, brilliant-color LCD screen that has photo upload capabilities
  • Safe, pure water for your family and guests
    Enjoy water and ice from the refrigerator with total peace of mind, thanks to an advanced water filtration system that removes 98% of certain pharmaceuticals (Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users' water)
  • Enhanced Shabbos Mode
    The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)



Description

Upgrade your kitchen with the Café CFE28TP2MS1, a 28.7 cu. ft. French door refrigerator designed for both functionality and aesthetics. Its stainless steel finish adds a high-end, professional look, while the built-in Keurig® K-Cup® brewing system allows you to enjoy fresh coffee straight from your fridge. The TwinChill™ evaporators maintain optimal humidity levels in the fresh and freezer compartments, preserving food longer. The Wi-Fi-enabled features let you control and monitor your refrigerator remotely, while the hands-free autofill dispenser ensures effortless hydration. With adjustable shelving, a temperature-controlled drawer, and LED lighting, this fridge provides a spacious, well-organized, and user-friendly experience.

Key Features

Fresh expectations

Expect fresh food each time you pull out the full-width, electronic temperature-controlled drawer, complete with LED lighting so every item is easy to find

Put your food in the spotlight

Illuminate foods in the refrigerator and freezer with brilliant Showcase LED lighting, positioned throughout the interior and under the fresh-food doors

The easiest way to fill your largest containers

Easily fill tall glasses and pitchers using a stainless steel dispenser with pullout tray that is designed to hold larger containers

Enhanced Shabbos Mode

The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $9,510.46 Regular price $14,961.01 Save $5,450.55 / 36% OFF

Product Details for CAFE CEP90301TBB

Technical Details

Filter

App Filter - Cabinet Width 30.0
App Filter - Backlit Knobs Yes
App Filter - Cooktop Type Radiant Smoothtop
App Filter - Fuel Type Electric
App Filter - SyncBurners Yes
App Filter - Control Type Rotary knobs

Appearance

Color Appearance Black
Frameless Yes
Control Knobs Black

Power / ratings

Recommended Circuit Breaker (Amps) at 240V 40
Max. Connected Load (kW) at 240V 9.5
Hertz 60
Max. Current Draw (Amps) at 240V 39.6
Max. Connected Load (kW) at 208V 7.1
Electrical Requirements 208
Recommended Circuit Breaker (Amps) at 208V 40
Max. Current Draw (Amps) at 208V 34.1

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Weights & dimensions

Cutout Height (in) 5.56
Cooktop Size 30.0
Overall Height 3.38
Cutout Depth (in) 19.63
Cabinet Width 30.0
Approximate Shipping Weight 40
Overall Width 29.88
Net Weight 34
Cutout Width (in) 28.5
Overall Depth 21.5

Features

WiFi Connect Built-In
Filler trim kit JXTR32B
Cooktop Burner Type 5
Melt Setting Yes
Fuel Type Electric
Element - Left Front 7.0
Connected Capabilities Amazon Alexa
Google Home
Indicator Lights 5.0
Dual Ring Burners Yes
Element - Right Front 8.0
Control Location Front Center
Cooktop Type Radiant Smoothtop
Cooktop Surface Black Ceramic Glass with Beveled Edge
Cooktop Control Features All-Off Control
Control Lock Capability
Custom Settings
Keep-Warm Setting
Kitchen timer
LED Light level adjustment
Melt Setting
Sound adjustment
Sync-Burners Capability
WiFi Enabled Features Bluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI)
Interfaces with SmartHQ App
Precision cooking with HestanCue Pans (HMI and App)
Element - Left Rear 7.0
Control Type Electronic
Glide Touch
Element - Center 9.0
Element - Right Rear 6.0
Product Type Cooktop

Features

  • Power Boil on Tri- and Dual-Ring Elements
    Cook more faster with a 3,000W Tri-ring element and a 2,200W dual-ring element that can handle any pan size.
  • Easy Clean Surface with Beveled Edge
    A smooth glass surface with beveled edge makes this an easy clean electric cooktop that adds a level of aesthetic sophistication
  • Glide Touch Controls
    Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.
  • Precision Temperature Control
    Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature - from 100 to 500 degrees. Perfect for sauces, candies and frying.
  • Synchronized Elements
    Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
  • Chef Connect
    Synchronize your cooktop and CAF(EBACK)(TM) over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect
  • Keep Warm Setting
    This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.
  • Control Lock
    Protect against unintentionally turning your cooktop on with a safety control lock setting.
  • Hot Surface Indicator Lights
    A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
  • Smart Cookware Rebate
    Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan
  • Built-in WiFi
    This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.
  • Fit Guarantee
    This cooktop will fit your existing 30" cut-out or CAF(EBACK)(TM) will help pay for modifications up to $100.



Description

The Café CEP90301TBB 30" Smart Touch-Control Electric Cooktop is a high-performance appliance designed for modern, high-end kitchens. Its smooth glass surface with touch controls offers a sleek, seamless appearance while allowing for precise heat adjustments.

This cooktop features five radiant cooking elements, including a powerful 3,100W Power Boil burner for fast heating and SyncBurner technology, which allows two burners to work together for large cookware. The Glide Touch Controls provide an intuitive and responsive cooking experience, while the Melt setting ensures delicate ingredients, like butter or chocolate, heat without burning.

With Wi-Fi connectivity and SmartHQ compatibility, users can remotely control burner settings and receive alerts via their smartphone. Additionally, the Keep Warm setting maintains food temperature without overcooking, making it perfect for multi-course meals. The edge-to-edge glass surface is not only stylish but also easy to clean, offering both functionality and elegance.

Ideal for those who prioritize precision, convenience, and modern aesthetics, the Café CEP90301TBB enhances any kitchen with smart technology and premium cooking performance.

Key Features

Chef Connect

Synchronize your cooktop and CAF(EBACK)(TM) over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $9,510.46 Regular price $14,961.01 Save $5,450.55 / 36% OFF

Product Details for CAFE CTS70DP2NS1

Technical Details

Filter

App Filter - Product Type Wall Oven Single
App Filter - Control Type Electronic touchpad
App Filter - WiFi Connect Built-In
App Filter - Cooking Technology Convection
App Filter - Cabinet Width 30.0
App Filter - Fuel Type Electric
App Filter - Convection Yes
App Filter - Cleaning Type Steam and Self-Clean

Appearance

Handle Color Brushed Stainless
Installation Above Warming Drawer
Side-by-Side
Under Built-In Advantium
Under Built-In Microwave
Under Cooktop
Undercounter
Handle CAFé(TM) Pro Style
Customizable
Oven Door Features Big View Oven Window
Color Appearance Stainless Steel
Handle Design CAFé(TM)

Power / ratings

Bake Wattage 2850
Electrical Requirements 208
Amp Rating at 208V 20
Hertz 60
Broiler Wattage 4300
Convection Wattage 2400
KW Rating at 240V 4.2
Amp Rating at 240V 20
KW Rating at 208V 3.2

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories 30.0
Optional Kits CXWS0H0PMBT Brushed Black
CXWS0H0PMBZ Brushed Bronze
CXWS0H0PMCG Brushed Brass
CXWS0H0PMCU Brushed Copper
CXWS0H0PMFB Flat Black
CXWS0H0PMSS Brushed Stainless

Weights & dimensions

Overall Depth 26.75
Oven Interior Dimensions (W x H x D) (in.) 25
Cabinet Width 30.0
Overall Width 29.75
Cutout Height (in) 27.31
Net Weight 161
Approximate Shipping Weight 177
Cutout Depth (in) 23.5
Depth with Door Open 48.75
Overall Height 28.63
Cutout Width (in) 28.63
Cutout Dimensions (w x h x d) (in.) 28 in x 27 in x 23 in

Features

Fuel Type Electric
Oven Interior 2
Oven Features 10
Configuration Single Oven
Product Type Single Oven
Oven Rack Features 1
Cooking Technology Convection
Self-Clean Oven Door Lock Automatic
Control Type 7.0
Connected Capabilities Amazon Alexa
Fresco
Google Home
IFTTT
Innit
Sonos
The Google Assistant
Cooking System True European Convection with Direct Air
Sabbath Mode Yes
Oven Cooking Modes Convection Bake
Convection Bake Multi-Rack
Convection Broil Hi/Lo
Convection Roast
Keep Warm
No Preheat Air Fry
Precision Cooking Modes
Proof
Scan-to-Cook
Thermal Bake
Thermal Broil Hi/Lo
Turkey Mode
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
WiFi Connect Built-In
Cleaning Time Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower) 6
Oven Control Features 12

Features

  • Precision is the name of your cooking game
    Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times
  • Built-In WiFi, Powered by SmartHQ App
    Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details
  • Personalized Features + Upgrades
    Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire
  • Brighten up life in the kitchen
    Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates
  • The perfect bake is now perfectly easy
    Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more
  • No preheat, no hassle
    Save time with a variety of precision cooking modes that eliminate the need for preheating
  • Fried taste. Crisp texture. Less oil.
    Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying
  • Enjoy convenient temperature control from anywhere
    Preheat while running errands or change oven temperatures while doing yard work with the CAF(EBACK)(TM) Appliances Kitchen app
  • Create a look that matches your personal style
  • The oven rack that handles it all
    Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly
  • The perfect fit you've always dreamed of
    When you're updating your kitchen, attention to detail is a priority. That's why CAF(EBACK)(TM) wall ovens are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.
  • Clean up has never been easier
    Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes
  • Prepare foods to perfect doneness
    Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking
  • More heat coverage means better results
    Ensure even baking with an element that covers more surface area for better distribution of heat
  • An even broil is yours
    Achieve completely even browning on any size dish with a full-coverage broil element



Description

Precision is the name of your cooking game
Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times

Built-In WiFi, Powered by SmartHQ App
Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades
Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

Brighten up life in the kitchen
Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

The perfect bake is now perfectly easy
Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more

No preheat, no hassle
Save time with a variety of precision cooking modes that eliminate the need for preheating

Fried taste. Crisp texture. Less oil.
Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying

Enjoy convenient temperature control from anywhere
Preheat while running errands or change oven temperatures while doing yard work with the CAF(EBACK)(TM) Appliances Kitchen app

Create a look that matches your personal style
Select any combination of premium finishes and hardware options to create a stunning look customized to any owner's taste

The oven rack that handles it all
Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly

The perfect fit you've always dreamed of
When you're updating your kitchen, attention to detail is a priority. That's why CAF(EBACK)(TM) wall ovens are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.

Clean up has never been easier
Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes

Prepare foods to perfect doneness
Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking

More heat coverage means better results
Ensure even baking with an element that covers more surface area for better distribution of heat

An even broil is yours
Achieve completely even browning on any size dish with a full-coverage broil element

Key Features

Precision is the name of your cooking game

Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

Brighten up life in the kitchen

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

The perfect bake is now perfectly easy

Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more

No preheat, no hassle

Save time with a variety of precision cooking modes that eliminate the need for preheating

Fried taste. Crisp texture. Less oil.

Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying

Enjoy convenient temperature control from anywhere

Preheat while running errands or change oven temperatures while doing yard work with the CAF(EBACK)(TM) Appliances Kitchen app

The oven rack that handles it all

Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly

The perfect fit you've always dreamed of

When you're updating your kitchen, attention to detail is a priority. That's why CAF(EBACK)(TM) wall ovens are guaranteed for an exact fit or CAF(EBACK)(TM) Appliances will pay up to $300 toward modifications.

Clean up has never been easier

Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes

Prepare foods to perfect doneness

Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking

More heat coverage means better results

Ensure even baking with an element that covers more surface area for better distribution of heat

An even broil is yours

Achieve completely even browning on any size dish with a full-coverage broil element

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $9,510.46 Regular price $14,961.01 Save $5,450.55 / 36% OFF

Product Details for CAFE CVM521P2MS1

Technical Details

Capacity

Total Capacity (cubic feet) 2.1
Vent CFM 400

Filter

App Filter - Cooking Modes Microwave Warm/Proof
App Filter - Control Type Electronic touchpad
App Filter - Wattage 1000
App Filter - Cabinet Width 30.0
App Filter - Product Type Microwave Over-the-Range
App Filter - Capacity Microwave Medium (1.5 - 1.8 cu. ft.)
App Filter - Voltage 120
App Filter - Convection No
App Filter - Venting Type External
App Filter - Cooking Technology Microwave Only

Appearance

Door Swing Hinges on Left
Handle Color Brushed Stainless
Oven Door Features Oven Window
Smooth Steel Door Yes, with Hidden Hinge
Door Color Stainless Steel
Case Color Gray
Color Appearance Stainless Steel

Power / ratings

Input Volts/Hertz 120
Electrical Input - 120V Amperage 15
Electrical Input - 120V Watts 1700

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Limited 5-year magnetron tube
Warranty Notes See written warranty for full details

Economical / quiet

Non-Vented Optional
Venting Type Externally Vented

Accessories

Optional Side Filler Panel Kit JX36BSS
Optional Kits 15.0
Recirculating Charcoal Filter Kit Included
WB06X10807

Weights & dimensions

Approximate Shipping Weight 74
Cabinet Width 30.0
Net Weight 64
Depth with Door Open 23.56
Overall Width 29.88
Cutout Width (in) 30.0
Cutout Depth (in) 12.0
Cutout Height (in) 16.31
Overall Depth 17.94
Overall Height 16.31
Cavity (W x H x D) 21

Features

Display Type LED
Microwave Sensor Cooking Controls Beverage
Cook (5 Foods)
Defrost: Weight/Time
Popcorn
Reheat
Steam Cook
Electronic Digital Display with Clock Yes (LED)
Display Screen Size (Diagonal Length) 3.13
Cooking Modes Microwave
Control Location Side Controls
Style Over-The-Range
Microwave Watts (IEC-705) 1000
Turntable On / Off Yes
Power Levels 10
Control Type Dial
Electronic Touch
Cooktop Lighting High/Low/Off
LED
Multi-Language Capability English/Spanish
Control Features Add 30 Seconds
Chef Connect
Clear/Off
Cook Time
Mute On/Off
My Cycle
Power
Settings
Start/Pause
Steam Clean
Surface Light
Timer On/Off
Turntable On/Off
Vent Fan
Product Type Over-the-range Microwave
Sound Volume Control Yes
Turntable Glass
Cooking Technology Microwave
Microwave Oven Interior Easy Clean Interior
Exhaust Fan 4
Vent Back
Front
Top
Turntable Size 14.2
Interior Oven Light Halogen

Features

  • Create a streamlined cooking experience
    Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks
  • A simple and smart addition to your culinary repertoire
    Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process
  • Say goodbye to guesswork
    Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power
  • Brighten up the room
    Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs
  • Sparkling clean with just a wipe
    Focus on the food and forget the mess knowing that the easy-clean interior with steam clean lets you swiftly wipe away spills and splatters
  • Like a breath of fresh air
    Keep your kitchen ready for guests with a three-speed, 400-CFM venting system that removes smoke, grease, odors and moisture
  • A subtle reminder for filter replacement
    Keep your kitchen smelling fresh and clean with an upfront charcoal filter with indicator light that lets you know when the filter needs to be replaced
  • Cook your way with just one touch of a button
    Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods
  • More room for more food
    Entertaining unexpected guests is easy with the 2.1 cu. ft. capacity that helps prepare a large amount of food quickly
  • Create a look that matches your personal style



Description

Create a streamlined cooking experience
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire
Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork
Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Brighten up the room
Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

Sparkling clean with just a wipe
Focus on the food and forget the mess knowing that the easy-clean interior with steam clean lets you swiftly wipe away spills and splatters

Like a breath of fresh air
Keep your kitchen ready for guests with a four-speed, 400-CFM venting system that removes smoke, grease, odors and moisture

A subtle reminder for filter replacement
Keep your kitchen smelling fresh and clean with an upfront charcoal filter with indicator light that lets you know when the filter needs to be replaced

Cook your way with just one touch of a button
Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods

More room for more food
Entertaining unexpected guests is easy with the 2.1 cu. ft. capacity that helps prepare a large amount of food quickly

Create a look that matches your personal style
Select any combination of premium finishes and hardware options to create a stunning look customized to any owner's taste

10 Power Levels for Culinary Excellence
The Cafe Microwave offers 10 power levels, designed to elevate your cooking from the robust intensity needed for vibrant vegetables and aromatic beverages to the subtle warmth ideal for defrosting and nurturing delicate sauces

Express Elegance
Express Cook unites style & speed, offering you one-button 1 to 6 minutes of cooking time with flawless efficiency

Key Features

Create a streamlined cooking experience

Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire

Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork

Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Brighten up the room

Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

Sparkling clean with just a wipe

Focus on the food and forget the mess knowing that the easy-clean interior with steam clean lets you swiftly wipe away spills and splatters

Like a breath of fresh air

Keep your kitchen ready for guests with a four-speed, 400-CFM venting system that removes smoke, grease, odors and moisture

A subtle reminder for filter replacement

Keep your kitchen smelling fresh and clean with an upfront charcoal filter with indicator light that lets you know when the filter needs to be replaced

Cook your way with just one touch of a button

Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods

More room for more food

Entertaining unexpected guests is easy with the 2.1 cu. ft. capacity that helps prepare a large amount of food quickly

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $9,510.46 Regular price $14,961.01 Save $5,450.55 / 36% OFF

Product Details for CAFE CDT828P2VS1

Technical Details

Appearance

Handle CAFé(TM)
Installation Built-Up Floor Capable
Flush Cabinet Installation
Side Installation or Top Installation Included
Handle Color Brushed Stainless
Door Style Long Door with Top Controls
Door Appearance Full-length flat door
Color Appearance Stainless Steel
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Hertz 60
Electrical Requirements 120
Watts 936
Calrod Heater Watts 800
Volts/Hertz/Amps 120

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Door Insulation Insulation
Mastic
Quiet Package 42
Outer Wrap Bitumen
Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Quiet Water Valve
Sealed Toe Kick
Tub Collar Trim

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVBT Brushed Black
CXADTH1PVBZ Brushed Bronze
CXADTH1PVCG Brushed Brass
CXADTH1PVCU Brushed Copper
CXADTH1PVFB Flat Black
CXADTH1PVSS Brushed Stainless

Weights & dimensions

Height w/ Legs Retracted - Minimum Height 33.38
Cutout Height (in) 33.5
Cutout Width (in) 24.0
Overall Depth 24.0
Cabinet Width 24.0
Net Weight 124
Overall Width 23.75
Depth Without Handle 24.0
Approximate Shipping Weight 137
Overall Height 34.0
Overall Depth with Handle 26.3
Cutout Depth (in) 24.0
Height w/Legs Extended - Maximum Height 34.63
Depth with Door Open 25.5

Features

Wash System 3
Sensor Clean Sensor
Lower Rack 1
Tub Type Tall Tub
Leveling System 4
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options Bottle Wash (on app)
Delay Start 1-12 Hr.
Favorites
Favorites (on app)
Heated Dry Off
Hi-Temp Wash
Lock Controls
Normal Dry
Pre Soak
Sabbath Mode
Sani (Certified to NSF Standard 184)
Start/Cancel
Ultra Dry
Wash Zones/Half Load (on app)
Latch Pull with Handle
Number of Options 15
Style Built-In Top Control
Water Filtration System 100
Cutlery Tray One piece removable 3rd rack
Rack Features Adjustable Upper Rack
Ball-Tipped Tines
Cafe Flex Silverware Basket
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Auto
Cookware
Express
Gentle
Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
WiFi Connect Optional (Requires part no. PBX23W00Y1)
EcoBalance Compatible Yes
Control Type 8
Racking System Full 3rd rack
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Multi-Wattage Wash & Dry Element
UltraDry
Wash Arms 3
Wash System Features Automatic HotStart
Automatic Temperature Control
Bottle Jets (4)
Hard Food Disposer with removable filter
Lower Wash Arm
Middle Wash Arm
Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Slilding 3rd rack + Tray
Exterior Style Customizable Professional
Product Type Built-In
Upper Rack 1
Dishwasher Control Features Audible End-of-Cycle Signal
Cycle Countdown with Bi-Color LED Status Light on door
Cycle Progress Indicators: Clean/Sanitized/Smart Assist
Last Cycle Memory
Number of Cycles 5
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes

Features

  • CustomFit Top Rack
    Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.
  • CustomFit Basket
    Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.
  • Ultra Wash & Dry
    This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.
  • 4 Bottle Wash Jets
    This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
  • Customizable Dishwasher Handles
    Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.
  • Favorites
    Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.
  • Adjustable Middle Rack
    Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".
  • Presoak
    Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.
  • Sanitize
    Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.
  • Middle and Lower Rack Fold-Down Tines
    Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.
  • Active Flood Protect
    Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.
  • Piranha(TM) Hard Food Disposer
    The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
  • 42 dBA Dishwasher
    Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.



Description

The Café CDT828P2VS1 24" Smart Built-In Dishwasher is designed for those who demand powerful cleaning performance and sleek aesthetics. Featuring Ultra Wash & Dry technology, it provides superior cleaning and drying for spotless dishes. The stainless steel interior enhances durability and resists odors while maintaining a modern look.

This dishwasher offers a customizable loading system with adjustable racks, fold-down tines, and a third rack for added capacity. The Wi-Fi connectivity allows users to monitor and control the dishwasher remotely using the SmartHQ app. The Sanitize cycle removes 99.99% of bacteria, while the Steam + Sani option loosens tough food residues for a more thorough clean.

With an ultra-quiet 45 dBA operation, the CDT828P2VS1 ensures a peaceful kitchen environment. The hidden top controls and sleek stainless steel finish blend seamlessly with modern kitchen designs, offering a high-end touch to any space.

Key Features

CustomFit Top Rack

Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.

CustomFit Basket

Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.

Ultra Wash & Dry

This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

Favorites

Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.

Adjustable Middle Rack

Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak

Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.

Sanitize

Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation

Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Piranha™ Hard Food Disposer

The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.

42 dBA Dishwasher

Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
