Product Details for CAFE CGS700P3MD1
Technical Details
Filter
| App Filter - Cabinet Width | 30.0 |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Slide-In Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Convection |
| App Filter - Tri-Ring Burner | Yes |
| App Filter - Convection | Yes |
| App Filter - Edge-to-Edge Cooktop | Yes |

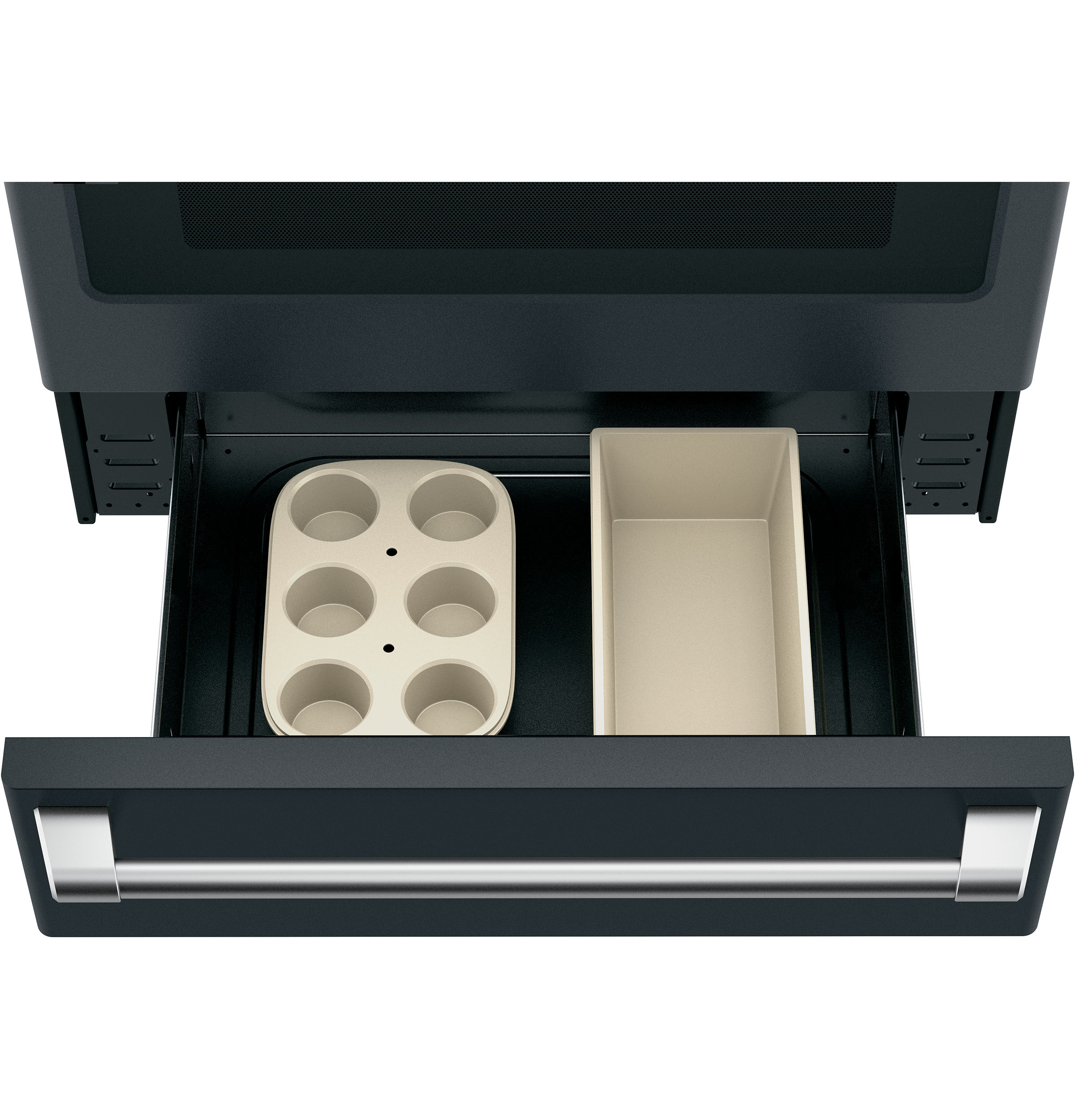

| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooktop Type | Standard Grates |
| App Filter - WiFi Connect | Built-In |
Appearance
| Cooktop Burner Grate Color | Matte Black |
| Handle | Consumer Removable Customizable Professional Style |
| Textured Steel Side Panels | Yes |
| Installation | Flush Appearance Free-standing cut-out |
| Oven Door Features | Big Clear View Oven Window Matte Black Frameless Oven Door |
| Handle Design | CAFé(TM) |
| Handle Color | Brushed Stainless |
| Control Knobs | Stainless Steel Appearance |
| Color Appearance | Matte Black |
Power / ratings
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Electrical Requirements | 120 |
| Volts/Hertz/Amps | 120 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0; |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 |
| Convection Wattage | 1200 |
| Hertz | 60 |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Accessories
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Kits | CXFCGHKPMBT Brushed Black CXFCGHKPMBZ Brushed Bronze CXFCGHKPMCG Brushed Brass CXFCGHKPMCU Brushed Copper CXFCGHKPMFB Flat Black CXFCGHKPMSS Brushed Stainless |
| Grates | Included Center Grate |
| LP Conversion Kit | Included |
| Trim Kit | JXFILLR1DD Optional |
Weights & dimensions
| Net Weight | 224 |
| Depth Without Handle | 26.88 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 291 |
| Overall Width | 29.88 |
| Overall Height | 37.38 |
| Height to Top of Rear Vent Trim | 37.38 |
| Overall Depth | 29.5 |
| Depth with Door Open | 47.5 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 |
Features
| Cooking System | True Convection |
| Cleaning Time | Variable with Delay Clean Option |
| Ignition System | Electronic |
| Burner - Right Rear | 12 |
| Oven Interior | 1 |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Automatic Oven Timer (Time Bake) Chef Connect Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Digipad Numeric Entry Electronic Clock and Timer Front Controls In-Oven Broiling Sabbath Mode Self-Clean Cool Down Time Display Temperature Probe |
| Oven Rack Features | 3 |
| Burner - Left Rear | 5 |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Included Integrated Cast Iron |
| Connected Capabilities | Amazon Alexa DiGiorno Fresco Google Home IFTTT Innit Sonos The Google Assistant |
| Product Type | Slide-In Single Oven |
| Style | Commercial |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Cast-Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 9 |
| WiFi Connect | Built-In |
| Control Location | Front controls |
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Grate Features | Heavy-Cast Edge-to-Edge Grates |
| Control Type | Backlit Glass Touch |
| Burner - Left Front | 21 |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Leveling System | 4 |
| Cooking Technology | Convection |
| Configuration | Range with Storage Drawer |
| OU Certified | No |
| Oven Cooking Modes | Baked Goods Convection Bake Convection Roast Frozen Pizza Multi Rack Frozen Pizza Single Rack (No Preheat) Frozen Snacks Multi Rack Frozen Snacks Single Rack (No Preheat) No Preheat Air Fry Proof Warming |
| Cooktop Burner Type | Sealed |
| Grill | Integrated Cast Iron JXCGRILL1 Optional |
| Valves (Degree of Turn) | 270 |
| Burner - Right Front | 15 |
| Cooktop Surface | Deep Recessed Gray Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Self-Clean Oven Door Lock | Automatic |
Features

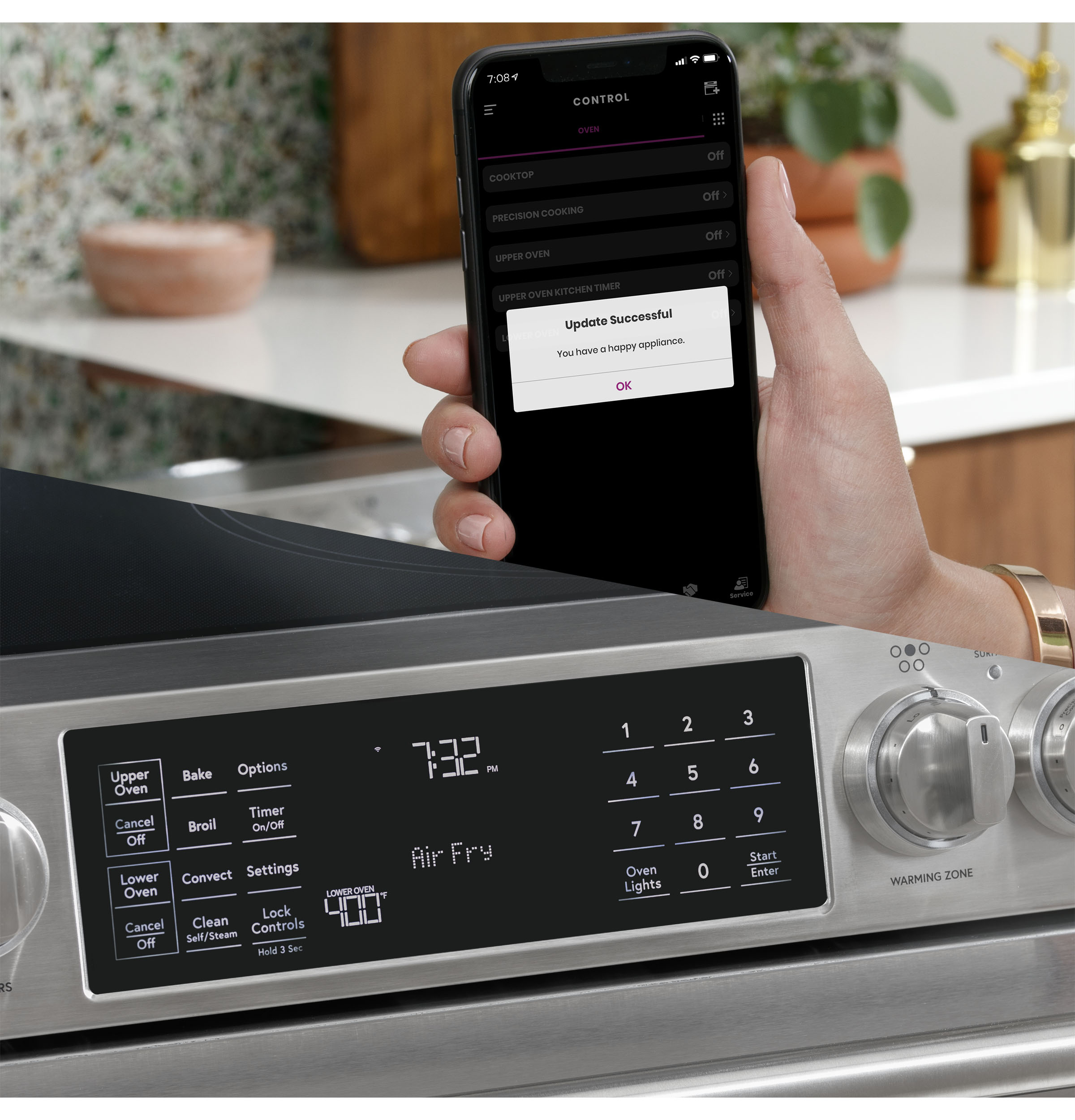

- Built-In WiFi, Powered by SmartHQ App

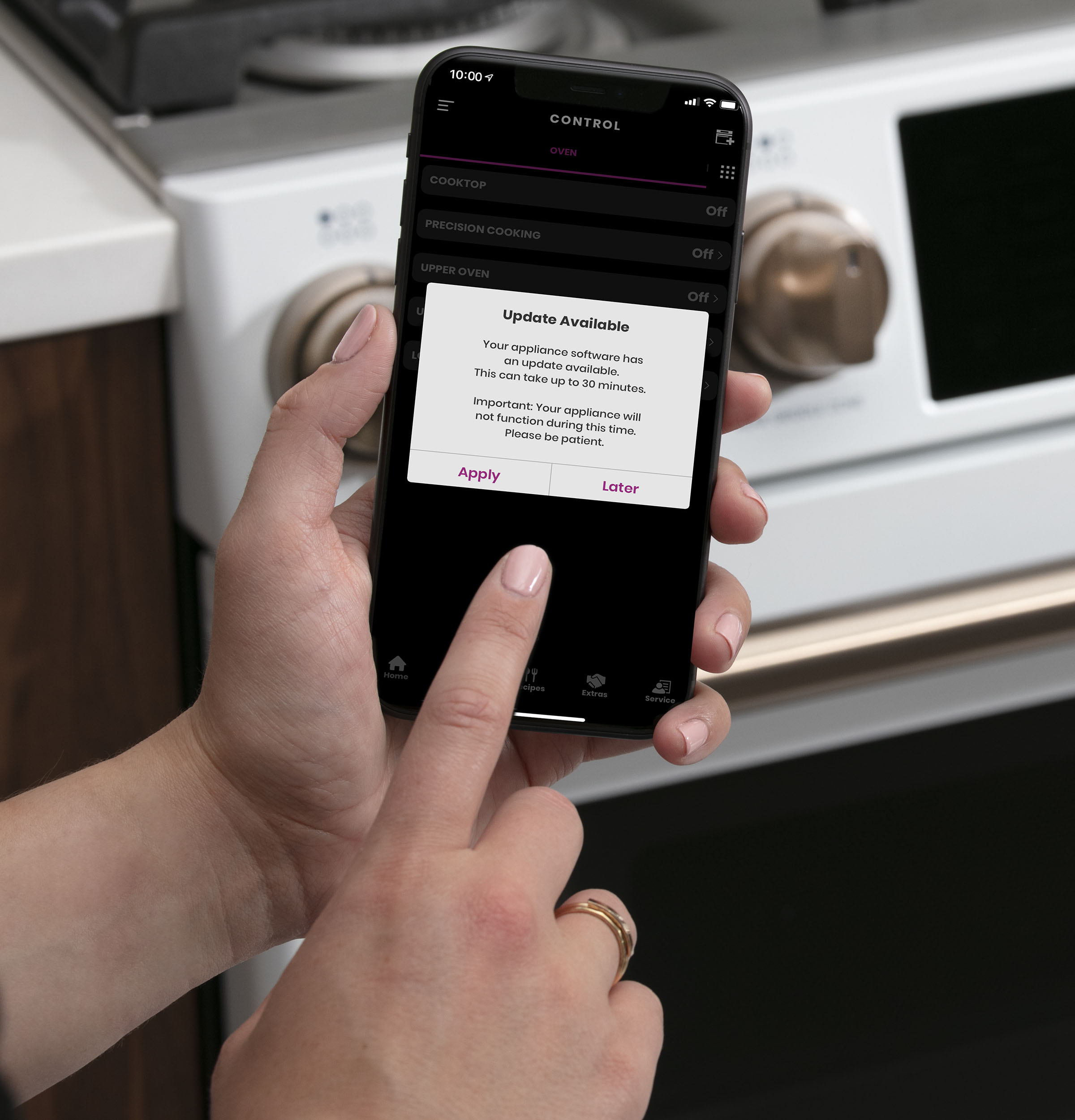

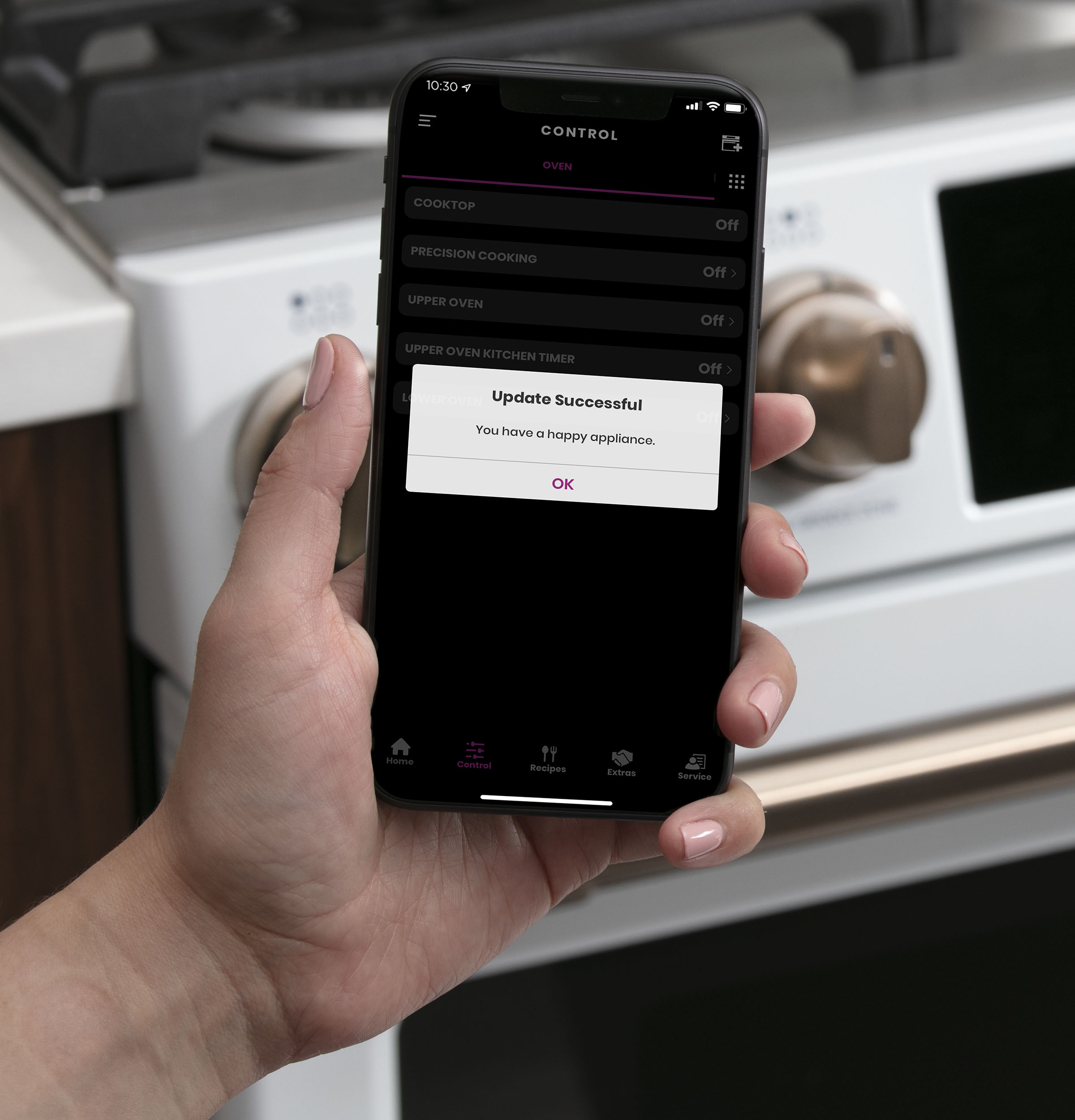

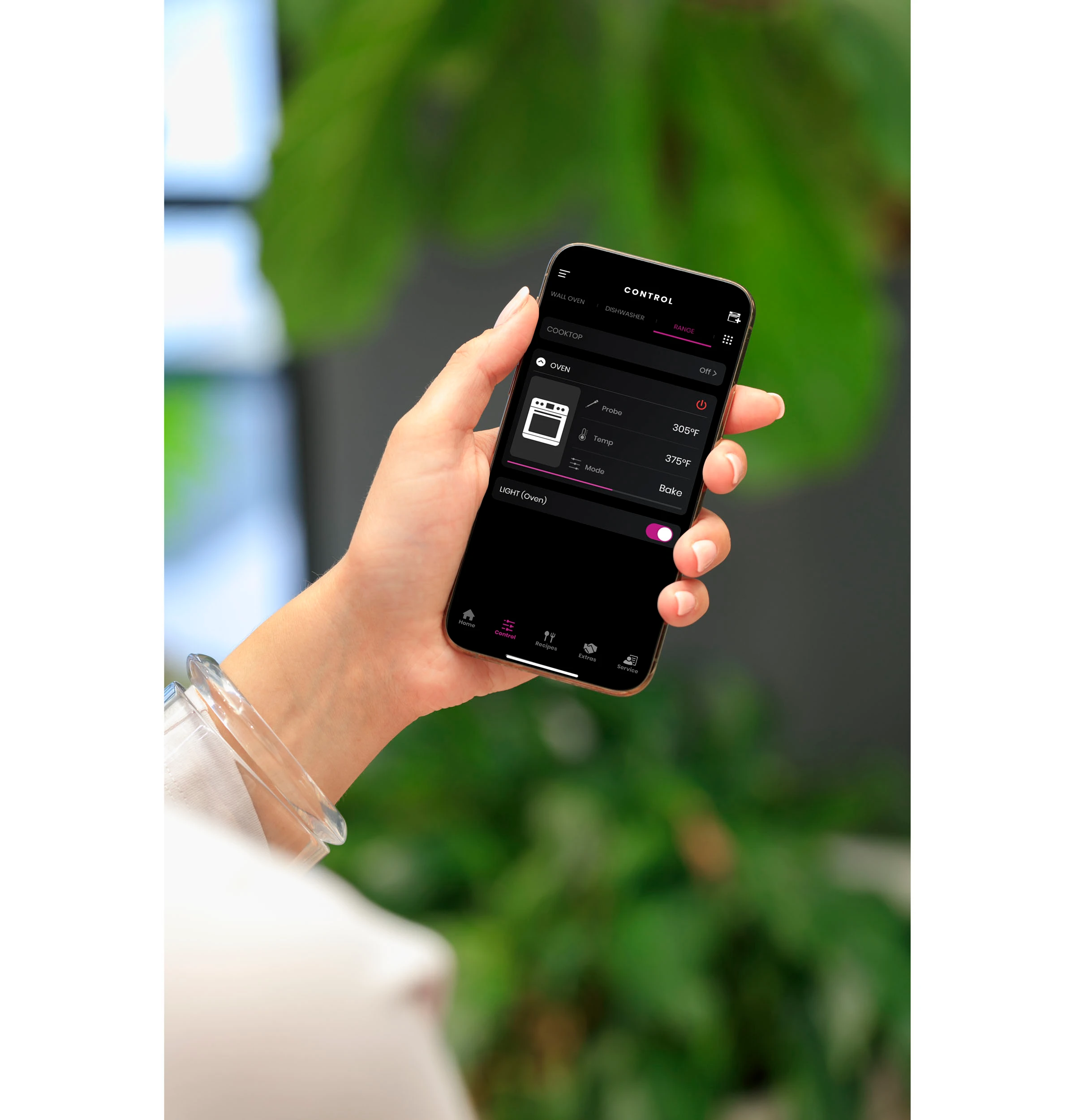

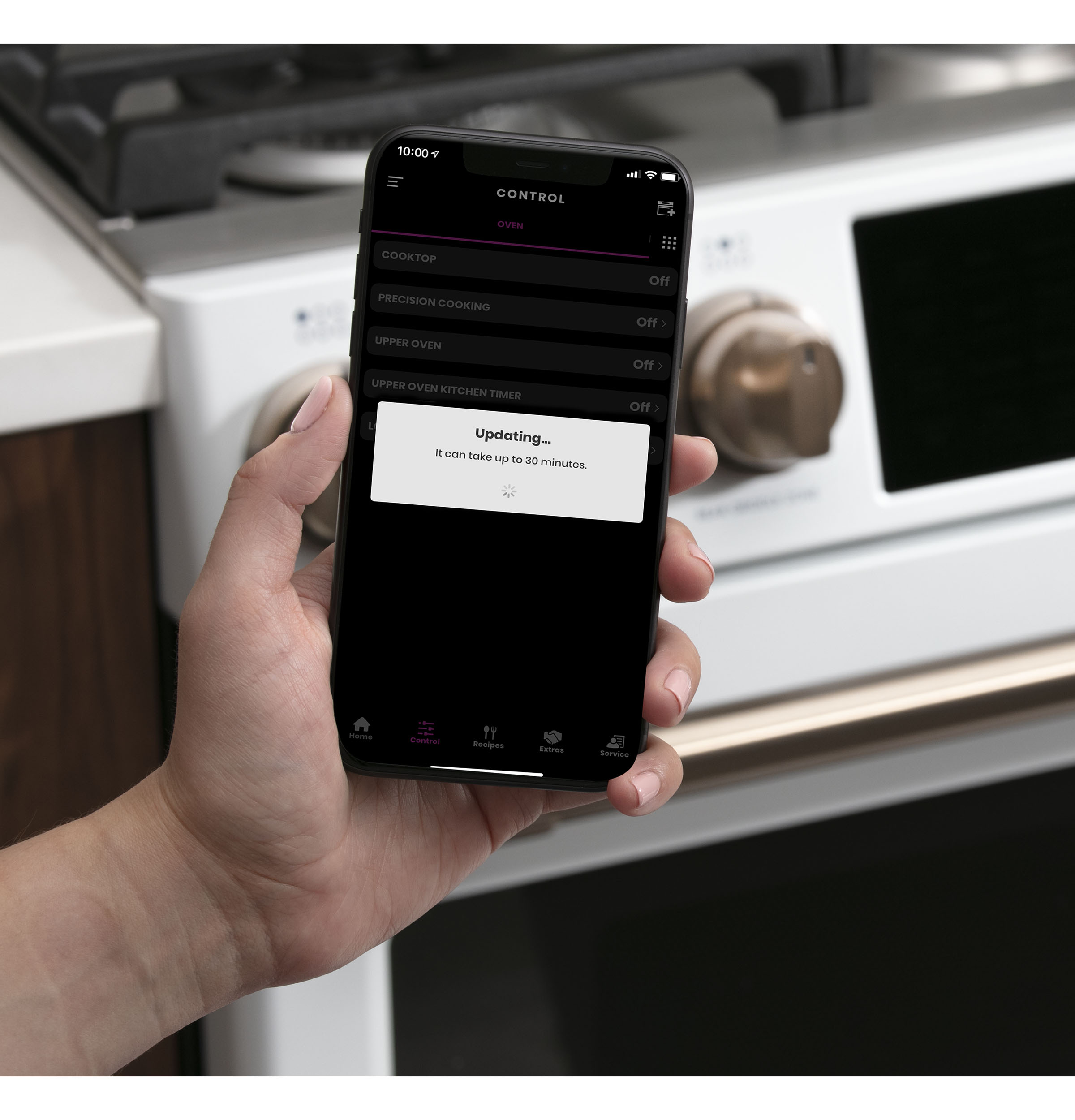

Manage all aspects of your kitchen with the help of the SmartHQ(TM) App or your voice assistant (Select features require WiFi Connection) See details - Personalized Features + Upgrades
Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire - No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray (WiFi Enabled) - Expansive six-burner cooktop helps you entertain with ease

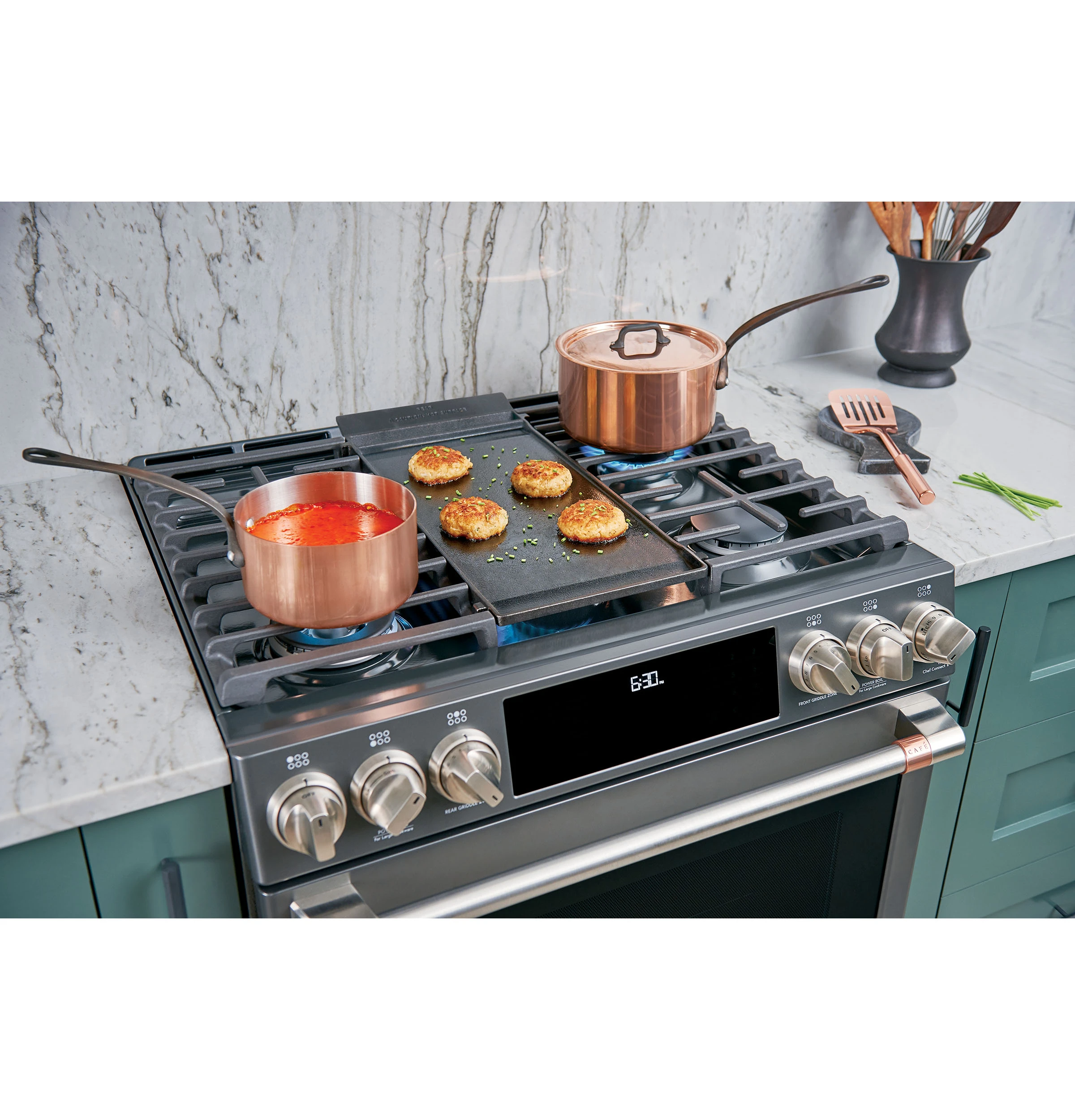

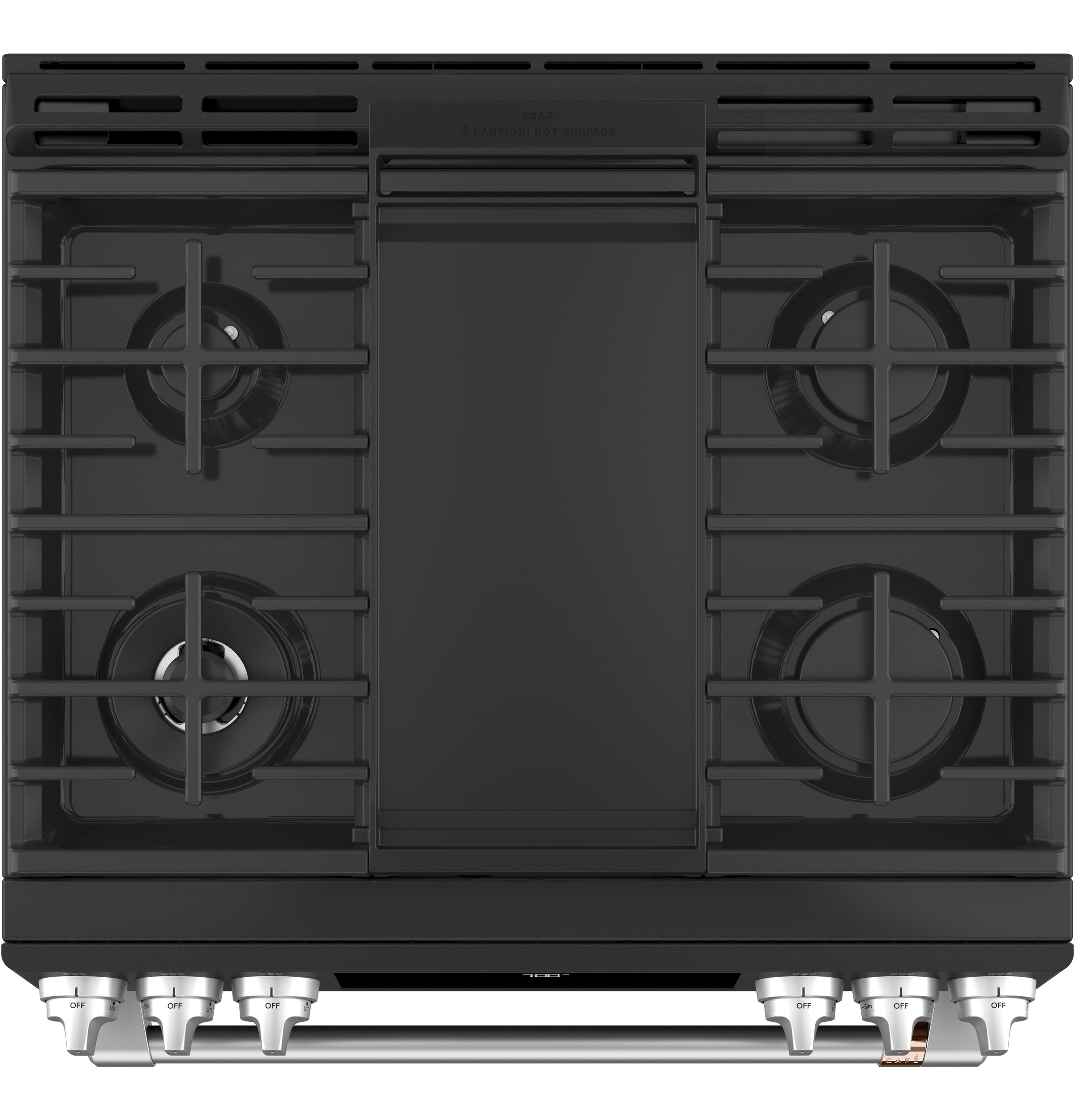

Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites - Share favorite creations with your favorite people

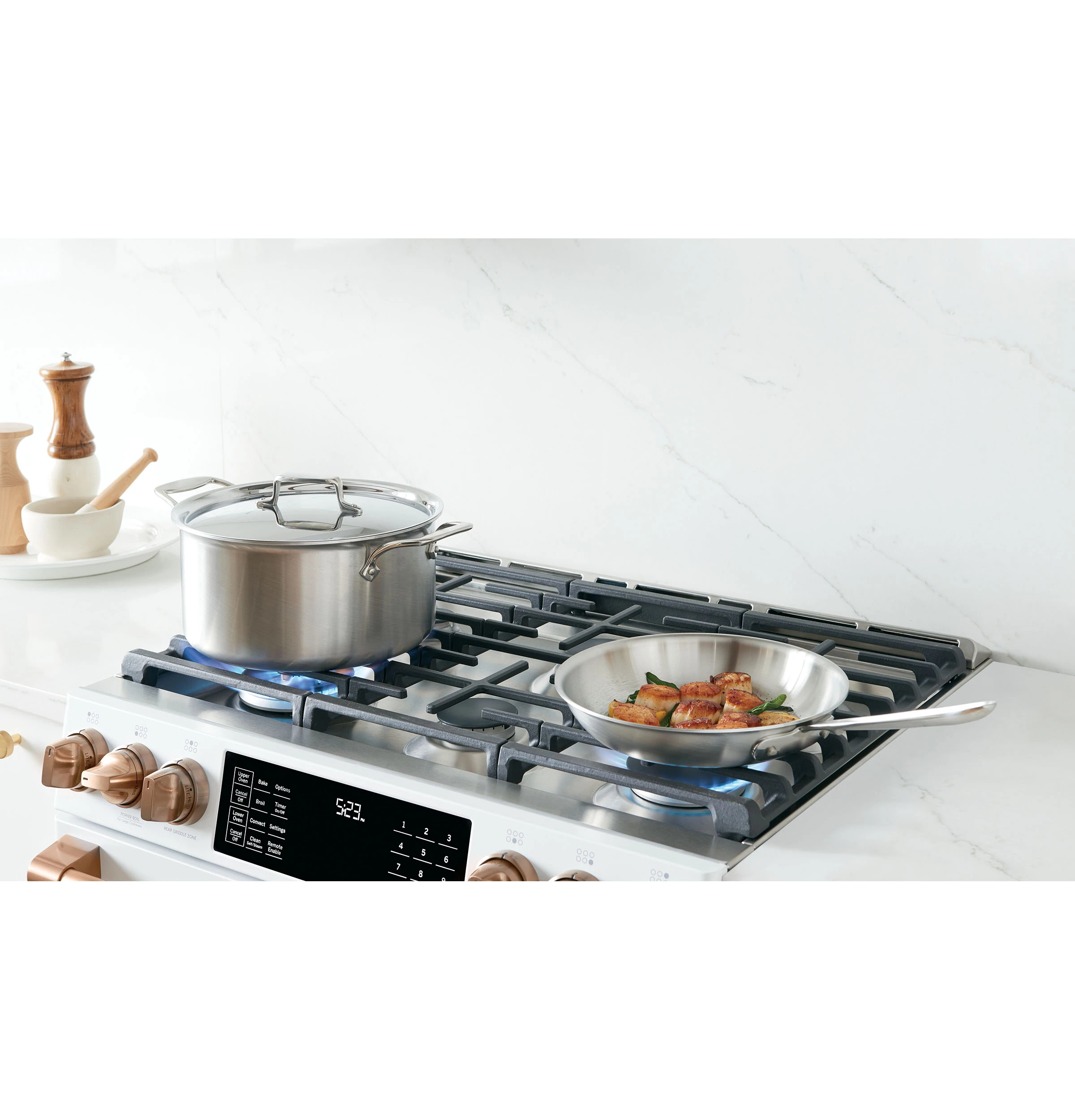

Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta - The perfect bake is now perfectly easy
Achieve unrivaled performance with a system that delivers true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more - Prepare foods to perfect doneness

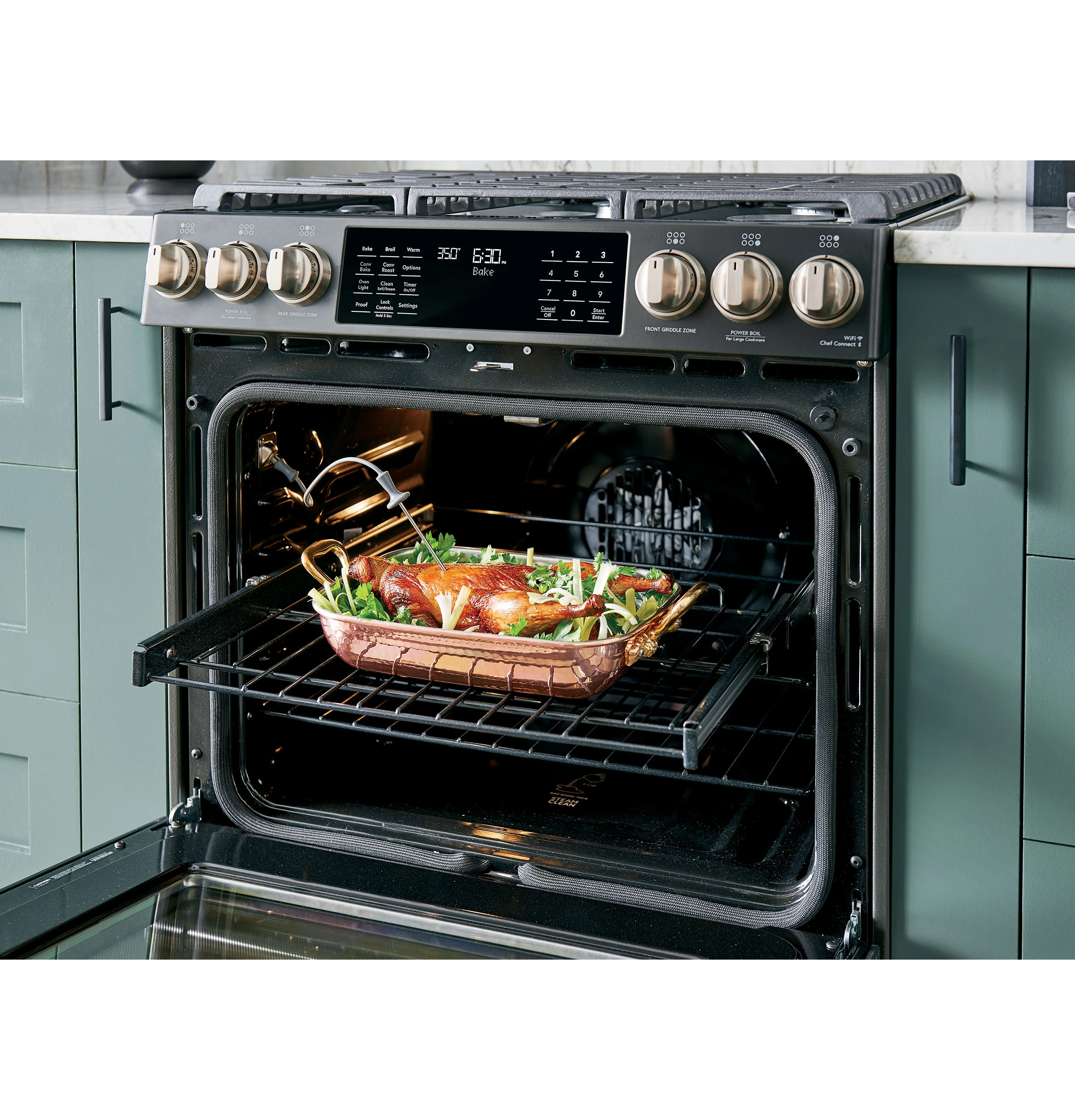

Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door - An attractive appearance at all times

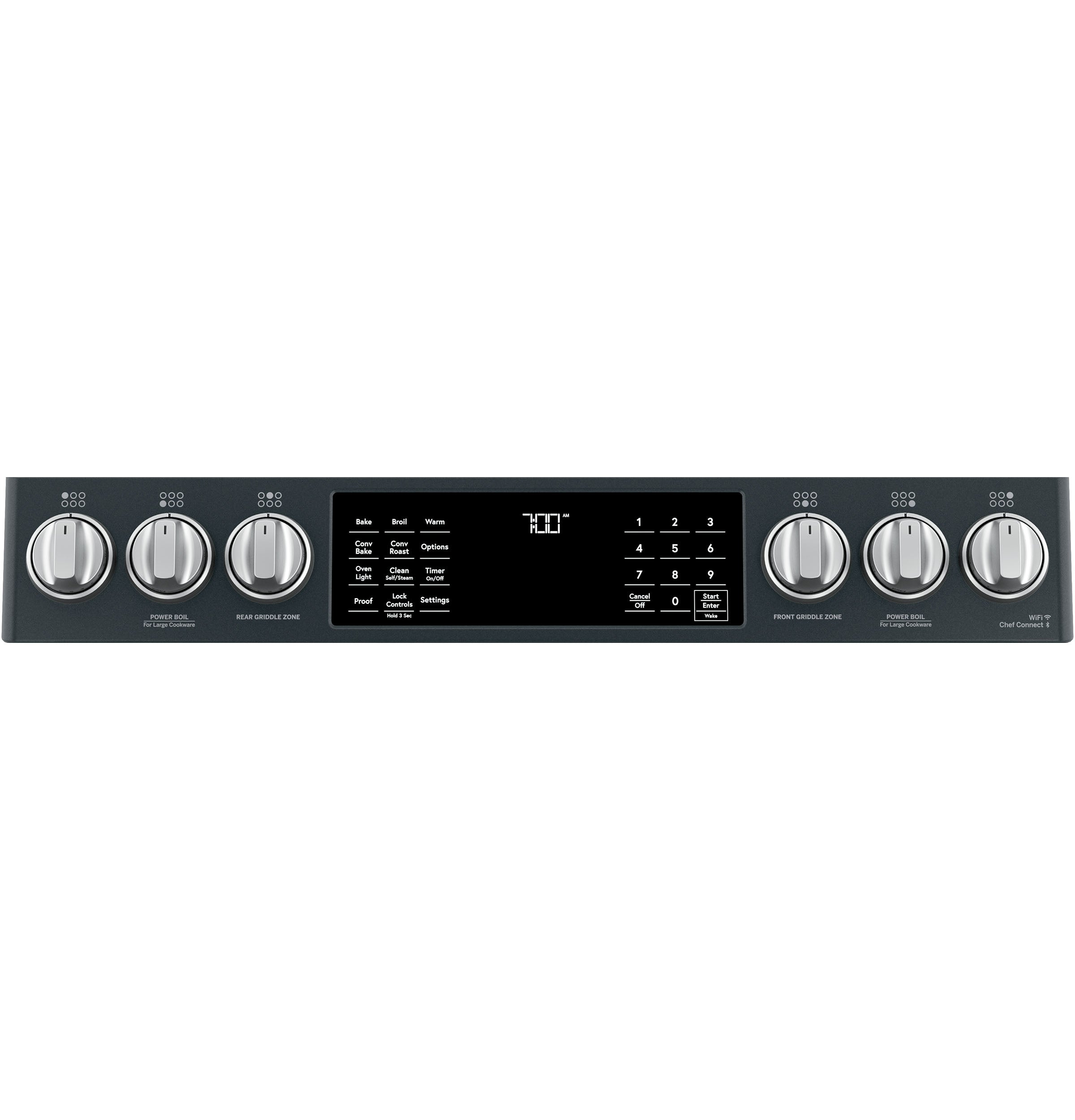

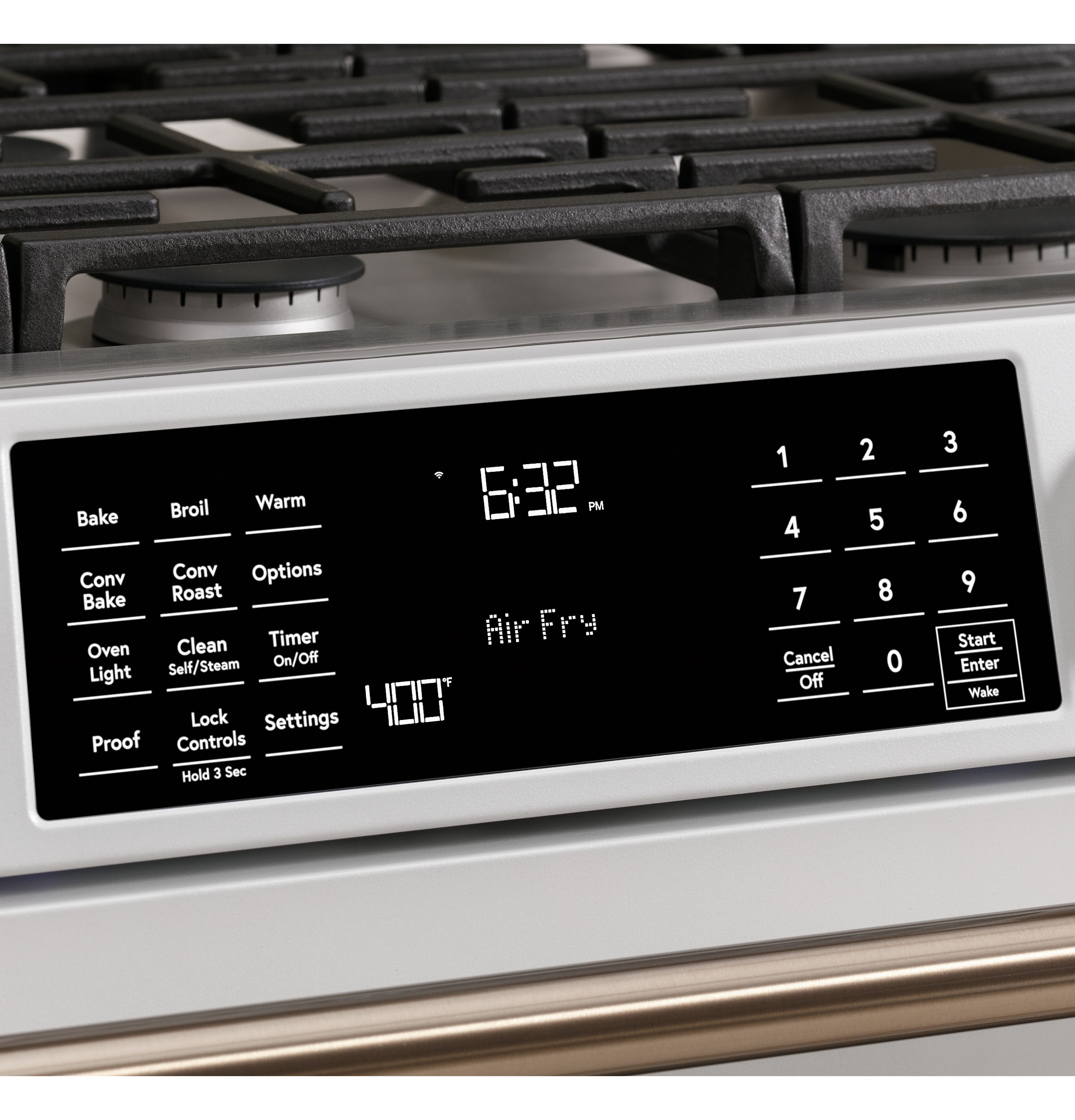

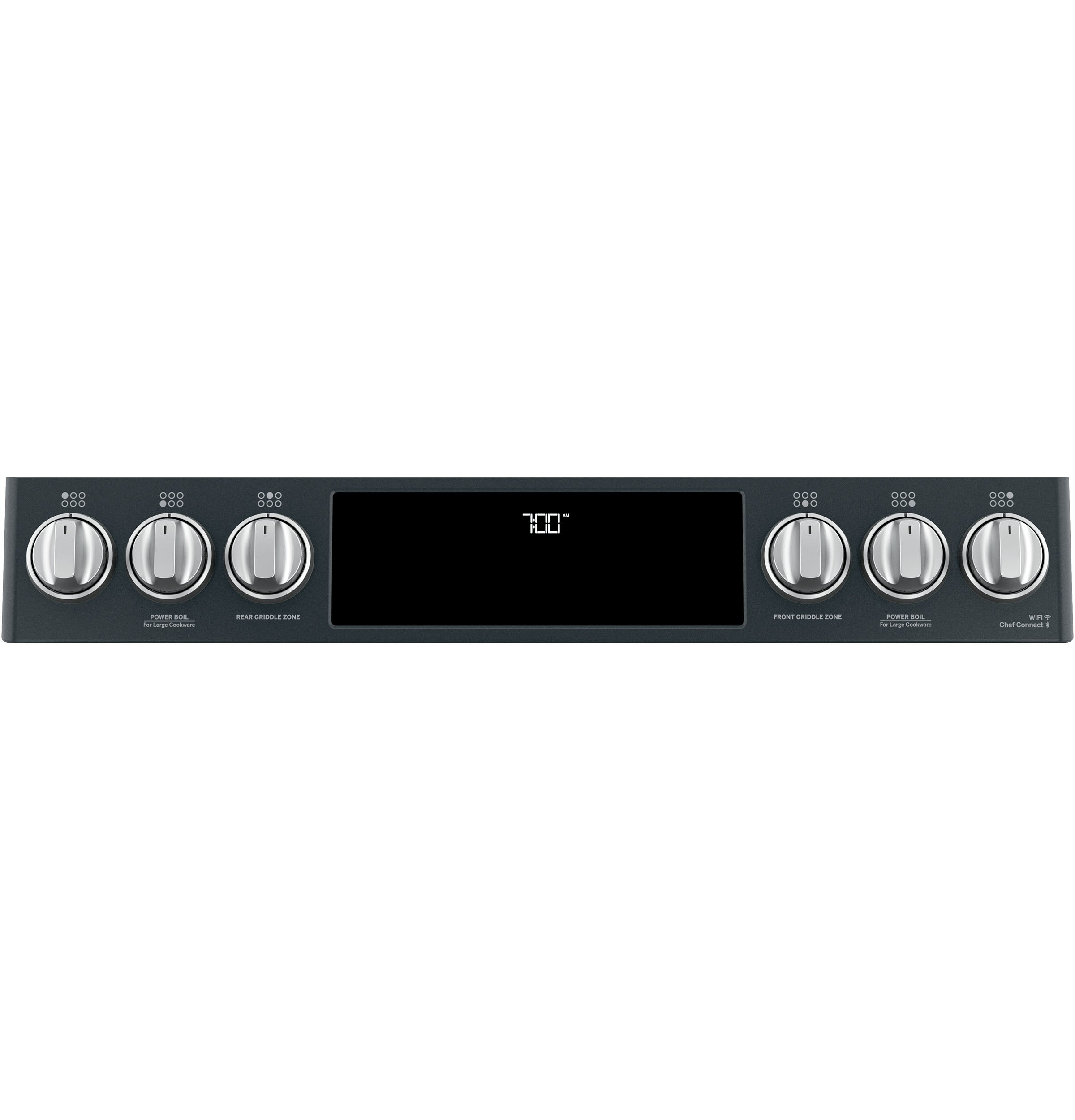

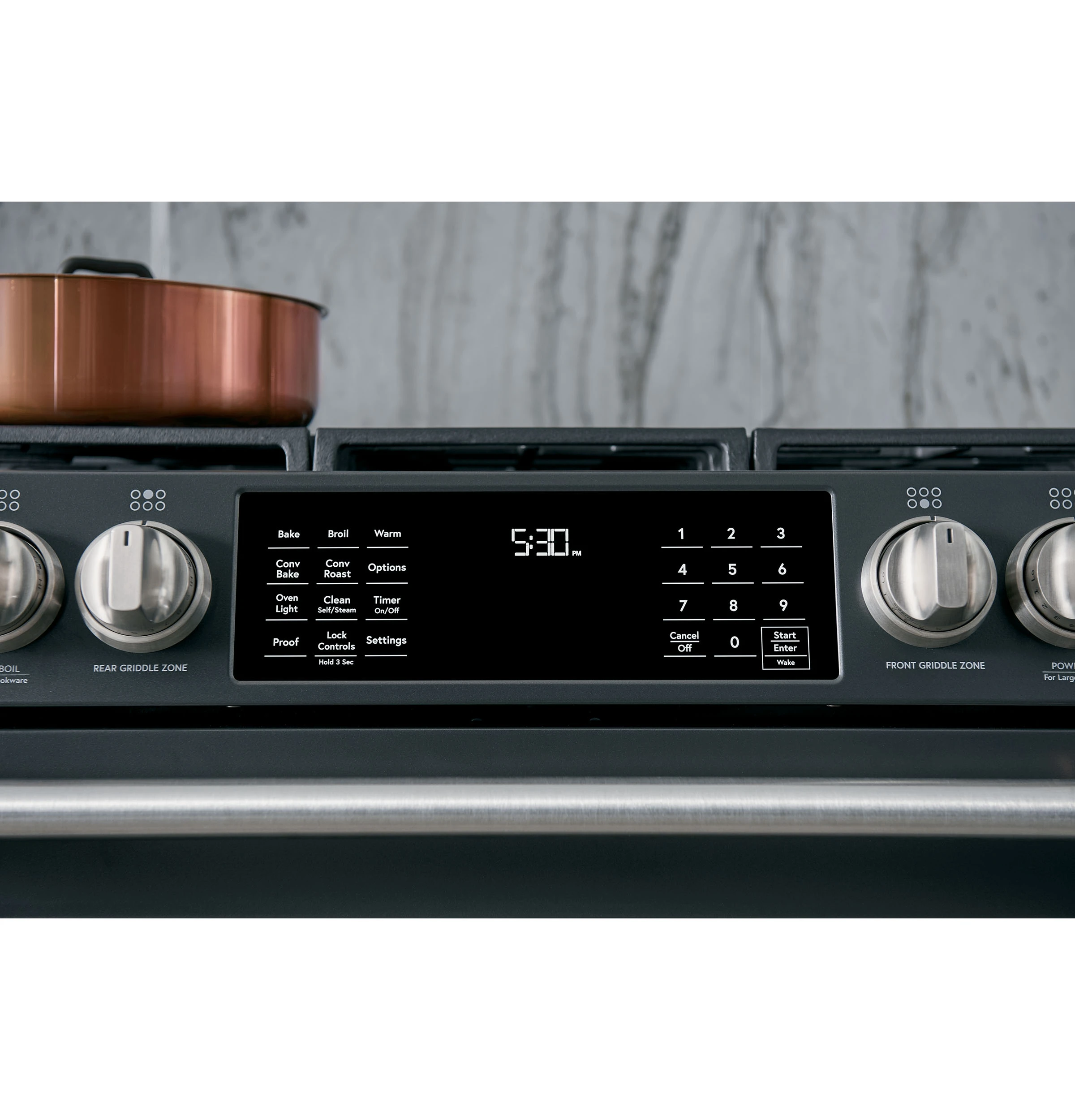

Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted. Plus, backlit knobs bring an extra sparkle to the kitchen - Create a look that matches your personal style
- Durable racks that make cleaning easy

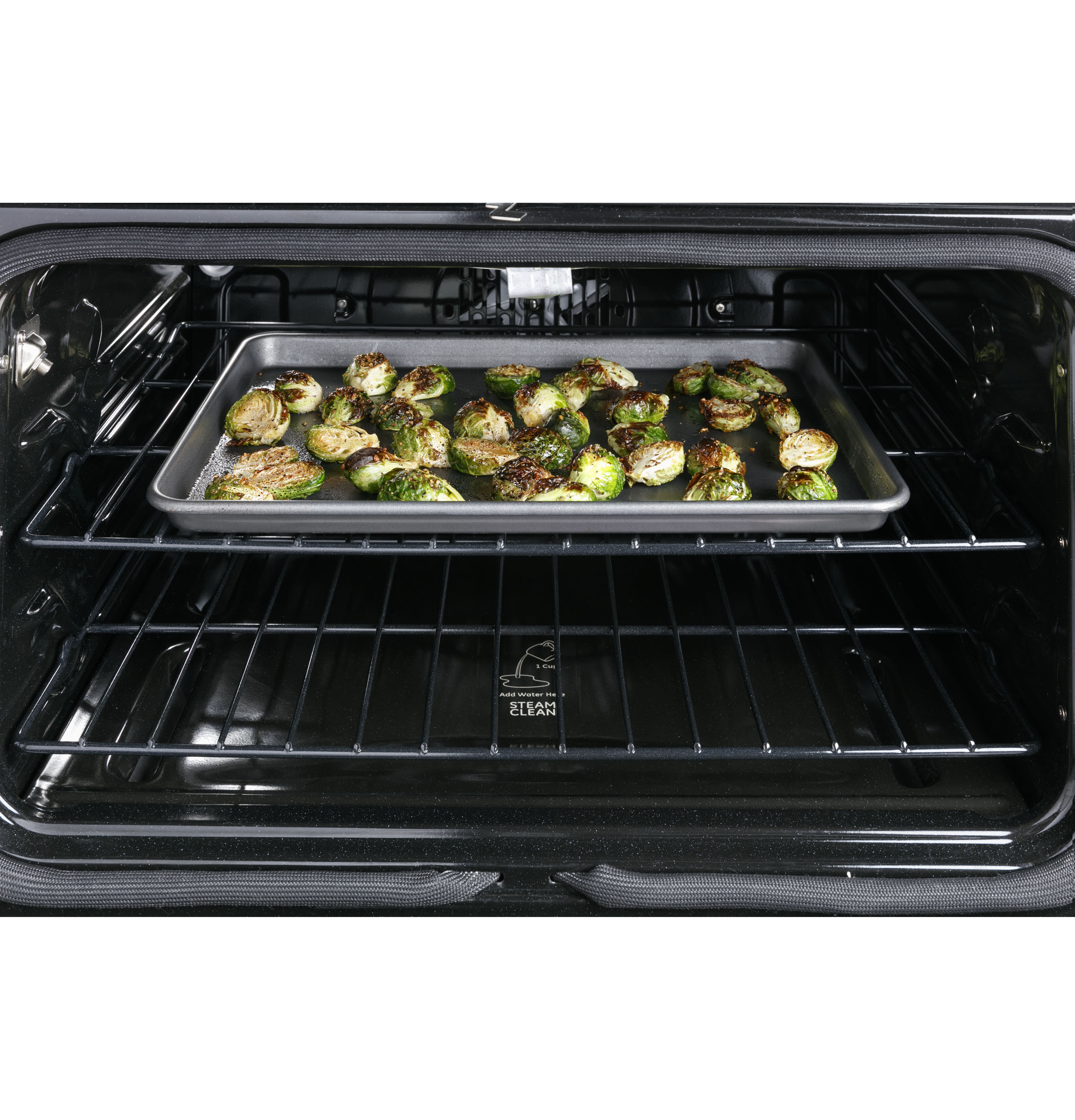

Easily remove everything from heavy roasts to delicate desserts with self- clean racks that stay in the oven during the self-clean cycle - Allow your appliances to interact with one another

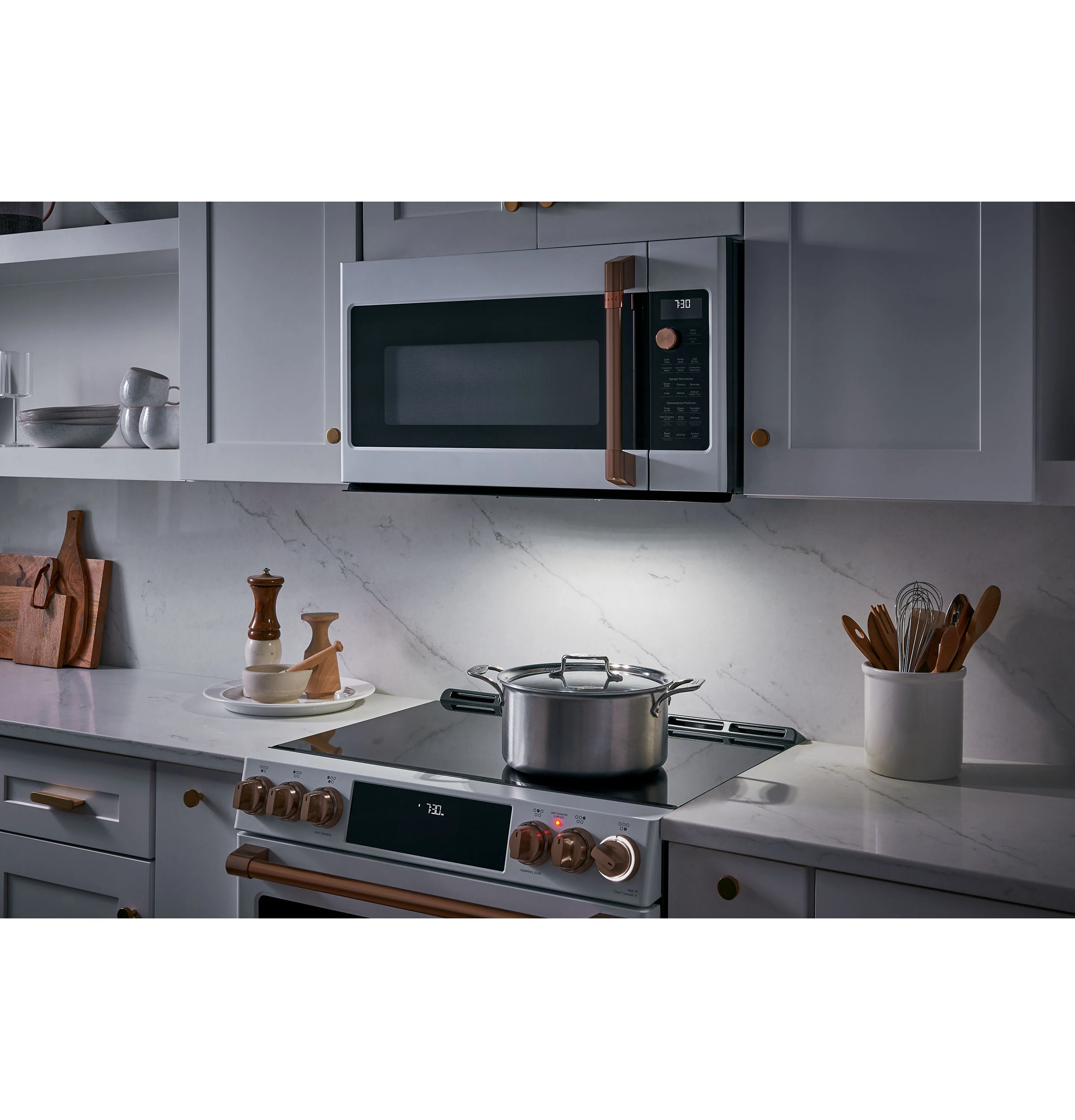

Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks - Choose the range you want with total confidence
Description

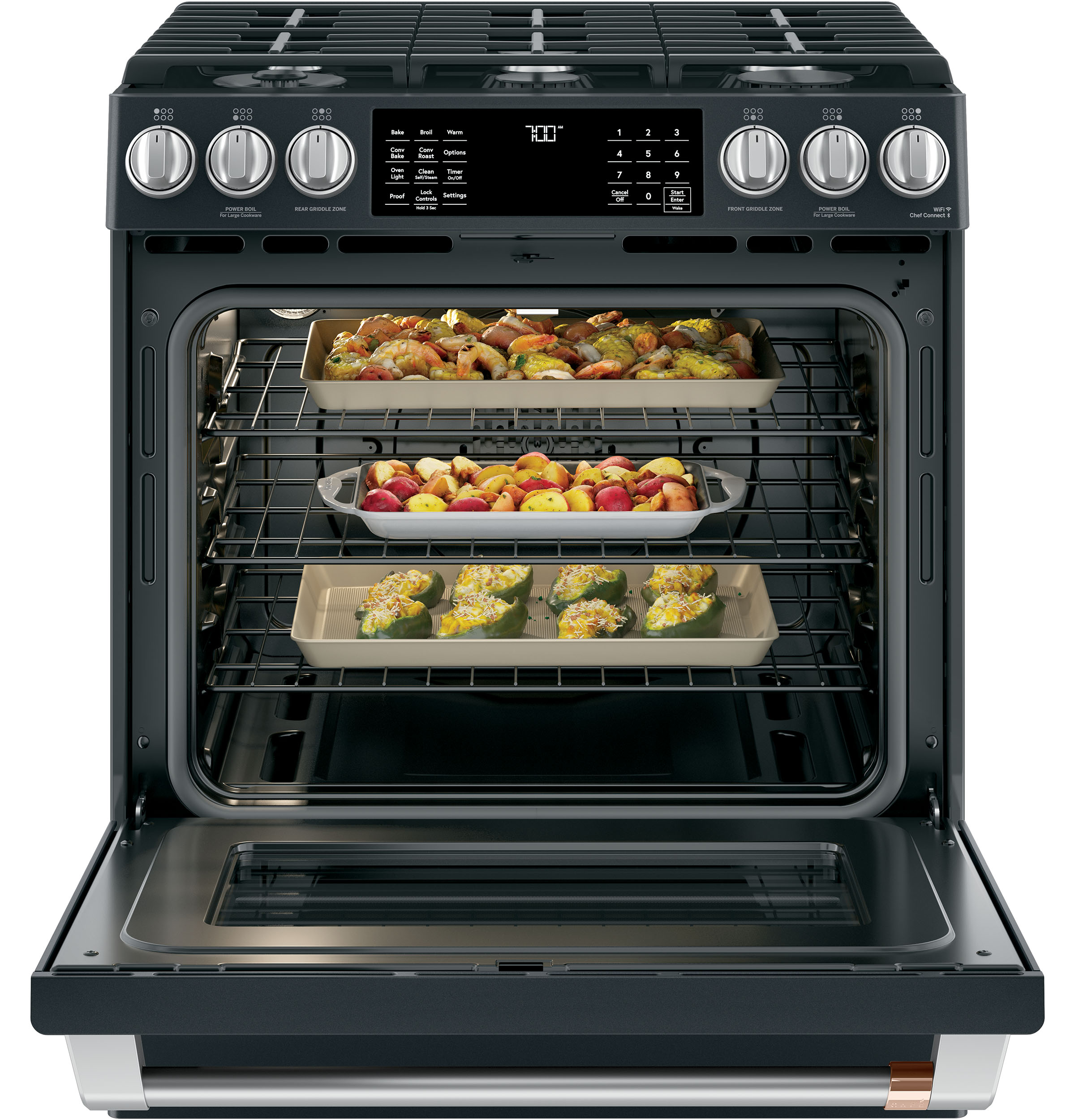

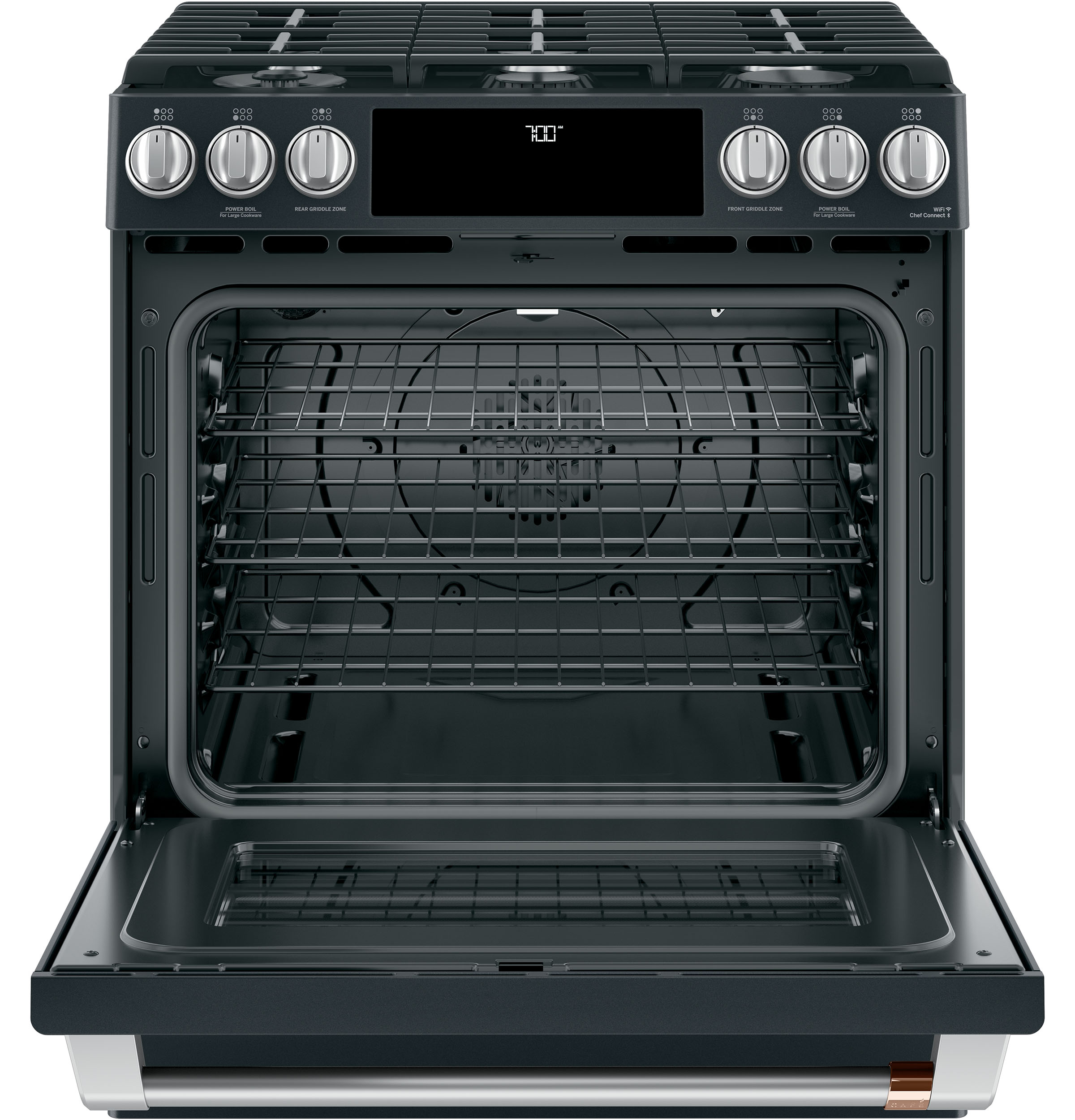

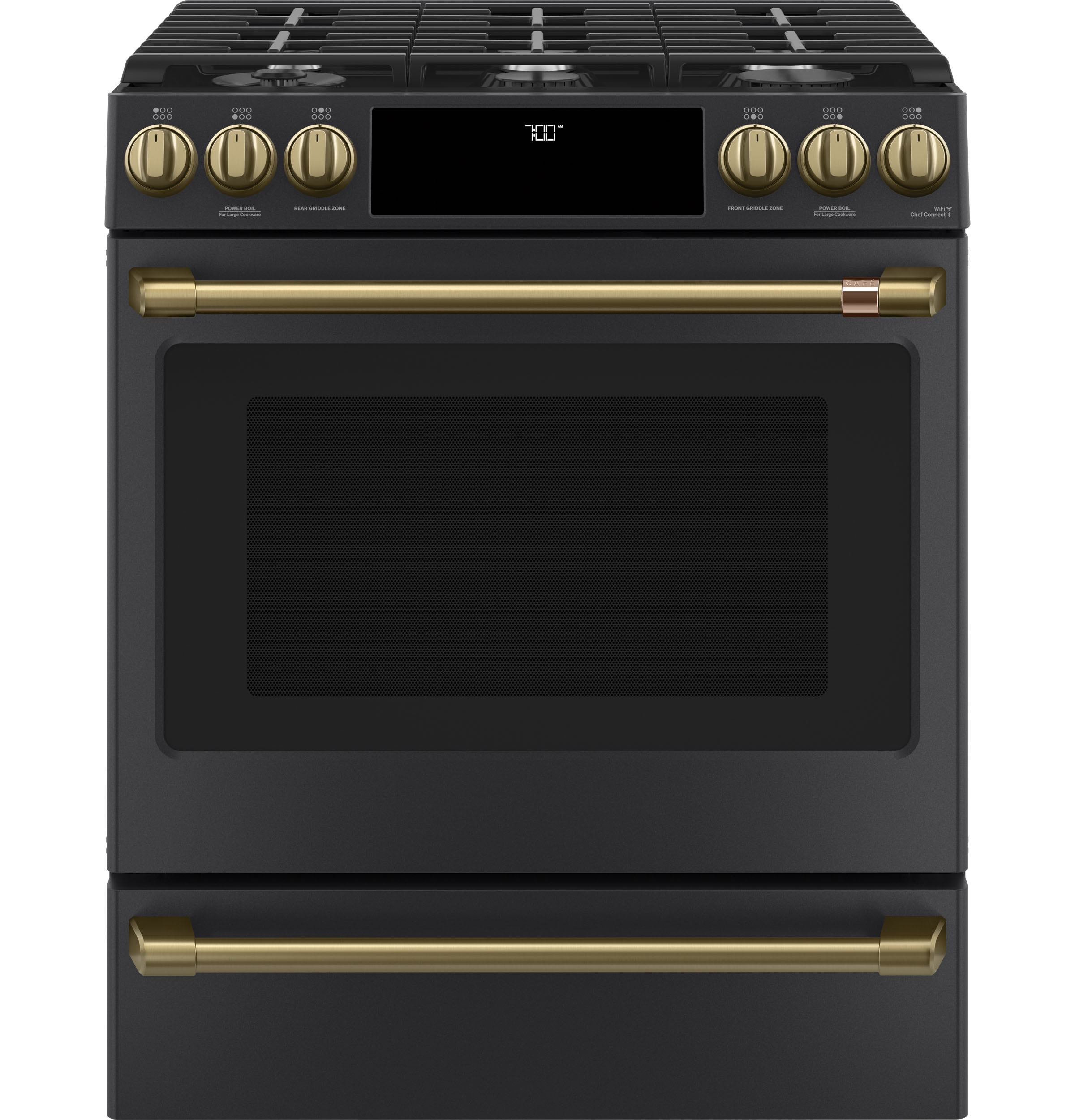

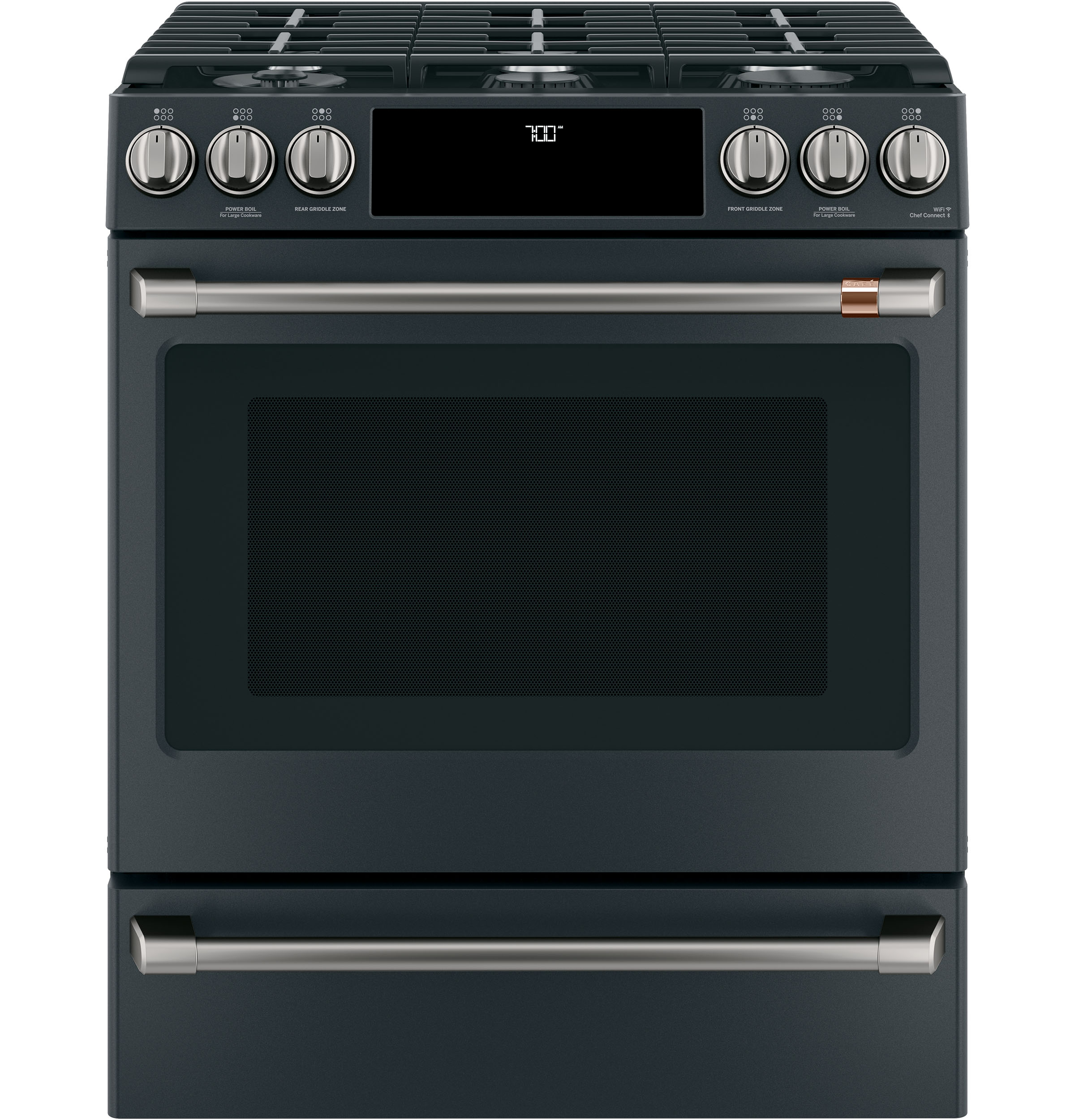

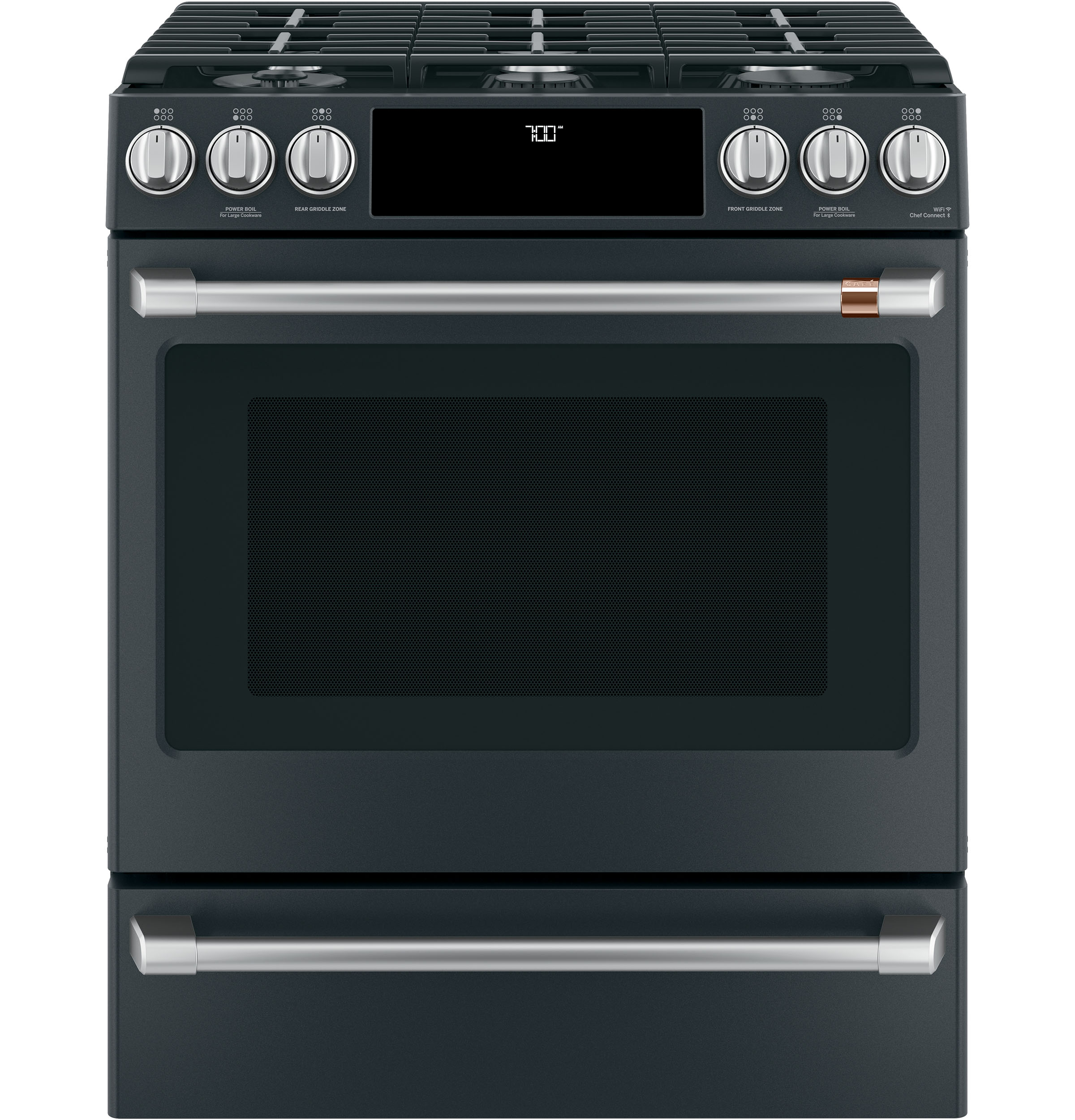

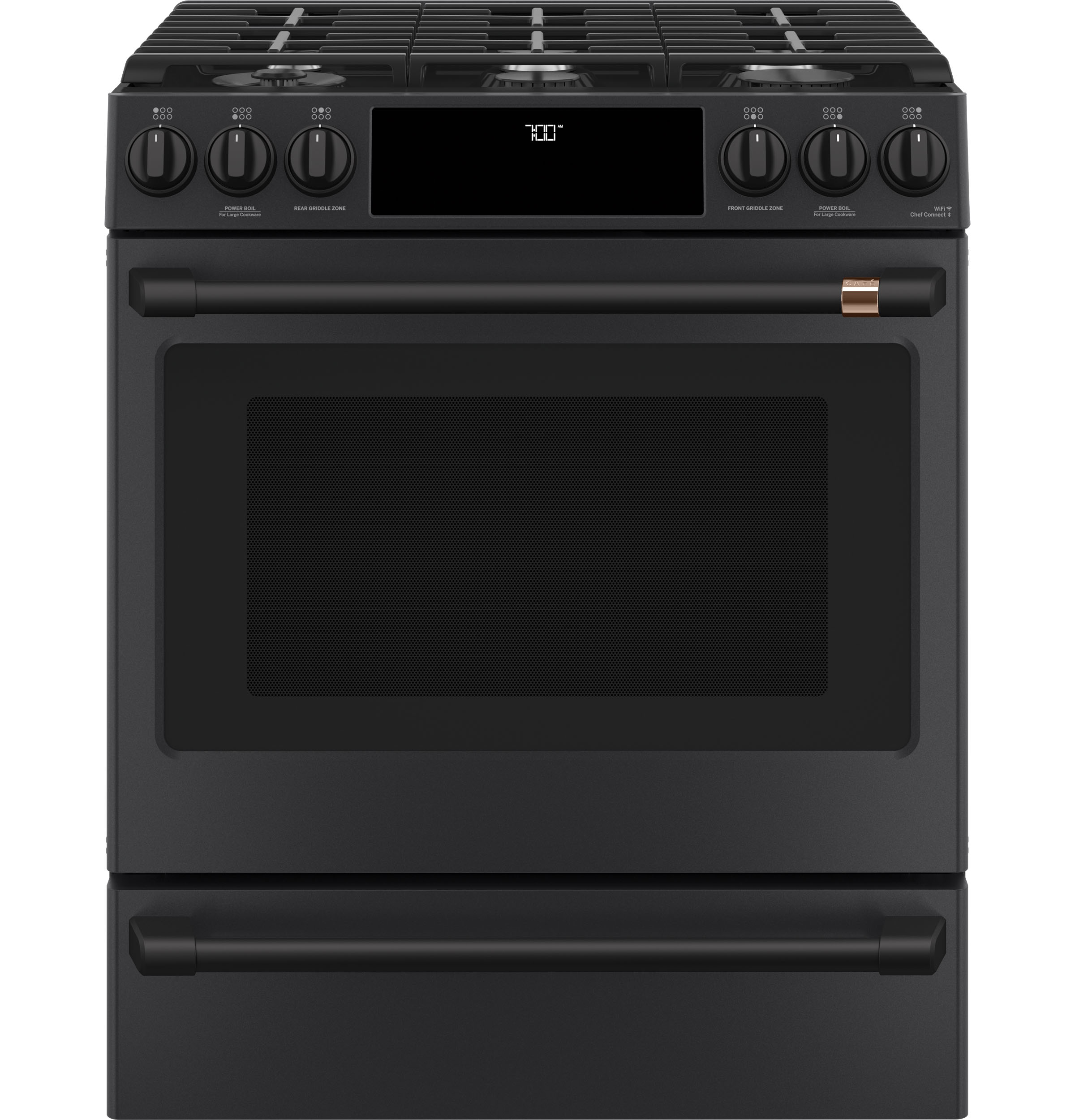

Elevate your cooking experience with the Café™ 30" Smart Slide-In, Front-Control, Gas Range with Convection Oven (Model: CGS700P3MD1). This range boasts a Matte Black finish, complemented by Brushed Stainless hardware, adding a touch of sophistication to any kitchen. The edge-to-edge six-burner cooktop provides ample space for cookware of all sizes, featuring a 21,000 BTU tri-ring burner for versatile cooking options, from rapid boiling to precise simmering. An integrated cast-iron griddle allows for easy preparation of favorites like pancakes and grilled sandwiches. The True European Convection system ensures even baking and roasting, delivering consistent results every time. With Built-In WiFi, you can manage all aspects of your kitchen through the SmartHQ™ App or your voice assistant, enabling remote control and monitoring. The innovative No-Preheat Air Fry feature lets you cook healthier, crispier versions of your favorite foods in less time, without the need for preheating. An integrated temperature probe ensures meats are cooked to perfection, eliminating guesswork. The sleek backlit glass touch control panel visually disappears when not in use and illuminates upon prompting, maintaining the appliance's modern aesthetic. Additionally, the self-cleaning oven racks can remain inside during the cleaning cycle, simplifying maintenance. This range is ADA Compliant, ensuring accessibility and ease of use for all.
Manuals & Guides
Key Features
No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray (WiFi Enabled)

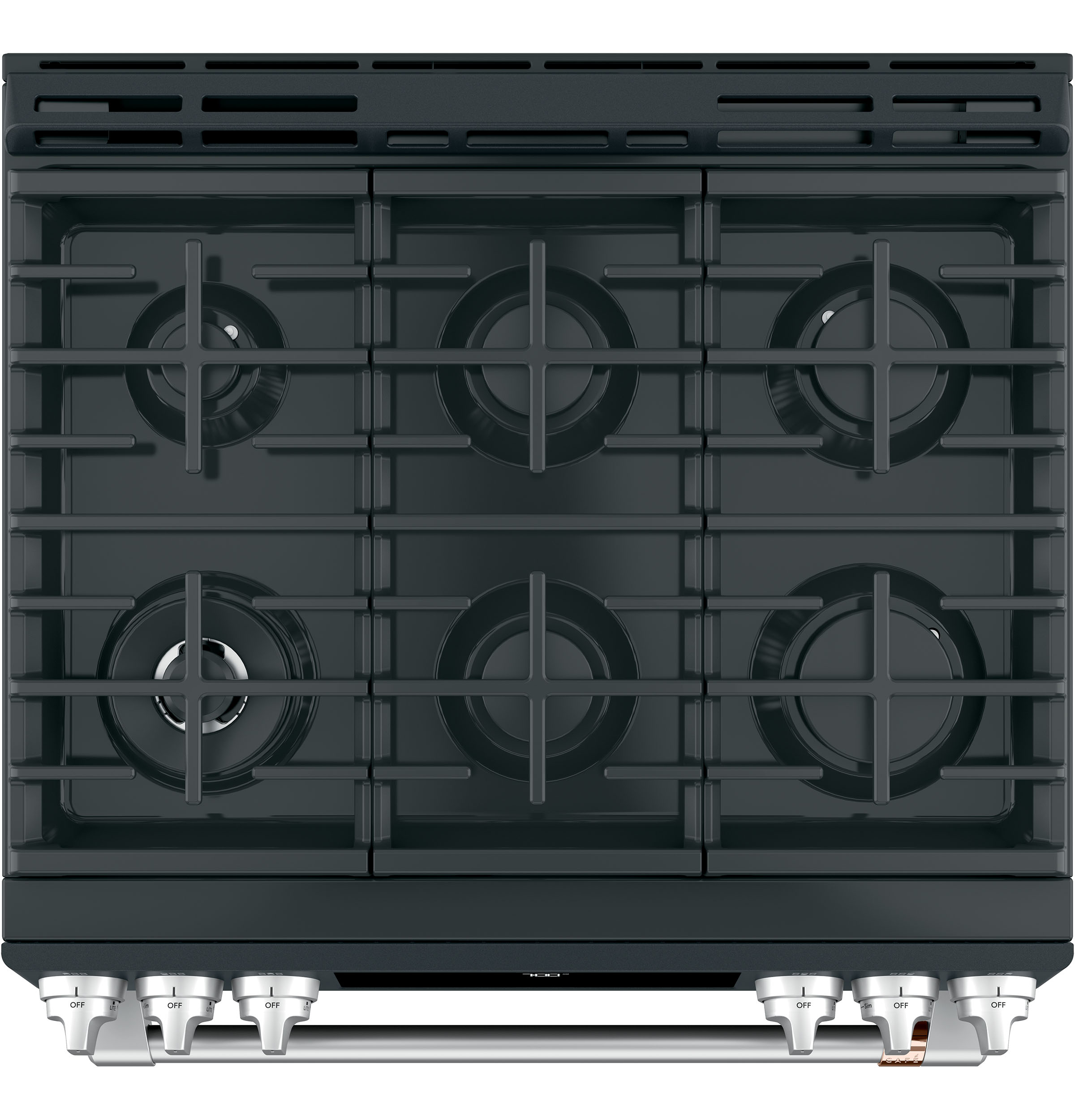

Expansive six-burner cooktop helps you entertain with ease

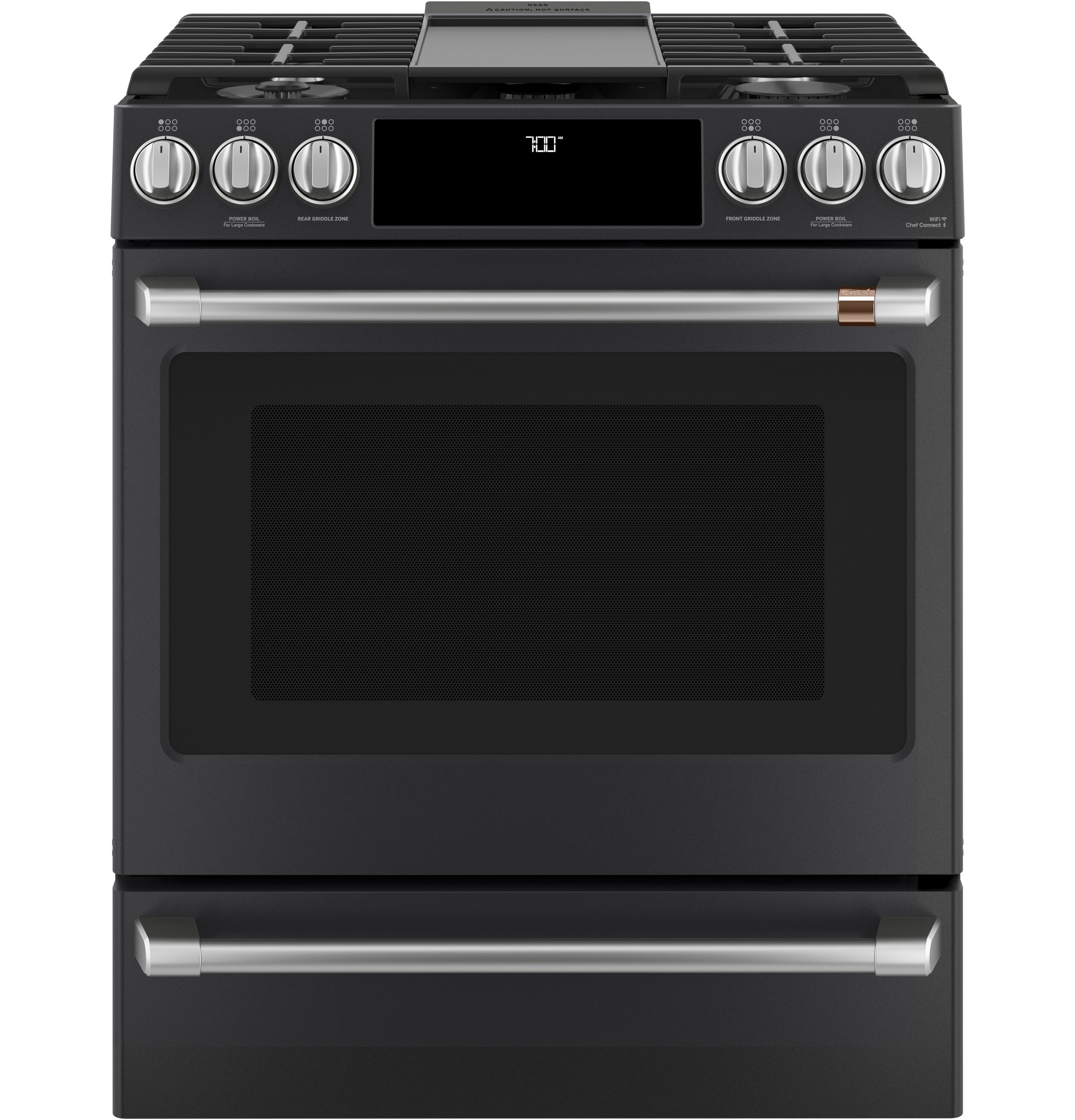

Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites
Share favorite creations with your favorite people
Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta
The perfect bake is now perfectly easy
Achieve unrivaled performance with a system that delivers true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more
Prepare foods to perfect doneness
Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door
An attractive appearance at all times

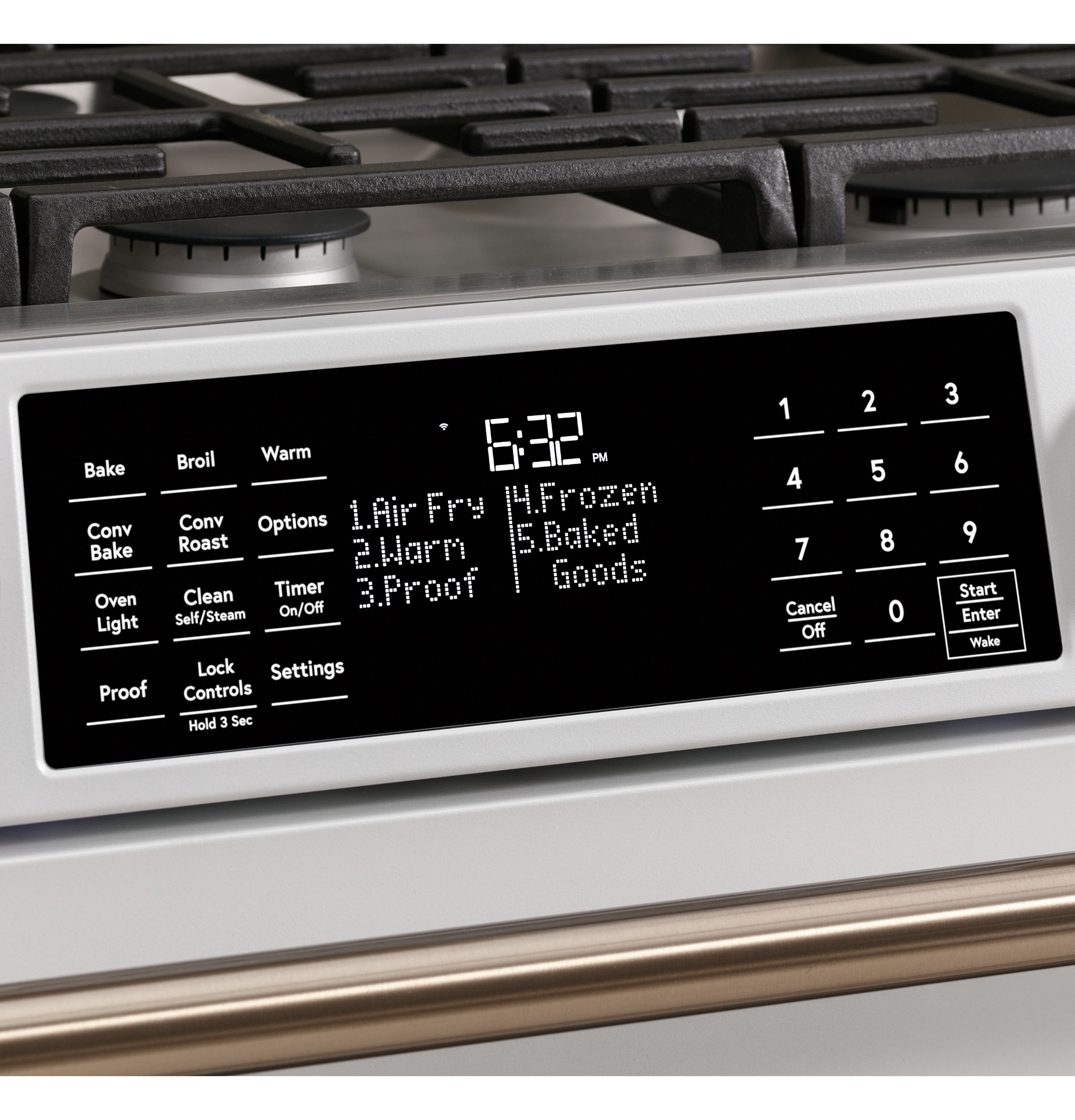

Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted. Plus, backlit knobs bring an extra sparkle to the kitchen

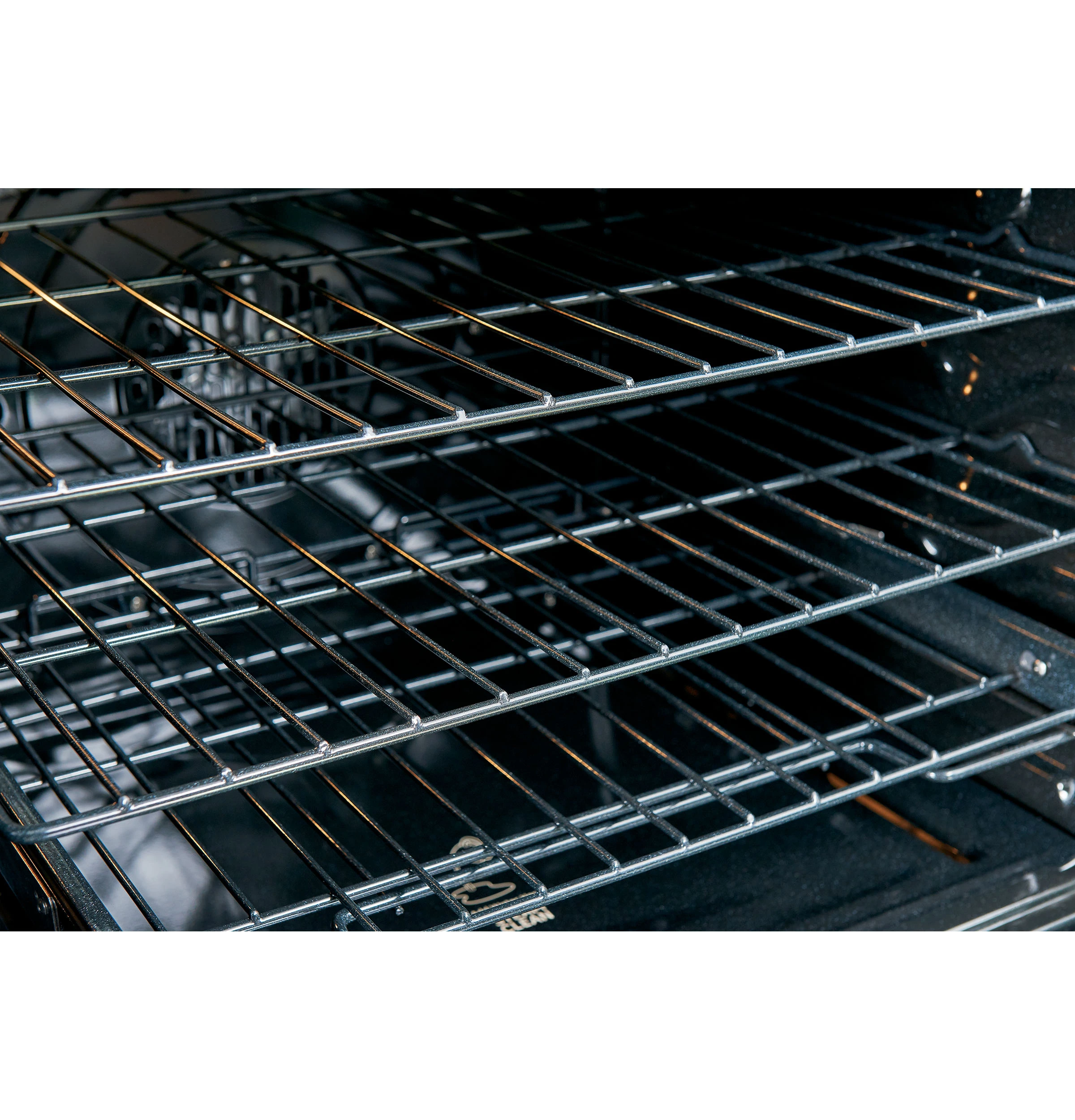

Durable racks that make cleaning easy
Easily remove everything from heavy roasts to delicate desserts with self- clean racks that stay in the oven during the self-clean cycle
Allow your appliances to interact with one another
Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks
