| Wash System | 800 Series |
| Sensor | Clean Sensor |
| Lower Rack | Ball-Tip Tines |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| OU Certified | No |
| Additional Protection | Active Flood Protect |
| Number of Place Settings | 16 |
| Dishwasher Options | Wash Zone Upper Only |
| Latch | Pull with Handle |
| Number of Options | 12 |
| Style | Built-In Top Control |
| Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |

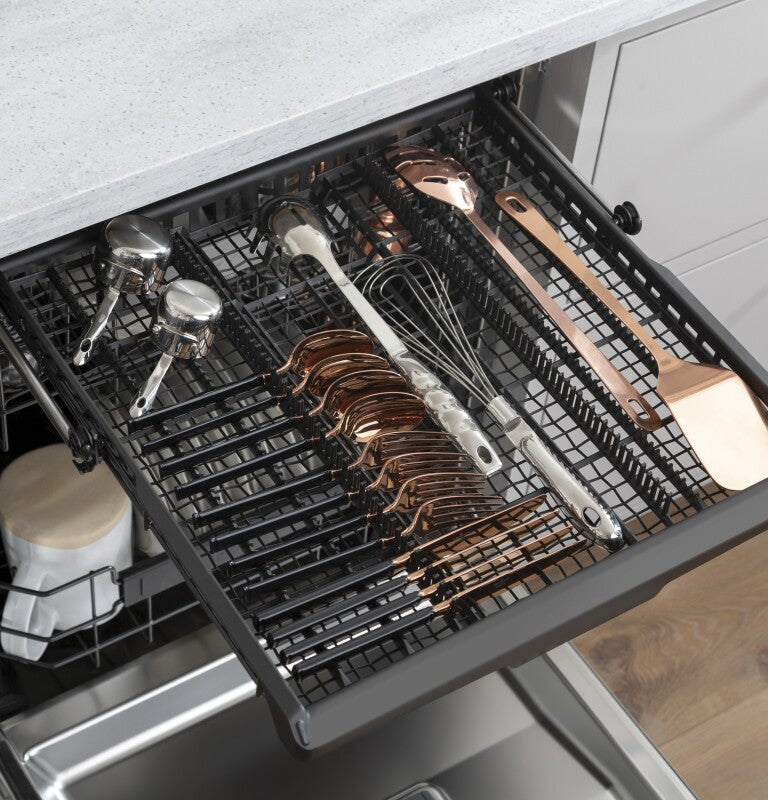

| Cutlery Tray | One piece removable 3rd rack |
| Rack Features | Full Extension Slides - Upper |
| Racking Material | Nylon |
| Dishwasher Cycles | Pots |
| Rack Color | Black Pearl |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |
| EcoBalance Compatible | Yes |
| Control Type | Top Controls |

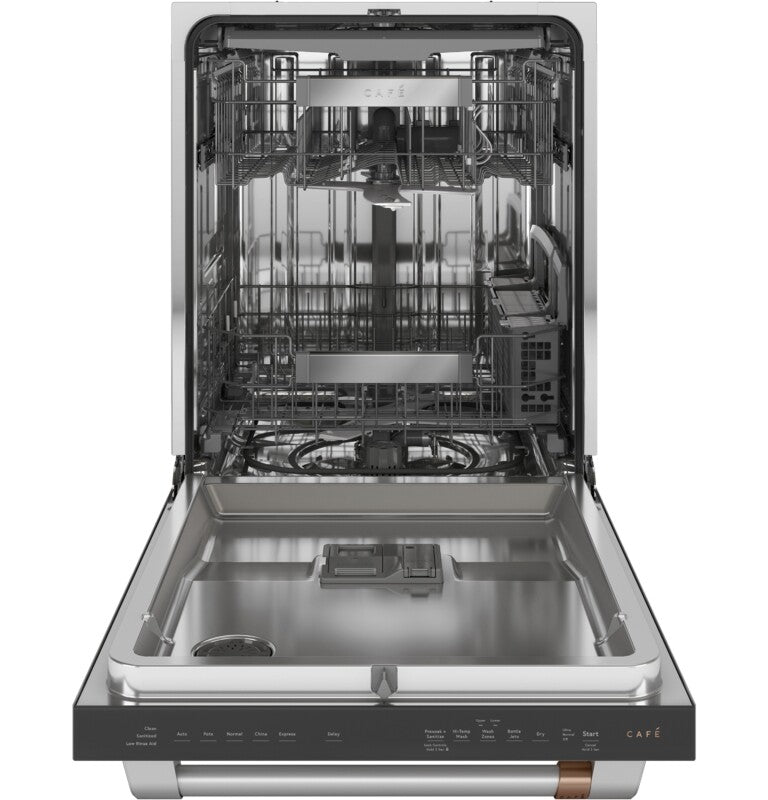

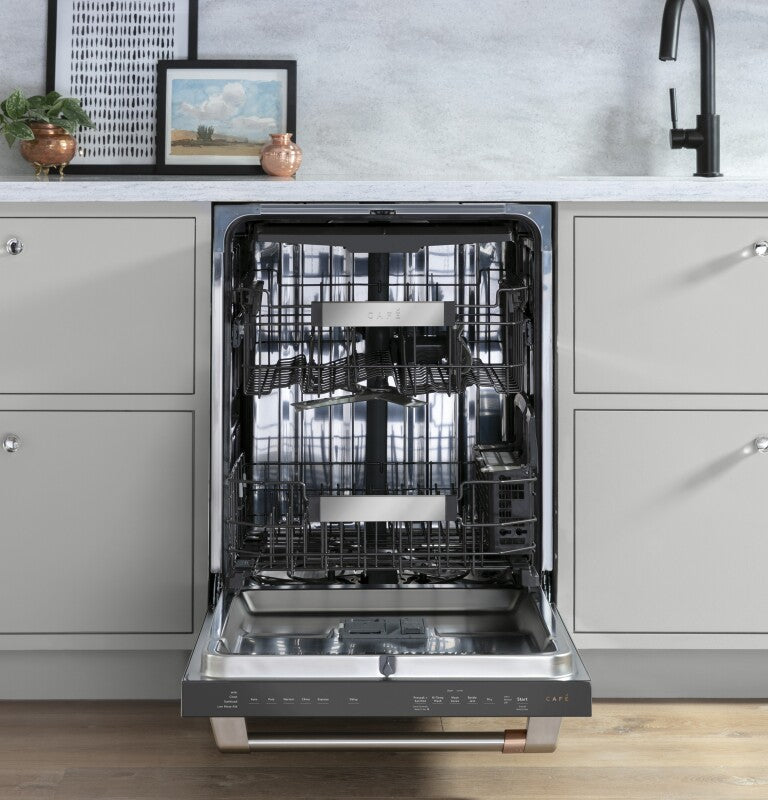

| Racking System | Full 3rd rack |
| Dishwasher Drying Features | Multi-Wattage Wash & Dry Element |
| Wash Arms | Middle - Quad Blade |
| Wash System Features | Reversing Quad Blade Lower Wash Arm |
| Exterior Style | Traditional |
| Upper Rack | Premium Height Adjustable |
| Number of Cycles | 5 |
| Tub and Door Liner | Stainless Steel |
| Sabbath Mode | Yes |
| Showroom Power Mode | Yes |
| Dishwasher Control Features | Last Cycle Memory |
| Product Type | Built-In |
| Dishwasher Options | Delay Start 1-12 Hr. |

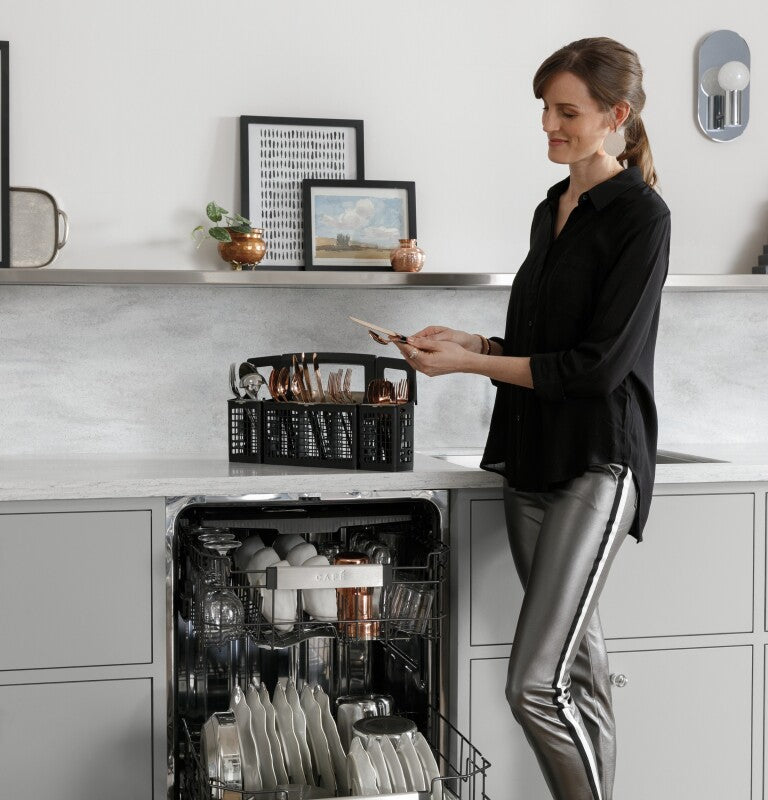

| Rack Features | 3-Piece Silverware Basket with Cell Covers |
| Dishwasher Cycles | China |
| Control Type | Cap Touch Controls |
| Dishwasher Drying Features | Heated Dry - Ultra/On/Off |
| Wash Arms | Bottle Jets |
| Wash System Features | Automatic Temperature Control |
| Upper Rack | 1/2 fixed tines, 1/2 fold down tines |
| Dishwasher Control Features | Audible End-of-Cycle Signal |

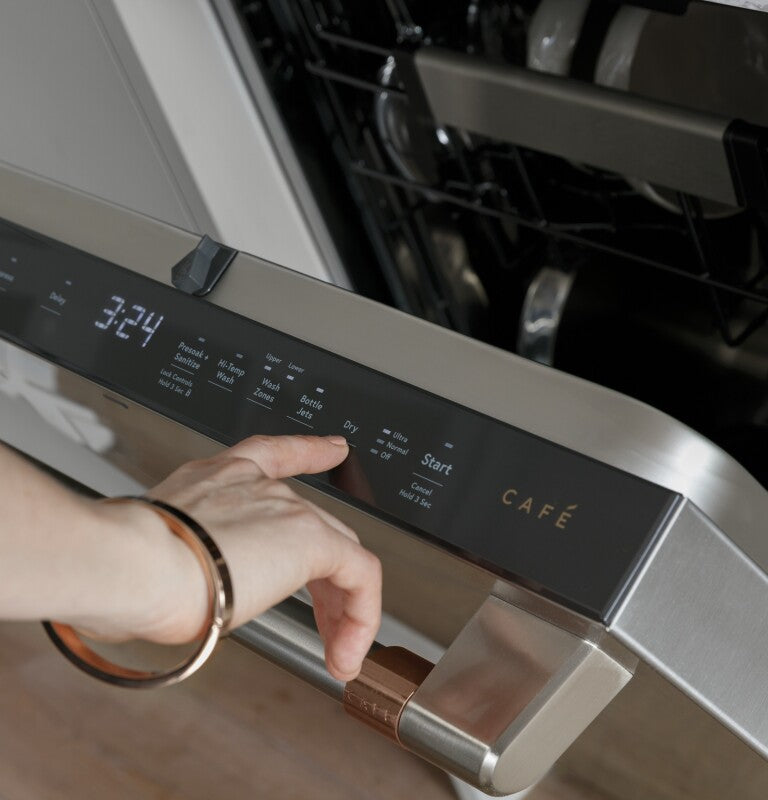

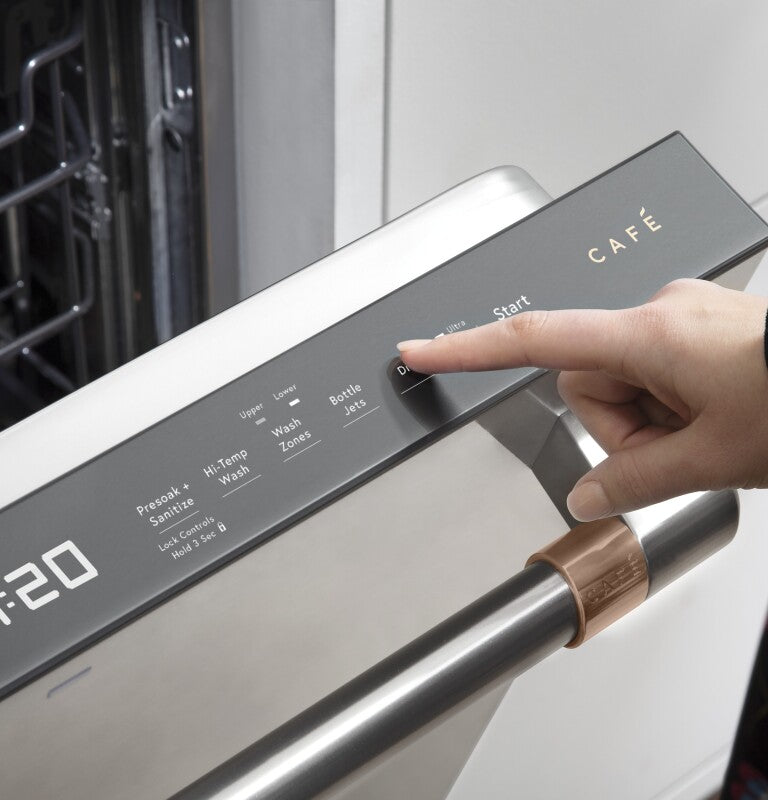

| Control Type | 12 Touchpads |
| Dishwasher Control Features | Cycle Countdown with Bi-Color LED Status Light on door |
| Dishwasher Control Features | 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators |
| Dishwasher Cycles | Auto |
| Dishwasher Cycles | Normal |
| Dishwasher Cycles | Express |
| Dishwasher Drying Features | Fan Assist Dry |
| Dishwasher Options | Lock Controls |
| Dishwasher Options | Hi-Temp Wash |
| Dishwasher Options | Presoak + Sanitize (Certified to NSF Standard 184) |
| Dishwasher Options | Heated Dry Off |
| Dishwasher Options | Normal Dry |
| Dishwasher Options | Ultra Dry |
| Dishwasher Options | Wash Zone Lower Only |
| Dishwasher Options | Start/Reset |
| Dishwasher Options | Bottle Jets |
| Dishwasher Options | Sabbath Mode |
| Lower Rack | 1/2 fixed tines, 1/2 fold down tines |
| Rack Features | Ball-Tipped Tines |
| Rack Features | Adjustable Upper Rack |

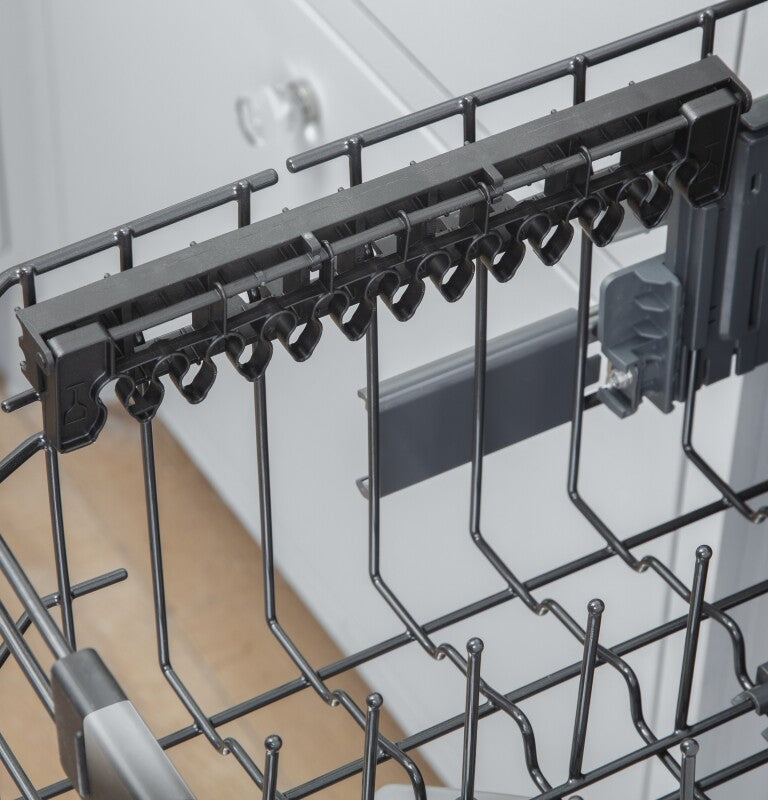

| Rack Features | 2 short articulating plastic utility shelves w/Stemsafe and chop-stick slots |
| Upper Rack | Ball-Tip Tines |
| Upper Rack | Fixed tines with Bottle Jets |
| Upper Rack | 1 Rack handle |

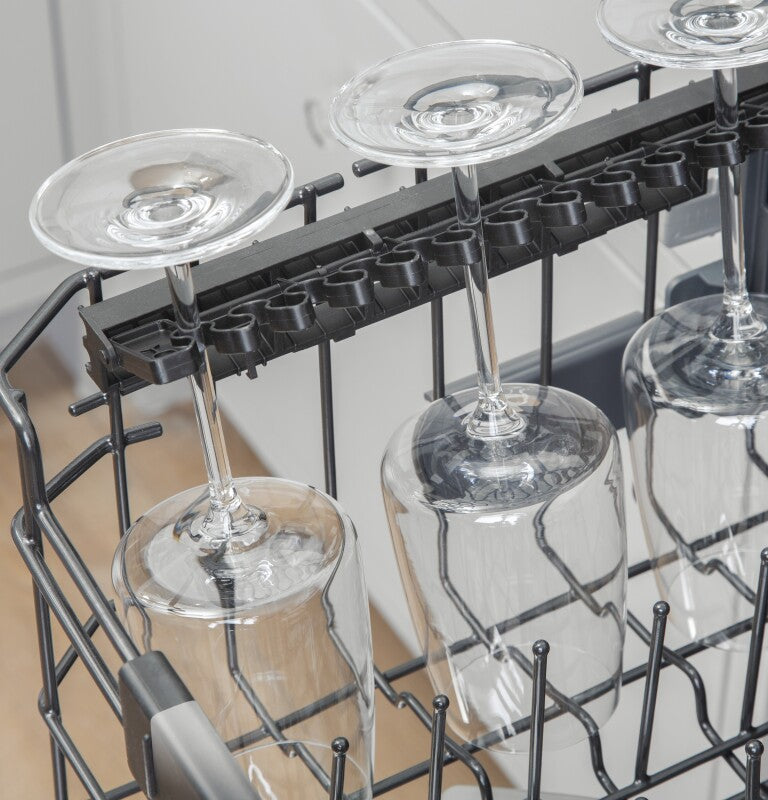

| Upper Rack | 2 Stem Safe Shelves |
| Upper Rack | Chop stick slots |
| Wash Arms | 3 Wash Levels |
| Wash Arms | Lower- Reversing Quad Blade |
| Wash System | 3-Level |
| Wash System Features | Dual Pumps and Motors |
| Wash System Features | Drain Pump |
| Wash System Features | Hard Food Disposer with removable filter |
| Wash System Features | Automatic HotStart |

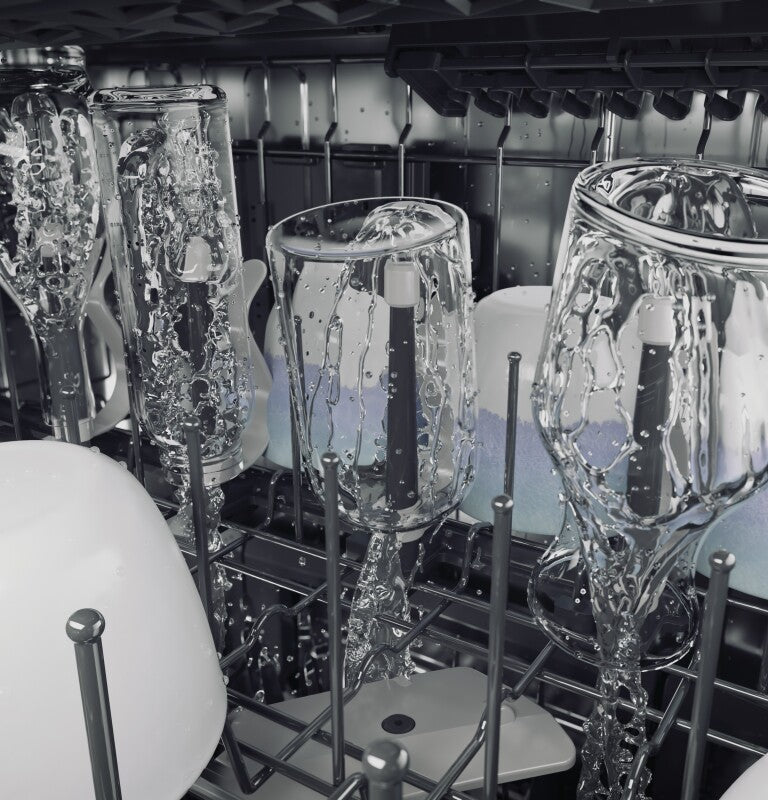

| Wash System Features | Bottle Jets (4) |
| Wash System Features | Quad Blade Middle Wash Arm |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Calrod Heater Watts | 800/500 |
| Volts/Hertz/Amps | 120v; 60Hz; 7.2A |
| Energy Consumption (kWh/year) | 240 |
| Electrical Requirements | 120v ; 60Hz ; 7.2A |
| Hertz | 60 |
| Watts | 936 |
| Door Insulation | Mastic |
| Quiet Package | 45 dBA |
| Outer Wrap | Full-wrap Blanket |
| Motor Type | Single Speed |
| Quiet Features | Tub Collar Trim |
| Quiet Features | Sealed Toe Kick |
| Door Insulation | Insulation |
| Outer Wrap | Bitumen |
| Quiet Features | Quiet Water Valve |
| Height w/ Legs Retracted - Minimum Height | 33.375 in |
| Overall Depth | 24 in |
| Cabinet Width | 24 in |
| Net Weight | 105 lb |
| Overall Width | 23.75 in |
| Approximate Shipping Weight | 118 lb |
| Overall Height | 34 in |
| Overall Depth with Handle | 26.3 in |
| Height w/Legs Extended - Maximum Height | 34.625 in |
| Installation | Side Installation or Top Installation Included |
| Handle Color | Brushed Stainless |
| Door Style | Long Door with Top Controls |

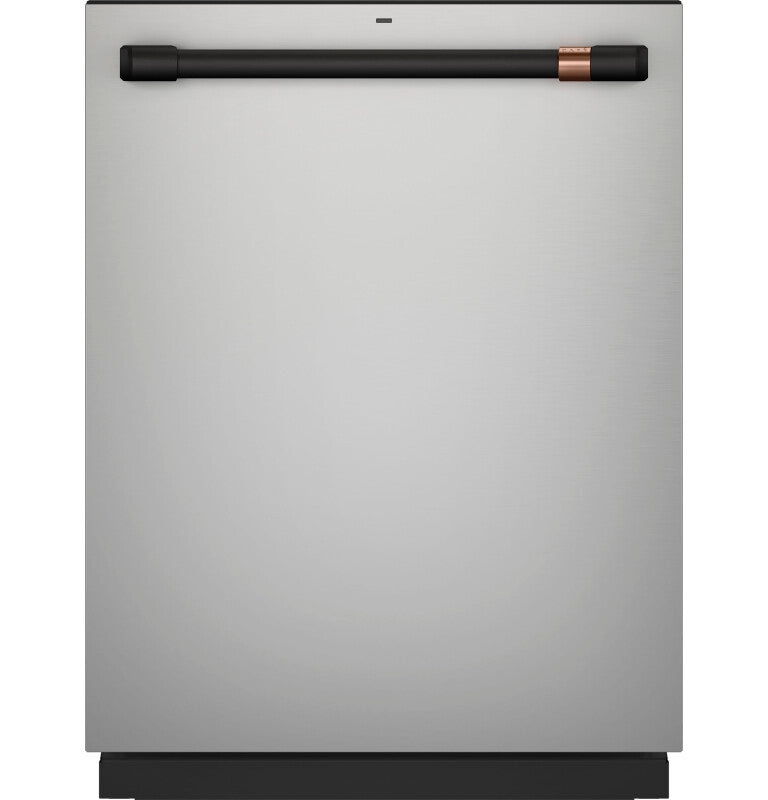

| Door Appearance | Full-length flat door |
| Color Appearance | Stainless Steel |
| Handle | CAFÉ™ |

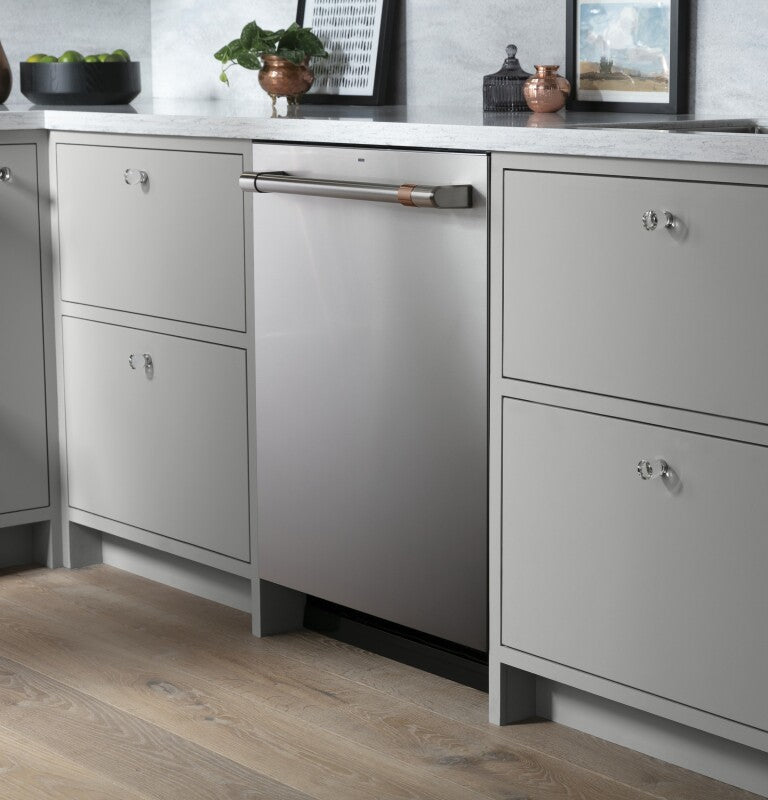

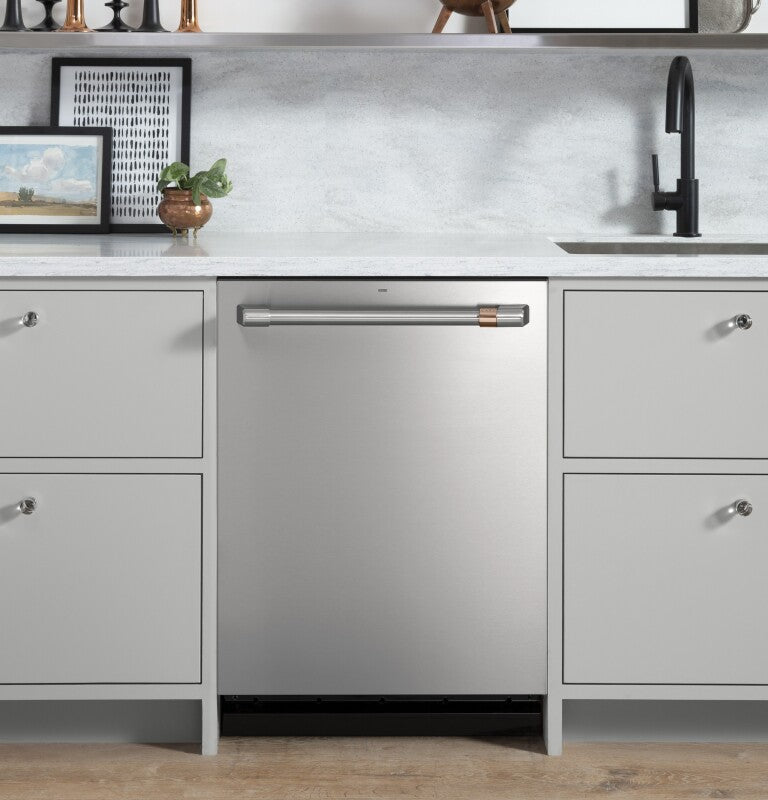

| Installation | Flush Cabinet Installation |
| Installation | Built-Up Floor Capable |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Full 1-year in-home warranty |
| Optional Kits | CXADTH1PMSS Brushed Stainless |
| Optional Kits | CXADTH1PMBZ Brushed Bronze |
| Optional Kits | CXADTH1PMCU Brushed Copper |
| Optional Kits | CXADTH1PMBT Brushed Black |
| Optional Kits | CXADTH1PMCG Brushed Brass |
| Optional Kits | CXADTH1PMFB Flat Black |
| Width | 23.75 in. |
| Height | 34 in. |
| Length | 24 in. |
| Weight | 105 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 28.75 in. |
| Shipping Height | 39 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 118 lbs. |
| Total of Shipping Weight | 118 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 11.22 ft³ |
| Dimensional Weight | 139.42 lbs. |
| Total of Cubes | 11.22 ft³ |
| Total of Dimensional Weight | 139.42 lbs. |
Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

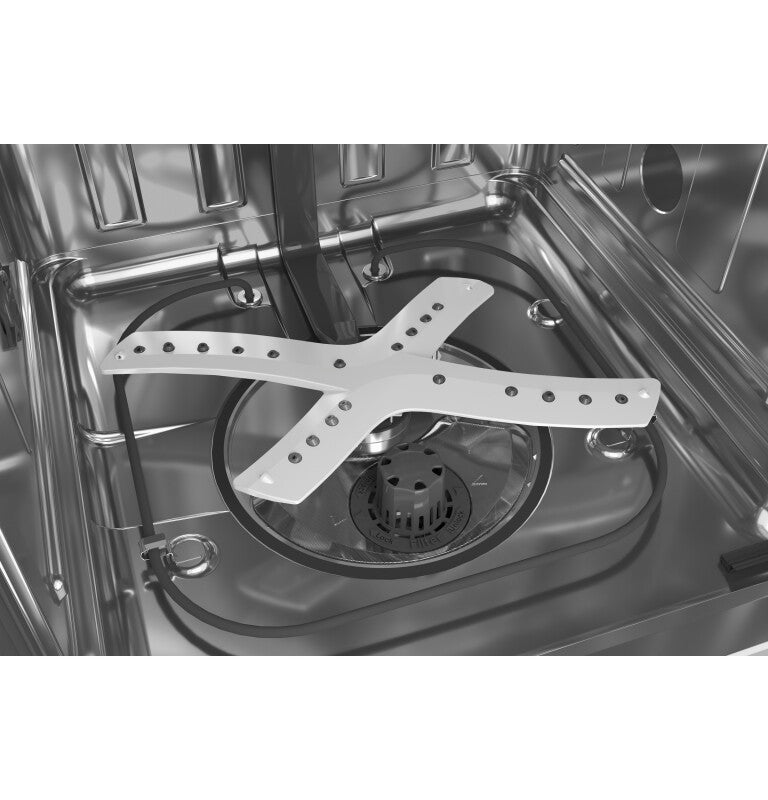

This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely

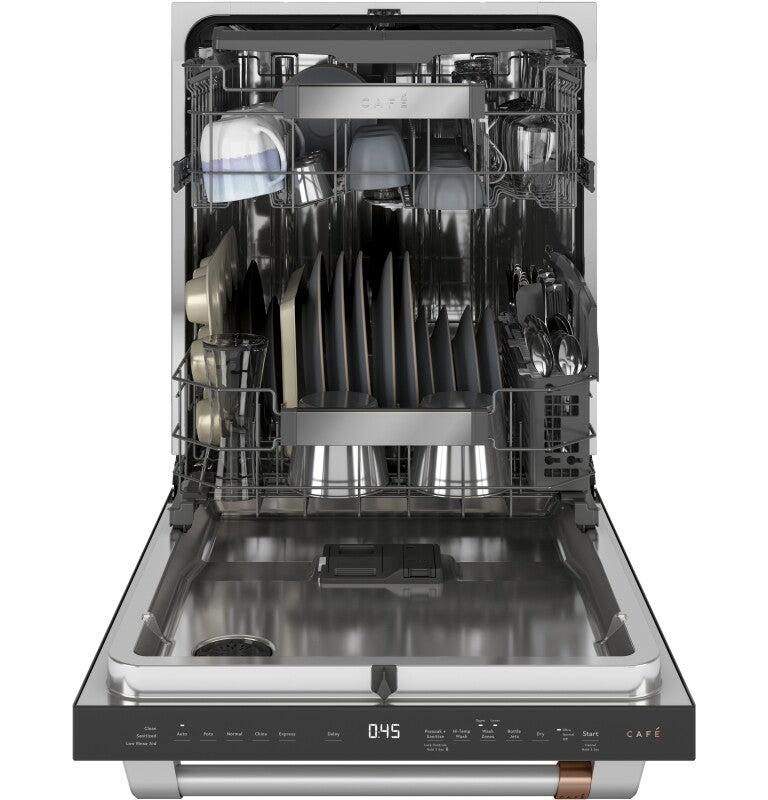

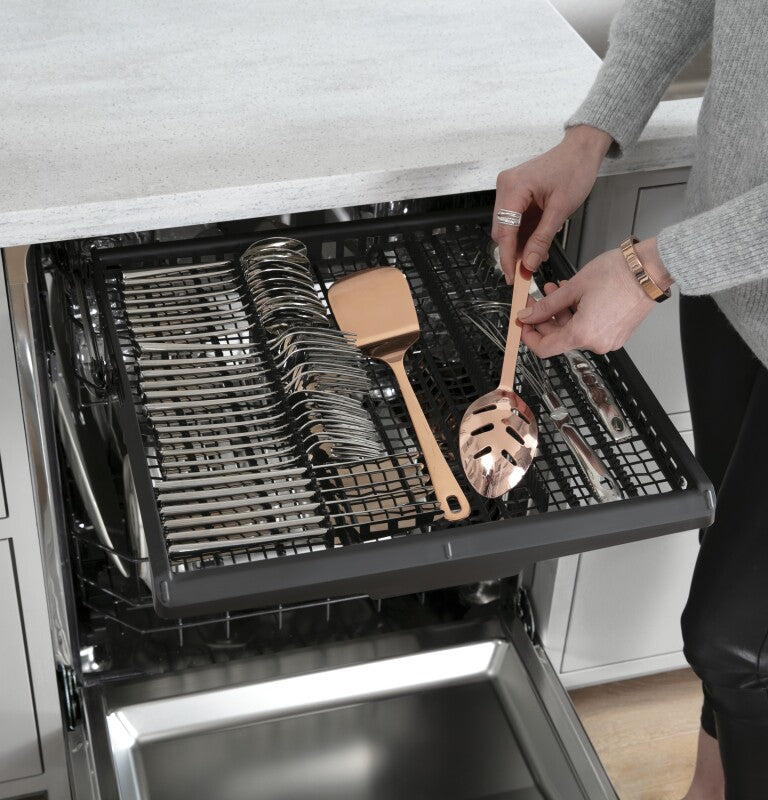

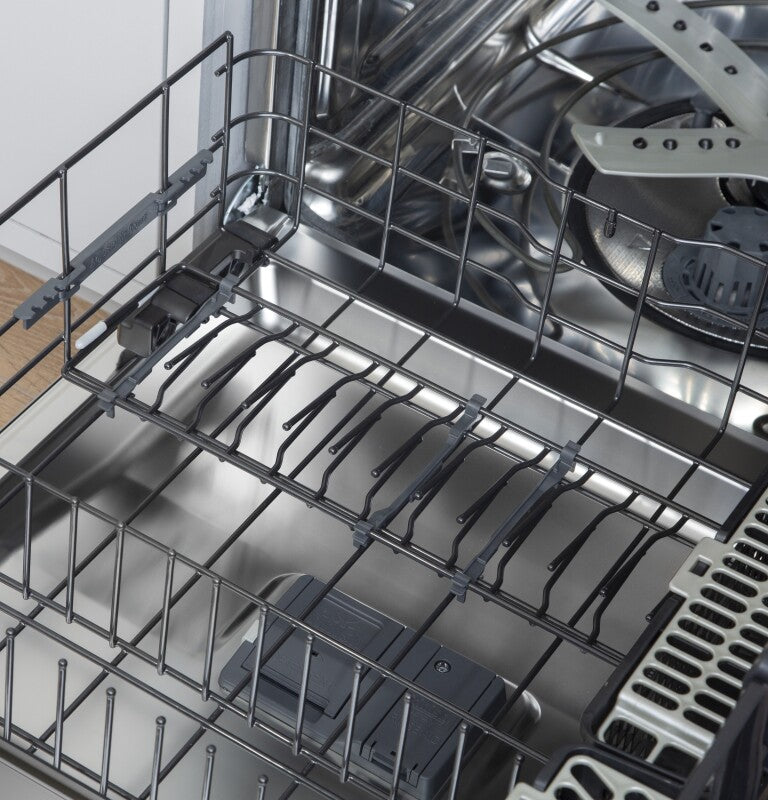

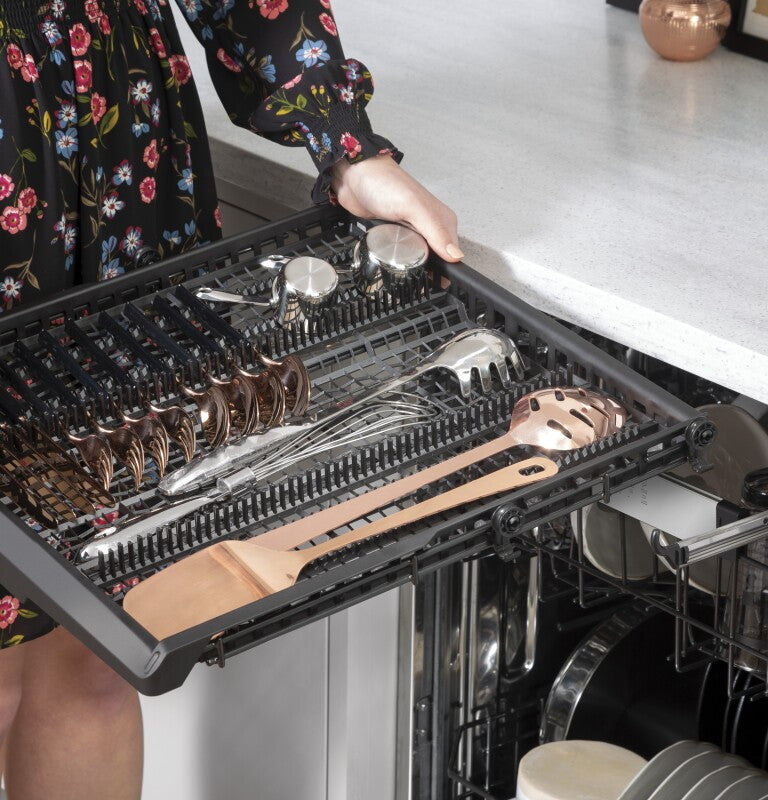

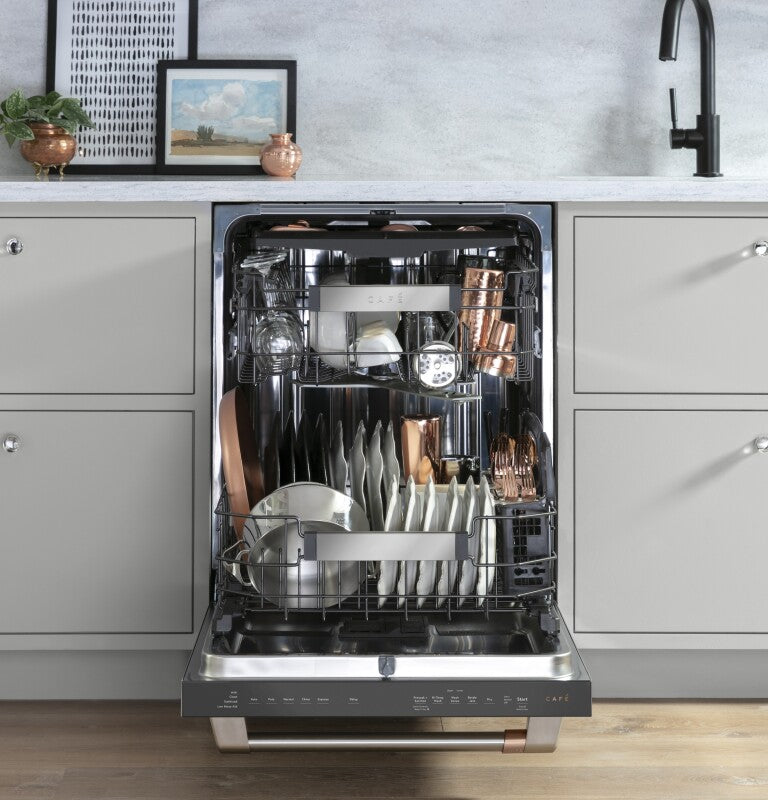

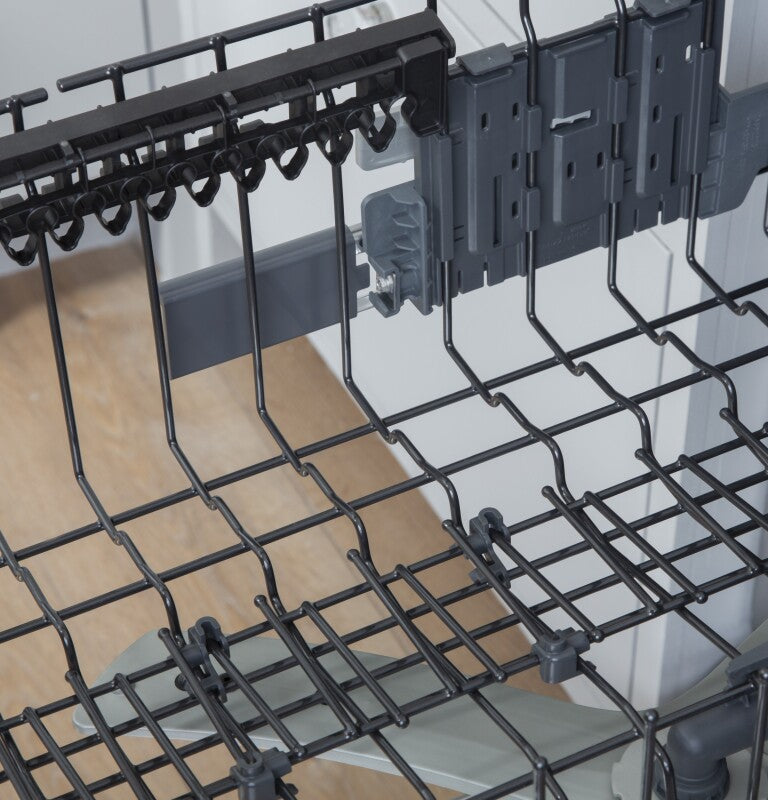

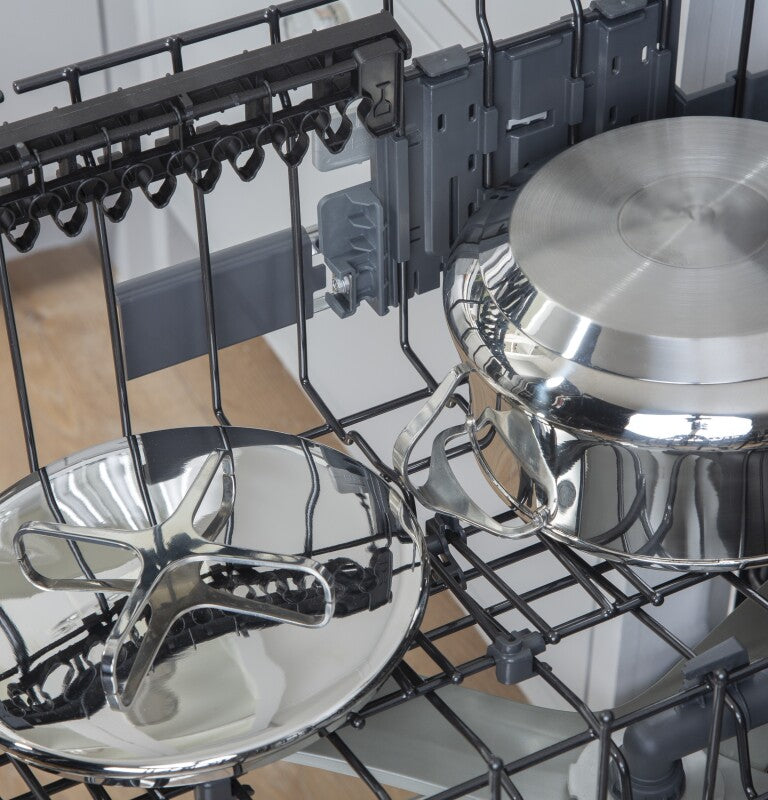

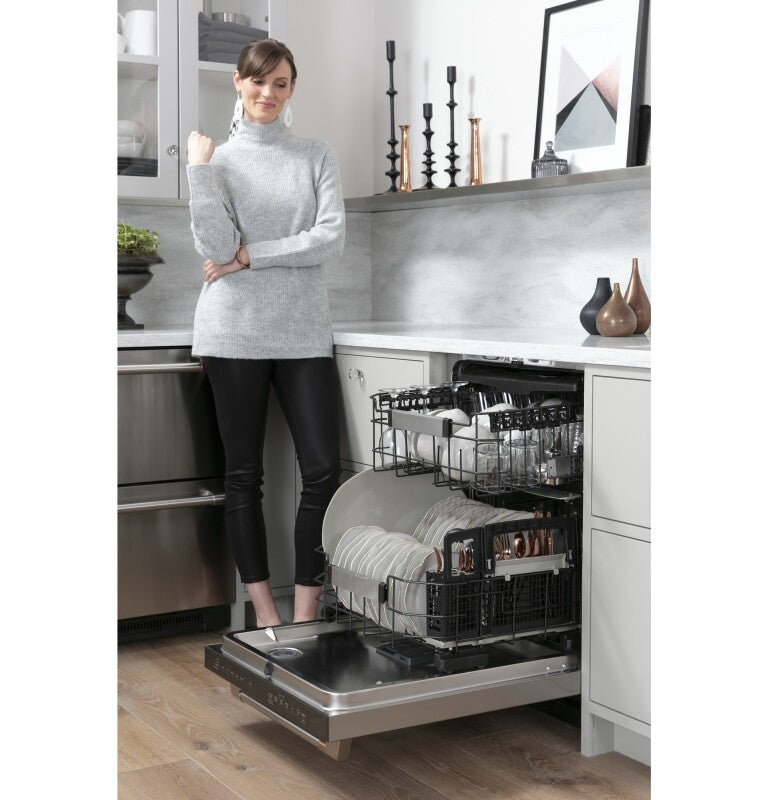

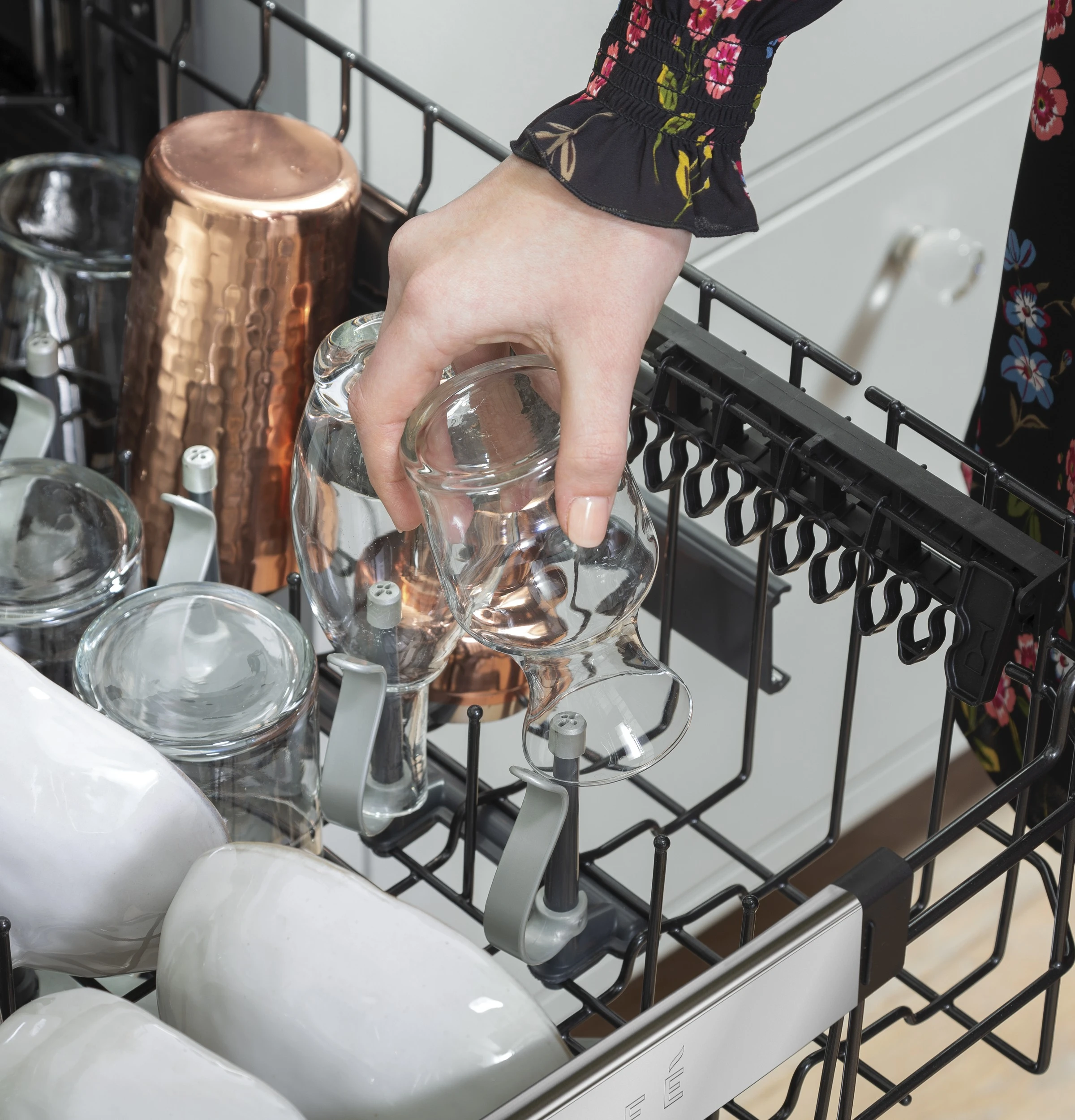

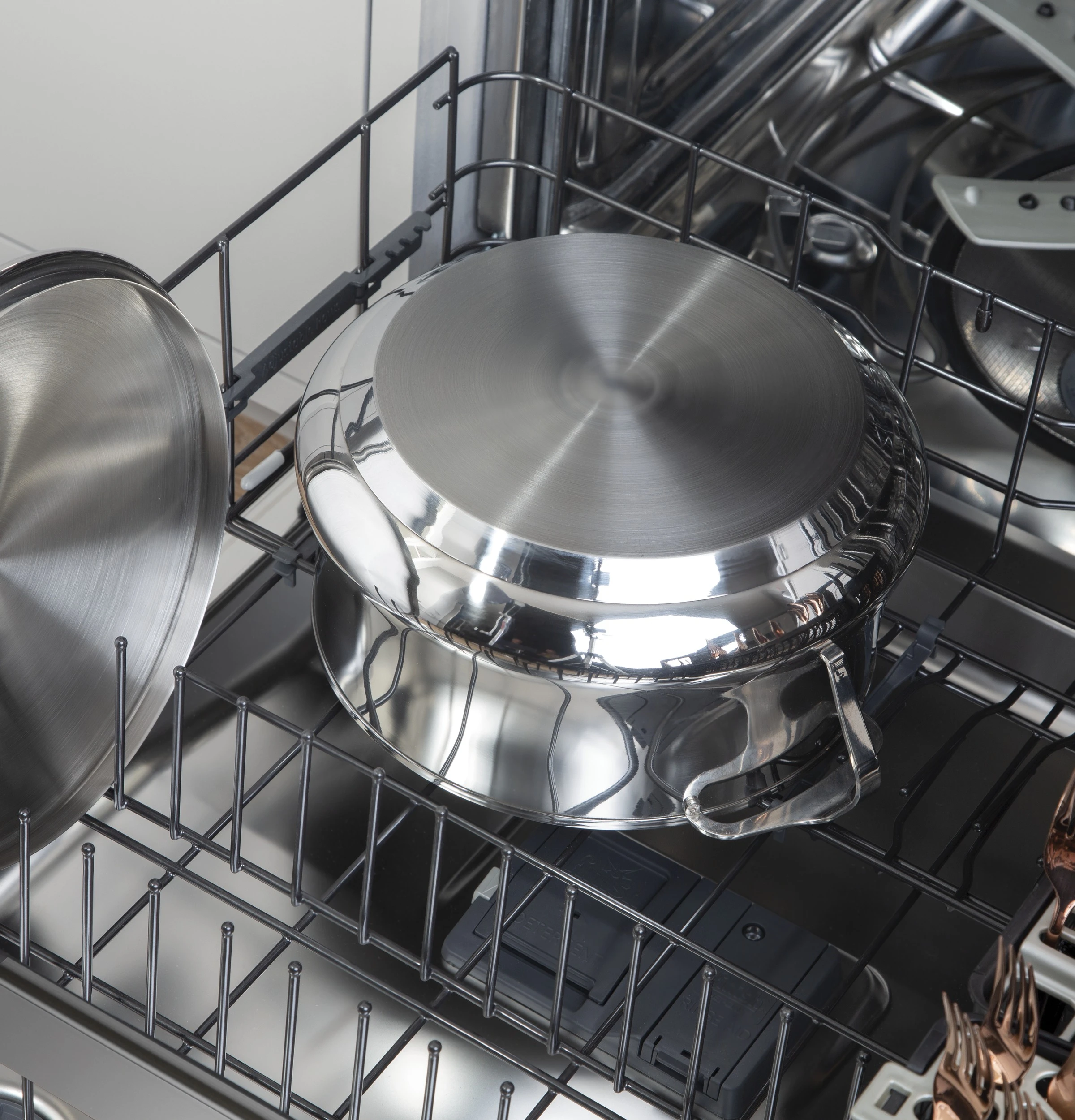

A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results

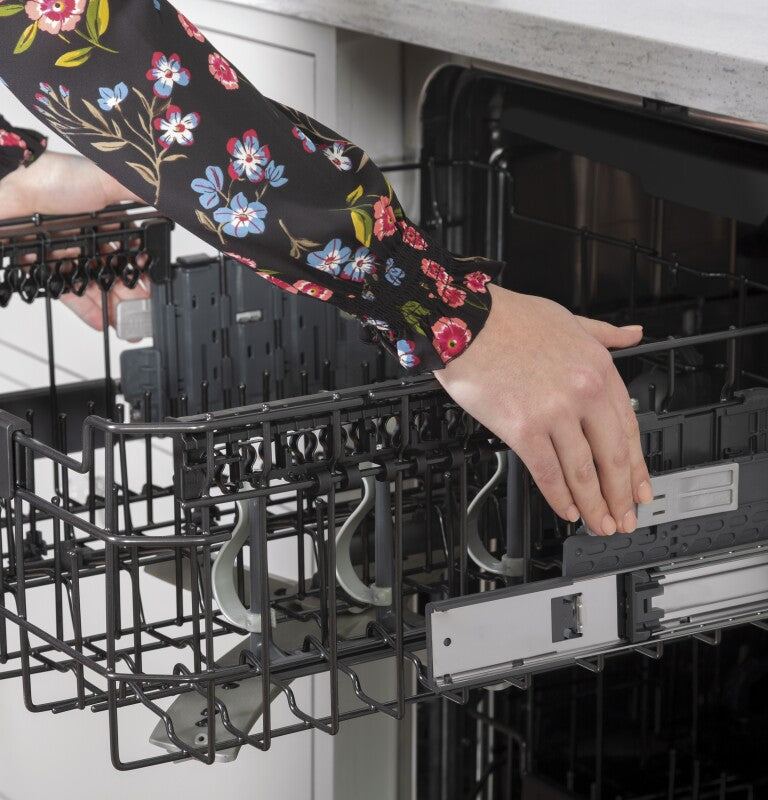

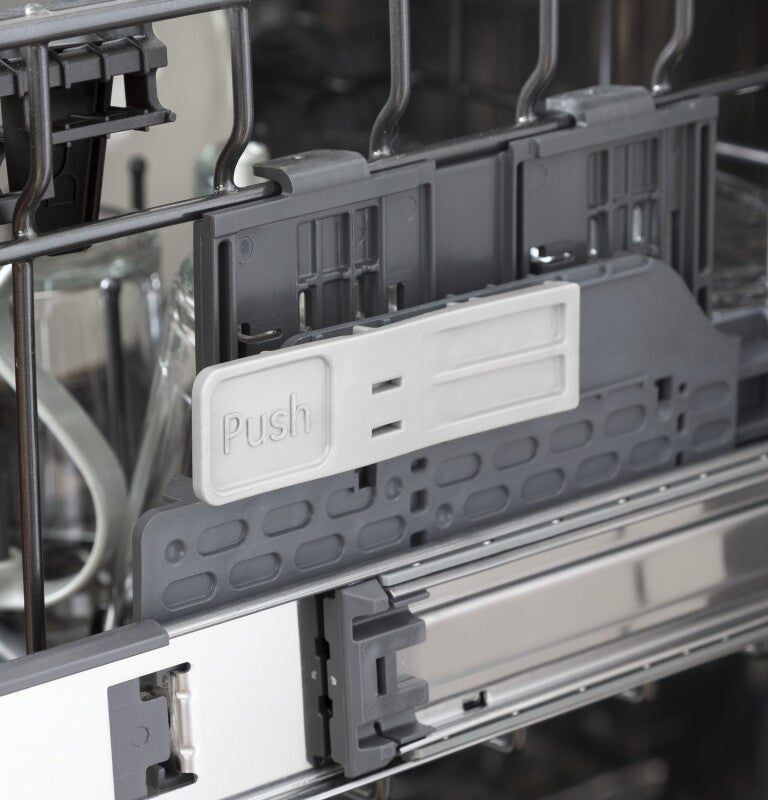

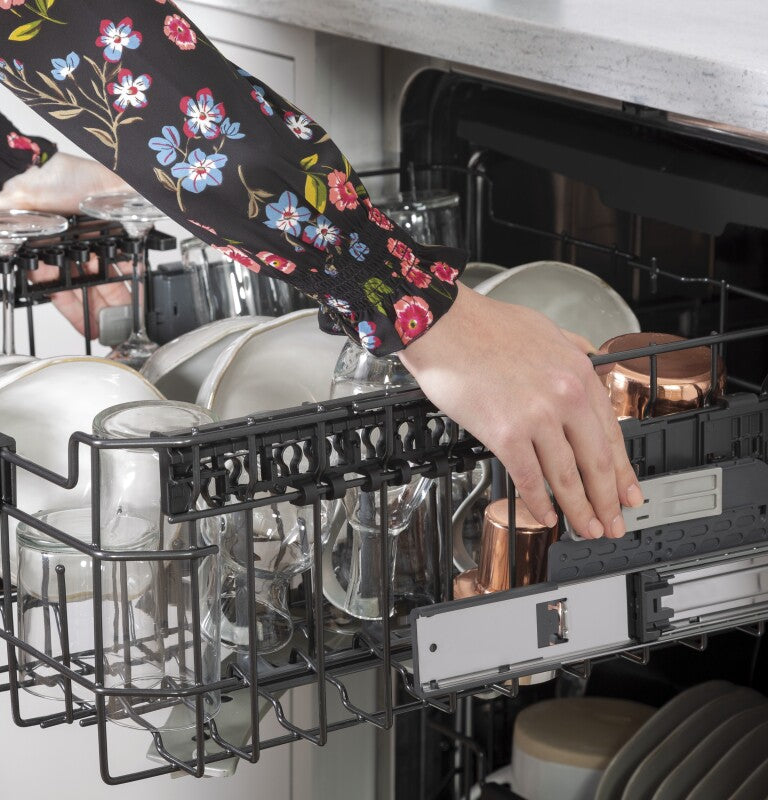

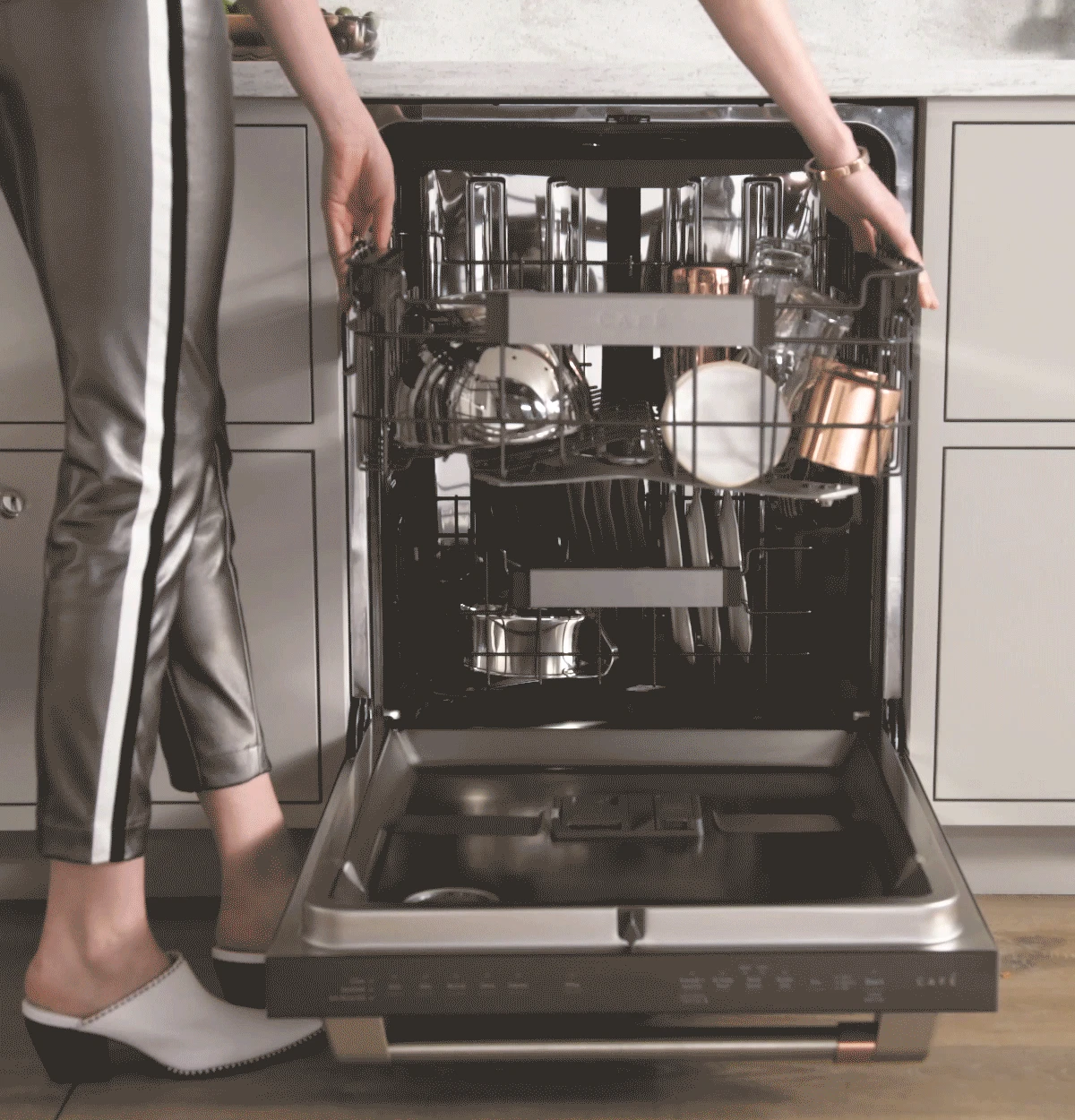

Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5

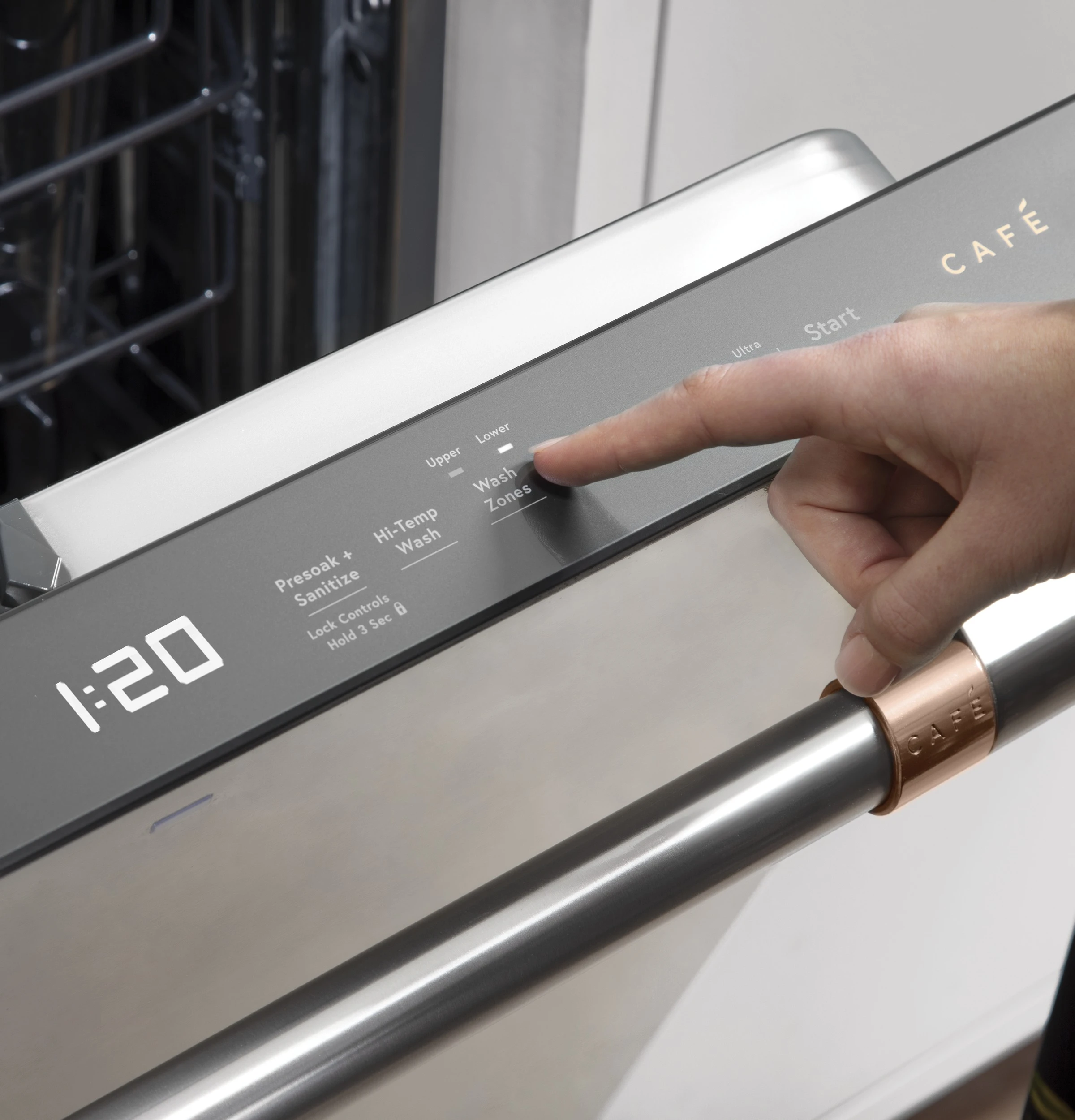

Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy
