Product Details for Cafe CDT845P2NS1

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 105 lb
Overall Width 23.75 in
Approximate Shipping Weight 118 lb
Overall Depth with Handle 26.3 in
Height w/Legs Extended - Maximum Height 34.625 in

Features

Wash System 800 Series
Sensor Clean Sensor
Lower Rack Ball-Tip Tines
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options Wash Zone Upper Only
Latch Pull with Handle
Number of Options 12
Style Built-In Top Control
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Full Extension Slides - Upper
Racking Material Nylon
Dishwasher Cycles Pots
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
WiFi Connect Optional (Requires part no. PBX23W00Y1)
EcoBalance Compatible Yes
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Multi-Wattage Wash & Dry Element
Wash Arms Middle - Quad Blade
Wash System Features Reversing Quad Blade Lower Wash Arm
Exterior Style Traditional
Product Type Built-In
Upper Rack Premium Height Adjustable
Dishwasher Control Features Last Cycle Memory
Number of Cycles 5
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Dishwasher Options Delay Start 1-12 Hr.
Rack Features 3-Piece Silverware Basket with Cell Covers
Dishwasher Cycles China

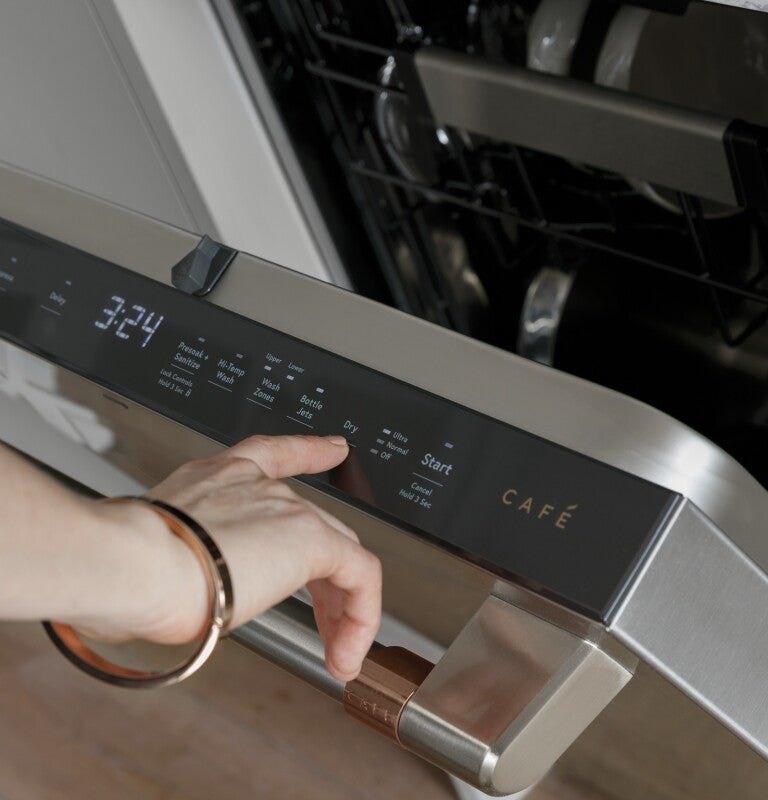

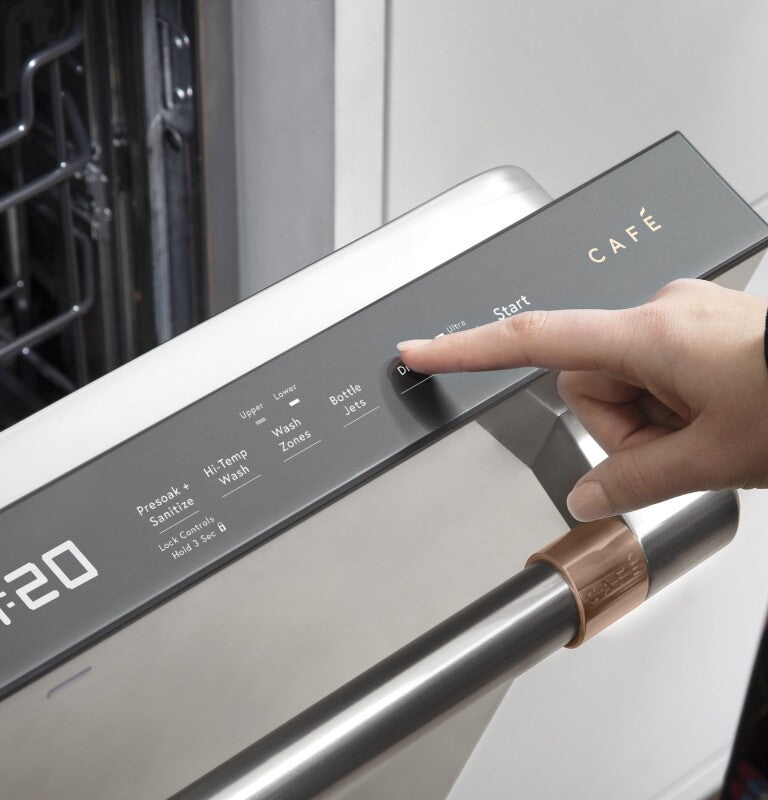

Control Type Cap Touch Controls
Dishwasher Drying Features Heated Dry - Ultra/On/Off
Wash Arms Bottle Jets
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Audible End-of-Cycle Signal
Control Type 12 Touchpads
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Dishwasher Control Features 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher Cycles Auto
Dishwasher Cycles Normal
Dishwasher Cycles Express
Dishwasher Drying Features Fan Assist Dry
Dishwasher Options Lock Controls
Dishwasher Options Hi-Temp Wash
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Wash Zone Lower Only
Dishwasher Options Start/Reset
Dishwasher Options Bottle Jets
Dishwasher Options Sabbath Mode
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Rack Features Ball-Tipped Tines
Rack Features Adjustable Upper Rack
Rack Features 2 short articulating plastic utility shelves w/Stemsafe and chop-stick slots
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle

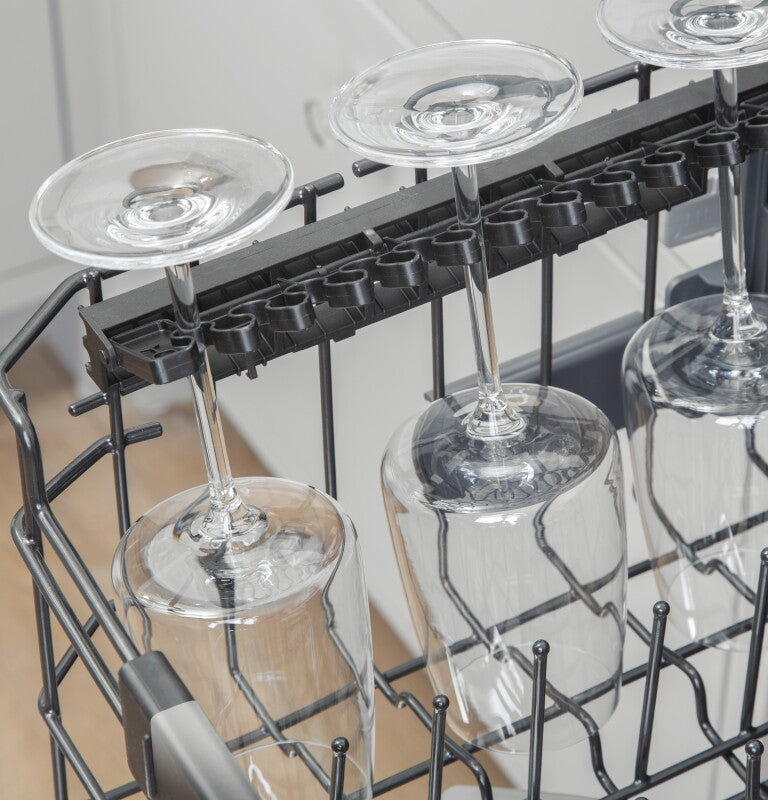

Upper Rack 2 Stem Safe Shelves
Upper Rack Chop stick slots
Wash Arms 3 Wash Levels

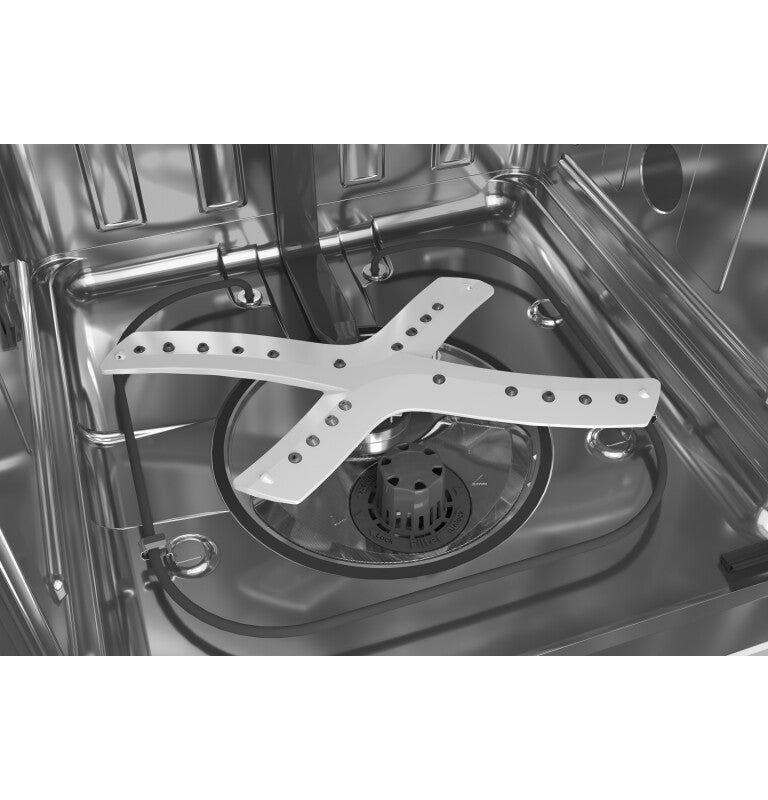

Wash Arms Lower- Reversing Quad Blade
Wash Arms Deep Clean Silverware Jets
Wash System 3-Level
Wash System Features Dual Pumps and Motors
Wash System Features Automatic Temperature Control
Wash System Features Drain Pump
Wash System Features Hard Food Disposer with removable filter
Wash System Features Quad Blade Middle Wash Arm
Wash System Features 90+ Spray Jet Wash System
Wash System Features Deep Clean Silverware Jets
Wash System Features Bottle Jets (4)

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120v; 60Hz; 7.2A
Hertz 60
Electrical Requirements 120V
Watts 936
Energy Consumption (kWh/year) 240

Economical / quiet

Door Insulation Mastic
Quiet Package 45 dBA
Outer Wrap Full-wrap Blanket
Motor Type Single Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Appearance

Installation Side Installation or Top Installation Included
Handle Color Brushed Stainless
Door Style Long Door with Top Controls
Door Appearance Full-length flat door
Color Appearance Stainless Steel
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Accessories

Optional Kits CXADTH1PMSS Brushed Stainless
Optional Kits CXADTH1PMBZ Brushed Bronze
Optional Kits CXADTH1PMCU Brushed Copper
Optional Kits CXADTH1PMBT Brushed Black
Optional Kits CXADTH1PMCG Brushed Brass
Optional Kits CXADTH1PMFB Flat Black

Warranty

Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance
Labor Warranty Full 1-year in-home warranty

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 105 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 118 lbs.
Total of Shipping Weight 118 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

If you're looking for a dishwasher that's as dapper as it is functional, look no further than the Cafe Stainless Steel Interior Dishwasher. With its smooth, 24-inch wide design and brushed stainless steel handle, it exudes sophistication and glamor. The addition of top controls adds a modern touch, making it a perfect fit for any contemporary kitchen. The combination of these design elements creates an appliance that is the epitome of sophistication - the ultimate choice for those who value style and function in their home. Don't be fooled by its good looks - this dishwasher means business. The stainless-steel interior not only adds a touch of magnificence to your kitchen, but it also ensures that your dishes come out sparkling clean. The upper and lower fold down tines give you maximum flexibility in loading, and the built-in third rack provides extra space for all of your pots, pans, and serving platters. What really sets this dishwasher apart is its advanced features. The Ultra Wash & Dry system in the Cafe Stainless Steel Interior Dishwasher is designed to ensure that every corner and crevice of your dishes is thoroughly cleaned and dried. The dishwasher also offers the convenience of SmartHQ integration, which allows you to control and monitor the appliance from your phone or tablet, making it easy to keep track of your dishwashing schedule and make any necessary adjustments. Plus, with a 45 dBA rating, you can run it anytime without worrying about disturbing your household. This makes it a great choice for open-plan kitchens or homes with multiple living spaces. As a luxury brand for millennials, the Cafe Stainless Steel Interior Dishwasher is in high demand. Indulge in a little elegance and make your life easier with this stylish and efficient appliance.The Cafe Stainless Steel Interior Dishwasher is a top-performing appliance that's both stylish and functional. The brushed stainless steel handle and modern top controls create a sleek and sophisticated design that adds a touch of glamor to any contemporary kitchen. The dishwasher's stainless-steel interior ensures sparkling clean dishes, and its advanced features, like the Ultra Wash & Dry system and SmartHQ integration, make it an ideal choice for those who want both style and function in their home. With the Cafe dishwasher, you'll have maximum flexibility when loading your dishes thanks to the upper and lower fold down tines, and the built-in third rack provides extra space for all your pots, pans, and serving platters. The Ultra Wash & Dry system ensures every corner and crevice of your dishes is thoroughly cleaned and dried, and SmartHQ integration allows you to control and monitor the dishwasher from your phone or tablet. With a quiet 45 dBA rating, you can run it anytime without worrying about disturbing your household. Upgrade your dishwashing experience and add a touch of elegance to your kitchen with the Cafe Stainless Steel Interior Dishwasher. With its advanced features, stylish design, and efficient performance, it's the ultimate choice for those who value luxury and convenience in their home.


Product Features

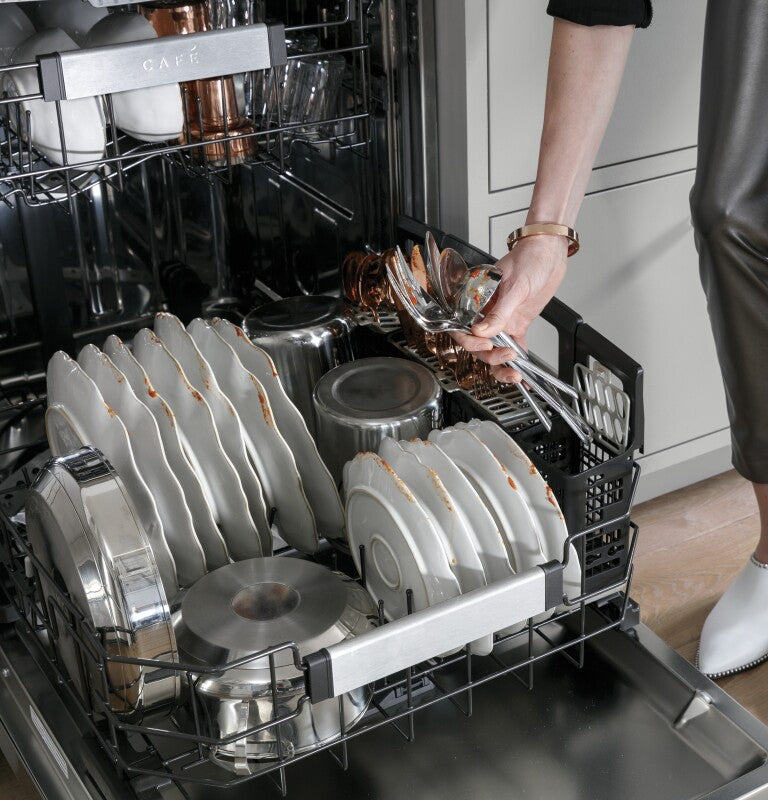

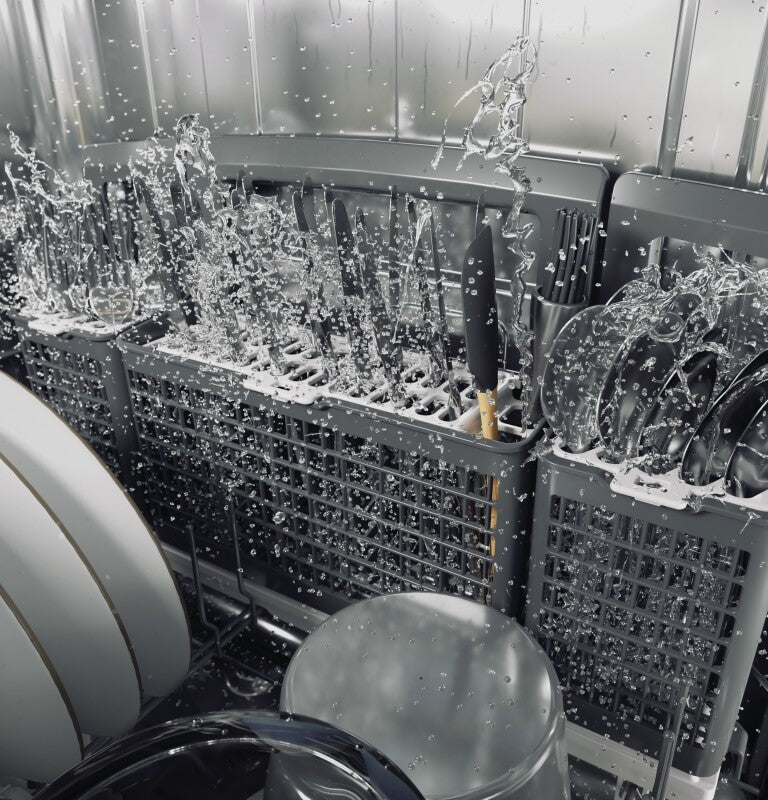

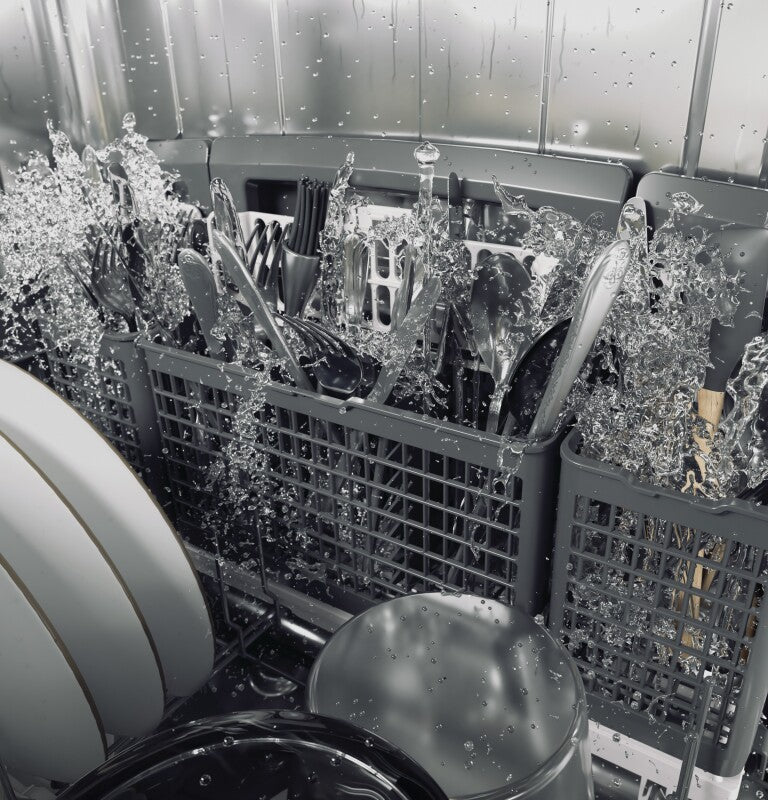

  • Deep Clean Silverware Jets
    This dishwasher with powerful cleaning jets washes your silverware to perfection, no matter how you load it. A system of 40 jets blast the silverware basket from the bottom up, removing all stuck-on foods

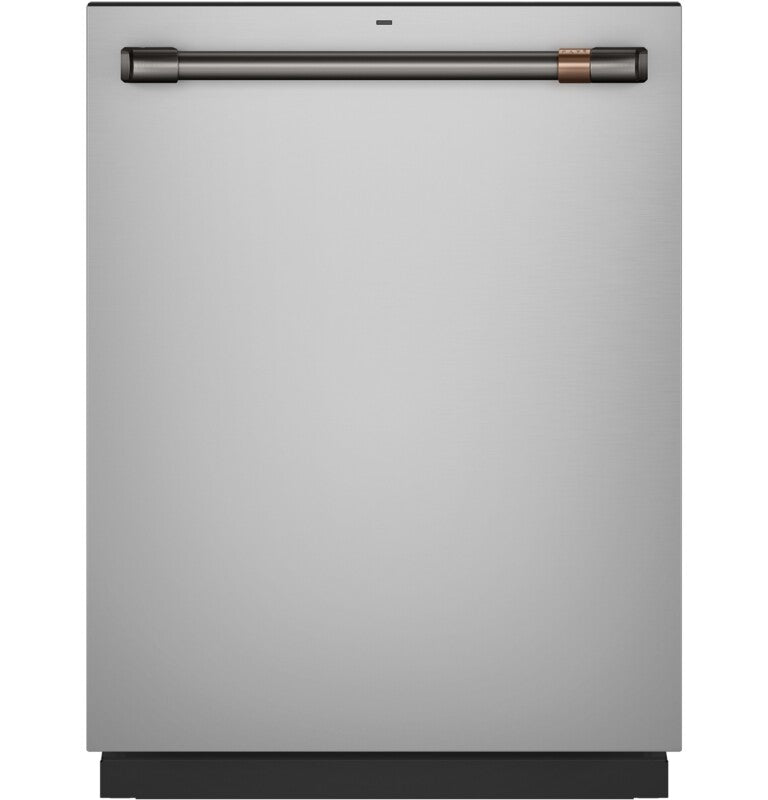

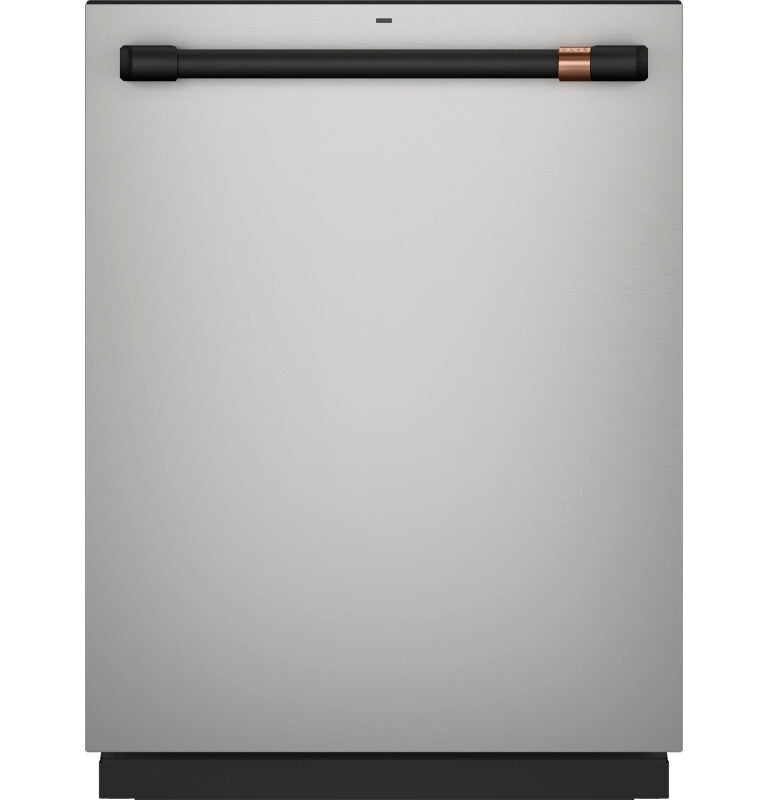

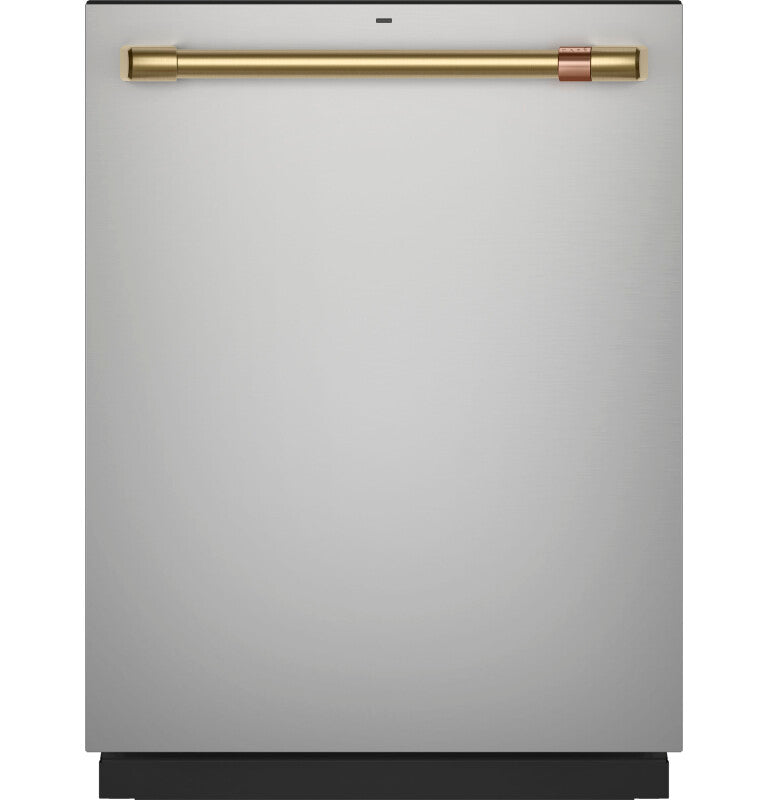

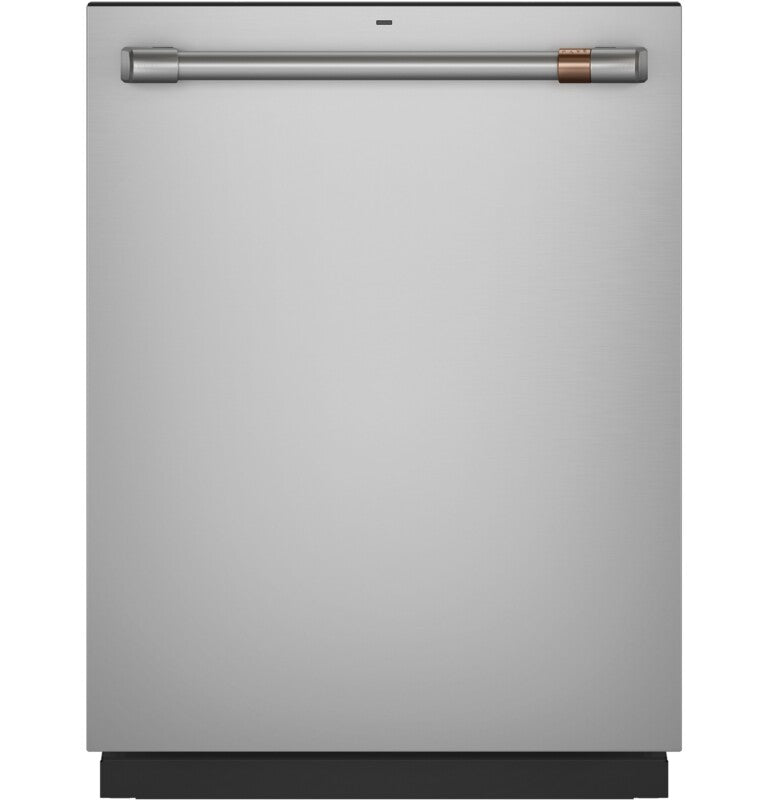

  • Customizable Hardware Options
    Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen, or your other CAFÉ™ appliances

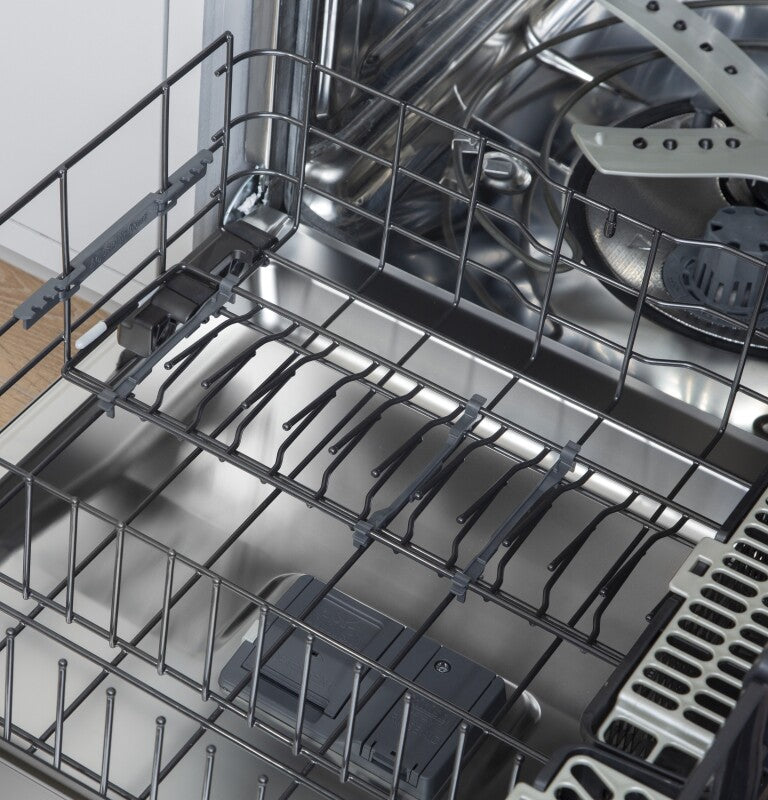

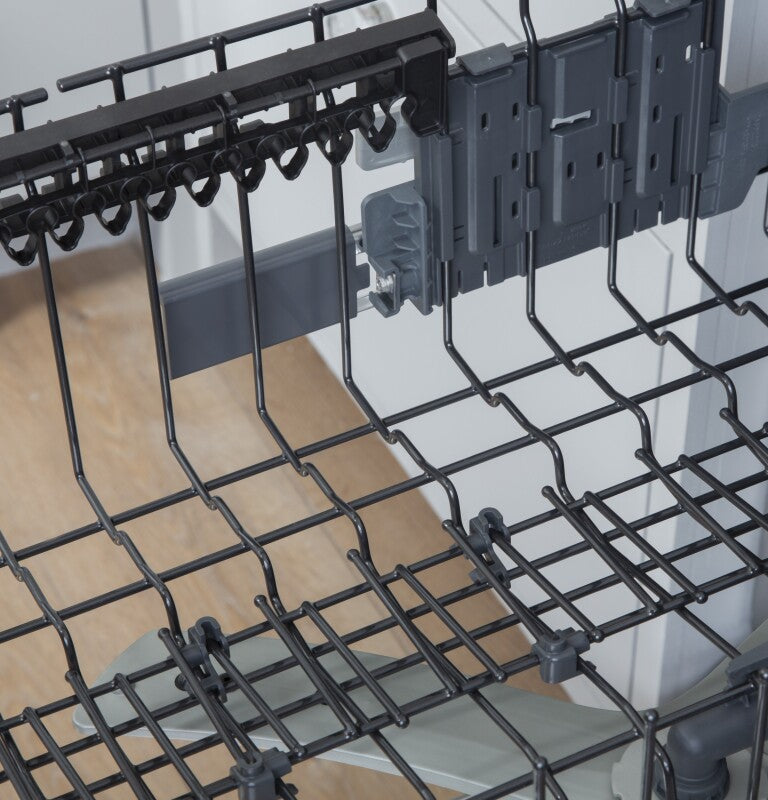

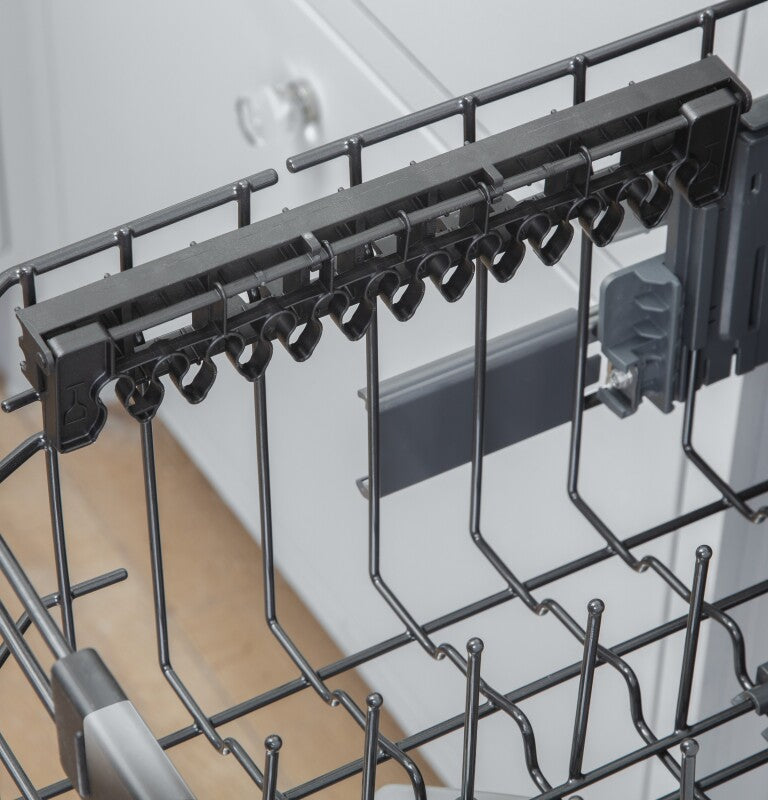

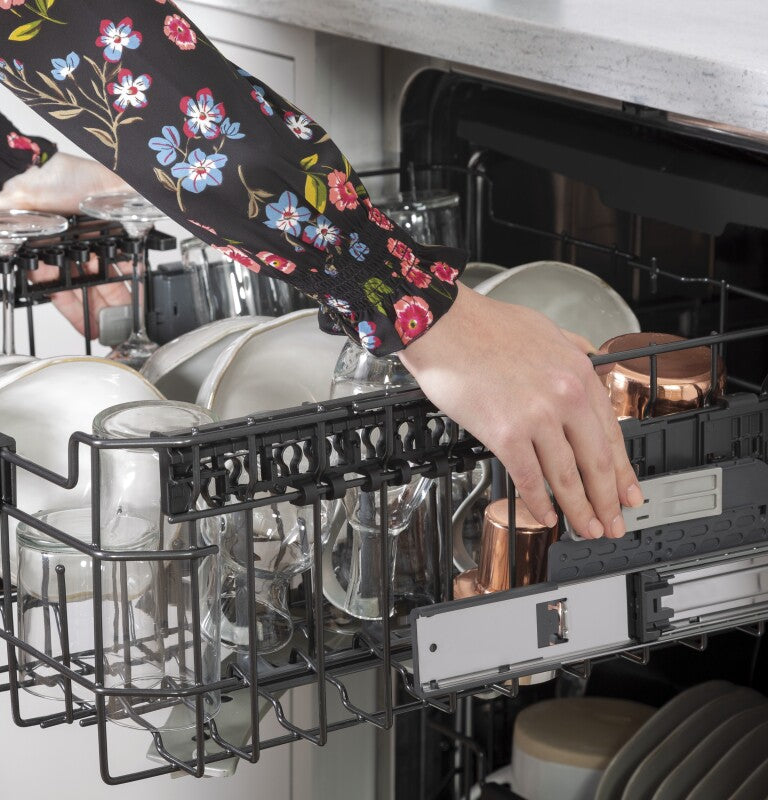

  • Upper Rack Fold-Down Tines
    With multi-position, fold-down tines in the upper rack, you have the loading flexibility. Adjust each tine into three different positions and configure the rack to fit any item, so you can wash less loads

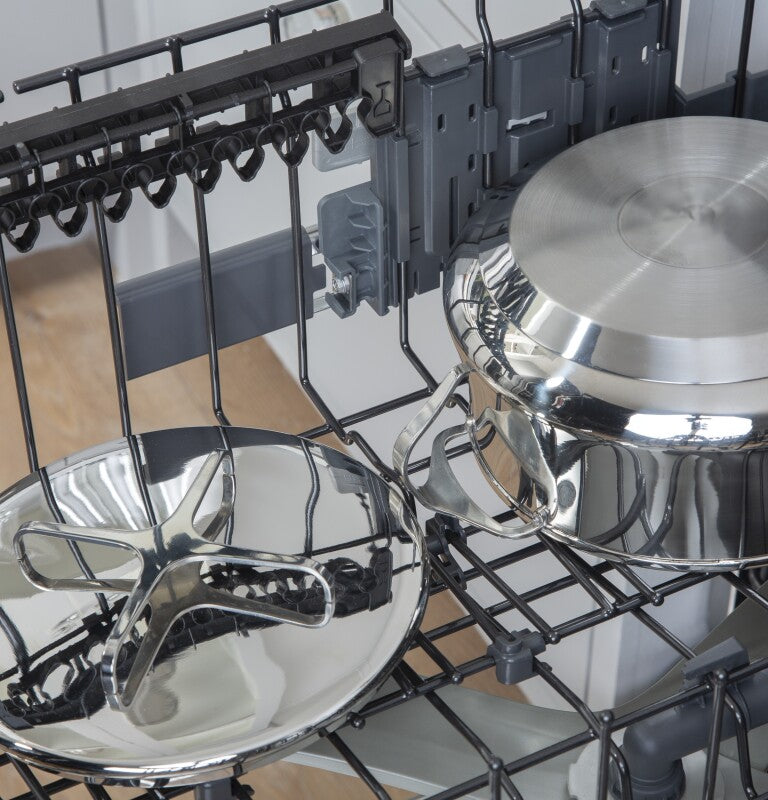

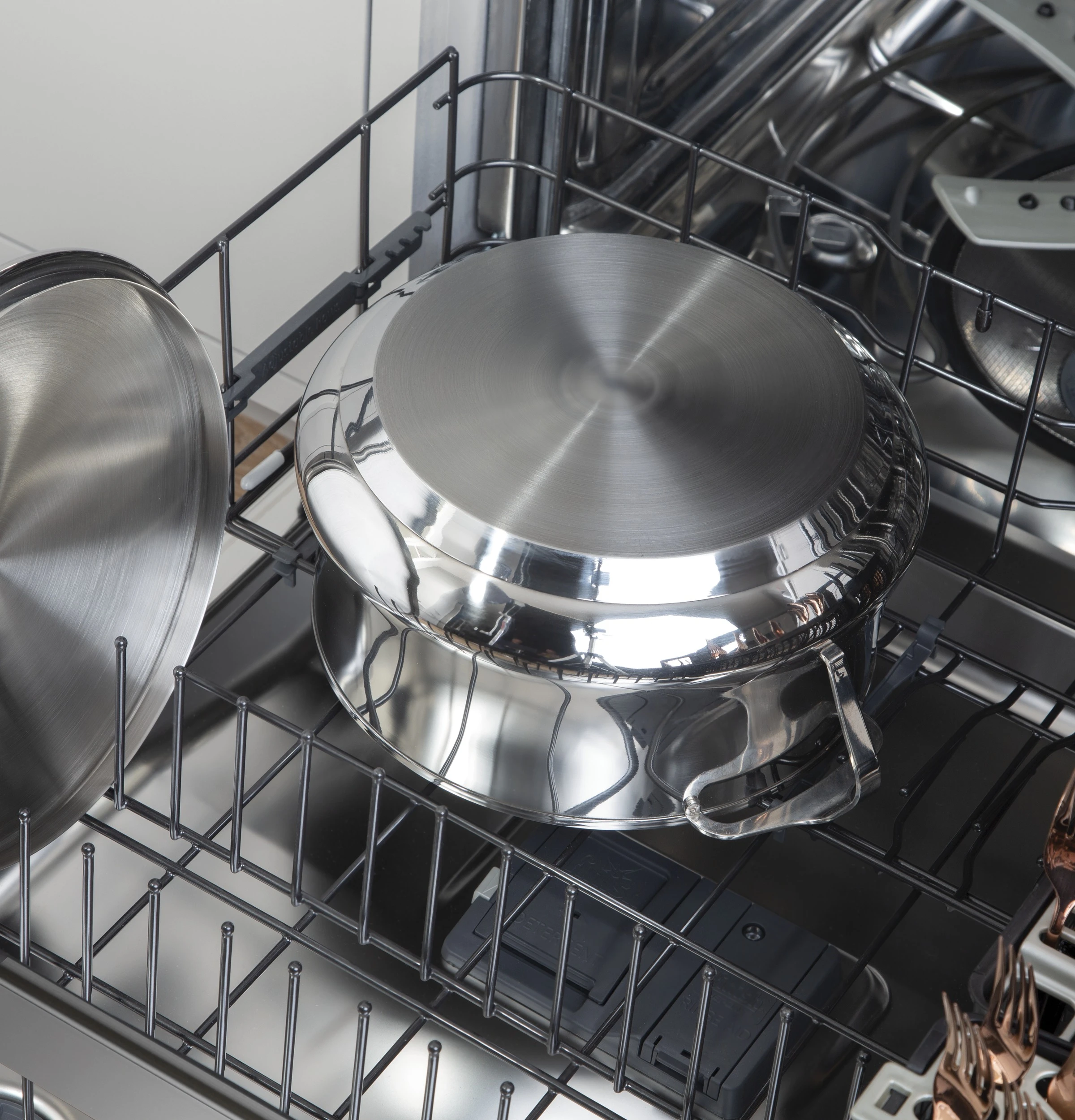

  • Lower Rack Fold-Down Tines
    Enjoy next-level this loading flexibility dishwasher thanks to multi-position, fold-down tines in the lower rack. Adjust them into three different positions and configure your rack to accommodate any item
  • Water Leak Sensor
    This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached

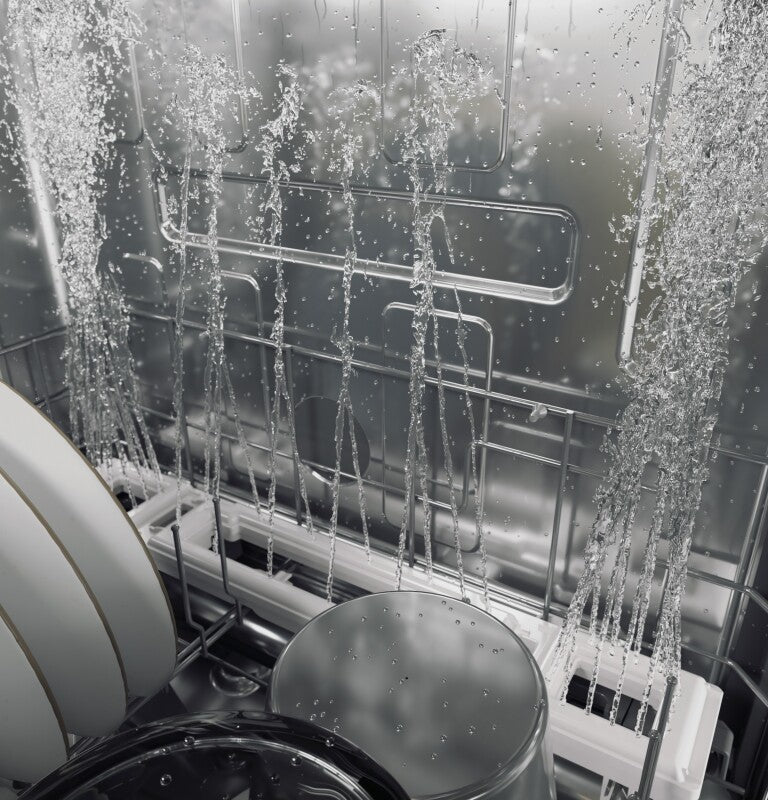

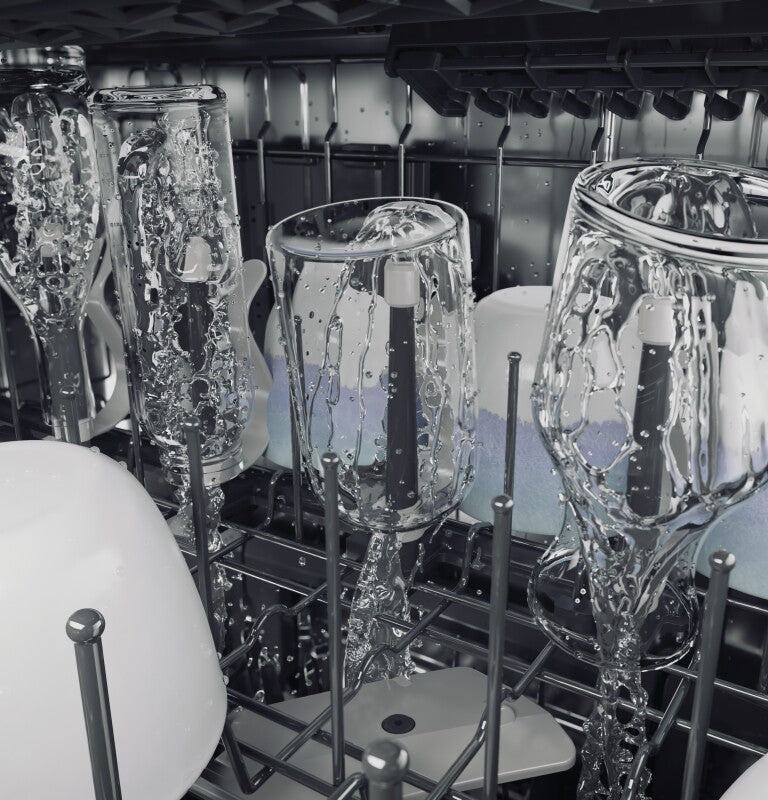

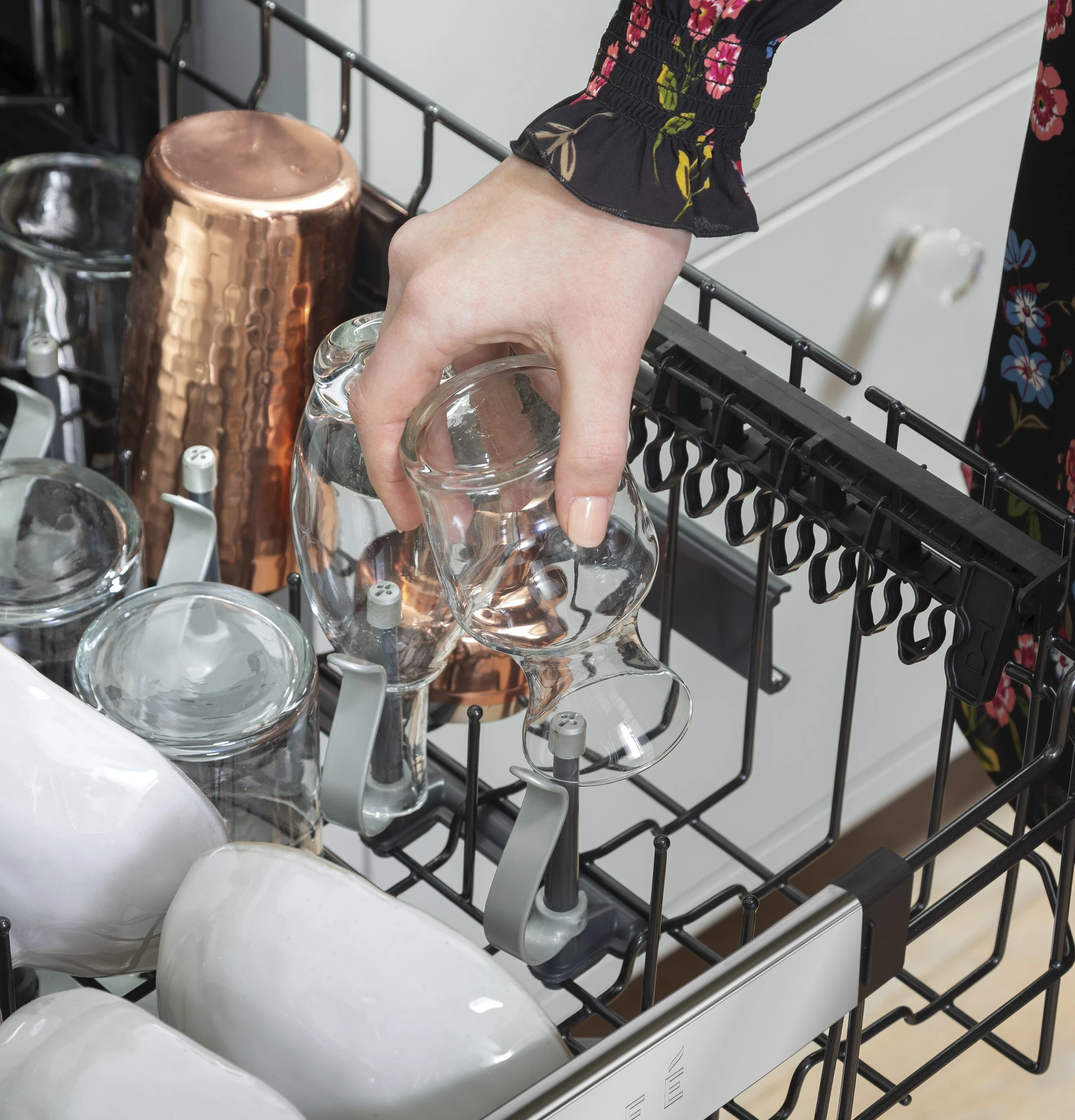

  • 4 Bottle Wash Jets
    This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

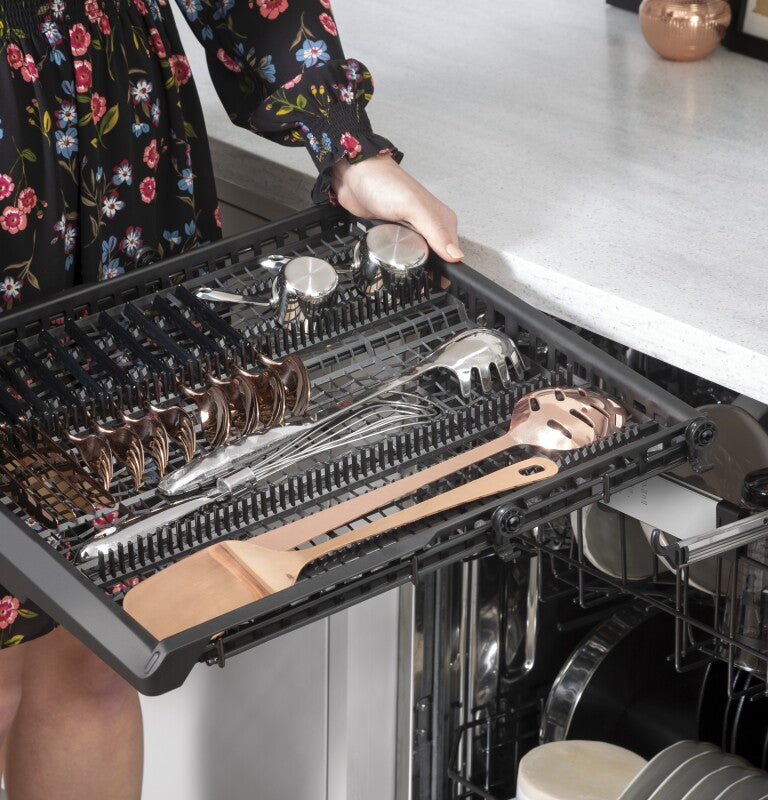

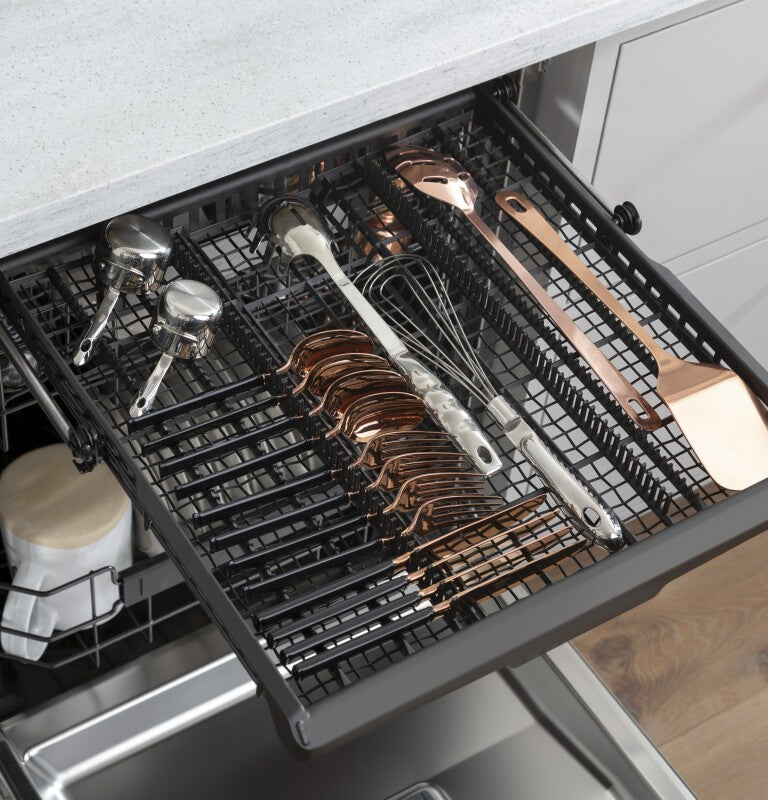

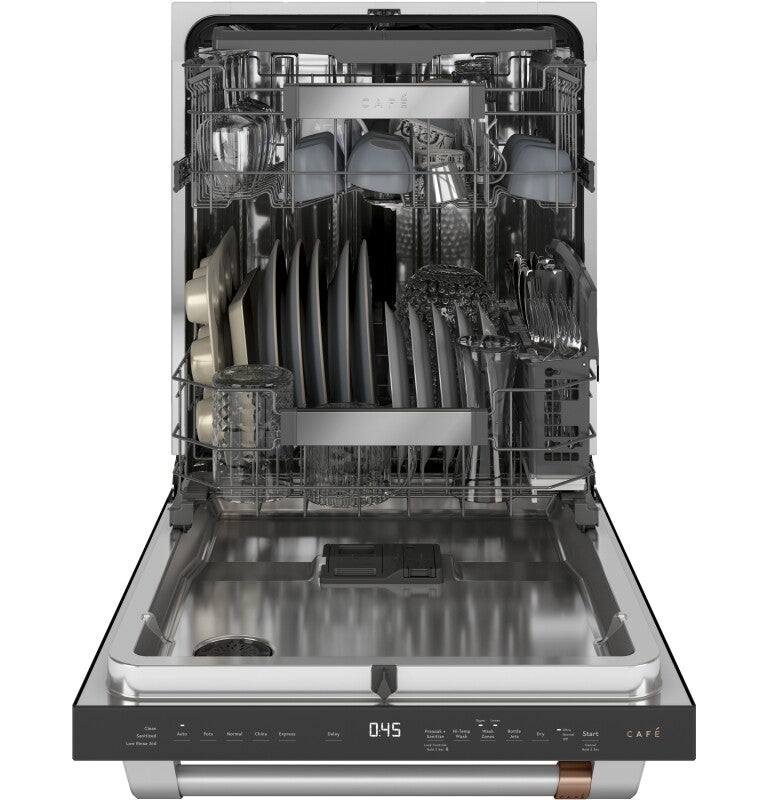

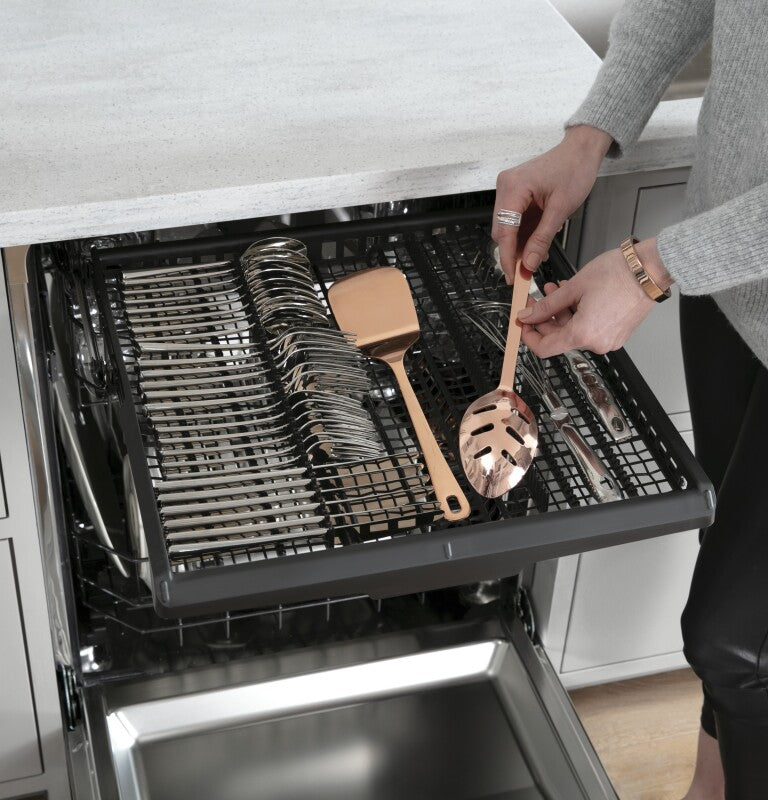

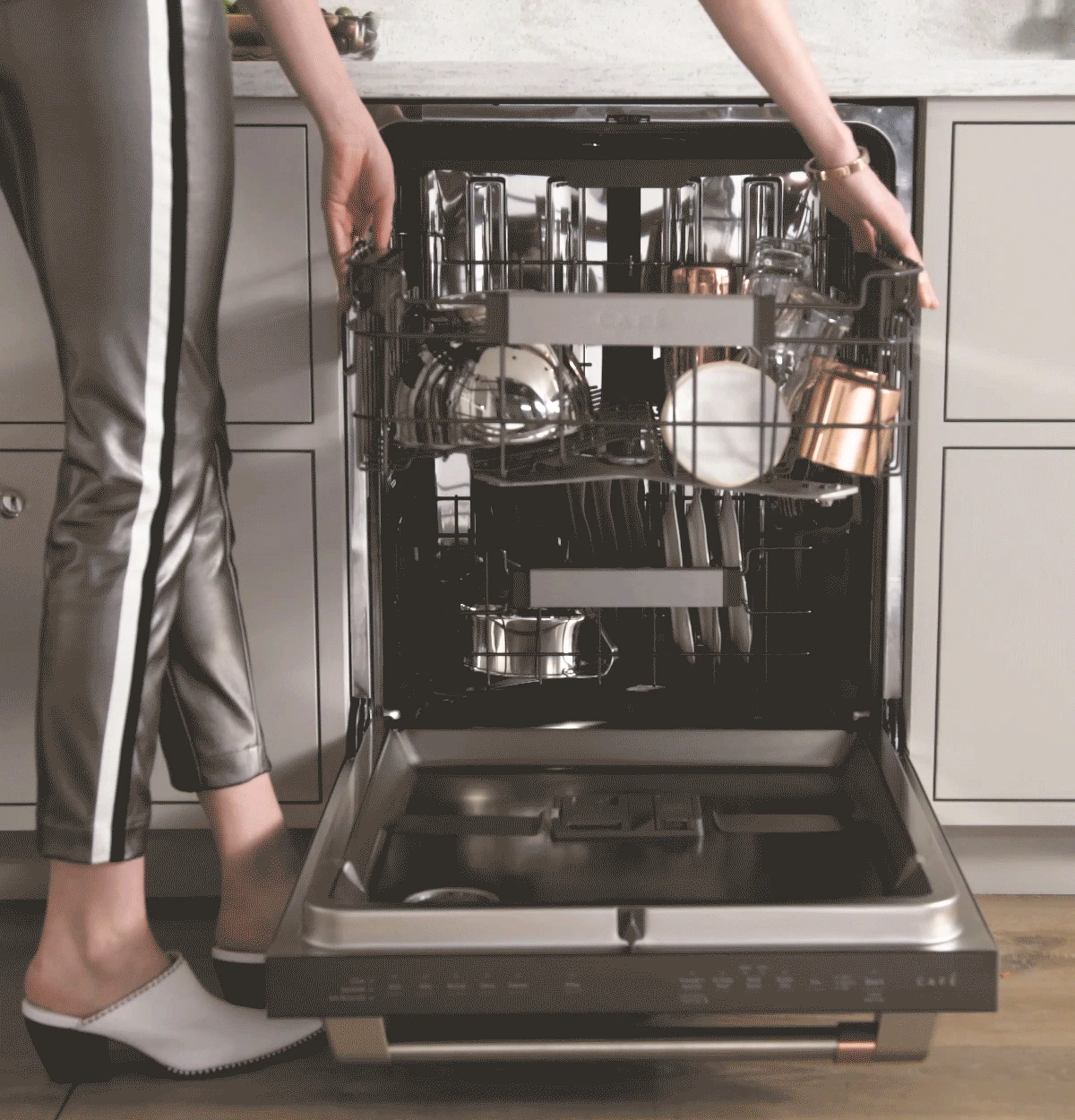

  • Built-In Third Rack
    This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to wash and dry silverware, spatulas, lids and more

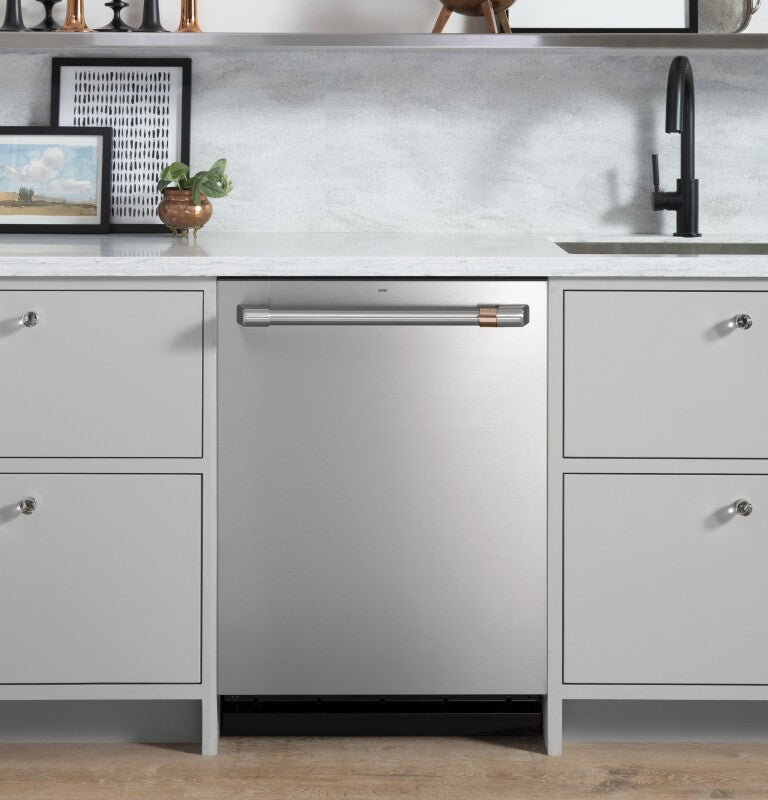

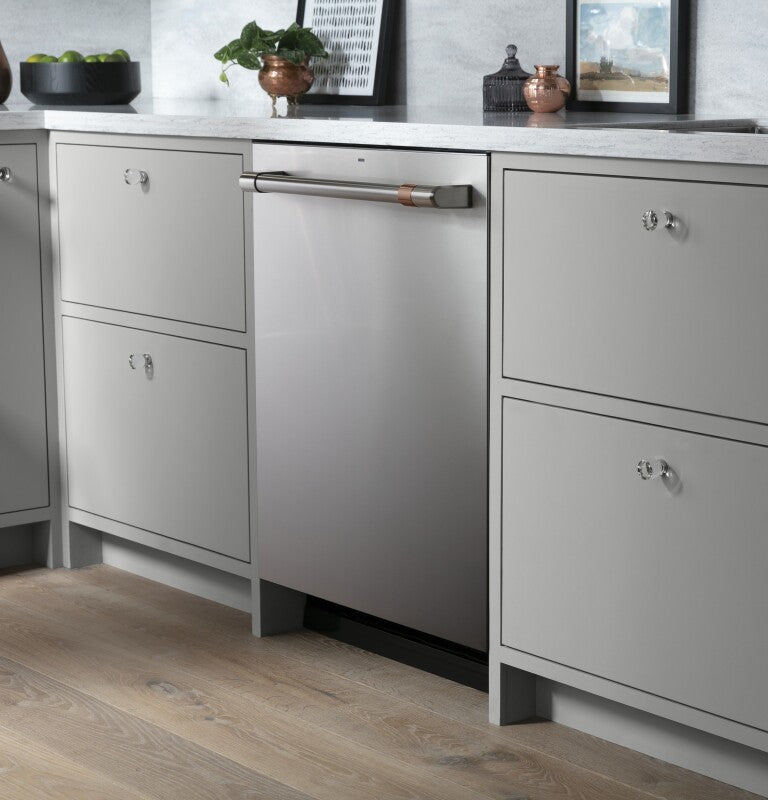

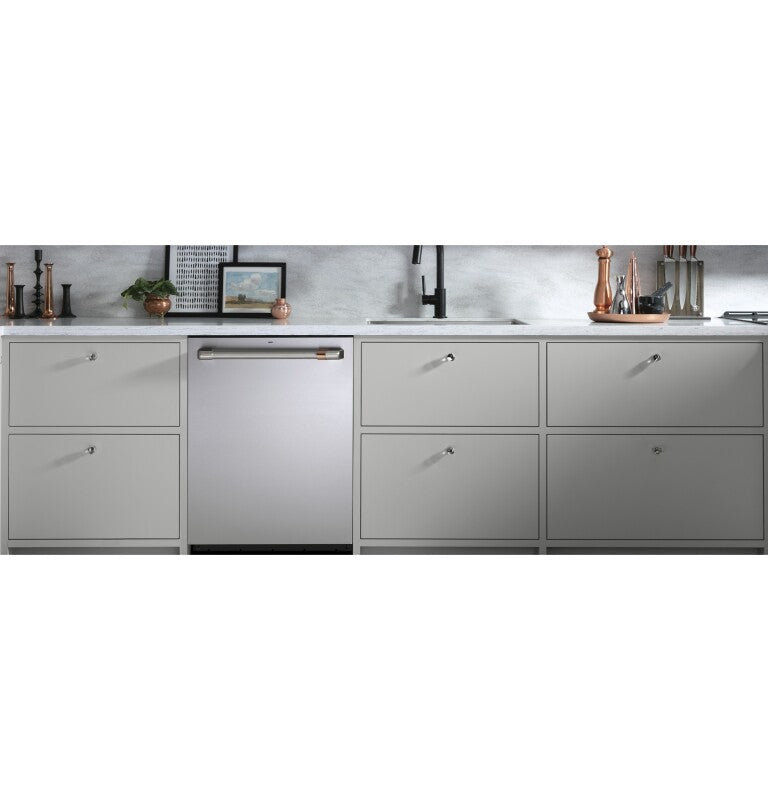

  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside

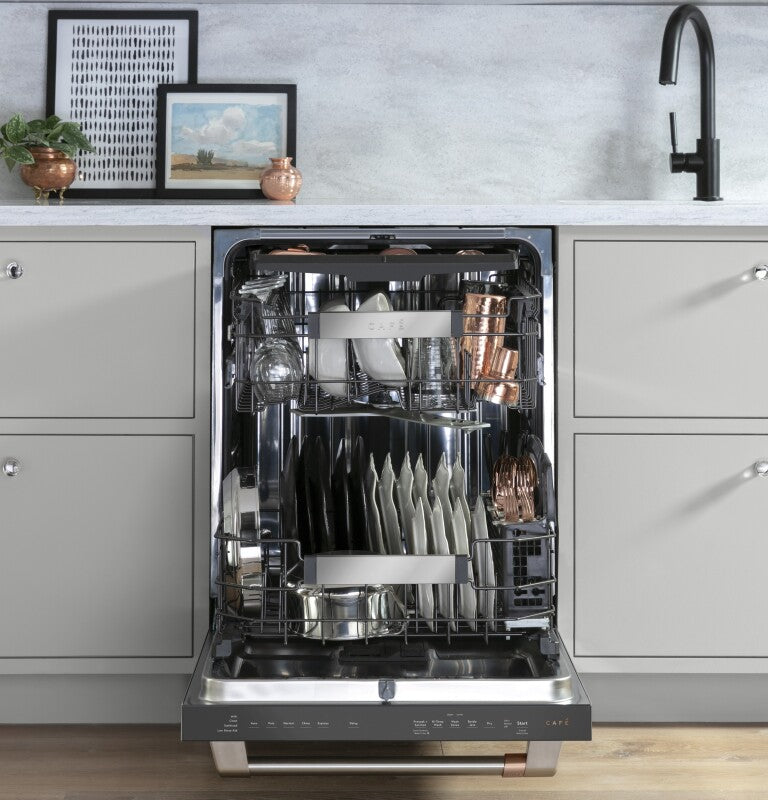

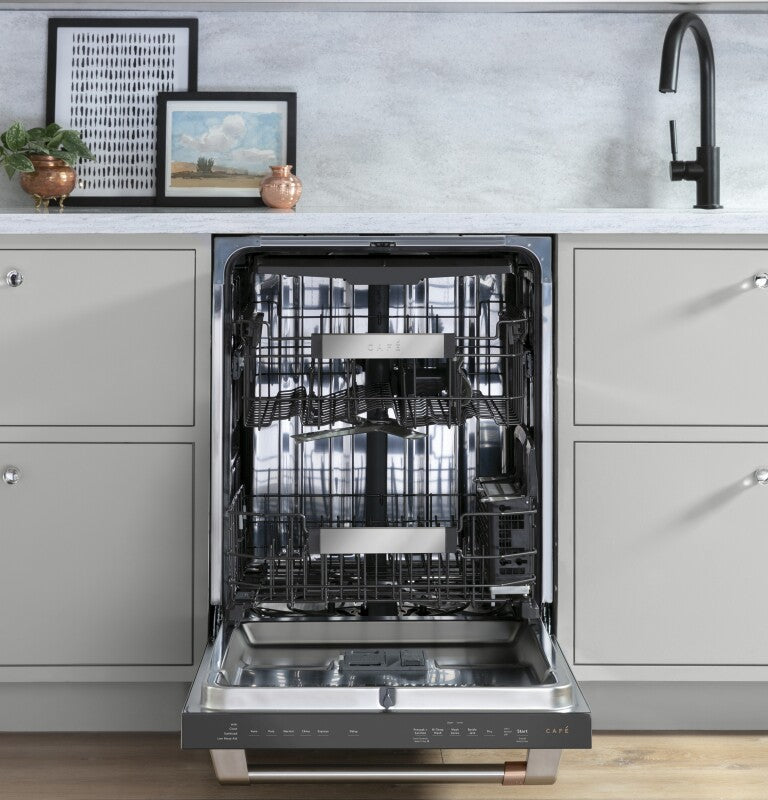

  • Extra Large Capacity
    This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings
  • 45 dBA Dishwasher
    This 45 decibel dishwasher offers quiet operation that will make your kitchen more peaceful, while delivering a powerful wash for clean results every time

Key Features

Steam + Sani

Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

Ultra Wash & Dry

This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has over 90 jets and a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely

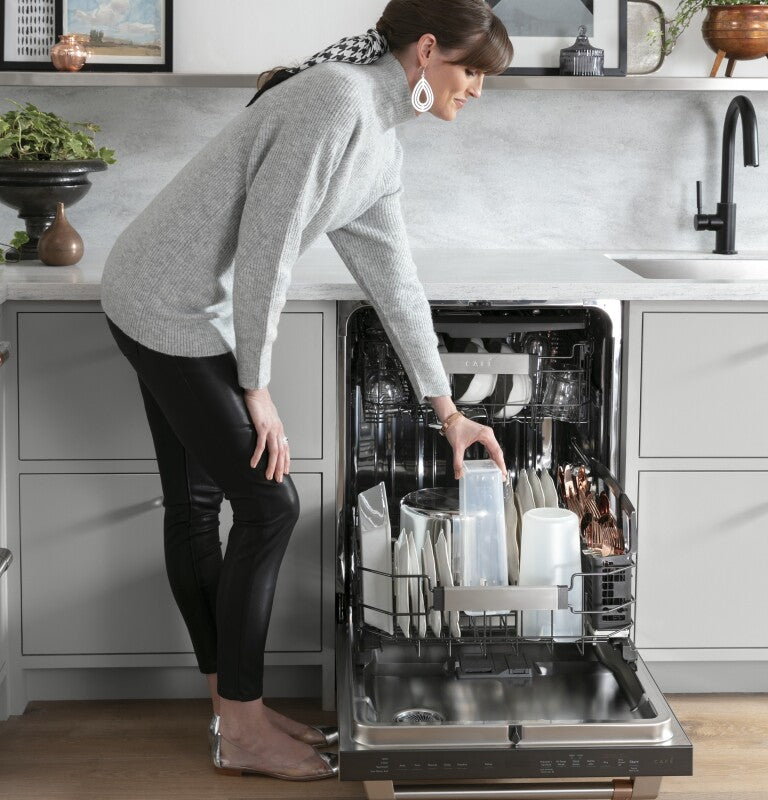

Loading Flexibility

A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results

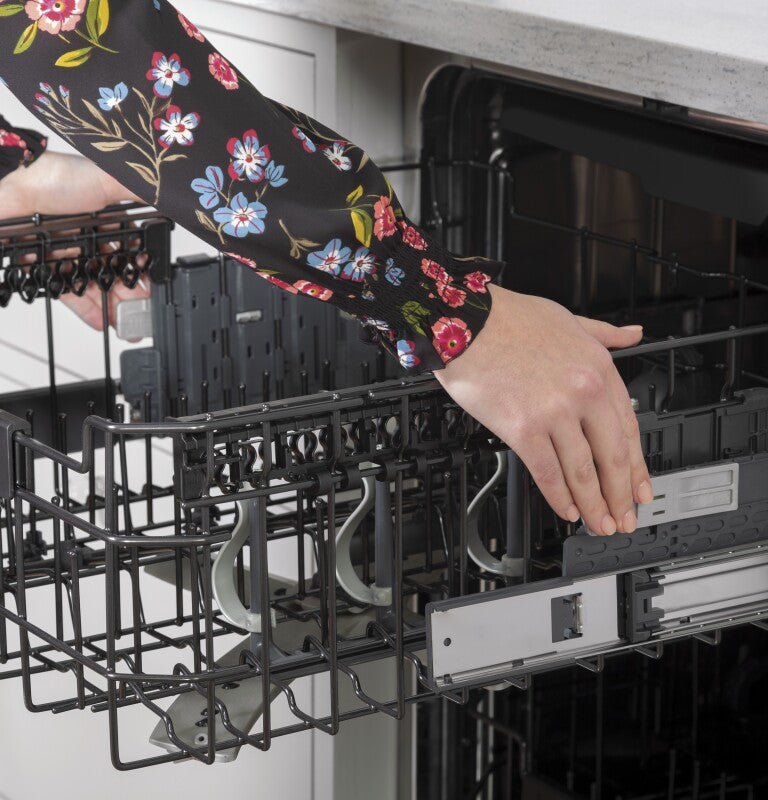

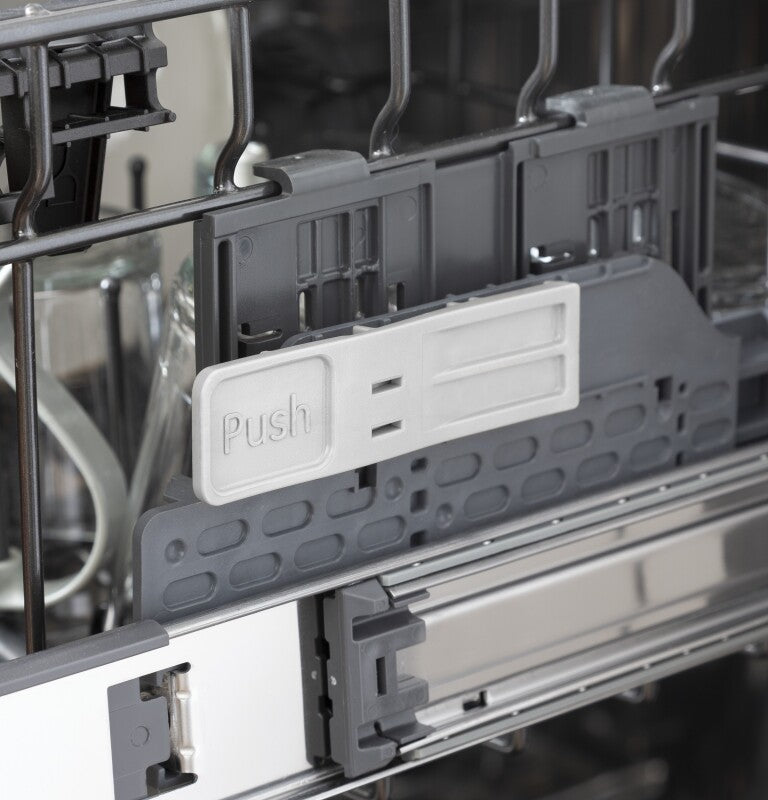

Adjustable Upper Rack

Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"

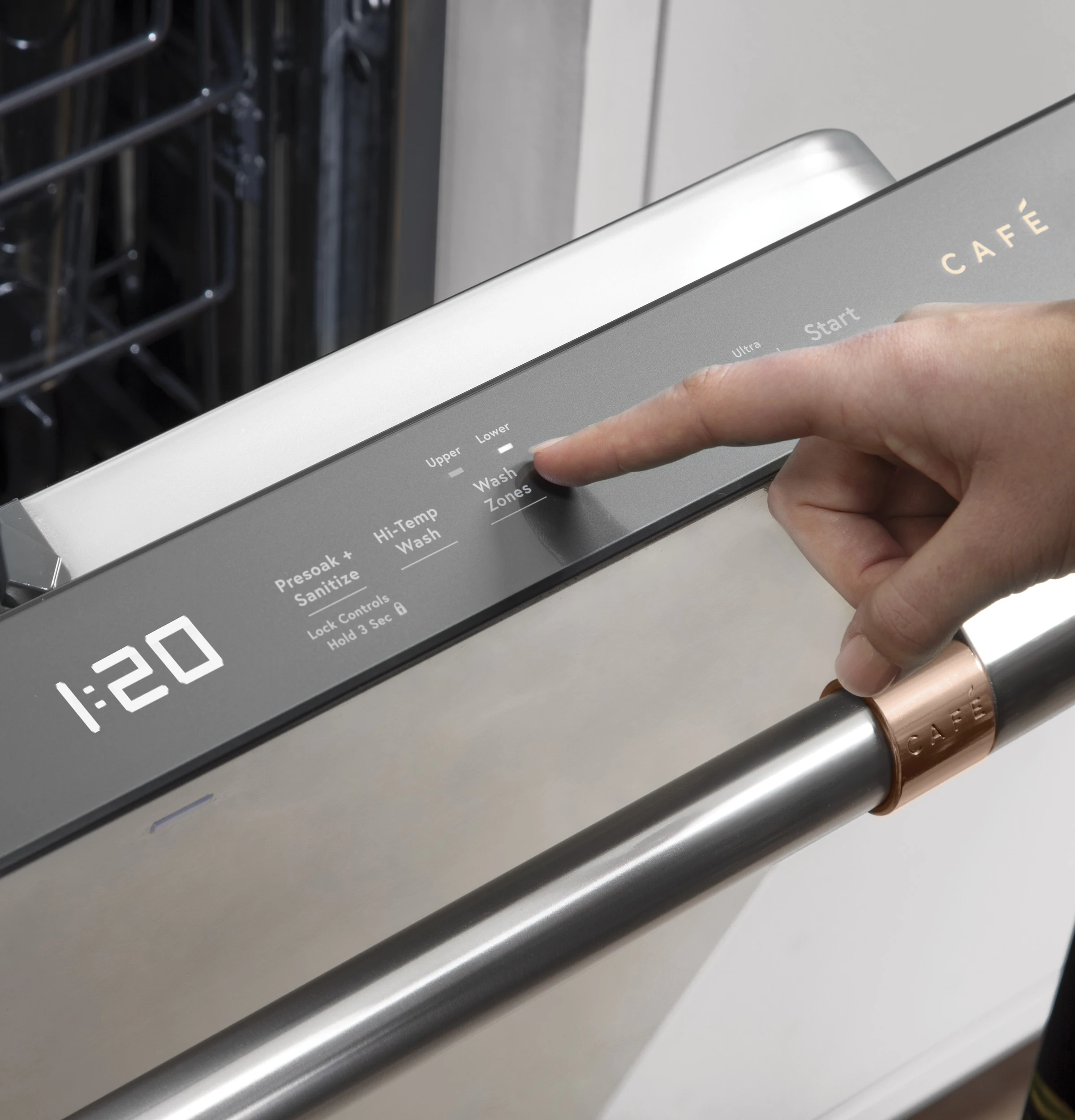

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy
