SKU: LP80 | UPC: 026715203475

Broan LP80 LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified White

LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified
LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified

Quick Specification More details

  • Width:
    13.75"
  • Depth:
    4"
  • Height:
    10.5"
  • Type:
    Other

About this product

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 4" oval or 3" round duct connection for installation flexibility, allows for ceiling or wall mounting
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 75 sq. ft.

SKU: LP80 | UPC: 026715203475

Broan LP80 LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones Certified White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    13.75"
  • Depth:
    4"
  • Height:
    10.5"
  • Type:
    Other

About this product

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 4" oval or 3" round duct connection for installation flexibility, allows for ceiling or wall mounting
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 75 sq. ft.

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Broan LP80

Technical Details

Product details
CFM 80
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 13
Grille Width 13.75

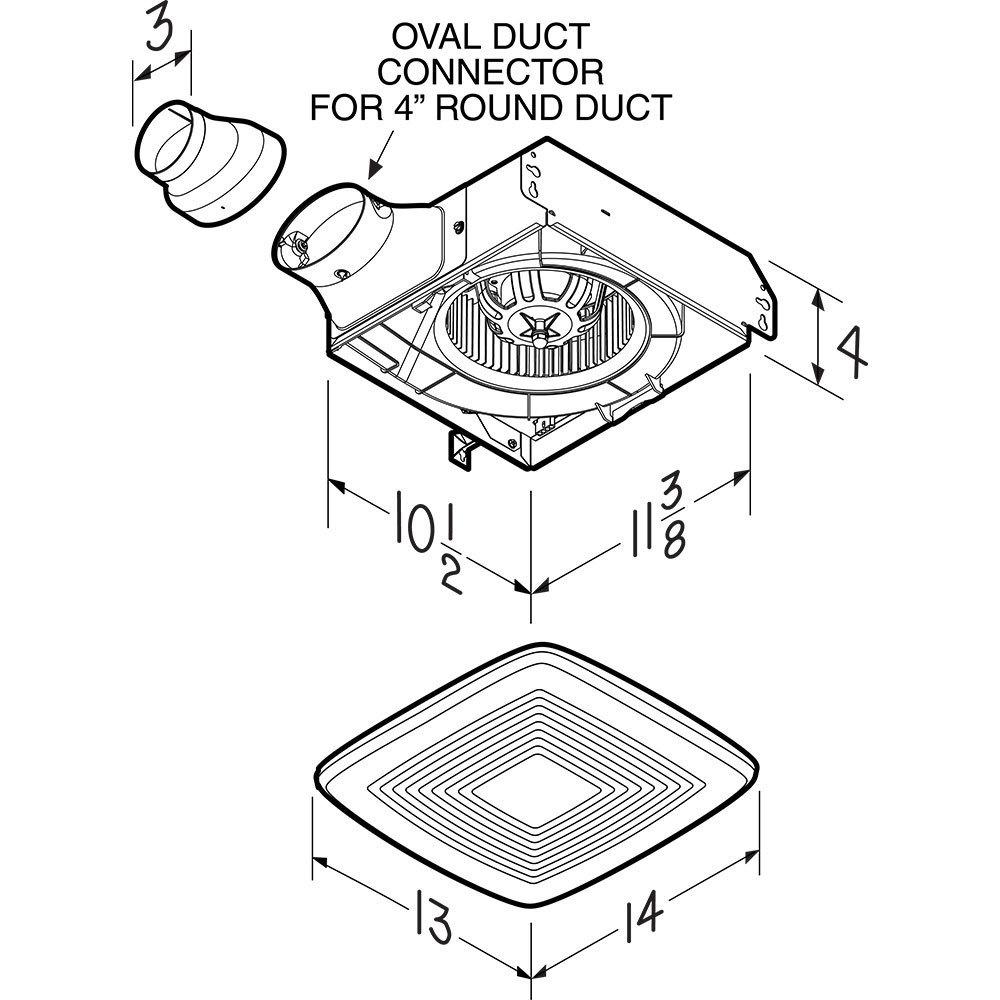

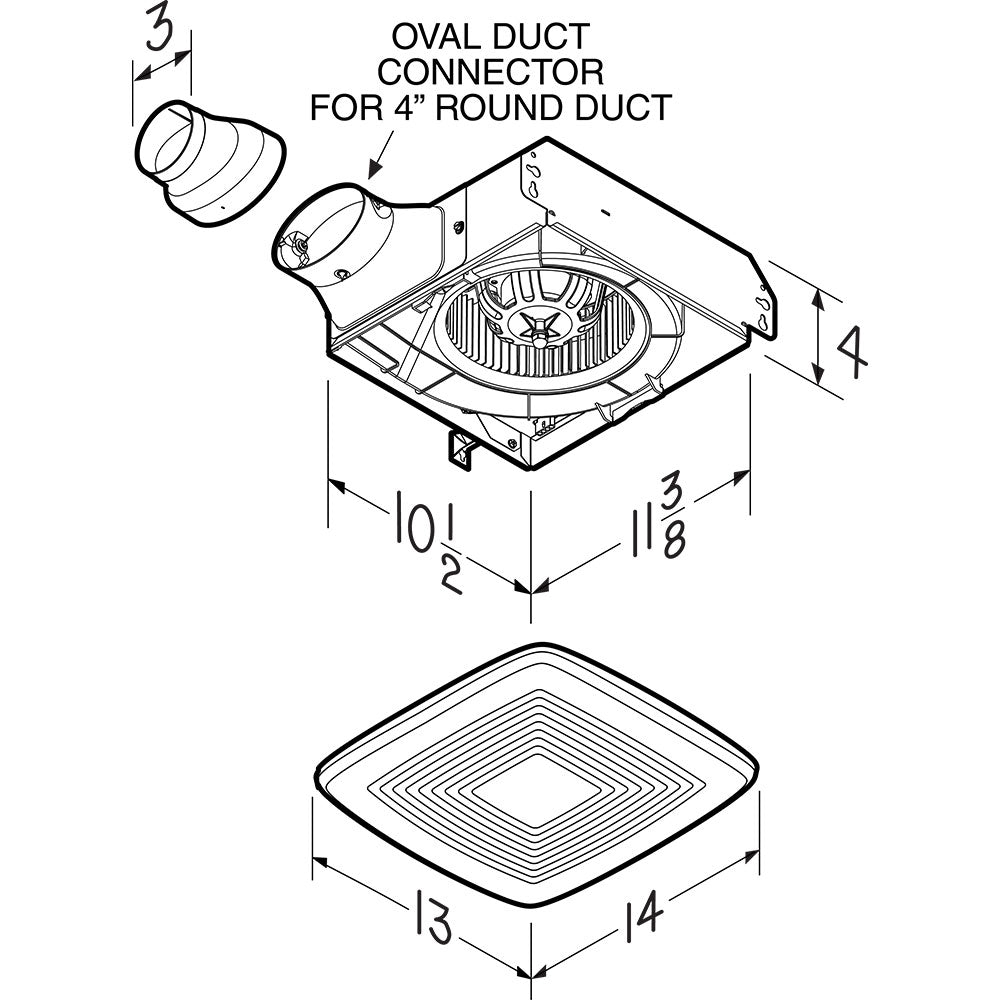

Housing Dimensions 10-1/2" x 11-3/8" x 4"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
Minimum Recommended Flow 0

Dimensions & weight
Width 13.75 in.
Height 10.5 in.
Length 4 in.
Housing Dimensions 10-1/2" x 11-3/8" x 4"

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 18.75 in.
Shipping Height 15.5 in.
Shipping Length 9 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 0.33 ft³
Dimensional Weight 3.48 lbs.
Total of Cubes 0.33 ft³
Total of Dimensional Weight 3.48 lbs.

Description

The LP80 LoProfile fan is designed for installations where conventional ventilation simply won't fit. When a multi-family application requires it, the LoProfile fan is narrow enough to be installed in a wall between 2 x 4 studs. When plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications, the LoProfile fan can still fit without having to move anything, and that means most any room with space constraints can have powerful, quiet, efficient ventilation. In residential garage applications, use the LP80 to get rid of heat, humidity and unwanted smells. Mount in the wall between 2 x 4 studs and easily duct to a wall cap. (Wall cap and ducting not included.)


Product Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 4" oval or 3" round duct connection for installation flexibility, allows for ceiling or wall mounting
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 75 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Comparable to NuTone Model LPN80

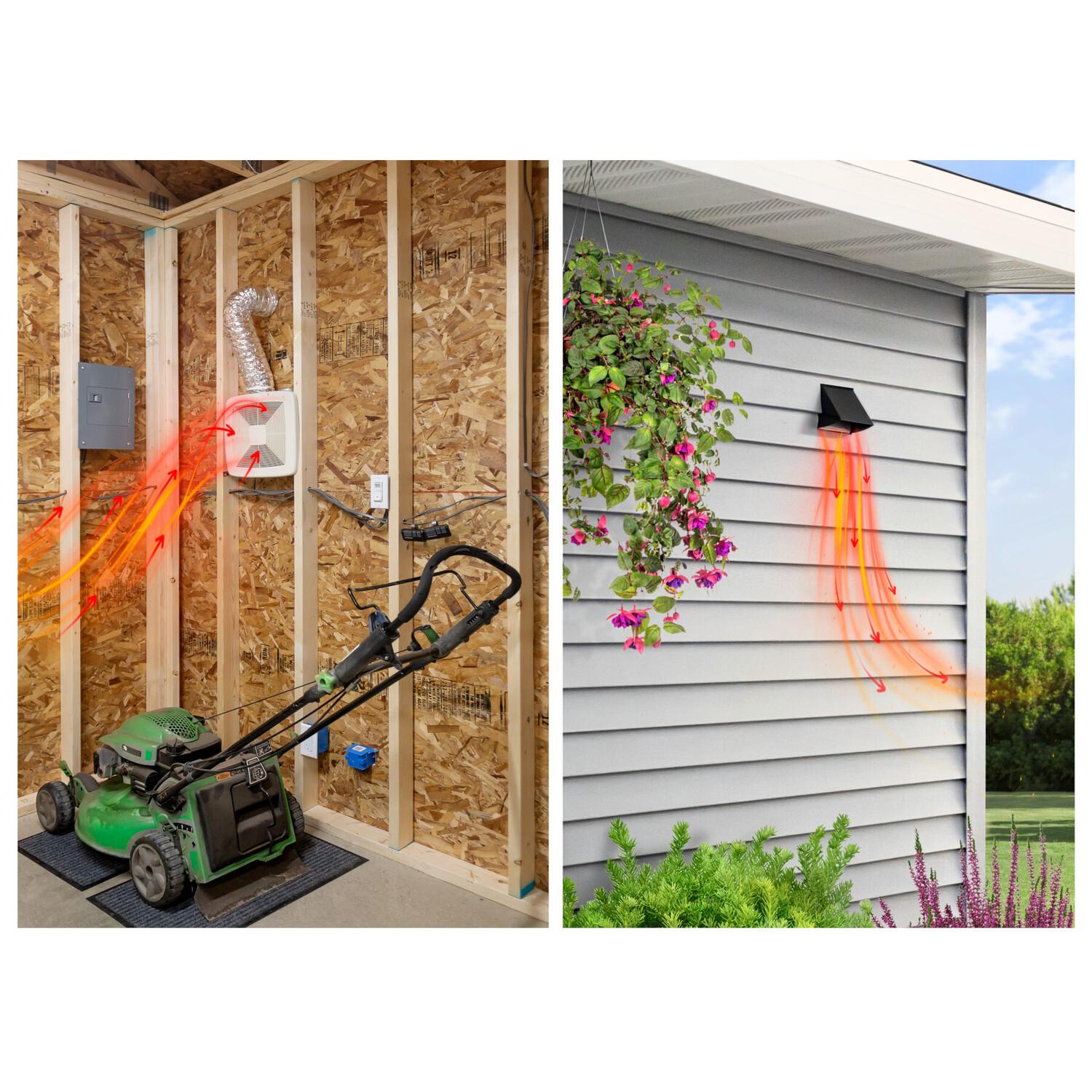

  • Fight heat, humidity buildup and unwanted smells inside the garage
  • Ventilate a one car garage, either attached or detached from the home
  • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
  • Tested and approved for extreme hot and cold weather
  • 1.0 Sones for Ultra quiet performance, you might not notice it's on
  • ENERGY STAR® Certified efficient operation for lower utility bills
