SKU: 100HFL | UPC: 026715180264

Broan 100HFL Heater/Fan/Light 100 CFM Ventilation Fan, 1500W Heater, 27W Fluorescent Light, 2.0 Sones White

Quick Specification More details

Width:
11.5"
Depth:
5.88"
Height:
16"
Type:
Other

About this product

2.0 Sones for Quiet performance , enough sound to know your fan is on
Sturdy, easy, four-point mounting direct to joist
Hanger bars to allow housing to be positioned anywhere
Requires a dedicated 20 amp circuit

Summer Sale

Clearance

SKU: 100HFL | UPC: 026715180264

Broan 100HFL Heater/Fan/Light 100 CFM Ventilation Fan, 1500W Heater, 27W Fluorescent Light, 2.0 Sones White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
11.5"
Depth:
5.88"
Height:
16"
Type:
Other

About this product

2.0 Sones for Quiet performance , enough sound to know your fan is on
Sturdy, easy, four-point mounting direct to joist
Hanger bars to allow housing to be positioned anywhere
Requires a dedicated 20 amp circuit

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan 100HFL

Technical Details

Product details

CFM	100
Duct Size	4
ENERGY STAR® certified	No
Grille Length	17.5
Grille Width	11.5

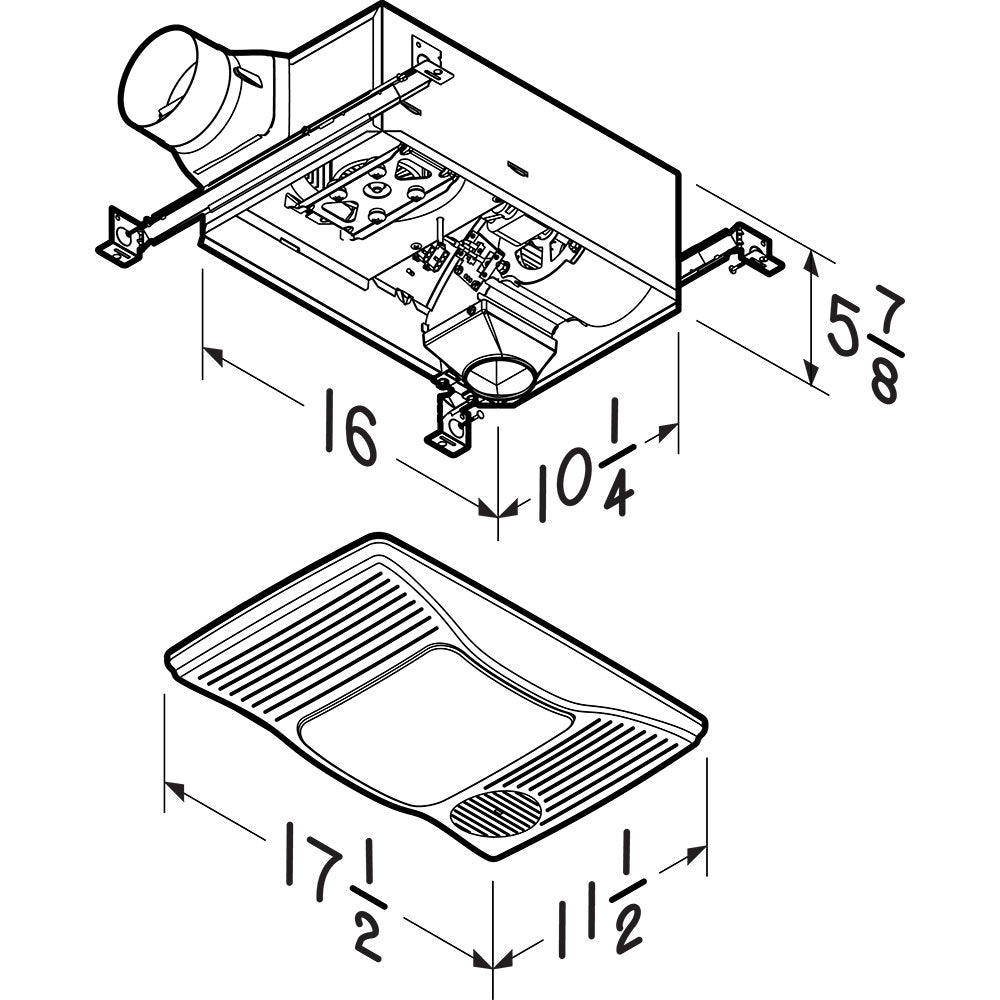

Housing Dimensions	16" x 10-1/4" x 5-7/8"
Sound Level (Sones)	2
UL Listed	Yes
Grille Finish	White
Humidity Sensing	No
Light Bulb Quantity	1
Motion Sensing	No
Motor Engineered For Continuous Operation	No
Night Light	No
Radiation Damper Available	No
Room Side Installation	No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit	No
Heater Wattage	1500
Recommended Room Size (Sq Ft)	90
Rated Amps	14
Voltage	120
Can Be Used To Comply With Title 24	Yes
Bulb (Recommended Type)	GU24
Minimum Construction Space Required	2" x 6"
Manufacturer Warranty	1 Year
High Efficiency Luminaire	No

Dimensions & weight

Width	11.5 in.
Height	16 in.
Length	5.88 in.
Housing Dimensions	16" x 10-1/4" x 5-7/8"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	16.5 in.
Shipping Height	21 in.
Shipping Length	10.88 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.63 ft³
Dimensional Weight	6.51 lbs.
Total of Cubes	0.63 ft³
Total of Dimensional Weight	6.51 lbs.

Description

Broan(R) Heater/Fan/Light 100 CFM Ventilation Fan, 1500W Heater, 27W Fluorescent Light, 2.0 Sones

Product Features

2.0 Sones for Quiet performance , enough sound to know your fan is on
Sturdy, easy, four-point mounting direct to joist
Hanger bars to allow housing to be positioned anywhere
Requires a dedicated 20 amp circuit
4" ducting for new construction or retrofit
Combination unit to be suitable for use in insulated ceilings (Type IC)
Powerful enough for rooms up to 90 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
100 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
PowerHeat™ design ensures powerful heating, light, and ventilation are available at the touch of a switch
Energy-efficient, 27 watt, GU24 base, fluorescent bulb
