Product Details for Broan AR110LKVV

Technical Details

Product details

CFM 110
Duct Size 4
ENERGY STAR® certified No
Grille Length 12.25
Grille Width 12.25

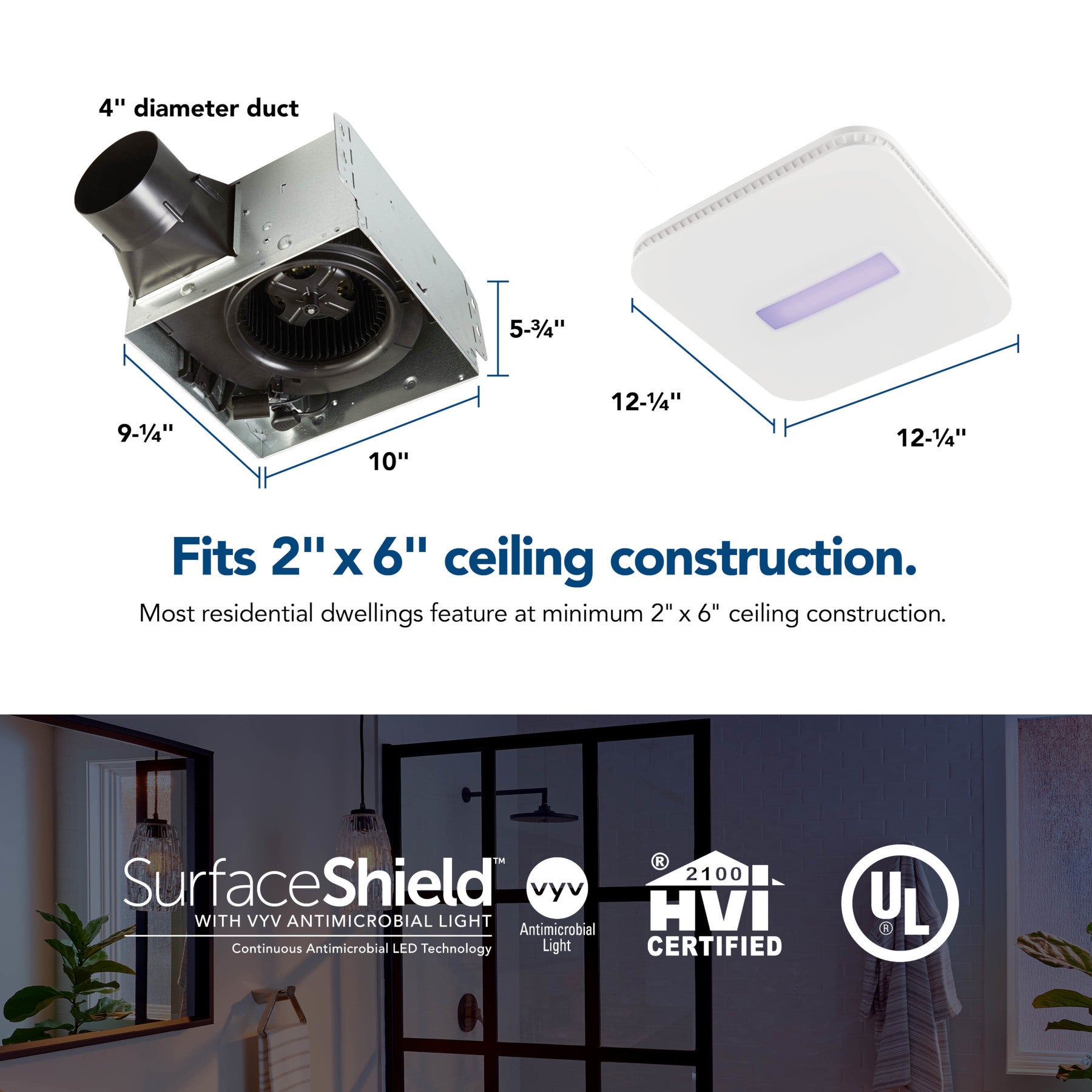

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light Yes
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No

Dimensions & weight

Width 12.25 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 17.25 in.
Shipping Height 14.25 in.
Shipping Length 10.75 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.38 ft³
Dimensional Weight 3.92 lbs.
Total of Cubes 0.38 ft³
Total of Dimensional Weight 3.92 lbs.

Description

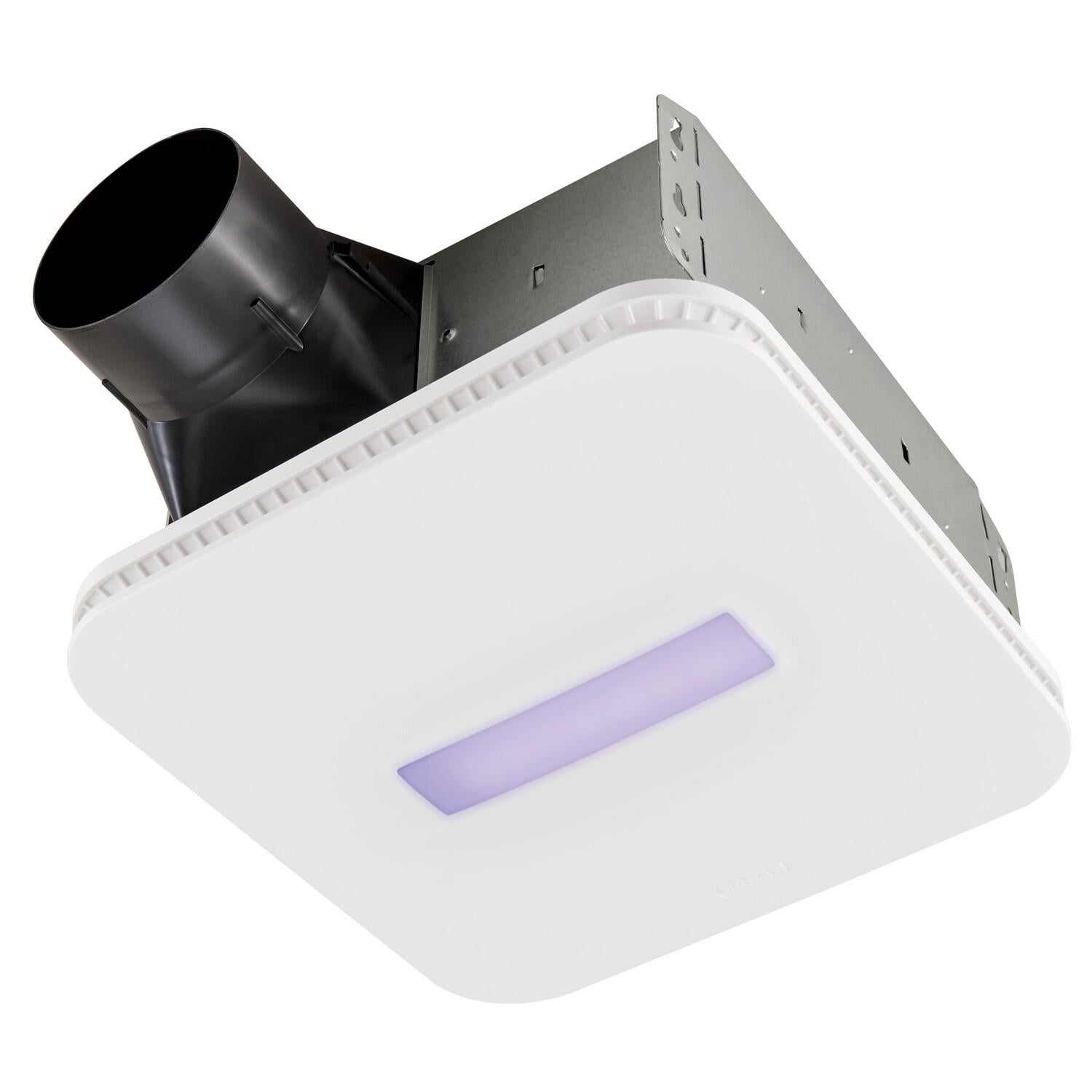

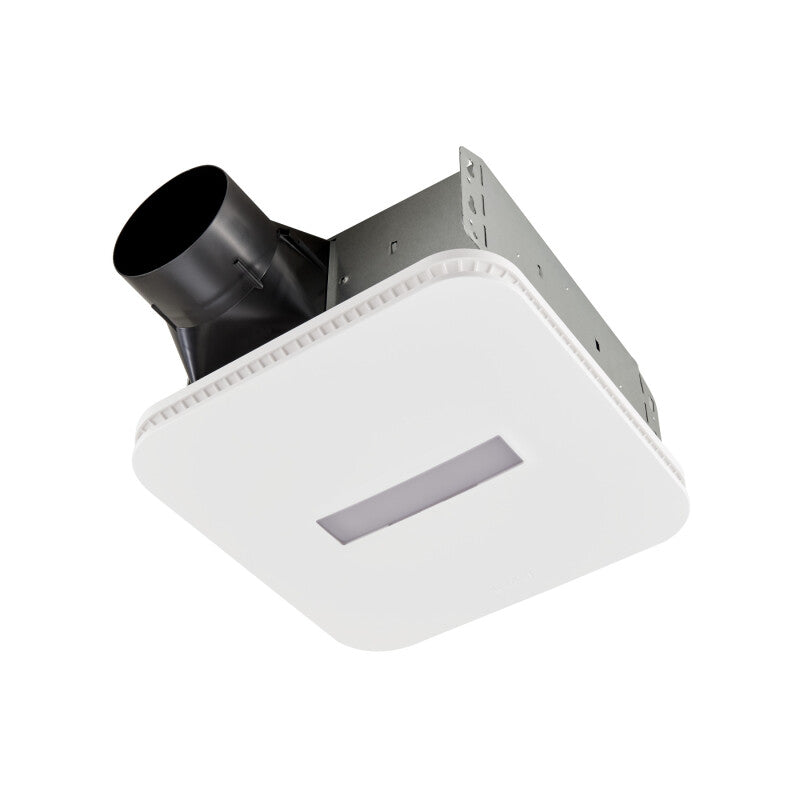

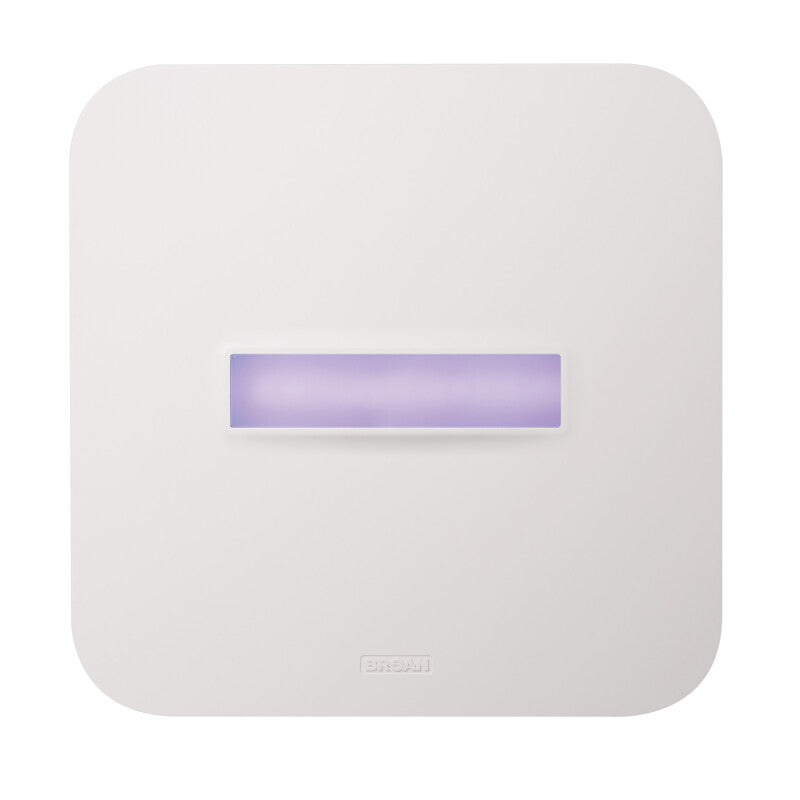

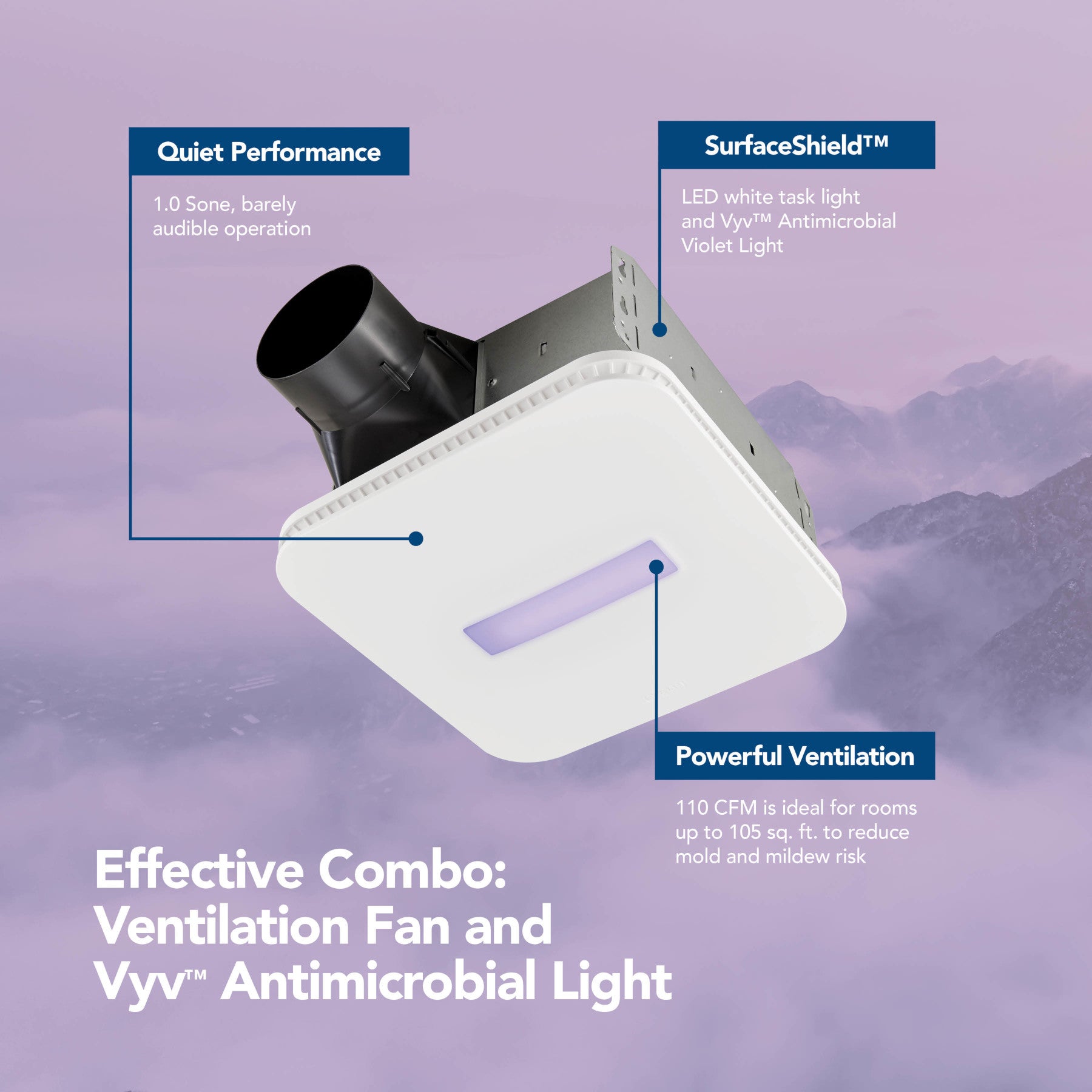

Broan(R) SurfaceShield(TM) Exhaust Fan w/ LED and Vyv(TM) Antimicrobial Virus Killing* Violet Light, 110 CFM

SurfaceShield(TM) technology combined with Broan-NuTone s powerful ventilation Kills* Viruses and offers effective protection against bacteria, mold, and fungi growth in your bathroom or other humidity prone environments. Offering super-quiet sound rating of 1.0 sone, the Broan-NuTone(R) SurfaceShield(TM) 110 CFM Exhaust Bath Fan generates powerful air circulation with minimal background noise. There are two lighting modes in the SurfaceShield(TM) LED light, an everyday white light perfect for task lighting and the SurfaceShield(TM) continuous antimicrobial mode. Broan-NuTone(R) Roomside Series fans offer an EzDuct(TM) connector for hassle-free room-side installation with no attic access needed. With the addition of the EzDuct(TM) connector, other new additions have been added including foldable mounting ears, a new damper and housing technology that improves airtightness like never before. This bath fan includes soft white LED lighting for energy savings and a grille that compliments any decor.



Product Features

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths

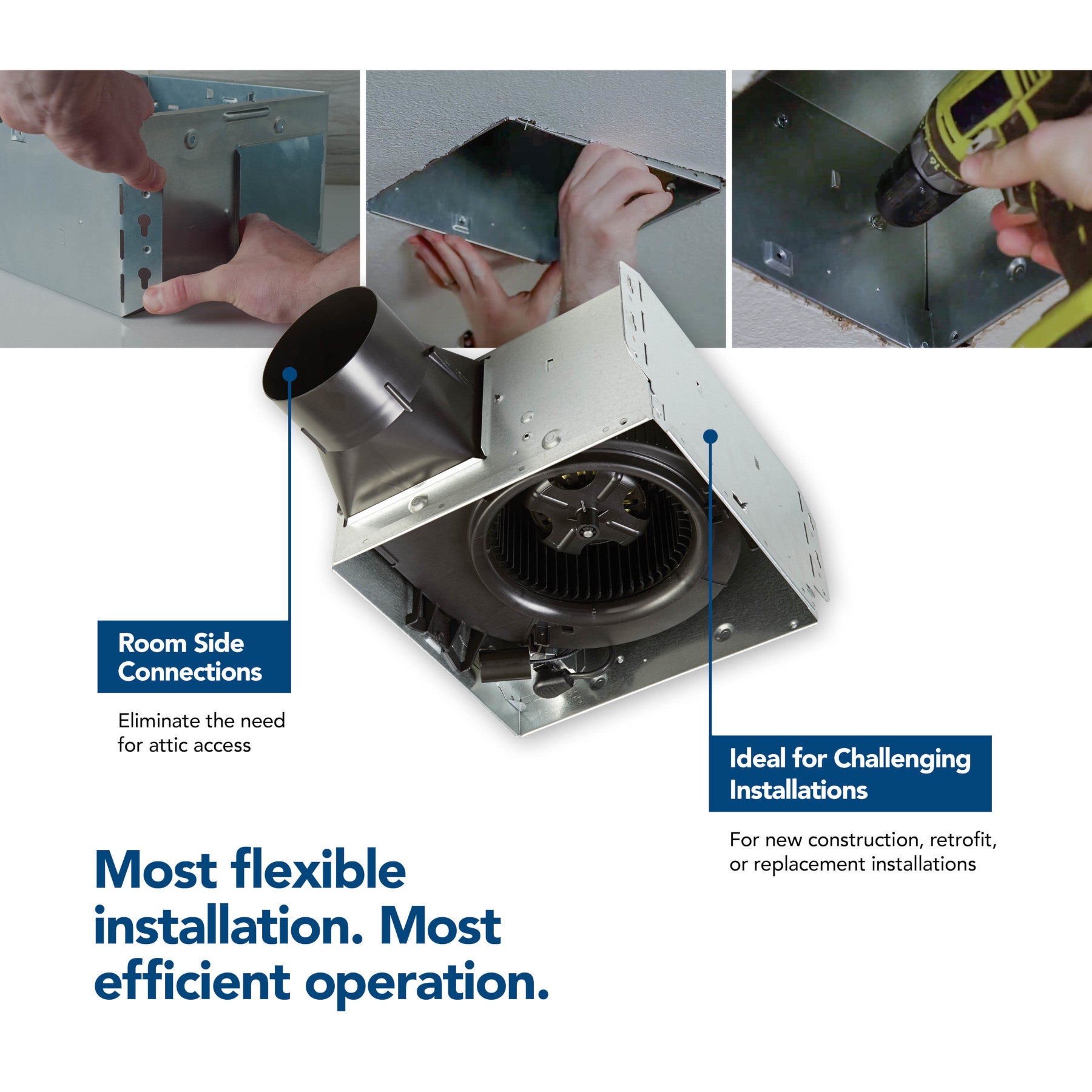

  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
  • SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Comparable to NuTone Model ARN110LKVV
  • * Testing on a non-enveloped virus (MS2 bacteriophage) showed a 99.985% reduction in controlled laboratory testing in 6 hours on hard surfaces. MRSA and E. coli showed 90%+ reduction in controlled laboratory testing in 24 hours on hard surfaces. Results may vary depending on the amount of light that is reaching the surfaces in the space where the product is installed and the length of time of exposure. Use of Vyv antimicrobial light is not intended to replace manual cleaning. More information > https://vyv.tech/virus/
  • SurfaceShield™ technology combined with Broan’s powerful ventilation is an effective one, two punch to kill* viruses and prevent the growth of bacteria, mold, and fungi within your room
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
