SKU: AE80BL | UPC: 026715239573

Broan AE80BL Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light White

Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light
Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light

Quick Specification More details

  • Width:
    12.5"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 0.7 Sones for Quiet performance, enough sound to know your fan is on.
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications

SKU: AE80BL | UPC: 026715239573

Broan AE80BL Flex™ Series 80 CFM 0.7 Sones Ventilation Fan Light White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    12.5"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 0.7 Sones for Quiet performance, enough sound to know your fan is on.
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Broan AE80BL

Technical Details

Product details
CFM 80
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.75
Grille Width 12.5

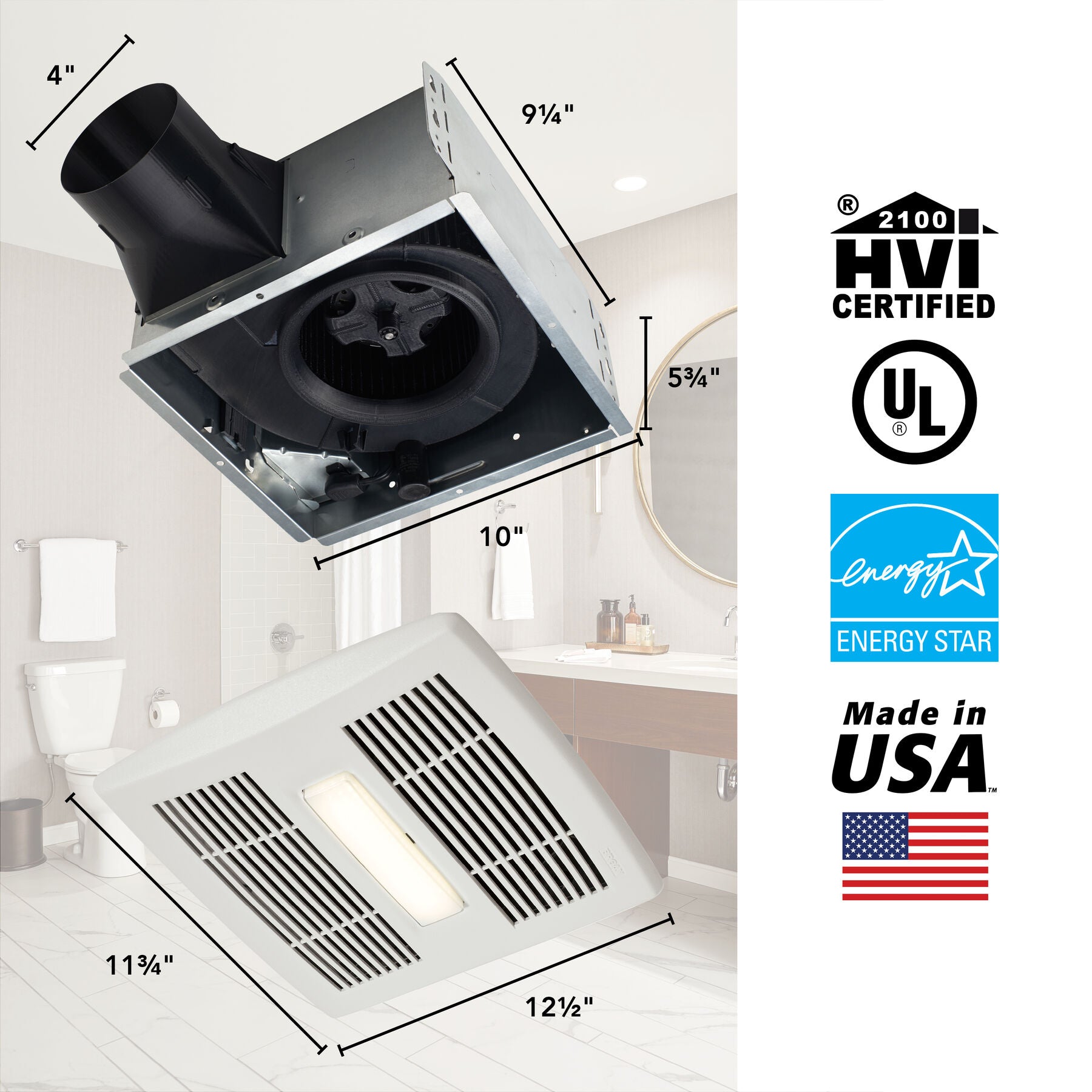

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 0.7
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
Minimum Recommended Flow 0

Dimensions & weight
Width 12.5 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 17.5 in.
Shipping Height 14.25 in.
Shipping Length 10.75 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 0.38 ft³
Dimensional Weight 4.01 lbs.
Total of Cubes 0.38 ft³
Total of Dimensional Weight 4.01 lbs.

Description

Broan® AE80BL Flex Series White 80 CFM Ceiling Exhaust bathroom fan is revolutionary to the fan industry. With a full range of operating points, consumers have the flexibility to install this series in new construction or as a room-side retrofit. Innovations to the product in foldable mounting ears, new damper and housing that improves building airtightness like never before. With a new clean look for the grille, the Flex Series compliments any style decor.


Product Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 0.7 Sones for Quiet performance, enough sound to know your fan is on.
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL Listed for use over tubs and showers with a GFCI circuit

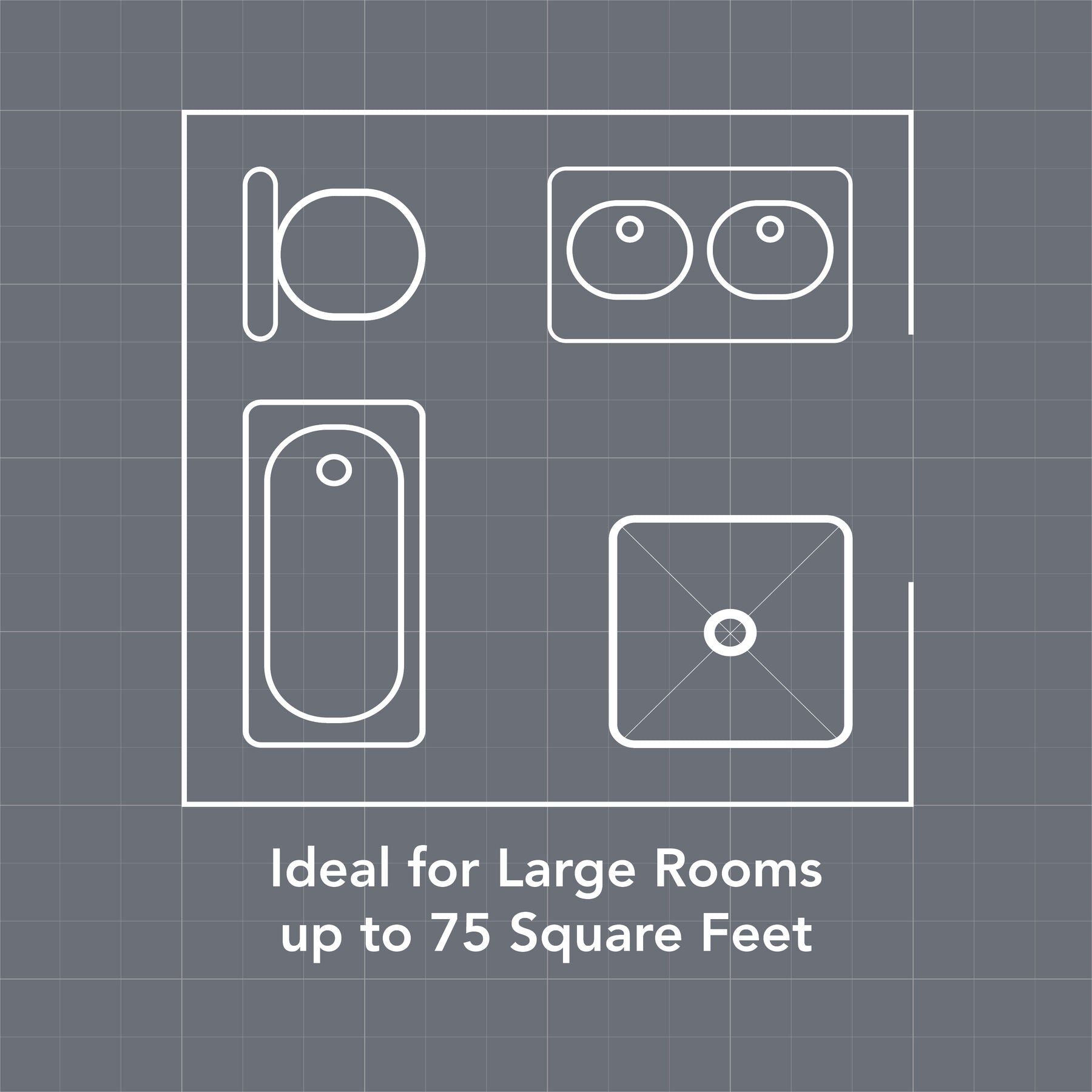

  • Powerful enough for rooms up to 75 sq. ft.
  • Brighter white grilles blend in to match the most common ceiling paint
  • Permanently lubricated AC motor engineered for continuous operation

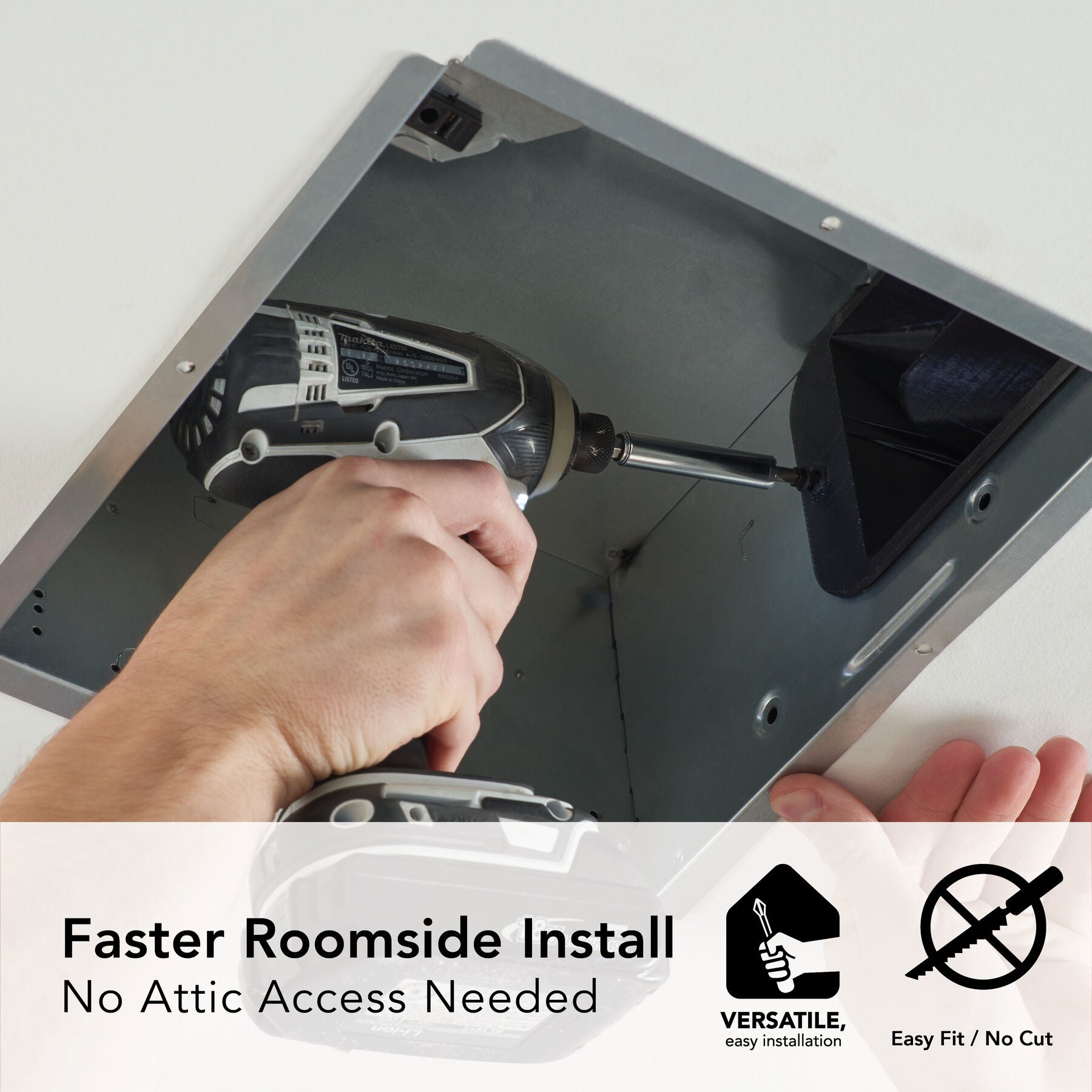

  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • ENERGY STAR® certified product
