Product Details for Broan AE50110DC

Technical Details

Product details

CFM 50-80-110
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.5
Grille Width 12

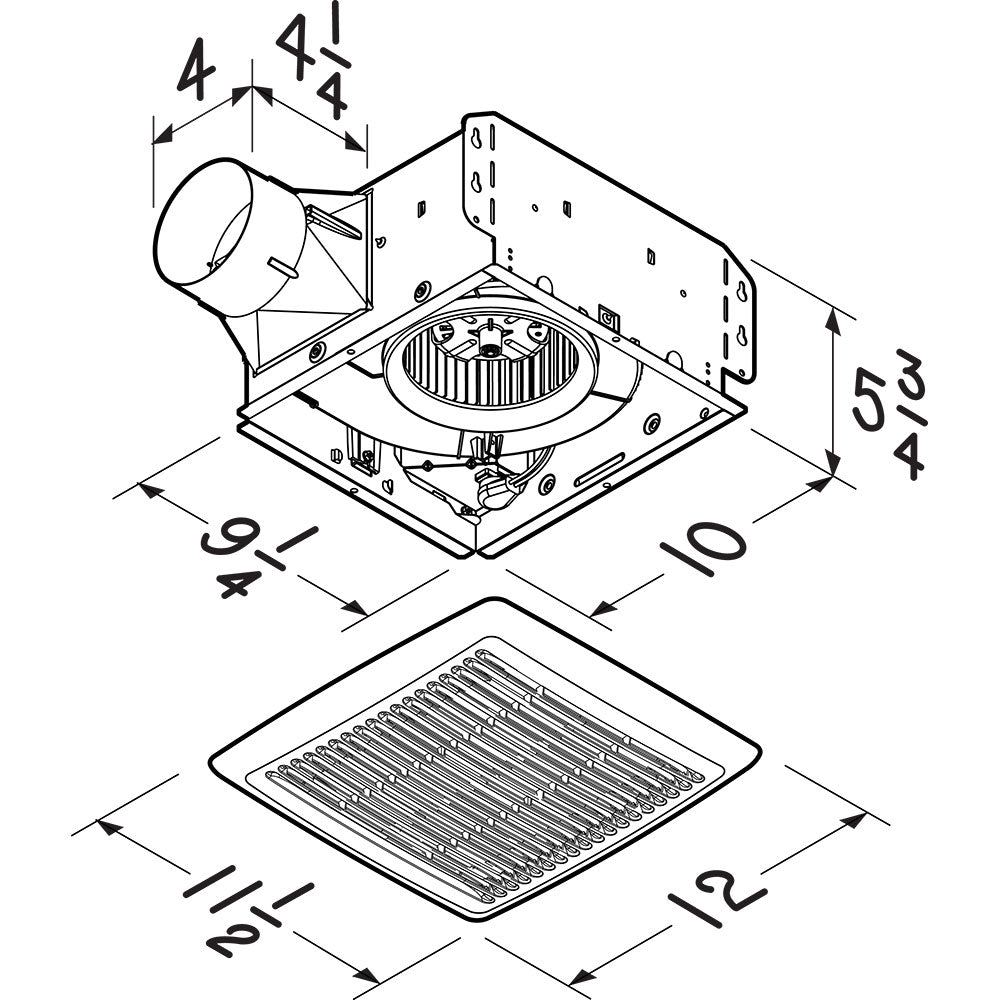

Housing Dimensions 9-1/4" x 10" x 5-3/4"
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 Yes
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Minimum Recommended Flow 0
Sound Level (Sones) <0.3-0.4-1.0

Dimensions & weight

Width 12 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 17 in.
Shipping Height 14.25 in.
Shipping Length 10.75 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.37 ft³
Dimensional Weight 3.84 lbs.
Total of Cubes 0.37 ft³
Total of Dimensional Weight 3.84 lbs.

Description

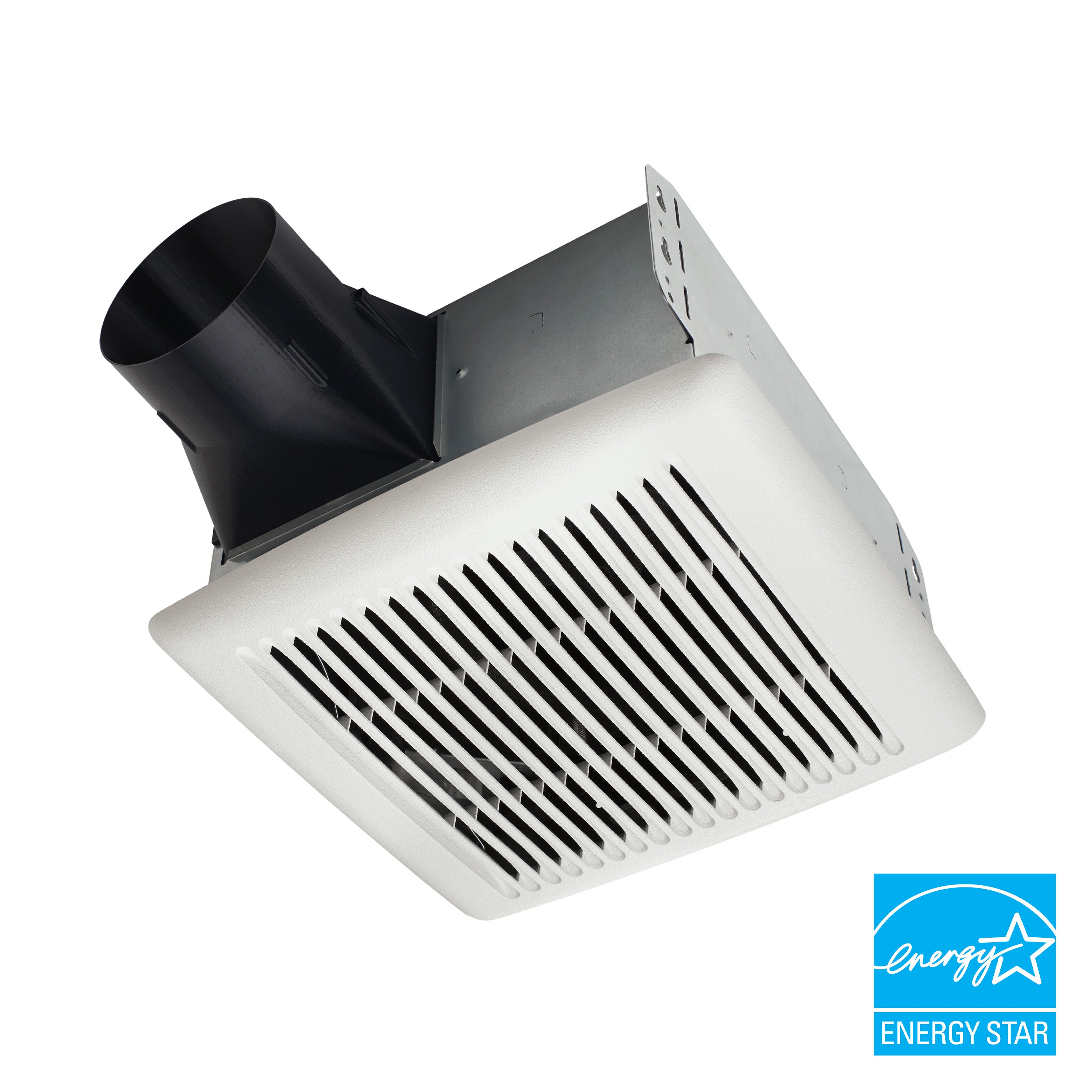

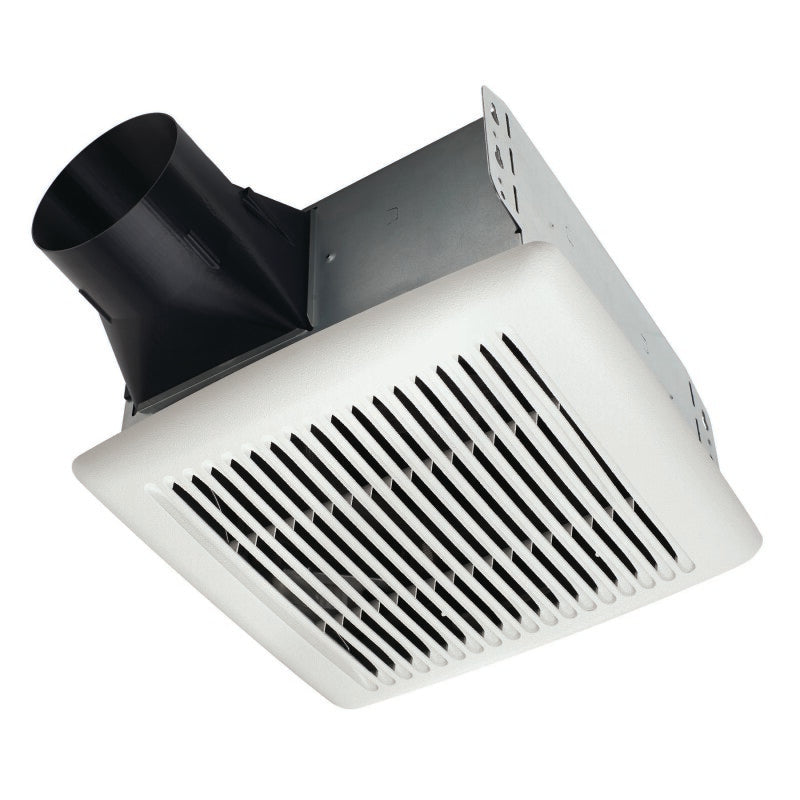

Broan® AE50110DC Flex DC™ Series Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-1.0 sones.


Product Features

  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
  • Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
  • Can be installed in a wall if mounted 8-ft. or more above the floor
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • FlexFlow™ technology, select between 50, 80 or 110 CFM
  • Quiet operation at <0.3-0.4-1.0 sones
  • ENERGY STAR® certified product
