SKU: AE110L | UPC: 026715236664

Broan AE110L Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light White

Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light
Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light

Quick Specification More details

  • Width:
    12.5"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)

SKU: AE110L | UPC: 026715236664

Broan AE110L Flex™ Series 110 CFM 1.0 Sones Ventilation Fan Light White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    12.5"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Broan AE110L

Technical Details

Product details
CFM 110
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.75
Grille Width 12.5

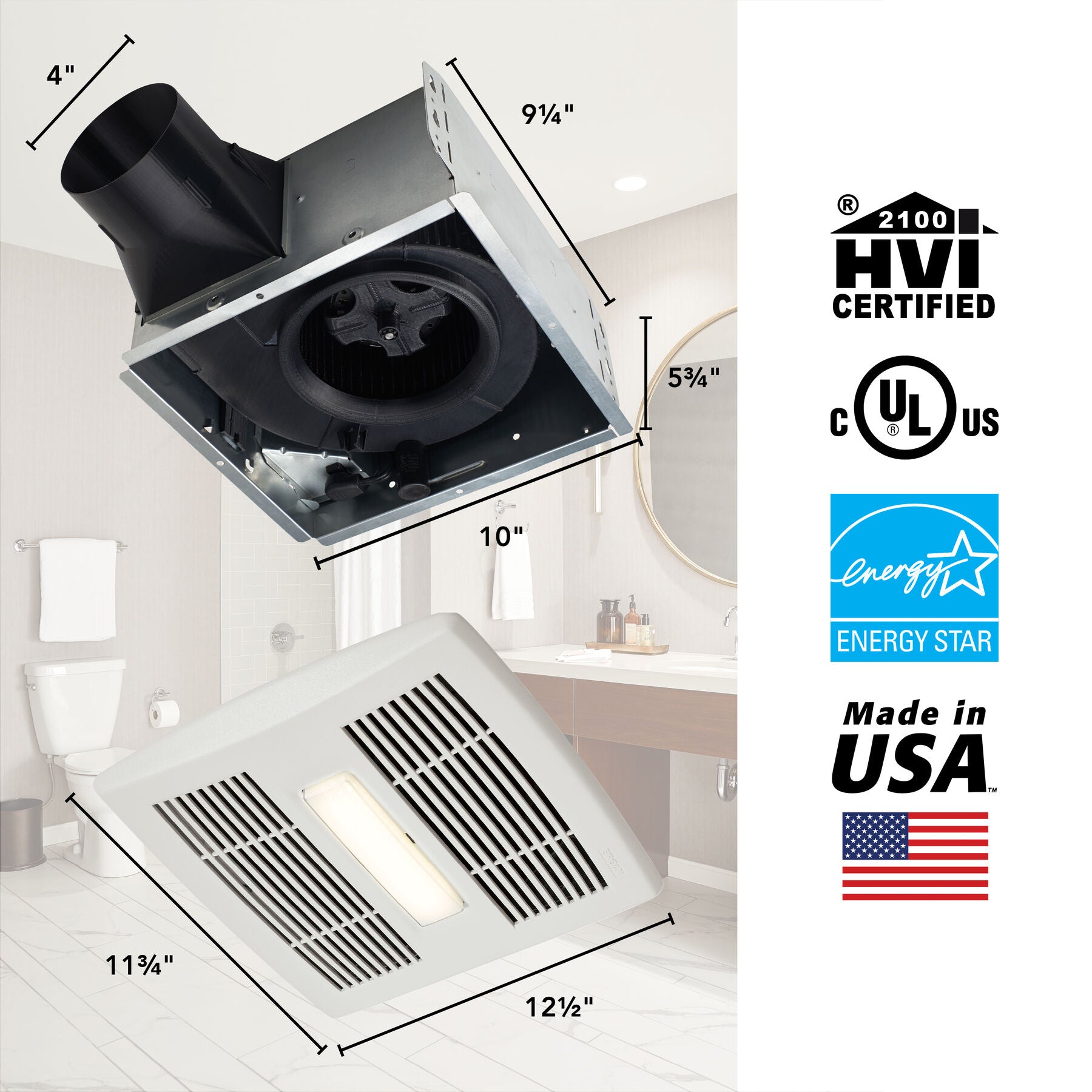

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0

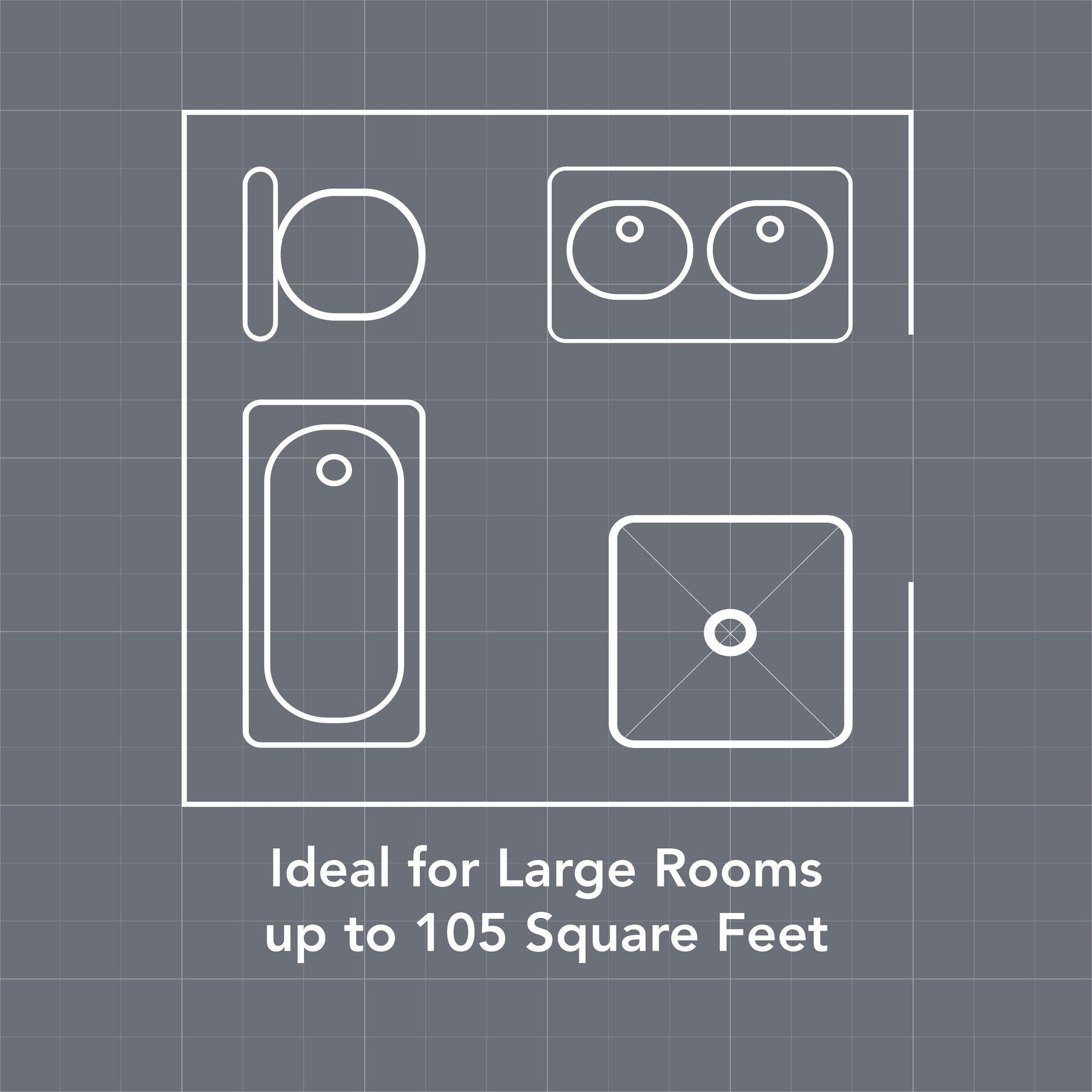

Recommended Room Size (Sq Ft) 105
Rated Amps 0.5
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) Integrated LED Module
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Minimum Recommended Flow 0

Dimensions & weight
Width 12.5 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 0.38 ft³
Dimensional Weight 4.01 lbs.
Total of Cubes 0.38 ft³
Total of Dimensional Weight 4.01 lbs.

Number of boxes, shipping dimensions, & shipping weight
Shipping Width 14 in.
Shipping Depth 13 in.
Shipping Height 11 in.
Shipping Weight 9 lb.

Description

The sleek design of Broan's AE110 Flex Series 110 CFM ceiling exhaust bath fan leaves no area of your bathroom untouched. The unit has no attic access required, which means hassle-free quick installation. In addition, the unit features foldable mounting ears and an EzDuct™ connector for a quick and clean fitting. Better duct damper technology improves warm and cold air backdrafts are less problematic. It moves air at a modest 110 CFM with a lulling noise level of 1.0 sones. In addition, the highly efficient and energy-rated model is sufficient for rooms up to 100 sq. ft.


Product Features

  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • 1.0 Sones for Ultra quiet performance, you might not notice it's on

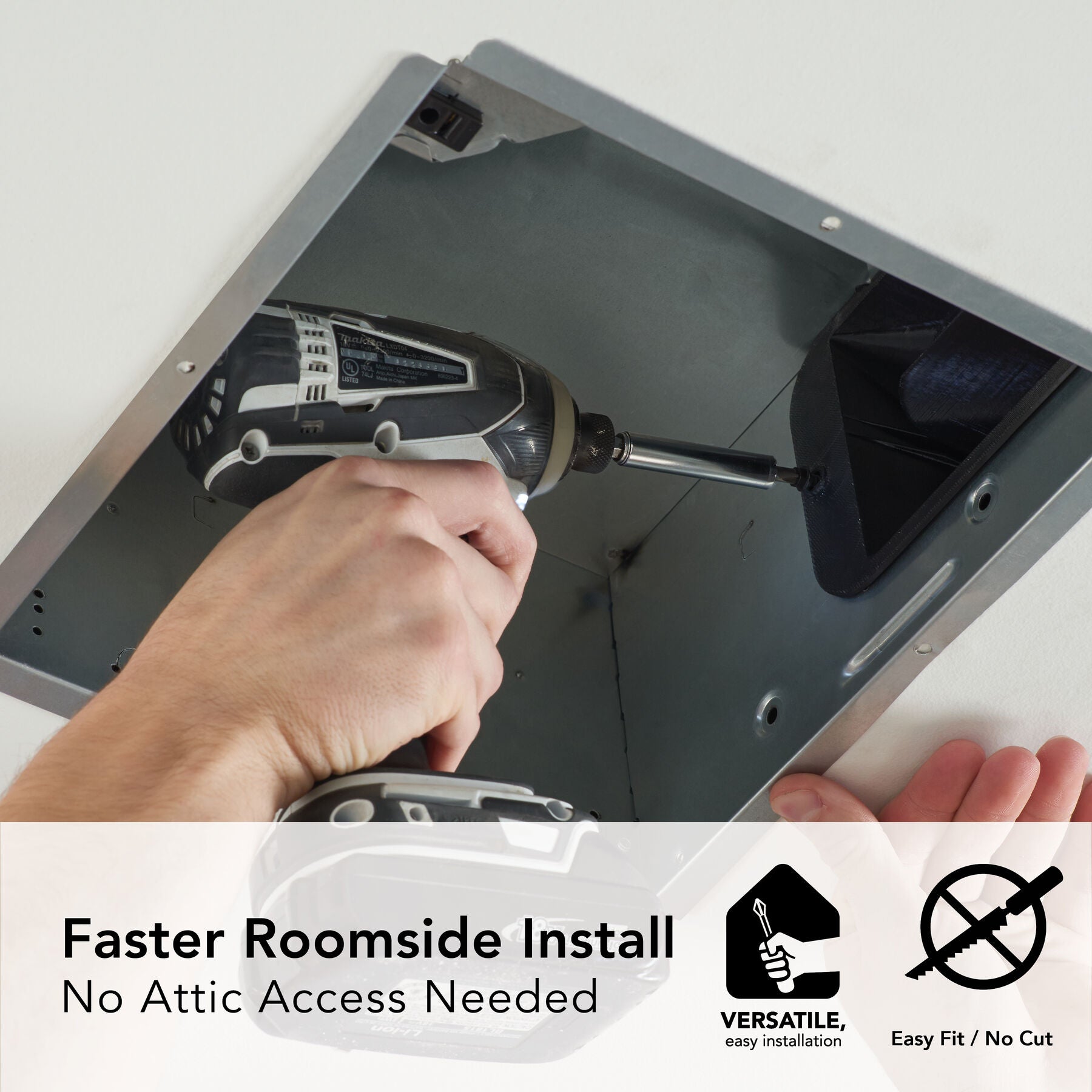

  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • ENERGY STAR® Certified for energy efficient operation
