SKU: 198 | UPC: 026715022670

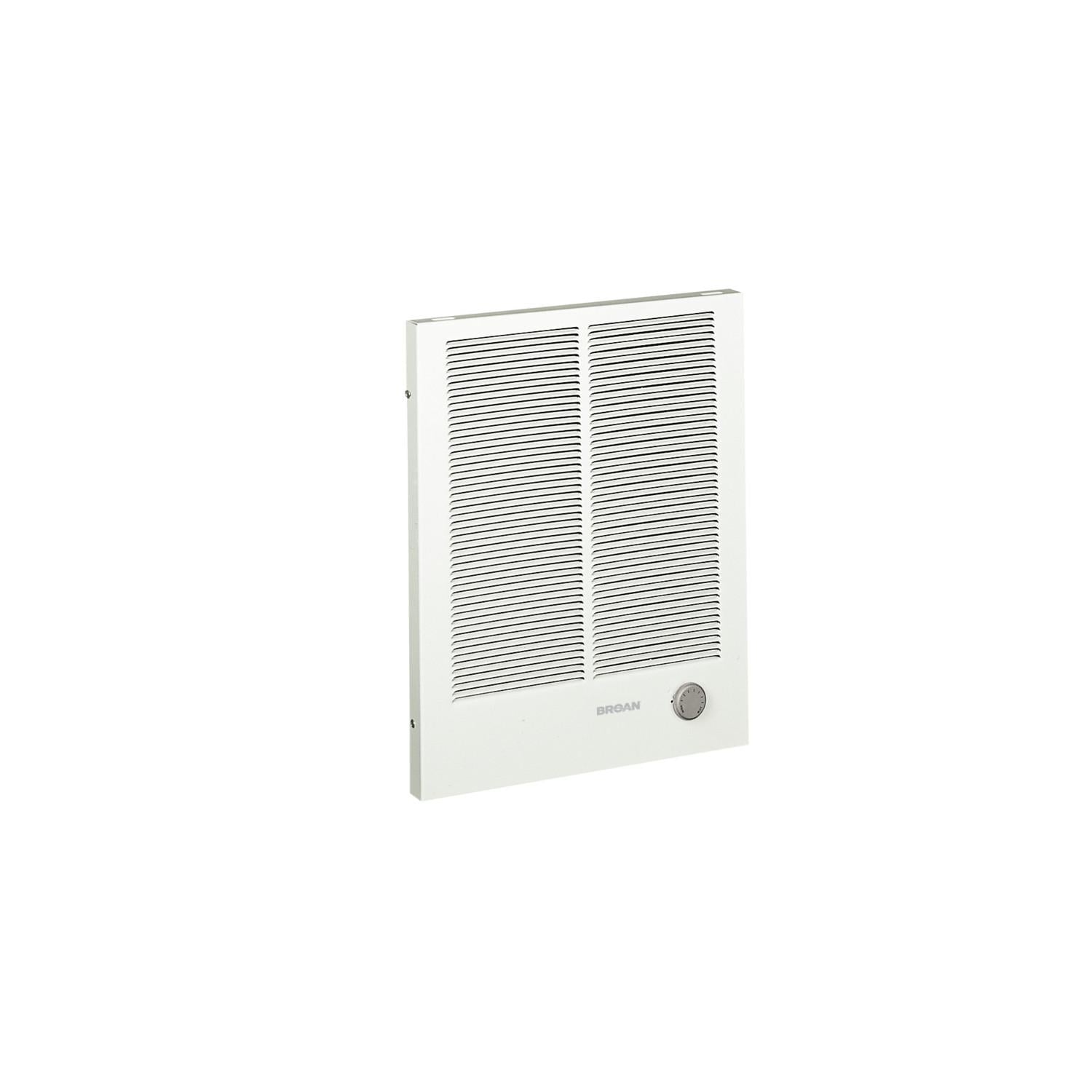

Broan 198 Wall Heater, High Capacity, 2000/4000W 240VAC, 1500/3000W 208VAC White

Quick Specification More details

Width:
16.38"
Depth:
3.75"
Type:
Small Appliances

About this product

Factory wired for 4000-watt at 240-volt AC – easily converts to half-wattage
Efficient heating element provides heat quickly and quietly
Adjustable, built-in heavy-duty disc-type thermostat, can be operated by built-in adjustable thermostat or optional wall-mount thermostat (sold separately)
Manual reset overload protection

SKU: 198 | UPC: 026715022670

Broan 198 Wall Heater, High Capacity, 2000/4000W 240VAC, 1500/3000W 208VAC White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
16.38"
Depth:
3.75"
Type:
Small Appliances

About this product

Factory wired for 4000-watt at 240-volt AC – easily converts to half-wattage
Efficient heating element provides heat quickly and quietly
Adjustable, built-in heavy-duty disc-type thermostat, can be operated by built-in adjustable thermostat or optional wall-mount thermostat (sold separately)
Manual reset overload protection

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Broan 198

Technical Details

Product details

Auto Shut-off	Yes
cUL Listed	No
Heater Type	Fan-Forced Wall
Number Of Heat Settings	Variable (Infinite)
Project Pack	No
Thermostat	Yes
UL Listed	Yes
Coverage Area (sq ft)	265-400
BTU/hr at 120 Volts	0
BTU/hr at 208 Volts	10204
BTU/hr at 240 Volts	13653
Grille Dimensions - Width	16.375
Housing Length/Depth	3.75
Watts And Amps At 208 Volts	14.42
Watts And Amps At 240 Volts	16.67
Watts at 208 VAC	3000
Watts at 240 VAC	4000
Manufacturer Warranty	1 Year

Dimensions & weight

Width	16.38 in.
Length	3.75 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	21.38 in.
Shipping Length	8.75 in.
Source	Calculation

Description

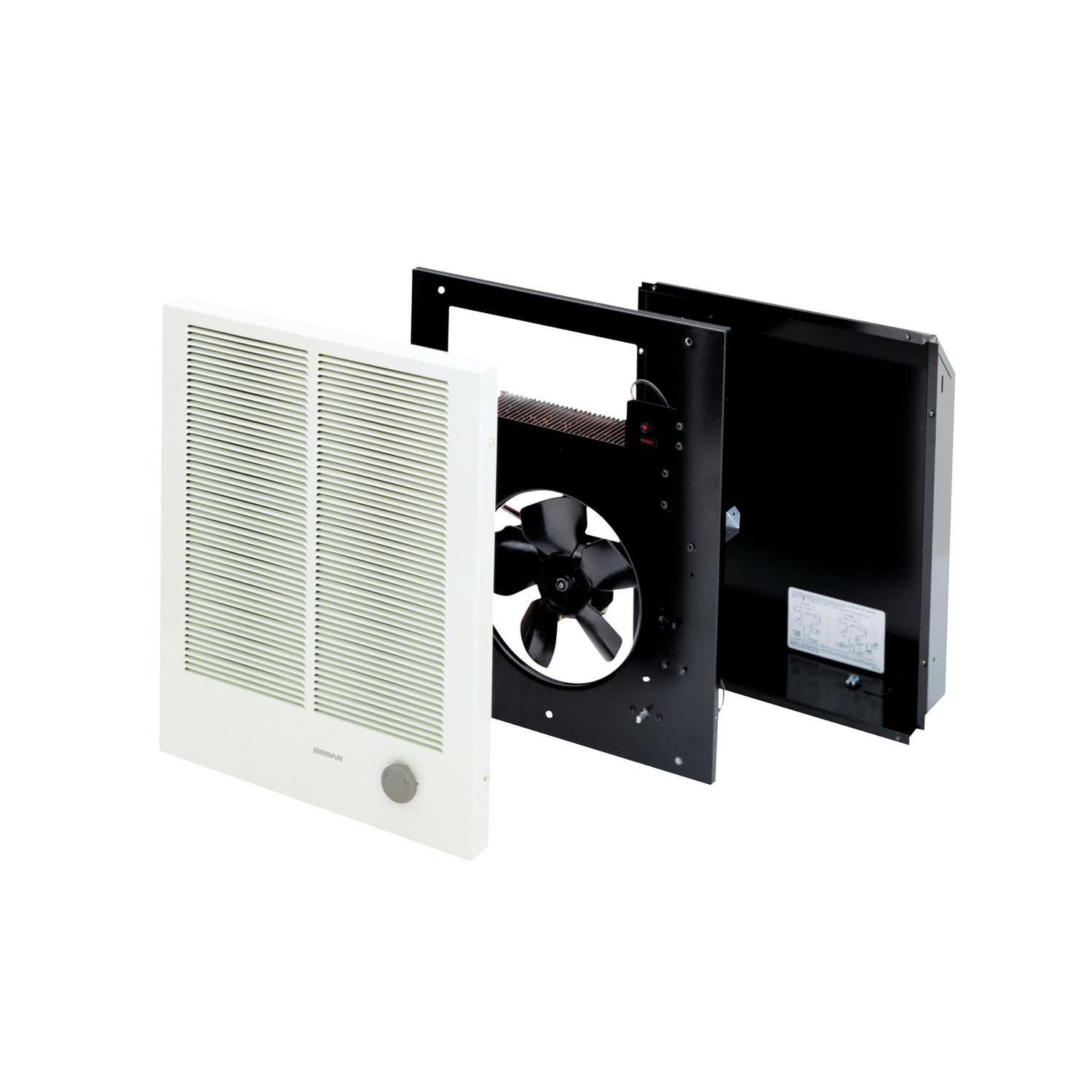

The 16-13/32 in. x 20-19/64 in. 4,000-Watt White High-Capacity Wall Heater is factory wired or 4000 watts at 240-Volt AC, but can be easily converted to half wattage, producing 1,500 watts at 208 VAC, 2,000 watts at 240 VAC or 3,000 watts at 208 VAC for versatile use. This wall heater includes an adjustable, built-in disc-type thermostat for temperature control and a steel-sheathed enclosed heating element for quick and quiet heat production. The fan also remains on as the element cools down to produce the most efficient use of the remaining warmth.

Product Features

Factory wired for 4000-watt at 240-volt AC – easily converts to half-wattage
Efficient heating element provides heat quickly and quietly
Adjustable, built-in heavy-duty disc-type thermostat, can be operated by built-in adjustable thermostat or optional wall-mount thermostat (sold separately)
Manual reset overload protection
Heavy-duty, one-piece steel grille louvers direct air downward for even room heating
Durable white grille keeps its appearance after years of use even in high-traffic areas
Internal fan delay prevents cold air delivery
UL listed for safety
