SKU: 164 | UPC: 026715002603

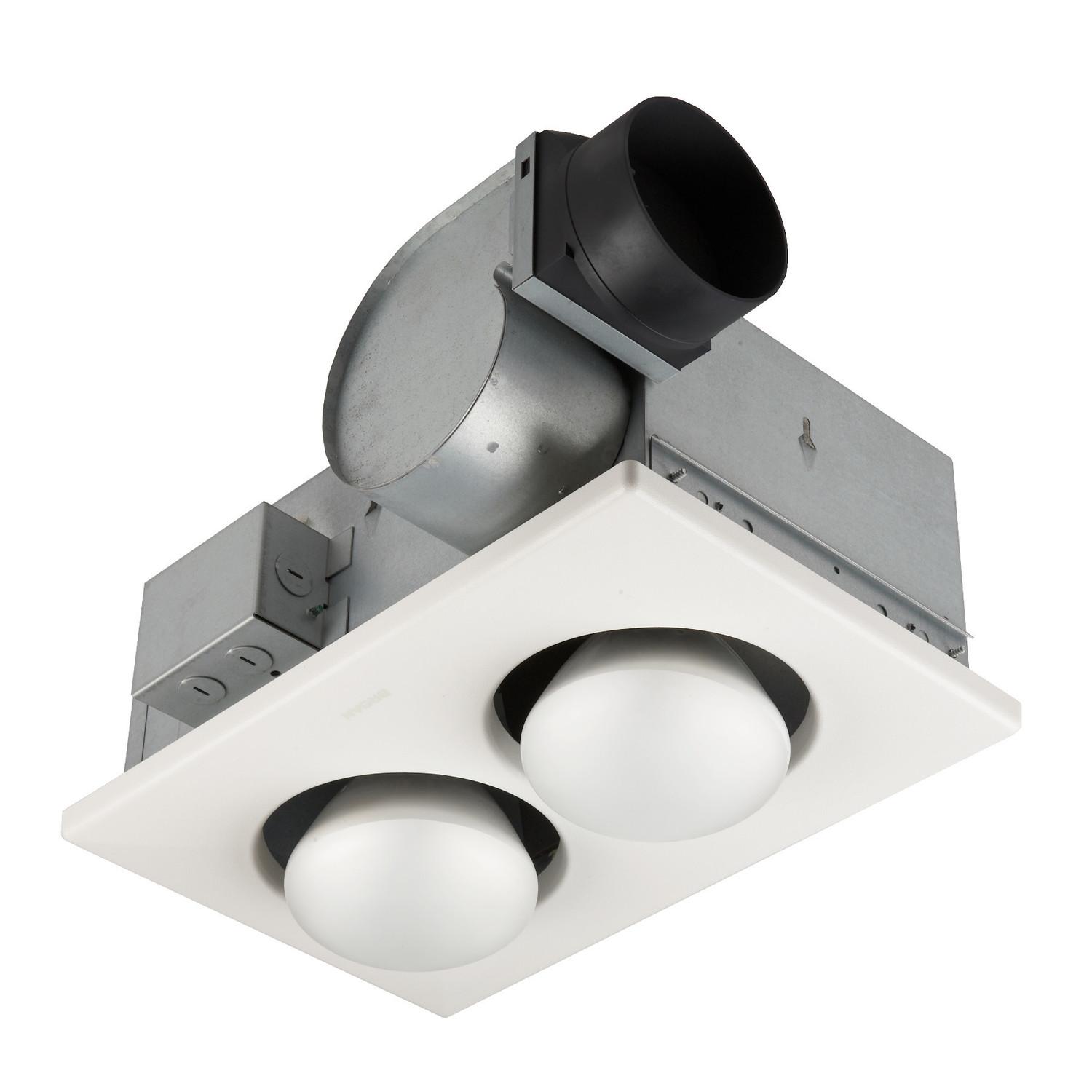

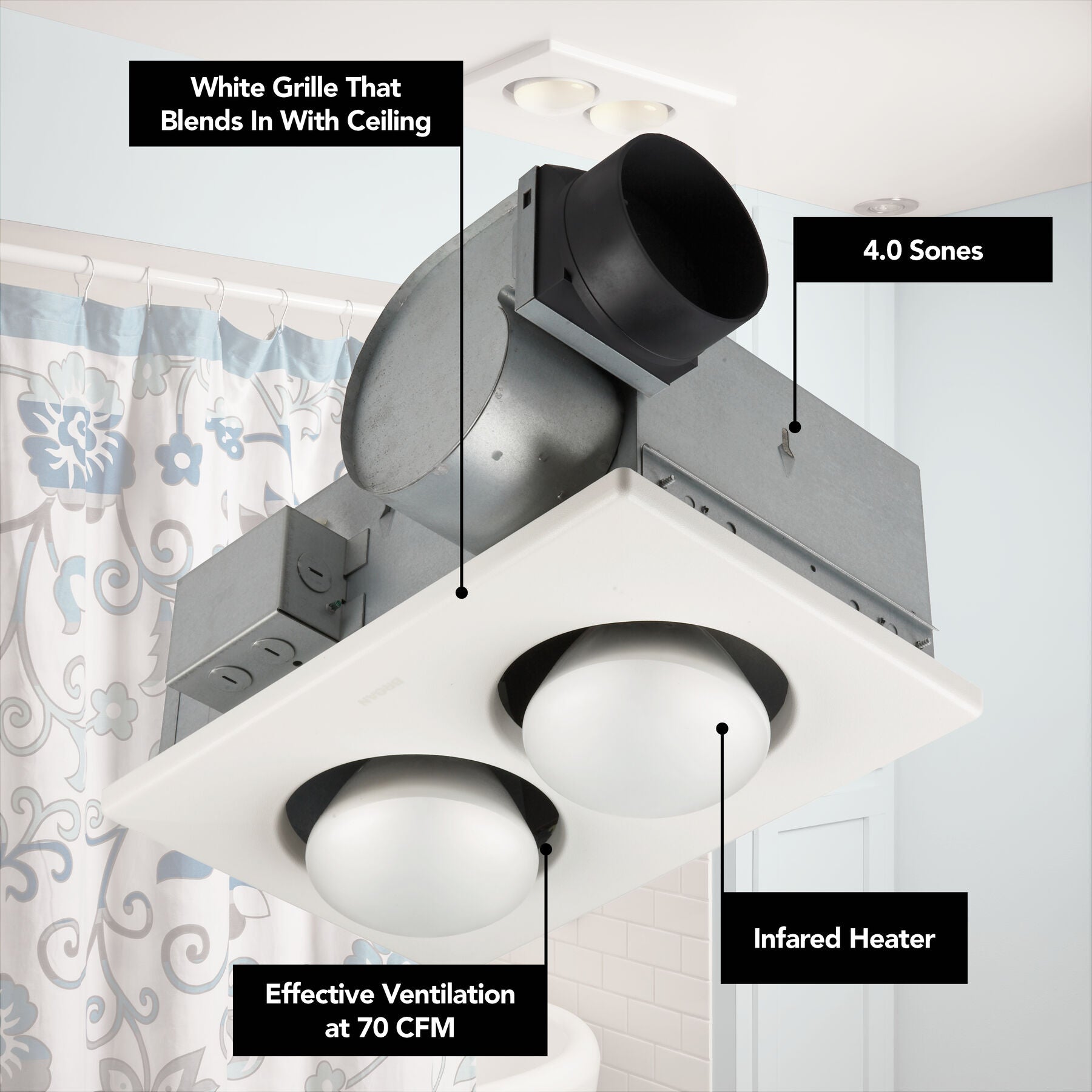

Broan 164 Two-Bulb Heater/Ventilation Fan 70 CFM, (2) 250W BR40 Infrared Bulbs, 4.0 Sones White

Quick Specification More details

Width:
10.25"
Depth:
6.38"
Height:
14.25"
Type:
Other

About this product

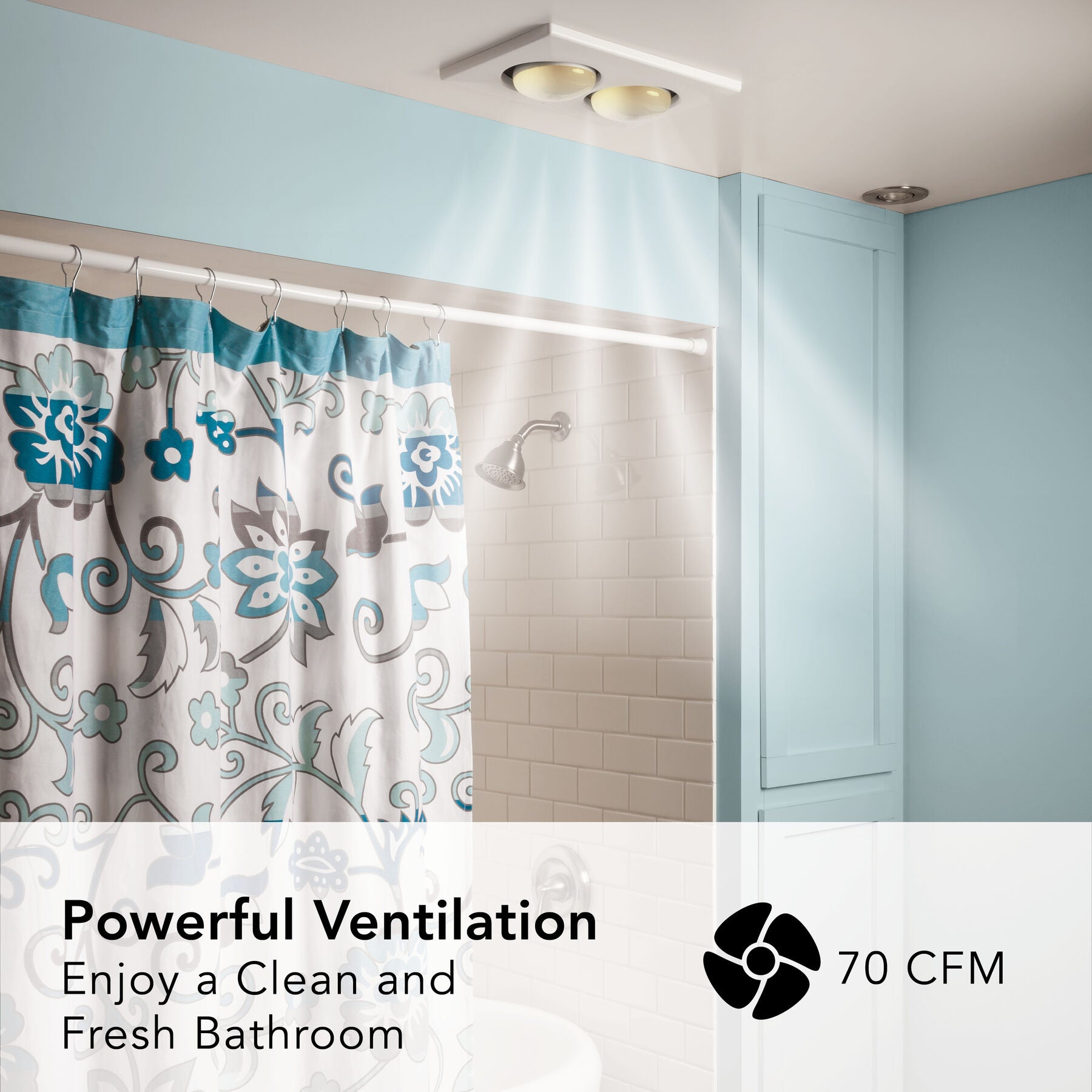

70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 audible sones for privacy while using your bathroom.
Robust steel housing and adjustable mounting brackets for easy install

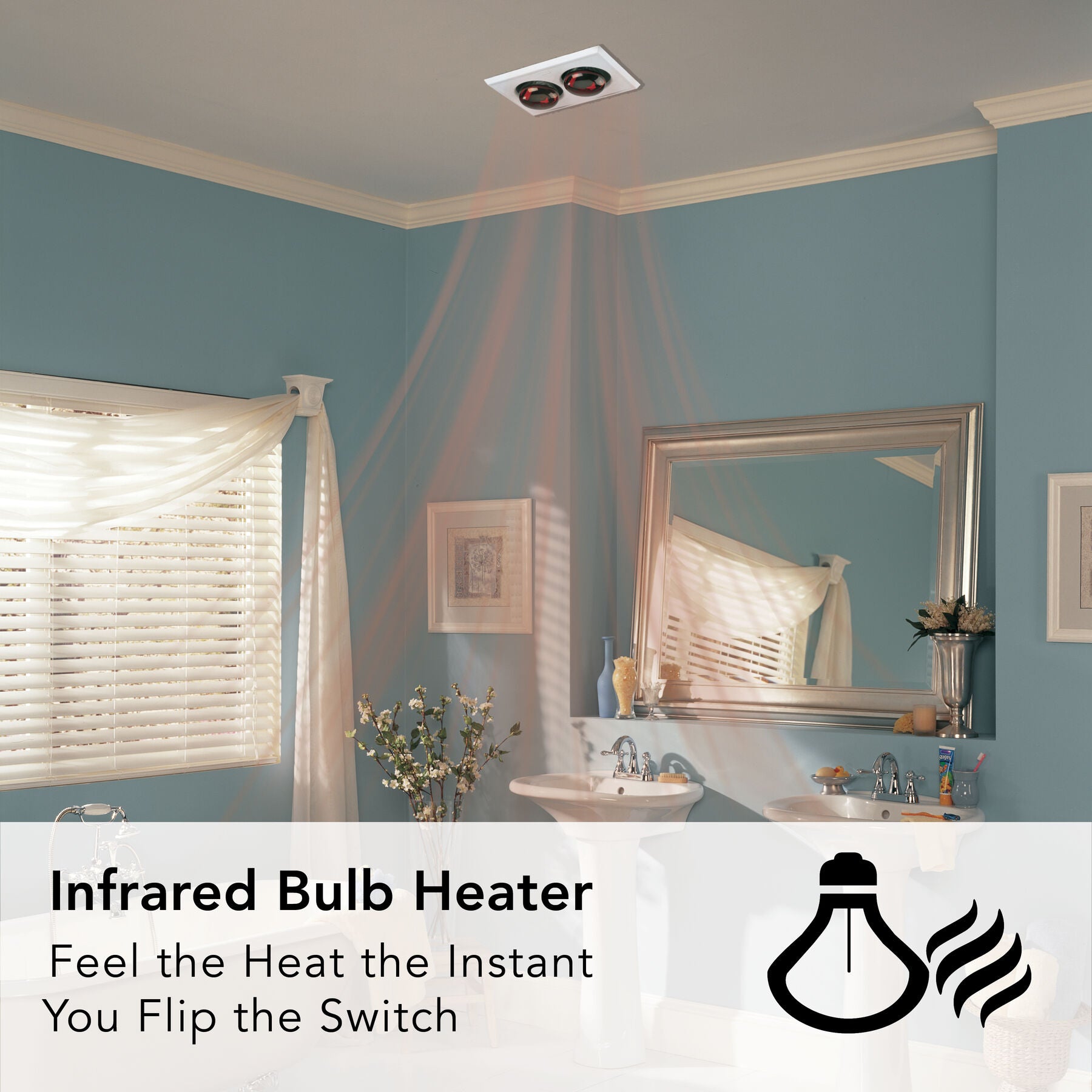

Uses (2) 250W BR40-size infrared bulbs (not included) for maximum heat

SKU: 164 | UPC: 026715002603

Broan 164 Two-Bulb Heater/Ventilation Fan 70 CFM, (2) 250W BR40 Infrared Bulbs, 4.0 Sones White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
10.25"
Depth:
6.38"
Height:
14.25"
Type:
Other

About this product

70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 audible sones for privacy while using your bathroom.
Robust steel housing and adjustable mounting brackets for easy install
Uses (2) 250W BR40-size infrared bulbs (not included) for maximum heat

Product Details for Broan 164

Technical Details

Product details

CFM	70
Duct Size	4
ENERGY STAR® certified	No
Grille Length	15.625
Grille Width	10.25

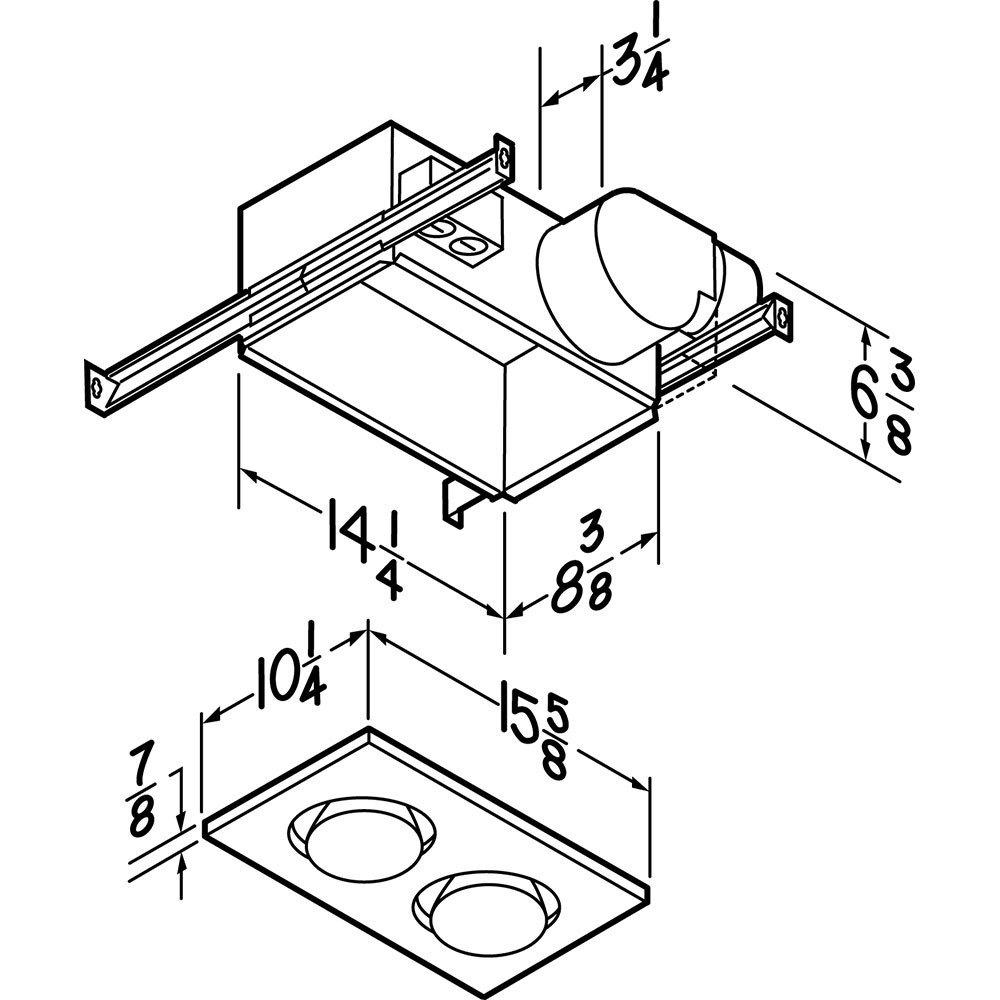

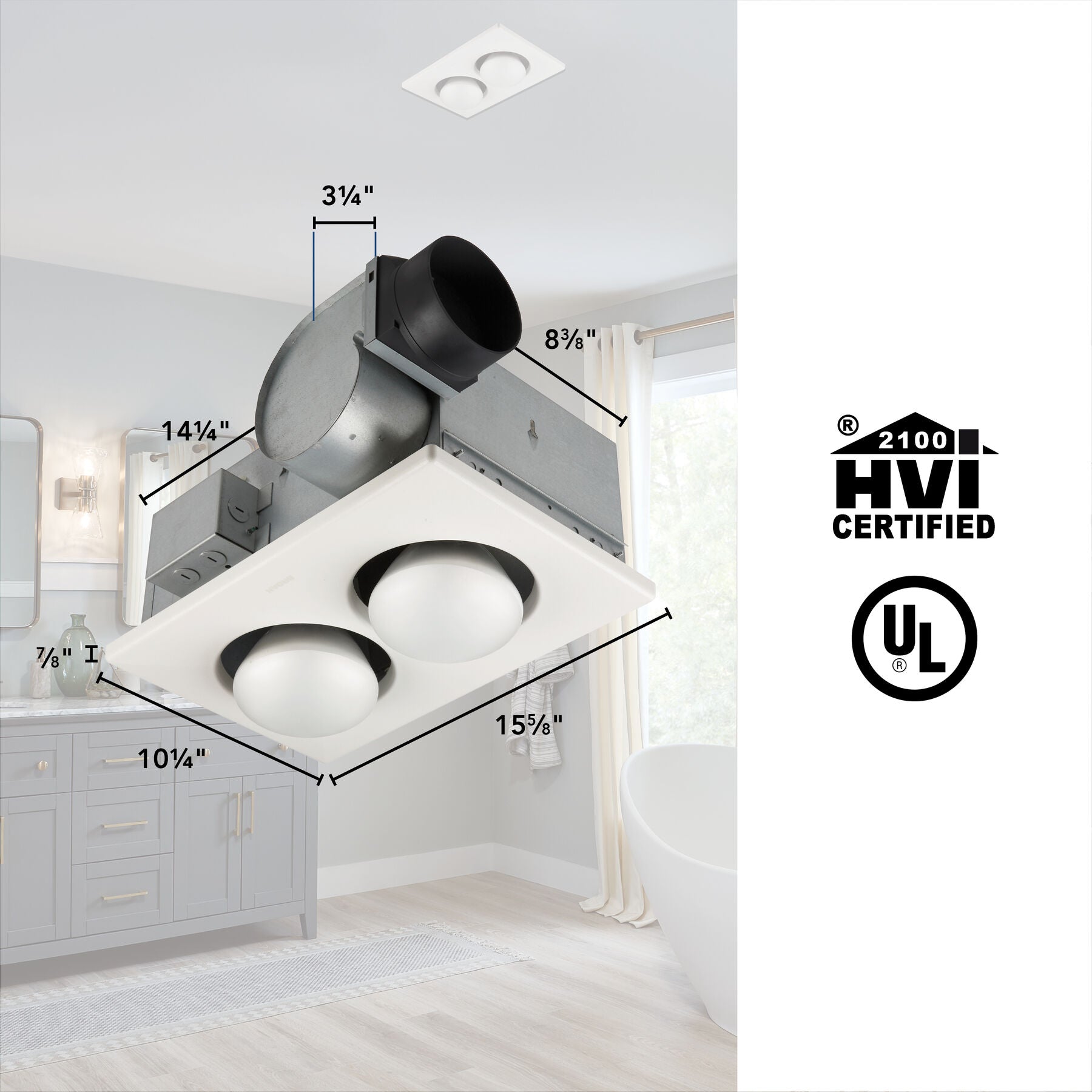

Housing Dimensions	14-1/4" x 8-3/8" x 6-3/8"
Sound Level (Sones)	4
UL Listed	Yes
Grille Finish	White
Humidity Sensing	No
Light Bulb Quantity	2
Motion Sensing	No
Motor Engineered For Continuous Operation	No
Night Light	No
Radiation Damper Available	No
Room Side Installation	No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit	No
Heater Wattage	545

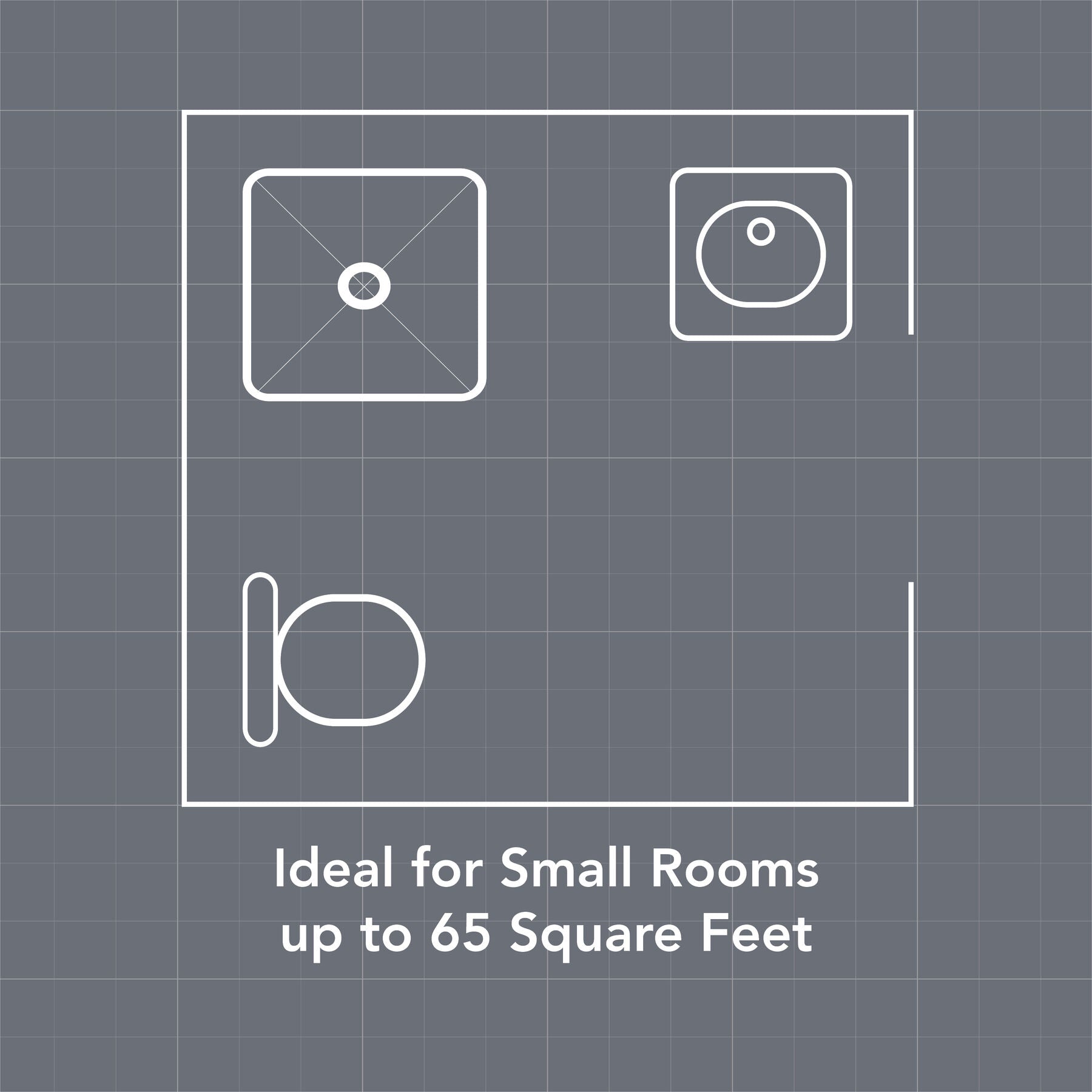

Recommended Room Size (Sq Ft)	65
Rated Amps	4.5
Voltage	120
Can Be Used To Comply With Title 24	No
Bulb (Recommended Type)	BR40
Minimum Construction Space Required	2" x 8"
Manufacturer Warranty	1 Year
High Efficiency Luminaire	No

Dimensions & weight

Width	10.25 in.
Height	14.25 in.
Length	6.38 in.
Housing Dimensions	14-1/4" x 8-3/8" x 6-3/8"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	15.25 in.
Shipping Height	19.25 in.
Shipping Length	11.38 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.54 ft³
Dimensional Weight	5.61 lbs.
Total of Cubes	0.54 ft³
Total of Dimensional Weight	5.61 lbs.

Description

You can count on Broan® Bulb Heaters and Heater/Fans for energy-saving warmth and instant comfort in the bathroom. And you never even have to touch your central thermostat. Quick and efficient, these twin-bulb heaters provide the selective temperature control you need. Each unit delivers the superior performance and quality features you've come to expect from Broan®.

Product Features

70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 audible sones for privacy while using your bathroom.
Robust steel housing and adjustable mounting brackets for easy install
Uses (2) 250W BR40-size infrared bulbs (not included) for maximum heat

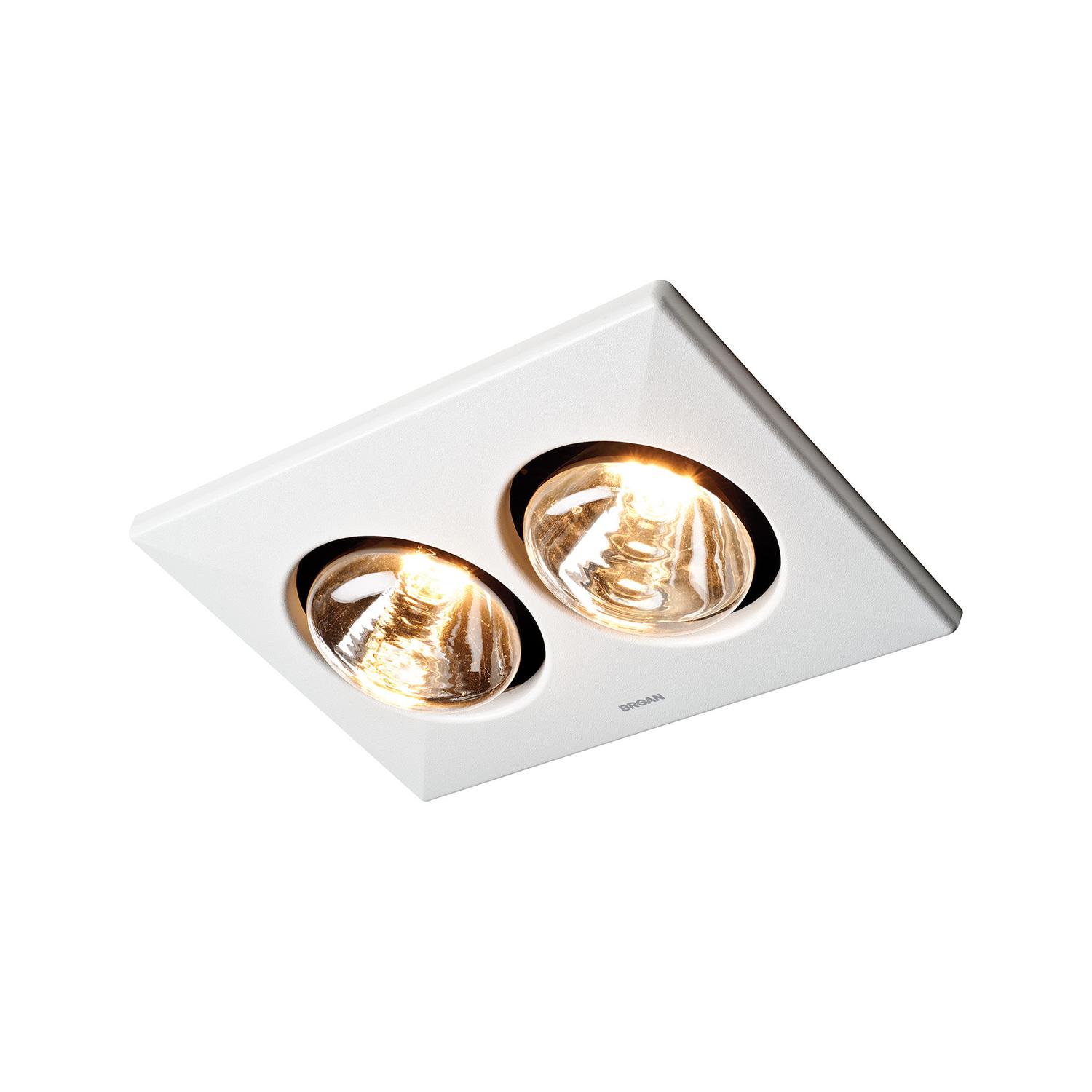

Paintable white grilles blends in with any décor
Suitable for use in insulated ceilings (Type I.C.)
Bulbs may be operated separately or in combination for maximum flexibility
