Product Details for Bertazzoni MAST486GDFMXE
Technical Details
Worktop
| Griddle zones | electric |
| Worktop type | gas |
| Cooking zones | 7 |
| Gas zones | 6 burners |
| Size | 48 in |
| Burner type | aluminum |
| Knobs | solid metal |
| Grates | cast iron |
| Continous grating | yes |
| Thermocouple safety device | yes |
| Backguard | yes |
| One-hand ignition | yes |
| Simmer ring | yes |
| Number of gas zones | 6 burners |
Cooking zones
| Rapid burner | 2500 BTU/h - 10 400 BTU/h (1) |
| Power burners | 1300 BTU/h - 19 000 BTU/h (2) |
| Simmer burner | 750 BTU/h - 3500 BTU/h (1) |
| Griddle power | 1100 W |
| Medium burner | 1500 BTU/h - 5900 BTU/h (2) |
| Griddle drip tray | yes |
| Griddle dual control | yes |
Oven cavity
| Oven configuration | double |
| Oven fuel | electric |
| Oven convection system | dual horizontal fans |
| Main oven type | electric multifunction |
| Main oven broiler type | electric |
| Main oven volume | 4.7 ft³ |
| Main oven functions | bake |
| Auxiliary oven type | electric conventional |
| Auxiliary oven broiler type | electric |
| Auxiliary oven functions | bake |
| Inner oven door | triple |
| Removable inner glass | yes |
| Auxiliary oven volume | 2.4 ft³ |
| Cooling fan | yes |
| Oven levels | 7 |
| Food probe | no |
| Door hinge | soft-motion |
| Wire-shelves | 2 each cavity |
| Tray | 1 enamelled |
| Grill trivet for tray | yes |
| Oven lights | double lateral |
| Door hinges | soft-motion |
Bottom
| Legs | stainless steel |
Technical specifications
| Electrical requirements | 120/240V 60 Hz - 6800W 40 A |
| Electrical supply | 120/240V 60 Hz - 6800W 40 A |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 51.5 Inch |
| Shipping Height | 42.5 Inch |
| Shipping Length | 29.5 Inch |
| Shipping Weight | 375 lbs |
| Total of Shipping Weight | 375 lbs |
| Source | Manufacturer |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 26 ft³ |
| Dimensional Weight | 323.19 Ibs |
| Total of Cubes | 26 ft³ |
| Total of Dimensional Weight | 323.19 Ibs |
Description

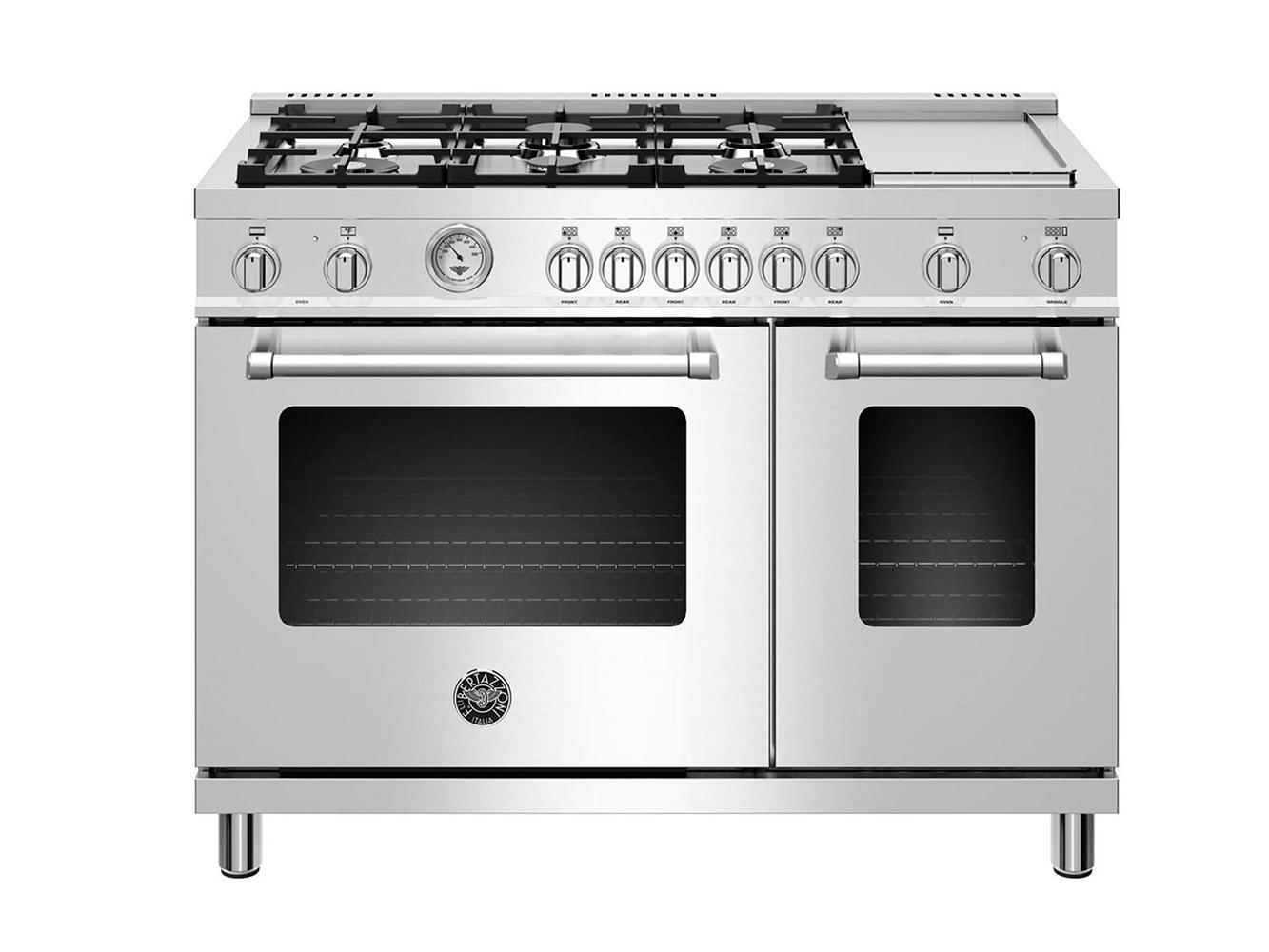

The maintop with 6 burners and electric griddle features 2 dual ring 19,000 BTU power-burners that boil water in under 6 minutes (best in class), and 4 additional MonoBloc burners to suit every style of cooking, with delicate simmer at 750 BTUs. The 4.7 cubic feet oven is the largest in its class, with dual convection fan for balanced airflow and even temperature baking and roasting on 7 shelf levels. The extra wide electric broiler with optional convection is ideal for grilling and searing at high heat. The 2.4 cubic feet auxiliary oven is perfect for smaller dishes and warming. Both ovens include convenient soft-motion doors. The edge-to-edge interior oven glass door maximizes interior volume and can be wiped clean without effort.
Product Features
- Dual ring power burners for sear and simmer
- Category-leading time-to-boil water - under 6 minutes
- Multiple size monobloc burners
- Continous surface cast iron contour grates
- Thermocouple safety device standard on every burner
- Product shown features brass burners, available on select models
- Matt textured color finishes available for maximum visual impact
- Maintop aligns with countertops for integrated kitchen design offering maximum workspace in small kitchens
- Metal knobs and ergonomic handles harmonized with other Bertazzoni appliances
- Soft-close oven door with tempered edge-to-edge triple glass for easiest cleaning
- Dual convection fans for even heat distribution on 7 shelf levels - best-in-class
- Extra-wide high-power electric broiler
- Largest oven volume in its class
- Food temperature probe for accurate roasting and baking
- Self-clean cycle
- Digital gauge and display with controls integrated in the bezel for the food temperature probe
- Coordinated Design As well as being supremely practical, the Bertazzoni Master Series is also exceptionally good-looking. It has a style that’s all its own, with a sophisticated color palette that transforms your kitchen into a work of art. Confidently shaped metal control knobs and commercial style handles define all the appliances in this Series, which are engineered for performance and a confident look. Every appliance in the suite integrates seamlessly to create a kitchen that is bold, practical and elegant. Watch the full video
- Ergonomically-designed handle The Master Series handle has been designed to help you create a bold, coordinated look across every appliance in the kitchen. The ergonomic shape of the bar section radius sits comfortably in the hand, ideally supporting the opening and closing motion of the range door.
- Discover Collezione Metalli for Master Series Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set. Watch the full video
- Colors Finished in deep, rich and elegant Bertazzoni Texture paint colors, the Master Series offers a striking and sophisticated look for your kitchen. Texture paint offers a stunning matt finish in Nero or Bianco. It is tougher and more durable than conventional paint, as well as being heat, oil, stain and scratch resistant. If you prefer to maintain the commercial kitchen-inspired look at home, Master Series appliances are available in Bertazzoni’s high-quality stainless steel finish. Made from sheets of highly polished steel that are brushed to create a visually interesting surface that is beautifully smooth to the touch. Finally, it is finished with an antifingerprint treatment that resists grease and dirt for easy cleaning. Find out more
- Coordinated Design As well as being supremely practical, the Bertazzoni Master Series is also exceptionally good-looking. It has a style that’s all its own, with a sophisticated color palette that transforms your kitchen into a work of art. Confidently shaped metal control knobs and commercial style handles define all the appliances in this Series, which are engineered for performance and a confident look. Every appliance in the suite integrates seamlessly to create a kitchen that is bold, practical and elegant. Watch the full video
- Colors Finished in deep, rich and elegant Bertazzoni Texture paint colors, the Master Series offers a striking and sophisticated look for your kitchen. Texture paint offers a stunning matt finish in Nero or Bianco. It is tougher and more durable than conventional paint, as well as being heat, oil, stain and scratch resistant. If you prefer to maintain the commercial kitchen-inspired look at home, Master Series appliances are available in Bertazzoni’s high-quality stainless steel finish. Made from sheets of highly polished steel that are brushed to create a visually interesting surface that is beautifully smooth to the touch. Finally, it is finished with an antifingerprint treatment that resists grease and dirt for easy cleaning. Find out more
- Ergonomically-designed handle The Master Series handle has been designed to help you create a bold, coordinated look across every appliance in the kitchen. The ergonomic shape of the bar section radius sits comfortably in the hand, ideally supporting the opening and closing motion of the range door.
- Discover Collezione Metalli for Master Series Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set. Watch the full video
