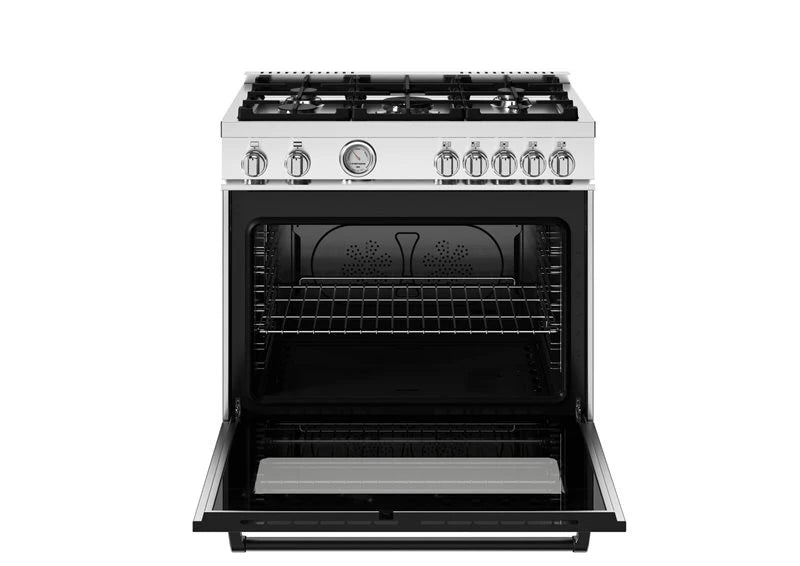

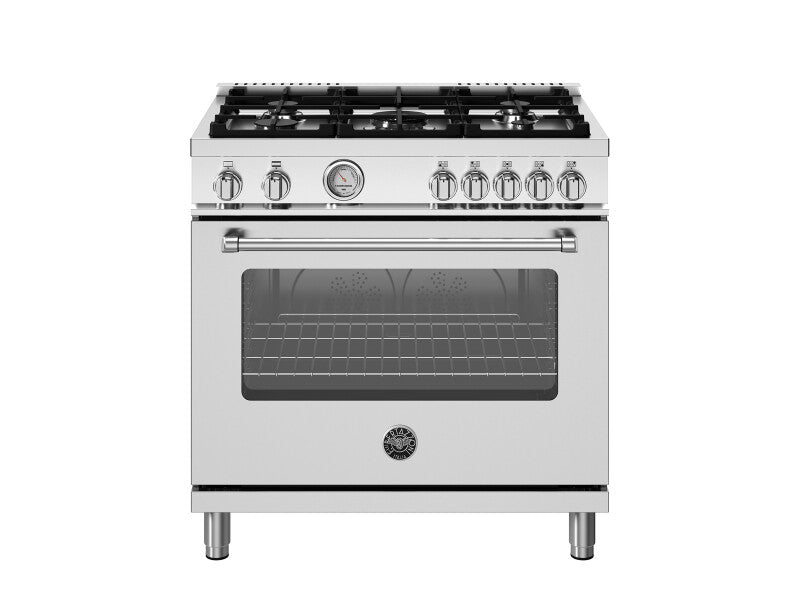

Product Details for BERTAZZONI MAS365GASXV
Technical Details
Worktop
| Cooking zones | 5 |
| Worktop type | gas |
| Worktop design | stainless steel with seamless edges |

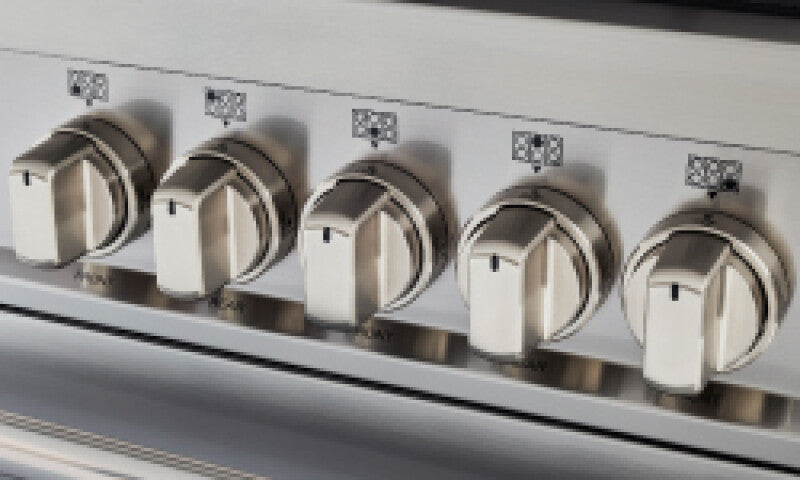

| Worktop controls | metal knobs |
| Knobs | metal |
| Burner type | aluminum |
| Grates | cast iron |
| Continous grating | yes |
| Thermocouple safety device | yes |
| One-hand ignition | yes |
| Backguard | yes |
| Wok ring | yes |
| Simmer ring | yes |
| Size | 36 in |
| Number of gas burners | 5 burners |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 39.5 Inch |
| Shipping Height | 42.5 Inch |
| Shipping Length | 29.5 Inch |
| Shipping Weight | 242 lbs |
| Total of Shipping Weight | 242 lbs |
| Source | Manufacturer |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 19.5 ft³ |
| Dimensional Weight | 242.39 Ibs |
| Total of Cubes | 19.5 ft³ |
| Total of Dimensional Weight | 242.39 Ibs |
Cooking zones
| Rapid burner | 2500 BTU - 1040 0BTU |
| Medium burner | 2 x 1500 BTU - 5900 BTU |
| Simmer burner | 750 BTU - 3500 BTU |
| Power burners | 1300 BTU - 19000 BTU |
Oven cavity
| Oven configuration | single |
| Oven fuel | gas |
| Oven convection system | dual horizontal fans |
| Oven type | gas convention |
| Oven broiler type | gas |

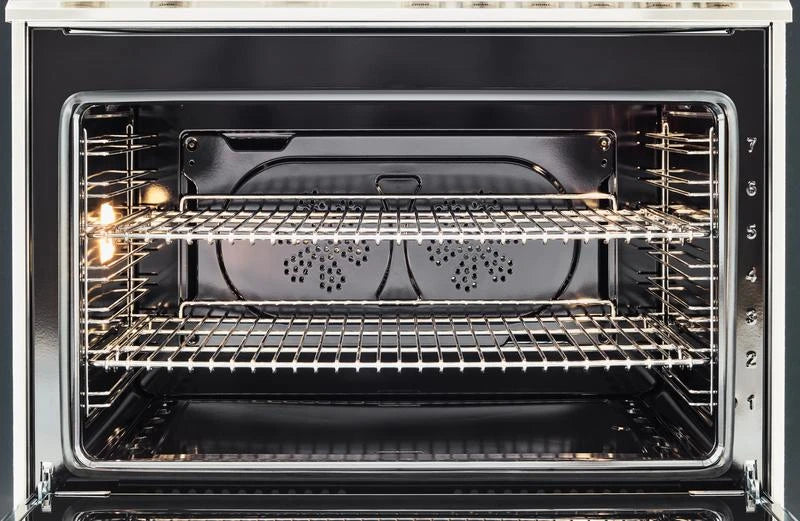

| Oven levels | 7 |
| Oven controls | knobs |
| Inner oven door | triple glass |
| Removable inner glass | yes |
| Cooling fan | yes |
| Door hinges | soft-motion |
| Grill trivet for tray | yes |
| Oven lights | double side mounted |
| Oven volume | 5.9 ft³ |

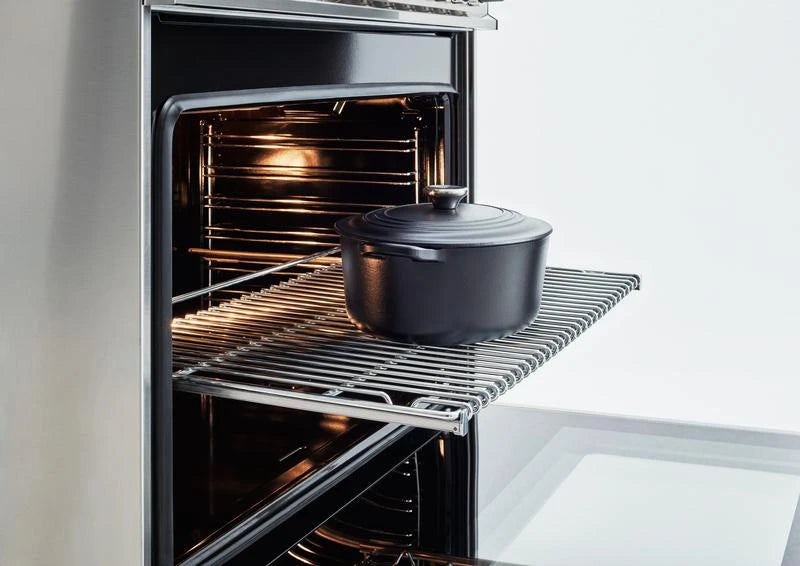

| Wire-shelves | 2 full size |
| Tray | 1 baking tray with grill trivet |
| Cooking modes | bake broil convection bake |
Technical specifications
| Absorbed current (A) | 2.5 A with dedicated circuit |
| Electrical supply | 110V 60 Hz - 300W |
Features
- Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
- Counter Depth Worktop and Range
- 19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
- Best in Class Burners
- Stainless steel worktop is formed from one piece to to allow easy cleaning with no gaps, joints, or screws
- Thermocouple Gas Safety System
- European Convection Oven
- Category Leading Range Oven Cavity

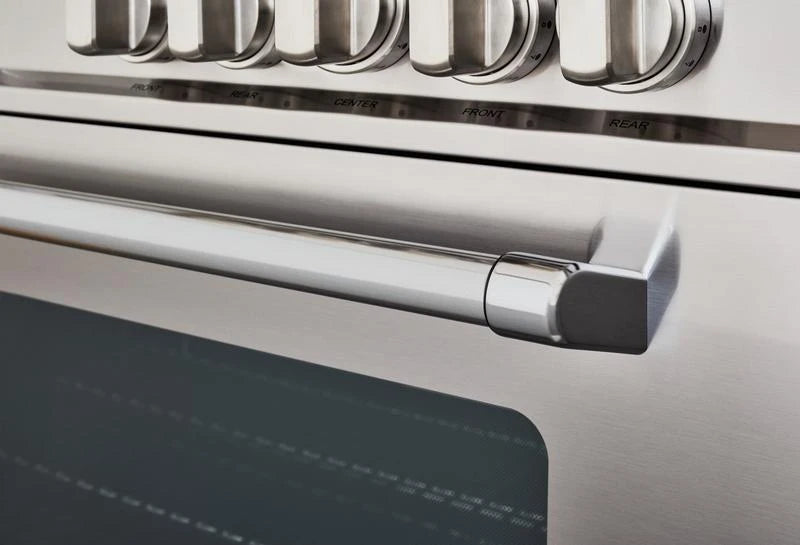

- Oven door with edge-to-edge tempered glass and soft-motion hinges
- Performance and versatility

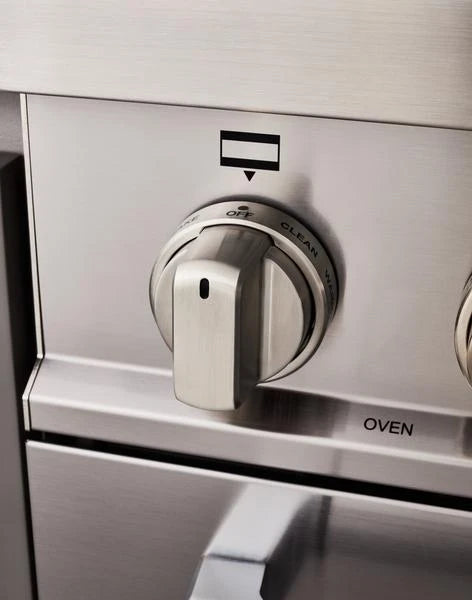

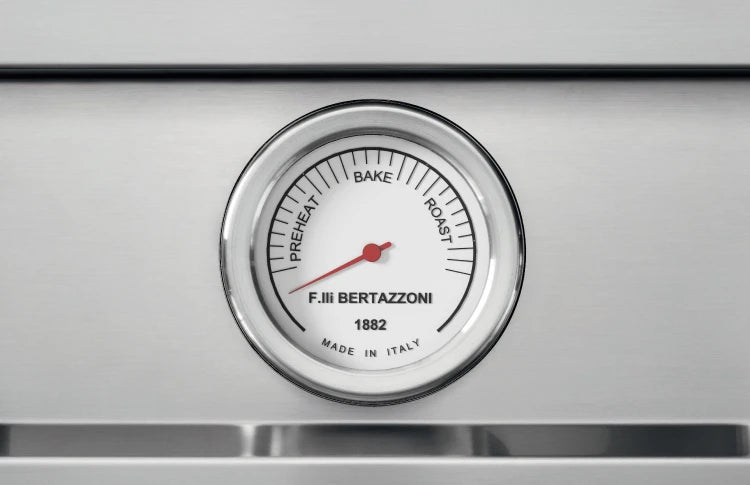

- Elegant temperature gauge for control of oven temperature during pre-heating and baking
- Discover Collezione Metalli for Master Series
- 1" stainlesss steel backguard for sleek design and integration into any kitchen.
Description
The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.
Manuals & Guides
- MAS365GASXV - MAS365GASXV specifications sheet - 4.29 MB
- MAS365GASXV - MAS365GASNEV specifications sheet - 4.06 MB
- MAS365GASXV - MAS365GASBIV specifications sheet - 4.06 MB
- MAS365GASXV - MAS365GASXVLP specifications sheet - 4.31 MB
- MAS365GASXV - Installation, User and Maintenance Manual EN - 13.13 MB
- MAS365GASXV - Installation, User and Maintenance Manual FR - 13.28 MB
- MAS365GASXV - Quick Reference Guide - 1.01 MB
- MAS365GASXV - Installation drawings - 1.66 MB
Key Features
Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
Counter Depth Worktop and Range
19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
Best in Class Burners
Stainless steel worktop is formed from one piece to to allow easy cleaning with no gaps, joints, or screws
