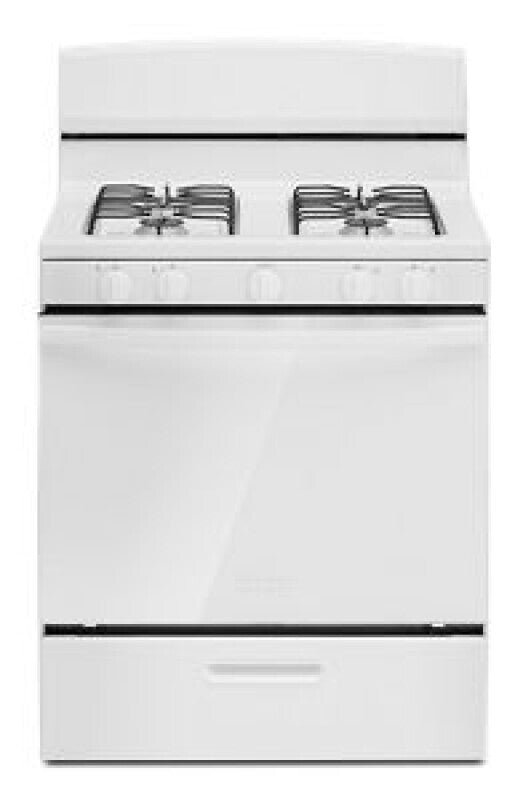

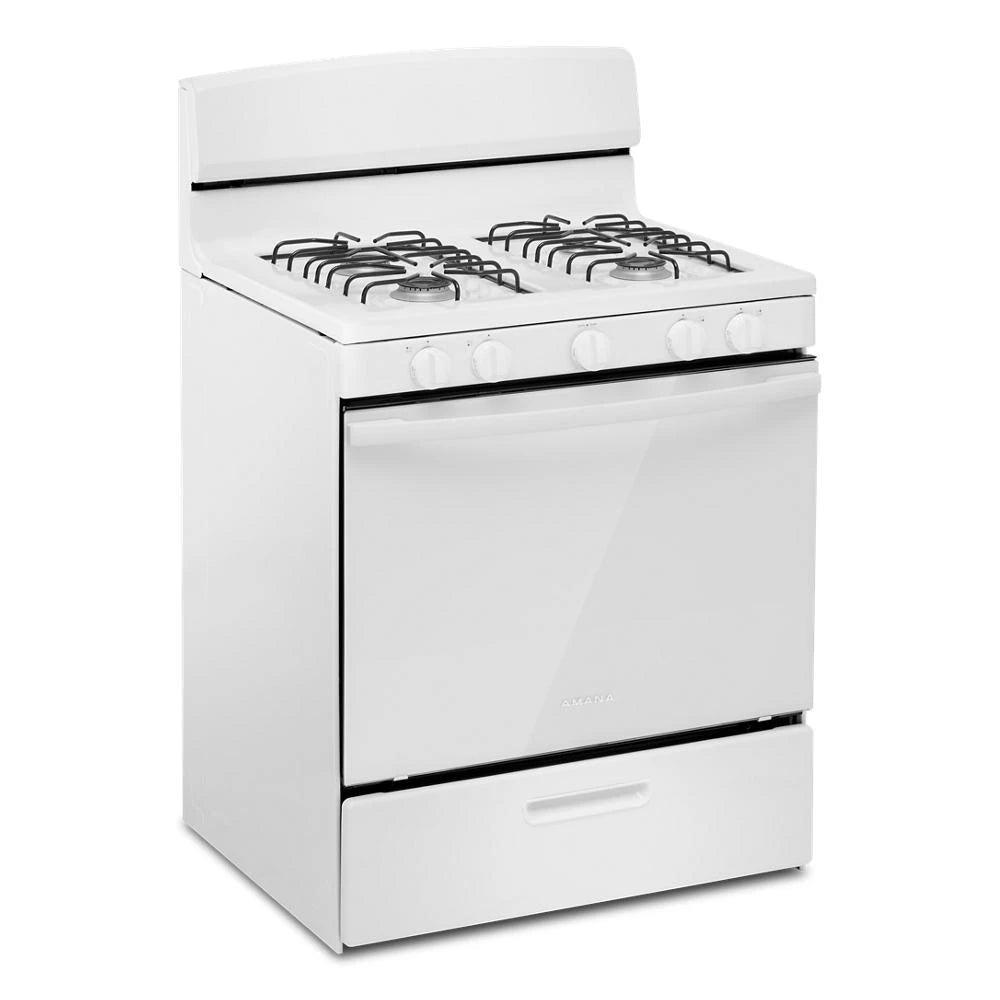

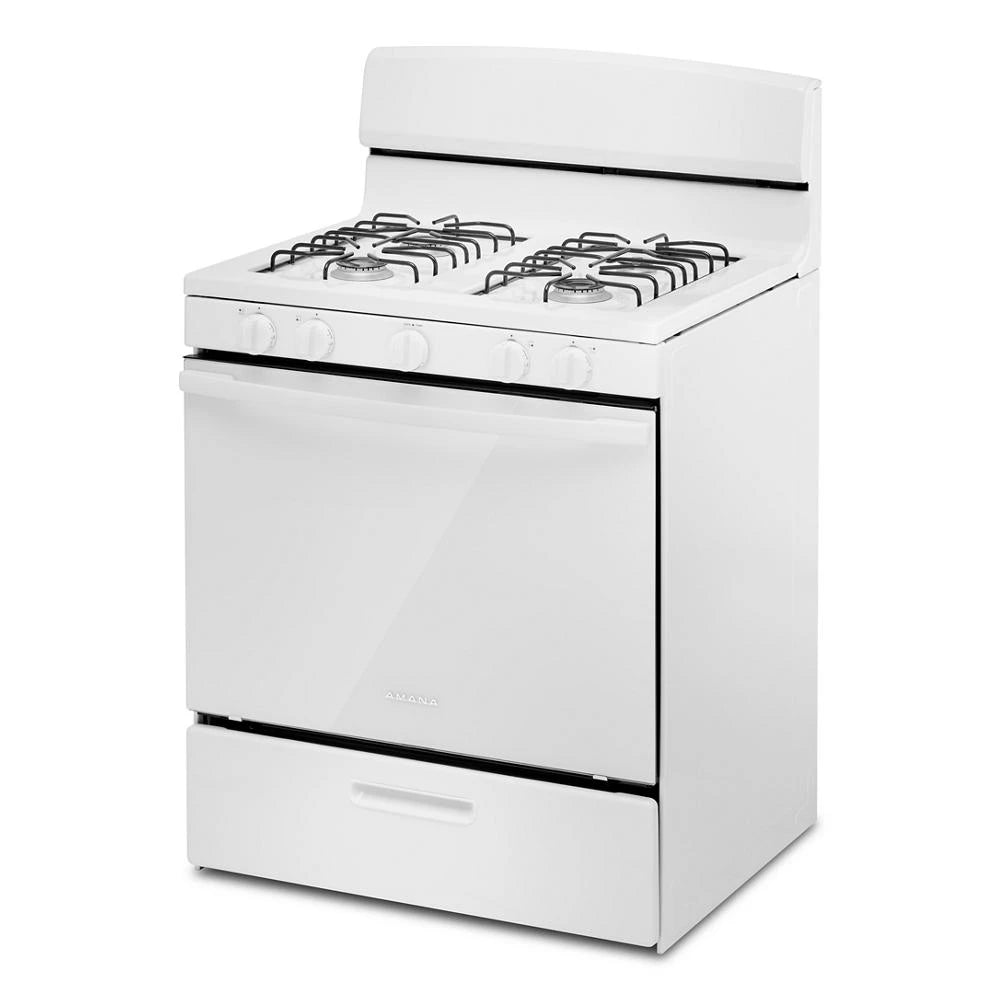

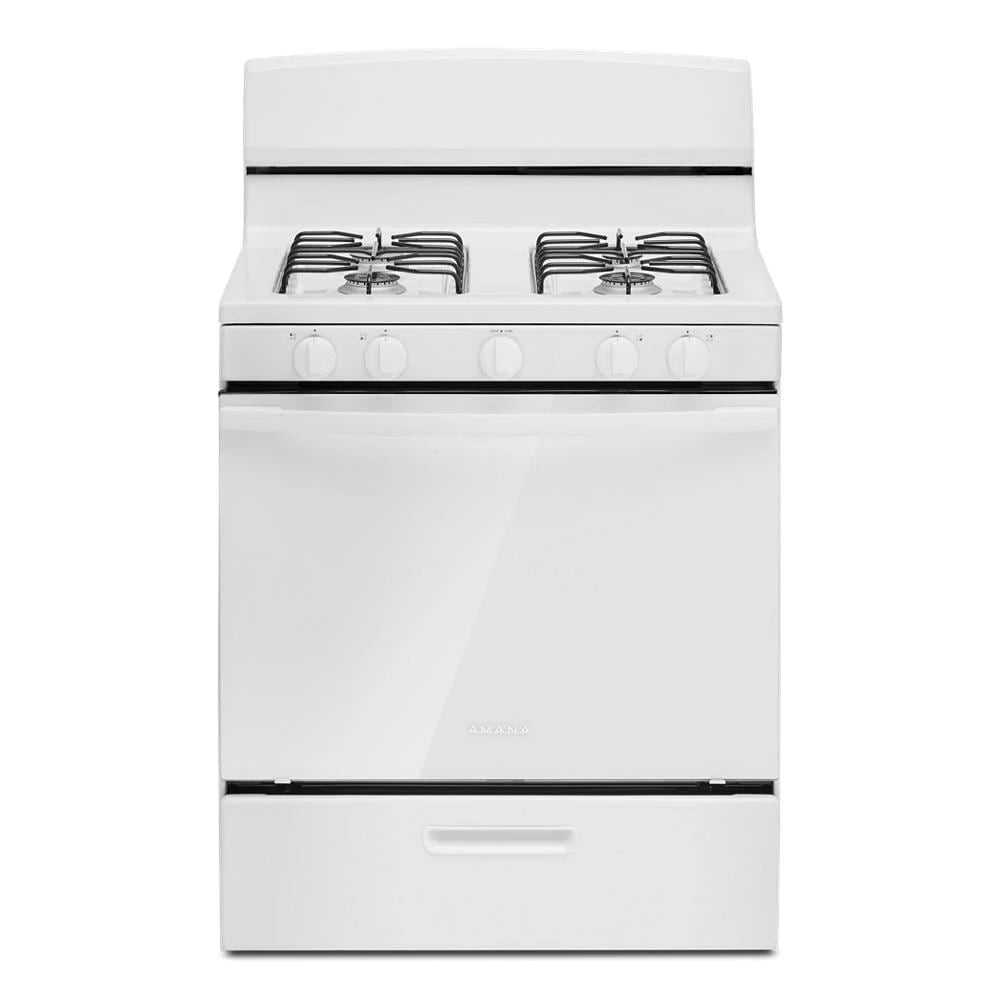

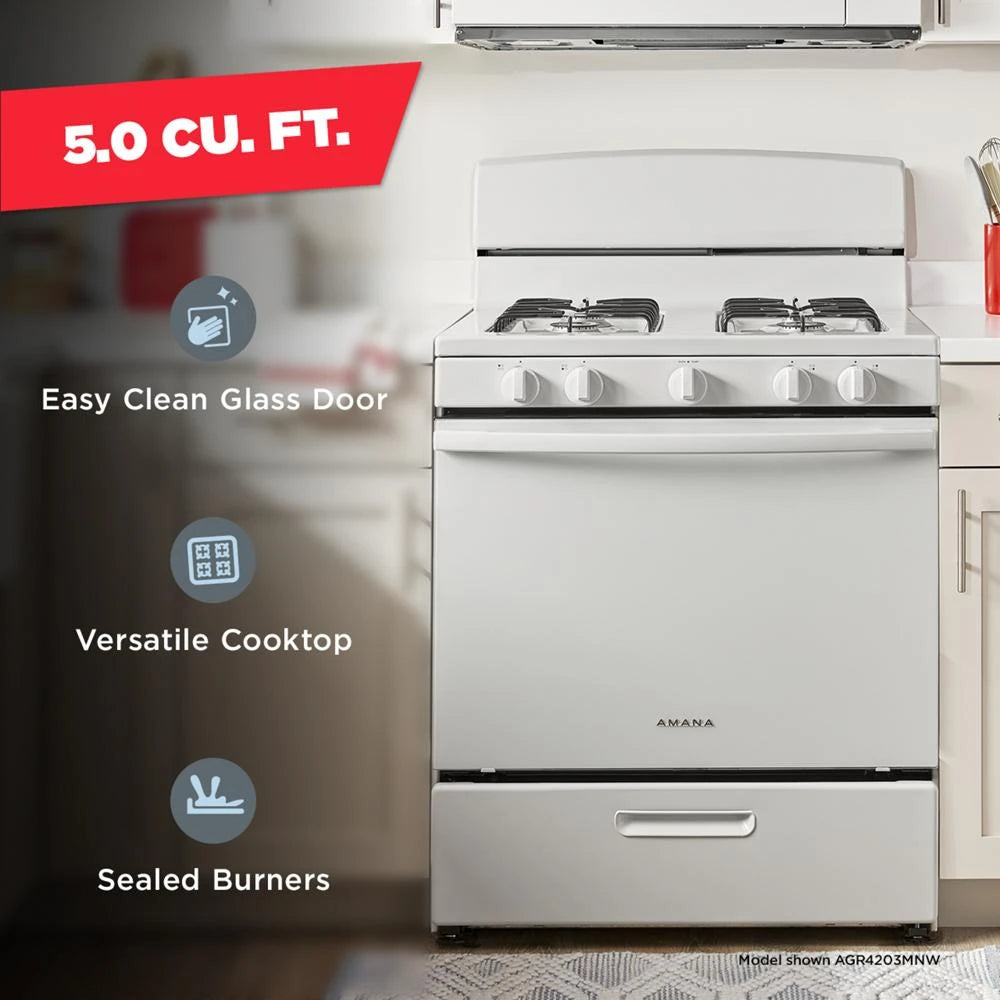

Amana AGR4203MNW 30-inch Gas Range with Easy-Clean Glass Door White

Quick Specification More details

Width:
29.88"
Depth:
27.2"
Height:
46.25"
Type:
Freestanding Ranges

About this product

Easy-Clean Glass Door
Large Oven Capacity (5.0 cu. ft.)
Versatile Cooktop
Sealed Burner

Amana AGR4203MNW 30-inch Gas Range with Easy-Clean Glass Door White

$817.64 ~~$1,210.97~~ Save $393.33 / 32% OFF

Quantity:

More on the way

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Gas Range Install — Direct Replacement, No Modifications
$110.00
Gas Range Install Kit
$40.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

Color:

Amana AGR4203MNW 30-inch Gas Range with Easy-Clean Glass Door White

AGR4203MNW

In stock

Amana AGR4203MNB 30-inch Gas Range with Easy-Clean Glass Door Black

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.88"
Depth:
27.2"
Height:
46.25"
Type:
Freestanding Ranges

About this product

Easy-Clean Glass Door
Large Oven Capacity (5.0 cu. ft.)
Versatile Cooktop
Sealed Burner

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$817.64 ~~$1,210.97~~ Save $393.33 / 32% OFF

Product Details for Amana AGR4203MNW

Technical Details

Details

Oven Automatic Shut-Off	No
Cooktop Configuration	All Burners
Fuel Type	Gas
LP Convertible	Yes
Power On Indicator Light	No
Power Outage Compatible	No
Range Type	Freestanding
Natural Gas Convertible	No
Oven Selections	Bake, Broil

Cooktop details

Auto Re-ignition	No
Cooktop Control Knob Color	White
Cooktop Control Knob Type	Dishwasher Safe Plastic

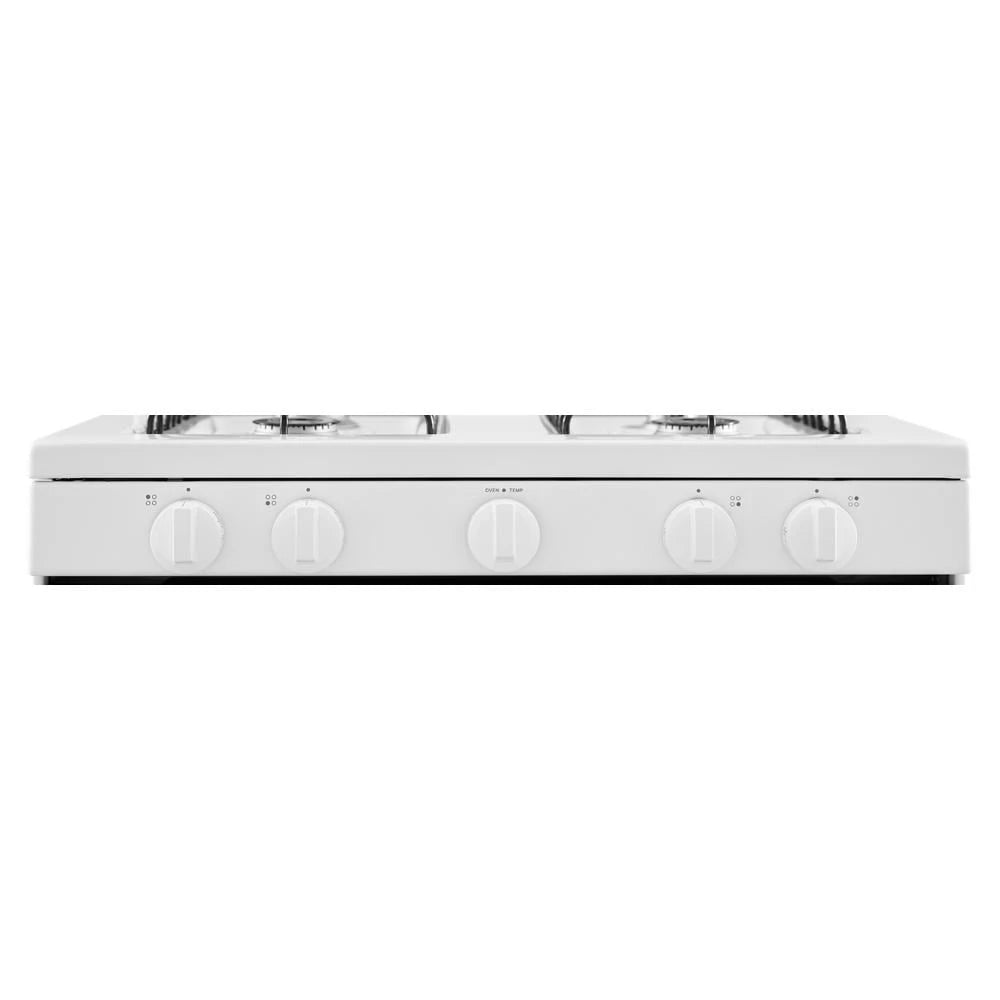

Cooktop Control Location	Front
Cooktop Control Type	Knobs
Cooktop Surface Color	White
Ignition Type	Electronic
Cooktop Surface Material	Porcelain Coated Steel
Griddle Included	No
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No

Certifications

UL	Yes
Prop 65	Yes

Electrical

Amps	15
Hz	60
Power Cord Included	Yes
Volts	120

Other

Capacity (Cu Ft)

5.10

Dimensions & weight

Width	29.88 in.
Height	46.25 in.
Length	27.2 in.
Weight	122 lbs.
Carton Depth	28 5/8
Carton Height	49 7/16
Carton Width	33
Cutout Depth (in)	24
Cutout Height (in)	36.02
Cutout Width (in)	30 1/8
Depth Closed Excluding Handles	25 1/8
Depth With Door Open 90 Degree	45.21
Gross Weight	136
Maximum Height	47.15
Minimum Height	47.07
Net Weight	122.0
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	36.0200
Cutout Width(IN,inches)	30.1250
Depth Closed Excluding Handles(IN,inches)	25.1250
Depth Closed Including Handles(IN,inches)	27.2000
Depth With Door Open 90 Degree(IN,inches)	45.2100
Maximum Height(IN,inches)	47.1500
Minimum Height(IN,inches)	47.0700
Carton Depth(IN,inches)	0.0000
Carton Height(IN,inches)	0.0000
Carton Width(IN,inches)	0.0000

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	51.25 in.
Shipping Length	32.2 in.
Shipping Weight	162 lbs.
Total of Shipping Weight	162 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	21.75 ft³
Dimensional Weight	270.42 lbs.
Total of Cubes	21.75 ft³
Total of Dimensional Weight	270.42 lbs.

Element/burner details

Cooktop Element Style	Sealed Burners
Left Front Element-Burner Type	Standard
Left Rear Element-Burner Type	Standard
Number of Cooking Element-Burners	4
Right Front Element-Burner Type	Standard
Right Rear Element-Burner Type	Standard
Left Front Element-Burner Power	9,500 BTU
Left Rear Element-Burner Power	9,500 BTU
Number of Grates	2
Right Front Element-Burner Power	9,500 BTU
Right Rear Element-Burner Power	5,000 BTU

Exterior details

Door Type	Glass

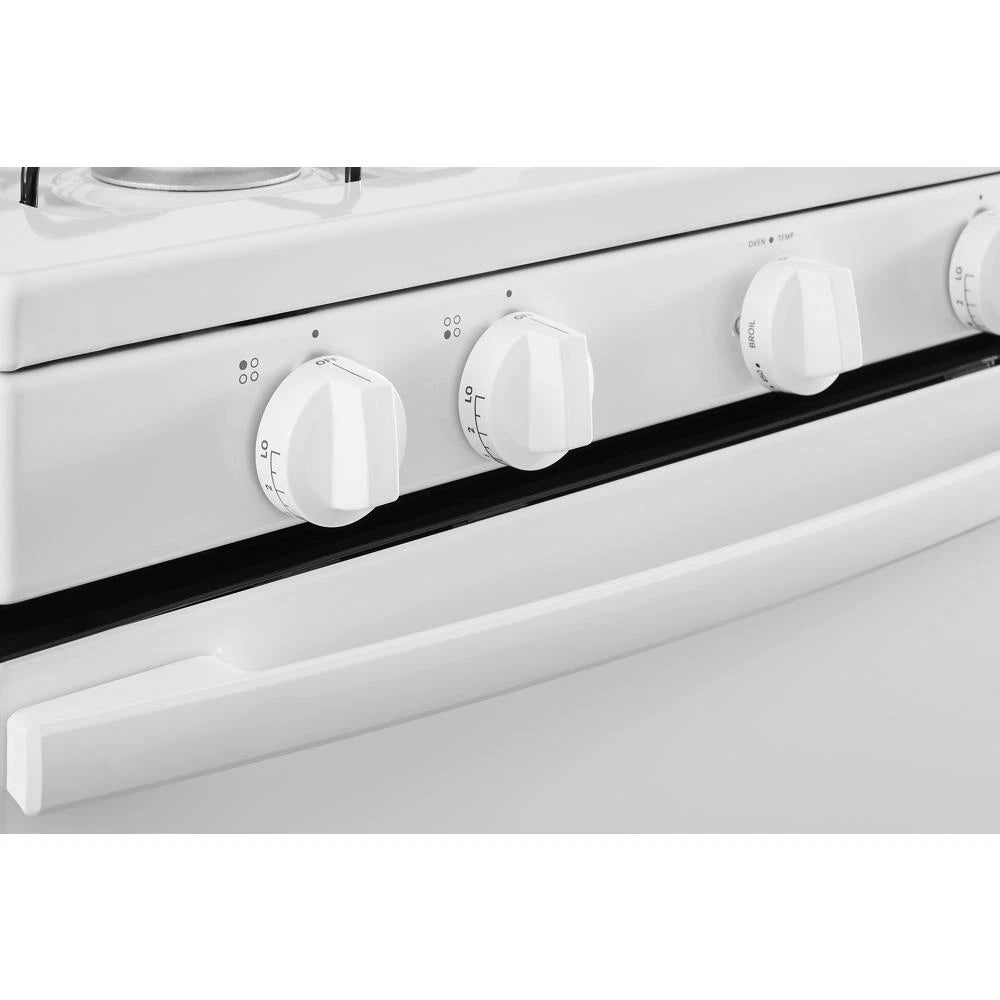

Oven Control Knob Type	Dishwasher-Safe Plastic
Oven Control Location	Front
Oven Control Type	Knobs
Oven Window Size	None
Handle Color	White
Handle Material	Plastic
Handle Type	Reach Through Handle
Oven Control Knob Color	White

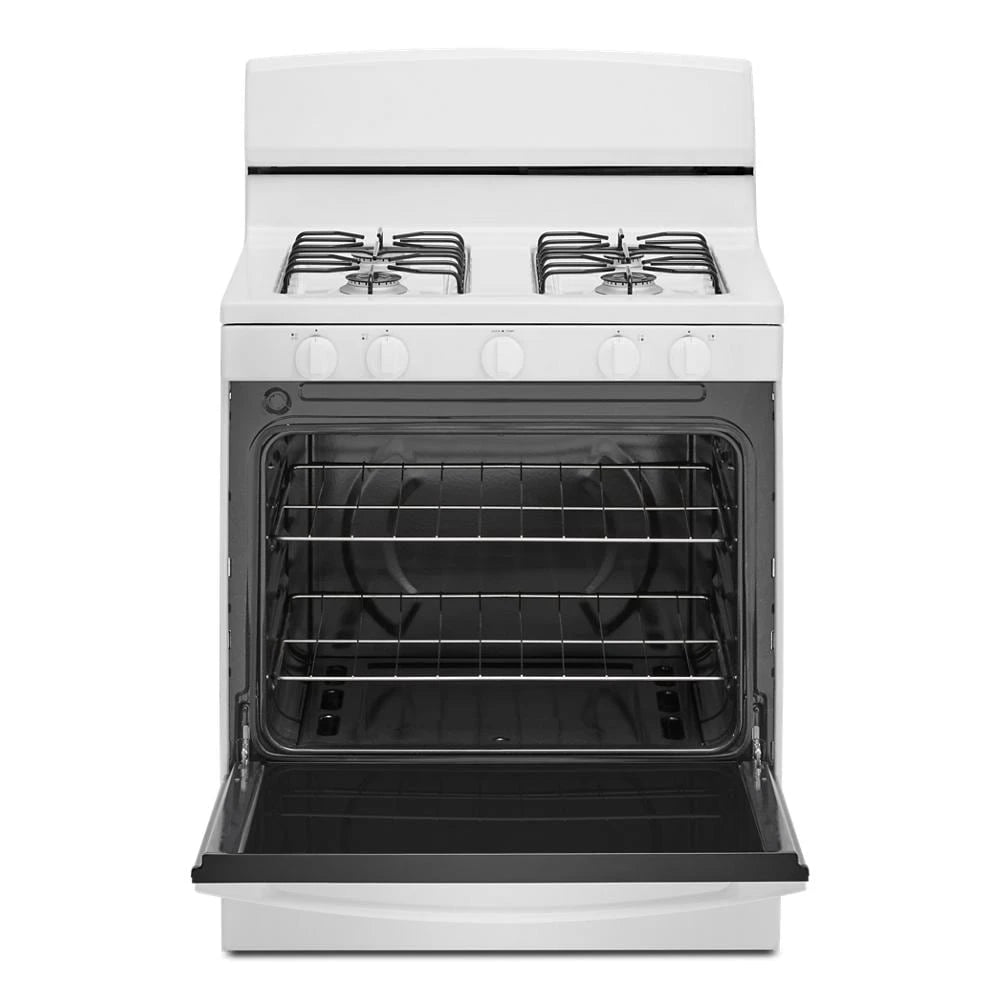

Oven cavity details

Automatic Convection Conversion Temperature Adjust	No
Broiler Location	Drawer
Convection Element Type	None
Door Removable	Yes
Hidden Bake Element	Yes
Interior Color	Black
Number of Oven Lights	None
Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Manual Clean
Oven Cooking System	Thermal
Oven Rack Type	2 Standard

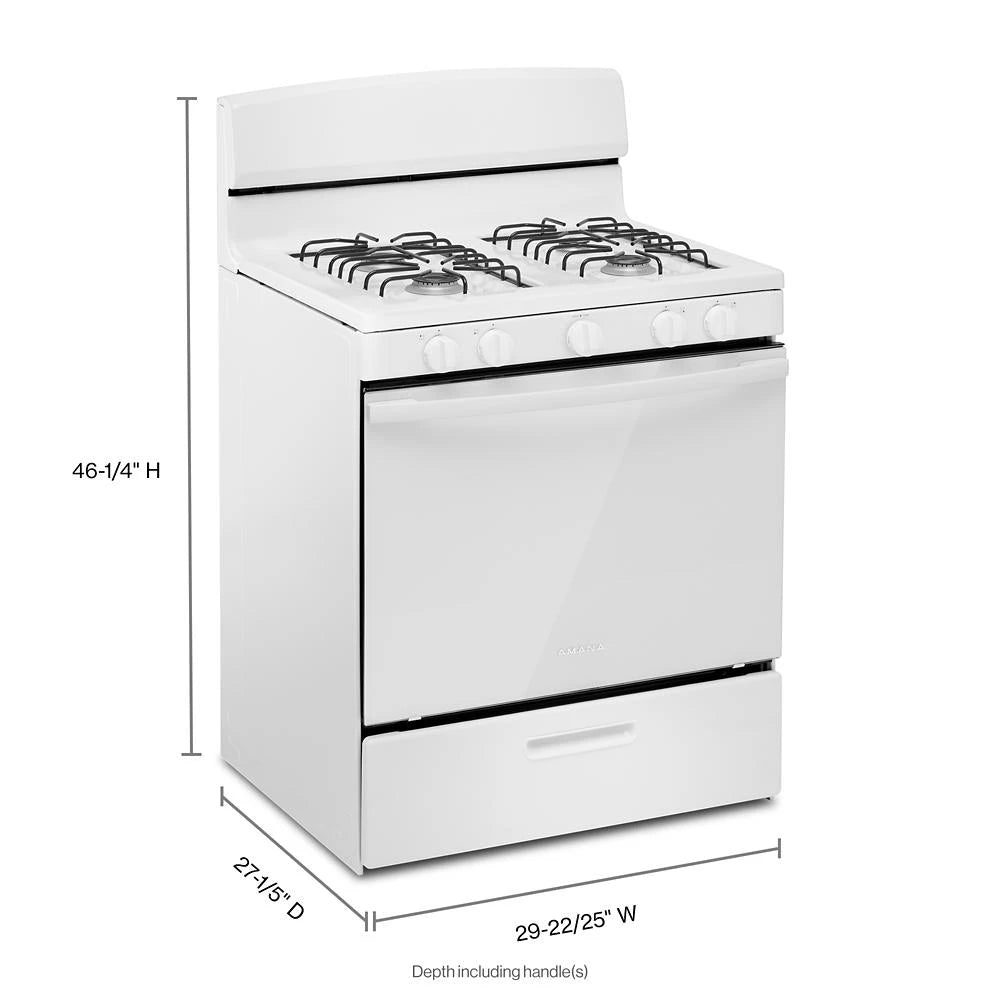

Dimensions

Capacity	5.1 cu. ft.
Common Size	30 in
Cutout Depth	24 in
Cutout Height	36-1/50 in
Cutout Width	30-1/8 in
Depth	27-1/5 in
Depth Closed Excluding Handles	25-1/8 in
Depth Closed Including Handles	27-1/5 in
Depth With Door Open 90 Degree	45-21/100 in
Gross Weight	136 lbs
Height	46-1/4 in
Maximum Height	47-3/20 in
Minimum Height	47-7/100 in
Net Weight	122 lbs
Oven Interior Depth	19 in
Oven Interior Height	18-37/100 in
Oven Interior Width	25 in
Width	29-22/25 in

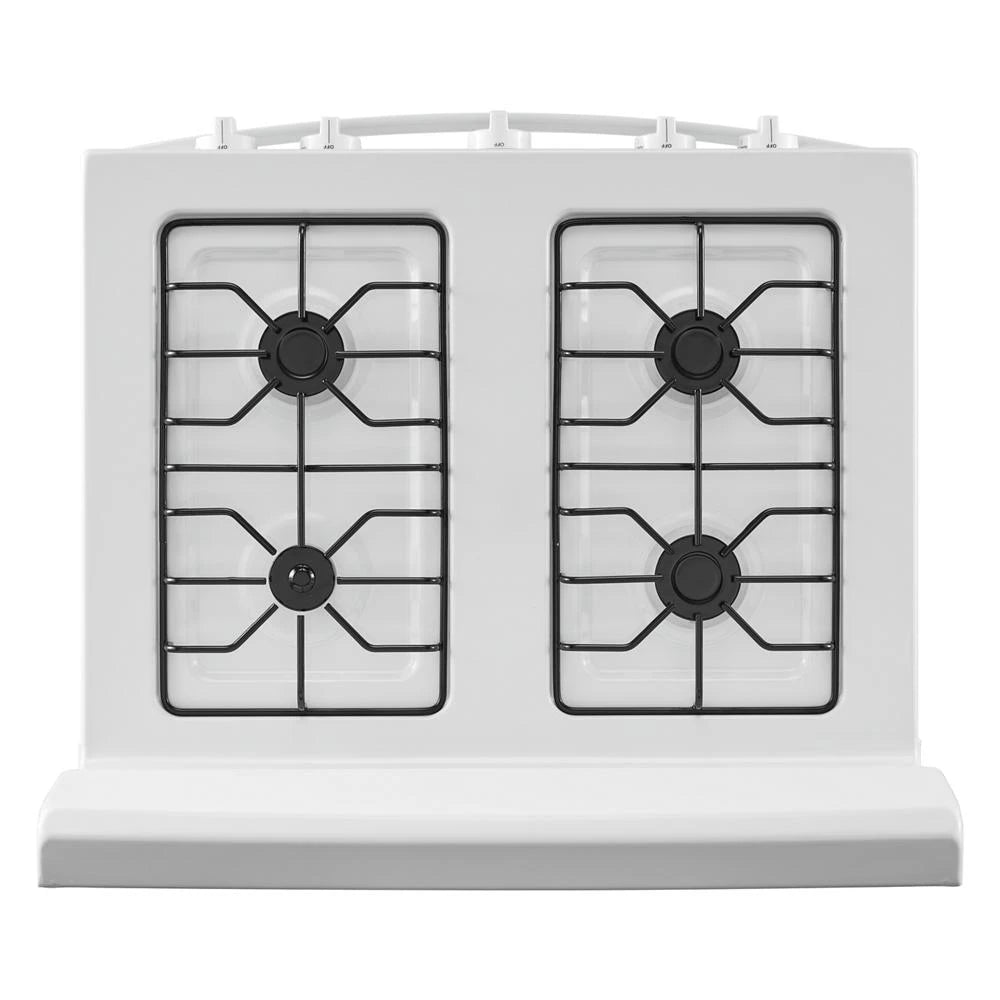

Grate details

Grate Details

Continuous, Gloss, Porcelain Coated Steel Grates

Description

Amana® 30-inch Gas Range with Easy-Clean Glass Door

Product Features

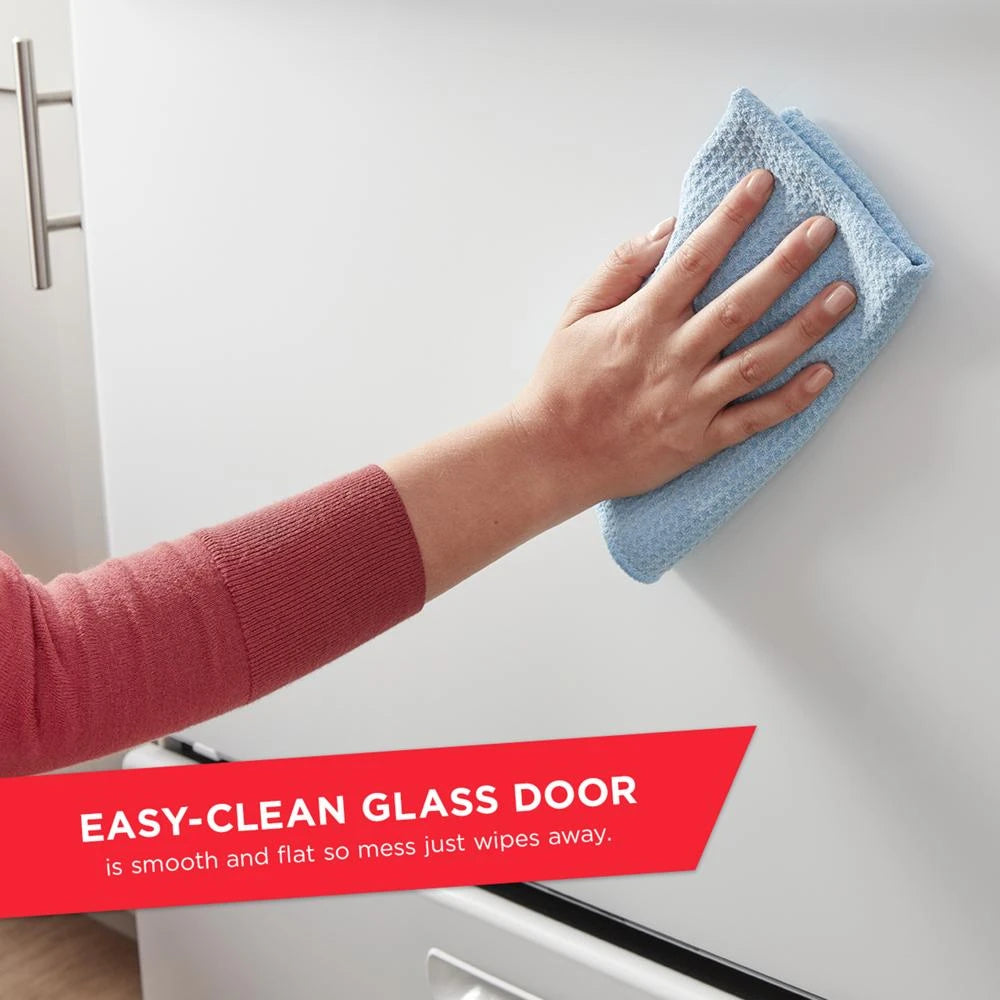

Easy-Clean Glass Door
The Easy-Clean Glass Door is smooth and flat so messes, spills and smudges just wipe away. Crumbs won't catch and splatters won't matter.

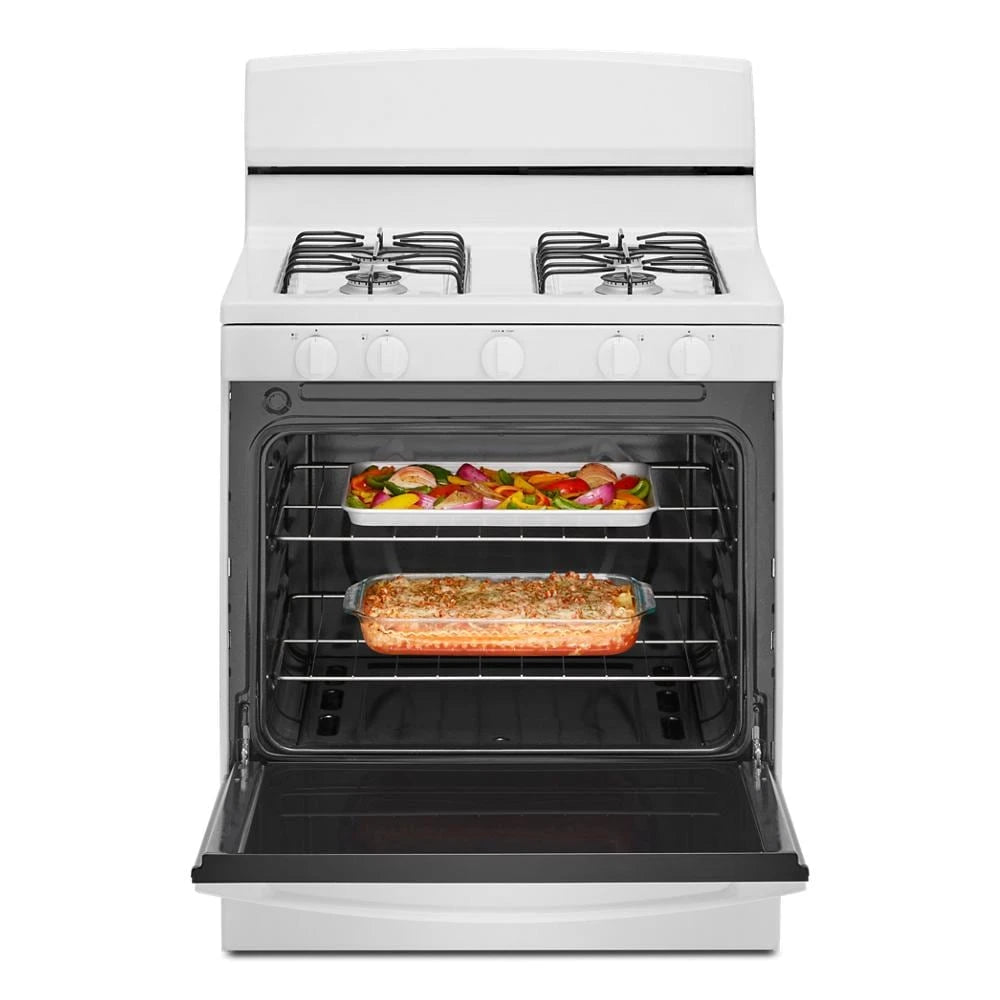

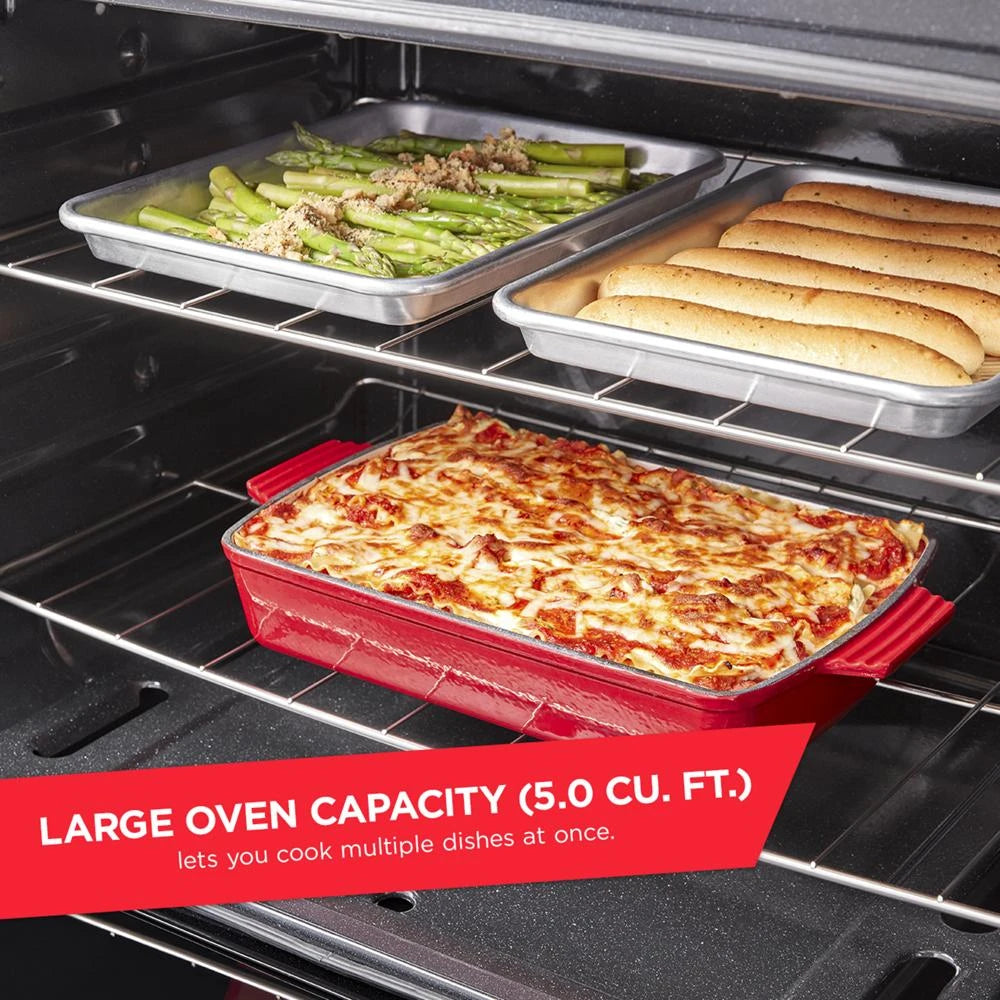

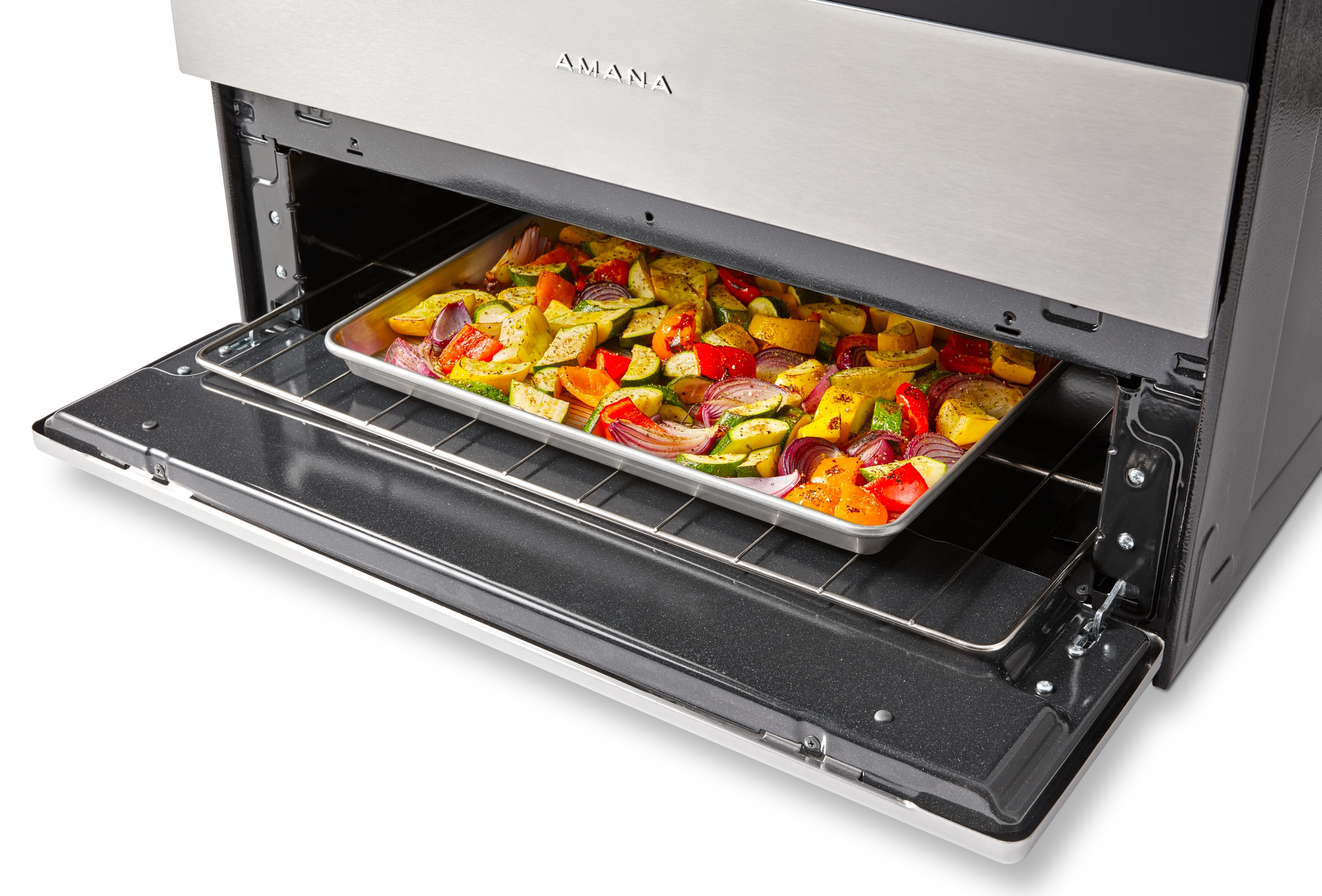

Large Oven Capacity (5.0 cu. ft.)
5.0 cu. ft. oven capacity gives you the space you need to make dinner and dessert at the same time.

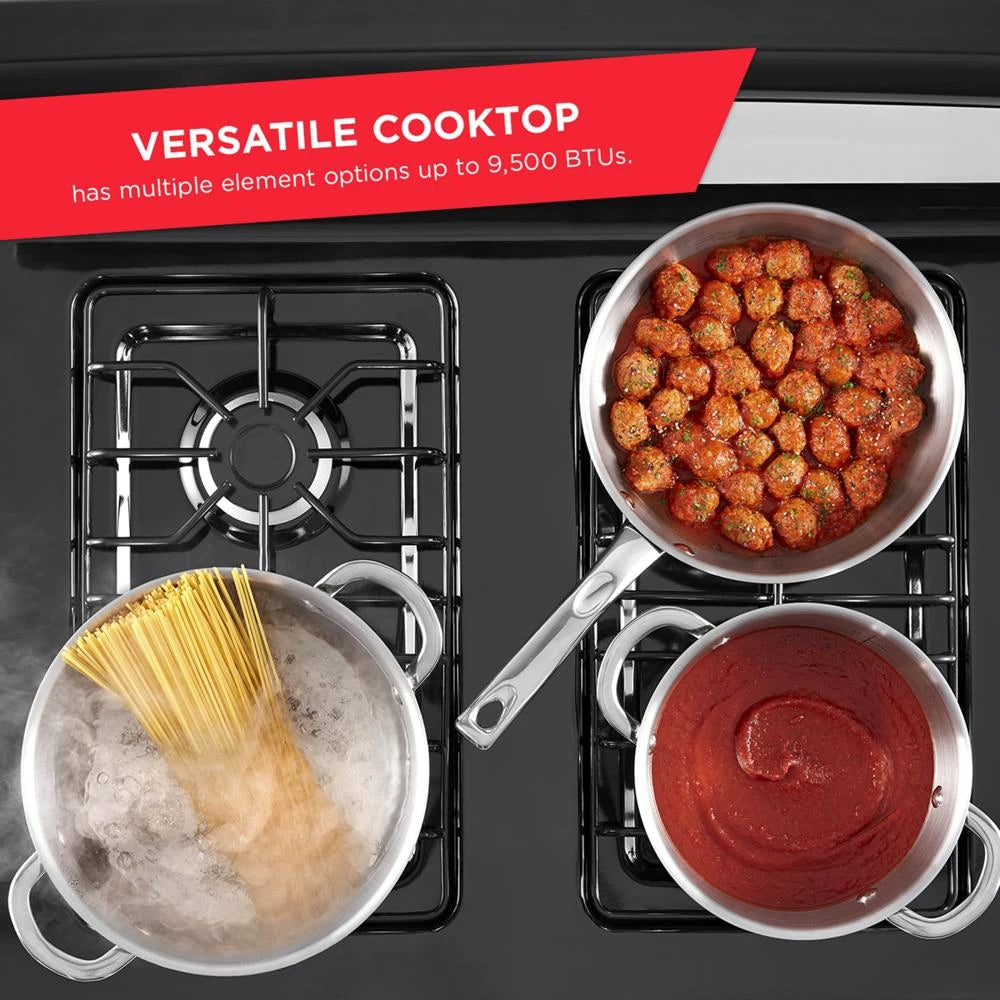

Versatile Cooktop
Our Versatile Cooktop features multiple burner options that provide up to 9,500 BTUs on the largest burner, giving you the power to help cook your favorites all at once.

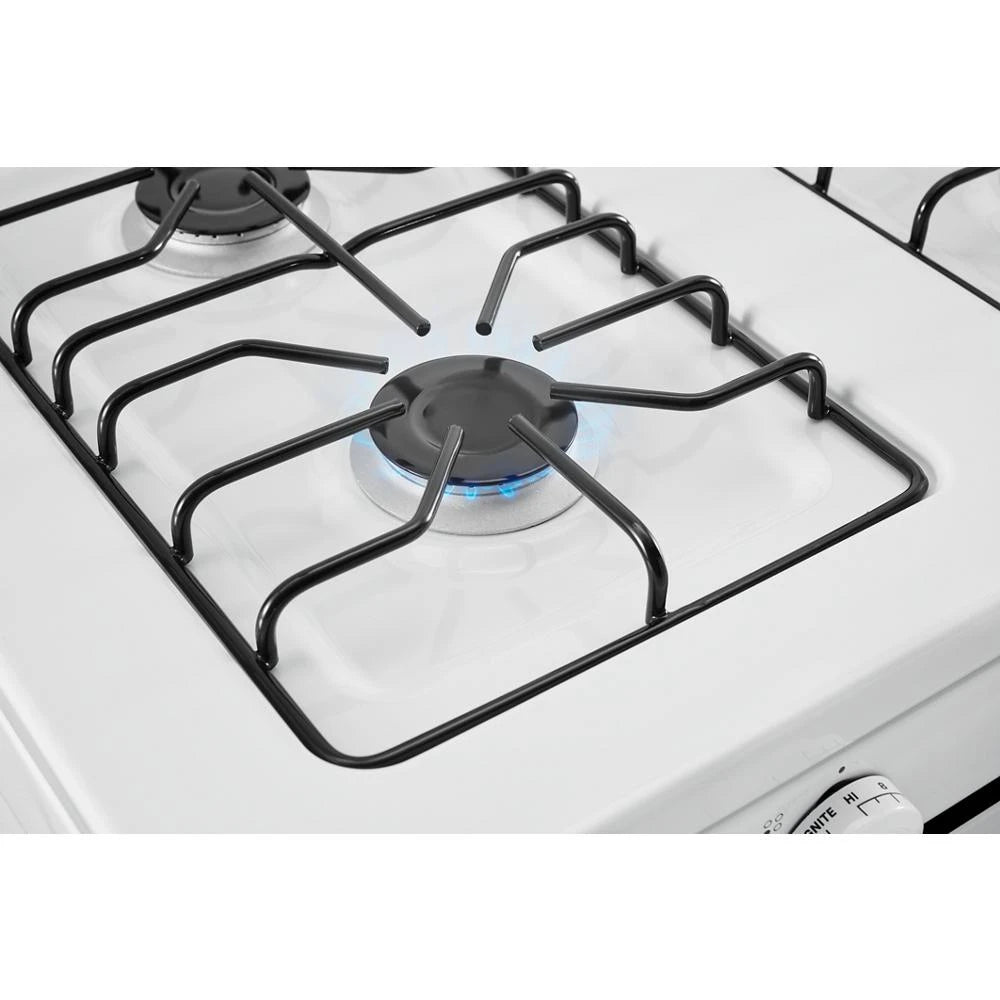

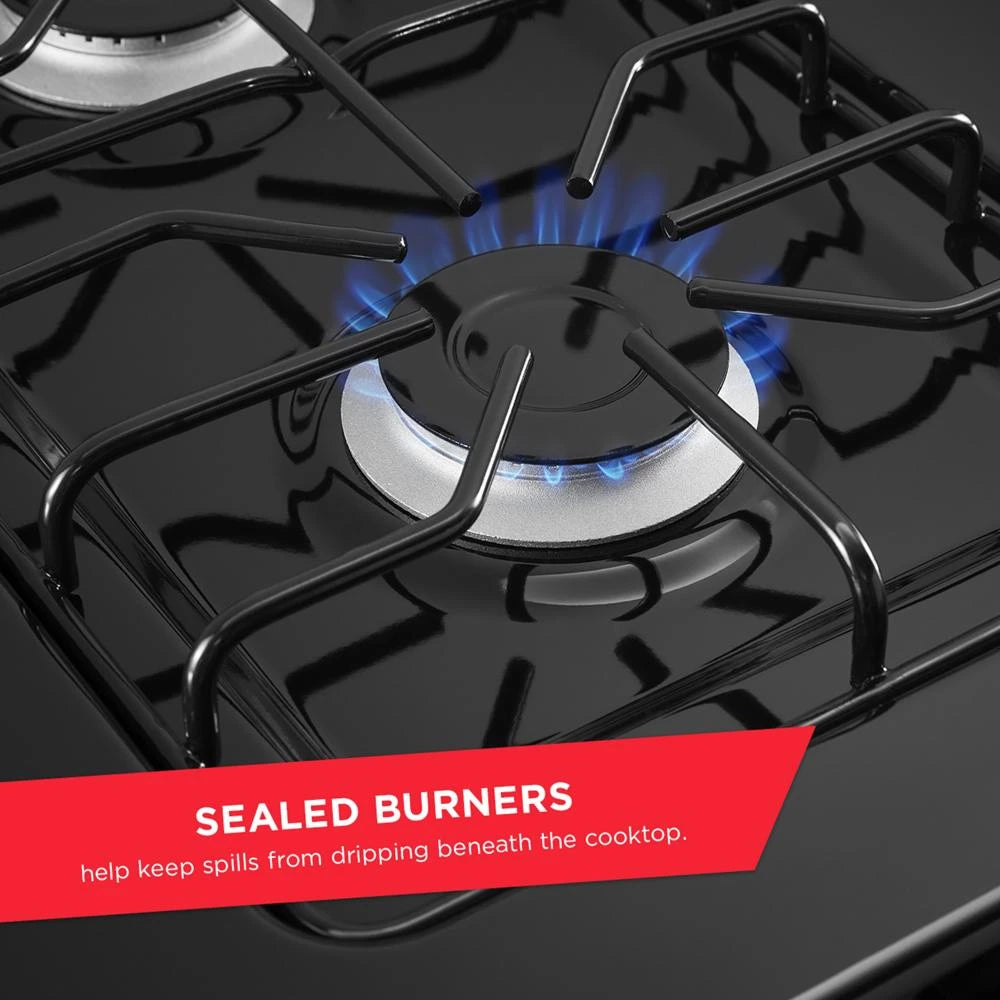

Sealed Burner
Sealed Burners make cleanup easy by limiting spills from dripping beneath the cooktop. Don't sweat the small spills.
