Sale price $762.05 Regular price $1,011.97 Save $249.92 / 24% OFF

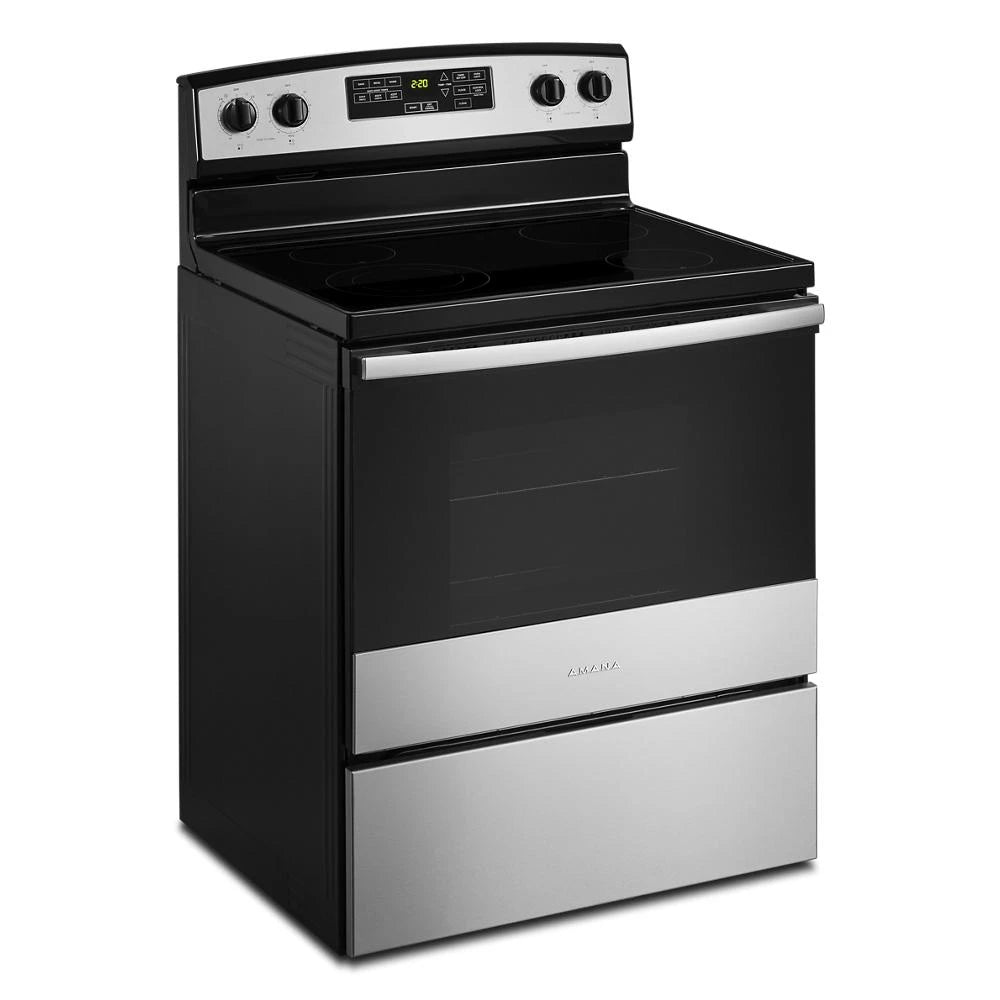

Product Details for Amana AER6603SMS

Technical Details

Controls

Display Color Green
Electronic Display Type LED

Details

Oven Automatic Shut-Off No
Cooktop Configuration All Burners
Fuel Type Electric
Power On Indicator Light Yes
Power Outage Compatible No
Range Type Freestanding
Oven Selections Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Keep Warm/Warm Hold, Sabbath Mode, Timer

Cooktop details

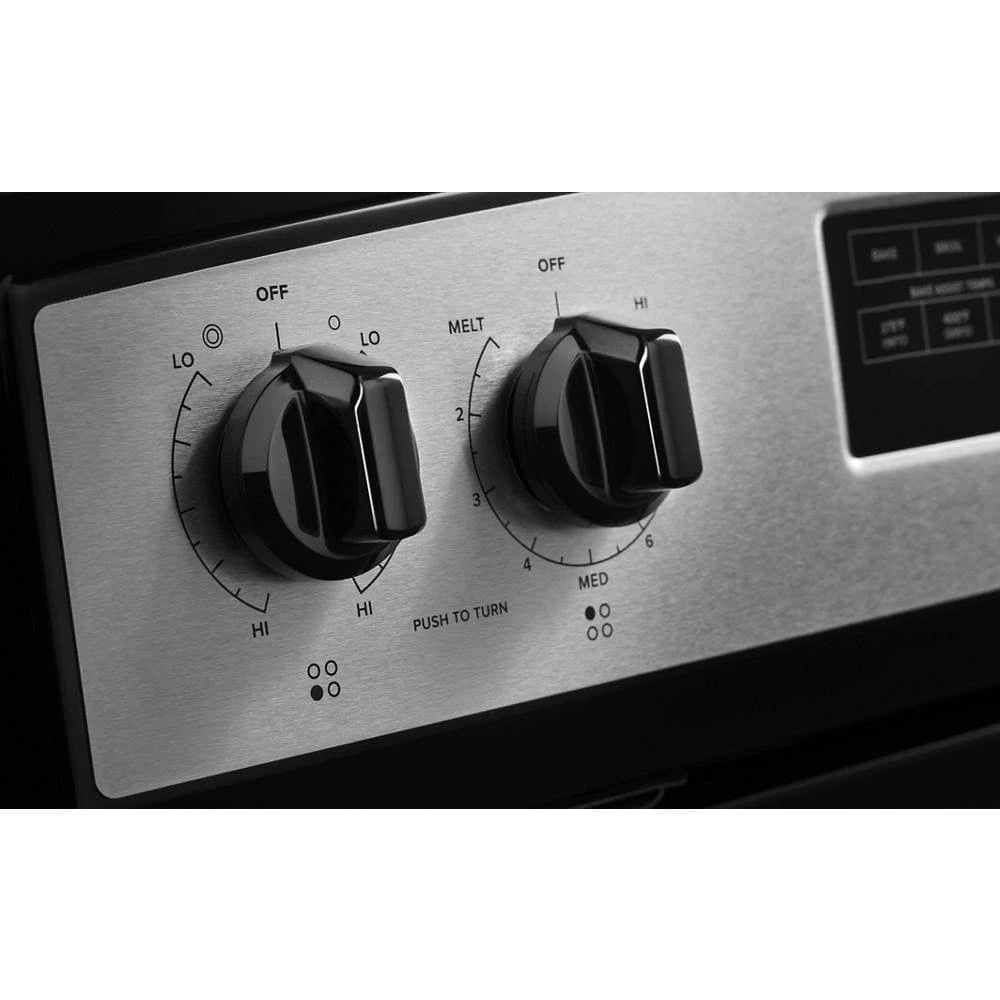

Cooktop Control Knob Color Black
Cooktop Control Knob Type Plastic
Cooktop Control Location Backguard
Cooktop Control Type Knobs
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Certifications

UL Yes
Prop 65 Yes

Electrical

Power Cord Included No

Other

Capacity (Cu Ft) 4.80

Dimensions & weight

Width 29.88 in.
Height 46.88 in.
Length 27.75 in.
Weight 135 lbs.
Carton Depth 29
Carton Height 48 3/4
Carton Width 32
Cutout Depth (in) 24
Cutout Height (in) 36
Cutout Width (in) 30
Depth With Door Open 90 Degree 46 11/16
Gross Weight 152
Maximum Height 47 7/8
Minimum Height 46 7/8
Net Weight 135.0
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 36.0000
Cutout Width(IN,inches) 30.0000
Depth Closed Excluding Handles(IN,inches) 25.3125
Depth Closed Including Handles(IN,inches) 27.7500
Depth With Door Open 90 Degree(IN,inches) 46.6875
Maximum Height(IN,inches) 47.8750
Minimum Height(IN,inches) 46.8750
Carton Depth(IN,inches) 29.0000
Carton Height(IN,inches) 48.7500
Carton Width(IN,inches) 32.0000
Cutout Height Min(IN,inches) 36.0000

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 51.88 in.
Shipping Length 32.75 in.
Shipping Weight 175 lbs.
Total of Shipping Weight 175 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 22.5 ft³
Dimensional Weight 279.65 lbs.
Total of Cubes 22.5 ft³
Total of Dimensional Weight 279.65 lbs.

Element/burner details

Cooktop Element Style Radiant

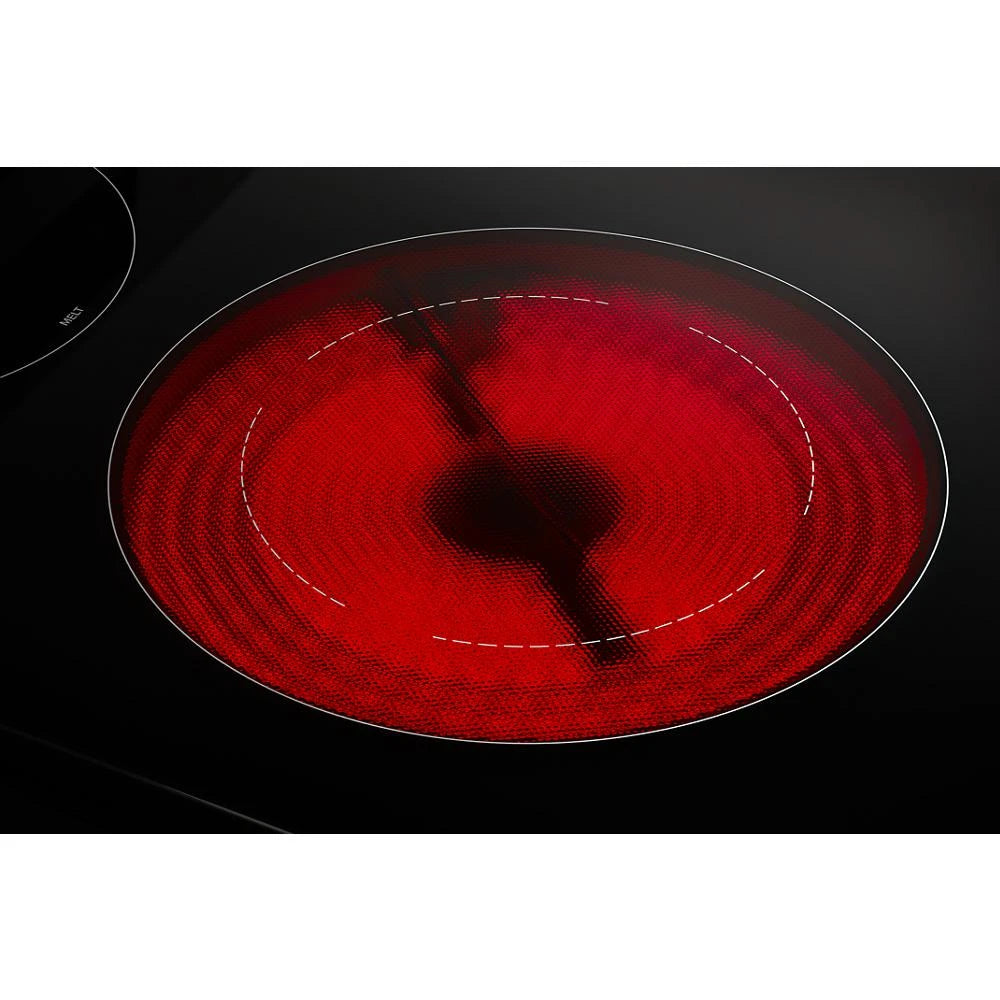

Left Front Element-Burner Power 3000W/1400W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 4
Right Front Element-Burner Power 1200W
Right Front Element-Burner Size 6in.
Right Front Element-Burner Type Standard
Right Rear Element-Burner Size 8in.
Right Rear Element-Burner Type Standard
Left Rear Element-Burner Power 1,200W
Right Rear Element-Burner Power 1,800W

Exterior details

Door Type Glass
Oven Control Location Backguard
Oven Control Type Electronic Touch
Oven Window Size Extra Large
Handle Color Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle

Smart compatibility

Connectivity No
Works With No

Oven cavity details

Automatic Convection Conversion Temperature Adjust No
Bake Element Power 2,400 W
Broiler Element Power 3,400 W
Broiler Location Top of Oven
Convection Element Type None
Convection Functions No
Door Removable Yes
Hidden Bake Element No
Interior Color Grey
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Adjustable Self Cleaning
Oven Cooking System Thermal
Oven Light Switch Location Oven Control
Oven Light Type Incandescent

Dimensions

Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth 27-3/4 in
Depth Closed Excluding Handles 25-313/1000 in
Depth Closed Including Handles 27-3/4 in
Depth With Door Open 90 Degree 46-86/125 in
Gross Weight 152 lbs
Height 46-7/8 in
Net Weight 135 lbs
Oven Interior Depth 18-1/2 in
Oven Interior Height 18-1/8 in
Oven Interior Width 24-1/2 in
Width 29-7/8 in

Description

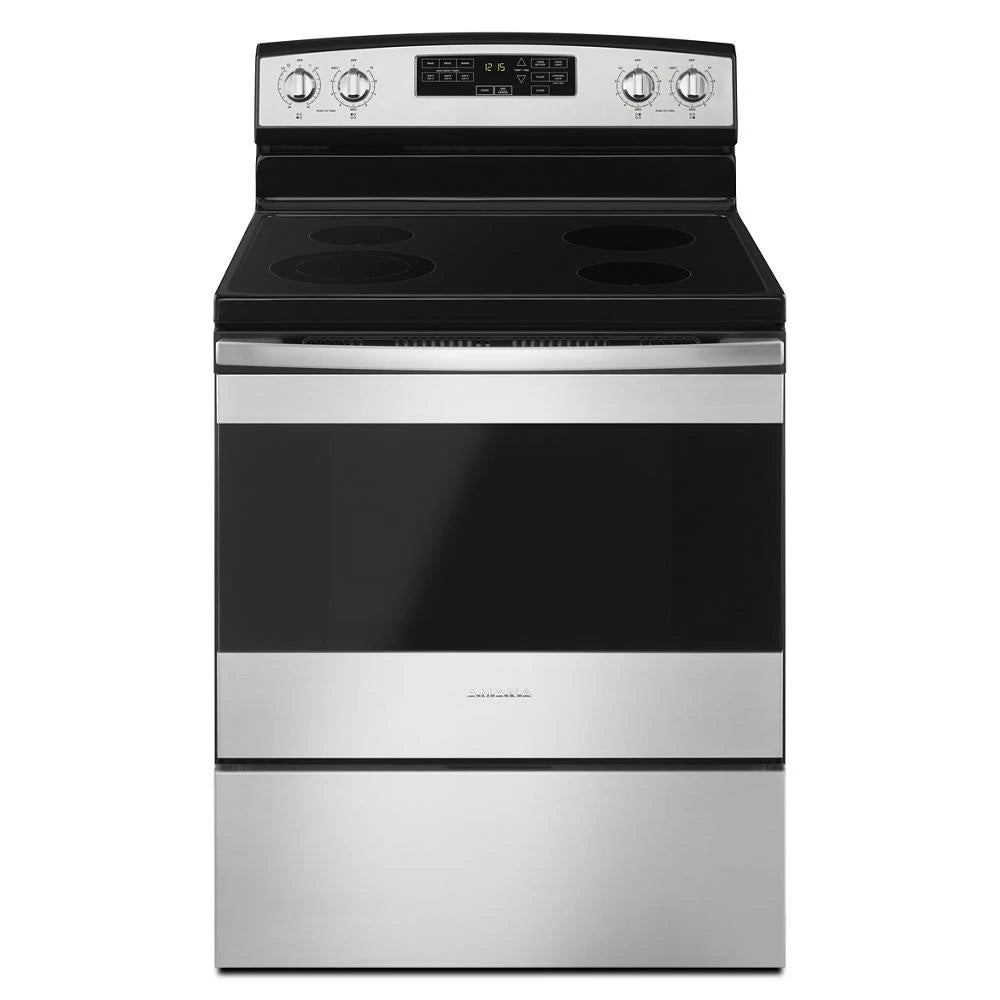

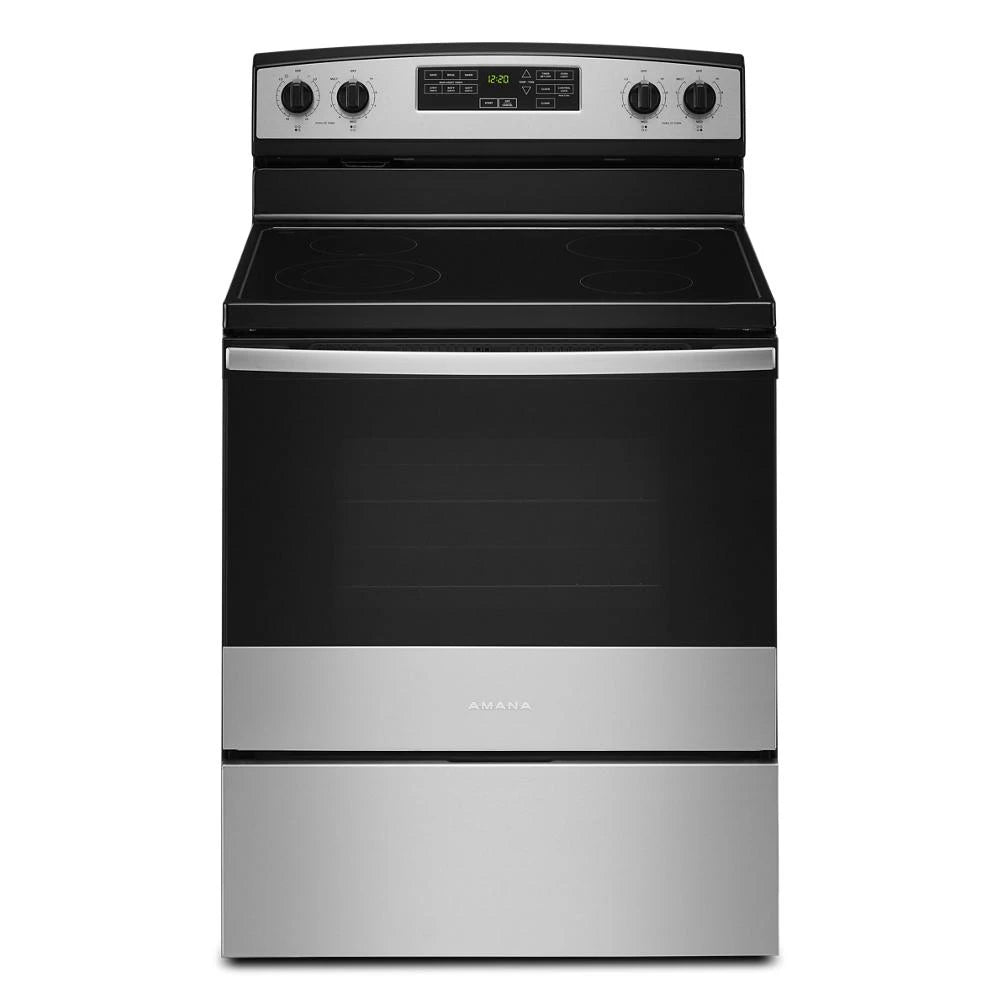

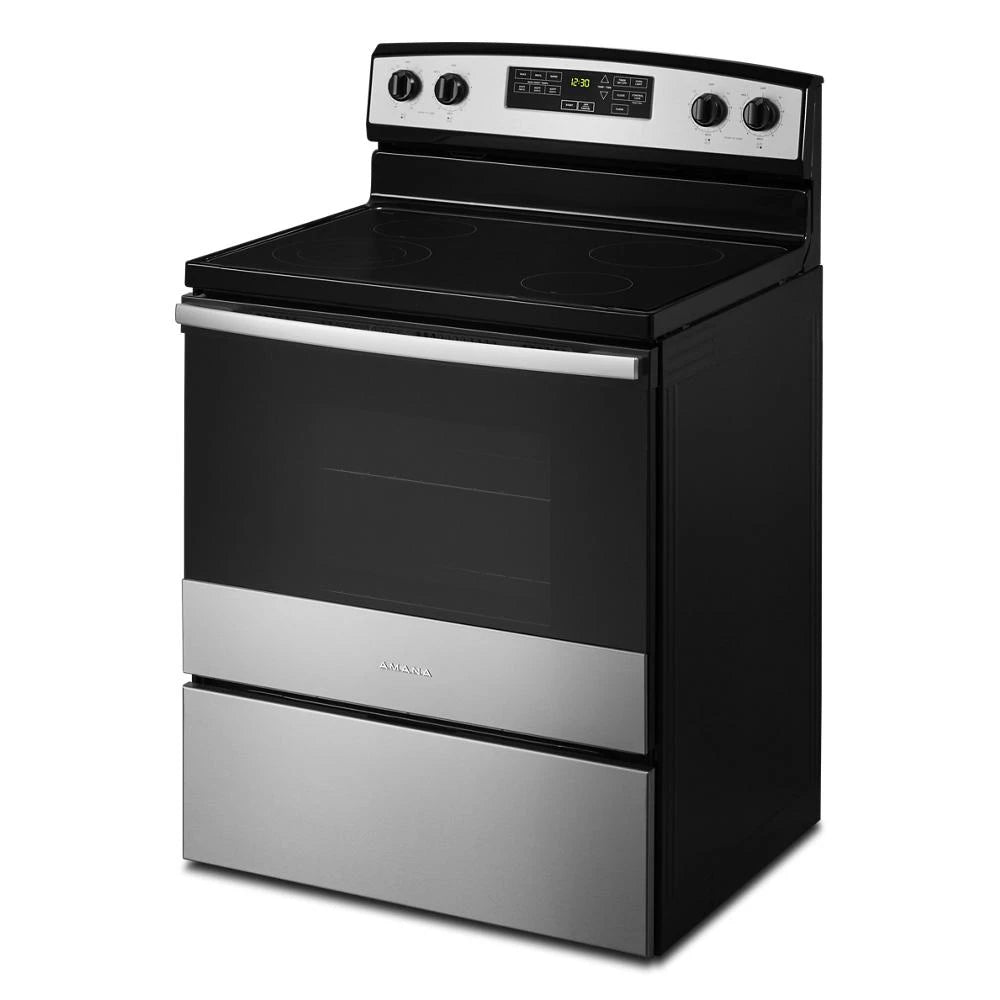

If you're looking for a new range that will make you feel like a true culinary artist, look no further than the Amana 30-inch Electric Range with Extra-Large Oven Window. This electric range has it all: an extra-large oven window, a removable porcelain-coated steel cooktop, and an adjustable self-cleaning oven. The oven is large enough to hold 4.8 cubic feet of food—or one whole turkey! Even better, you can watch as it turns golden via the viewing window. But even if you don't want to use it for cooking, this is still a great choice for your home. The large oven window lets you watch your food as it cooks (even when the door is closed), which is perfect for entertaining or simply enjoying the show of your creations in action. It's also perfect for baking since you can see what's going on inside without having to open the door and let the heat out of your kitchen. Another thing to love from this electric range is that it comes with an easy self-clean option that will keep your oven looking its best each time you use it. This is a great feature for anyone who likes to cook but doesn't have the time or energy to clean up after themselves. The oven also has a specific temperature setting for self-cleaning, so you can be sure your oven will come out sparkling clean each time. So what are you waiting for? Order today and start cooking like no one's business!


Product Features

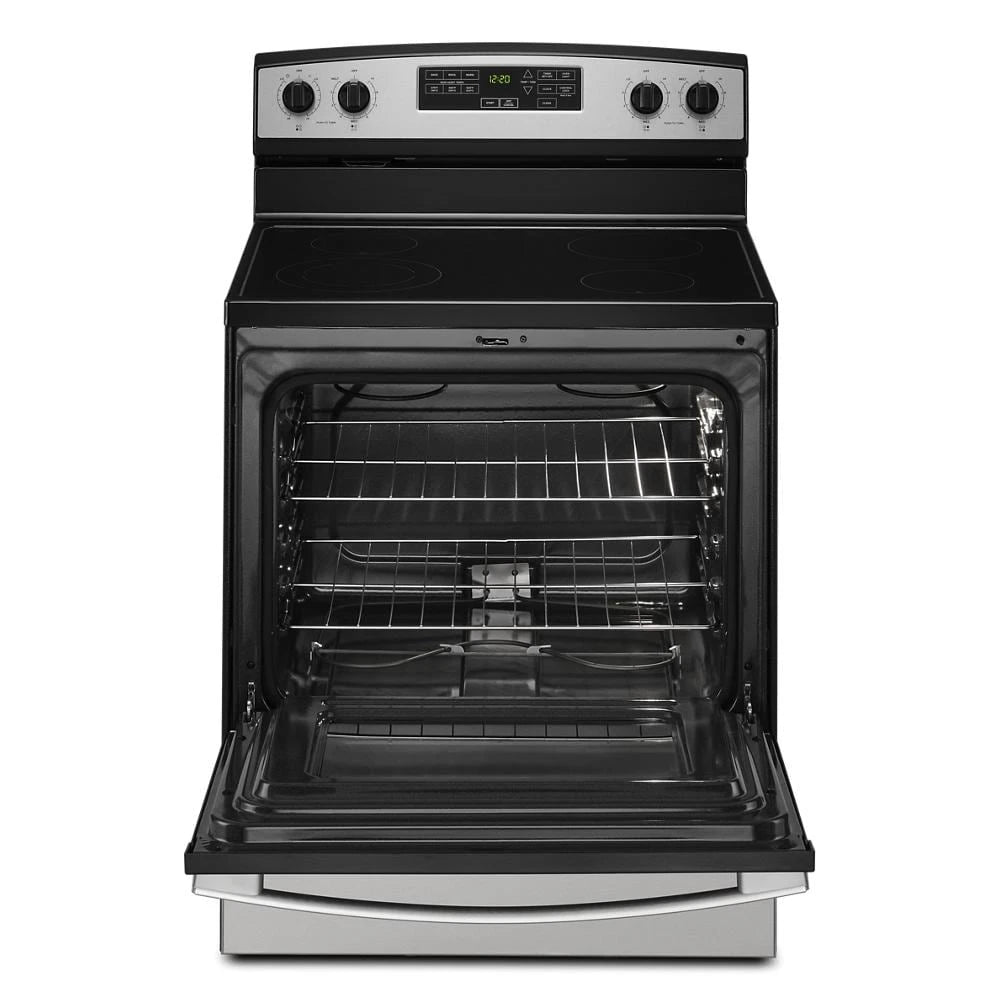

  • Large Oven Capacity (4.8 cu. ft.)
    Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

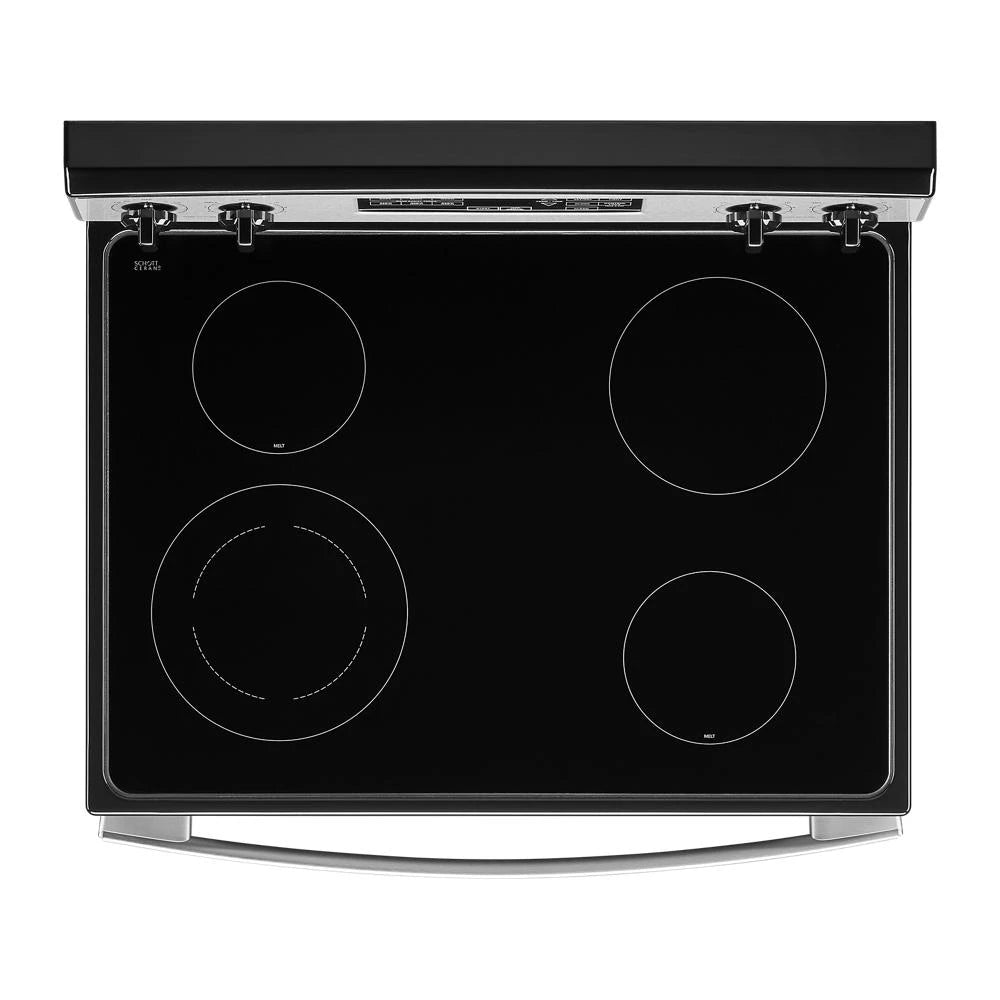

  • Versatile Cooktop
    Our Versatile Cooktop with multiple element options provides up to 3,000 watts on the largest burner to help you cook more of your favorites at the same time.
  • Bake Assist Temps
    Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

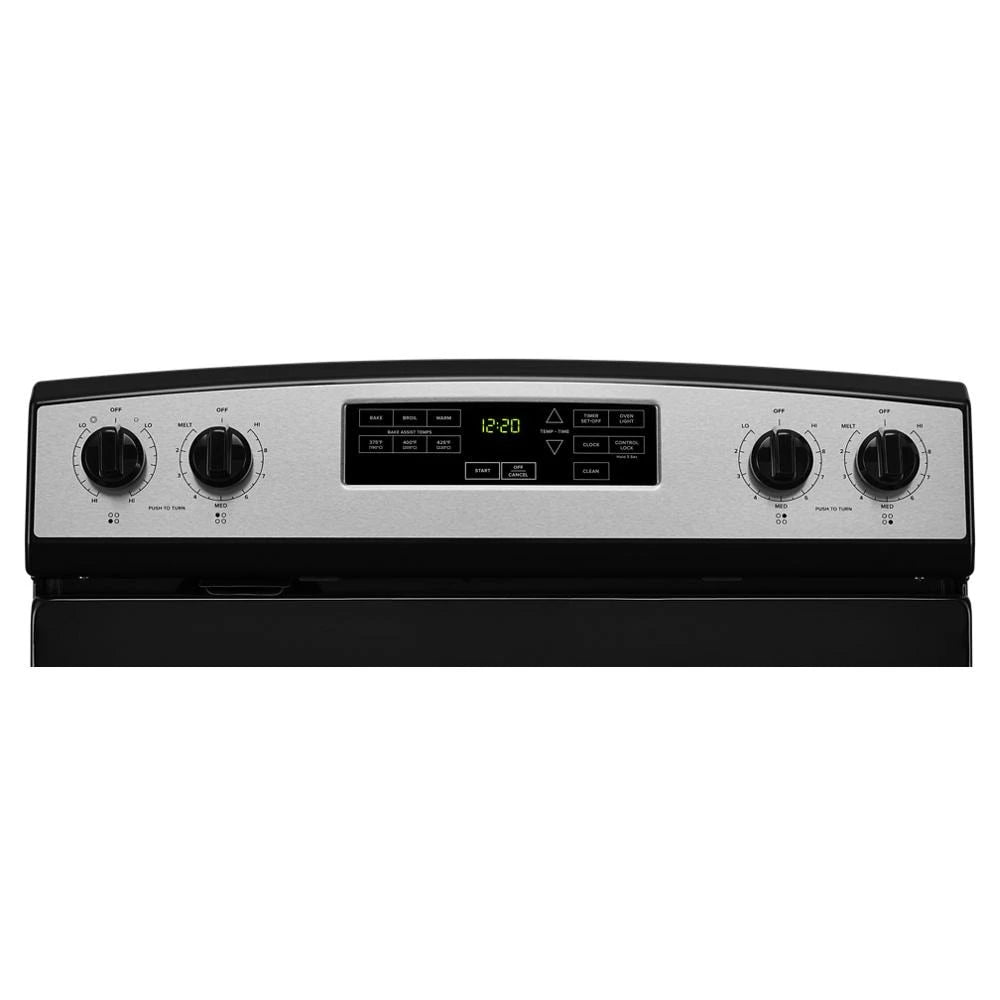

  • Easy Touch Electronic Controls Plus
    Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
