Sale price $774.41 Regular price $867.97 Save $93.56 / 10% OFF

Product Details for Amana AER6303MMS

Technical Details

Controls

Display Color Green

Details

Oven Automatic Shut-Off No
Cooktop Configuration All Burners
Fuel Type Electric
Power On Indicator Light Yes
Power Outage Compatible No
Range Type Freestanding
Oven Light Switch Location Oven Control
Automatic Convection Conversion Temperature Adjust No
Oven Selections Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Keep Warm/Warm Hold; Sabbath Mode; Timer
Range Drawer Type Storage Drawer

Cooktop details

Cooktop Control Knob Type Plastic
Cooktop Control Location Backguard
Cooktop Control Type Knobs
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Cooktop Surface Material Ceramic Glass

Certifications

UL Yes
prop65 CA

Electrical

Power Cord Included No

Other

Capacity (Cu Ft) 4.80

Dimensions & weight

Width 29.88 in.
Height 46.88 in.
Length 27.75 in.
Weight 135 lbs.
Carton Depth 29
Carton Height 48 3/4
Carton Width 32
Cutout Depth (in) 24
Cutout Height (in) 36
Cutout Width (in) 30
Depth Closed Excluding Handles 25 5/16
Depth Closed Including Handles 27 3/4
Depth With Door Open 90 Degree 46 11/16
Gross Weight 152
Maximum Height 47 7/8
Minimum Height 46 7/8
Net Weight 135.0
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 36.0000
Cutout Width(IN,inches) 30.0000
Depth Closed Excluding Handles(IN,inches) 25.3125
Depth Closed Including Handles(IN,inches) 27.7500
Depth With Door Open 90 Degree(IN,inches) 46.6875
Maximum Height(IN,inches) 47.8750
Minimum Height(IN,inches) 46.8750
Carton Depth(IN,inches) 29.0000
Carton Height(IN,inches) 48.7500
Carton Width(IN,inches) 32.0000
Cutout Height Min(IN,inches) 36.0000
Width 32 in.
Height 48.75 in.
Length 29 in.
Gross Weight 152 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 51.88 in.
Shipping Length 32.75 in.
Shipping Weight 175 lbs.
Total of Shipping Weight 175 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 22.5 ft³
Dimensional Weight 279.65 lbs.
Total of Cubes 22.5 ft³
Total of Dimensional Weight 279.65 lbs.

Element/burner details

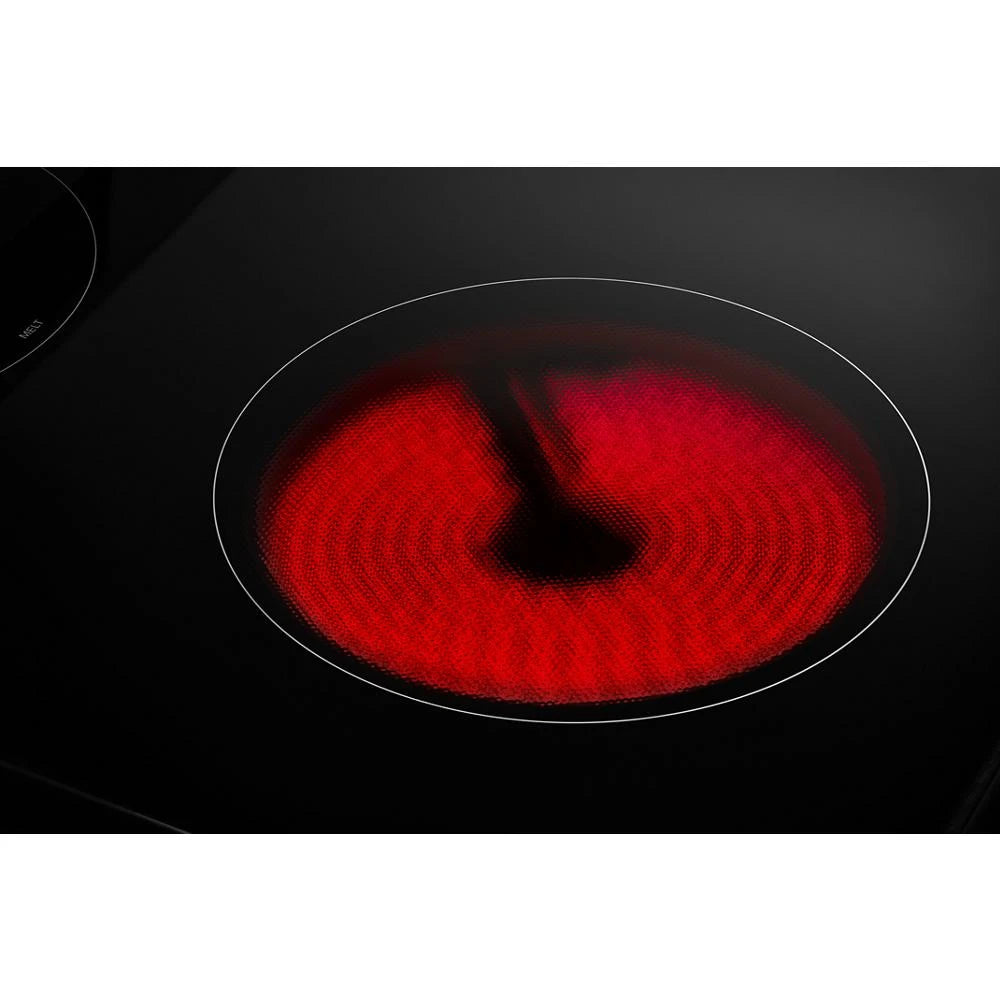

Cooktop Element Style Radiant
Left Front Element-Burner Size 8in.
Left Front Element-Burner Type Standard
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 4
Right Front Element-Burner Power 1200W
Right Front Element-Burner Size 6in.
Right Front Element-Burner Type Standard
Right Rear Element-Burner Size 8in.
Right Rear Element-Burner Type Standard
Left Front Element-Burner Power 1, 800W
Left Rear Element-Burner Power 1, 200W
Right Rear Element-Burner Power 1, 800W

Exterior details

Door Type Glass
Oven Control Knob Type Plastic
Oven Control Location Backguard
Oven Control Type Electronic Touch
Oven Window Size Extra Large

Smart compatibility

Connectivity No
Works With No

Dimensions

Cutout Depth 24
Cutout Height 36
Cutout Width 30
Depth Closed Excluding Handles 25.313
Depth Closed Including Handles 27.75
Depth With Door Open 90 Degree 46.688
Oven Interior Depth 18.5
Oven Interior Height 18.125
Oven Interior Width 24.5
carton depth 29
carton height 48.75
carton width 32
net weight 135
gross weight 152

Oven details

Bake Element Power 2, 400 W
Broiler Element Power 3, 400 W
Broiler Location Top of Oven
Convection Element Type None
Convection Functions No
Door Removable Yes
Hidden Bake Element No
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Manual Clean
Oven Cooking System Thermal
Oven Light Type Incandescent

Capacity

Volume 26.181 Cu.Ft.

Description

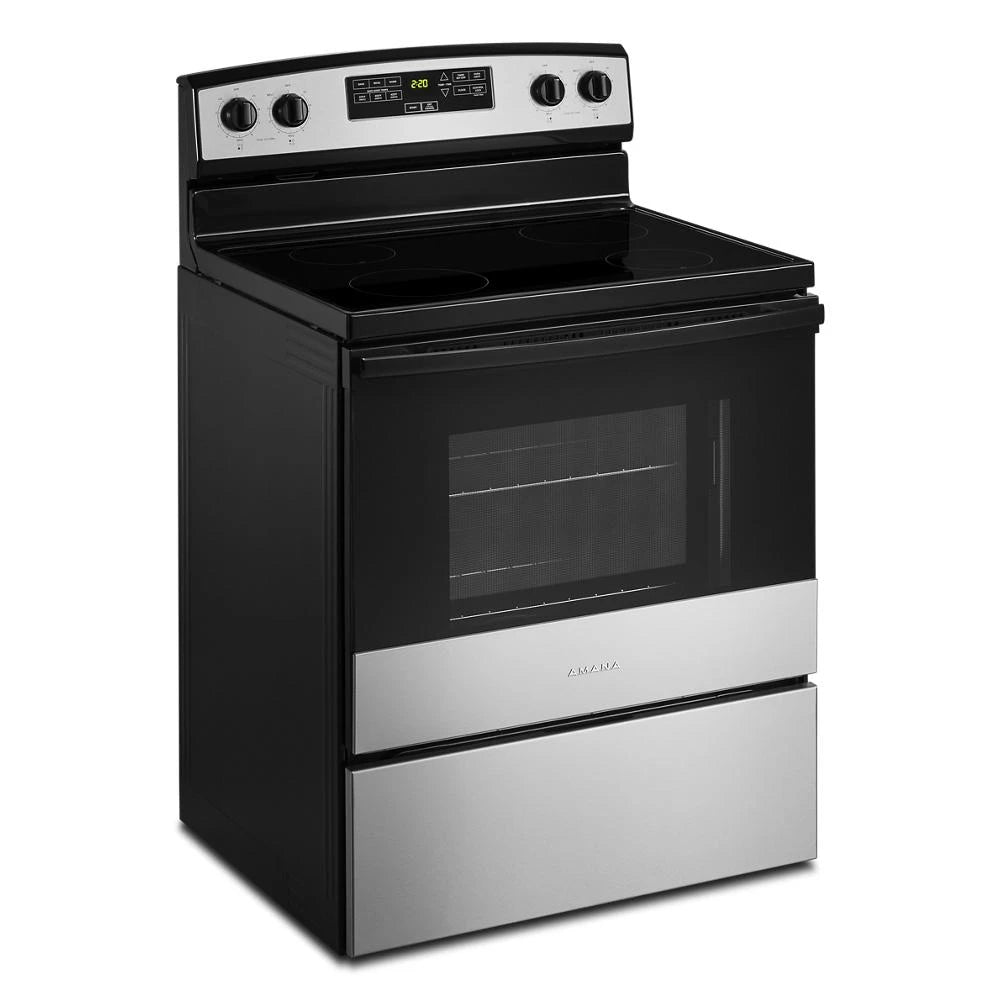

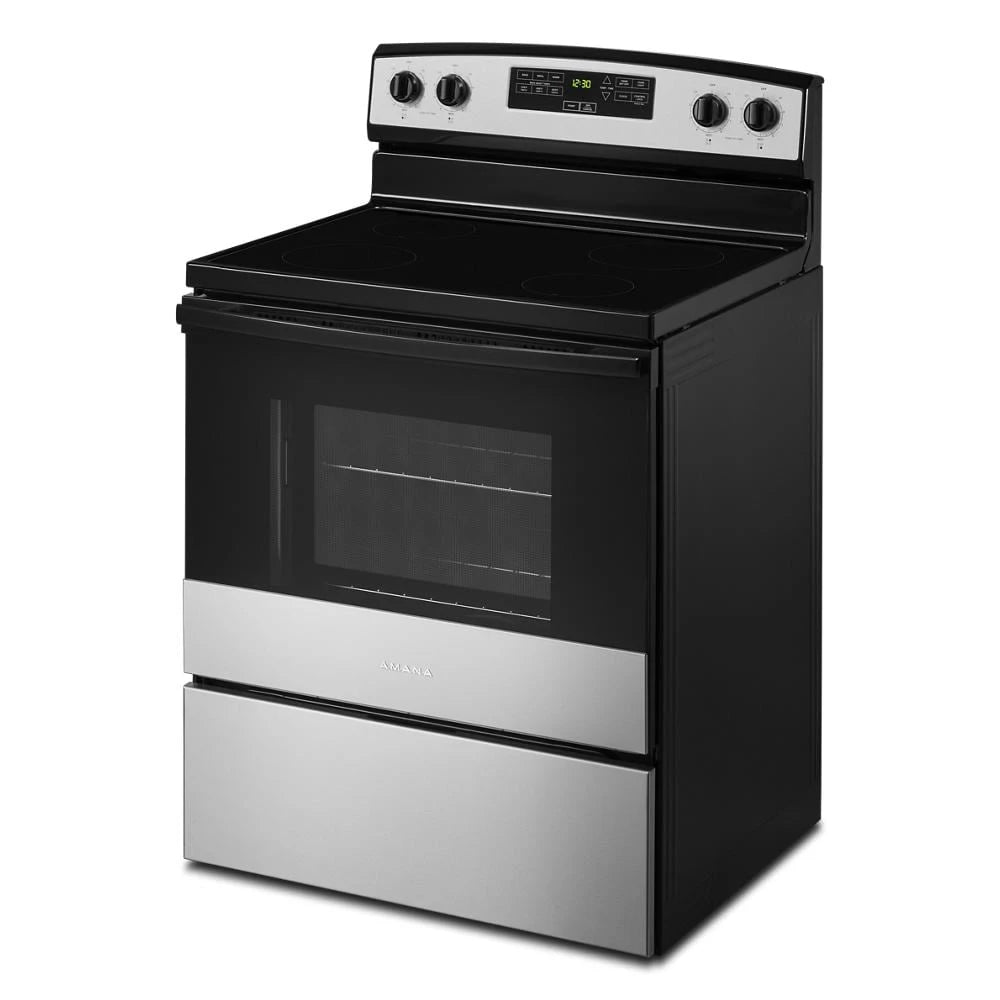

30-inch Amana® Electric Range with Extra-Large Oven Window


Product Features

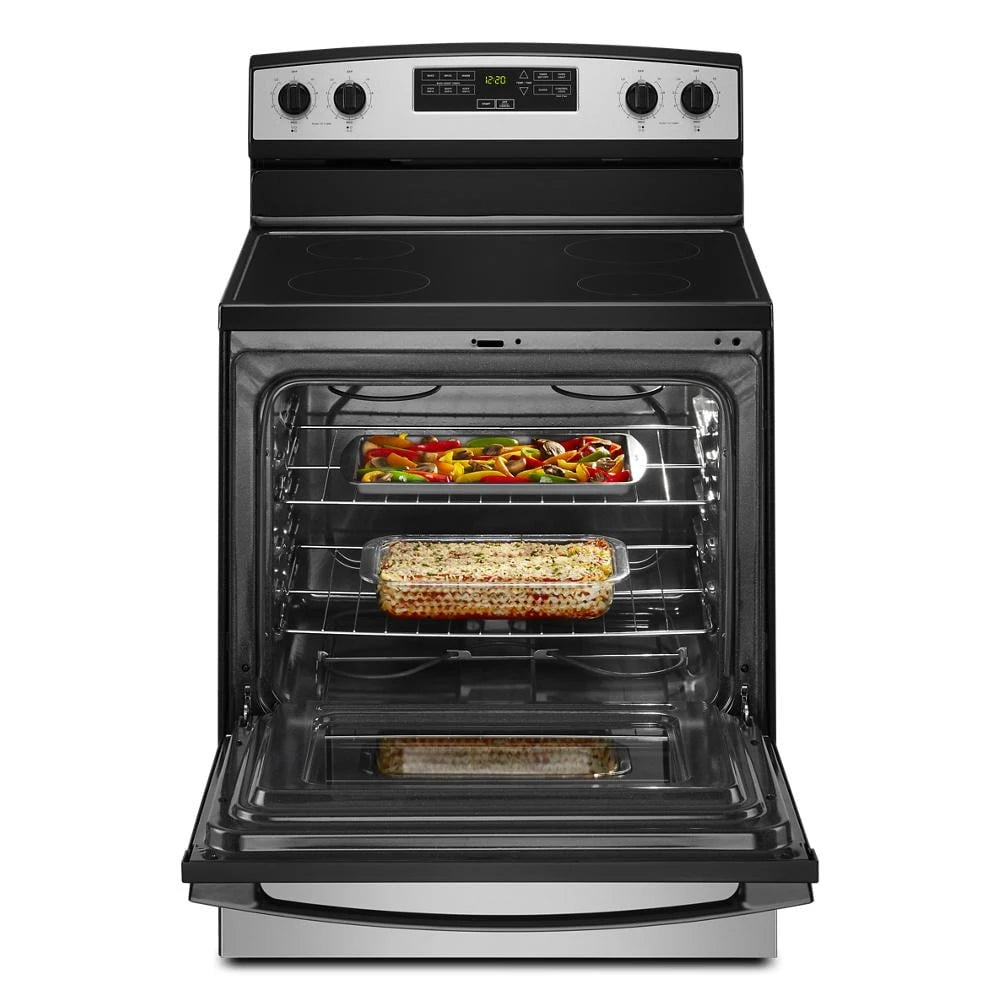

  • Large Oven Capacity (4.8 cu. ft.)
    Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

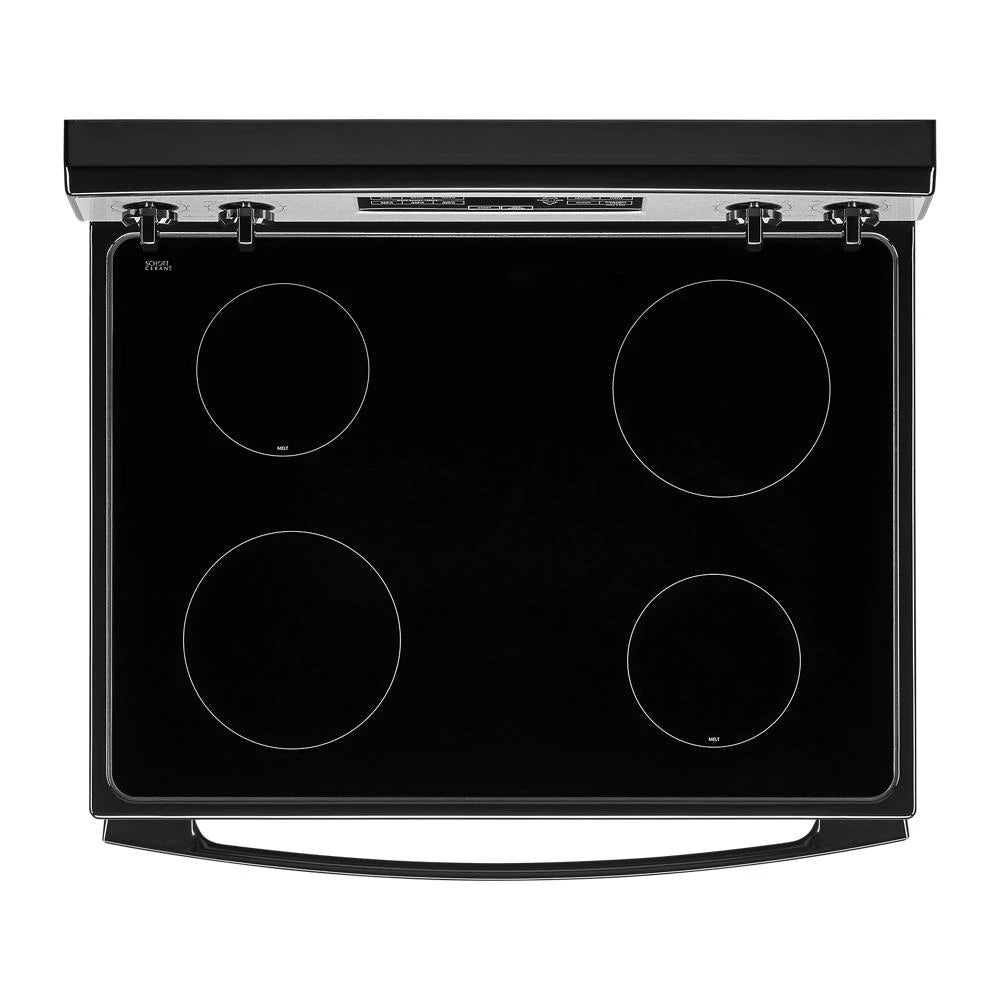

  • Versatile Cooktop
    Our Versatile Cooktop with multiple element options provides up to 1,800 watts to help you cook more of your favorites at the same time.
  • Bake Assist Temps
    Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

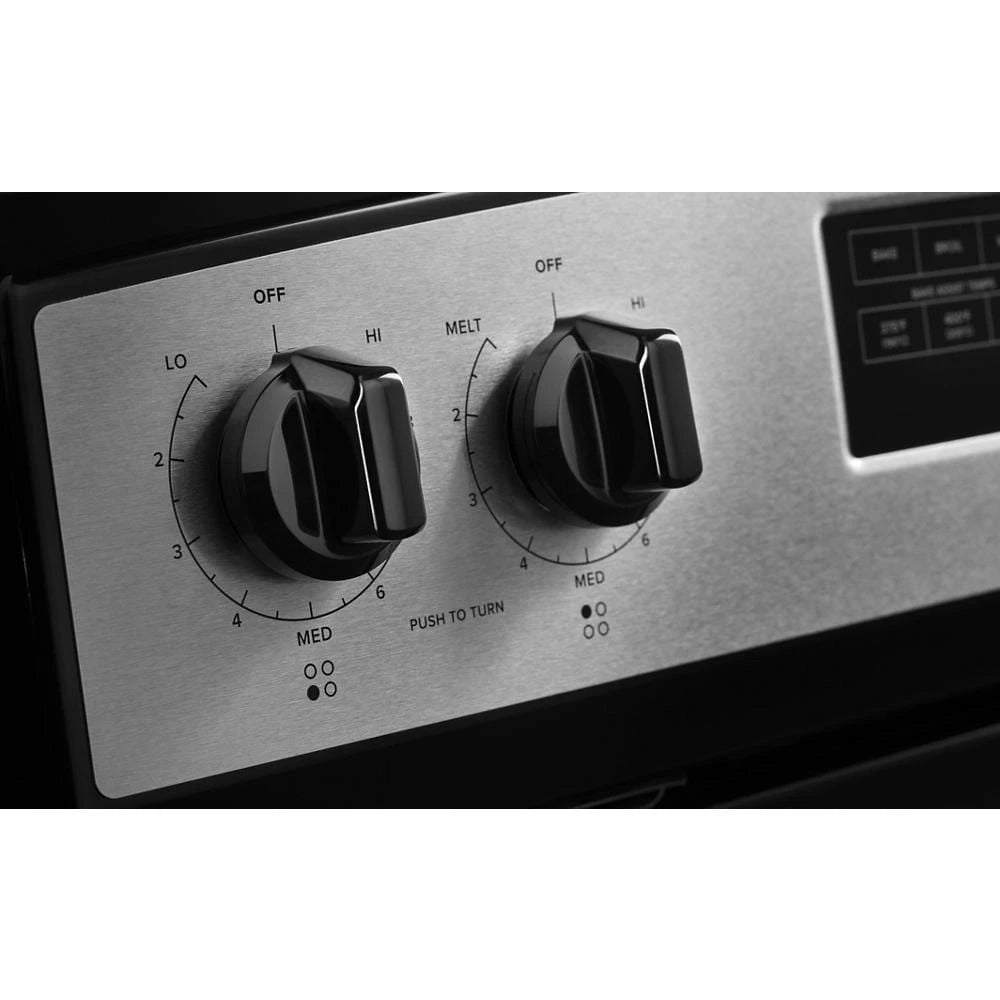

  • Easy Touch Electronic Controls Plus
    Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
