SKU: ACR4203MNS | UPC: 883049645254

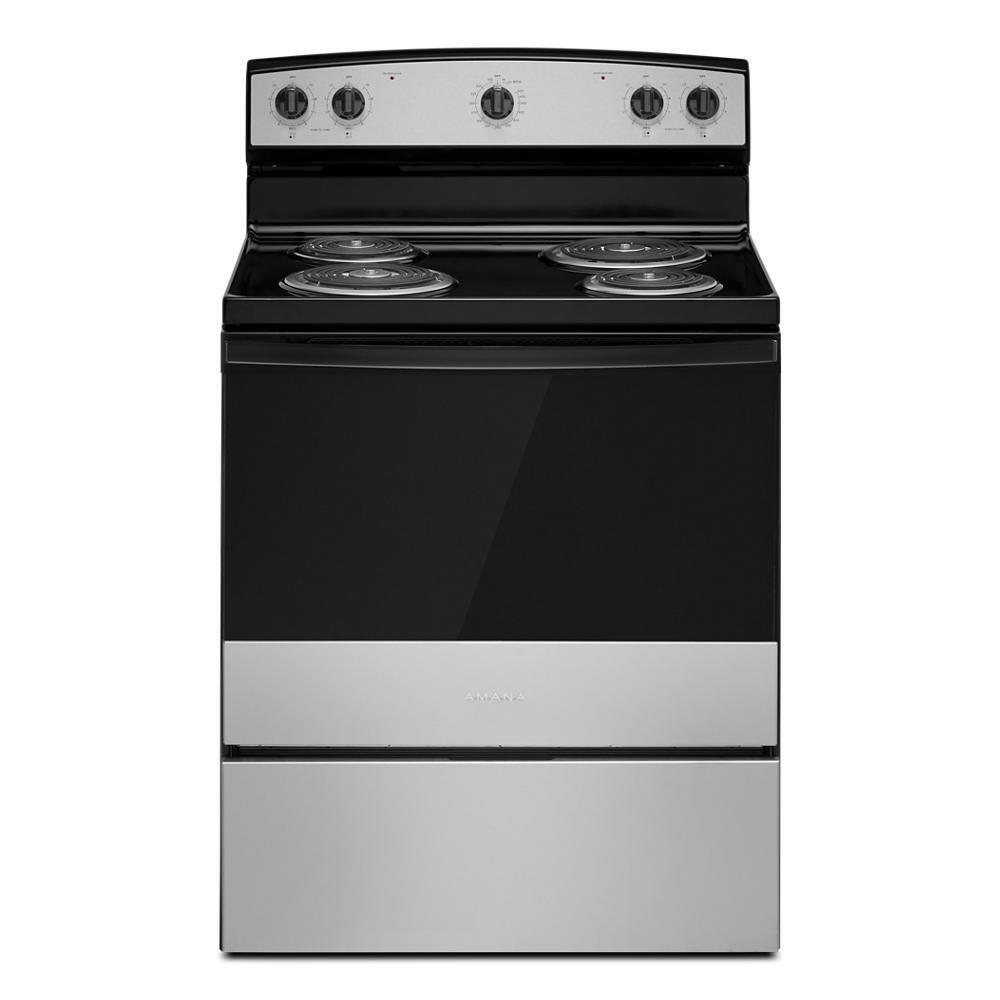

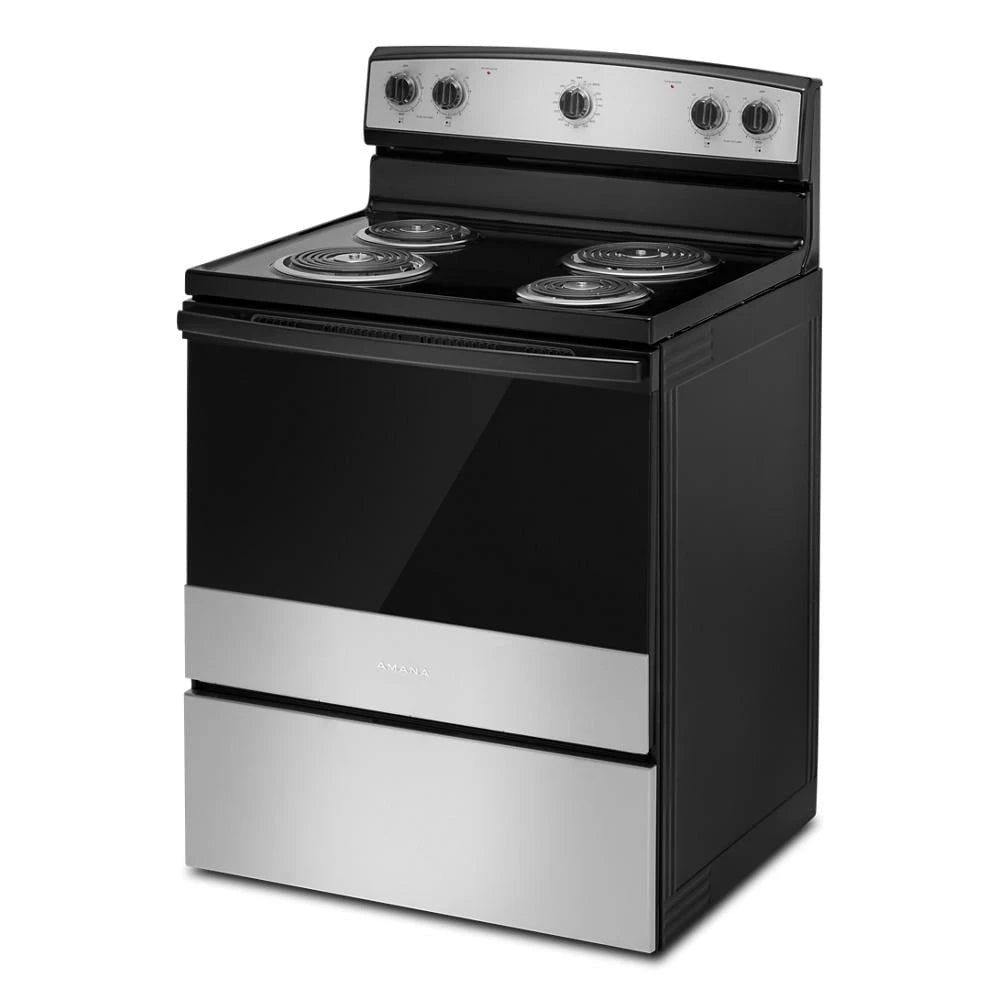

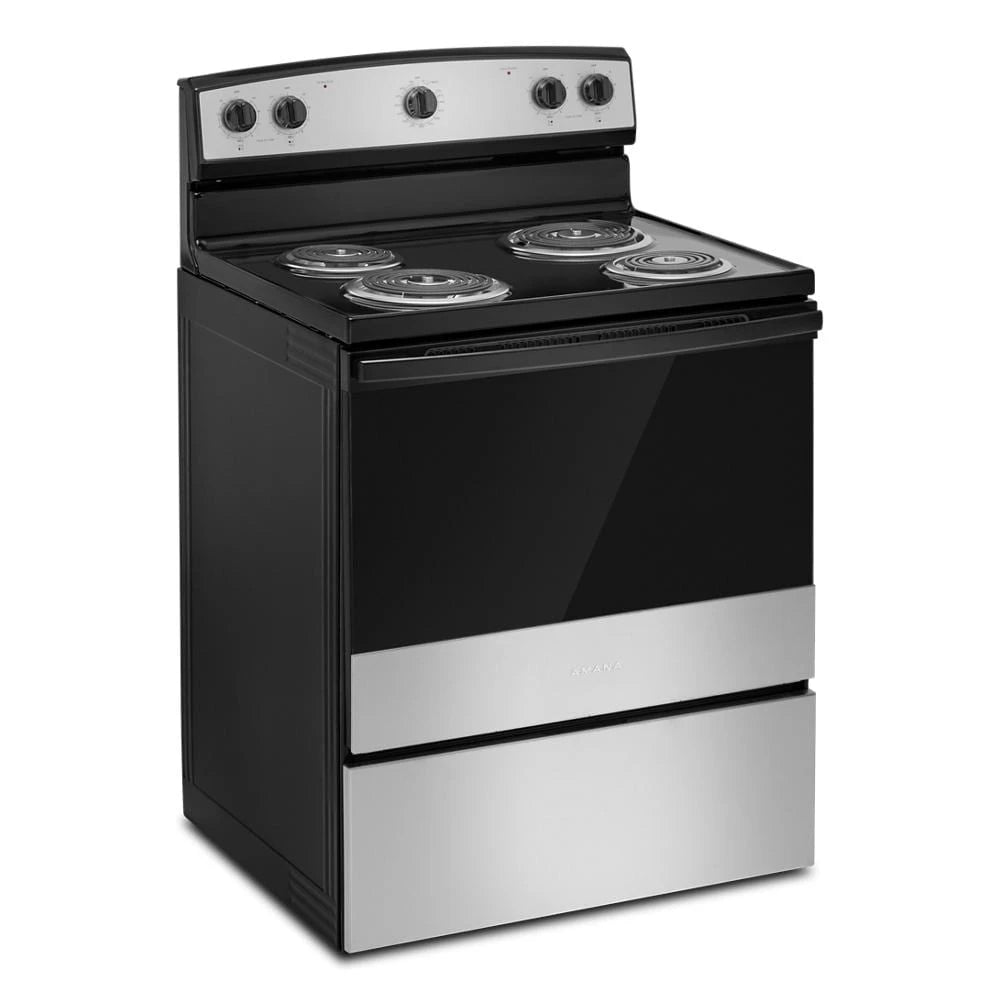

Amana ACR4203MNS 30-inch Electric Range with Easy-Clean Glass Door Stainless Steel

Quick Specification More details

Width:
29.88"
Depth:
27.75"
Height:
46.88"
Type:
Freestanding Ranges

About this product

Easy-Clean Glass Door
Large Oven Capacity (4.8 cu. ft.)
Versatile Cooktop
SpillSaver™ Upswept Cooktop

SKU: ACR4203MNS | UPC: 883049645254

Amana ACR4203MNS 30-inch Electric Range with Easy-Clean Glass Door Stainless Steel

Discontinued

Active Rebates

Color:

Amana ACR4203MNS 30-inch Electric Range with Easy-Clean Glass Door Stainless Steel

ACR4203MNS

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

30-inch Electric Range with Easy-Clean Glass Door

Quick Specification More details

Width:
29.88"
Depth:
27.75"
Height:
46.88"
Type:
Freestanding Ranges

About this product

Easy-Clean Glass Door
Large Oven Capacity (4.8 cu. ft.)
Versatile Cooktop
SpillSaver™ Upswept Cooktop

Product Details for Amana ACR4203MNS

Technical Details

Details

Oven Automatic Shut-Off	No
Cooktop Configuration	All Burners
Fuel Type	Electric
LP Convertible	No
Power On Indicator Light	Yes
Power Outage Compatible	No
Range Type	Freestanding
Automatic Convection Conversion Temperature Adjust	No
Oven Selections	Bake; Broil; Keep Warm/Warm Hold

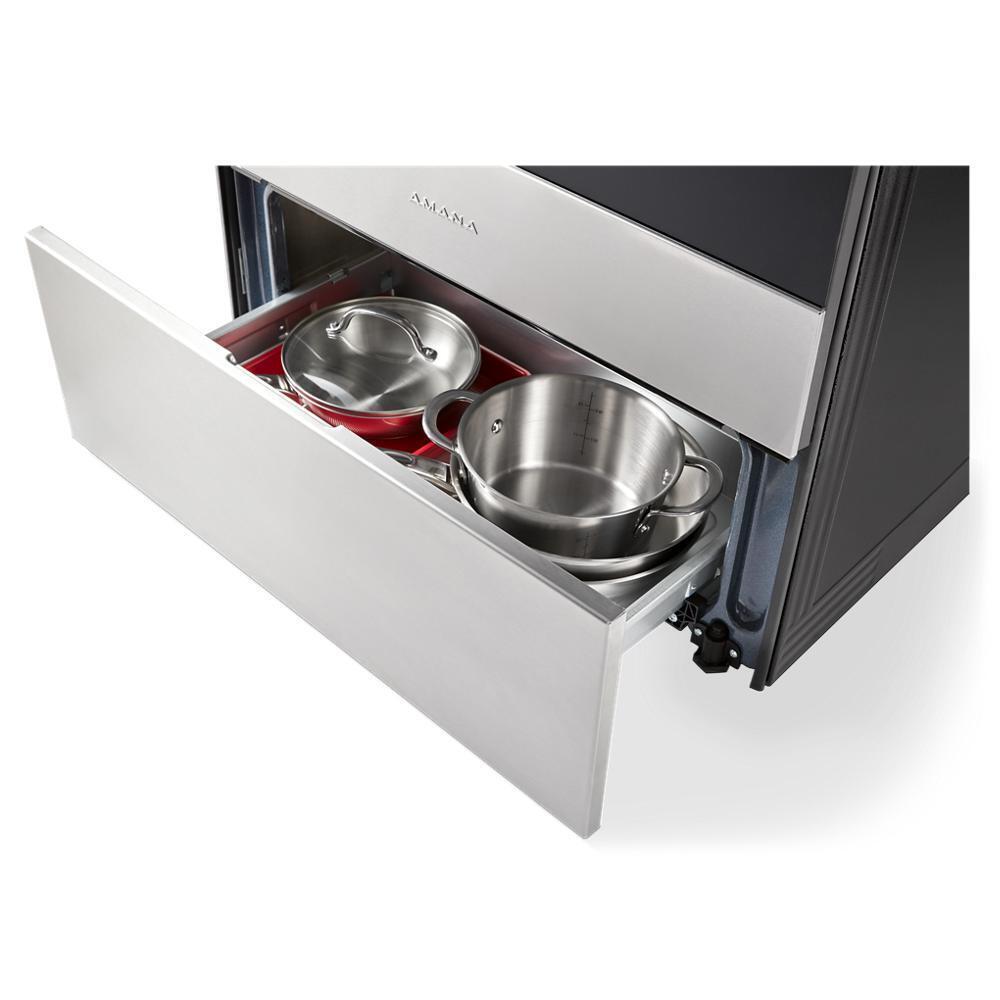

Range Drawer Type	Storage Drawer

Cooktop details

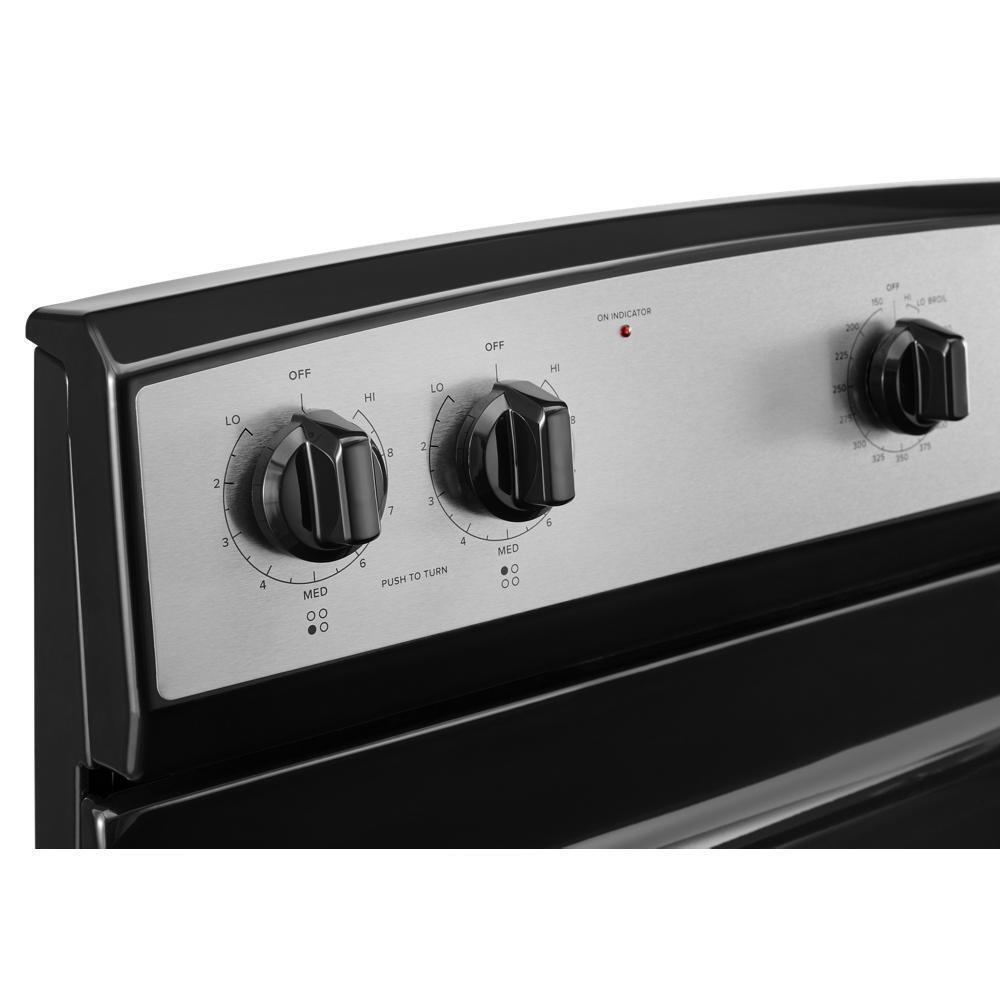

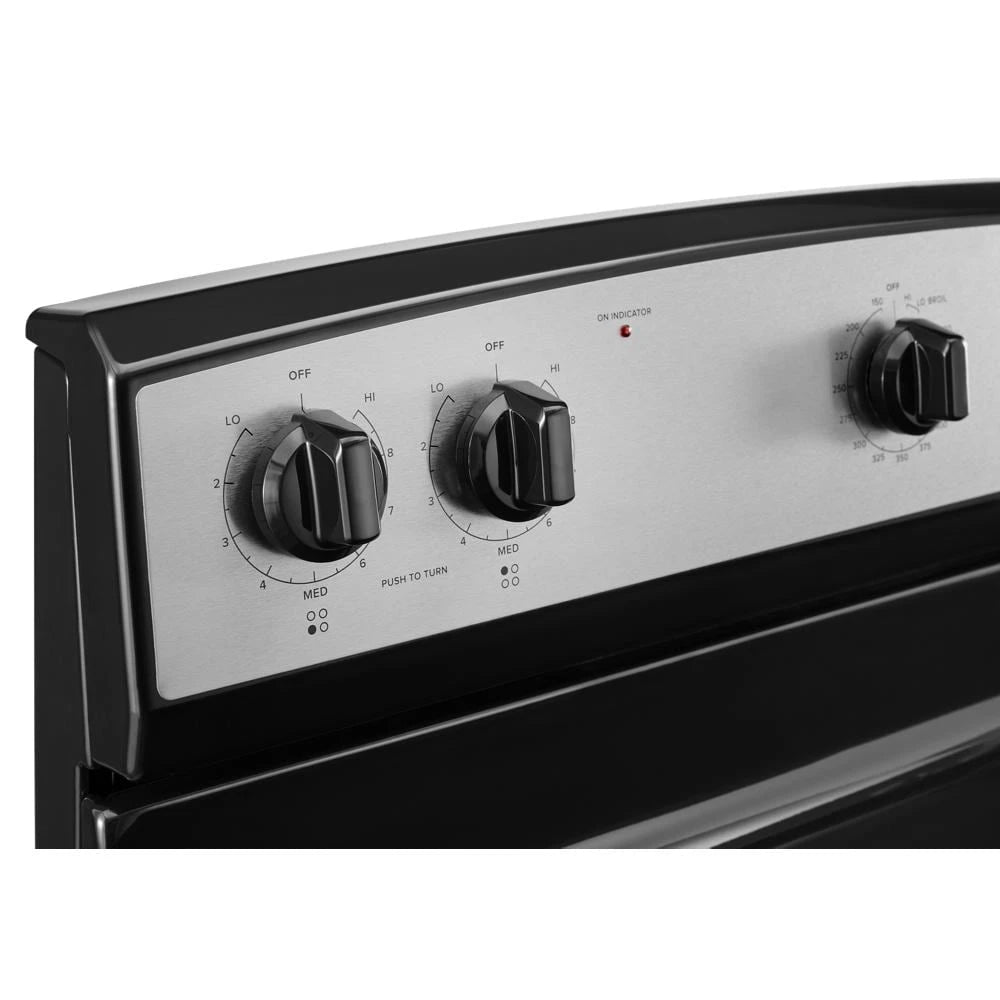

Cooktop Control Knob Type	Dishwasher Safe Plastic

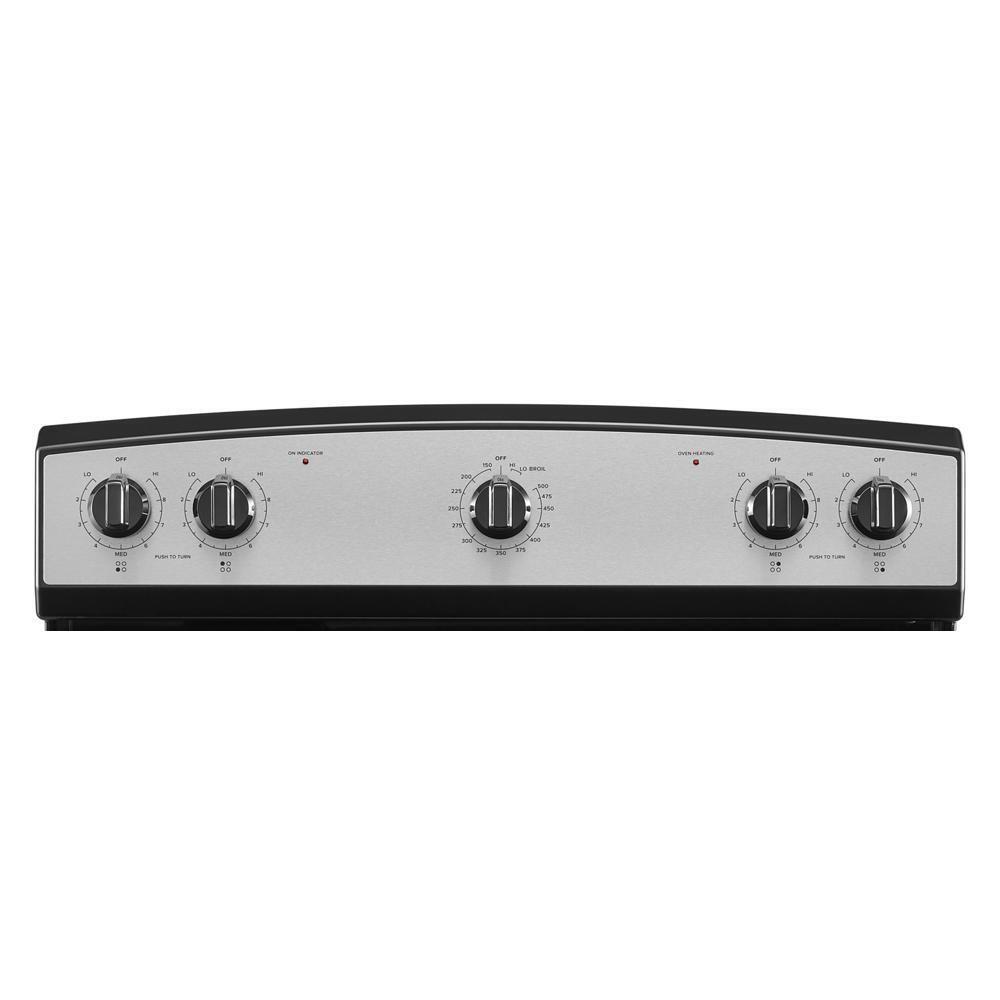

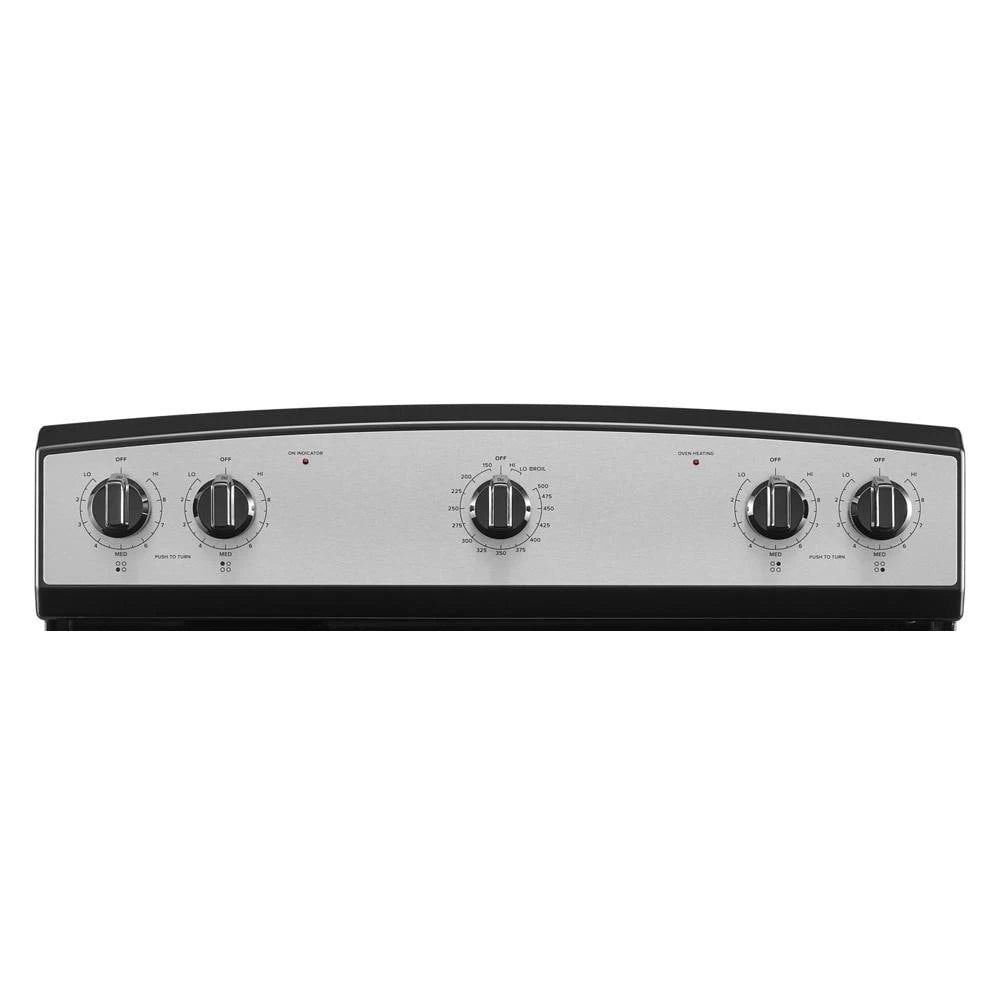

Cooktop Control Location	Backguard
Cooktop Control Type	Knobs
Cooktop Surface Material	Porcelain Coated Steel
Griddle Included	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	No

Certifications

UL	Yes
prop65	CA

Electrical

Power Cord Included

Other

Capacity (Cu Ft)

4.80

Dimensions & weight

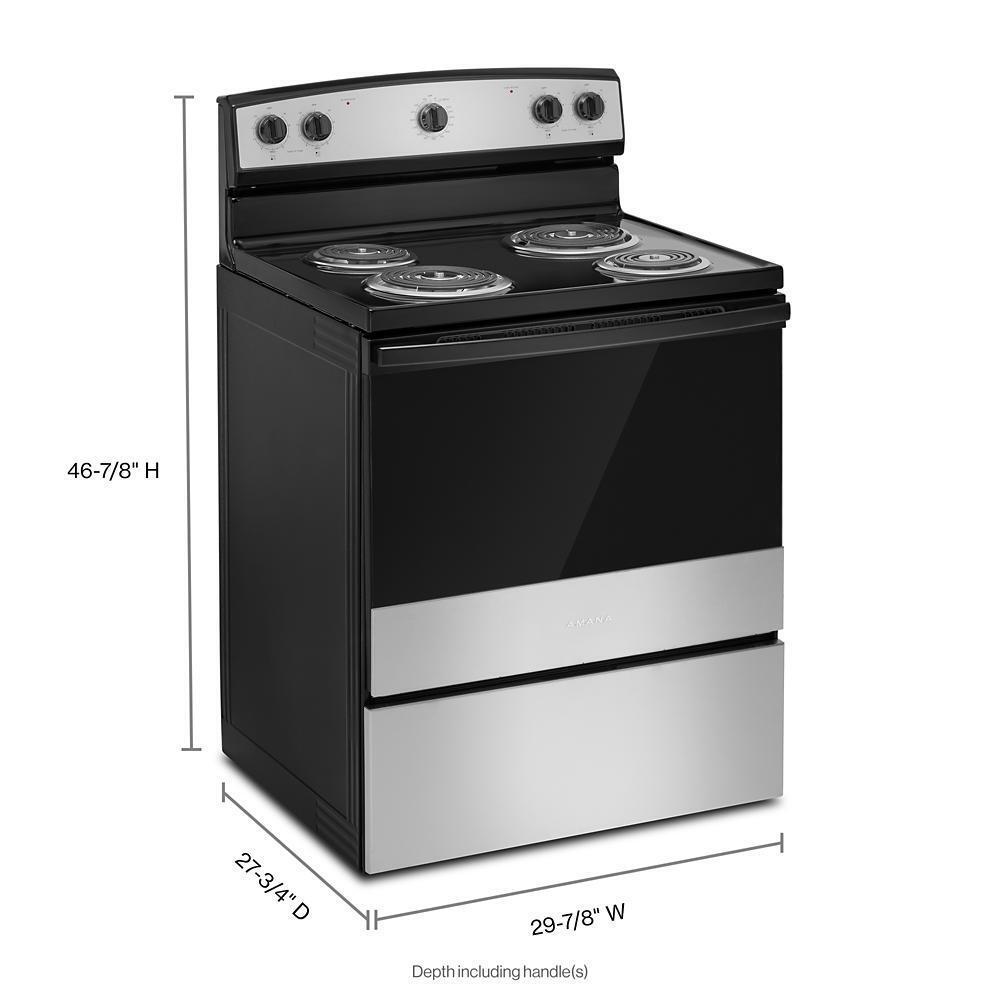

Width	29.88 in.
Height	46.88 in.
Length	27.75 in.
Weight	127 lbs.
Carton Depth	29
Carton Height	48 3/4
Carton Width	32
Cutout Depth (in)	24
Cutout Height (in)	36
Cutout Width (in)	30
Depth Closed Excluding Handles	25 5/16
Depth Closed Including Handles	27 3/4
Depth With Door Open 90 Degree	46 11/16
Gross Weight	142
Maximum Height	47 7/8
Minimum Height	46 7/8
Net Weight	127.0
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	36.0000
Cutout Width(IN,inches)	30.0000
Depth Closed Excluding Handles(IN,inches)	25.3125
Depth Closed Including Handles(IN,inches)	27.7500
Depth With Door Open 90 Degree(IN,inches)	46.6875
Maximum Height(IN,inches)	47.8750
Minimum Height(IN,inches)	46.8750
Carton Depth(IN,inches)	0.0000
Carton Height(IN,inches)	0.0000
Carton Width(IN,inches)	0.0000
Width	32 in.
Height	48.75 in.
Length	29 in.
Gross Weight	142 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	51.88 in.
Shipping Length	32.75 in.
Shipping Weight	167 lbs.
Total of Shipping Weight	167 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	22.49 ft³
Dimensional Weight	279.57 lbs.
Total of Cubes	22.49 ft³
Total of Dimensional Weight	279.57 lbs.

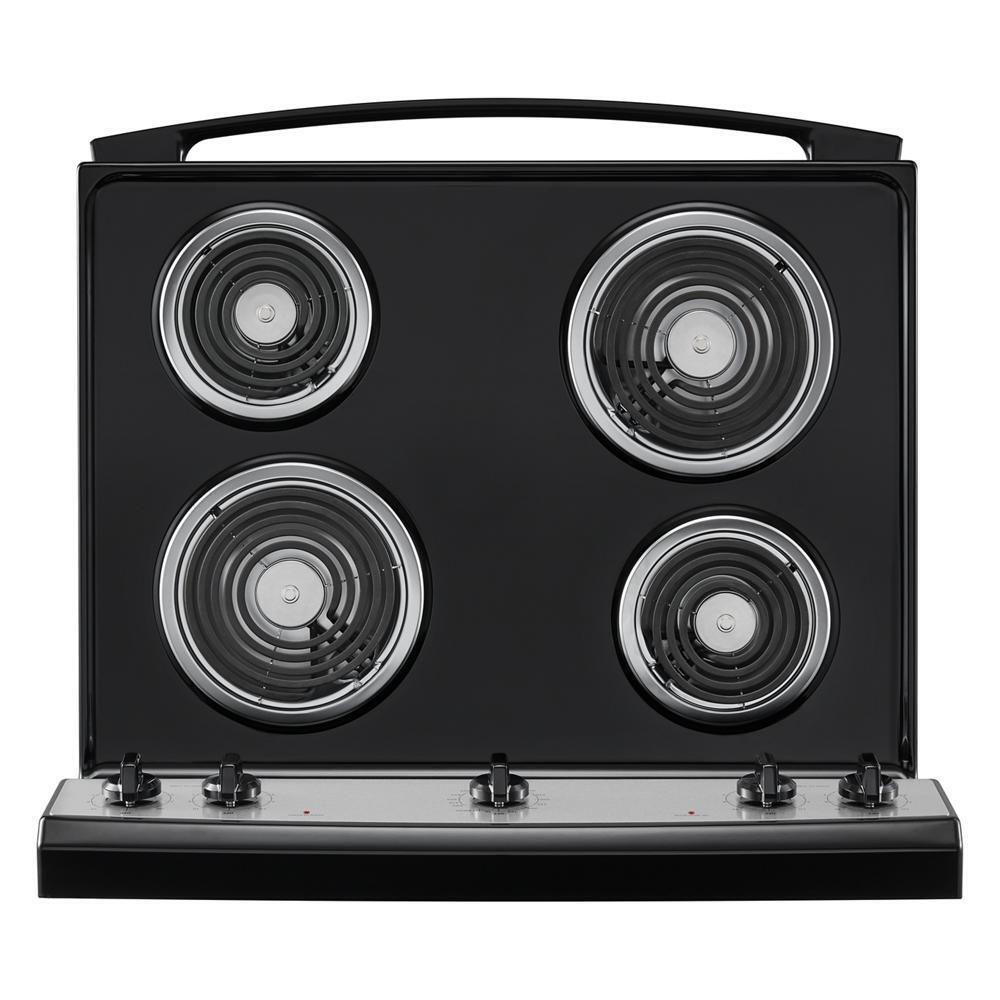

Element/burner details

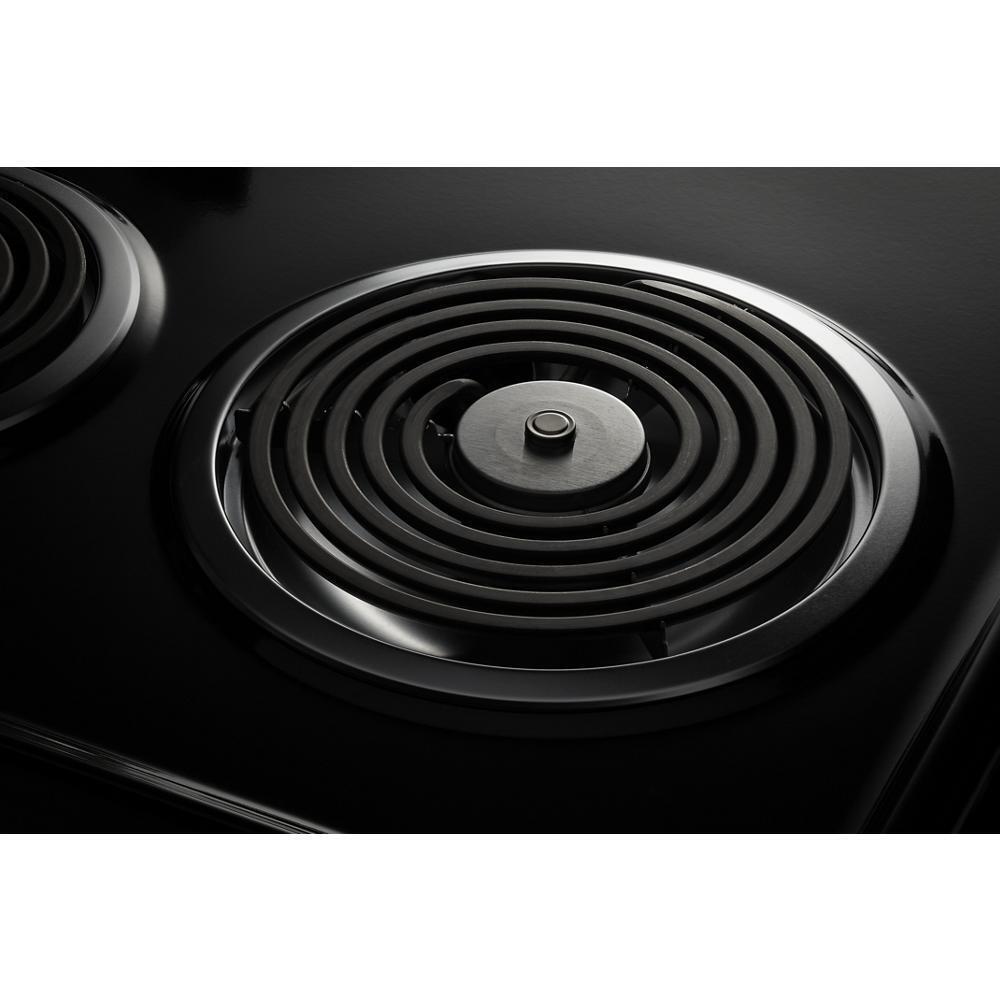

Cooktop Element Style	Coil
Left Front Element-Burner Size	8in.
Left Front Element-Burner Type	Standard
Left Rear Element-Burner Size	6in.
Left Rear Element-Burner Type	Standard
Number of Cooking Element-Burners	4
Right Front Element-Burner Size	6in.
Right Front Element-Burner Type	Standard
Right Rear Element-Burner Size	8in.
Right Rear Element-Burner Type	Standard
Left Front Element-Burner Power	2, 400W
Left Rear Element-Burner Power	1, 500W
Right Front Element-Burner Power	1500W
Right Rear Element-Burner Power	2, 400W

Exterior details

Oven Control Knob Type	Dishwasher-Safe Plastic
Oven Control Location	Backguard
Oven Control Type	Knobs
Oven Window Size	None
Door Type	Glass

Dimensions

Cutout Depth	24
Cutout Height	36
Cutout Width	30
Depth Closed Excluding Handles	25.313
Depth Closed Including Handles	27.75
Depth With Door Open 90 Degree	46.688
Oven Interior Depth	18.5
Oven Interior Width	24.5
carton depth	29
carton height	48.75
carton width	32
net weight	127
Oven Interior Height	18.125
gross weight	142

Oven details

Bake Element Power	2, 400 W
Broiler Element Power	3, 400 W
Broiler Location	Top of Oven
Convection Element Type	None
Door Removable	Yes
Hidden Bake Element	No
Natural Gas Convertible	No
Number of Oven Lights	None

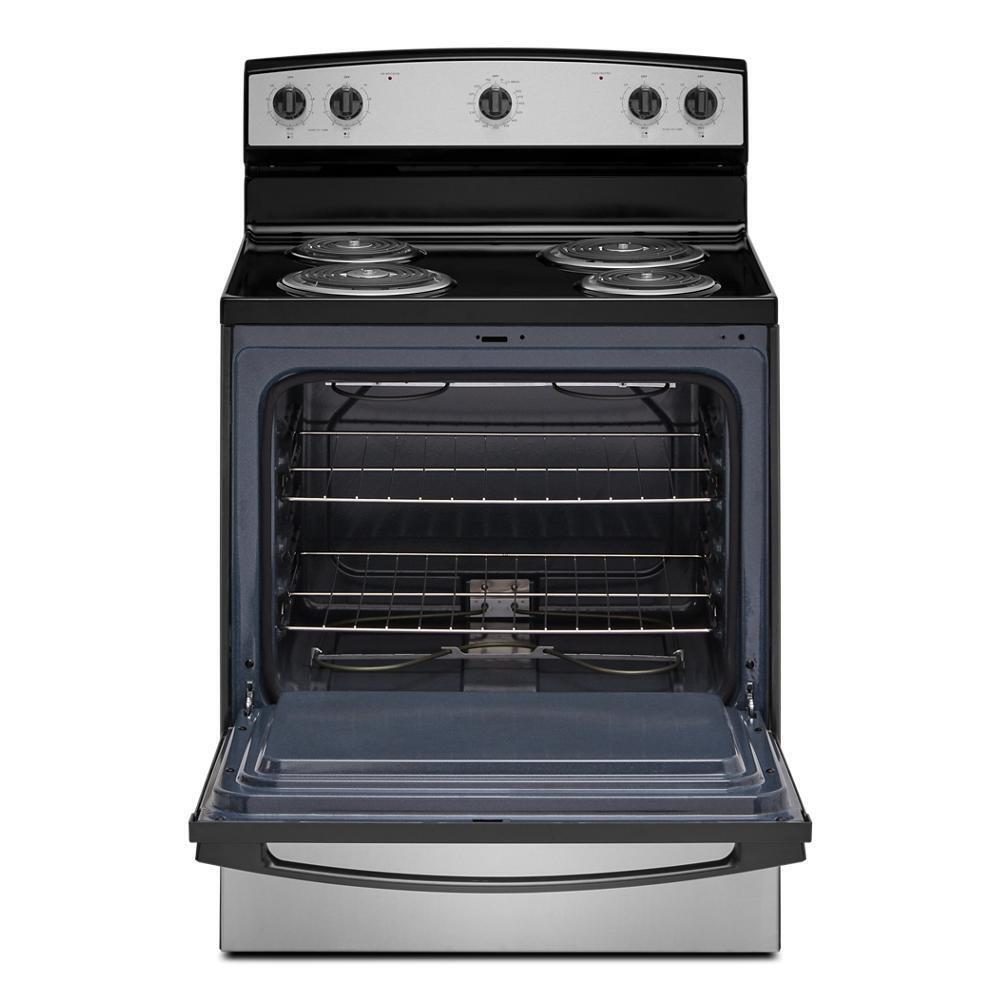

Number of Oven Racks	2
Number of Rack Guides	5
Oven Cleaning Type	Manual Clean
Oven Cooking System	Thermal
Oven Rack Type	2 Standard

Capacity

Volume

26.181 Cu.Ft.

Description

Amana® 30-inch Electric Range with Easy-Clean Glass Door

Product Features

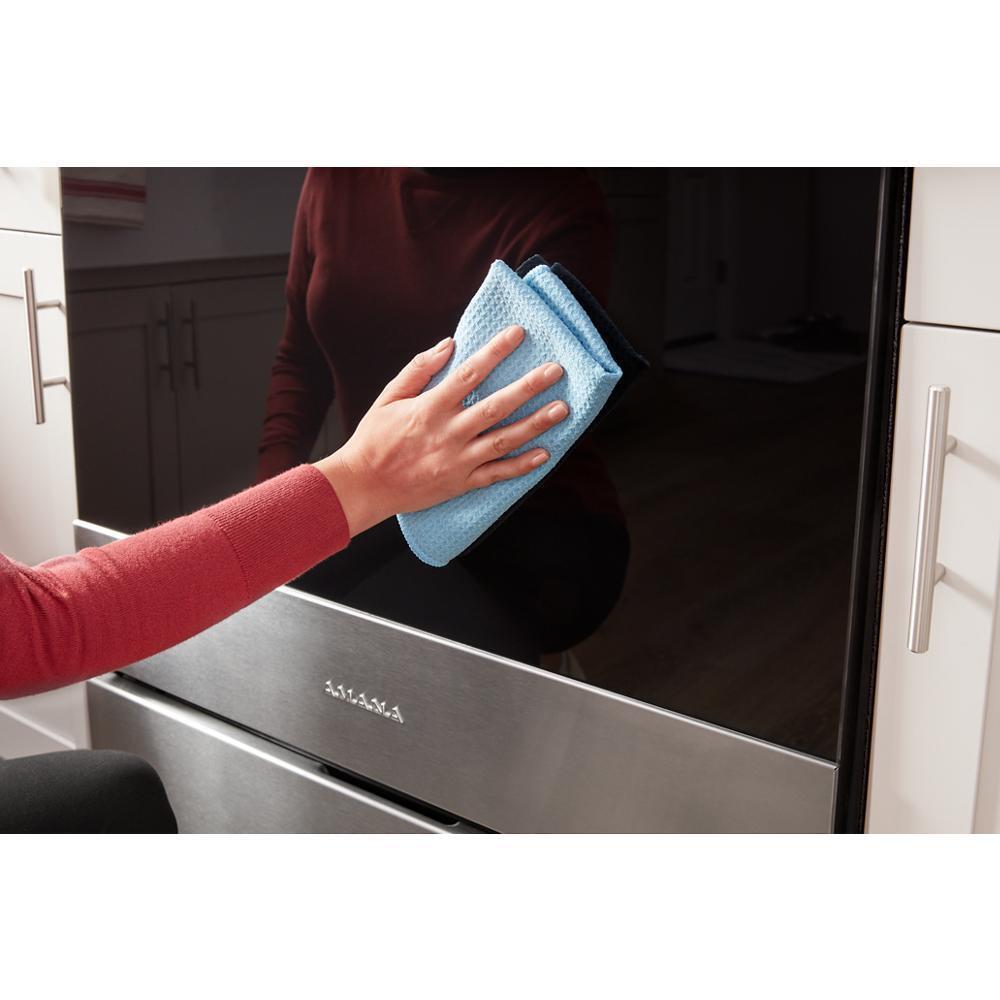

Easy-Clean Glass Door
The Easy-Clean Glass Door is smooth and flat so messes, spills and smudges just wipe away. Crumbs won't catch and splatters won't matter.

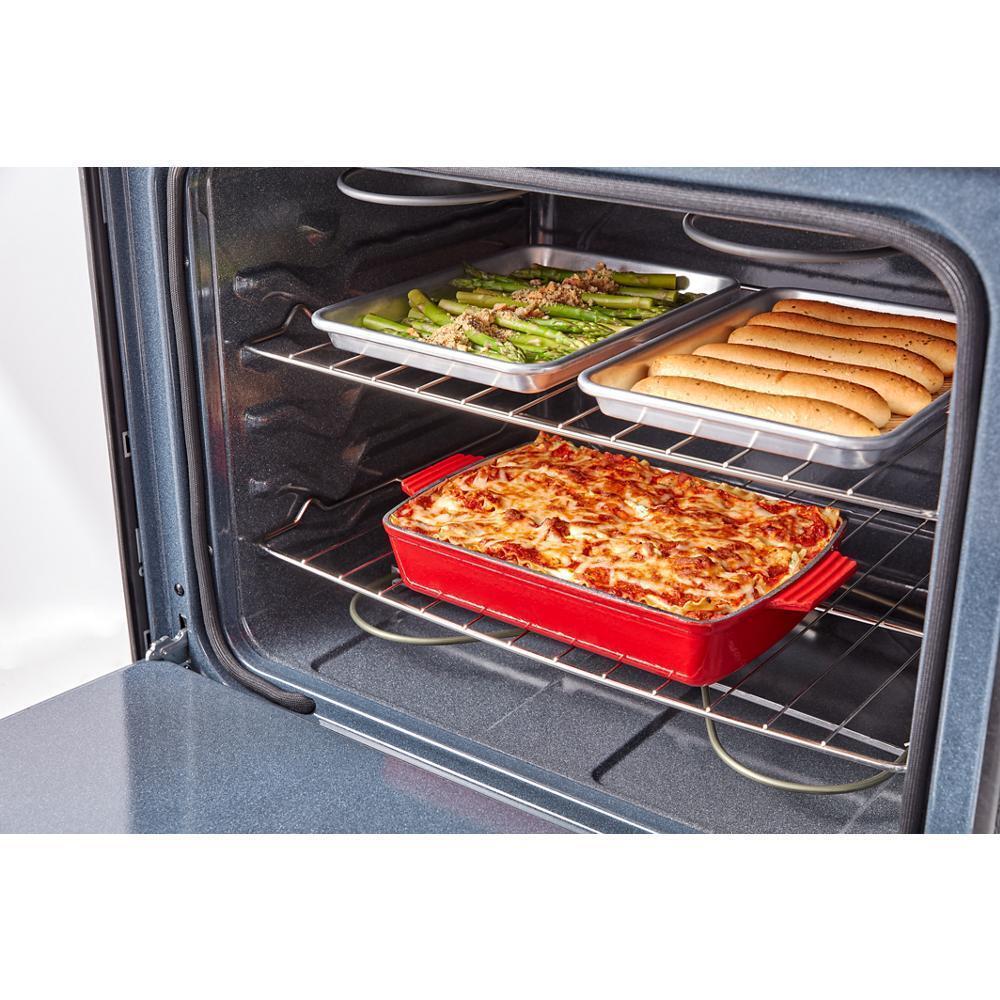

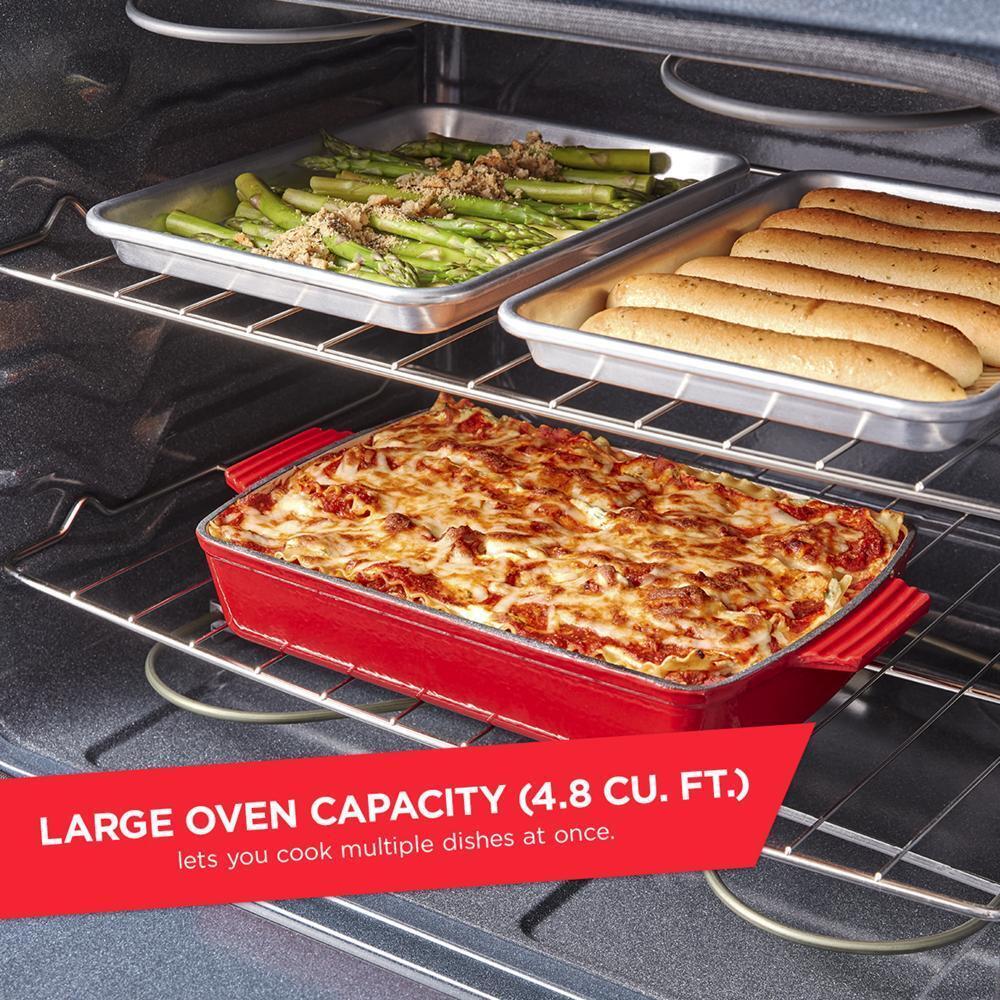

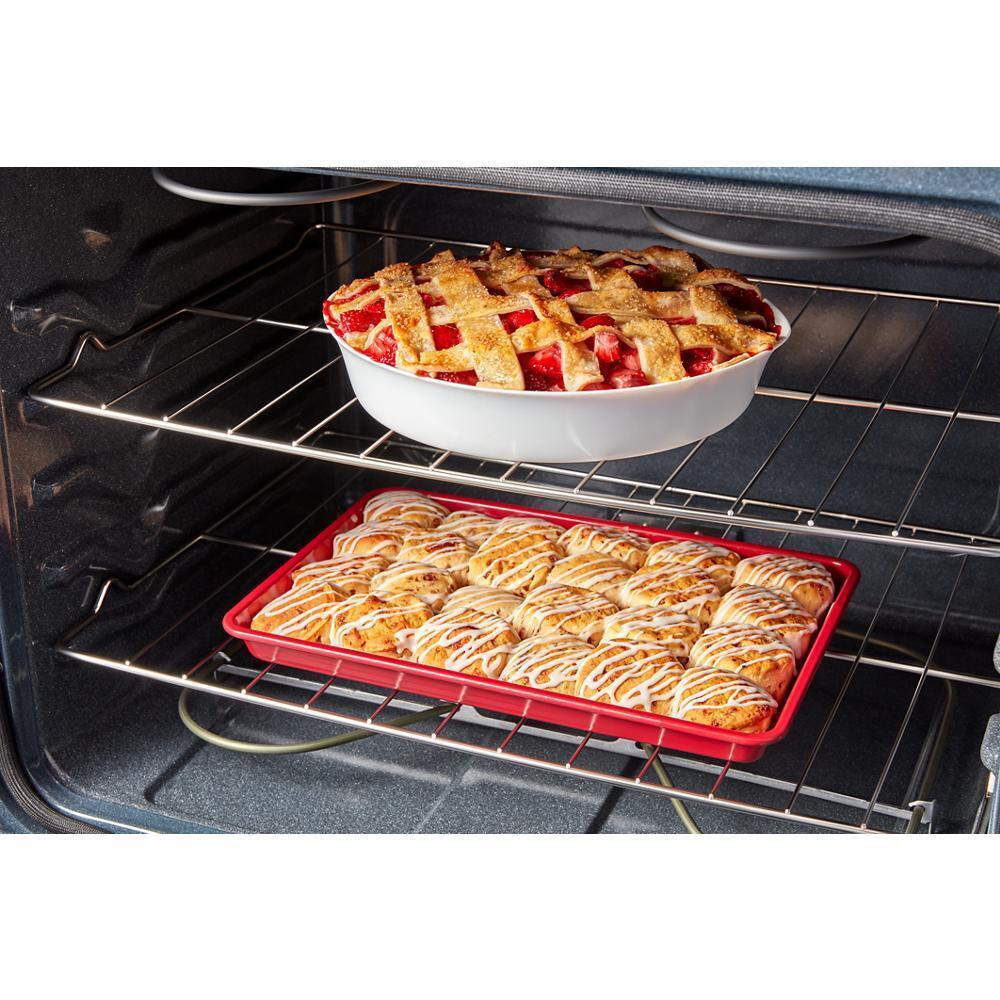

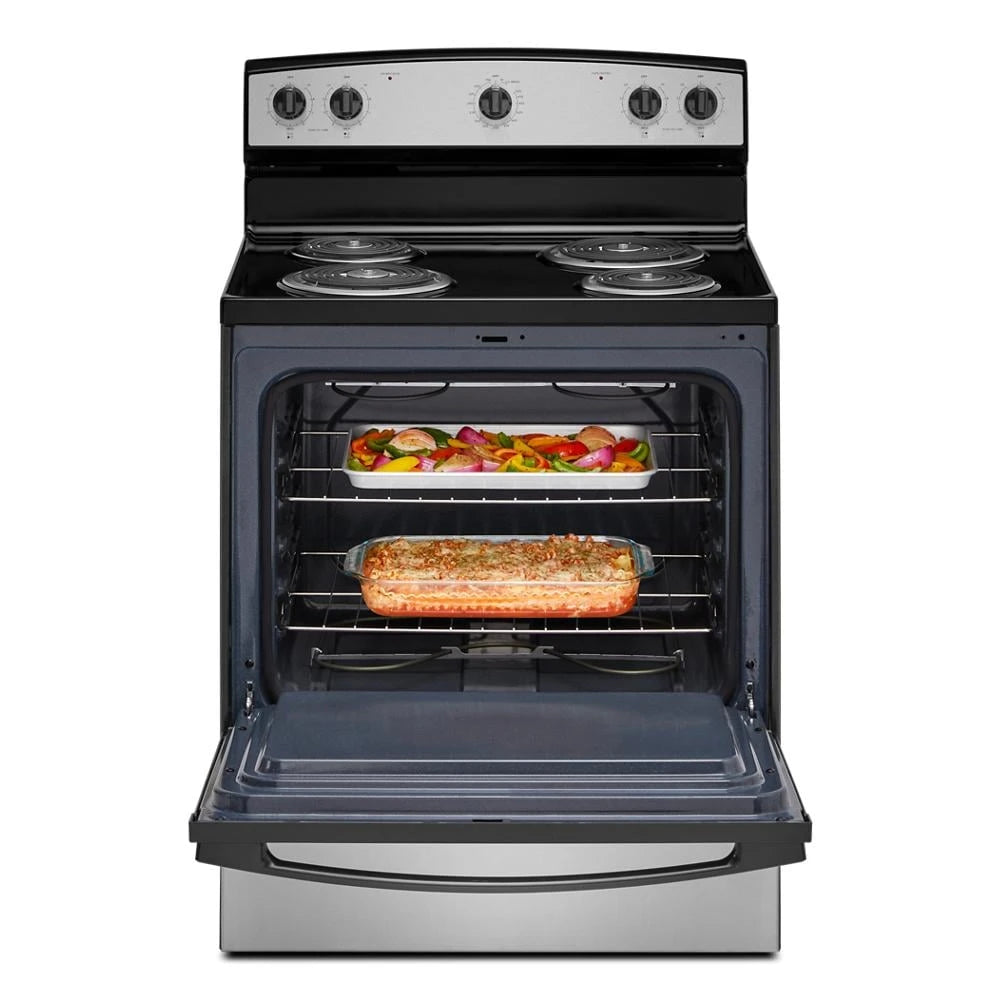

Large Oven Capacity (4.8 cu. ft.)
4.8 cu. ft. oven capacity gives you the space you need to make dinner and dessert at the same time.

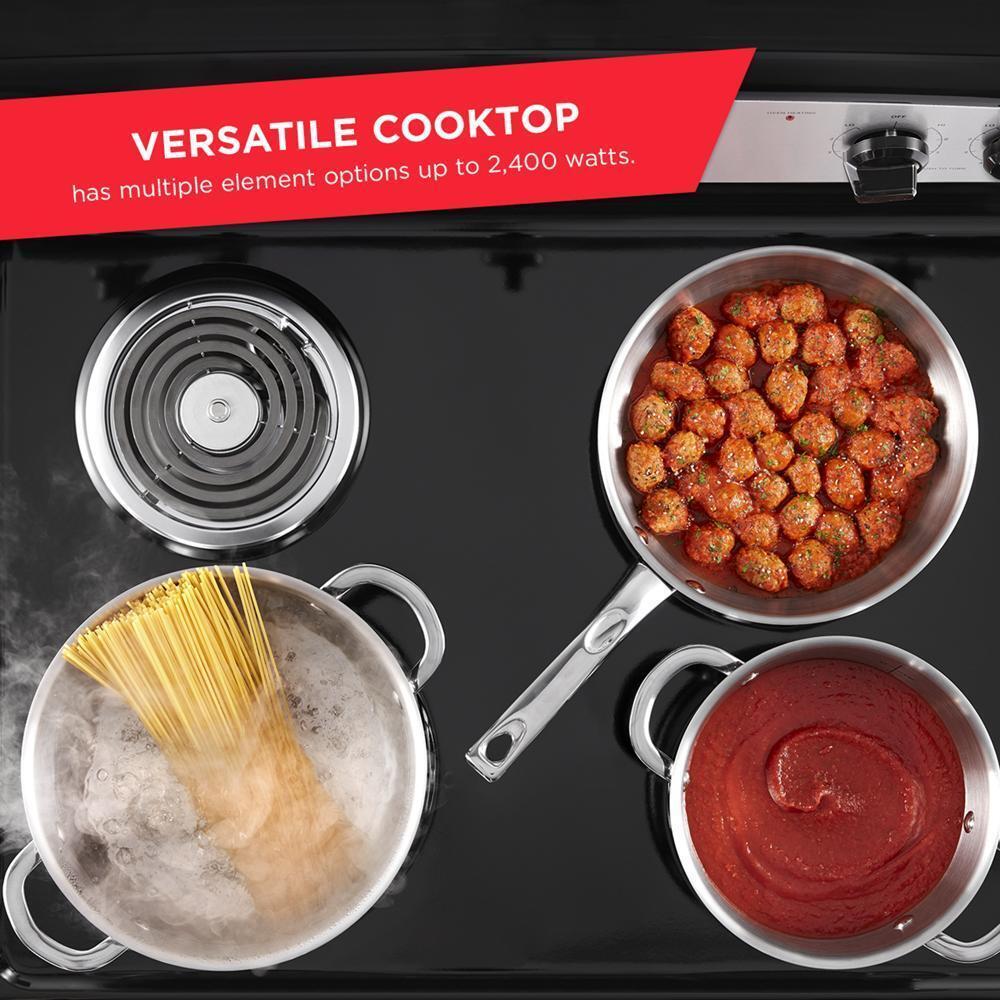

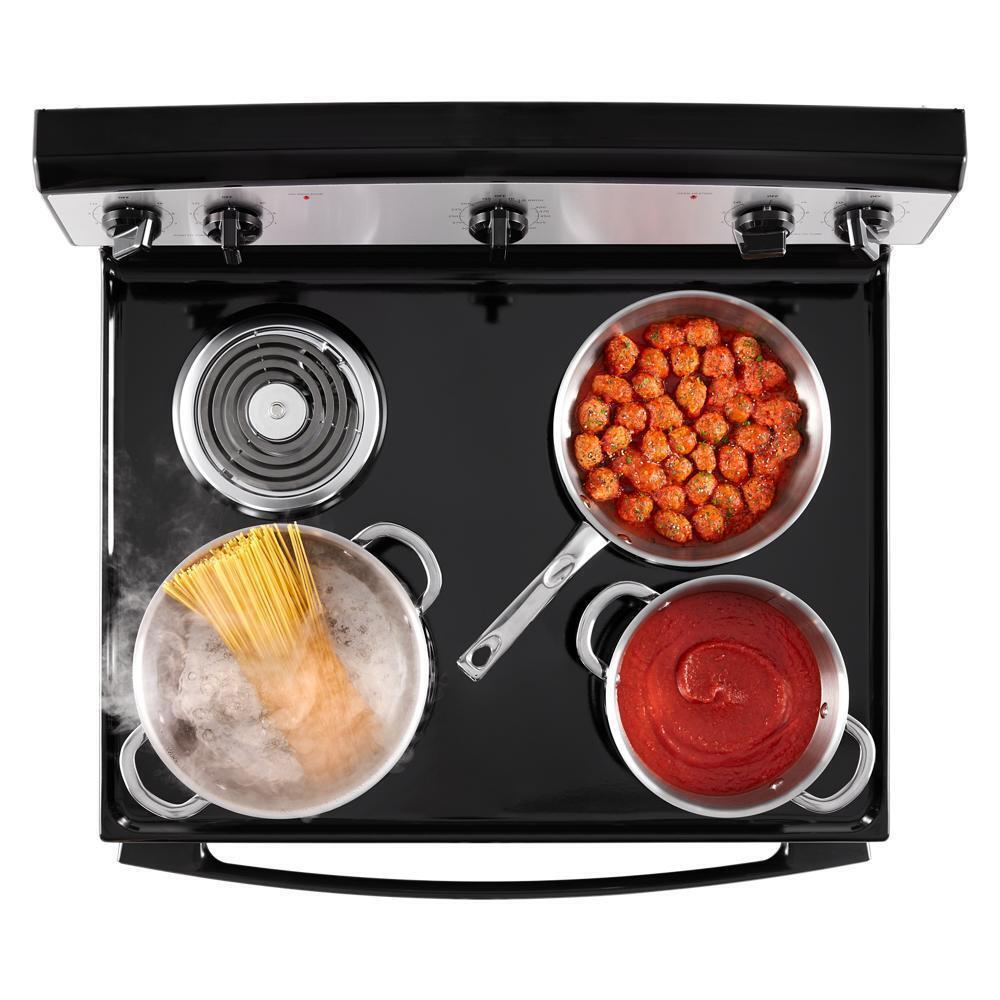

Versatile Cooktop
Our Versatile Cooktop features multiple element options and provides up to 2,400 watts on the largest burner to help you cook more of your favorites at the same time.

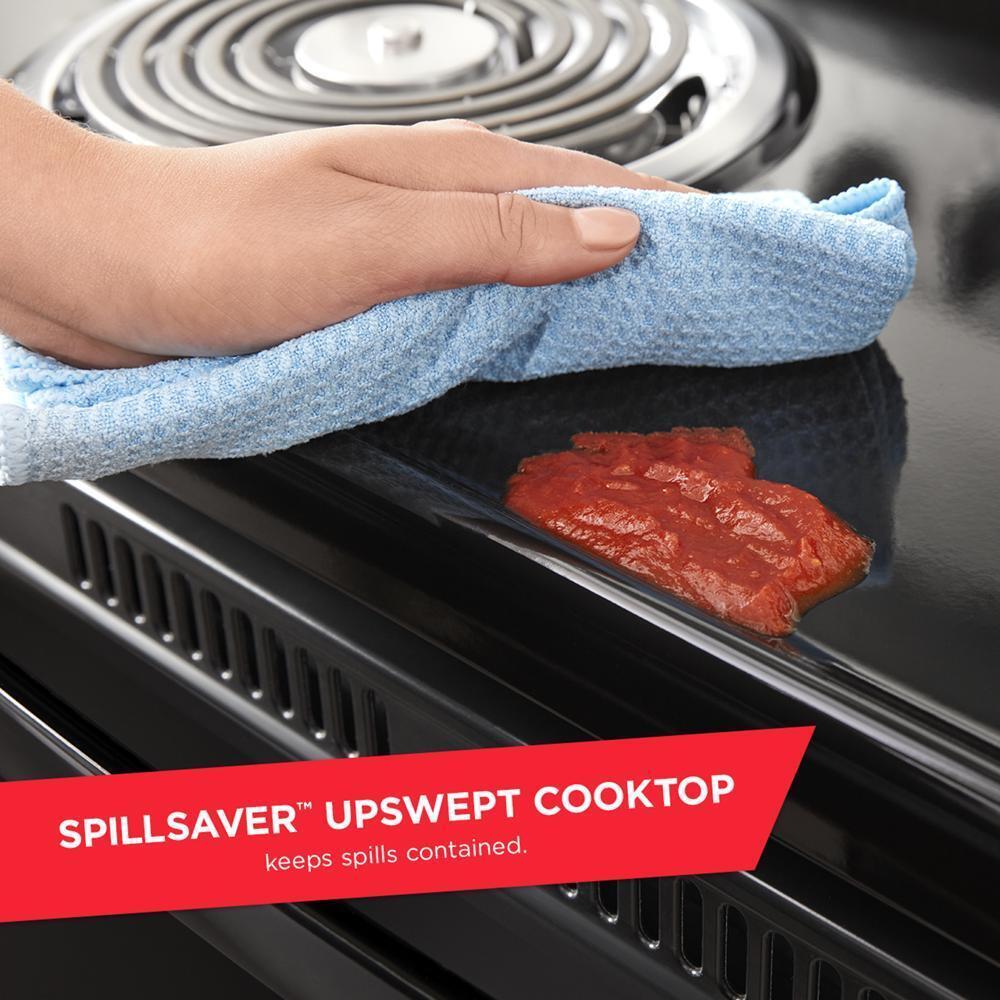

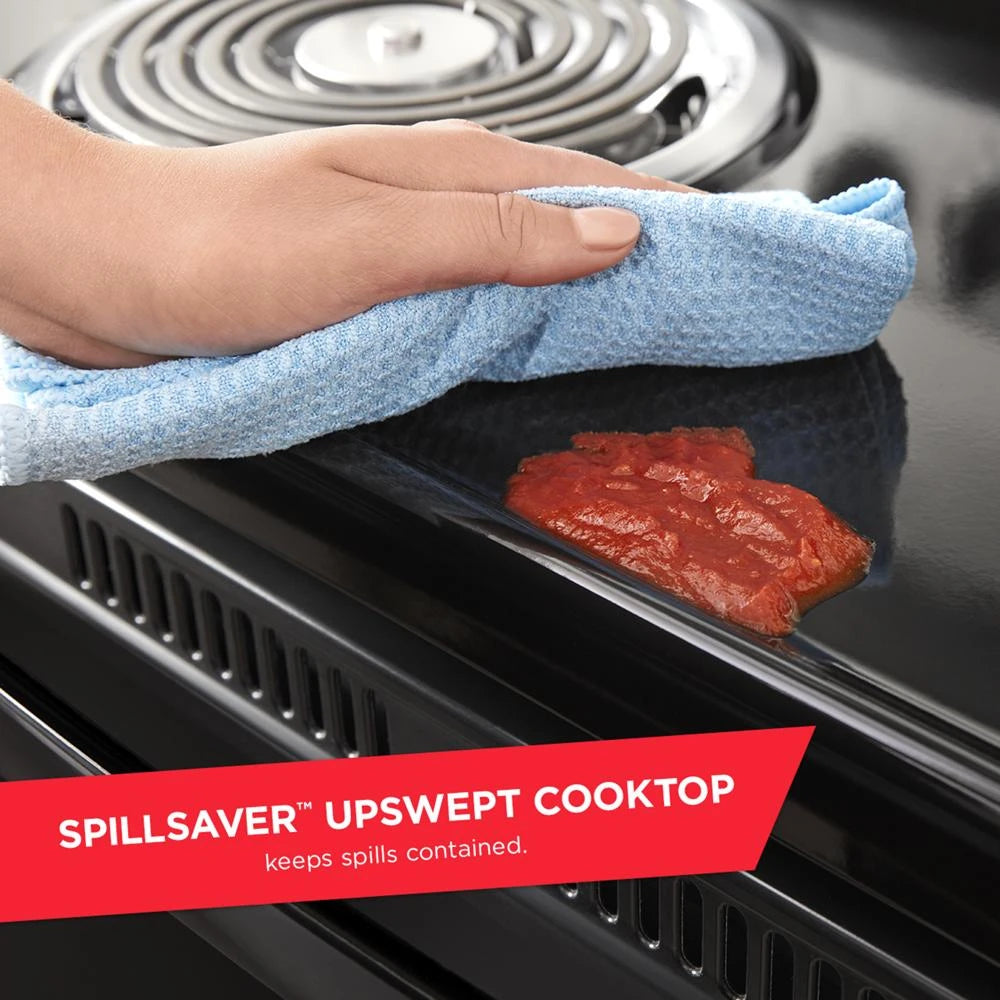

SpillSaver™ Upswept Cooktop
SpillSaver™ Upswept Cooktop comes with raised edges to keep spills contained and make cleanup a cinch. Go ahead, spill the beans.
